Egholm City Ranger 2260 User manual

Operator´s
manual
Snow Plough
City Ranger 2260/2250

2Operator’s Manual City Ranger 2260/2250 Snow Plough Operator’s Manual City Ranger 2260/2250 Snow Plough
Dear Customer
Congratulations with your Egholm product
The City Ranger 2260/2250 is a Danish designed and manufactured product which offers a very
exible way of maintaining outdoor areas.
Optimal use of your City Ranger 2260/2250 Snow plough
To ensure the optimal performance of your City Ranger 2260/2250 snow plough, please read
this operator’s manual carefully before starting to use the machine. Failure to do so can result in
personal injury and damage to the machine.
Safety
The Snow plough is equipped with various devices to ensure optimal operational safety both for the
user and the surroundings. We therefore ask you to pay particular attention to Safety section 1.1.
The machine must only be serviced by professionals.
The snow plough is designed only for use by professionals. On delivery, the user will receive
thorough training to become a competent operator.
Do not lend the machine to anyone who has not been thoroughly trained and has not read this
manual carefully.
The operator's manual should be considered a permanent part of the machine and so must remain
with it if the machine is sold.
Warnings
Some items in this operator's manual are marked with this warning symbol.
The warning indicates areas where extra care has to be taken to avoid personal injury or
damage to the machine and its accessories. The warning also shows
what you should pay special attention to.
Reservations
As it is the Egholm policy to make continuous improvements, we reserve the right to alter the
specications and equipment at any time without notice. Nlsk Outdoor accepts no liability for
errors or omissions in the operator's manual.
Contact us
Should you have any questions regarding your Egholm product, do not hesitate to contact Egholm.
Best regards
Egholm A/S · Transportvej 27 · DK-7620 Lemvig
T. [phone] · F. [phone]
E-mail: [e-mail] · www.egholm.eu
Introduction

3Operator’s Manual City Ranger 2260/2250 Snow Plough Operator’s Manual City Ranger 2260/2250 Snow Plough
The snow plough truly shows the strength
and power of the City Ranger 2260/2250. The
machine, with its four-wheel drive and carefully
designed weight distribution pushes snow
effortlessly away.
Hydraulically adjustable, the snow plough
pushes the snow to whichever side you choose,
and can be ingeniously combined with the salt
and sand spreader to make icy patches safe at
the same time.
To protect both the surface and the machine,
the snow plough is tted as standard with a
safety tilt system and a rubber scraping edge.
The rubber scraping edge is ideal for use with
melting snow and also scrapes the surface
thoroughly without damaging it.
Useful tips
Adjust the skids according to surface
conditions.
In case of many raised edges, set the skids high
so they do not cut into the edges.
Use the snow plough for big drifts. The snow
plough removes most of the snow. The snow
sweeper nishes off the job.
Ensure the snap couplings are clean before
tting, as this protects the hydraulic system.
Daily cleaning and maintenance will extend
the lifetime of both the machine and the
attachment.
Contents
General information ..........................................................................5
1.1 Safety .................................................................................5
1.2 EC Declaration of Conformity for Machinery ...............................................6
1.3 Technical data .........................................................................7
Operator’s manual ...........................................................................9
2.1 Assembly / Disassembly ................................................................9
2.2 Important before start-up ..............................................................10
2.3 Start-up ..............................................................................10
2.4 Adjustment ...........................................................................11
Service and Maintenance ....................................................................13
3.1 Cleaning ..............................................................................13
3.2 Maintenance ..........................................................................13
Conditions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Complaint ............................................................................17
4.3 Disposal ..............................................................................17
Wearing parts ...............................................................................19
5.1 Wearing parts - City Ranger 2260/2250 snow plough. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Notes .....................................................................................20

General information

5
Park Ranger 2150
2
Ophold i knækområdet
er forbudt
Aufenthalt im Knickbereich ist verboten
Activities around the articulation point is forbidden
Ne séjournez jamais dans la zone d’articulation
1
3
Operator’s Manual City Ranger 2260/2250 Snow Plough

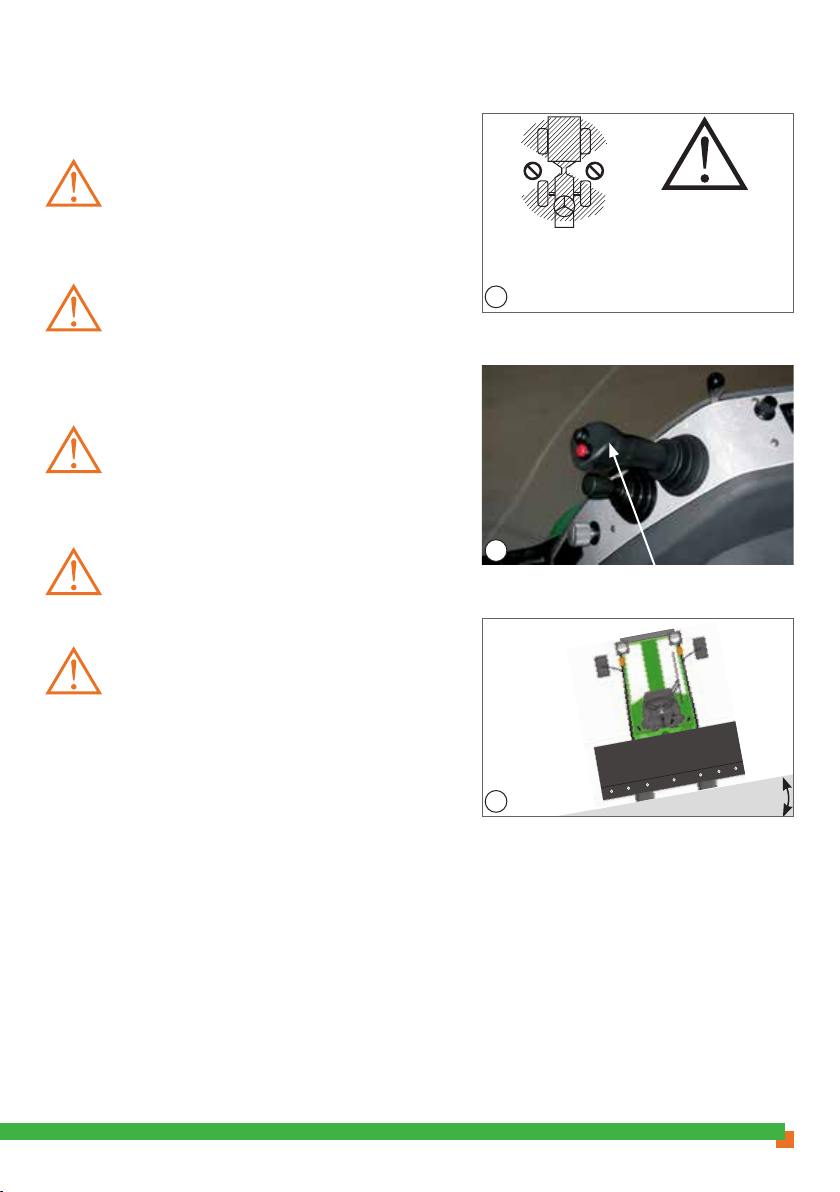

1.1 Safety
Make sure no one is standing close
to the machine while it is in use
Make sure that no one is near the
machine while it is in use as there is a
danger of crushing.
Attention
As it is articulated, the rear end of the
machine swings out when turning.
Make sure that no one is standing
near the machine while it is in use.
(Picture 1)
The snow plough swings to the
side when the joystick is moved left
or right. Make sure that no one is
standing near the machine while it is
in use. (Picture 2)
Avoid crushing ngers
Keep your hands and ngers away
from areas where there is a danger of
crushing.
Avoid roll-overs
Do not drive the machine in a place
where it can slide, tip or roll. Do not
drive on slopes with an incline of more
than 10°. (Picture 3)
Do not drive on slopes with an incline of more
than 10°
Prevent people from standing in the working
area
Joystick
General information
Max. 10°

6Operator’s Manual City Ranger 2260/2250 Snow Plough Operator’s Manual City Ranger 2260/2250 Snow Plough
1.2 EC Declaration of Conformity for Machinery
Manufacturer: Egholm A/S
Address: Transportvej 27 · DK-7620 Lemvig
Telephone: [phone]
herby declares that
Machine: Snow Plough
Type: 22DZ13
· has been manufactured in conformity with the provisions of the Machinery, Directive 2006/42/EU
Any alteration, rebuilding or addition of implements, accessories or other equipment not
manufactured by Egholm automatically results in the cancellation of type approval, CE approval,
any other approval, as well as any warranty on machine and attachments.
Unless otherwise agreed in writing between the operator, customer and Egholm, Egholm is the
data originator (data originator) of all data generated by the machine and attachments during use.
Place: Lemvig
Date:
Signature:
Knud Olsen, Senior Engineer
General information

7Operator’s Manual City Ranger 2260/2250 Snow Plough Operator’s Manual City Ranger 2260/2250 Snow Plough
1.3 Technical data
Dimensions Assembled Storage dimensions
Length (L)...................... 2,850 mm . . . . . . . . . . . . . . . . . . . . . . . . 500 mm
Width (W) ...................... 1,300 mm......................... 1,300 mm
Height with cab (H) ............. 1,960 mm......................... 545 mm
Technical data
Type description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22DZ13
Weight of Snow plough . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66 kg
Clearing width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,300 mm
Ground clearance below scraping edge, lifted ........................ 420 mm
Ground clearance below skids, lifted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370 mm
Adjuster discs per skid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Attention
Specications may be changed without prior notice
General information

Operator´s manual

9
2
1
3
Operator’s Manual City Ranger 2260/2250 Snow Plough
2.1 Assembly / Disassembly
1. The locking handle on the A-frame of the
basic machine must be in the unlocked position.
(Picture 1)
2. Drive the basic machine right up to the A-frame
of the snow plough, so the A-frames t into each
other. (Picture 2)
3. Raise the A-frame by pulling the joystick back
until the snow plough is suspended and free of
the ground.
4. Stop the machine.
5. Lock the snow plough in place with the locking
handle on the A-frame. (Picture 3) The locking
handle can only be engaged when the machine
has been stopped.
Disassembly
Follow the procedure for tting in reverse order.
Locking handle
Attaching
Locking
U
n
l
o
c
k
e
d
L
o
c
k
e
d
Operator’s manual

10
4
2
1
3
Operator’s Manual City Ranger 2260/2250 Snow Plough Operator’s Manual City Ranger 2260/2250 Snow Plough

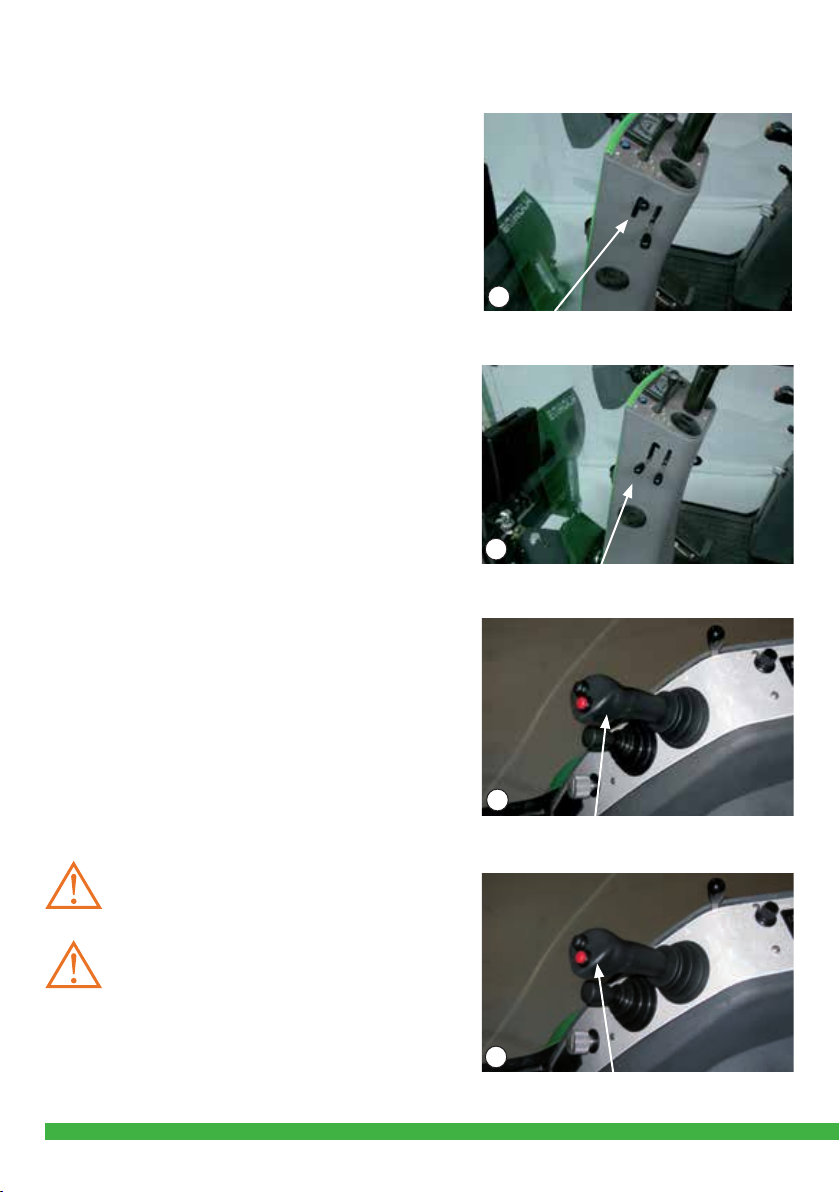

2.2 Important before start-up
During transport
Lock the snow plough in the raised position using
the transport lock. This prevents the equipment
from lowering during transport.
How to use the transport lock
Move the handle into the uppermost position.
Lift the A-frame by moving the joystick up. As the
A-frame lifts the transport lock is automatically
activated. (Picture 1)
How to use the transport lock
Unhitch the handle and lift the A-frame to uppermost
position. The equipment can now be lowered
again. (Picture 2)
2.3 Start-up
1. Start the machine.
2. Lower the snow plough by moving the joystick
down.(Picture 3)
3. Activate the weight distribution with the red
button on the joystick. (Picture 4) The snow
plough will now adjust to ground conditions. To
adjust the weight distribution read the operator's
manual for the basic City Ranger 2260/2250
machine.
4. Turn the snow plough by moving the joystick to
the left or to the right. The snow plough swings in
the same direction as the joystick.
Attention
Make sure no one is standing close to
the machine while it is in use.
N.B
When turning, the rear of the machine
swings out, so there is a risk of
crushing or collision.
Transport lock in locked position
Transport lock
Joystick
Locked
Weight distribution
Unlocked
ON/OFF
Operator’s manual

11
2
1
3
Operator’s Manual City Ranger 2260/2250 Snow Plough Operator’s Manual City Ranger 2260/2250 Snow Plough
Transport lock
Locked
2.3 Start-up - continued
Warning
Collision with solid obstacles – such
as kerbstones – may damage the
snow plough. This damage may cause
bolts to snap or parts of the snow
plough to bend.
Damage of this type is not covered by
the warranty.
2.4 Adjustment
Adjust the skids according to surface conditions.
If there are a lot of raised edges set the skids high
so they do not cut into the edges.
The scraping height is adjusted by changing the
number of adjuster discs between the skid and
the scraper guard.
Adjusting the scraping height
1. Raise the snow plough by pulling the joystick
up. (Picture 1)
2. Lock the snow plough in the raised position
with the transport lock. (Picture 2)
3. Stop the machine.
4. Remove the locking ring on the skid, take
off the skid and place the required number of
adjusting discs between the skid and the scraper
guard (the same number on both skids).
(Picture 3)
5. Fit the skid and put the remaining adjuster
discs on the skid above the scraper guard.
6. Put the locking ring back on the skid.
Adjuster discs Remaining adjuster discs
The snow plough is raised using the joystick
Operator’s manual

Service and
maintenance

13
2
1
3
Operator’s Manual City Ranger 2260/2250 Snow Plough

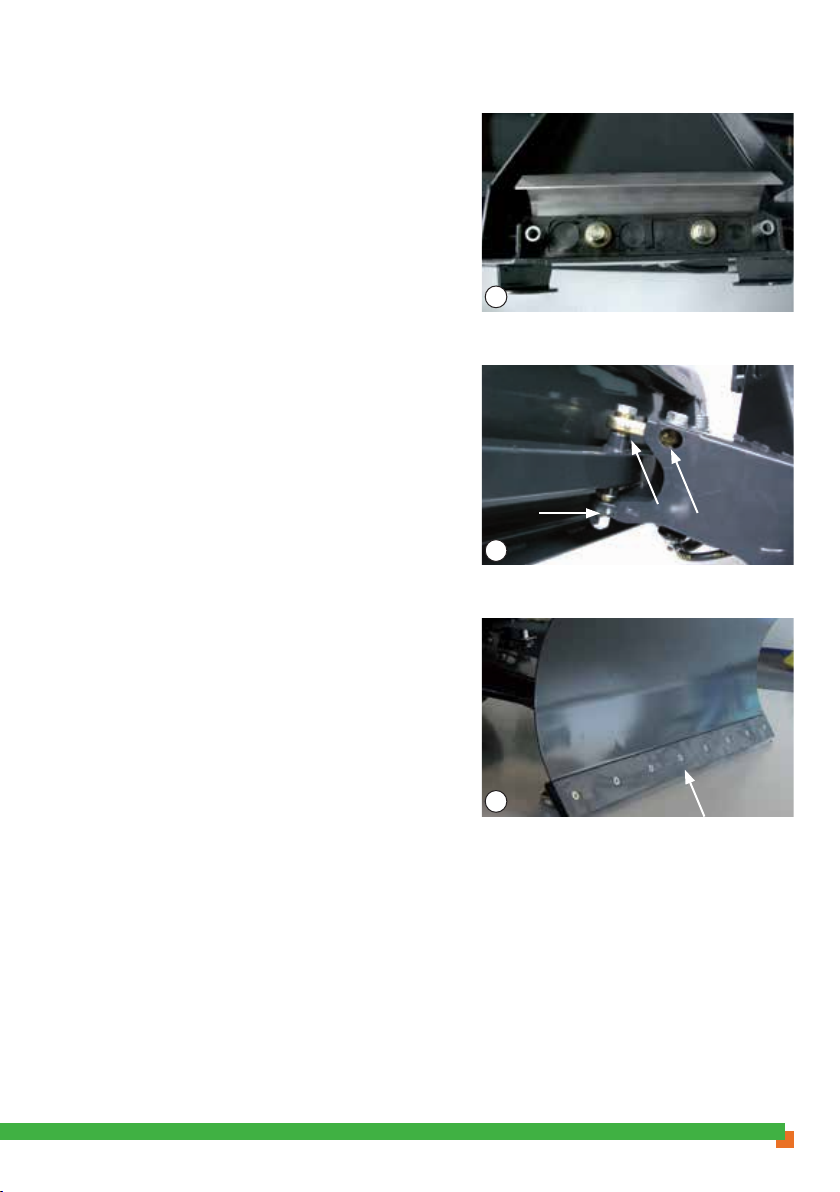

Location of lubrication nipples
3.1 Cleaning
Daily cleaning and maintenance will extend the
lifetime of both the machine and the attachment.
After use clean the snow plough with clean water.
Avoid high pressure cleaning of the snap
couplings.
Open the ap over the snap couplings. Use
pressurised air to clean around the snap
couplings. The couplings can be dried with a
cloth. (Picture 1) It is important the couplings are
intact before the attachment is taken off.
3.2 Maintenance
Lubricating the bearings
The bearings in the pivot joint of the snow plough
should be greased regularly with good quality
grease.
1. Stop the machine.
2. Clean the lubricating nipples and lubricate the
bearings until the grease starts to come out of the
bearing. (Picture 2)
Replacing the scraping edge
The scraper at most can be worn down to the
scraper guard.
1. Lift the snow plough to the uppermost position
and lock with the transport lock. (See 2.2)
2. Stop the machine.
3. Remove the nuts and bolts holding the scraper
edge and remove the scraper edge. (Picture 3)
4. Fit the new scraper edge by reversing the
procedure.
New scraper edges and skids can be ordered
from an authorised Egholm distributor.
Snap couplings
Nuts holding the scraper edge
Service and Maintenance

14 Operator’s Manual City Ranger 2260/2250 Snow Plough
3.2 Maintenance - continued
Storage outside the season
When the snow plough is to be stored outside
the season, it is recommended to remove any
loose paint and to repaint any damaged areas.
It is recommended the equipment is greased /
sprayed with protective lubricant.
Service and Maintenance

Conditions

16 Operator’s Manual City Ranger 2260/2250 Snow Plough Operator’s Manual City Ranger 2260/2250 Snow Plough
4.1 Warranty
The warranty period for the materials and manufacture of this snow plough is 12 months from the
date of purchase. In case of errors or defects on the machine within the warranty period, Egholm
will carry out the necessary repairs at no charge to the customer, including materials and working
hours, in accordance with the terms and conditions listed below.
The scope of warranty
1. The Egholm warranty is only valid on presentation of the original receipt supplied with model
description, serial number and date of purchase.
2. Regular checks, adjustments, services and technical alterations are not covered by the warranty.
3. All inquiries concerning the warranty are to be addressed to the place where the machine was
purchased.
4. This warranty does not cover faults and defects which cannot be traced back to defects in
material or production errors.
5. This warranty is valid for persons who have legally acquired the machine within the warranty
period.
6. In the event of failure to perform and substantiate service in accordance with the applicable
instructions, Egholm reserves the right to reject any claim made within the warranty period.
7. Egholm reserves the right to make improvements and design-related alterations to the machine
without being obliged to modify previously delivered models in relation hereto.
The warranty does not cover
· Wear and tear, accidents, damage to the equipment caused by operating errors, changes to the
construction of the machine or use of non-Egholm spare parts or attachments.
· Machines with illegible serial numbers.
· Damage cause by force majeure such as lightning, ood, re, war, civil disturbance etc., or other
causes over which Egholm has no control.
Conditions

17Operator’s Manual City Ranger 2260/2250 Snow Plough Operator’s Manual City Ranger 2260/2250 Snow Plough
4.2 Complaint
All inquiries regarding the machine should be made at the distributor from whom the machine was
purchased. This applies to inquires concerning normal use, service, maintenance and spare parts
as well as any complaints.
We wish you many years of safe and satised use of your machine.
Best regards
Egholm A/S
4.3 Disposal
When — in many years from now — your snow plough has reached the end of its working life
it should be disposed of in a responsible manner and in compliance with the relevant disposal
regulations.
1. Used hydraulic oil is to be disposed of at an approved waste disposal facility or site.
2. Remove all plastic and rubber parts and dispose of.
3. After the parts mentioned have been removed, the machine is ready to be handed over to an
approved scrap merchant.
Conditions

Wearing parts

19Operator’s Manual City Ranger 2260/2250 Snow Plough
E02200060 Spring
5.1 Wearing parts - City Ranger 2260/2250 snow plough
E09724490 Rubber scraping edge
E61200898 Skids
E90501921 Break joint
E01702020 Removable bearing/Break joint
Wearing parts

20 Operator’s Manual City Ranger 2260/2250 Snow Plough Operator’s Manual City Ranger 2260/2250 Snow Plough
Notes
