EGO HTX5300-PA User manual

MNL_EGO_HTX5300-PA_AV01.01_230608
WARNING: To reduce the risk of injury, the user must read and understand the
Operator’s Manual before using this product. Save these instructions for future reference.
COMMERCIAL
OPERATOR’S MANUAL
56 VOLT LITHIUM-ION COMMERCIAL
CORDLESS ARTICULATING
POLE HEDGE TRIMMER
MODEL NUMBER HTX5300-PA

Wing Nut
Quick-release Lever

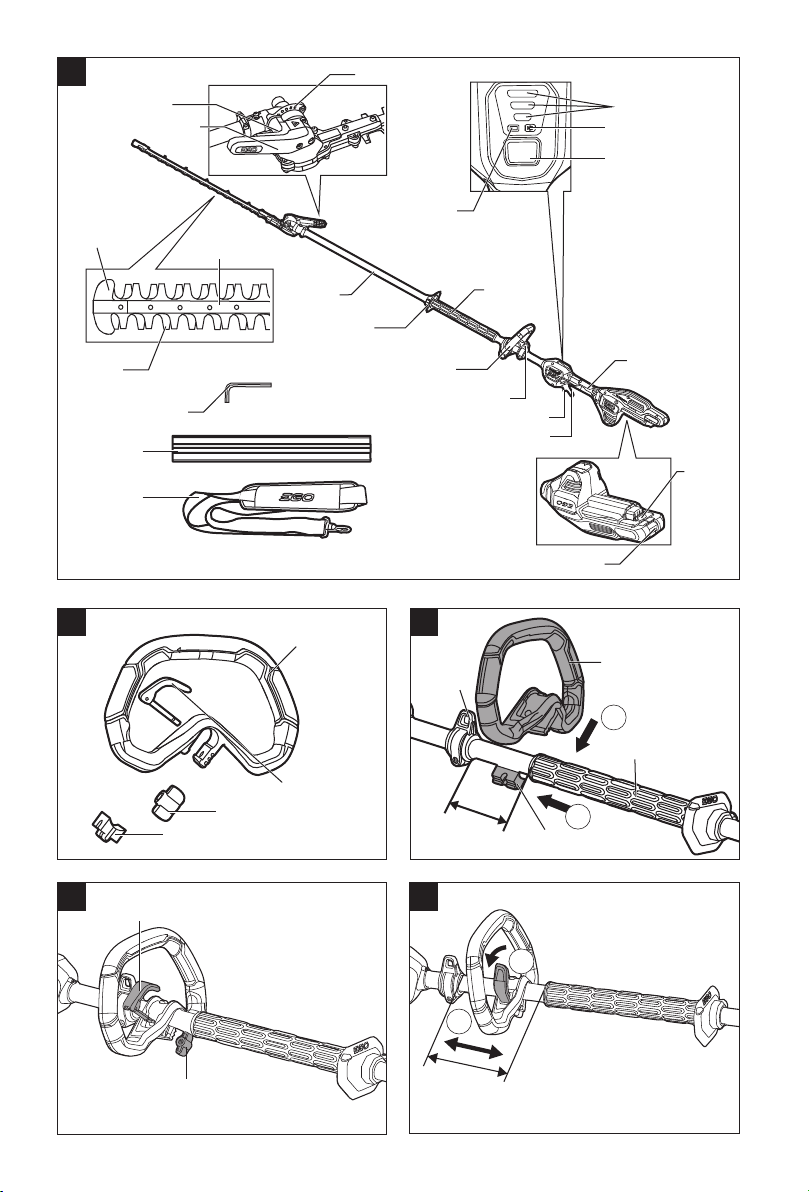

B3
B1 B2
B4
SPEED
A
11. Battery-release Button
9. Rear Handle
13. Lock-off Lever
14. Shoulder Strap Loop
15. Auxiliary Handle
4. Front
Handle
16. Hand
Guard
17. Shaft
3. Detent
2. Blade-angle Handle
1. Release Lever
23. Shoulder
Strap
8. Speed Mode Button
7. Bluetooth®Indicator
5. Battery-status
Indicator
18. Blade Support
19. Tip Protector
6. Speed Indicator
21. Hex Key
22. Blade
Sheath 10. Latch
20. Blade
12. Trigger Switch
Wing Nut
Clamping Block
Quick-release Lever
Auxiliary
Handle
Mounting Zone
Mounting Zone
2
1
Clamping Block
Auxiliary Handle
Front Handle
2
1
Shoulder
Strap Loop

Cutting Position
Hand Guard
Support Block
Tip Protector
Storage Position 2
1
C3 D1
C1
D3
C2
2
1
D2
Locking Pin
Blade-angle Handle
Detent
Release Lever

1
2
E
-90°
-15°
-30°
-45°
-60°
-75°
+45°
+30°
+15°
0°
G2
F G1
H1
Front Handle

Auxiliary Handle
L
H2
M2
J
M1
1
2
N
SPEED
K
Speed
Indicator
Battery-
Status
Indicator
Speed Mode
Button
Bluetooth®
Indicator

P1 P2
R
S
Cutting Head Assembly
Power Head Assembly
Cutting Head Assembly
#2
#1
#3
#5
#4
Q

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA 7
READ ALL INSTRUCTIONS!
READ OPERATOR’S MANUAL
Residual risk! People with electronic devices, such
as pacemakers, should consult their physician(s) before
using this product. Operation of electrical equipment
in close proximity to a heart pacemaker could cause
interference or failure of the pacemaker.
WARNING: To ensure safety and reliability, all
repairs and replacements should be performed by a
qualied service technician.
SAFETY SYMBOLS
The purpose of safety symbols is to attract your attention
to possible dangers. The safety symbols and the
explanations with them deserve your careful attention
and understanding. The symbol warnings do not, by
themselves, eliminate any danger.
The instructions and warnings they give are no substitutes
for proper accident prevention measures.
WARNING: Be sure to read and understand all safety
instructions in this Operator’s Manual, including all safety
alert symbols such as “DANGER,” “WARNING,” and
“CAUTION” before using this product. Failure to follow all
instructions listed below may result in electric shock, re,
and/or serious personal injury.
SYMBOL MEANING
SAFETY ALERT SYMBOL: Indicates DANGER,
WARNING, or CAUTION. May be used in conjunction with
other symbols or pictographs.
WARNING: The operation of any machines can result
in foreign objects being thrown into your eyes, which can
result in severe eye damage. Before beginning power tool
operation, always wear safety goggles or safety glasses
with side shields and a full face shield when needed.
We recommend a Wide Vision Safety Mask for use over
eyeglasses or standard safety glasses with side shields.
SAFETY INSTRUCTIONS
This page depicts and describes safety symbols that may
appear on this product. Read, understand, and follow
all instructions on the machine before attempting to
assemble and operate it.
Safety Alert Indicates a potential
personal injury hazard.
Read Operator's
Manual
To reduce the risk of
injury, user must read the
operator’s manual.
Wear Eye
Protection
Always wear safety goggles
or safety glasses with side
shields and a full face
shield when operating this
product.
Wear Head
Protection
Wear an approved safety
hard hat to protect your
head.
Danger- Keep
Hands Away from
Blades
Contact with blade will
result in serious personal
injury.
Keep sufcient
distance away
from electrical
power lines
To prevent electrocution,
do not operate within 15
m of overhead electrical
lines. Contact with or use
near power lines may cause
serious injury or electric
shock resulting in death.
XX
Noise Guaranteed sound power
level.
WEEE
Waste electrical products
should not be disposed of
with household waste. Take
to an authorized recycler.
IPX5
Ingress
Protection (IP)
Rating
Protected against water jets
n0No Load Speed Rotational speed, at no load
V Volt Voltage
Direct Current
(DC)
Type or a characteristic of
current
.../min Per Minute Revolutions per minute
mm Millimeter Length or size
kg Kilogram Weight
°C Degrees Celsius Temperature

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA8
GENERAL BATTERY-OPERATED MACHINE
SAFETY WARNINGS
WARNING: Read all safety warnings,
instructions, illustrations and specications provided
with this machine. Failure to follow all instructions listed
below may result in electric shock, re and/or serious
injury.
Save all warnings and instructions for future reference.
The term “machine” in the warnings refers to your mains-
operated (corded) machine or battery-operated (cordless)
machine.
WORK AREA SAFETY
◾Keep work area clean and well lit. Cluttered or dark
areas invite accidents.
◾Do not operate machines in explosive
atmospheres, such as in the presence of
ammable liquids, gases or dust. Machines create
sparks which may ignite the dust or fumes.
◾Keep children and bystanders away while
operating a machine. Distractions can cause you to
lose control.
ELECTRICAL SAFETY
◾Machine plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) machines.
Unmodied plugs and matching outlets will reduce risk
of electric shock.
◾Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
◾Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
◾Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the machine. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk
of electric shock.
◾When operating a machine outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
◾If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
PERSONAL SAFETY
◾Stay alert, watch what you are doing and use
common sense when operating a machine. Do
not use a machine while you are tired or under
the inuence of drugs, alcohol or medication. A
moment of inattention while operating machines may
result in serious personal injury.
◾Use personal protective equipment. Always wear
eye protection. Protective equipment such as a dust
mask, non-skid safety shoes, hard hat or hearing
protection used for appropriate conditions will reduce
personal injuries.
◾Prevent unintentional starting. Ensure the switch
is in the off-position before connecting to power
source and/or battery pack, picking up or carrying
the machine. Carrying machines with your nger
on the switch or energizing machines that have the
switch on invites accidents.
◾Remove any adjusting key or wrench before
turning the machine on. A wrench or a key left
attached to a rotating part of the machine may result
in personal injury.
◾Do not overreach. Keep proper footing and balance
at all times. This enables better control of the
machine in unexpected situations.
◾Dress properly. Do not wear loose clothing or
jewelry. Keep your hair and clothing away from
moving parts. Loose clothes, jewelry or long hair can
be caught in moving parts.
◾If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust
collection can reduce dust-related hazards.
◾Do not let familiarity gained from frequent use of
machines allow you to become complacent and
ignore machine safety principles. A careless action
can cause severe injury within a fraction of a second.
MACHINE USE AND CARE
◾Do not force the machine. Use the correct machine
for your application. The correct machine will do
the job better and safer at the rate for which it was
designed.
◾Do not use the machine if the switch does not turn
it on and off. Any machine that cannot be controlled
with the switch is dangerous and must be repaired.
◾Disconnect the plug from the power source and/
or remove the battery pack, if detachable, from
the machine before making any adjustments,

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA 9
changing accessories, or storing machines. Such
preventive safety measures reduce the risk of starting
the machine accidentally.
◾Store idle machines out of the reach of children
and do not allow persons unfamiliar with the
machine or these instructions to operate the
machine. Machines are dangerous in the hands of
untrained users.
◾Maintain machines and accessories. Check for
misalignment or binding of moving parts, breakage
of parts and any other condition that may affect
the machine’s operation. If damaged, have the
machine repaired before use. Many accidents are
caused by poorly maintained machines.
◾Keep cutting machines sharp and clean. Properly
maintained cutting machines with sharp cutting edges
are less likely to bind and are easier to control.
◾Use the machine, accessories and machine bits
etc. in accordance with these instructions, taking
into account the working conditions and the work
to be performed. Use of the machine for operations
different from those intended could result in a
hazardous situation.
◾Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the machine in unexpected situations.
BATTERY MACHINE USE AND CARE
◾Recharge only with the charger specied by the
manufacturer. A charger that is suitable for one type
of battery pack may create a risk of re when used
with another battery pack.
◾Use machines only with specically designated
battery packs. Use of any other battery packs may
create a risk of injury and re.
◾When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a re.
◾Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact
accidentally occurs, ush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
◾Do not use a battery pack or machine that is
damaged or modied. Damaged or modied batteries
may exhibit unpredictable behavior resulting in re,
explosion or risk of injury.
◾Do not expose a battery pack or machine to
re or excessive temperature. Exposure to re or
temperature above 130 °C may cause explosion.
◾Follow all charging instructions and do not
charge the battery pack or machine outside the
temperature range specied in the instructions.
Charging improperly or at temperatures outside the
specied range may damage the battery and increase
the risk of re.
SERVICE
◾Have your machine serviced by a qualied repair
person using only identical replacement parts.
This will ensure that the safety of the machine is
maintained.
◾Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
HEDGE TRIMMER SAFETY WARNINGS
◾Do not use the hedge trimmer in bad weather
conditions, especially when there is a risk of
lightning. This decreases the risk of being struck by
lightning.
◾Keep all power cords and cables away from
cutting area. Power cords or cables may be hidden
in hedges or bushes and can be accidentally cut by
the blade.
◾Hold the hedge trimmer by insulated gripping
surfaces only, because the blade may contact
hidden wiring. Blades contacting a “live” wire may
make exposed metal parts of the hedge trimmer “live”
and could give the operator an electric shock.
◾Keep all parts of the body away from the blade. Do
not remove cut material or hold material to be cut
when blades are moving. Blades continue to move
after the switch is turned off. A moment of inattention
while operating the hedge trimmer may result in
serious personal injury.
◾When clearing jammed material or servicing the
unit, make sure all power switches are off and
the battery pack is removed or disconnected.
Unexpected actuation of the hedge trimmer while
clearing jammed material or servicing may result in
serious personal injury.
◾Carry the hedge trimmer by the handle with the
blade stopped and taking care not to operate any
power switch. Proper carrying of the hedge trimmer
will decrease the risk of inadvertent starting and
resultant personal injury from the blades.

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA10
◾When transporting or storing the hedge trimmer,
always t the blade cover. Proper handling of the
hedge trimmer will decrease the risk of personal injury
from the blades.
◾Operate thehedge trimmerat ground level only. Do
not operate on ladders or any other unstable support.
SAFETY INSTRUCTIONS FOR EXTENDED-REACH
HEDGE TRIMMER
◾Always use head protection when operating the
extended-reach hedge trimmer overhead. Falling
debris can result in serious personal injury.
◾Always use two hands when operating the
extended-reach hedge trimmer. Hold the extended-
reach hedge trimmer with both hands to avoid loss of
control.
◾To reduce the risk of electrocution, never use the
extended-reach hedge trimmer near any electrical
power lines. Contact with or use near power lines
may cause serious injury or electric shock resulting
in death.
IMPORTANT SAFETY INSTRUCTIONS
◾Do not charge the battery pack in rain or in wet
locations.
◾Use only with the battery packs and chargers
listed below:
BATTERY PACK CHARGER
BA1400, BA1400T, BA2800,
BA2800T, BA4200, BA4200T,
BA5600T, BA6720T
CH2100E, CH5500E,
CH7000E
BAX1501 CHX5500
◾Do not grasp the exposed cutting blades or cutting
edges when picking up or holding the hedge
trimmer.
◾Do not use on a ladder, rooftop, tree, or other
unstable support. Stable footing on a solid surface
enables better control of the hedge trimmer in
unexpected situations.
◾Never allow children to operate the hedge trimmer.
◾Never remove or tamper with safety devices.
Check their proper operation regularly. Never do
anything to interfere with the intended function
of a safety device or to reduce the protection
provided by a safety device.
◾Never operate the hedge trimmer without proper
guards, plates, or other safety protective devices
in place.
◾Check damaged parts before further use of the
hedge trimmer. A guard or other part that is
damaged should be carefully checked to determine
that it will operate properly and perform its
intended function. Check for alignment of moving
parts, binding of moving parts, breakage of parts,
mounting, and any other condition that may affect
its operation. A guard or other part that is damaged
should be properly repaired or replaced by an
authorized service center unless indicated elsewhere
in this manual.
◾Check the blade and motor mounting bolts at
frequent intervals for proper tightness. Also,
visually inspect blade for damage (e.g., bent,
cracked, and worn). Replace the blade only with
an EGO™ blade.An unbalanced blade causes
vibration that could damage the motor drive
unit or cause personal injury.
◾Replace the blade if it is bent or cracked. An
unbalanced blade causes vibration that could damage
the motor drive unit or cause personal injury.
◾If the equipment should start to vibrate abnormally,
stop the motor and check immediately for the
cause. Vibration is generally a warning of trouble.
◾The hedge trimmer shall be used to cut stems less
than 28 mm thick.
◾Trim only in daylight or in good articial light.
◾Remove or disconnect battery before servicing,
cleaning, or removing material from the hedge
trimmer.
◾Do not wash with a hose; avoid getting water in
motor and electrical connections.
◾When servicing use only identical replacement
parts listed in this manual. Use of parts which do not
meet the original equipment specications may lead to
improper performance and compromised safety.
◾Do not incinerate the machine even if it is severely
damaged. The batteries can explode in a re.
◾Follow instructions for lubricating and changing
accessories.
◾Keep handles dry, clean and free from oil and
grease.
◾Check the hedges and bushes for foreign objects,
e.g. wire fences and hidden wiring before
operating the machine.

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA 11
◾Save these instructions. Refer to them frequently and
use them to instruct others who may use this machine.
If you loan this machine to someone else, also loan
these instructions to them to prevent misuse of the
product and possible injury.
SAVE THESE INSTRUCTIONS!
SPECIFICATIONS
Voltage 56V
Maximum Speed
Low: 1600 / min
Medium: 1800 / min
High: 2000 / min
Cutting Length 530 mm
Cutting Capacity 28 mm
Recommended Operating
Temperature 0°C– 40°C
Recommended Storage
Temperature -20°C – 70°C
Weight (Without battery pack,
blade sheath) 4.8 kg
Guaranteed Sound Power Level 102 dB(A)
PACKING LIST
PART NAME QUANTITY
Hedge Trimmer 1
Blade Sheath 1
Auxiliary Handle 1
Shoulder Strap 1
Hex Key (4 mm) 1
Operator’s Manual 1
DESCRIPTION
KNOW YOUR HEDGE TRIMMER (Fig. A)
1. Release Lever
2. Blade-angle Handle
3. Detent
4. Front Handle
5. Battery-status Indicator
6. Speed Indicator
7. Bluetooth®Indicator
8. Speed Mode Button
9. Rear Handle
10. Latch
11. Battery-release Button
12. Trigger Switch
13. Lock-off Lever
14. Shoulder Strap Loop
15. Auxiliary Handle
16. Hand Guard
17. Shaft
18. Blade Support
19. Tip Protector
20. Blade
21. Hex Key
22. Blade Sheath
23. Shoulder Strap
ASSEMBLY
◾This product requires assembly.
◾Carefully remove the product and any accessories
from the box. Make sure that all items listed in the
packing list are included.
WARNING: If any parts are damaged or missing,
do not operate this product until the parts are replaced.
Use of this product with damaged or missing parts could
result in serious personal injury.
WARNING: Always remove the battery pack from
the product when you are assembling parts, making
adjustments, cleaning, or when the product is not in use.
WARNING: Do not attempt to modify this product
or create accessories not recommended for use with this
hedge trimmer. Any such alteration or modication is
misuse and could result in a hazardous condition leading
to possibly serious personal injury.
MOUNTING AND ADJUSTING THE AUXILIARY
HANDLE
WARNING: Always remove the battery pack from
the product when you are assembling parts, making
adjustments, cleaning, or when the product is not in use.

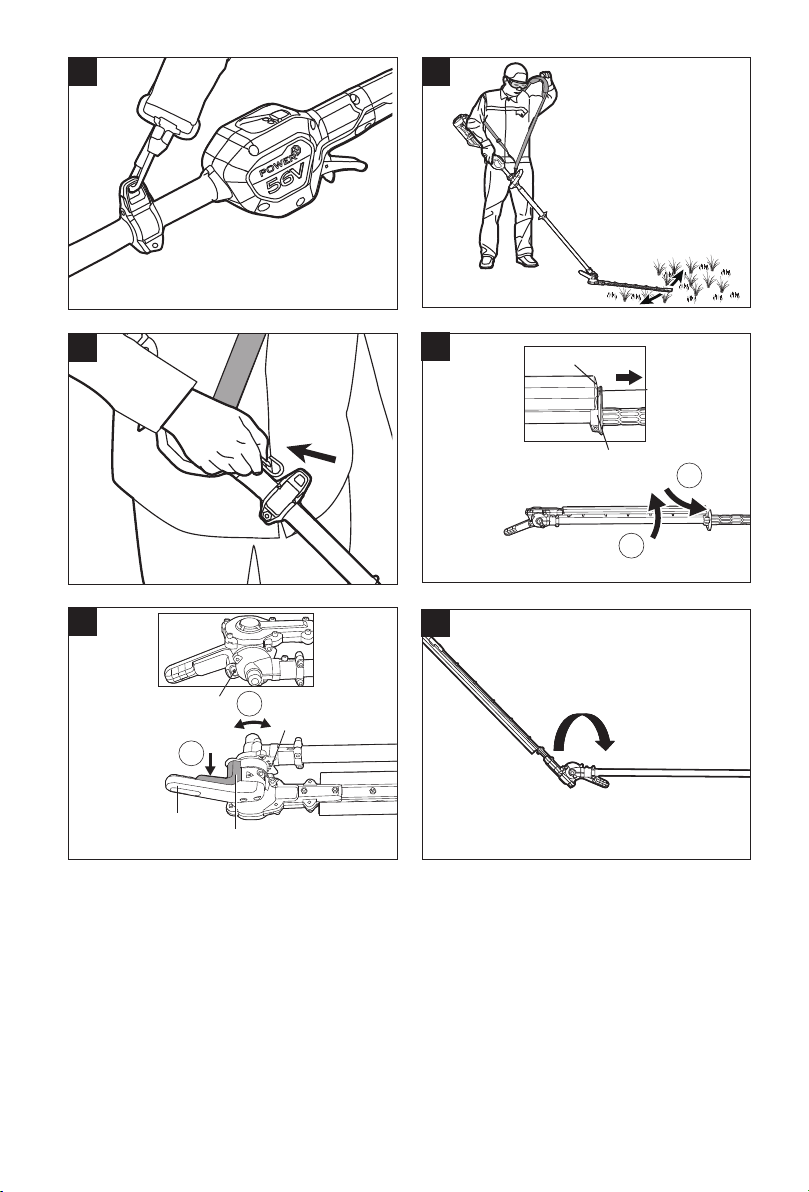

1. Stop the motor and remove the battery pack, if
installed.
2. Loosen and remove the quick-release lever, clamping
block, and wing nut from the auxiliary handle
(Fig. B1).
3. Push the auxiliary handle onto the shaft within the
mounting zone between the shoulder strap loop and
front handle. Make sure that the auxiliary handle is
positioned upwards and points toward the top of the
rear handle. Then insert the clamping block into the
handle slot (Fig. B2).

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA12
4. Mount the quick-release lever and tighten the wing
nut (Fig. B3).
5. Pull the quick-release lever up to move/rotate the
auxiliary handle to a comfortable operating position
(Fig. B4).
NOTICE: The auxiliary handle should be positioned on the
shaft only within the mounting zone.
6. Engage the quick-release lever to secure the
auxiliary handle in place.
MOUNTING THE SHOULDER STRAP
Depress the strap carabineer to open it and hook the
carabineer onto the shoulder strap loop (Fig. C1).
For safe and better operation, put on the shoulder strap
across the shoulder as shown in Fig. C2. Adjust the
shoulder strap length to a comfortable operating position.
Hold the machine with both hands: one hand on the rear
handle and the other hand on the front handle or auxiliary
handle.
There are two ways to release the strap. Take it off from
your shoulder directly (Fig. C2) or depress the carabineer
and disconnect the shoulder strap from the shoulder strap
loop (Fig. C3).
When wearing the strap, no other wearable should interfere
with the release and removal of the strap.
WARNING: When an emergency occurs, take it off
from your shoulder immediately, no matter what way the
strap is on.
You should not use the single-shoulder strap and double-
shoulder strap simultaneously
UNFOLDING AND FOLDING THE CUTTING BLADES
Unfolding the cutting blades
1. Ensure that the blade sheath is in place and the
battery pack is disconnected from the hedge
trimmer.
2. Push the lower part of the hand guard back to
release the tip protector from the support block on
the hand guard (Fig. D1).
3. While pressing the release lever, rotate the blade-
angle handle to unfold the cutting blades, from the
storage position to the desired cutting position (Fig.
D1 & D2).
4. Release the release lever. An audible click indicates
that the locking pin is engaged in one of the detents.
Folding the cutting blades (Fig. D3)
1. Ensure that the blade sheath is in place and the
battery pack is disconnected from the hedge
trimmer.
2. While pressing the release lever, rotate the blade-
angle handle to fold the cutting blades next to the
shaft.
3. Release the release lever.
4. Push the lower part of the hand guard back to allow
the tip protector to enter, then release the hand
guard to ensure the tip protector rests on the support
block.

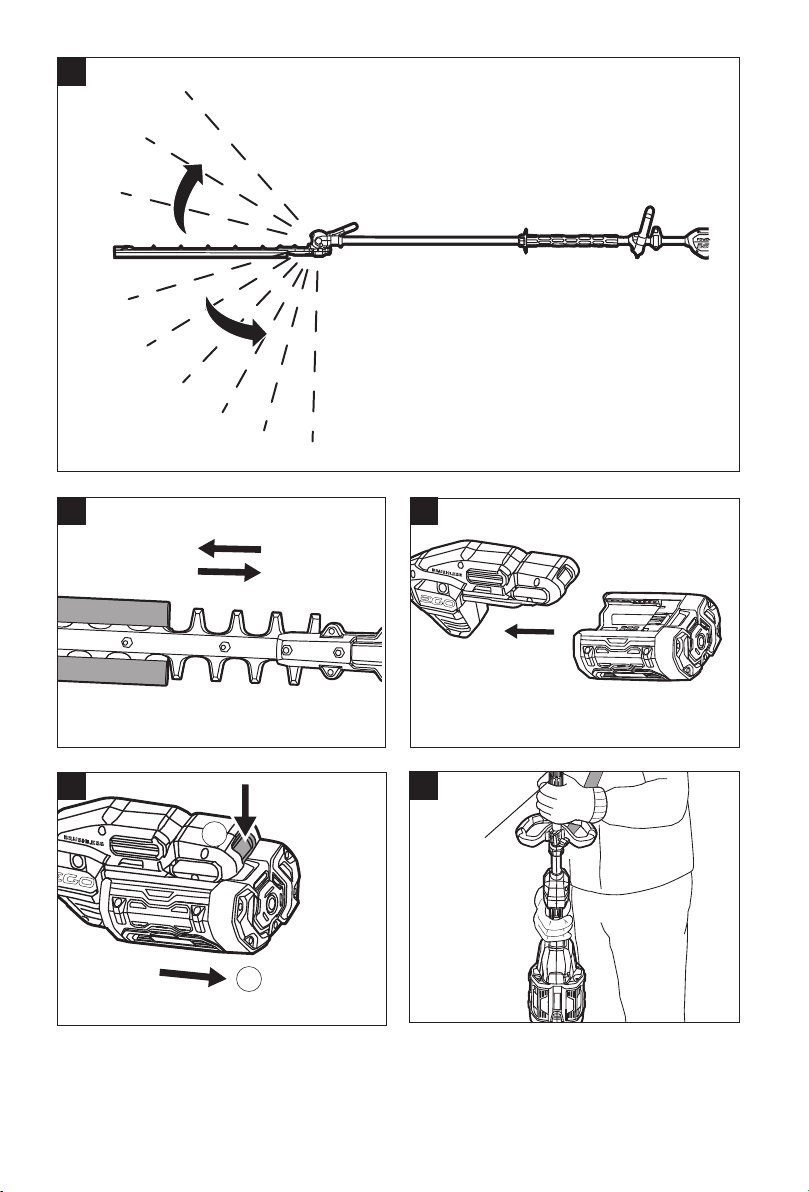

ADJUSTING THE ANGLE OF THE CUTTING BLADES
(FIG. E)
The angle of the cutting blades can be adjusted to 9 different
working positions, UPWARDS to any of 3 positions from 0°
to +45°, and DOWNWARDS to any of 6 positions from 0° to
-90°. Adjust the cutting head to a suitable working position
before operating the hedge trimmer.
1. Ensure that the blade sheath is in place and the
battery pack is disconnected from the hedge
trimmer.
2. While pressing the release lever, rotate the blade-
angle handle to unfold the cutting blades to the
desired cutting position
(Fig. D2).
3. Release the release lever. An audible click indicates
that the locking pin is engaged in one of the detents.
NOTICE: Check and ensure that the locking pin is
securely engaged in one of the detents.
OPERATION
DANGER: Never cut near power lines, electric
cords, or other electric sources. If the blades jam on
any electrical cord or line, DO NOT TOUCH THE BLADE
OR THE UNINSULATED SHAFT! THEY CAN BECOME
ELECTRICALLY LIVE AND MAY BE VERY DANGEROUS.
Continue to hold the hedge trimmer by the insulated
rear handle or lay it down and away from you in a safe
manner. Disconnect the electrical service to the damaged
line or cord before attempting to free the blade from the
line or cord. Contact with the blade, other conductive
parts of the hedge trimmer, or live electric cords or lines
will result in death by electrocution or serious injury.
WARNING: Do not allow familiarity with this product
to make you careless. Remember that a careless fraction
of a second is sufcient to inict serious injury.

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA 13
WARNING: Always wear eye protection with side
shields, along with hearing protection. Failure to do so
could result in objects being thrown into your eyes and
other possible serious injuries.
WARNING: To prevent accidental starting that could
cause serious personal injury, always remove the battery
pack from the product when assembling parts, making
adjustments, cleaning, or when not in use.
WARNING: Do not use any attachments or
accessories not recommended by EGOTM. The use of
attachments or accessories not recommended can result
in serious personal injury.
Before each use, inspect the entire product for damaged,
missing, or loose parts, such as screws, nuts, bolts, caps, etc.
Tighten securely all fasteners and caps and do not operate
this product until all missing or damaged parts are replaced.
APPLICATION
You may use this product for trimming low and tall hedges,
shrubs and bushes and similar material with a branch
diameter of less than 28 mm.
NOTE: The machine is to be used only for its prescribed
purpose. Any other use is deemed a misuse.
REMOVING/INSTALLING THE BLADE SHEATH
(FIG. F)
Remove/install the blade sheath from the cutting device.
INSTALLING/REMOVING THE BATTERY PACK
NOTE: Fully charge battery pack before rst use.
To Install (Fig. G1)
Align the battery ribs with the mounting slots in the
machine’s battery port and slide the battery pack until it
snaps into position.
To Remove (Fig. G2)
Depress the battery-release button and pull the battery pack
out.
WARNING: Always be aware for the location of your
feet, children, or pets when pressing the battery-release
button. Serious injury could result if the battery pack falls.
NEVER remove the battery pack at a high location.
HOLDING THE HEDGE TRIMMER
WARNING: Always keep both hands on the hedge
trimmer handles. Never hold shrubs with one hand
and operate the hedge trimmer with the other. Failure
to heed this warning may result in serious injury.
Hold the hedge trimmer with one hand on the rear handle
and with your other hand on the front handle or the
auxiliary handle (Fig. H1 & H2).
STARTING/STOPPING THE HEDGE TRIMMER
Before operating, remove the blade sheath and hold
the trimmer with both hands, one hand on the rear
handle and the other on the front handle. Then check for
balanced footing, upright standing and a proper cutting
distance. Make sure that the cutting blade is not touching
the ground or any other objects.
To start (Fig. J)
1. Install the battery pack.
2. Move the lock-off lever forward and then press the
trigger switch to start the machine. The speed of the
hedge trimmer is controlled with the trigger switch.
More pressure on the trigger results in higher speed;
less pressure on the trigger results in lower speed.
Adjust the speed to suit the task at hand.
NOTICE: The motor starts only when the lock-off lever
is moved forward and the trigger switch is depressed at
the same time.
To stop
Move the machine away from the cutting area and
release the trigger switch to stop it.
WARNING: Always remove the battery pack from
the machine during work breaks and after nishing work.
CHANGING SPEED MODE (FIG. K)
This machine features three speed modes. The speed mode
will change with every press of the speed mode button.
The speed indicator will display the active speed mode: one
light for low speed, two lights for medium speed, three lights
for high speed. The low speed mode provides better control
of the machine and longer operating time per charge.
NOTICE:
The speed mode can be set before the machine is turned
on OR during operation.
When the machine is re-started after a break, the speed
mode will return to the previous speed.
BATTERY-STATUS INDICATOR AND SPEED
INDICATOR (FIG. K)
The battery-status indicator shows the charge level and
the working status of the battery pack, and the speed
indicator shows the working status of the machine as
shown in the chart below. The battery-status indicator
and the speed indicator will illuminate when the machine
is started OR the speed mode button is pressed.

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA14

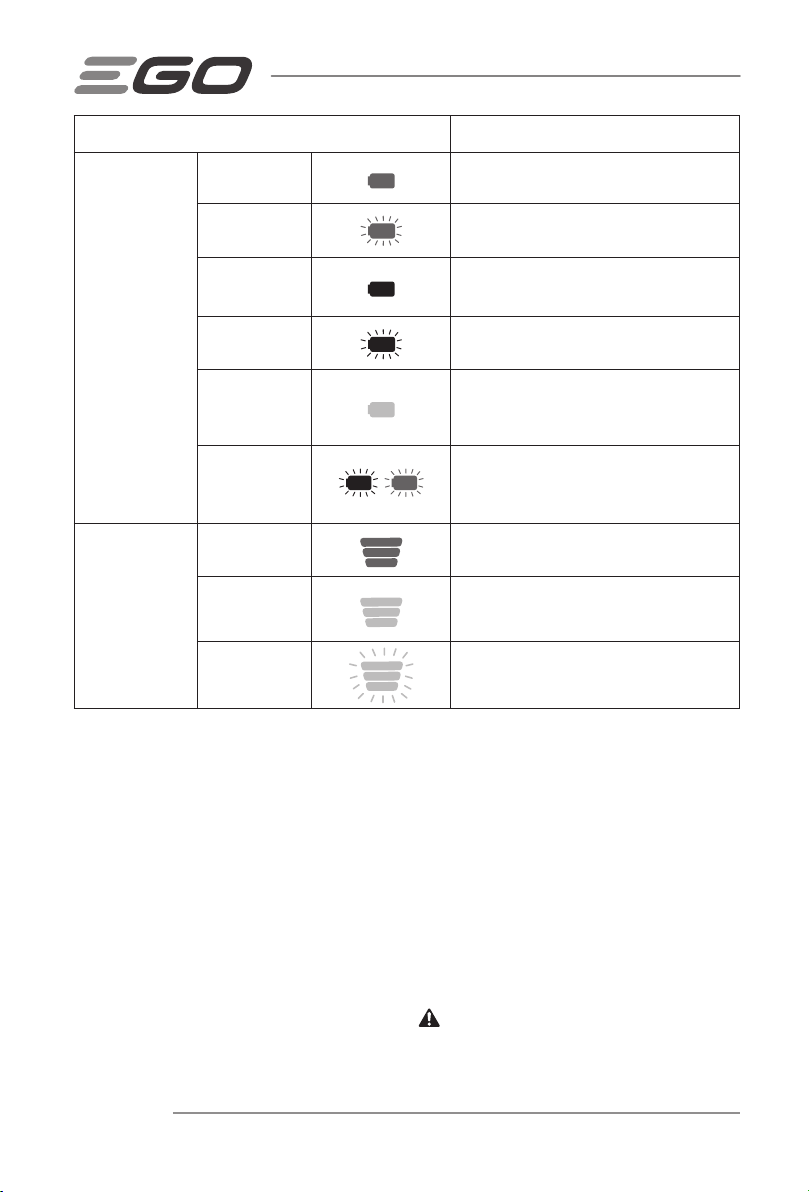

Indicator Lights Meaning
Battery-status
indicator
Solid green Battery charge level of 20% to 100%
Flashing green Battery charge level of 10% to 20%
Solid red Battery charge level of less than 10%
Flashing red The battery pack is nearly depleted and needs
to be charged immediately.
Solid orange
The battery pack is overheated. Cool the battery
pack until the temperature drops below 67°C.
See “ Battery High-temperature Protection ”
below
Flashing red/
green alternately
The battery pack electronics error. Replace
the battery pack or contact EGO customer
service center. See “ Battery Electronics Error
Protection ” below.
Speed indicator
(the illustrates
show the high
speed)
Solid green The machine is working properly.
Solid orange
The machine is overheated. Cool the machine until
the temperature drops below 80°C. See
“ Machine High-temperature Protection ” below.
Flashing orange The machine is overloaded. See “Machine
Overload Protection” below.
Battery High-temperature Protection
If the battery temperature exceeds 70°C during operation,
the temperature-protection circuit will immediately
shut off the machine to protect the battery pack from
overheating damage. The battery-status indicator will
glow solid orange. Release either of the triggers and wait
until the overheated battery cools down and the indicator
turns green, then restart the machine.
Battery Electronics Error Protection
When the battery pack electronics error occurs, the
battery-status indictor will ash red/green alternately
and the machine will shut off in 3 seconds. Replace the
battery pack or contact EGO customer service center.
Machine Overload Protection
This machine features a built-in overload circuit
protection. When the machine is overloaded, the motor
will stop and the speed indicator will ash orange.
Remove the battery pack from the machine, then reattach
the battery pack and restart the machine. Decrease the
load on the machine, avoid cutting too much at a time or
oversize cutting thickness or cutting on the heavy/woody
shrubs.
Machine High-temperature Protection
If the machine temperature exceeds 90°C during
operation, the temperature-protection circuit will
immediately shut off the machine to prevent overheating
damage. The speed indicator will glow solid orange.
Release the trigger and wait until the overheated machine
cools down and the speed indicator turns green, then
restart the machine.
USING THE HEDGE TRIMMER
DANGER: If the blade jams on any electrical
cord or line, DO NOT TOUCH THE BLADES! IT
CAN BECOME ELECTRICALLY LIVE AND VERY
DANGEROUS. Continue to hold the hedge trimmer

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA 15
by the insulated rear handle or lay it down and away
from you in a safe manner. Disconnect the electrical
service to the damaged line or cord before attempting
to free the blades from the line or cord. Failure to
heed this warning will result in serious personal injury
or possible death.
WARNING: If any parts are missing, damaged or
broken, do not operate your trimmer until they have
been replaced. Failure to do so could result in possibly
serious personal injury.
WARNING: To prevent serious personal injury,
always use both the front handle and the rear handle
to hold the hedge trimmer during operation.
WARNING: To prevent serious personal injury,
keep hands away from blades. Do not attempt to
remove cut material or hold material to be cut when
the blades are moving. Make sure that the blades
have completely stopped and the battery pack is
removed before clearing jammed material from
blades. Do not grasp the exposed cutting blades or
cutting edges when picking up or holding the unit.
WARNING: Clear the area to be cut before each use.
Remove all objects, such as cords, lights, wire, or string
which can become entangled in the cutting blade and
create a risk of serious personal injury.
◾Before starting the hedge trimmer, maintain proper
footing and balance and do not overreach. Do not
operate the trimmer in a tree, on a ladder, from a
rooftop, or any unstable support. Wear safety goggles,
non-skid footwear and rubber gloves. Hold the unit
with both hands, with the cutting blade directed away
from you.
◾Use with the shoulder strap for safe and comfortable
operation.
◾Do not trim too much at once. This can cause the
blades to bind and slow down, reducing the cutting
efciency.
◾Do not force the hedge trimmer through heavy
shrubbery. This can cause the blades to bind and slow
down. If the blades slow down, reduce the pace of
your work.
◾When trimming new growth, use a wide sweeping
action, so that the stems are fed directly into the
cutting blade. Older growth will have thicker stems
and will be trimmed most easily by using a back-and-
forth motion.
◾Always cut stems or twigs that are less than 28 mm
thick. Use a non-powered hand saw or pruning saw to
trim large stems.
Close Cutting to the Ground
1. Cut close to the ground from a standing position, e.g.
for trimming low shrubs.
2. Set the cutting blades to a suitable angle.
3. Swing the hedge trimmer right and left in an arc. and
do not rest the cutter blade on the ground (Fig. L).
Cutting the side of the hedge (Fig. M1 & M2)
1. Set the cutting blades to a suitable angle.
2. Slowly swing the hedge trimmer up and down in an
arc as you move along the hedge.
Cutting the top of the hedge (Fig. N)
1. Hold the cutting blades at an angle of 0° to 10° to
the top of the hedge.
2. Swing the hedge trimmer horizontally and in an arc
while making the cut.
Cutting Overhead (Fig. P1 & P2)
1. Set the cutting blades completely to a suitable angle.
2. Hold the hedge trimmer and slowly swing it in an arc
to make maximum use of its reach.
WARNING: Any overhead working position is tiring.
To minimize the risk of accidents, work in such positions
for short periods only. Set the angle of the blades to
maximum so that the machine can be held in a lower,
less tiring position while still providing adequate reach.
Tip Protector (Fig. Q)
The tip protector is used to protect the outer end of
the blade.
MAINTENANCE
WARNING: When servicing, only use identical
replacement parts. Use of any other parts may create a
hazard or cause product damage. To ensure safety and
reliability, all repairs should be performed by a qualied
service technician.
WARNING: To avoid serious personal injury, always
remove the battery pack from the product when cleaning
or performing any maintenance.
CLEANING
◾Use a soft brush to remove debris from all air intakes
and cutting blade.
◾To remove pitch and other sticky residue, spray the
blades with resin solvent. Run the motor briey so that
the solvent is evenly distributed, then wipe the surface
with a dry cloth.

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA16
WARNING: Never use water for cleaning your
trimmer. Avoid using solvents when cleaning plastic parts.
Most plastics are susceptible to damage from various
types of commercial solvents. Use clean cloth to remove
dirt, dust, oil, grease, etc.
All hedge trimmer service, other than the items
listed in these maintenance instructions, should be
performed by competent hedge trimmer service
personnel.
SHARPENING THE BLADES
When cutting performance and behavior begin to
deteriorate, re-sharpen the blades. It is recommended
to have the blades re-sharpened by a qualied service
technician.
NOTICE: Do not operate your hedge trimmer with dull or
damaged blades. This may cause overload and will give
unsatisfactory cutting results.

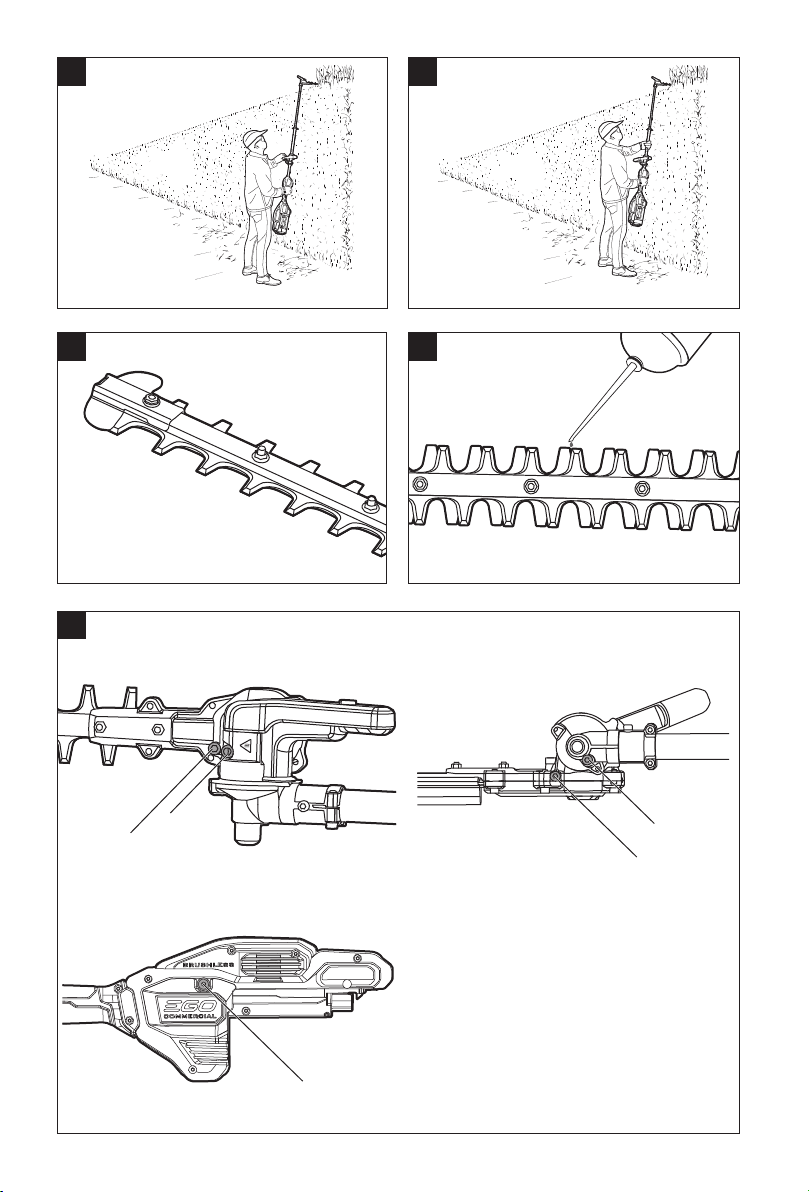

LUBRICATING THE BLADES (Fig. R)
For best operation and longer blade life, lubricate the
hedge trimmer blades with light-weight machine oil
before and after each use.
Remove the battery pack and lay the trimmer onto
a at surface. Apply the oil along the edge of the top
blade.
NOTICE: For extended using period, oil the blade during
cutting operation.
WARNING: Do not oil while the hedge trimmer is
running.
TRANSMISSION GEARS LUBRICATION (FIG. S)
For best operation and longer lifetime, lubricate the
transmission gears in the cutting head and power
head assemblies with a special grease (5-6 ml in #1,
#2, #3, #4 and #5 oil hole each time) after every 50
hours operation.
The grease should meet the following requirements:
◾NLGI Grade Penetration: NLGI-2;
◾Thickener Type: Polyurea;
◾Recommended Operating Temperature Range: -40°C
to 180°C;
◾Other than above, the grease should also be shear
stable with exceptional pressure characteristics and
excellent anti-wear property, and perfect oxidation
stability.
Remove the battery pack and the sealing bolts (Fig. S).
Lubricating the gear cases through the oil-hole.
NOTICE: Don‘t fully ll the gear case with grease.
WARNING: The sealing bolt #4 shall not be lost.
Operation of the machine without it may result in injury to
the user. Please be sure to secure it in place before using
the machine.
TRANSPORTING AND STORING
◾Remove the battery pack from the unit.
◾Clean the unit thoroughly before storing it.
◾Always place the blade sheath onto the cutting blades
before storing or transporting. Use caution to avoid the
sharp teeth of the blades. For saving space, fold the
hedge trimmer to its storage position (see Fig. D1).
◾Store the hedge trimmer indoors, in a dry place that is
inaccessible to children.
◾Keep away from corrosive agents such as garden
chemicals and deicing salts.
WARNING: Blades are sharp. When handling
the blade assembly, wear non-slip, heavy-duty
protective gloves. Do not place your hand or ngers
between blades or in any position where they could
get pinched or cut. NEVER touch blades or service the
unit with battery pack installed.
PROTECTING THE ENVIRONMENT
Do not dispose of electrical appliances as
unsorted municipal waste, use separate
collection facilities.
Contact your local government for
information regarding the collection
systems available.
If electrical appliances are disposed of in
landlls or dumps, hazardous substances
can leak into the groundwater and get
into the food chain, damaging your health
and well-being.

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA 17
TROUBLESHOOTING
PROBLEM CAUSE SOLUTION
Hedge trimmer doesn’t
work.
◾The battery pack is not attached to the
hedge trimmer.
◾Attach the battery pack to the hedge
trimmer.
◾No electrical contact between the hedge
trimmer and battery pack.
◾Remove the battery pack, check
contacts and reinstall the battery pack
◾The battery pack charge is depleted. ◾Charge the battery pack.
◾The battery pack is too hot. See the
chapter "Battery High-temperature
Protection".
◾Remove the battery pack and cool the
battery pack until the temperature
drops below 67°C.
◾The hedge trimmer is too hot. See the
chapter "Machine High-temperature
Protection".
◾Remove the battery pack and cool the
hedge trimmer until the temperature
drops below 80 °C.
◾The front and rear triggers are not
depressed simultaneously.
◾Press and hold the front trigger rst,
move the lock-off lever forward, and
then press the rear trigger.
◾The blade is jammed. ◾Remove the battery pack from the
machine, remove the obstruction
carefully, then reinsert the battery
pack and restart the machine.
◾The battery pack has electronics error. See
the chapter "Battery Electronics Error
Protection".
◾Replace the battery pack or contact
EGO customer service center.
Excessive vibration or
noise.
◾Dry or corroded blades. ◾Lubricate the blades, following the
instructions in the “LUBRICATING THE
BLADES” section in this manual.
◾Blade or blade support is bent. ◾Replace with a new blade or support.
Contact EGO service center for blade
or support replacement.
◾Bent or damaged teeth. ◾Replace with a new blade. Contact
EGO service center for blade
replacement.
◾Loose blade bolts. ◾Tighten the blade bolts. Use an
adjustable wrench and the included
hex key to tighten the blade bolts
clockwise.

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA18
WARRANTY POLICY
For warranty service or to make a claim, please visit our Warranty Portal at egopowerplus.com.au/warranty-policy,
alternatively you can contact EGO customer service via the following, Australia 1300 000 346,
New Zealand 0508 000 346.
Chervon Australia Pty Ltd ABN 36 165 077 501 and Chervon New Zealand Subsidiary Ltd NZBN 9429049277616
(“Chervon”) warrants to the original domestic purchaser that this product will be free from defects in materials and
workmanship for 5 years from date of purchase, and any battery or charger will be free from defects in materials and
workmanship for 3 years from date of purchase. Warranty for commercial use is 1 year on all product, battery and
chargers. The Commercial Range Product Warranty for commercial users is 2 years for product, backpack battery
(BAX1501) and commercial charger (CHX5500E). Please refer to product warranty table below for further clarication.
To make a claim, call 1300 000 346 for AU or 0508 000 346 for NZ or lodge a claim via our portal link above. Any
handling and transportation costs (and other expenses incurred in claiming this warranty) are not covered by this
warranty and will not be borne by Chervon. The replacement product or part or repaired product will be made available
for your collection at an address nominated by Chervon. Where a valid warranty claim is made, Chervon will replace the
defective product or repair the fault. Where the product is repaired, Chervon may use refurbished parts. This warranty
does not cover normal wear and tear, misuse or abuse (including overloading of the product beyond capacity and
exposure to water or rain), accidents, neglect or lack of proper installation, and improper maintenance or storage. This
warranty does not cover the damage resulting from modication, alteration or unauthorised repair. This warranty does
not cover normal deterioration of the exterior nish, including but not limited to scratches, dents, paint chips, or to any
corrosion or discolouring by heat, abrasive and chemical cleaners. This warranty is void if the product has been used
for rental purpose. This warranty may also be further limited or voided as specically detailed in the product Manual.
Chervon has no other liability under this warranty. The benets to you given by this warranty are in addition to other
rights and remedies imposed by State and Federal legislation that cannot be excluded. Our goods come with guarantees
that cannot be excluded under the Australian Consumer Law and the New Zealand Consumer Guarantee Act 1993. You
are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality
and the failure does not amount to a major failure. The warranty applies to the original purchaser and applies only to
purchases made from authorised EGO Dealers, which can be conrmed on the website store locator. For avoidance of
doubt, 3rd party online stores such as eBay, Gumtree, Amazon, etc. are excluded.
Chervon Australia Pty Ltd, Unit 14, 5 Kelletts Rd, Rowville, VIC. 3178.
Ph Australia; 1300 000 346. Email: [email protected]
Chervon New Zealand Subsidiary Ltd, 4th Floor, Smith & Caughey Building, 253 Queen St, Auckland, 1141.
Ph New Zealand; 0508 000 346. Email: [email protected]

56 VOLT LITHIUM-ION COMMERCIAL CORDLESS ARTICULATING POLE HEDGE TRIMMER — HTX5300-PA 19
PRODUCT WARRANTY TABLE
PRODUCT OR MODEL #
LIMITED WARRANTY FOR
CONSUMER USE (PERSONAL,
HOUSEHOLD USE)
LIMITED WARRANTY FOR
PROFESSIONAL USE (ANY
COMMERCIAL, AGRICULTURAL,
INSTITUTIONAL,
OR INCOME-PRODUCING USE)
EGO Power+ Outdoor Power Equipment and
Portable Power Products 5 years 1 year
EGO Power+ Battery Packs and Chargers 3 years 1 year
Specic warranties apply to the products below:
Commercial Tools: LBX6000, BCX3800,
STX3800, HTX7500, CSX3000, PPX1000,
PSX2500, PTX5100, BHX1001, STX4500,
BCX4500, EDX2000, HTX5300-P,
HTX5300-PA, LBPX8000
5 years 2 years
Commercial Backpack Battery: BAX1501 3 years 2 years
Commercial Charger: CHX5500E 3 years 2 years
