Ekahau T301-B Multi Charger User manual

T301-B Multi Charger
User guide

Ekahau, the Ekahau logo, Ekahau Site Survey, Ekahau Location Survey, Ekahau Engine, Ekahau
Positioning Engine, Ekahau Manager, Ekahau Activator, Ekahau Finder, Ekahau Tracker, Ekahau
Logger, Ekahau T201, Ekahau T301, Ekahau NIC-54, Ekahau NIC-300, and Ekahau Client are
trademarks or registered trademarks of Ekahau.
Other product and company names may be trademarks or trade names of their respective owners.
This manual and the Ekahau hardware described in it are copyrighted, with all rights reserved.
This manual and the Ekahau hardware described in it may not be copied.
The contents of this document are provided “as is.” Except as may be required by applicable law,
no warranties of any kind, either express or implied, including, but not limited to, the implied war-
ranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy,
reliability or contents of this document. Ekahau reserves the right to revise this document or withdraw
it at any time without prior notice.
Export of this technology may be controlled by the United States Government. Diversion contrary
to U.S. law prohibited.
Your use of the Ekahau software described in this user manual and its documentation are governed
by the terms set forth in your license agreement. Your use of this Ekahau hardware and software
contrary to the terms of this User Manual may void the warranty, if any.
Under no circumstances shall Ekahau be responsible for any loss of data or income, or any special,
incidental, punitive, consequential or indirect damages howsoever caused.
You may not use any Ekahau software or hardware products in hazardous environments (such
as operation of nuclear facilities, aircraft navigation or control, environments containing high levels
of dust, or mines) or in Life-Critical Solutions, unless you have advised Ekahau that they will be
used in a hazardous environment or in a Life-Critical Solution and Ekahau has had an opportunity
to evaluate further whether, and on what terms and conditions, the software or hardware products
may be licensed for your intended use. The term “Life-Critical Solution” means an application
software package or hardware device whose functioning or malfunctioning may result directly or
indirectly in physical injury or loss of human life.
Ekahau tags and network adapters must always be used in compliance with the user environment
and instructions contained in the User Manual for the tags.
Copyright © Ekahau, Inc. 2000-2008. All rights reserved.

Table of Contents
1 Introduction ....................................................................................................................... 1
1.1 Features of T301-B Multi Charger ........................................................................... 1
2 Charger parts .................................................................................................................... 3
2.1 Package contents .................................................................................................... 3
2.2 Front panel ............................................................................................................... 4
2.3 Rear panel ............................................................................................................... 5
3 Mounting options ............................................................................................................. 7
3.1 Wall mounting - single charger ................................................................................. 7
3.2 Wall mounting - multiple chargers ............................................................................ 7
3.3 Desk mounting ......................................................................................................... 9
4 Technical specifications ................................................................................................ 11
4.1 General .................................................................................................................. 11
4.2 Care and Maintenance ........................................................................................... 11
5 Limited warranty ............................................................................................................. 13
T301-B Multi Charger
iii

T301-B Multi Charger
iv

1 Introduction
The Ekahau T301-B Multi Charger is a charger device for charging the Ekahau T301-B tags.
1.1 Features of T301-B Multi Charger
● Stylish design for public spaces.
● Can charge up to 10 T301-B tags at the time
● Is compatible globally, supports input voltage from 100VAC to 240VAC, 50-60 Hz.
● Can be daisy chained with a single power input only (max 10 / input )
● Multiple mounting options for attaching the charger on a wall.
● Comes with a support handle for desk mounting.
Chapter 1. Introduction
1

2
Chapter 1. Introduction

2 Charger parts
2.1 Package contents
When opening the package, carefully check that all the listed parts are supplied.
Figure 2.1. Package contents
1. Ekahau T301B Multi Charger
2. Power cable
3. Extension cable (optional), needs to be ordered separately.
4. Mounting screws 2pcs
5. Cable clamps 2 pcs
6. Instructions manual
Chapter 2. Charger parts
3

2.2 Front panel
Figure 2.2. T301-B Multi Charger front panel.
1. Slots for T301-B tags.
4
Chapter 2. Charger parts

2.3 Rear panel
Figure 2.3. T301-B Multi Charger rear panel
5. Inlet connector 100-240VAC (50-60Hz)2. Support handle for desk mounting
6. Outlet connector for daisy chaining3. Holes for wall mounting with screws
7. Cable clamps for inlet and outlet cables4. Mounting slot for DIN rail
Chapter 2. Charger parts
5

6
Chapter 2. Charger parts

3 Mounting options
3.1 Wall mounting - single charger
When mounting a single charger, first mount the screw on the wall vertically aligned, 270mm (10.63
inches) apart. Then place the charger to match the screws with the holes in the charger and slide
firmly down to secure in place.
Figure 3.1. Wall mounting - single charger
3.2 Wall mounting - multiple chargers
When mounting multiple chargers in a row, it is recommended to use a DIN rail to ensure the
chargers will be level. First mount the rail and the screws on the wall as described in Wall mounting
- multiple chargers on page 8 . Then place the chargers on the rail and slide down to secure in
to the screw. USE 15 mm wide top-hat rail (EN 50045, BS 6273).
Chapter 3. Mounting options
7

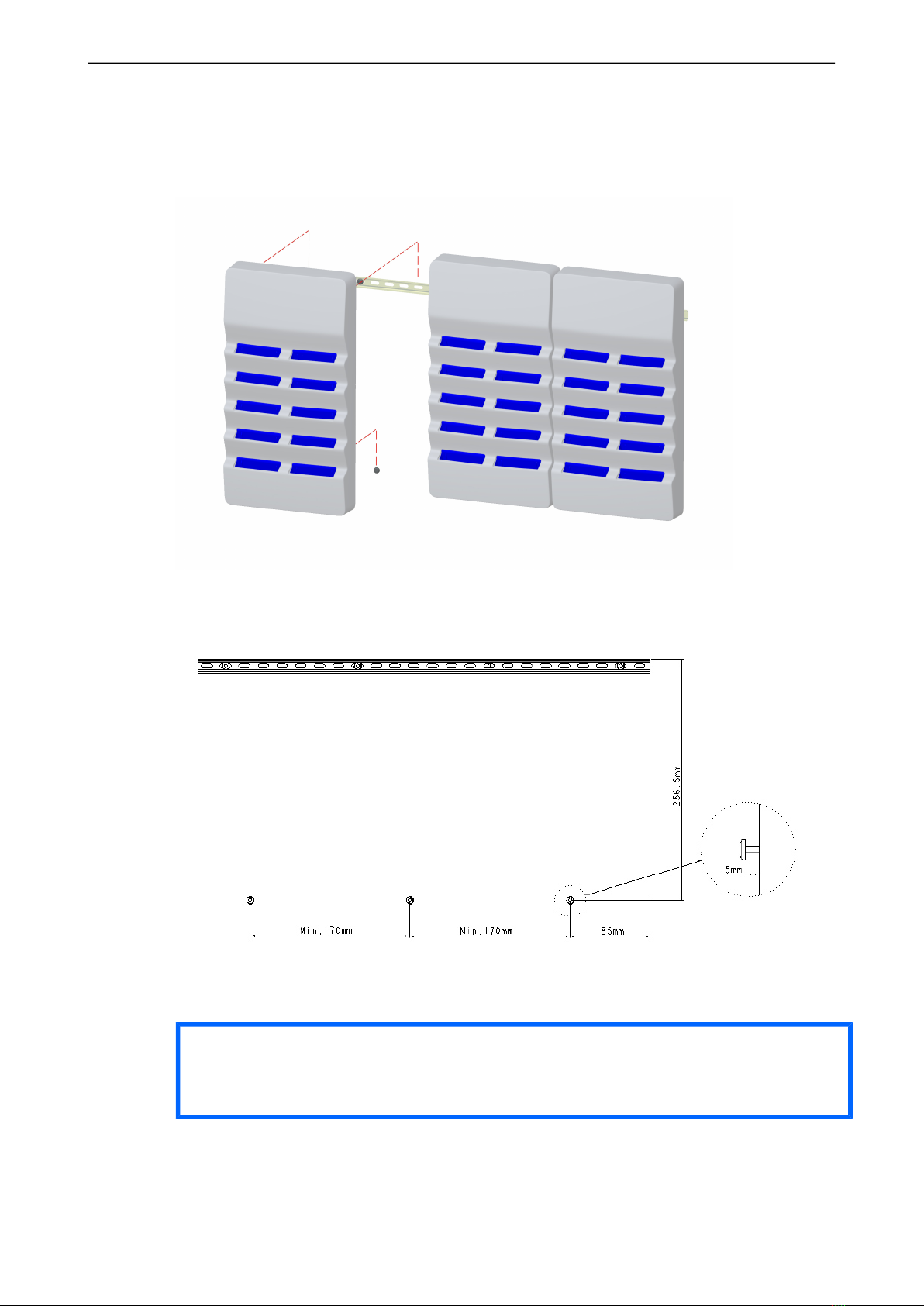

Figure 3.2. Wall mounting - multiple chargers
Figure 3.3. Dimensions for DIN rail and screws
Tip
256.5mm = 10.10in, 170mm = 6.69in, 85mm = 3.35in, 5mm = 0.20in
8
Chapter 3. Mounting options

3.3 Desk mounting
The charger is equipped with a special handle for desk mounting. Turn out the handle, and place
the charger on top of a desk as shown in the picture below.

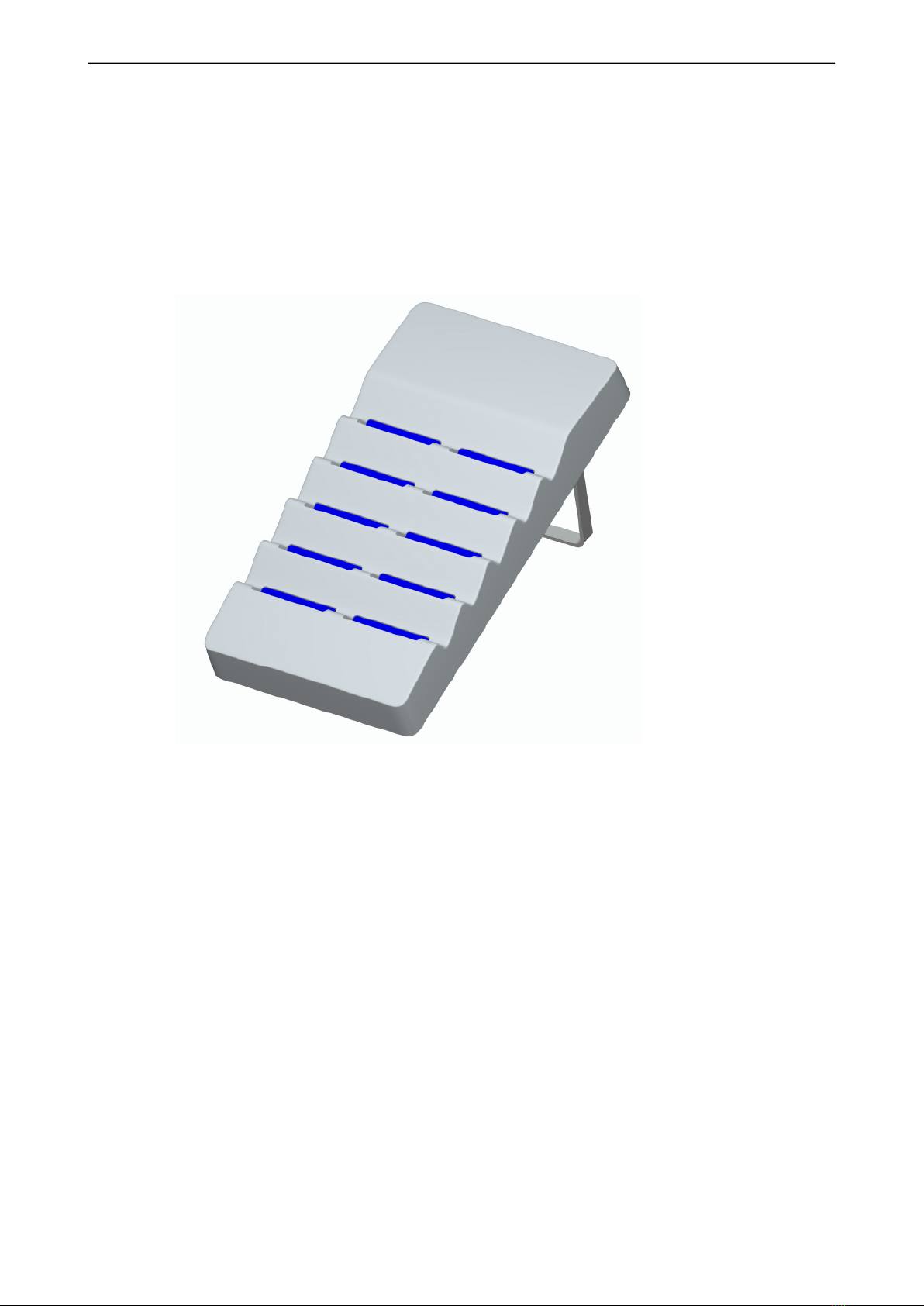

Figure 3.4. Desk mounting the Charger
Chapter 3. Mounting options
9

10
Chapter 3. Mounting options

4 Technical specifications
4.1 General
● Outside Dimensions : 6.93 x 12.60 x 1.97 in / 176 x 320 x 50 mm.
● Weight: 2.22 lb / 1.008 kg.
● INPUT: 100-240VAC 500mA (Max) 50-60Hz
● OUTPUT: 5VDC6A max.
● Outlet connector for daisy chaining, max 10 chargers chained
● Operating Temperature: 32 to 122ºF / 0 to 50 ºC.
● Storage Temperature: -40 to 140ºF / -40 to 60 ºC.
● Humidity: From 20% to 95 % non-condensing, relative humidity
4.2 Care and Maintenance
● Keep the charger dry. Precipitation, humidity and all types of liquids or moisture can contain
minerals that will corrode electronic circuits.
● Do not use or store the charger in dusty, dirty areas. The charger is not sealed from dust.
● Do not store the charger in hot areas. High temperatures can shorten the life of electronic
devices, and warp or melt certain plastics.
●Do not store the charger in cold areas. When it warms up (to its normal temperature), moisture
can form inside, which may damage electronic circuit boards.
● The operating temperature of the charger is 0 to 50 ºC. Do not operate the charger outside
this temperature range.
● Do not try to open the charger.
● Do not drop, knock or shake the charger. Rough handling can break internal circuit boards.
● Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the charger.
● Do not paint the charger. Paint can clog the moving parts, affect the radio communication and
prevent proper operation.
● Use a soft, clean and dry cloth to clean the charger.
Chapter 4. Technical specifications
11

12
Chapter 4. Technical specifications

5 Limited warranty
Ekahau warrants that the T301-B Multi Charger will operate in accordance with and substantially
conform to their published specifications when shipped or otherwise delivered to the end user and
for a period of 1 year thereafter, provided, however, that Ekahau does not warrant any claim or
damage under this Warranty if such claim or damage results from:
1. Misuse, neglect, accident or improper installation or maintenance of the chargers,
2. Chargers that have been altered, modified, repaired or tampered with by anyone other than
Ekahau,
3. Use of the Chargers not in compliance with their respective documentation, user manuals,
instructions, and any usage restrictions contained therein, including, but not limited to, the
provisions relating to the environment and ranges where the tags must be used, or
4. Accident, fire, power failure, power surge, or other hazard.
Otherwise, the Chargers are sold AS IS. In no event does Ekahau warrant that the Chargers are
error free or that end user will be able to operate the Chargers without problems or interruptions.
End User is responsible for using the Chargers within their specifications as contained in the
Documentation.
