EKKO EB12-138 User manual

- 1 -
-
1
-
The Specification
Full Electric Straddle Stacker
EB12E/EB12-138
Note: Before using, please read this manual!
EKKO Material Handling Equip ent Manufacturing, Inc.

- 2 -
-
2
-
Contents
1. The correct use of Electric stacker..................................................- 3 -
2. Warning,the residual risk and safety instructions........................ - 8 -
3. Commissioning, transport, outage.................................................. - -
4. Daily inspection............................................................................... - 10 -
5. Operating instructions....................................................................- 10 -
6. Battery charging and replacement................................................- 13 -
7. Regular maintenance......................................................................- 14 -
8. Fault analysis...................................................................................- 18 -

- 3 -
-
3
-
1. The correct use of electric stacker
Described in this manual of the full electric walkie straddle stacker. This
equipment is to reduce the handling and transportation of your load efficiently.
Improper use may result in personal injury or damage of the machine.
The operator must ensure proper usage and be authori ed and trained before
use. This stacker should always be on a flat surface while lifting any material.
This stacker should be used in room temperature environments. Not
recommended for operation and lifting on slopes. Loads should always be
centered within the 24” load center from backrest. It is strictly prohibited to lift
or carry personnel. Load of material must be reduced to the max lifting point
(138in).
Rated load is in the load curve on the label of the unit. The operator should pay
attention to these warnings and safety instructions.
Changing:
Load ratings affect the stability and safety of the operations of this equipment.
This includes the effects of the changes, such as: brake, steering, Increase the
visibility and mobile accessories. When the manufacturer or its successor
approved modify or change, load curve, label, the identification mark,
operation and maintenance manuals will be corresponding to the changes.
Any changes made or damaged due to misuse of this products will lose the
warranty.
1.1An overview of 1.1 main parts
Fig 1: The main component overview

- 4 -
-
4
-

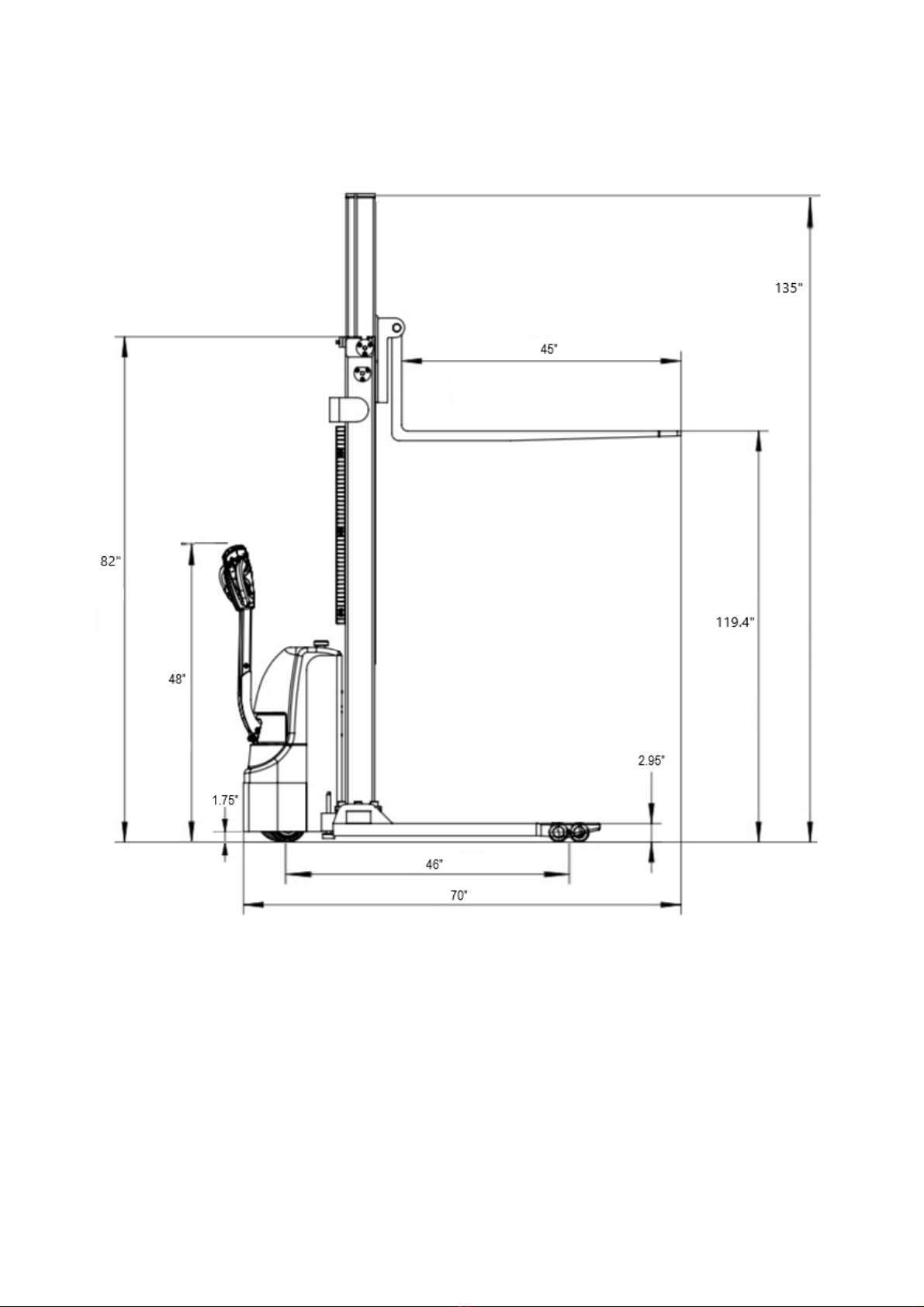

Model EB12E EB12E-138
Load capacity (lbs) 2640 2640
Load capacity on Max.
height (kg) (lbs) 1540 1540
The max. lifting height (in) 119.4 138
Load center distance (in) 24 24
Fork length (in) 45 45
Single fork width (in) 4 4
Overall fork width (in) 8.3-33.5 8.3-33.5
Lowered fork height (in) 2.35 2.35
Fixed leg length (in) 36.5 36.5
Fixed leg width, single
(Including the front double
frame)
(in) 5 5
Inside width between fixed
legs (in) 45.5-59.1 45.5-59.1
Turning radius (in) 52.6 52.6
Front wheel si e, number φ3.1×2.7、4 φ3.1×2.7、4
Rear wheel si e, number φ8.3×2.7、1 φ8.3×2.7、1
Balance wheel si e, number φ6×2.3、1 φ6×2.3、1
Overall length (in) 71 71
Max Overall width (in) 61 61
Extended mast height (in) 135 154
Lowered mast height (in) 82 92
Battery voltage
(dimensions) (in) 2×12V/100AH（10/6.6/8.5）2×12V/100AH（10/6.6/8.5）
The charger V/A 24V/15A 24V/15A
Lifting Motor V/Kw
2.2kw. Lift speed,
laden/unladen:92/136mm/s
Lowering speed:
laden/unladen:112/98mm/s
2.2kw. Lift speed,
laden/unladen:92/136mm/s
Lowering speed:
laden/unladen:112/98mm/s
Driving Motor 0.75kw.Driving speed:
laden/unladen:4.0/4.2km/h
0.75kw.Driving speed:
laden/unladen:4.0/4.2km/h
Service Weight (lbs) 1375 1450

- 5 -
-
5
-
EB12E

- 6 -
-
6
-
EB12E-138
1.3 Optional
C. Safety devices and warning label, description
A The hook label
B The warning label: Do not stand at the fork below or the goods fork
C Load curve icon paste
D Read and observe the instructions of the label
E Data plate
(3) The emergency stop switch
(14) Belly switch
The stacker has an emergency stop switch that stops all functions, lifting and driving functions, and
can make the electromagnetic brake engage.

- 7 -
-
7
-
After checking everything and it is safe to do so, pull the red emergency switch back up to engage all
functions.
Insert the key and switch clockwise rotation to power on. Key can be removed to prevent
unauthori e users.
This product also has and emergency reverse belly switch (14), this will ensure safety of the operator
from running into them. Engagement of the belly switch, which can stop and reverse the product
once the belly button is hit and engage for the safety of the operator.
At the same time, follow the instructions on the label as shown.
Fig 3: Safety devices and warning label
D. Data plate
1 Name, type 7 Minimum / maximum battery weight
2 Serial number 8 Rated power (kW)
3 Rated capacity (ib) 9 Load center distance
4 Supply voltage (V) 10 Manufacturing parameters
5 No battery weight (weight) (ib) 11 Optional

- 8 -
-
8
-
6 The name and address of manufacturer
2.Warning, safety instructions
Warning-----Please do not:
1. Travel, with a load above (<11.8in).
2. Avoid putting your foot or hand within any lifting mechanism.
3. Avoid non-operating personnel near the equipment while traveling or lifting / lowering.
4. Avoid your foot in the front of the wheels.
5. Must be cautious when using this equipment on a slope .
6. Lateral load or tail load should be with caution.
8. The goods must be evenly distributed on both forks with center of load at 24” to avoid unstable,
and unbalanced loads.
Safety instructions
1. Charging must me AC voltage of 110V outlet or outside the 220V.
2. Observation of different ground level and dips when operating. The goods may tip, or the stacker
may lose control. Please check the load from time to time. If the goods become unstable you should
immediately stop the operation of the vehicle and re-center or secure it.
3. When the goods on the stacker starts sliding. Immediately press down on the emergency stop
switch.
4. Always perform maintenance work according to the regular inspection. Recommended use this
stacker in the dry environments for longevity.
5. Always be trained to operate this stacker and wear protective gear and safety shoes.
6. This stacker is suitable for room temperature between +5 C to + 40 C indoor use.
7. Be cautious while operating this on a slope. Sudden movement may cause unexpected stability of
the load.

- 9 -
-
9
-
3. Inspection, transport, outage
3.1 Test
Inspecting on receipt of your new stacker, the following steps before operating the equipment: The
equipment should be at full charge. (see Chapter sixth) Work according to the inspection and routine
inspection of the equipment.
3.2 Lifting / Transport.
When transporting, the removal of the goods, the fork must be lowered to the lowest position, and
according to the following chart secure equipment.
Lifting:
Please use the special cranes and lifting equipment;
Please don't stand underneath the stacker;
Please do not have anyone near or stand near the equipment when lifting anything
Strapping or lifting the stacker by its lifting hooks is shown in figure 5 or to tie down the body.
Fig. 5: Used crane hoisting

- 10 -
-
10
-
Transport:
A. In the process of transportation vehicles must be firmly fixed on truck.
B. Reduce the fork to the lowest position. Use straps through or on the outriggers/leg
4. Daily inspection
This chapter describes the daily inspection of the equipment and recommended examination before
operation.
Daily inspection can prevent faults for failure. The following points should be checked before
operating the vehicle.
Check whether there are scratches, deformation or cracks in any welds and structure.
Check the cylinder leaks of hydraulic fluids.
Check the condition of the vehicle longitudinal driving.
Check the chain and the roller for damages or corrosion.
Check the wheels for smooth travel.
Press the emergency stop button to check the emergency braking function.
Brake function check handle lever switch.
Press the button to check for lifting and lowering function.
Check whether there is damage and protective guard is installed correctly.
Check the horns.
All bolts and nuts are tightened.
Check the key switch function.
Check the lifting limit switch.
Visually check whether there is any damage in wiring or hoses.
Check the charge of the equipment
5. Operating Instructions
The operation of this stacker, please follow the warning and safety instructions (see chapter 2).
Make sure there are no goods or other equipment interfering in your visibility!
Insert the key, turn clockwise to turn on.
Make sure the Red Emergency Button is switched on and pulled upwards.
Ready to operate.

- 11 -
-
11
-
5.1 Parking
Not recommended to stop on a slope.
This car is equipped with an electromagnetic fault protection parking and parking brake.
However, please always completely lower the fork at all times. Turn key counterclockwise rotation,
then remove the key.
5.2 Load Curve
Load curve shows a given load center C [mm] and hori ontal load capacity of the largest load Q [kg]
vehicle corresponding lifting height is H [mm].
The white mark on the door frame representation can reach ascension range.
For example: a cargo gravity center distance of C is 24”, the maximum lifting height H
119in, the maximum load capacity of Q to 1540lbs.
5.3 Lifting Loads
Do not overload. The maximum load capacity of this car is 1540lbs at max height.
Only increase the load capacity allowed by the load curve.
When traveling, lower the fork to 11.8in to reduce to a car on the leg, and press the lift button (Figure
1, 11) until you reach your expectations lifting height.
5.4 Lowering Loads
Always lower the loads slowly and carefully without any shifting or turning. Carefully press the
down button, then carefully pull away from the goods.
5.5 Traveling
Always travel with slower speeds with loads and when going up ramps have the load facing forward.
Travel with caution and awareness of your surroundings.
Always lower your load to a minimum when traveling.

- 12 -
-
12
-
Fig 7: Goods Up
Turn on the equipment with key, pull the emergency button switch upward if not engaged. Raise the
forks at a minimum height of at least 3-6 inches off the ground to avoid getting caught up on
anything (Figure 11)
Carefully accelerator butterfly throttle on the handle to determine if you are moving forward or
backwards. (Figure 12).
If the stacker is stopped, then the electromagnetic braking will engage.
Always be careful driving the stacker to its destination. Always observe your surroundings and the
surface you are traveling and accelerate with proper speed.
Fig 8: The direction of the operation
5.6. Steering
Steer in the direction with the handle to determine direction.

- 13 -
-
13
-
5.7. Brake
Load braking performance depends on the road conditions and equipment.
Brake function can be activated by the following ways through the accelerator button (12) moved
back to '0' position or the release of this button, the regenerative braking is activated.
Through the accelerator button (12) driving direction move directly to the opposite direction from a
truck with regenerative braking, until it begins running in the opposite direction.
If the handle is moved upwards or downwards to the braking one ('B'), truck will stop. If the release
lever, is automatically moved to the handle braking area ('B'). The truck will start braking.
Belly button switch (14) can prevent accidents and will stop and reverse once the belly button switch
is engaged. If you press this switch, the truck will reverse in opposite direction ('Bw.”), then stop to
avoid accidents. If the handle on the operation of the truck is not running, properly, please consider
this switch is compressed.
5.8. Fault
If there is any fault or truck is not operating properly, please stop using the truck and press the
emergency stop switch (2).
Park the truck in a safe area, turn the ignition off (16) counter clockwise rotation, and then pull out
the key.
Immediately inform the manager and / or contact your customer service personnel. If necessary,
transport the truck with another lifting equipment to a secure location to diagnose.
5. In case of emergency
When you encounter an emergency, press down the emergency stop switch (2). All electrical
functions will stop. Keep a safe distance.
6. Battery charging and replacement
1. Only qualified technicians or trained operators should repair or to recharge the battery. Please be
sure to abide by the operation manual and battery manufacturer's instructions.
2. These batteries are maintenance free, prohibited to for re-fill.
3. Battery recycling shall abide by state laws and regulations due to ha ardous material and
chemicals. Please abide by these provisions.
4. Treatment of the battery, the prohibition of the use of fire, gas may cause explosion!
5. Battery charging areas should be free from flammable materials or flammable liquids. Smoking is
prohibited, and the area must be well ventilated.
6. Truck must be parked with the equipment with the emergency button off before charging or
installing replacement battery.
7. Before performance maintenance, make sure all wiring harness is connected correctly.
8. The truck is equipped with a sealed liquid acid battery 2*12V/ 100Ah.
. Only allow the use of sealed lead-acid battery for operation of this truck.
Note: Please consider the maximum operating temperature of the battery.
6.1. Replacement

- 14 -
-
14
-
Safety park vehicles, with a key (16) close the stacker and press the emergency stop switch (2).
Unscrew the 2 screws on the main cover, remove the main outer cover. First unscrew the
6.2. Power Meter
Discharge with 4 LED display to show
6.3. Charge
Optional automatic voltage charger can only be applicable to the mentioned 110V or 220V. Charging
space must ensure good ventilation. After the completion of the charging of the battery, disconnect
the connector from the socket, and put it in the specified storage location.
7. Regular Maintenance
Only qualified and trained personnel should inspect the maintenance of this truck.
Before maintenance, please always remover any products from the fork up and lower the forks to the
lowest position.
For lifting procedures, review the specified instructions according to the fourth chapter lifting
equipment. Before the operation, please safety secure movement of the truck (such as a specified jack,
wedge or wood) under the truck to ensure security of movement.
Please pay attention to the maintenance of the handle bar. There is a gas spring has pressure.
Please use the original spare parts approved and issued by your dealer.
Please consider the leakage of the hydraulic fluid which may cause the machine breakdown and
accident.
Only allow repair technician trained for pressure regulating valve.

- 15 -
-
15
-
If you need to replace the wheel, please follow the above instructions. Caster must be and no
abnormal wear round.
Check and maintain the list of items on the list.
7.1. Maintain inventory
Table4: Maintain inventory
The
interval
of
time
1
2
6
12
1Check the hydraulic oil cylinder, for noise and leakage
damage ●
2Check the hydraulic connections and tubing for damage and
leakage
●
3
Check
the
hydraulic
oil
level,
then
re-fill
if
necessary
●
4
Fill
the
hydraulic
oil
(12
months
or
1500
hours)
●
5
Check
and
adjust
the
pressure
valve
function
(2205lbs+0/
●
Mechanical
system
6
Check
the
deformation
and
crack
of
fork
●
7
Check
the
deformation
and
crack
of
the
chassis
●
8
Check
all
the
screws
are
torqued
completely
●
9
Check
the
mast
and
the
chain
for
corrosion,
deformation
●
10
Check
for
noise
and
leakage
of
gear
box
●
11
Check
for
wheel
deformation
or
damage,
replace
if
necessary
●
12
Steering
bearing
lubrication
●
13
Check
and
lubrication
center
point
●
14
Grease
no le
●
15 Protective and / or protection board, if damaged replace ●
The
electrical
system
16
Check
for
any
wiring
is
damage
16
Check
if
any
wire
is
damaged
●
17
Check
the
electrical
connectors
and
connecting
terminal
●
18
Detection
of
the
emergency
stop
switch
function
●
19
Check
the
electric
drive
motor
noise
and
damage
●
20
Detection
display
●
21
Check
the
use
of
the
correct
fuse,
replace
if
necessary
●
22
Test
bu er
●
23
Check
the
current
contactor
●
24
Check
for
leakage
of
the
frame
(insulation
test)
●
25
Check
the
accelerator
function
and
wear
●
26
Check
the
drive
motor
of
electric
system
●
Brake
system
27 Check the brake performance, brake disc replacement or
adjustment
gap
if
necessary
●
Battery
28
Check
the
battery
voltage
●

- 16 -
-
16
-
29 Clean and give the terminal grease, check whether there is
corrosion and damage
●
30
Check
the
battery
shell
is
damaged
●
Charger
31
Check
the
main
power
line
for
damages
●
32
Start
protection
program
check
during
charging
●
Function
33
Test
bu er
●
34
Air
gap
electromagnetic
brake
check
●
35
Detection
of
the
emergency
brake
function
●
36
Detection
of
reverse
braking
and
regenerative
braking
function
●
37
Detection
of
belly
switch
function
●
38
Check
the
steering
function
●
39
Check
the
lifting
and
lowering
function
●
40
Check
the
handle
lever
switch
function
●
41
Detection
of
the
key
switch
is
damaged
and
function
●
42
The
detection
speed
limit
switch
(lifting
height
is
>~11.8in)
●
Comprehensive
43
Check
all
label
is
clear
and
complete
●
44
Check
protective
plate
and
/
or
protection
is
not
damaged
●
45 Check the steering wheel, if worn for height adjustment or
replacement
●
46
A
test
run
●
7.2. Lubrication points
Lubrication maintenance shown in listing marked points on the. Required grease specification:
DIN51825, standard grease.

- 17 -
-
17
-
1. The wheel bearing
2. The door frame
3. Chain
4. Hydraulic system
5. Steering bearing
6. Gear box
7.3. Inspection and hydraulic oil refill needed hydraulic oil type
Anti-wear hydraulic oil 32#
Viscosity is 32 - 38
Based on the model, the amount of oil is from ~2.5L to 3.0L.
Waste materials such as waste oil, waste batteries or other materials must be recycled according to
law.
7.4 Safety Screen
If you need to remove protective screen, unscrew the screw fixation and remove protective screen.
Screw is still in the protective net. Re-installation, the protective plate placed in the correct position

- 18 -
-
18
-
and then tighten screws. If you need to change parts, please contact your nearest after sale service
dealer.
8. Fault analysis
If the truck after to following the instructions of the chapter (6) is still at cause of functioning.
Table Failure analysis of 6:
Fault Reason Repair
The goods cannot ascend
Excessive
weight
Decrease
the
maximum
load
Battery discharge Charge the Battery
Enhance the fuse failure Check and the eventual
The hydraulic oil level too low Check and finally filled with
The oil spills Seal repair tubing and / or cylinder
Hydraulic Fluid
Oil is too high Reduce oil
The goods cannot be
dropped
Oil dirty blocking control valve Check the hydraulic oil and valve.
Declining electromagnetic valve
does not open or damage
Check or replace down solenoid
valve
Truck cannot operate Check battery charge Completely charge
Battery is not connected Check connections
Fuse failure Replace fuse
Low battery Charge Battery
The emergency stop switch is
activated
Pull the knob to eliminate the
emergency
stop
switch
Functioning
The handle at the operation area The handle is moved to the braking
one
Truck travels only in one
direction
Accelerator and connectors do not
function
Check the accelerator and
connector to ensure proper contact
Stacker walking very
slowly
Low battery Check the discharge display battery
Has launched the electromagnetic
brake
Check the electromagnetic brake
The handle is not connected or
damage related wiring harness
Check the wiring harness and
connector handle
Truck suddenly starts The AC controller damages Replace the controller
The accelerator is not transferred
back to the middle position
Repair or replace the accelerator
