FULL HD WI-FI
DOORBELL
K90DBW1080
INSTRUCTION MANUAL
Please read this manual carefully before using, and keep it for future reference.

CONTENTS PAGE
General Safety Instructions 4
Product Overview 7
Batteries 8
Setup 9
App / Wi-Fi Control 10
Download EKO Home app 11
Start Setup Process 12
Login/Create account 13
Adding Device 15
EKO App - Dashboard 20
Main Menu 21
Product Control Panel 22
Messages / Notifications (motion detect) 23
Settings 24
Home Management 25
Creating a Home 26
Adding Other Users to your Home 27
Add app to Google Home 30
Add app to Amazon Alexa Account 31
Installation (Conrete or Brick Wall) 32
Cleaning 34
Specifications 35
Customer Helpline Last Page

4
GENERAL SAFETY INSTRUCTIONS
Read this manual thoroughly before you start using this
product Store this manual, the completed warranty card, your
receipt and the product packaging.
To reduce the risk of injury:
• Avoid rain, high temperature products or direct
exposure to sun.
• Do not expose this appliance to rain or moisture as it may
result in fire or an electric shock hazard
• Do not tamper or change or modify the product in any way.
• Only use Accessories outlined and recommended by the
manufacturer.
• Please do not expose the product to splashing or
water contact
• Please do not place any object on top of the product
including objects filled with liquids such as vases.
IMPORTANT INFORMATION

5
GENERAL SAFETY INSTRUCTIONS GENERAL SAFETY INSTRUCTIONS
PLEASE READ BEFORE USE:
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction
concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that
they do not play with the appliance.
• Please do not use any other accessories which not supplied
with this product.
• Do not attempt to open up and fix or modify circuits inside
the unit.
• If the product or cord is damaged, contact us at
[email protected] for advice.
Do not attempt to open the board or replace the cord.
• If the product requires repair, contact us at
[email protected]; never disassemble or
modify the product or attempt to service it yourself.
• While Charging Run the USB Charging line in such a way
that there will be no risk of anyone pulling it inadvertently
or tripping over it.

6
GENERAL SAFETY INSTRUCTIONS
• Before installing the product, make sure to place it away
from: heatsources, radiators or other products that produce
heat; areas with high temperatures, high humidity or direct
sunlight; excess dirt and dust; open windows and any place
where water may get to the unit.
• Do not immerse the cord, plug or the product in water or
other liquid, or expose the electrical connections to
water or other liquid.
• Unpack the product and keep the original packaging
carton and materials in a safe place. It will help prevent any
damage if the product needs to be transported in the
future, and you can use it to store the product when it is
not in use.
• The product should always be repacked in its original
packaging whenever transporting to prevent any possible
damage to the product.
• When not in use: Disconnect from the power source and
store in a cool, dry and well ventilated location out of direct
sunlight, and not subject to humidity.

7

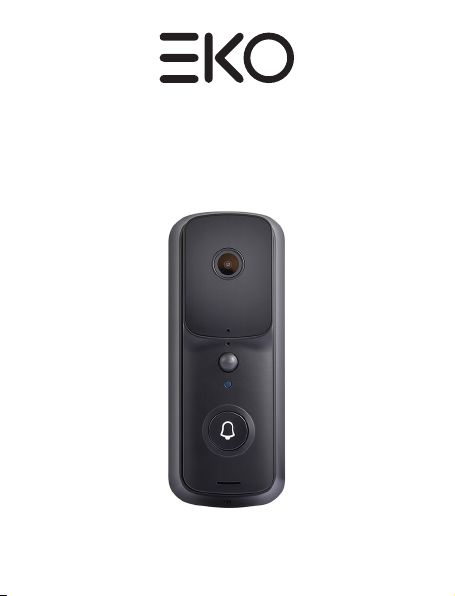

PRODUCT OVERVIEW
Doorbell Mount bracket &
Screws USB CableRechargeable Batteries

8

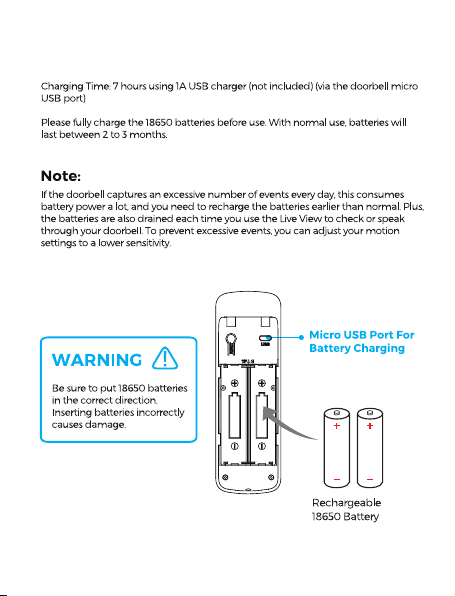

BATTERIES
(5VDC 1A)

9
SETUP
MAKE SURE TO FULL CHARGE
Before installing the product into the location you want to
monitor for security purposes. Make sure that your product is
100% CHARGED.
You can do this by taking o the back battery compartment
lid by pushing it down and out. (A and B)
C - Using the Micro USB Cable (included), plug in and charge
your doorbell (up to 7 hours). Leave this product charging
until you complete and finish connect to EKO Home app.
Battery status is available once connected (start from page 10)
WALL INSTALLATION RECOMMENDED AFTER APP SETUP.
INSTRUCTIONS ON PAGE 32
A B C

10
APP/Wi-Fi Control
Working with your mobile device, using your home Wi-Fi
network router to communicate with your product and
control it.
CONTROLLING THE SECURITY CAMERA REMOTELY IS
VERY SIMPLE. YOU WILL NEED:
- Android smartphone or tablet, or an Apple iPhone or iPad
- Internet connection at your home
- Wi-Fi network router set up at home.
You must also have the EKO Home App installed or updated
on your smartphone or mobile device. This app is available
from Google Play Store or Apple App Store.
PLEASE READ THROUGHLY THE FOLLOWING PAGES FOR
INSTRUCTIONS OF SETTING UP YOUR SECURITY CAMERA.

11
APP/Wi-Fi Control APP/Wi-Fi Control (Cont.)

12
APP/Wi-Fi Control (Cont.)
In order to do this, make sure you have the EKO Home App
installed or updated on your mobile device, your Wi-Fi router is
switched on and your mobile device connected to your home
Wi-Fi network.
On your mobile device, tap on the EKO Home app (1).
It will open and take you to the Login Page (2).
1 2

13
APP/Wi-Fi Control (Cont.) APP/Wi-Fi Control (Cont.)
Before you log in, please press SIGN UP and register your account
using an email address. (3 and 4).
3 4

14
APP/Wi-Fi Control (Cont.)
Once entered email address, tap GET VERIFICATION CODE and an
email will be sent your email address with a verification code. Enter
this code.
Now you can enter a password for your account. Please remember
this password or write it down. (5)
3 4

15
APP/Wi-Fi Control (Cont.) APP/Wi-Fi Control (Cont.)
1. Tap the plus ( + ) or ADD DEVICE to add your device. (7).
2. Select the product which in this case is:
Smart Doorbell. (8)
78

16
APP/Wi-Fi Control (Cont.)
IMPORTANT
Before you can control your product remotely, you must reset
the Wi-Fi module on the unit.
To do so please follow on screen or below instructions:
1. Using the Micro USB Cable, plug USB side into a USB
powered adaptor, and the Micro USB side into the back
of the product.
2. Once the product is powered, the blue light will turn on at
the front, please leave as it is for up to 30 seconds. Now
that the product is on, On the EKO Home app “Reset the

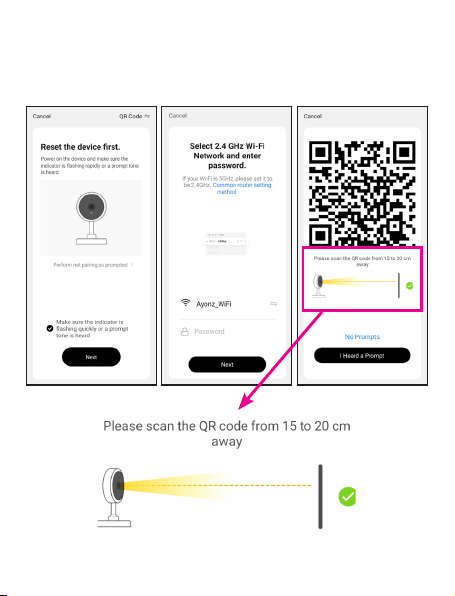

device first” page, tick the box indicated (9) and press next.
4. Select Wi-Fi network then enter in the password to
connect. (10)
Note: Make sure to select 2.4GHz
5GHz Wi-Fi Network will not work with this app.
5. Once Wi-Fi is entered, follow the on screen animation (11)
to scan the QR code generated within your app. If you
hear a Sound prompt, select the button “I Heard a Prompt”.
REFER TO NEXT PAGE --->

17
APP/Wi-Fi Control (Cont.) APP/Wi-Fi Control (Cont.)
9 10 11

18
APP/Wi-Fi Control (Cont.)

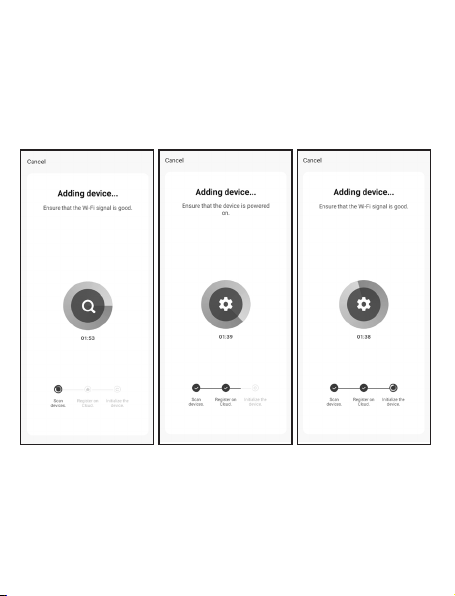

Now that the device is being added, progress screen will now appear
as to below: (12, 13, 14).
12 13 14

19
APP/Wi-Fi Control (Cont.)
Now that the device is being added, progress screen will now appear
as to below: (12, 13, 14).
APP/Wi-Fi Control (Cont.)
Once completed, it will show your product is now added. click
DONE. Click on the device name and you can now start navigating
the controls of the app. (15)
15
K90DBW1080

20
APP/Wi-Fi Control (Cont.)
EKO HOME DASHBOARD
PROFILE
HOME
VIEW ALL
CAMERAS
LIVE VIDEO
ADD PRODUCT
WEATHER
SELECT OR
ADD ROOMS
CLICK TO
ENTER PRODUCT
CONTROLS
SCHEDULES/
AUTOMATIONS
MAIN MENU/
HOME
MANAGEMENT/
NOTIFICATIONS
VOICE CONTROL
