ekwb EK-FB MSI X299 GAMING PRO CARBON Monoblock User manual

All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use. Revision 1.0. Published on July 12th 2017
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no
liability whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates.
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual thoroughly before beginning with the installation process!
2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard’s circuit board (PCB).
3. The EK-HFB and EK-ACF type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.
4. The use of quality, market proved corrosion inhibiting coolants is always strongly recommended for any liquid cooling system.
STEP 1: GENERAL INFORMATION Sample photo of MSI X299 Gaming Pro Carbon motherboard
BAG CONTENT: Bag content is universal for all water blocks, you may not need all screws.
STEP 1: PREPARING YOUR MOTHERBOARD
STEP 2: PREPARING YOUR MOTHERBOARD
REMOVING STOCK COOLER. Remove all encircled screws. There are 2 screws on the
back of the motherboard that need to be removed in order to remove the factory
installed MOSFET heat pipe cooling solution. Please store away the factory backplate
as it will be reused.
1. APPLYING THERMAL COMPOUND. Apply thermal compound on CPU heat spreader
(IHS) - see sample photo on right with enclosed EK-TIM Ectotherm thermal grease.
The quantity of about two rice grains is just about right. There is no need to cover
the whole IHS. Applying too much thermal grease will have negative impact on the
cooling performance!
2. CUTTING THERMAL PADS. Your block comes with thermal pads which needs to be trimmed in order to fit the voltage regulation area (MOSFET) on the motherboard’s
circuit board. WARNING: DIMENSIONS ON PICTURES BELOW ARE SCALED.
Replacement thermal pads @ EKWB web shop:
Thermal PAD G 1mm - (120x24mm) [EAN: 3830046996770]
Installation manual for EK-FB MSI X299 GAMING PRO CARBON Monoblock water block
Mosfets
CPU socket
X299 PCH
(SB)
1. Thermal pad G–1.0mm
(for mosfets and inductor coils):

All disclosures, notices and warranty conditions are being written on EKWB web page. Please check terms of use. Revision 1.0. Published on July 12th 2017

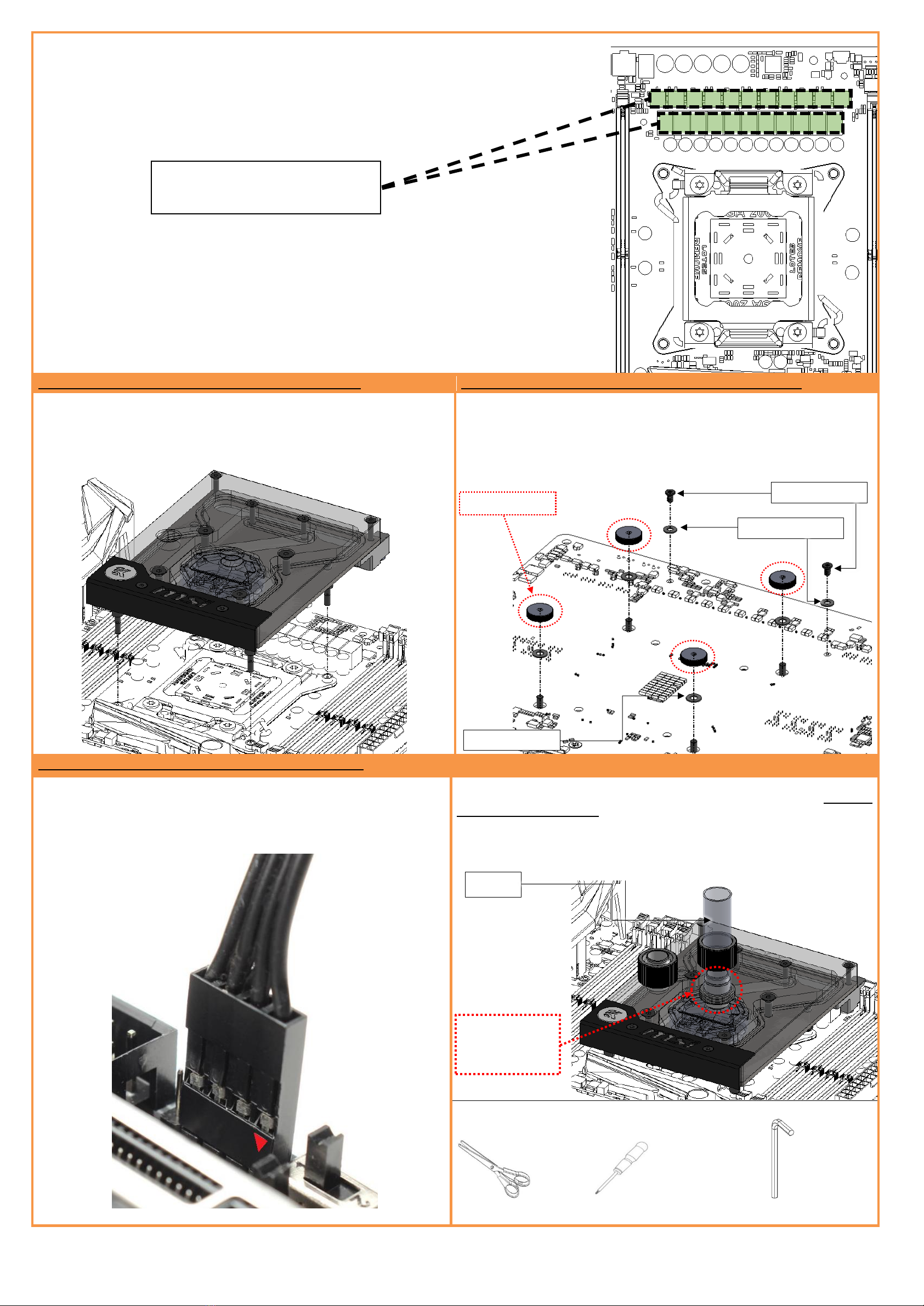

STEP 3: PLACING THE BLOCK ON TO MOTHERBOARD
STEP 4: ATTACHING BLOCK ON TO THE MOTHERBOARD
PLACING THE BLOCK ON THE MOTHERBOARD. Place the EK-FB MSI X299 GAMING
PRO CARBON Monoblock series water block gently to the motherboard or vice versa
(as shown on photo below). Make sure that mounting holes are aligned. Place it on
factory installed washers on the motherboard (MOSFET area).
Prior to fastening the screws please make sure the mounting holes on the
motherboard’s circuit board are aligned with the water block.
A) Mosfet part: Use two M2,5x5 AX1 screws with M2.5 washers. Tighten the screws
evenly. Do not use excessive force when tightening the screws!
B) CPU part: Use four thumb nuts with screws and washers. Tighten
the thumb nuts.
Use the enclosed screws and washers as shown in picture below:
STEP 5: CONNECTING THE RGB LED STRIP (optional)
Plug the 4-pin connector from Monoblock RGB LED strip to the motherboard. Please
ensure that the arrow indicated on the connector is plugged into the 12v line as
indicated on your motherboard. Failure to do so will damage your motherboard or
LED strip.
For the EK-FB MSI X299 GAMING PRO CARBON Monoblock series water block to
operate properly the G1/4 port nearest to the right edge of the water block MUST BE
USED AS THE INLET PORT. EK recommends the use of EK-ACF fittings. When using
fittings other than EK-ACF series please use hose clamps or appropriate substitute to
secure the tubing to the barb. The use of biocide containing and corrosion inhibiting
coolant is always recommended for any liquid cooling system.
REQUIRED TOOLS AND MOUNTING SCREWS:
scissors philips screwdriver Allen key
3. PLACING THERMAL PADS ON MOTHERBOARD. Place thermal pads on
PCB as shown on the picture
PLEASE REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE
THERMAL PADS PRIOR TO INSTALLATION!
Place 1mm thermal pads in larger strips over
both marked area and make sure all mosfet
chips and inductor coils are covered.
M3 PVC Washer
M2.5x5 screws
M3 thumb nut
Tubing
IMPORTANT: USE
THIS OPENING AS
AN INLET PORT!
M2.5 PVC Washer
