Design LED 36 Brick
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
The Design LED 36 Brick (DLED 36 Brick) by Elation Professional is a high output, compact (fits in 12” box truss),
LED color changer featuring seamless RGB color mixing using 12 x 3W LEDs by Soul Semi Conductor, 36 Watts
total - 4 Red, 4 Blue and 4 Green. This unit is convection cooled and provides up to 100,000 hours estimated
LED life. The DLED 36 Brick is rated at IP 20, designed for indoor applications only and is fully operational in 3
mounting positions. The DLED 36 Brick includes a dual yoke mounting bracket for fixed installation or can be
used as a split bracket for floor standing and separated for mounting multiple units together in a line for linear
strip design. The unit can be operated from 100~240V (electronic switching power supply) and is AC linkable
with IEC in/out connectors. Control data input is via 3 pin or 5 pin DMX data first in and out connector cables.
The DLED 36 Brick also features low power consumption, minimal heat emission and flicker-free operation for
television and film. The unit also features an on board 4 button control menu with 4 digit LED display for setting
control address, modes, manual or auto programs. The unit comes fitted standard with a 25° lens kit producing
a 14° beam angle and a 26° field angle. Optional 45° lens kit producing a 15° beam angle and a 30° field
angle is available.
FEATURES
• LED color changer
• 12 x 3W LEDs, 36 Watts total - 4 Red, 4 Blue
and 4 Green
• Seamless RGB color changing
• Standard 25° lens kit: 14° beam angle, 26° eld angle
• Optional 45° lens kit: 15° beam angle, 30° eld angle
• 548 LUX @ 3 meters @ Full
• Rated IP 20
• Compact Design (ts in 12” box truss)
• Convection cooled
• Electronic ballast, multi-voltage
• IEC Power in/out
• Built-in Power Supply and DMX 512 Control
• Linkable power supply (in & out power connectors) up to 8 units
• LED display
• Standard and theatrical modes
• Flicker free operation
• Master/ Slave auto program and music trigger
• 8 built-in programs with Speed control
• Control each L.E.D. independently
TECHNICAL SPECIFICATIONS
• DMX Channels: 3, 4, 6, 12 or 15 channel
operation modes
• Control: USITT DMX-512, 3-pin and 5-Pin XLR serial input/output
• Dimmer: Continuous dimming 0-100%
• Strobe: Electronic strobe effect (25 fps)
• IP Rating: IP20
• Power Supply: Electronic switching power supply:
100~240V AC, 50/60Hz
• Power Consumption: 58.6W
• Fuse: GMA 220v~2A
• Lamp: 12 x 3 Watt led’s by Seoul Semi Conductor
36-Watt Total (4 x Red, 4 x Green 4 x Blue)
• Lamp life: Long Life L.E.D. (rated at 100,000 Hours)
• Dimensions: (LxWxH): 16.3” x 8.7” x 3.1” /
415 x 220.98 x 78.74mm
• Weight: 9 lbs. / 4.1 kgs.
• Rigging: Mounting bracket and safety eye-hook
installed. Safety cable & 3-pin data cable included

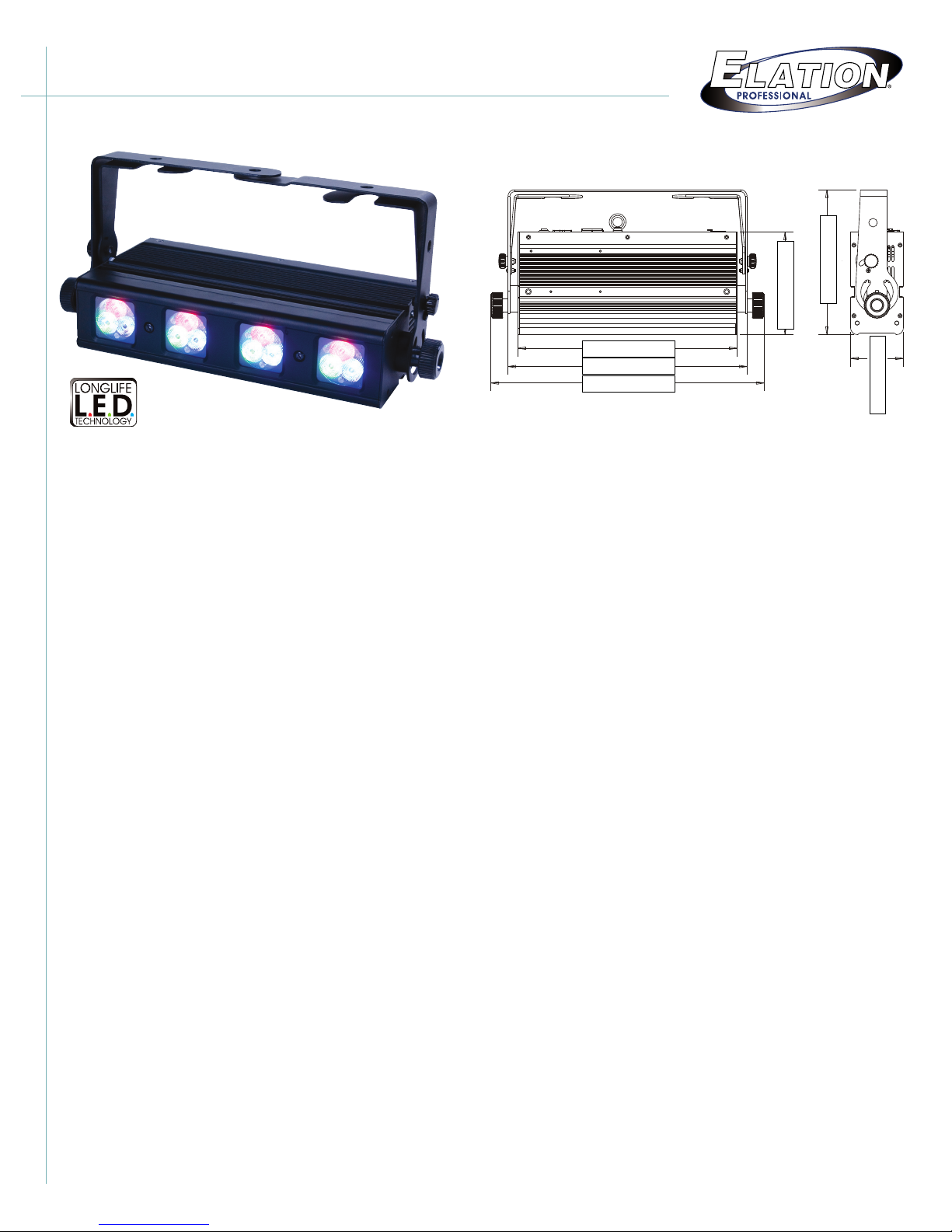

Design LED 36 Brick Dimensions
3.15” / 80mm
16.3” / 414.5mm
6.1” / 155.5mm
8.6” / 219.5mm
14.3” / 362.5mm
13.1” / 332.5mm

Design LED 36 Brick
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
COLORS
• 12 x 3 Watt led’s by Seoul Semi Conductor
36-Watt Total (4 x Red, 4 x Green 4 x Blue)
• Seamless RGB color mixing
• Innite Color possibilities
PHOTOMETRICS
DLED 36 Brick
Photometric Beam Angle Data
Standard 25° Lens Kit: 14° Beam Angle / 26° Field Angle
LUX x0.0929 = FC
0 m
0 ft 1 m
3.28 ft
3 m
9.84 ft
2 m
6.56 ft
R (4)
G (4)
B (4)
Full (12)
130 FC / 1,394 LUX
245 FC / 2,635 LUX
44 FC / 470 LUX
358 FC / 3,850 LUX
40 FC / 430 LUX
77 FC / 827 LUX
14 FC / 154 LUX
110 FC / 1,182 LUX
19 FC / 202 LUX
36 FC / 387 LUX
9 FC / 95 LUX
51 FC / 548 LUX
Beam Diameter
Ø 0.25 m / Ø 0.82 ft Ø 0.50 m / Ø 1.64 ft Ø 0.75 m / Ø 2.50 ft
14° Beam Angle
Ø 0.47 m / Ø 1.54 ft Ø 0.94 m / Ø 3.08 ft Ø 1.41 m / Ø 4.63 ft
26° Field Angle
26° Field Angle
14° Beam Angle
Optional 45° Lens Kit: 15° Beam Angle / 30° Field Angle
LUX x0.0929 = FC
0 m
0 ft
R (4)
G (4)
B (4)
Full (12)
104 FC / 1,119 LUX
230 FC / 2,466 LUX
41 FC / 440 LUX
331 FC / 3,570 LUX
34 FC / 362 LUX
68 FC / 727 LUX
14 FC / 148 LUX
98 FC / 1,059 LUX
17 FC / 180 LUX
32 FC / 340 LUX
7 FC / 78 LUX
49 FC / 524 LUX
Beam Diameter
Ø 0.26 m / Ø 0.85 ft Ø 0.52 m / Ø 1.71 ft Ø 0.78 m / Ø 2.56 ft
15° Beam Angle
Ø 0.53 m / Ø 1.74 ft Ø 1.06 m / Ø 3.50 ft Ø 1.59 m / Ø 5.21 ft
30° Field Angle
30° Field Angle
15° Beam Angle
1 m
3.28 ft
3 m
9.84 ft
2 m
6.56 ft
DLED 36 Brick
Photometric Beam Angle Data
Standard 25° Lens Kit: 14° Beam Angle / 26° Field Angle
LUX x0.0929 = FC
0 m
0 ft 1 m
3.28 ft
3 m
9.84 ft
2 m
6.56 ft
R (4)
G (4)
B (4)
Full (12)
130 FC / 1,394 LUX
245 FC / 2,635 LUX
44 FC / 470 LUX
358 FC / 3,850 LUX
40 FC / 430 LUX
77 FC / 827 LUX
14 FC / 154 LUX
110 FC / 1,182 LUX
19 FC / 202 LUX
36 FC / 387 LUX
9 FC / 95 LUX
51 FC / 548 LUX
Beam Diameter
Ø 0.25 m / Ø 0.82 ft Ø 0.50 m / Ø 1.64 ft Ø 0.75 m / Ø 2.50 ft
14° Beam Angle
Ø 0.47 m / Ø 1.54 ft Ø 0.94 m / Ø 3.08 ft Ø 1.41 m / Ø 4.63 ft
26° Field Angle
26° Field Angle
14° Beam Angle
Optional 45° Lens Kit: 15° Beam Angle / 30° Field Angle
LUX x0.0929 = FC
0 m
0 ft
R (4)
G (4)
B (4)
Full (12)
104 FC / 1,119 LUX
230 FC / 2,466 LUX
41 FC / 440 LUX
331 FC / 3,570 LUX
34 FC / 362 LUX
68 FC / 727 LUX
14 FC / 148 LUX
98 FC / 1,059 LUX
17 FC / 180 LUX
32 FC / 340 LUX
7 FC / 78 LUX
49 FC / 524 LUX
Beam Diameter
Ø 0.26 m / Ø 0.85 ft Ø 0.52 m / Ø 1.71 ft Ø 0.78 m / Ø 2.56 ft
15° Beam Angle
Ø 0.53 m / Ø 1.74 ft Ø 1.06 m / Ø 3.50 ft Ø 1.59 m / Ø 5.21 ft
30° Field Angle
30° Field Angle
15° Beam Angle
1 m
3.28 ft
3 m
9.84 ft
2 m
6.56 ft

Design LED 36 Brick
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
DMX TRAITS
3 Channel Mode (default):
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Dimmer/Speed
6 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Internal programs
5 0 - 255 Strobe
6 0 - 255 Dimmer/Speed
12 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Red (
0 - black, 255 - 100% red
)
5 0 - 255 Green (
0 - black, 255 - 100% green
)
6 0 - 255 Blue (0 - black, 255 - 100% blue )
7 0 - 255 Red ( 0 - black, 255 - 100% red
)
8 0 - 255 Green ( 0 - black, 255 - 100% green
)
9 0 - 255 Blue (0 - black, 255 - 100% blue )
10 0 - 255 Red ( 0 - black, 255 - 100% red
)
11 0 - 255 Green ( 0 - black, 255 - 100% green
)
12 0 - 255 Blue (0 - black, 255 - 100% blue )
15 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Red (
0 - black, 255 - 100% red
)
5 0 - 255 Green (
0 - black, 255 - 100% green
)
6 0 - 255 Blue (0 - black, 255 - 100% blue )
7 0 - 255 Red ( 0 - black, 255 - 100% red
)
8 0 - 255 Green ( 0 - black, 255 - 100% green
)
9 0 - 255 Blue (0 - black, 255 - 100% blue )
10 0 - 255 Red ( 0 - black, 255 - 100% red
)
11 0 - 255 Green ( 0 - black, 255 - 100% green
)
12 0 - 255 Blue (0 - black, 255 - 100% blue )
13 0 - 255 Internal Programs
14 0 - 255 Strobe
15 0 - 255 Dimmer/Speed
