Elation Design Par 575H User manual

Rev. 3/09/2007
Design Par 575H
Elation Professional
4295 Charter Street
Los Angeles, Ca 90058
www.elationlighting.com

Design Par 575H™
©Elation Professional® 2 Design Par 575H™
Contents
1. General Information……………………………………………………………………… 3
a. Introduction………………………………………………………………………. 3
a. Unpacking………………………………………………………..…………..… 3
a. Customer Support…………………………………………….………………… 3
a. Warranty Registration……………………………………………………..…… 4
a. Discharge Lamp Warning……………………………………………………… 4
1. Safety Instructions………………………………………………………........…………. 6
1. Features…………………………………………………………………………………… 8
1. General Guidelines………………………………………………………………………. 9
1. Fixture Overview ………………………………………………………………………. 10
1. Lamp Installation…………………………………………………………………………. 13
a. Lamp installation…………………………………………………….………….. 13
a. Lamp optimization……………………………………………………..………… 14
1. Mounting and Installation………………………………………………………….……. 16
a. Mounting Positions……………………………………………………………… 17
a. Mounting Points…………………………………………………………………. 18
a. Securing………………………………………………………………………….. 19
1. Understanding DMX……………………………………………………………………... 20
a. DMX Connections………………………………………………………………. 20
a. DMX Terminator…………………………………………………………………. 21
a. 3-Pin to 5-Pin Conversion………………………………………………………. 22
a. DMX Addressing………………………………………………………………… 22
1. Display Indicators……………………………………………………………………….. 24
1. Fixture Menu……………………………………………………………………………… 25
a. Menu functions………………………………………………………………….. 27
1. DMX Channel Traits…………………………………………………………………….. 43
a. DMX Channel Values…………………………………………………………… 44
1. Error Codes………………………………………………………………………………. 45
1. Cleaning and Maintenance……………………………………………………………… 47
1. Warranty…………………………………………………………………………………... 48
1. Photometric Data………………………………………………………………………… 50
1. Dimensional Drawings………………………………………………….……………….. 51
1. Circuit Schematic………...………………………………………………………………. 52
1. Technical Specifications…………………………………………...………….………… 53

Design Par 575H™
©Elation Professional® 3 Design Par 575H™
1. General Information
INTRODUCTION: Congratulations, you have just purchased one of the most innovative and
reliable lighting fixtures on the market today! The Design Par 575H,™ has been designed to
perform reliably for years when the guidelines in this booklet are followed. Please read and
understand the instructions in this manual carefully and thoroughly before attempting to
operate this unit. These instructions contain important information regarding safety during
use and maintenance.
UNPACKING: Thank you for purchasing the Design Par 575H™ by Elation Professional®.
Every Design Par 575H™ has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, carefully inspect your unit
for damage and be sure all accessories necessary to operate the unit have arrived intact. In
the event damage has been found or parts are missing, please contact our customer
support team for further instructions. Please do not return this unit to your dealer without
first contacting customer support at the number listed below.
CUSTOMER SUPPORT:Elation Professional®provides a customer support line, to provide
set up help and to answer any question should you encounter problems during your set up
or initial operation. You may also visit us on the web at www.elationlighting.com for any
comments or suggestions. For service related issue please contact Elation Professional®.
Service Hours are Monday through Friday 9:00 a.m. to 5:00 p.m. Pacific Standard Time.
Voice: [phone]
Fax: [phone]
E-mail: [email protected]
Forum: www.ElationLighting.com/forum
Warning! To prevent or reduce the risk of electrical shock or fire, do not expose this unit to
rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs

Design Par 575H™
©Elation Professional® 4 Design Par 575H™
yourself, doing so will void your manufactures warranty.
Please do not discard the shipping carton in the trash. Please recycle whenever possible.
WARRANTY REGISTRATION: The Design Par 575H™ carries a two year (730 days)
limited warranty. Please fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight pre-paid and
accompany a return authorization (R.A.) number. The R.A. number must be clearly written
on the outside of the return package. A brief description of the problem as well as the R.A.
number must also be written down on a piece of paper and included in the shipping
container. If the unit is under warranty, you must provide a copy of your proof of purchase
invoice. Items returned without a R.A. number clearly marked on the outside of the package
will be refused and returned at customer’s expense. You may obtain a R.A. number by
contacting customer support at [phone].
HALOGEN LAMP WARNING:This fixture is fitted with a halogen lamp,
which is highly susceptible to damage if improperly handled. Never
touch the lamp with your bare hands, as the oil from your hands will
shorten lamp life. Also, never move the fixture until the lamps have had
ample time to cool. Remember, lamps are not covered under warranty
conditions.
Epileptic Warning: Those suffering from epilepsy should avoid looking directly into the
lamp at all times.
Avoid switching the fixture on and off repeatedly in short intervals, as this will reduce lamp
life and intensity.
Never open this fixture while in use!
During the initial operation of this fixture, a light smoke or smell may emit from the interior of
the fixture. This is a normal process and is caused by excess paint in the interior of the
casing burning off from the heat associated with the lamp and will decrease gradually over
time.

Design Par 575H™
©Elation Professional® 5 Design Par 575H™
This device falls under protection-class 1. Therefore it is essential that the device be
grounded properly.
All electrical connections must performed by qualified personal.
Be sure the available voltage matches the voltage requirements of the unit.
Be sure the power cord is never crimped or damaged. If the power cord is damaged,
replace it immediately with a new one of similar power rating.
Always disconnect from main power before performing any type of service or any cleaning
procedure.
Only handle the power cord by the plug. Never pull out the plug by tugging the wire portion
of the cord.
Please be aware that damages caused by modifications to the device are not subject
to warranty.

Design Par 575H™
©Elation Professional® 6 Design Par 575H™
2. SAFETY INSTRUCTIONS
The Design Par 575H™ is an extremely sophisticated piece of
electronic equipment. To guarantee a smooth operation, it is
important to follow the guidelines in this manual. The
manufacturer of this device will not accept responsibility for
damages resulting from the misuse of this fixture due to the
disregard of the information printed in this manual.
1. Always be sure that the fan and the air inlets remain clean and are never blocked.
Allow about 6” (15cm) between this fixture and other devices or a wall to allow for
proper cooling.
2. Never touch the fixture during normal operation. This can cause severe personal
injuries and/or damage to the fixture.
3. Be sure to unplug the DESIGN PAR 575H™ from the power outlet before
performing any service related issues.
4. Lamp Replacement; Allow at least 30 minutes after disconnecting main power
before you open the DESIGN PAR 575H™. To prevent personal injury, never
touch the lamp if you are not absolutely sure it has cooled.
5. Never look directly into the lamp beam. You risk injury to your retina, which may
induce blindness.
6. Be sure to track and record the lamp running time. The lamp should be changed
at the end of the specified lamp life, regardless of lamp output. You may also have
to change the lamp if it shows any deformations or damage. The same is with all
glass components, color filters, lenses and mirrors.
7. For safe operation, follow the Installation guide described in chapter two of this
manual. Operating the DESIGN PAR 575H™ without suited safety aids such as
safety cables or clamps can increase the risk of damage and/or personal injury.
8. Installation should only be performed by qualified and certified personal.
9. When mounting this fixture, use only the original rigging parts included with this
fixture. Any structural modification will void the original manufactures warranty and

Design Par 575H™
©Elation Professional® 7 Design Par 575H™
may increase the risk of damage and/or personal injury.
10. To reduce the risk of fire or shock, do not expose this fixture to rain or moisture.
11. Do not attempt to operate this fixture if the power cord has become damaged or
frayed.
Important Notice: Damages resulting from the disregard of safety and general user
instructions found in this user manual are not subject to any warranty claims.
Never look directly into the light source,
as sensitive persons may suffer an epileptic shock.
Never touch the device during operation!
The housing may heat up

Design Par 575H™
©Elation Professional® 8 Design Par 575H™
3. FEATURES
•Pan 630° or 540˚ (User selectable) / Tilt 265°
•3 operation mode: DMX controlled, stand alone or sound activated
•Strobe effect: 0~13 flashes per second or random strobe
•Dimmer intensity from 0%~100%
•User Selectable Power Supply (Internal)
•Control board with 4-digit display and foil-keyboard
•Digital display can be turned 180° to fit different installation position
•RDMX (Remote DMX addressing from any DMX console)
•Auto test for all functions
•Automatic Pan/Tilt Correction
•Glass Dichroic Reflector for Even Lamp Output
•Anti-Reflective Coated Lenses
•Gel frame holder included
•Uses 8 DMX channels (16bit mode)
•Several lamp options:
oGLA
oGLC
oHX-400
oHX-401
oHX-600
oHX-601
•USITT DMX-512 Complaint
•Value of each DMX-channel can be displayed
•8 User Assignable Program Presets - Internal Program: Edit and save programs to
the incorporated EEPROM through the front control panel or external controller; you
can save a maximum of 48 scenes, and run the saved programs by using the “run”
menu on the front control panel

Design Par 575H™
©Elation Professional® 9 Design Par 575H™
4. GENERAL GUIDELINES
This fixture is a professional lighting effect designed for use on stage, in nightclubs, in
theatres, etc. Do not attempt operation or installation without a proper knowledge on how to
so.
This fixture was designed for indoor use only.
Consistent operational breaks may ensure that the fixture will function properly for many
years to come.
Do not shake the fixture around. Avoid brute force when installing or operating the device.
While choosing an installation location, please be sure that the fixture will not be exposed to
extreme heat, moisture or dust. The minimum distance between the fixture and a wall or flat
surface should be at least .5 meter (about 1.5ft).
Always install the fixture with an appropriate safety cable. When installing the fixture in a
suspended environment always be to use mounting hardware no less than M10 x 25 mm,
also be sure the hardware is insert in the pre-arranged screw holes in the base of the
fixture.

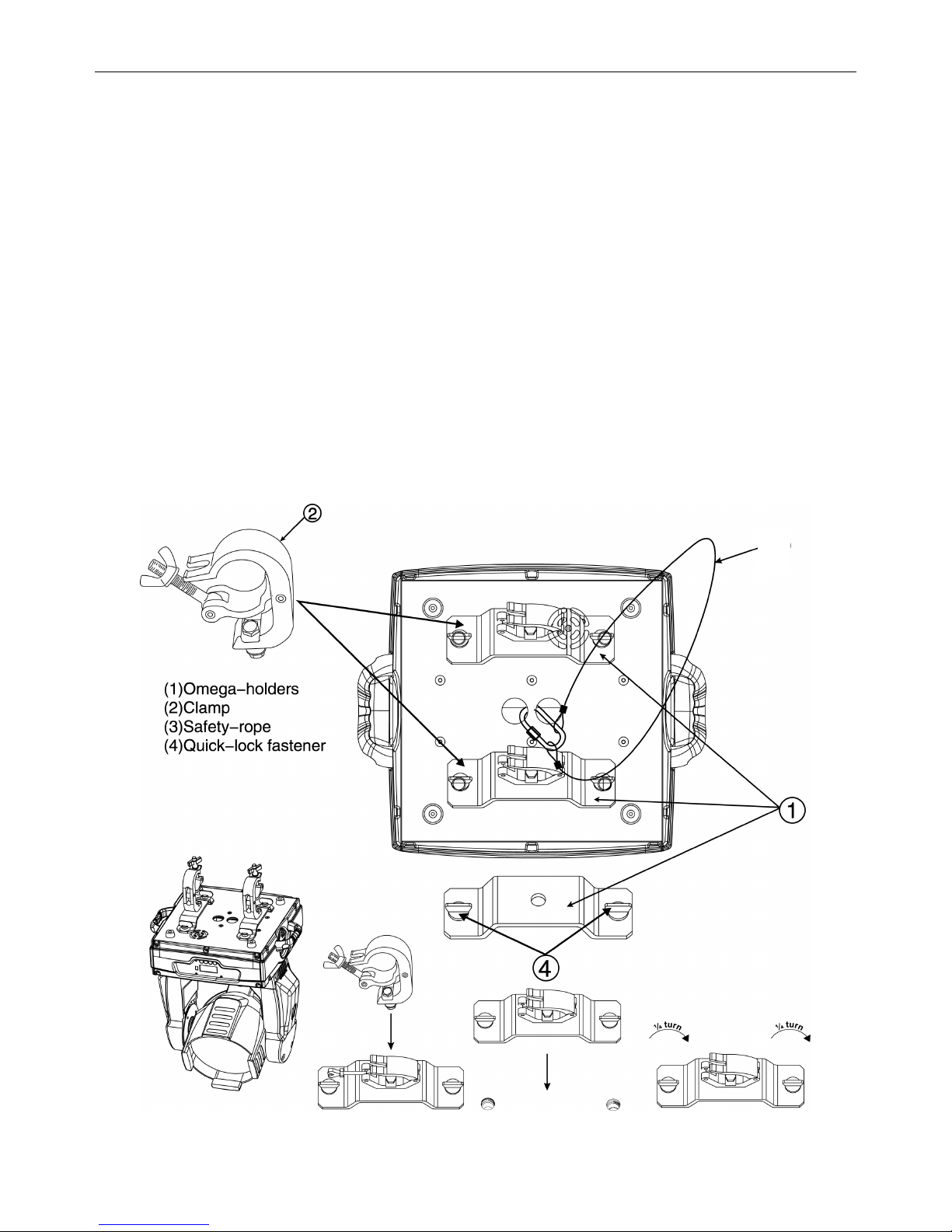

When using the quick release “Omega” cam-lock system, be sure the four quick lock
fasteners are locked in the quick lock holes correctly, see page 16 for more information on
the proper mounting procedures.
Do not attempt to operate this fixture until you have familiarized yourself with its functions.
Do not permit operation by persons not qualified for operating this type of theatrical fixture;
most damages are the result of operation by person unfamiliar with the operation of this
type of fixture.
If service is ever required, please use the original packaging to transport the fixture in for
service.

Design Par 575H™
©Elation Professional® 10 Design Par 575H™

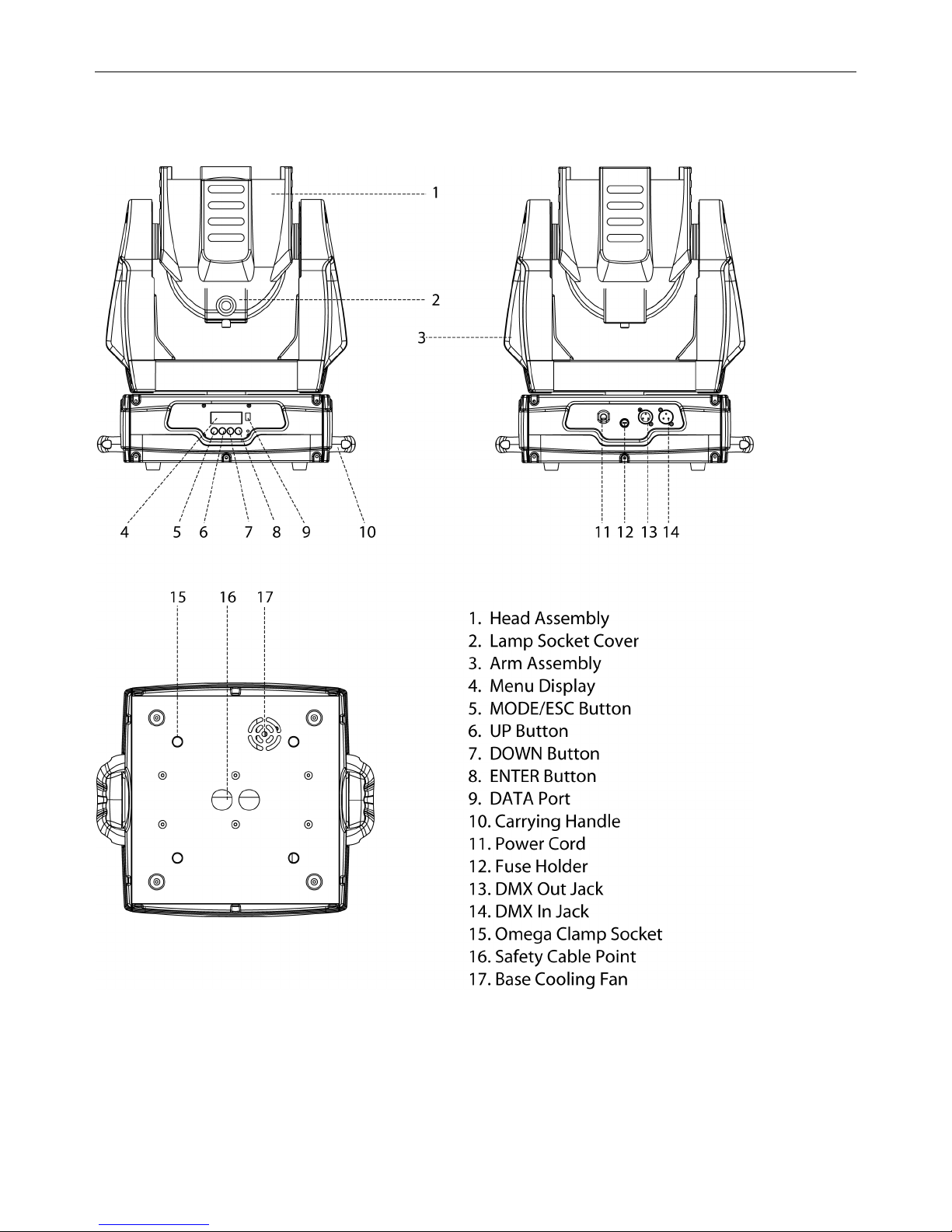

5. FIXTURE OVERVIEW
1) HEAD ASSEMBLY – This assembly holds the lamp, gel holder, lens, and reflector.
2) LAMP SOCKET ASSEMBLY COVER – This cover retains the lamp socket

Design Par 575H™
©Elation Professional® 11 Design Par 575H™
assembly. Remove this cover to access the lamp. Refer to page 13 for proper lamp
replacement.
3) ARM ASSEMBLY – This assembly holds the electronics, motors, and belt that
control the unit’s tilt movement.
4) MENU DISPLAY – Four segment LED menu display, details all menu functions. See
page 25 for more information on the menu’s functions.
5) MODE/ESC BUTTON – This button is used to access and exit the fixture’s on-board
menu system.
6) UP BUTTON – This button is used to scroll forward when navigating through the
fixture’s menu system.
7) DOWN BUTTON – This button is used to scroll backwards when navigating through
the fixture’s menu system.
8) ENTER BUTTON – This button is used to select and confirm a menu function.
9) DATA PORT – This port is reserved for possible future updates to the fixture, but
has no function as of yet.
10) CARRYING HANDLE – This fixture contains a build-in carrying handle be sure to
always transport this fixture by the handle and never by grasping the head or yoke
assembly.
11) POWER CORD – This cable provides main power to your fixture. Always be sure to
use a properly grounded power cable. If this cable ever becomes frayed or damaged
this cable should be replaced immediately by a qualified technician.
12) FUSE HOLDER – This housing holds a 7A/250v GMA fuse and is designed to

Design Par 575H™
©Elation Professional® 12 Design Par 575H™
protect the electronics in the event of severer power fluctuations. Never defeat this
fuse. In the event of fuse failure, always be sure to replace with an exact match fuse
unless other wise specified by an authorized Elation Professional technician.
13) DMX OUT JACK – This 3-pin XLR jack sends a DMX signal to another DMX fixture.
For best results this jack should be terminated if it is the last fixture in a DMX daisy
chain (see DMX termination on page 21).
14) DMX IN JACK – This 3-pin XLR jack is receives an incoming DMX signal from a
DMX controller.
15) OMEGA CLAMP SOCKET – This fixture uses a cam-lock clamp system that allows
a quick and efficient means to secure a clamp to the unit. To attach a clamp to the
unit, attach a clamp that is rated to handle the weight of the unit to your omega
clamp. After a clamp has been attached to the omega clamp, attach the cam locks
to the designated position on the bottom of your unit. Lock the cam locks into
position by turning the wing nuts 90°. See page 18 for proper clamp mounting and
assembly.
16) SAFETY CABLE RIGGING POINT – The fixture provides a built-in rigging point for
a safety cable on the underside of the fixture, be sure to use this point and never
secure a safety cable to a carrying handle.
17) BASE COOLING FAN – This fan is used to cool the internal temperature of the
base electronics.

Design Par 575H™
©Elation Professional® 13 Design Par 575H™
6. LAMP INSTALLATION INSTRUCTIONS
Installing or replacing the lamp
Only install the lamp with the device unplugged from the mains.
The lamp has to be replaced when it is damaged or deformed.
Before replacing the lamp be sure the unit has ample time to cool, to avoid injury to yourself
never touch the lamp when it is hot.
During the installation of halogen lamps do not touch the glass portion of the bulb bare
handed. Always use a cloth to handle the lamps during insertion and removal.
Do not install lamps with a higher wattage than that specified by the manufacture, they
generate higher temperatures than which the device is designed to cool and may explode.
Installation Procedure:
1. Set the fixture on its’ base and remove the large retaining thumb screw.
2. Gently pull out the lamp/socket assembly to access the lamp.
3. Gently remove the old lamp by grasping it by the ceramic base.

Design Par 575H™
©Elation Professional® 14 Design Par 575H™
4. Carefully insert the new lamp into the socket (Be sure to only use an approved
lamp). Please remember the lamp should fit completely in the lamp socket.
5. Once the lamp has been inserted into the socket, gently slide the socket assembly
back into place and secure with the large retaining thumbscrew.
6. Always be sure to optimize the lamp after lamp replacement.
Do not operate this device with open cover
Lamp Optimization
The lamp orientation and optimization must be adjusted after every lamp change. This
procedure centers the lamp in the reflector. Proper optimization will increase lamp life and
ensure a bright crisp output. Improper optimization may add a yellow tint to the lamp output
and reduce intensity. The minimum deviation amount is 1.0mm. Running the fixture within a
lower deviation can cause damage to the lamp and/or lens.
The Design Par 575H™ lamp holder is aligned at the factory. However, due to slight
imperfections in all lamps, fine adjustments will improve light performance. Please follow
the procedure below for proper lamp optimization:
1. Using either a DMX controller or the control panel on the unit (see “SPOT” in the
fixture menu on page 26), strike the lamp and focus the light on a flat surface (beam
open, white, no gobo, no effect).

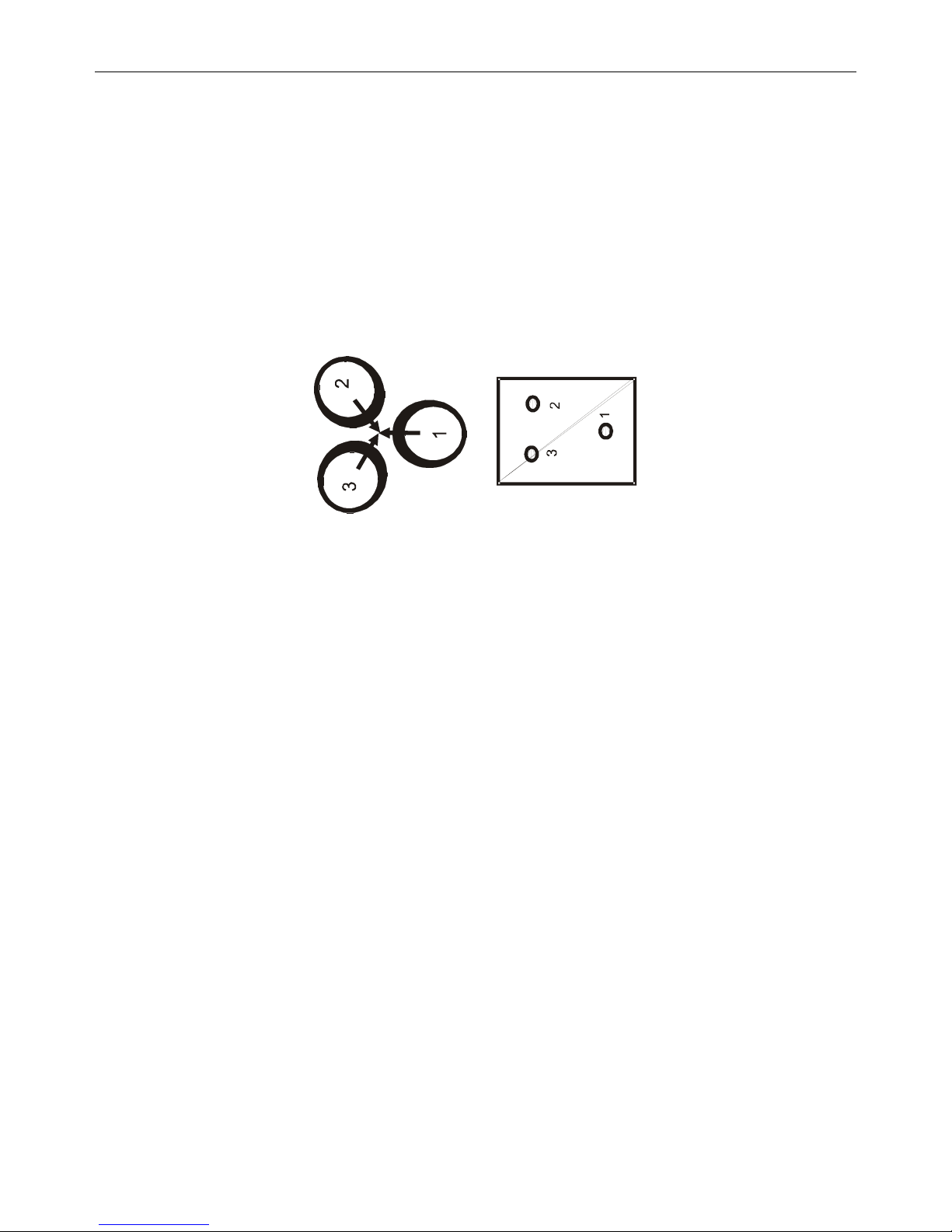

2. Center the hot-spot (the brightest part of the beam) using the 3 adjustment screws
labeled 1, 2, and 3 as illustrated on the next page. Turn one screw at a time to drag
the hot-spot diagonally across the projected image. If you cannot detect a hot-spot,
adjust the lamp until the light is even.
3. To reduce a hot-spot, pull the lamp in by turning all three screws clockwise a 1/4-turn

Design Par 575H™
©Elation Professional® 15 Design Par 575H™
at a time until the light is evenly distributed.
4. If the light is brighter around the edge than it is in the center, or if light output is low,
the lamp is too far back in the reflector. "Push” the lamp out by turning each of the
adjustment screws ("1, 2, 3”) counterclockwise turn until the light is bright and
evenly distributed.

Design Par 575H™
©Elation Professional® 16 Design Par 575H™
7. MOUNTING AND INSTALLATION
Cautions:
For added protection mount the fixtures in areas outside walking paths, seating areas, or in
areas were the fixture might be reached by unauthorized personal.
Before mounting the fixture to any surface, make sure that the installation area can hold a
minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment, such as an
appropriate safety cable.
Never stand directly below the device when mounting, removing, or servicing the fixture.
Before taking into operation for the first time,
the installation has to be approved by an expert.
When installing the device, make sure there is no highly
inflammable material within a distance of min. 0,5m
Mounting
The DESIGN PAR 575H™ is fully operational in two different mounting positions, hanging
upside-down from a ceiling, or set on a flat level surface (see illustration below). Be sure
this fixture is kept at least 0.5m away from any flammable materials (decoration etc.).
Always use and install the supplied safety cable as a safety measure to prevent accidental
damage and/or injury in the event the clamp fails.
Refer to regulations BGV C1 (formerly VBG 70) and DIN VDE0711-217
for proper installation in Europe To ensure proper installation, only
qualified staff should attempt installation.

Design Par 575H™
©Elation Professional® 17 Design Par 575H™
Mounting points
Overhead mounting requires extensive experience, including amongst others calculating
working load limits, a fine knowledge of the installation material being used, and periodic
safety inspection of all installation material and the fixture. If you lack these qualifications,
do not attempt the installation yourself. Improper installation can result in bodily injury.
CAUTION!
Be sure all electrical connections are performed by a qualified
electrician.

Design Par 575H™
©Elation Professional® 18 Design Par 575H™
Be sure to complete all rigging and installation procedures before connecting the main
power cord to the appropriate wall outlet.
Clamp Mounting
The Design Par 575H™ provides a unique mounting bracket assembly that integrates the
hanging yoke as well as the safety cable rigging point in one unit (see the illustration
below). When mounting this fixture to truss be sure to secure an appropriately rated clamp
to the hanging yoke using a M10 screw fitted through the center hole of the hanging yoke.
As an added safety measure be sure to attached at least one properly rated safety cable to
the fixture using on of the safety cable rigging point integrated in the bracket assembly
3

Design Par 575H™
©Elation Professional® 19 Design Par 575H™
Securing the DESIGN PAR 575H™
Regardless of the rigging option you choose for your DESIGN PAR 575H™ always be sure
to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a
safety cable on the hanging bracket as illustrated above. Be sure to only use the
designated rigging point for the safety cable and never secure a safety cable to a carrying
handle.

Design Par 575H™
©Elation Professional® 20 Design Par 575H™
8. UNDERSTANDING DMX

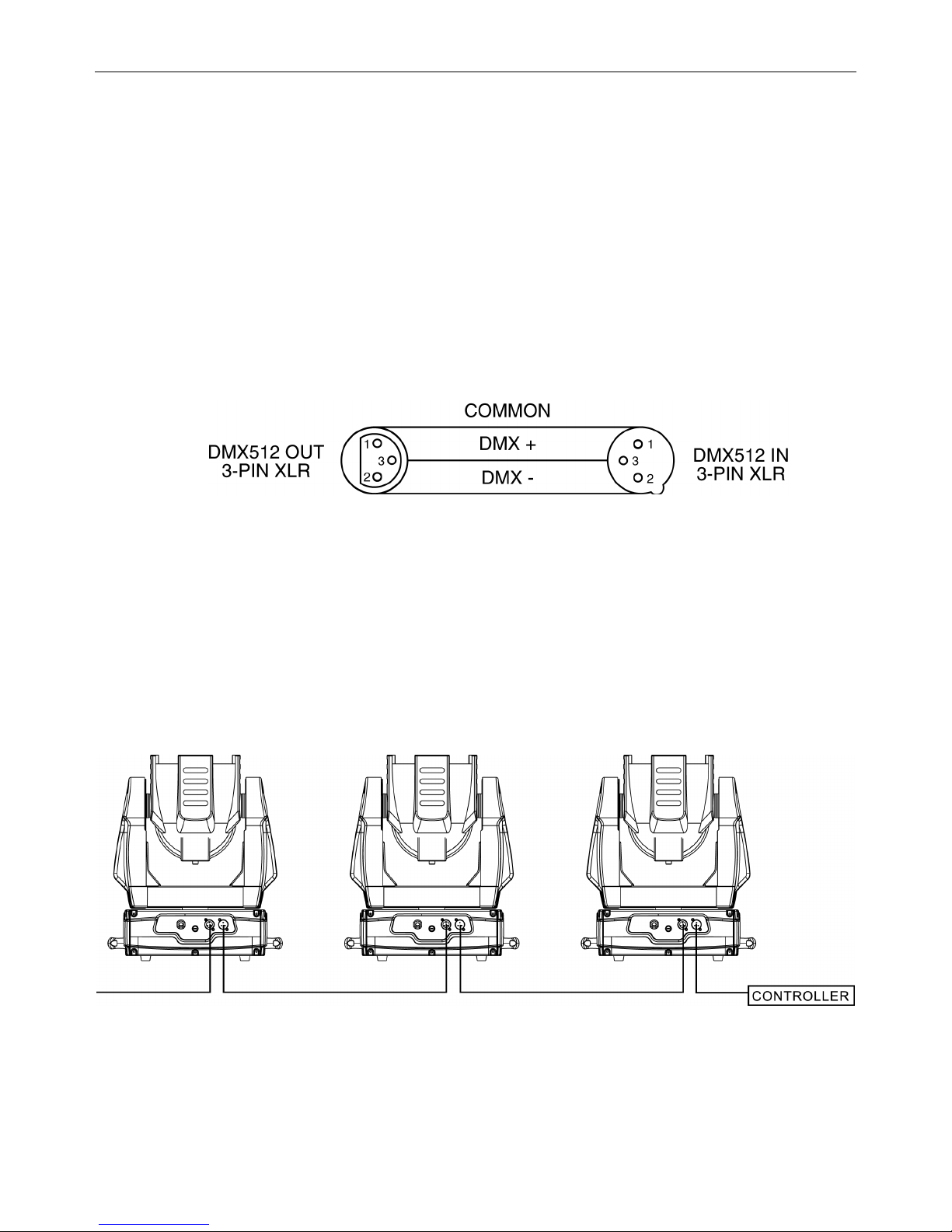

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave Operation):
Your fixture and your DMX controller require a standard 3-pin XLR connector for data input
and data output (see figure below). If you are constructing your own cables be sure to use
two conductor shielded digital cable rated at a 120 ohms (this cable can be purchased at
almost all professional sound and lighting stores). Your cables should be made with a male
and female 3-pin XLR connector on either end of the cable.
Be sure to follow the above figure when making your own cables. Do not use the ground lug
on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or
allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the
shield could cause a short circuit and erratic behavior.
