Elation PIXEL DRIVER 4000 User manual

PIXEL DRIVER 4000
User Manual

2
©2021 ELATION PROFESSIONAL all rights reserved. Information, specications, diagrams, images,
and instructions herein are subject to change without notice. ELATION PROFESSIONAL logo and
identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL. Copy-
right protection claimed includes all forms and matters of copyrightable materials and information now
allowed by statutory or judicial law or hereinafter granted. Product names used in this document may
be trademarks or registered trademarks of their respective companies and are hereby acknowledged.
All non-ELATION brands and product names are trademarks or registered trademarks of their respec-
tive companies.
ELATION PROFESSIONAL and all aliated companies hereby disclaim any and all liabilities for prop-
erty, equipment, building, and electrical damages, injuries to any persons, and direct or indirect eco-
nomic loss associated with the use or reliance of any information contained within this document, and/
or as a result of the improper, unsafe, insucient and negligent assembly, installation, rigging, and
operation of this product.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | [email protected]
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
[phone] | [phone] fax | www.elationlighting.eu | [email protected]
Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
DOCUMENT VERSION
Due to additional product features and/or enhancements, an
updated version of this document may be available online. Please
scanthe QRCodewithyourmobiledeviceorvisit www.elation-
lighting.com for the latest revision/update of this manual, before
installation and/or programming.
Date Document
Version
Software
Version DMX Channel Mode Notes
05/24/18 1.0 1.0 Not Applicable Initial Release.
11/28/18 1.2 N/C Not Applicable Updated release.
11/08/19 1.4 N/C Not Applicable Updated specs on included power cable.
08/02/21 1.6 1.2 Not Applicable Updated System Menu.

3
CONTENTS
General Information 4
Limited Warranty (USA Only) 5
Safety Guidelines 6
Maintenance Guidelines 8
Device Overview 9
Installation Guidelines 10
Connections and Cables 12
System Configuration 13
System Menu 15
Pixel Grouping 18
Pixel Modes 19
Technical Specifications 22
FCC Statement 23

4
GENERAL INFORMATION
INTRODUCTION
This xture has been designed to perform reliably for years when the information in this manual is
followed. Please read and understand all the instructions and guidelines carefully and thoroughly
before operating this unit. This manual contains important information regarding safety, installation,
use, and maintenance.
UNPACKING
Each xture has been thoroughly tested and shipped in perfect operating condition. Carefully check
the outer shipping carton for signs of any damage that may have occurred during shipping. If the
outer carton appears to be damaged, carefully inspect the xture for damage and be sure all included
accessories have arrived intact. In the event that damage has been found and/or parts are missing,
please contact our customer support team for further instructions. Please do NOT return this xture
to your dealer without rst contacting customer support at the number listed below. Please do NOT
discard the outer shipping carton in the trash. Please recycle whenever possible.
CUSTOMER SUPPORT
Contact ELATION Service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax [phone] | [email protected]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax [phone] | [email protected]
REPLACEMENT PARTS please visit parts.elationlighting.com
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT ANY
REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S WARRANTY.
DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE AND/OR THE
DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS MANUAL VOID THE
MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/
OR REPAIRS.
IMPORTANT NOTICE!

5
LIMITED WARRANTY (USA ONLY)
A. Elation Professional hereby warrants, to the original purchaser, Elation Professional products to be free
of manufacturing defects in material and workmanship for a period of two years (730 days), and Elation
Professional product rechargeable batteries to be free of manufacturing defects in material and workmanship
for a period of six months (180 days), from the original date of purchase. This warranty excludes discharge
lamps and all product accessories. This warranty shall be valid only if the product is purchased within the
United States of America, including possessions and territories. It is the owner’s responsibility to establish the
date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, send the product only to the Elation Professional factory. All shipping charges must be
pre-paid. If the requested repairs or service (including parts replacement) are within the terms of this warranty,
Elation Professional will pay return shipping charges only to a designated point within the United States. If any
product is sent, it must be shipped in its original package and packaging material. No accessories should be
shipped with the product. If any accessories are shipped with the product, Elation Professional shall have no
liability what so ever for loss and/or or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the product serial number and/or labels are altered or removed; if the product is
modified in any manner which Elation Professional concludes, after inspection, affects the reliability of the
product; if the product has been repaired or serviced by anyone other than the Elation Professional factory
unless prior written authorization was issued to purchaser by Elation Professional; if the product is damaged
because not properly maintained as set forth in the product instructions, guidelines and/or user manual.
D. This is not a service contract, and this warranty does not include any maintenance, cleaning or periodic
check-up. During the periods as specified above, Elation Professional will replace defective parts at its
expense, and will absorb all expenses for warranty service and repair labor by reason of defects in material or
workmanship. The sole responsibility of Elation Professional under this warranty shall be limited to the repair of
the product, or replacement thereof, including parts, at the sole discretion of Elation Professional. All products
covered by this warranty were manufactured after January 1, 1990, and bare identifying marks to that effect.
E. Elation Professional reserves the right to make changes in design and/or performance improvements upon its
products without any obligation to include these changes in any products theretofore manufactured.
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with the
products described above. Except to the extent prohibited by applicable law, all implied warranties made by
Elation Professional in connection with this product, including warranties of merchantability or fitness, are
limited in duration to the warranty periods set forth above. And no warranties, whether expressed or implied,
including warranties of merchantability or fitness, shall apply to this product after said periods have expired.
The consumer’s and/or dealer’s sole remedy shall be such repair or replacement as is expressly provided
above; and under no circumstances shall Elation Professional be liable for any loss and/or damage, direct and/
or consequential, arising out of the use of, and/or the inability to use, this product.
G. This warranty is the only written warranty applicable to Elation Professional products and supersedes all prior
warranties and written descriptions of warranty terms and conditions heretofore published.
WARRANTY RETURNS
All returned service items whether under warranty or not, must be freight pre-paid and accompany a return authori-
zation (R.A.) number. The R.A. number must be clearly written on the outside of the return package. A brief descrip-
tion of the problem as well as the R.A. number must also be written down on a piece of paper and included in the
shipping container. If the unit is under warranty, you must provide a copy of your proof of purchase invoice. Items
returned without a R.A. number clearly marked on the outside of the package will be refused and returned at cus-
tomer’s expense. You may obtain a R.A. number by contacting customer support.

6
SAFETY GUIDELINES
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it
is important to follow all instructions and guidelines in this manual. Elation Professional is not
responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard
of the information printed in this manual. Only qualified and/or certified personnel should perform
installation of this fixture and only the original rigging parts included with this fixture should be used
for installation. Any modifications to the fixture and/or the included mounting hardware will void the
original manufacturer’s warranty and increase the risk of damage and/or personal injury.
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO
NOT ATTEMPT ANY REPAIRS YOURSELF. DOING SO WILL VOID YOUR
MANUFACTURER’S WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS
TO THIS DEVICE AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND
GUIDELINES IN THIS MANUAL VOID THE MANUFACTURER’S WARRANTY AND
ARE NOT SUBJECT TO ANY WARRANTY CLAIMS AND/OR REPAIRS.
DO NOT PLUG THIS UNIT INTO A DIMMER PACK!
DO NOT REMOVE THE COVER FOR ANY REASON!
NEVER OPERATE THIS UNIT WITH THE CASING REMOVED!
UNPLUG FROM POWER DURING LONG PERIODS OF NON-USE.
KEEP FLAMMABLE MATERIALS AWAY FROM DEVICE!
DISCONNECT POWER BEFORE PERFORMING MAINTENANCE.
THIS DEVICE IS INTENDED FOR INDOOR USE ONLY!
USE OF THE DEVICE OUTDOORS VOIDS ALL MANUFACTURER’S WARRANTIES!
DO NOT EXPOSE THE DEVICE TO RAIN OR MOISTURE!

7
SAFETY GUIDELINES
• DO NOT shake device, and avoid brute force when installing and operating.
• DO NOT operate device the power cord has been frayed, crimped, damaged, and/or if any of the
power cord connectors are damaged and do not insert easily into the device.
• NEVER force a power cord connector into the device. If the power cord or any of its connectors
are damaged, it must immediately be replaced with a new cord or connector of the same power
rating.
• DO NOT block any air ventilation slots.
• All fan and air inlets must remain clean and never blocked.
• For proper cooling, allow approx. 6” (15cm) between the device and other devices or a wall.
• When installing the device in a suspended environment, always use mounting hardware that is at
least M10x25mm, and always install the device with an appropriately rated safety cable.
• Always disconnect the device from its main power source before performing any type of service
or cleaning procedure.
• Handle the cord only by the plug end. NEVER pull out the plug by tugging on the wire portion of
the cord.
• Consistent operational breaks will ensure that the device functions properly for many years.
• Use ONLY the original packaging and materials to transport the device in the event that service
or repair is required.

8
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function and extended life. The frequency of
cleaning depends on the environment in which the device operates: damp, smoky, or particularly
dirty environments can cause greater accumulation of dirt on the device and air vents. Clean the
external surface regularly with a soft cloth to avoid dirt/debris accumulation.
NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended life. There are no
user serviceable parts inside this device. Please refer all other service issues to an authorized Elation
service technician. Should you need any spare parts, please order genuine parts from your local
Elation dealer.
Please refer to the following points during routine inspections:
• A detailed electrical check by an approved electrical engineer every three months, in order to
make sure the circuit contacts are in good condition and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall out
during normal operation, resulting in damage or injury as larger parts could fall.
• Check for any deformations on the housing, rigging hardware, and rigging points (ceiling, sus-
pension, trussing). Deformations in the housing could allow for dust to enter into the device.
Damaged rigging points or unsecured rigging could cause the device to fall and seriously injure a
person(s).
• Electrical power supply cables must not show any damage, material fatigue, or sediments.
NEVER remove the ground prong from the power cable.

9
DEVICE OVERVIEW
1. LCD System Menu Control Display
2. Menu Control Buttons (Mode, Setup, Up, Down)
3. Power Switch
4. Power Cable Input
5. 10A Fuse
6. Safety Cable Attachment Loop
7. RJ45 Ethernet In/Out Ports (Kling-Net, Art-Net/sACN)
8. Output Ports 1-4 (10A Fuse each)
INCLUDED ITEMS
• PIXEL DRIVER 4000
• 19” Rack Mount Kit
• 1.7m (5.6 ft) Power Cable
• 2.8m (9.25ft) 4pin 16AWG Power/Data Cable

10
FLAMMABLE MATERIAL WARNING!
Keep drive a minimum of 5.0 feet (1.5m) away from ammable material and/or pyrotechnics.
INSTALLATION GUIDELINES
ELECTRICAL CONNECTIONS
A qualied electrician should be used for all electrical connections and/or devices.
FOR USE IN INDOOR OR DRY LOCATIONS ONLY!
DO NOT EXPOSE TO RAIN OR MOISTURE!
DO NOT INSTALL THE DEVICE IF YOU ARE NOT QUALIFIED TO DO SO!
Device MUST be installed following all local, national, and country commercial electrical and con-
struction codes and regulations.
Before rigging/mounting the device to any metal truss/structure or placing the device on any surface,
a professional equipment installer MUST be consulted to determine if the metal truss/structure or
surface is properly certied to safely hold the combined weight of the device, clamps, cables, and
accessories. Overhead device installation must always be secured with a secondary safety attach-
ment, such as an appropriately rated safety cable that meets all local, national, and country codes and
regulations.
Device ambient operating temperature range is 14° to 113°F (-10° to 45°C). Do not use the device
when the ambient temperature falls outside of this range.
Device should be installed in areas outside walking paths, seating areas, or away from areas were
unauthorized personnel might reach the xture by hand.
NEVER stand directly below the device when rigging, removing, or servicing.

11
INSTALLATION GUIDELINES
RACK MOUNTING
The device can be rack mounted in a standard 19-inch rack space. Attach the included rack ears to
both sides of the device using the included screws. Tighten rack ear screws securely but do NOT over
tighten. Use careful planning when rack mounting the device to allow ample space for the power/data
cables.
TRUSS MOUNTING
The device can be attached to truss or a like structure using an appropriated truss clamp (not included)
and an M10 screw (not included).
SAFETY CABLE
ALWAYS ATTACH A SAFETY
CABLE TO THE SAFETY CABLE
LOOP ON THE BACK OF THE
DEVICE WHENEVER INSTALLING
THIS DEVICE IN A SUSPENDED
ENVIRONMENT TO ENSURE THE
FIXTURE WILL NOT DROP IF THE
CLAMP FAILS.
RIGGING
Overhead rigging requires extensive experience, including calculating working load limits, installation
material being used, and periodic safety inspection of all installation material and the device, among
other requirements. If you lack these qualications, do not attempt the installation yourself. Improper
installation can result in bodily injury.
INSTALLATION LOCATION PLANNING
Use careful planning to select the installation location of the PIXEL DRIVER 4000 unit(s). The maximum
distancefromthedrivertotherstpixelbarshouldnotexceed50feet(18m).

12
CONNECTIONS AND CABLES
CONNECTIONS

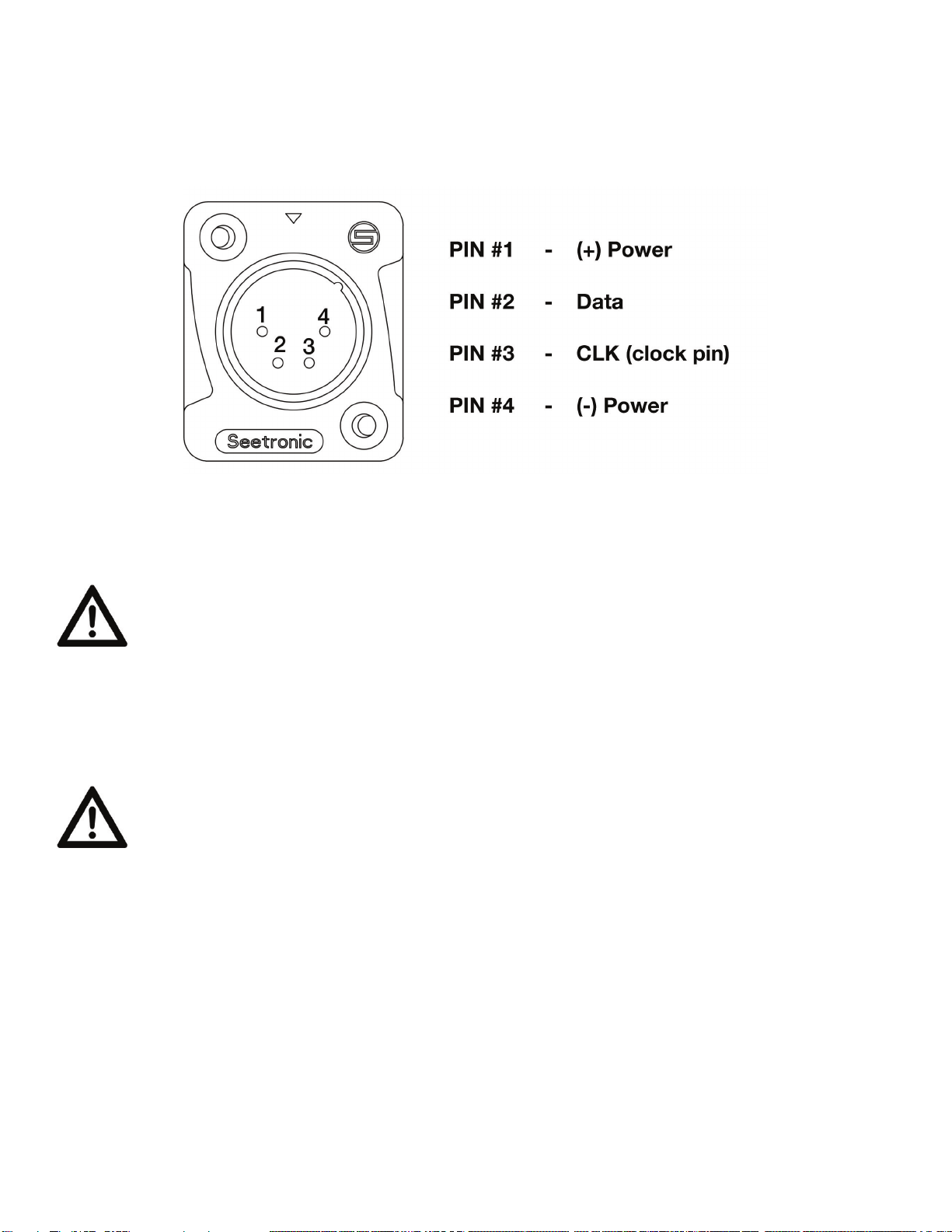

The device features RJ45 Ethernet in/out and 4pin power/data combination output connections. The
wiring diagram below provides the pin details for the power/data outputs.
CABLES
ELATION P BAR IP 4pin 16AWG power/data cables are available in various lengths. See the
Optional Accessories section of this manual for details.
MAXIMUM CABLE DISTANCES - 16AWG
The following maximum cable distances apply when using 16AWG cables.
PIXEL DRIVER 4000 to 1st PIXEL BAR IP = Maximum 50 feet (18 meters)
PIXEL BAR IP to PIXEL BAR IP = Maximum 32 feet (10 meters)
Total combined length of cables can NOT exceed = Maximum 98 feet (30 meters)
MAXIMUM CABLE DISTANCES - 12AWG
The following maximum cable distances apply when using 12AWG cables.
PIXEL DRIVER 4000 to 1st PIXEL BAR IP = Maximum 50 feet (18 meters)
PIXEL BAR IP to PIXEL BAR IP = Maximum 32 feet (10 meters)
Total combined length of cables can NOT exceed = Maximum 213 feet (65 meters)

13
SYSTEM CONFIGURATION
LINKING
Maximum number pixels/bars each PIXEL DRIVER 4000 supports is listed in charts below. Multiple
combinations of PIXEL BAR IP models can be linked (daisy-chained) together to a single driver port,
as long as the maximum number of pixels/bars is NOT exceeded.
KLING-NET = 1,020 Max Pixels per PIXEL DRIVER 4000 Port
Art-NET/sACN = 170 Max Pixels per PIXEL DRIVER 4000 Port
MODEL TOTAL
PIXELS
TOTAL
CONTROL
CHANNELS
KLING-NET
1,020 Max Pixels per Driver Port
4,080 Max Pixels per Driver Unit
MAX BARS
per
DRIVER
PORT
MAX
PIXELS
per
DRIVER
PORT
MAX BARS
per
DRIVER
UNIT
MAX
PIXELS
per
DRIVER
UNIT
Pixel Bar 30 IP 30 90 34 1020 136 4080
Pixel Bar 60 IP 60 180 17 1020 68 4080
Pixel Bar 120 IP 120 360 8 960 32 3840
MODEL TOTAL
PIXELS
TOTAL
CONTROL
CHANNELS
ARTNET/sACN
170 Max Pixels per Driver Port
680 Max Pixels per Driver Unit
MAX BARS
per
DRIVER
PORT
MAX
PIXELS
per
DRIVER
PORT
MAX BARS
per
DRIVER
UNIT
MAX
PIXELS
per
DRIVER
UNIT
Pixel Bar 30 IP 30 90 5 150 20 600
Pixel Bar 60 IP 60 180 2 120 8 480
Pixel Bar 120 IP 120 360 1 120 4 480

14
SYSTEM CONFIGURATION
CONTROL
PIXEL DRIVER 4000 supports Kling-NET, Art-NET, and sACN control protocols. It can be controlled
by an Art-NET compatible controller/console and for advanced pixel programming, or it can be con-
trolled via a computer with media software such as ArKaos Media Master. The driver also includes
16 internal programs for easy stand-alone demo proposes, which can be accessed manually from
the 4-button LCD control menu display.
PC – DRIVER DIRECT CONNECTION
Up to 5 PIXEL DRIVER 4000 units can be linked (daisy-chained) from a computer.
For systems requiring more than 5 drivers, see the next section for more information.
PC – NETWORK SWITCH CONNECTION
Up to 50 PIXEL DRIVER 4000 units can be linked (daisy-chained) from a computer and a Gigabit
Ethernet Switch (not included) that supports IGMP (Internet Group Management Protocol). Using
a Gigabit Ethernet Switch that does not support IGMP can cause erratic behavior of all connected
devices to the switch. Up to 5 PIXEL DRIVER 4000 units can be connected per ethernet switch port
and up to 10 total ethernet switch ports can be used in a system. Click link below for more informa-
tion about IGMP.
https://en.wikipedia.org/wiki/Internet_Group_Management_Protocol

15
SYSTEM MENU
MODE SET UP UP/DOWN DESCRIPTION
DIMMER MODE
Red Dimmer Manual Control
Red: xxx Adjust the intensity of the red color.
Green Dimmer Manual Control
Green: xxx
Adjust the intensity of the green
color.
Blue Dimmer Manual Control
Blue: xxx Adjust the intensity of the blue color.
Output enable or
disable
Manual Control
Out1: Enable/Disable Enable or disable output 1.
Manual Control
Out2: Enable/Disable Enable or disable output 2.
Manual Control
Out3: Enable/Disable Enable or disable output 3.
Manual Control
Out4: Enable/Disable Enable or disable output 4.
KLINGNET MODE Pixel Bar Setup
Klingnet Out x
Pixel Bar xxx IP
Select the pixel bar model that will
be connected to each output.
• x = output port #
• xxx = pixel bar model
Klingnet Out x
xxx IP Number xx
Select the number of pixel bar units
that will be connected to each
output.
• x = output port #
• xx = number of units
• xxx = pixel bar model
Klingnet Out x
xx X xx RGB Pixels
Set RGB Channel mode, see Pixel
Modes section of this manual for
details.
ARTNET MODE
IP Address Set IP Address Out x
xxx:xxx:xxx:xxx Set IP address of each output.
DMX Universe Set Universe Out x
U:xxxxx Set DMX universe of each output.
Pixel Bar Setup
Artnet Out x
Pixel Bar xxx IP
Select the pixel bar model that will
be connected to each output.
• x = output port #
• xxx = pixel bar model
Artnet Out x
xxx IP Number xx
Select the number of pixel bar units
that will be connected to each
output.
• x = output port #
• xx = number of units
• xxx = pixel bar model
Artnet Out x
xx X xx RGB Pixels
Set RGB Channel mode, see Pixel
Modes section of this manual for
details.
CONTINUED ON NEXT PAGE

16
SYSTEM MENU
MODE SET UP UP/DOWN DESCRIPTION
sACN MODE
DMX Universe Set sACN Out x
u:xxxxx Set DMX universe of each output.
Pixel Bar Setup
sACN Out x
Pixel Bar xxx IP
Select the pixel bar model that will
be connected to each output.
• x = output port #
• xxx = pixel bar model
sACN Out x
xxx IP Number xx
Select the number of pixel bar units
that will be connected to each
output.
• x = output port #
• xx = number of units
• xxx = pixel bar model
sACN Out x
xx X xx RGB Pixels
Set RGB Channel mode, see Pixel
Modes section of this manual for
details.
KLINGNET & ARTNET
CONTROL MODE
Klingnet enable or
disable set
Klingnet & Artnet
Klingnet: Enable/Disable
Enable or disable the klingnet con-
trol.
Klingnet Pixel Bar
Setup
Klingnet Out x
Pixel Bar xxx IP
Select the pixel bar model that will
be connected to each output.
• x = output port #
• xxx = pixel bar model
Klingnet Out x
xxx IP Number xx
Select the number of pixel bar units
that will be connected to each
output.
• x = output port #
• xx = number of units
• xxx = pixel bar model
Artnet IP Address Set IP Address Out x
xxx:xxx:xxx:xxx Set the IP address of each output.
Artnet Universe Set Universe Out x
U:xxxxx
Set the DMX universe of each out-
put.
BUILT IN PROGRAM
MODE Program Play Set
Programs
Program xx Select the built in program.
Programs
Speed xx Set the program speed.
Programs
Fade xx Set the fade time speed.
Programs
Phase Time xx Set the phase time.
CONTINUED ON NEXT PAGE

17
SYSTEM MENU
MODE SET UP UP/DOWN DESCRIPTION
BUILT IN PROGRAM
MODE Pixel Bar Setup
Program Out x
Pixel Bar xxx IP
Select the pixel bar model that will
be connected to each output.
• x = output port #
• xxx = pixel bar model
Program Out x
xxx IP Number xx
Select the number of pixel bar units
that will be connected to each
output.
• x = output port #
