Elation Design LED Panel 72IP MKII User manual

Design LED Panel 72IP MKII
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
TECHNICAL SPECIFICATIONS
• DMX Channels: 3, 4, 6 or 15 CH operation modes
• Control: Built-in DMX-512
• Dimmer: Selectable dim modes: standard & linear (0-100%)
• Strobe: Strobe effect (1-18 ashes per second)
• IP Rating: IP 65 outdoor rated
• Power Supply: Built-in electronic power supply:
90-240v linkable / 50-60hz
• Power Consumption: 300W
• Lamp: 72 x 3W Luxeon K2 LED’s
(24 Red, 24 Green, 24 Blue)
• Lamp Life: 100,000 hrs.
• Dimensions: ( L x W x H
) 13.6” x 14.9” x 8” /
345.44 x 378.46 x 203.2 mm
• Weight: 26.46 lbs / 12 kg
• Rigging: Installed split yoke mounting bracket, safety
cable and 3-pin data cable included
FEATURES
• LED wall wash panel
• High output, outdoor color L.E.D. wash panel
• Innite color possibilities (RGB color mixing)
• 72 x 3W Luxeon K2 LED’s (24 Red, 24 Green, 24 Blue)
• 31° Beam Angle
• 1,523 Lux at 3m
• IP65 outdoor rated, compact case design
• Available case colors: black/silver
• Silent operation, convection cooled (No fans)
• Built-in power supply and DMX 512 Control
• Electronic switching power supply (90-240V, 50/60Hz)
• 4 digit LED display
• Linkable power supply
• Long Life L.E.D. (rated at 100,000 Hours)
• Flicker free operation for television and lm
• Stand Alone & DMX Operation Modes
• Built-in chase programs
• Internal scene & chase memory with speed & fade settings
• Strobe effect (1-18 ashed per second)
• Control each L.E.D. independently
• Pre-programmed color macros
• Sound controlled via built-in microphone
• 0-100% Dimming
The Design LED Panel 72IP MKII (DLED Panel 72 MKII) by Elation Professional is a high output, outdoor color
L.E.D. wash panel equipped with 72 3W Luxeon K2 L.E.D.’s (24 red, 24 green, 24 blue) producing infinite color
possibilities using RGB color mixing. The DLED Panel 72 MKII features silent operation with convection cooling (no
fans) and a compact case design available in black or silver case colors with the design of the fixture optimized
providing up to 100,000 hours estimated L.E.D. life. This unit is outdoor rated IP65, ideal for indoor and outdoor
applications. DLED Panel 72 MKII is also equipped with a built-in electronic switching power supply which can
operate from 90-240V-50/60hz and DMX-512 control. The unit is operable via 3, 4, 6, or 15 channel operation
modes with available DMX, stand alone, master/slave and sound controlled user modes. This unit also features
built-in chase programs and internal scene and chase memory with speed and fade settings. A standard beam
angle of 53° is produced with 1,523 LUX (141 FC) at 3 meters. Rigging for this unit includes split yoke bracket,
safety cable and 3-pin data cable.

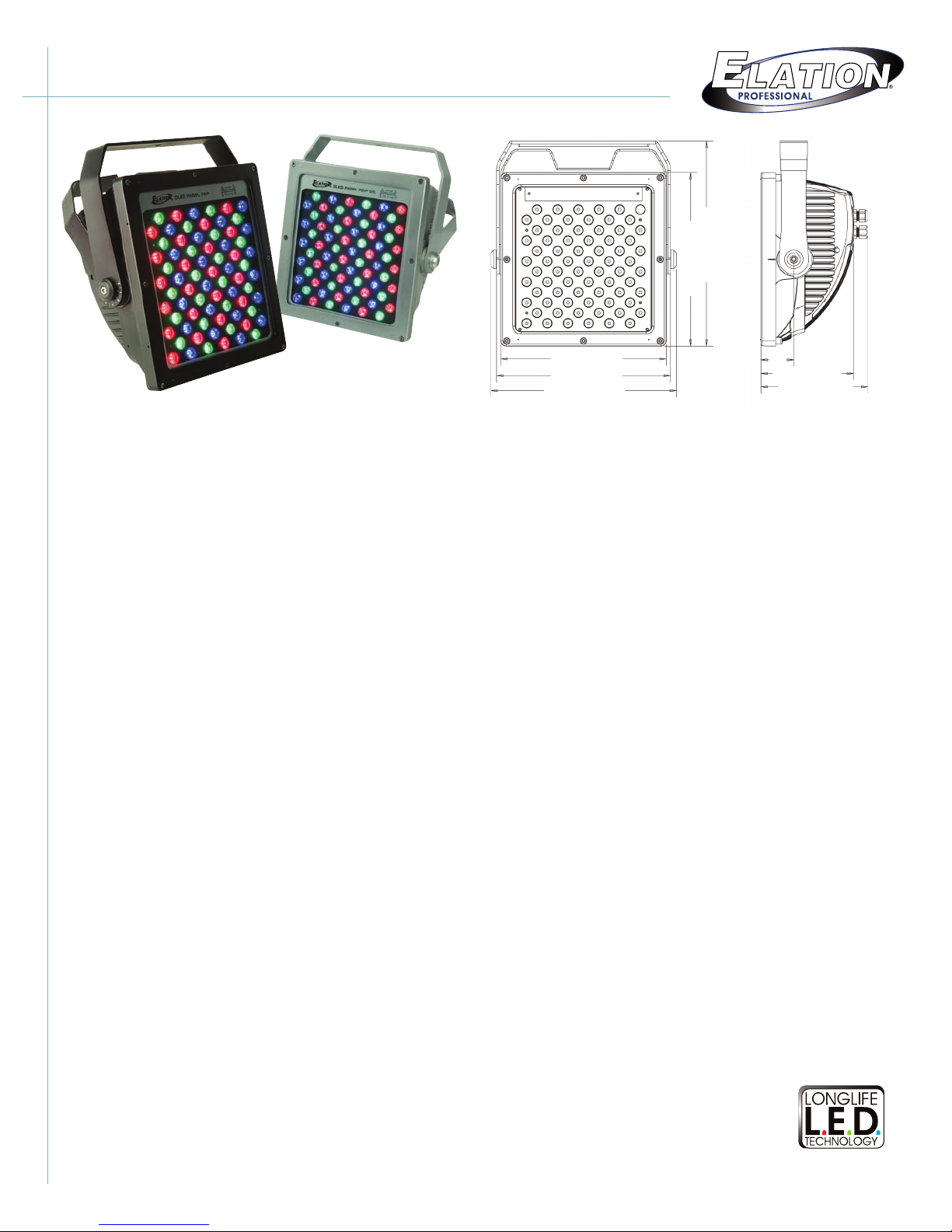

Design LED Panel 72IP MKII DimensionsAvailable case colors: black/silver
DESIGN LED 72MKII™
©Elation Professional, Los Angeles Ca. 32 www.ElationLighting.com
14. DIMENSIONAL DRAWINGS
13.4” / 341 mm 7.75” / 197 mm
6.7” / 171 mm
2.4” / 61 mm
14.8” / 377 mm
12.6” / 319 mm
13” / 320 mm
12” / 304 mm

Design LED Panel 72IP MKII
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
COLORS
• 72 x 3W K2 LED’s (24 Red, 24 Green, 24 Blue)
• High output, outdoor color L.E.D. wash panel
• Innite color possibilities (RGB color mixing)
PHOTOMETRICS
Design LED Panel 72 MKII
Photometric Beam Angle Data
Beam Angle 53°
LUX x0.0929 = FC
53°
Beam Angle
1,028 FC
11,070 LUX
521 FC
5,605 LUX
141 FC
1,523 LUX
0 m
0 ft
1 m
3.28 ft
3 m
9.8 ft
2 m
6.6 ft
Ø 1.0 m
Ø 3.28 ft
Ø 2.0 m
Ø 6.6 ft
Ø 3.0 m
Ø 9.8 ft
Beam Diameter
Ø 1.0m / Ø 3.28ft
Ø 2.0m / Ø 6.6ft
Ø 3.0m / Ø 9.8ft

Design LED Panel 72IP MKII
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free [phone]
DMX TRAITS
3 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 DImming / program speed control
6 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Auto programs (built-in programs)
5 0 - 255 Strobe
6 0 - 255 DImming / program speed control
15 Channel Mode:
Channel Value Function
1 0 - 255 Red ( 0 - black, 255 - 100% red
)
2 0 - 255 Green ( 0 - black, 255 - 100% green
)
3 0 - 255 Blue (0 - black, 255 - 100% blue )
4 0 - 255 Red ( 0 - black, 255 - 100% red
)
5 0 - 255 Green ( 0 - black, 255 - 100% green
)
6 0 - 255 Blue (0 - black, 255 - 100% blue )
7 0 - 255 Red ( 0 - black, 255 - 100% red
)
8 0 - 255 Green ( 0 - black, 255 - 100% green
)
9 0 - 255 Blue (0 - black, 255 - 100% blue )
10 0 - 255 Red ( 0 - black, 255 - 100% red
)
11 0 - 255 Green ( 0 - black, 255 - 100% green
)
12 0 - 255 Blue (0 - black, 255 - 100% blue )
13 0 - 255 Auto programs (built-in programs)
14 0 - 255 Strobe
15 0 - 255 DImming / program speed control
Product Order Code Description
Design Panel 72IP MKII Black Design Panel 72IP MKII
Design Panel 72IP MKII S Silver Design Panel 72IP MKII
Accessories Order Code Description
80409030066 Design Panel 72IP MKII DMX In 3P Male XLR/5P Female IP 3M
80409030065 Design Panel 72IP MKII DMX Out 3P Female XLR/5P Male IP 3M
80409030054 Design Panel 72IP MKII 120V Power In 3P IP Cable 1.8M
80409030011 Design Panel 72IP MKII Data Link Cable 5P IP 3M
Design Panel 72IP MKII Power Link Cable 3P IP 3M
