Elecom refree HCM-P01 series User manual

2
3 4 5 7
8 9 10 11
6
12 13
Trade name: Gel pad P01
Medical device submission No.: 27B2X00293000001
1 Point Pads (pair)
Wide Pad (single)
2 Point Pads (pair)
Model No.: HCM-P01G1 Model No.: HCM-P01G2
Model No.: HCM-P01G3
LED indicator is off
Low-Frequency Electronic Pulse Massager P01
User’s Manual
HCM-P01 Series
2nd edition, August, 2016
Safety Precautions (Please be sure to follow the precautions)
Package Contents
Product Features
The following precautions provide instructions that must be followed in order to
prevent personal injury to, or damage to property of you or any other person.
Danger Failure to observe Dangers will result in serious personal
injury or death.
Warning Failure to observe Warnings may result in serious personal
injury or death.
Caution Failure to observe Cautions may result in personal injury or
property damage.
This symbol indicates a prohibited action.
This symbol indicates a mandatory action.
Do NOT use this device if you are using a medical device such as:
• A pacemaker or any other implanted electronic medical device;
• A heart-lung machine or any other life-support electronic medical device; or
• An electrocardiograph or any other wearable electronic medical device.
Such use could cause a malfunction of these medical devices, and
severely impair your life.
Danger
Do not use for any other purpose than treatment.
Such use could cause an accident, problem or device failure.
Do not use this device around the heart, on the head, face, mouth,
pudendum or any blemished skin areas.
Such use could cause an accident, injury or ill health.
Warning
Do not allow children to use this device, or play on or ride on the main
unit or gel pad.
Such use could cause an accident or injury. This device is for single person use only.
Do not share the device with anyone else while using.
Otherwise, electric shock or accident may be caused.
Warning
Do not disassemble, repair or modify the device.
Otherwise, fire or electric shock may be caused.
Warning
Do not use nor store the device at the following locations:
• Under direct sunlight;
• In high temperature areas such as near heaters;
• In high humidity areas such as in bathrooms;
• Near water;
• In dusty areas;
• On a vibrating surface.
Otherwise, fire, electric shock or device failure may be caused.
Caution
Do not use while sleeping.
Such use could cause an accident or injury.
Do not use immediately before or while driving a car, riding a motorcy-
cle or a bicycle.
Such use could cause an accident or problem.
Do not attach a gel pad to the skin for too long.
Otherwise, skin inflammation may be caused. Do not use a travel converter or any other power converter to charge
the device.
Otherwise, overheating or fire may be caused.
Do not charge in a car using the cigarette lighter receptacle or any other
means.
Otherwise, fire, overheating or electric shock may be caused.
Do not touch the dedicated USB cable or gel pad with a wet hand.
Otherwise, electric shock, device failure or accident may be caused.
Do not use if the dedicated USB cable is damaged, or the USB port is
loose.
Otherwise, fire or electric shock may be caused.
Avoid excessive pulling or bending of the cable, or placing heavy
objects on the cable.
Otherwise, cable damage or breakage, fire or electric shock may be
caused.
Do not insert any metallic object into the USB port.
Otherwise, overheating or fire may be caused.
Avoid touching the USB port with any part of your body such as a hand
or a finger.
Otherwise, electric shock, impairment or device failure may be caused.
Do not use the supplied dedicated USB cable for other than charging
the main unit. The dedicated USB cable may not be used for communi-
cation or charging other devices.
Caution
Part Names Preparation
Caution:
Please make sure all components are included. Although we aim to ensure that
all our products are carefully packaged.
Optional Parts
The following optional parts are available:

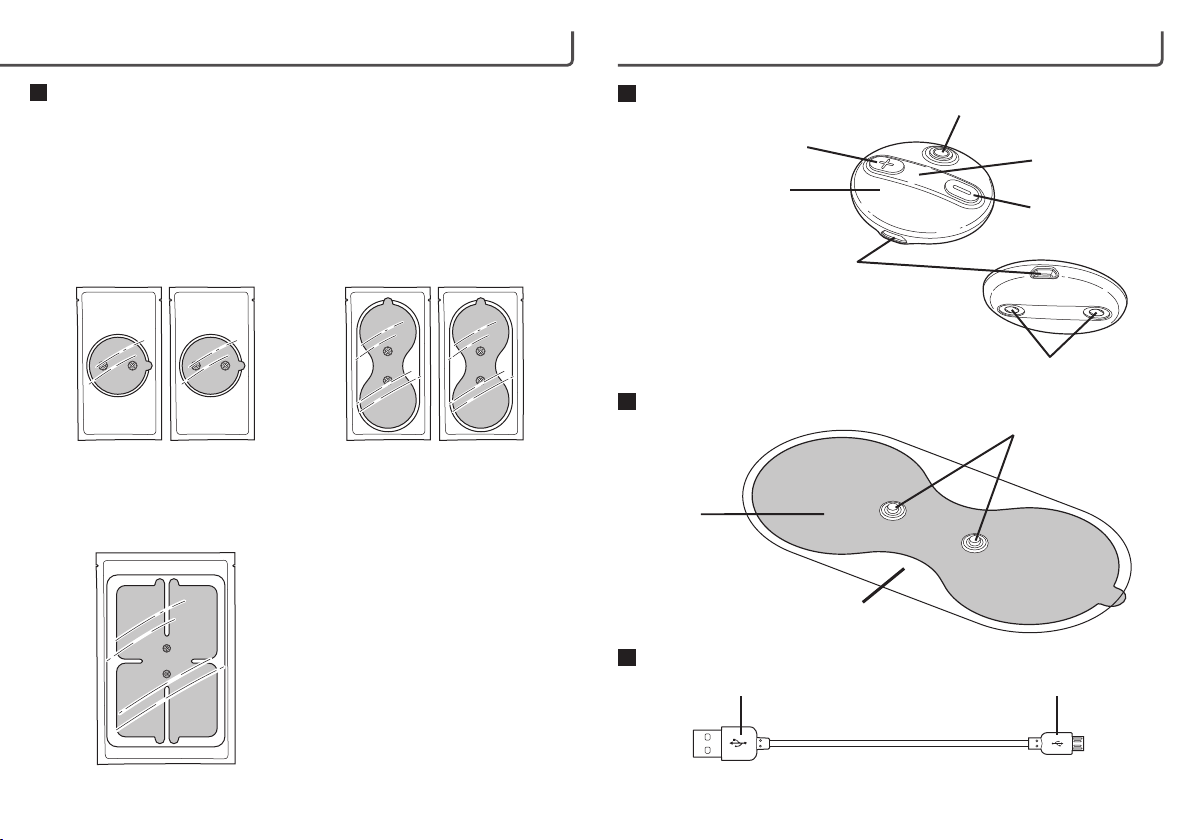

Power button (mode selection button)
[+] (Strong) button
Main unit
USB port (for charging)
LED indicator
[-] (Weak) button
Connectors (on the gel pad)
Protective film
Gel pad
Main unit Gel pad (2 Point Pad)
(Consumables)
Dedicated USB cable Storage sheet
Storage bag
User’s Manual (this document)
USB port
Caution:
If a person who has one of the following conditions uses the device, they
should consult a physician prior to use:
• Being in the care of a physician, or feeling particularly ill;
• Having a malignant tumor;
• Having a cardiac or cranial nerve abnormality.
• During pregnancy, or immediately after delivery;
• Having a temperature of 38°C or above (febrile) (ex. 1: Presenting with
pronounced acute-onset symptoms (fatigue, chills, changes in blood
pressure, etc.), ex. 2: Being debilitated);
• Having an infectious disease;
• Having a skin sensory abnormality or skin problem;
• Having an acute (algetic) disease such as vertebral fracture, sprain or
muscle strain;
• Being in need of rest;
• Being on medication;
• Having abnormal blood pressure;
• Having a limb disability;
• Being incapable of expressing one’s own will;
• Having a sensory abnormality due to a severe peripheral circulatory
disorder from diabetes or other causes;
• Having a low body temperature;
• Having vascular insufficiency;
• Showing no effect after using for a while;
• The gel pad does not suit the skin.
Such use could cause an accident or ill health.
Connectors (on the main unit)
Type-A USB connector Micro Type-B USB connector
Do not use this device simultaneously with any other therapeutic device.
Such use could cause discomfort or ill health.
Make sure the device is turned OFF before connecting or disconnecting
the main unit and gel pad, or placing, relocating or removing the gel pad.
Such use could cause an electric shock or device failure.
Do not allow any metallic object such as a watch or a necklace to come
into contact with the gel pad during treatment.
Such use could cause an accident or injury.
Do not use this device if the surface of a gel pad is chipped or
damaged.
Such use could cause an accident, problem or device failure.
Do not use this device to treat one region for longer than 15 minutes.
Such use could cause an accident or ill health.
Please make sure the device works properly by testing the device as
per the User’s Manual before using for the first time, or when it has not
been used for a long period of time.
Please make sure the main unit and the gel pad are connected correctly
before using the device.
Please make sure all buttons are working properly before using the
device.
Do not use this device when the gel pad is wet.
Otherwise, electric shock may be caused.
Do not let water or liquid enter the main unit, nor wet the main unit.
Otherwise, overheating, burst or fire may be caused.
Keep the device out of the reach of children.
Otherwise, an accident may be caused. If a child swallows the main unit,
consult a physician immediately.
Caution
Please dispose of the device according to the applicable municipal
regulations.
If device failure occurs, stop its use immediately, and turn OFF the
device.
Thank you for purchasing the ELECOM ECLEAR refree.
This manual describes the operating instructions and safety precautions for using the
device.
Please be sure to read this manual carefully before using the device. After reading,
keep the manual safe for future reference.
If you feel a painful sensation, or experience a skin problem such as
eczema, flares or itching while using the device, stop immediately and
consult with a physician.
Otherwise, accident or ill health may be caused.
Caution:
Be sure to remove sweat and water from the skin before using the device.
Be sure to use only the gel pads specified by our company.
Caution:
When replacing gel pads, please read the instruction manual
for gel pads as well.
Be sure to charge at least once every three months.
If the device is fully discharged, it may not be recharged.
Make sure the dedicated USB cable is connected securely when
charging.
If connected incompletely while charging, fire or an electric shock may be
caused.
Do not use this device placing a gel pad on another pad.
Otherwise, electric shock or accident may be caused.
The symbols shown classify and explain the seriousness of possible hazards or
damage if you ignore the precautions and use the device incorrectly.
Main Unit
Gel Pad
Dedicated USB Cable
The use of a travel converter or any other power converter to charge
the device may cause overheating or fire.
The device cannot be used while charging.
The operating time of a fully charged battery becomes shorter with
repeated charging of the main unit. If the operating time becomes
extremely short, the battery has reached the end of its life. However,
the battery is not replaceable.

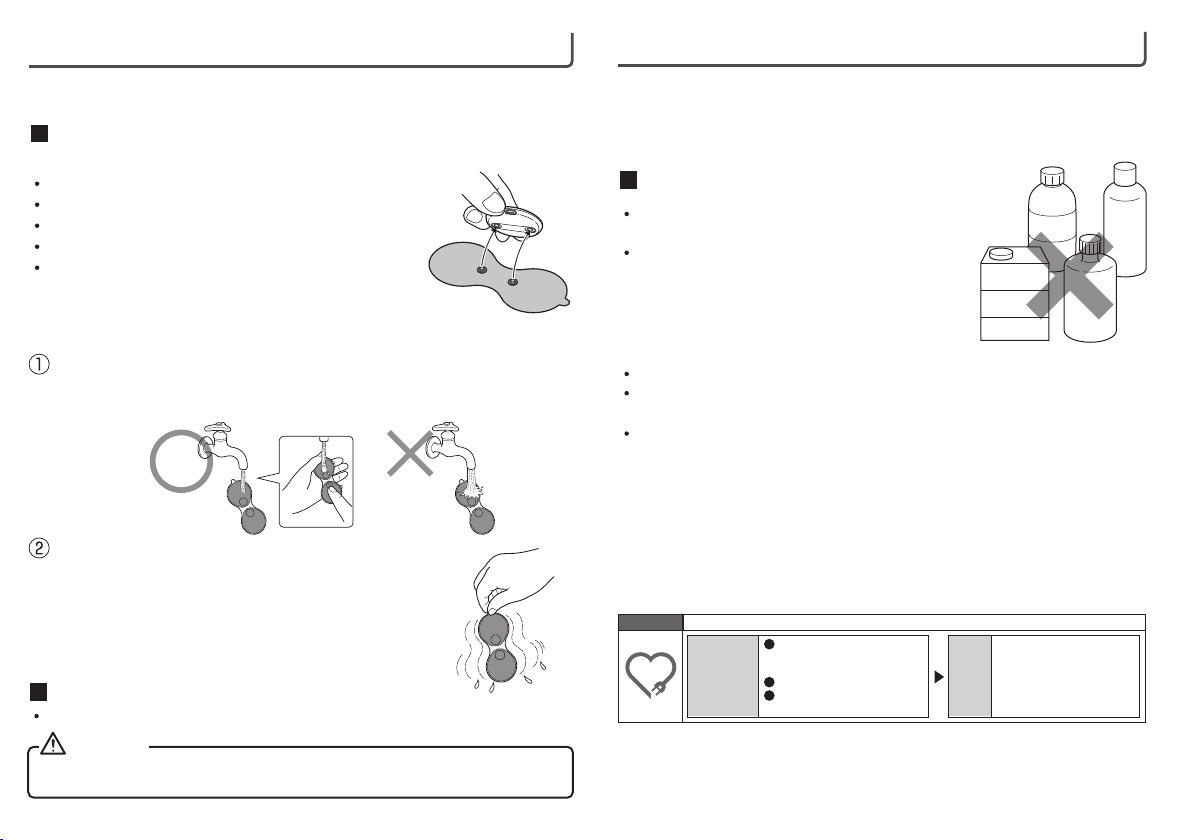

Replacement of Gel Pads
LED indicator
Blinks red when the battery falls below 80%;
blinks green when charged 80% or more; glows
solid green when the battery is fully charged.
Micro Type-B connector
Dedicated USB cable

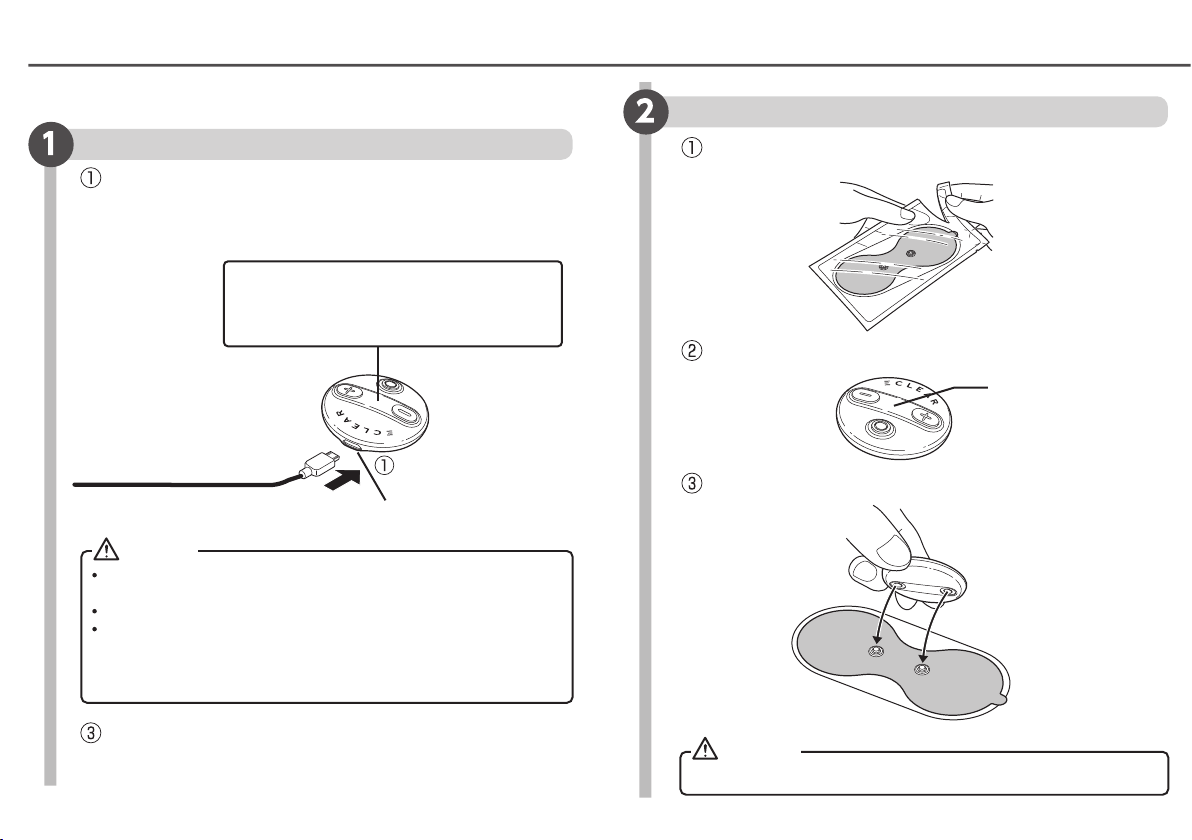

Charging the device.

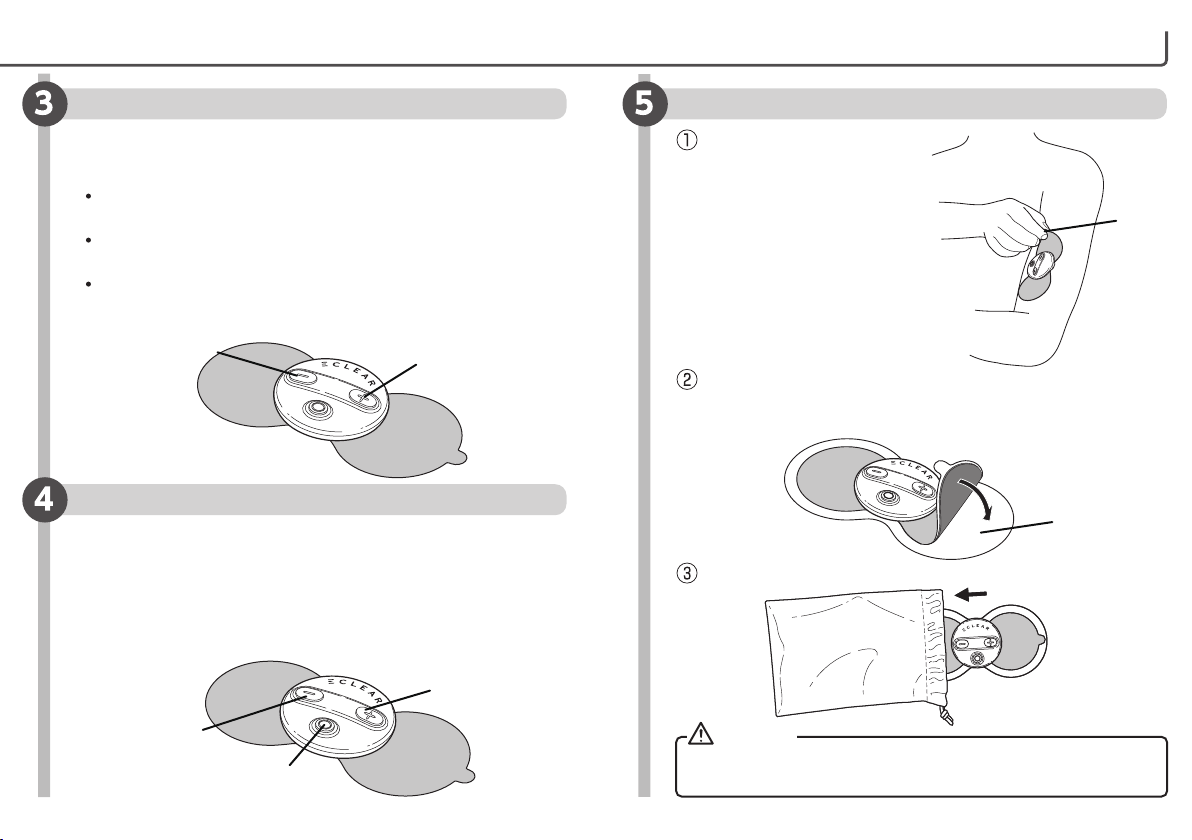

Connecting the gel pad to the main unit.
When using for the first time, take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Turn OFF the power of the main unit, and make sure the LED
indicator is off.
Connect the main unit to the connector on the gel pad until a
“click” is heard.
Connect the Micro Type-B USB connector of the dedicated USB
cable to the USB port on the main unit.
Note: When correctly connected, you will hear the sound “pip,” and
the LED indicator on the main unit will blink or glow.
When fully charged, you will hear the sound “peep.”
Disconnect the main unit from the gel pad.
Make sure the power of the main unit is turned OFF (the
LED indicator is off).
Connect the main unit to the connector on the gel pad until
a “click” is heard.
Take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Be sure to fully charge the device before using (for the first time after purchase, or
when it has not been used for a long time), or when the battery has run out during use.
Intended Use or Indications
This product is a low-frequency electronic pulse massager designed to prevent
atrophy of numb muscles and provide massage benefits.
This product is intended for home use.
About Low-Frequency Electronic Pulse Massager
A Low-Frequency Electronic Pulse Massager relieves stiff muscles by sending
weak low-frequency electrical impulses across the surface of the skin through
electrodes placed on the body to induce muscle contraction and produce
muscle pump action and vasodilation that improve blood flow. The
low-frequency electrical impulses also relieve pain by stimulating nerves and
blocking pain signals to your brain.
Standard Treatment Time
The standard treatment time is approximately 15 minutes for one treatment area.
Excessive use (over 15 minutes) at a time could cause ill health.
This product is equipped with a timer that will automatically power off the device
after about 15 minutes of treatment.
Effective Treatment Time
The treatment is more effective when administered after a bath. It is more
effective in increasing blood flow when the body is warmed up.
Charge time: approximately 3.5 hours
Don’t Touch with
Wet Hands
Do Not
Disassemble

2
3 4
5 7
8 9 10 11
6
12 13
Trade name: Gel pad P01
Medical device submission No.: 27B2X00293000001
1 Point Pads (pair)
Wide Pad (single)
2 Point Pads (pair)
Model No.: HCM-P01G1 Model No.: HCM-P01G2
Model No.: HCM-P01G3
LED indicator is off
Low-Frequency Electronic Pulse Massager P01
User’s Manual
HCM-P01 Series
2nd edition, August, 2016
Safety Precautions (Please be sure to follow the precautions)
Package Contents
Product Features
The following precautions provide instructions that must be followed in order to
prevent personal injury to, or damage to property of you or any other person.
Danger Failure to observe Dangers will result in serious personal
injury or death.
Warning Failure to observe Warnings may result in serious personal
injury or death.
Caution Failure to observe Cautions may result in personal injury or
property damage.
This symbol indicates a prohibited action.
This symbol indicates a mandatory action.
Do NOT use this device if you are using a medical device such as:
• A pacemaker or any other implanted electronic medical device;
• A heart-lung machine or any other life-support electronic medical device; or
• An electrocardiograph or any other wearable electronic medical device.
Such use could cause a malfunction of these medical devices, and
severely impair your life.
Danger
Do not use for any other purpose than treatment.
Such use could cause an accident, problem or device failure.
Do not use this device around the heart, on the head, face, mouth,
pudendum or any blemished skin areas.
Such use could cause an accident, injury or ill health.
Warning
Do not allow children to use this device, or play on or ride on the main
unit or gel pad.
Such use could cause an accident or injury. This device is for single person use only.
Do not share the device with anyone else while using.
Otherwise, electric shock or accident may be caused.
Warning
Do not disassemble, repair or modify the device.
Otherwise, fire or electric shock may be caused.
Warning
Do not use nor store the device at the following locations:
• Under direct sunlight;
• In high temperature areas such as near heaters;
• In high humidity areas such as in bathrooms;
• Near water;
• In dusty areas;
• On a vibrating surface.
Otherwise, fire, electric shock or device failure may be caused.
Caution
Do not use while sleeping.
Such use could cause an accident or injury.
Do not use immediately before or while driving a car, riding a motorcy-
cle or a bicycle.
Such use could cause an accident or problem.
Do not attach a gel pad to the skin for too long.
Otherwise, skin inflammation may be caused.
Do not use a travel converter or any other power converter to charge
the device.
Otherwise, overheating or fire may be caused.
Do not charge in a car using the cigarette lighter receptacle or any other
means.
Otherwise, fire, overheating or electric shock may be caused.
Do not touch the dedicated USB cable or gel pad with a wet hand.
Otherwise, electric shock, device failure or accident may be caused.
Do not use if the dedicated USB cable is damaged, or the USB port is
loose.
Otherwise, fire or electric shock may be caused.
Avoid excessive pulling or bending of the cable, or placing heavy
objects on the cable.
Otherwise, cable damage or breakage, fire or electric shock may be
caused.
Do not insert any metallic object into the USB port.
Otherwise, overheating or fire may be caused.
Avoid touching the USB port with any part of your body such as a hand
or a finger.
Otherwise, electric shock, impairment or device failure may be caused.
Do not use the supplied dedicated USB cable for other than charging
the main unit. The dedicated USB cable may not be used for communi-
cation or charging other devices.
Caution
Part Names Preparation
Caution:
Please make sure all components are included. Although we aim to ensure that
all our products are carefully packaged.
Optional Parts
The following optional parts are available:
Power button (mode selection button)
[+] (Strong) button
Main unit
USB port (for charging)
LED indicator
[-] (Weak) button
Connectors (on the gel pad)
Protective film
Gel pad
Main unit Gel pad (2 Point Pad)
(Consumables)
Dedicated USB cable Storage sheet
Storage bag
User’s Manual (this document)
USB port
Caution:
If a person who has one of the following conditions uses the device, they
should consult a physician prior to use:
• Being in the care of a physician, or feeling particularly ill;
• Having a malignant tumor;
• Having a cardiac or cranial nerve abnormality.
• During pregnancy, or immediately after delivery;
• Having a temperature of 38°C or above (febrile) (ex. 1: Presenting with
pronounced acute-onset symptoms (fatigue, chills, changes in blood
pressure, etc.), ex. 2: Being debilitated);
• Having an infectious disease;
• Having a skin sensory abnormality or skin problem;
• Having an acute (algetic) disease such as vertebral fracture, sprain or
muscle strain;
• Being in need of rest;
• Being on medication;
• Having abnormal blood pressure;
• Having a limb disability;
• Being incapable of expressing one’s own will;
• Having a sensory abnormality due to a severe peripheral circulatory
disorder from diabetes or other causes;
• Having a low body temperature;
• Having vascular insufficiency;
• Showing no effect after using for a while;
• The gel pad does not suit the skin.
Such use could cause an accident or ill health.
Connectors (on the main unit)
Type-A USB connector Micro Type-B USB connector
Do not use this device simultaneously with any other therapeutic device.
Such use could cause discomfort or ill health.
Make sure the device is turned OFF before connecting or disconnecting
the main unit and gel pad, or placing, relocating or removing the gel pad.
Such use could cause an electric shock or device failure.
Do not allow any metallic object such as a watch or a necklace to come
into contact with the gel pad during treatment.
Such use could cause an accident or injury.
Do not use this device if the surface of a gel pad is chipped or
damaged.
Such use could cause an accident, problem or device failure.
Do not use this device to treat one region for longer than 15 minutes.
Such use could cause an accident or ill health.
Please make sure the device works properly by testing the device as
per the User’s Manual before using for the first time, or when it has not
been used for a long period of time.
Please make sure the main unit and the gel pad are connected correctly
before using the device.
Please make sure all buttons are working properly before using the
device.
Do not use this device when the gel pad is wet.
Otherwise, electric shock may be caused.
Do not let water or liquid enter the main unit, nor wet the main unit.
Otherwise, overheating, burst or fire may be caused.
Keep the device out of the reach of children.
Otherwise, an accident may be caused. If a child swallows the main unit,
consult a physician immediately.
Caution
Please dispose of the device according to the applicable municipal
regulations.
If device failure occurs, stop its use immediately, and turn OFF the
device.
Thank you for purchasing the ELECOM ECLEAR refree.
This manual describes the operating instructions and safety precautions for using the
device.
Please be sure to read this manual carefully before using the device. After reading,
keep the manual safe for future reference.
If you feel a painful sensation, or experience a skin problem such as
eczema, flares or itching while using the device, stop immediately and
consult with a physician.
Otherwise, accident or ill health may be caused.
Caution:
Be sure to remove sweat and water from the skin before using the device.
Be sure to use only the gel pads specified by our company.
Caution:
When replacing gel pads, please read the instruction manual
for gel pads as well.
Be sure to charge at least once every three months.
If the device is fully discharged, it may not be recharged.
Make sure the dedicated USB cable is connected securely when
charging.
If connected incompletely while charging, fire or an electric shock may be
caused.
Do not use this device placing a gel pad on another pad.
Otherwise, electric shock or accident may be caused.
The symbols shown classify and explain the seriousness of possible hazards or
damage if you ignore the precautions and use the device incorrectly.
Main Unit
Gel Pad
Dedicated USB Cable
The use of a travel converter or any other power converter to charge
the device may cause overheating or fire.
The device cannot be used while charging.
The operating time of a fully charged battery becomes shorter with
repeated charging of the main unit. If the operating time becomes
extremely short, the battery has reached the end of its life. However,
the battery is not replaceable.
Replacement of Gel Pads
LED indicator
Blinks red when the battery falls below 80%;
blinks green when charged 80% or more; glows
solid green when the battery is fully charged.
Micro Type-B connector
Dedicated USB cable
Charging the device.
Connecting the gel pad to the main unit.
When using for the first time, take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Turn OFF the power of the main unit, and make sure the LED
indicator is off.
Connect the main unit to the connector on the gel pad until a
“click” is heard.
Connect the Micro Type-B USB connector of the dedicated USB
cable to the USB port on the main unit.
Note: When correctly connected, you will hear the sound “pip,” and
the LED indicator on the main unit will blink or glow.
When fully charged, you will hear the sound “peep.”
Disconnect the main unit from the gel pad.
Make sure the power of the main unit is turned OFF (the
LED indicator is off).
Connect the main unit to the connector on the gel pad until
a “click” is heard.
Take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Be sure to fully charge the device before using (for the first time after purchase, or
when it has not been used for a long time), or when the battery has run out during use.
Intended Use or Indications
This product is a low-frequency electronic pulse massager designed to prevent
atrophy of numb muscles and provide massage benefits.
This product is intended for home use.
About Low-Frequency Electronic Pulse Massager
A Low-Frequency Electronic Pulse Massager relieves stiff muscles by sending
weak low-frequency electrical impulses across the surface of the skin through
electrodes placed on the body to induce muscle contraction and produce
muscle pump action and vasodilation that improve blood flow. The
low-frequency electrical impulses also relieve pain by stimulating nerves and
blocking pain signals to your brain.
Standard Treatment Time
The standard treatment time is approximately 15 minutes for one treatment area.
Excessive use (over 15 minutes) at a time could cause ill health.
This product is equipped with a timer that will automatically power off the device
after about 15 minutes of treatment.
Effective Treatment Time
The treatment is more effective when administered after a bath. It is more
effective in increasing blood flow when the body is warmed up.
Charge time: approximately 3.5 hours
Don’t Touch with
Wet Hands
Do Not
Disassemble

2 3 4
5
7
8 9 10 11
6
12 13
Trade name: Gel pad P01
Medical device submission No.: 27B2X00293000001
1 Point Pads (pair)
Wide Pad (single)
2 Point Pads (pair)
Model No.: HCM-P01G1 Model No.: HCM-P01G2
Model No.: HCM-P01G3
LED indicator is off
Low-Frequency Electronic Pulse Massager P01
User’s Manual
HCM-P01 Series
2nd edition, August, 2016
Safety Precautions (Please be sure to follow the precautions)
Package Contents
Product Features
The following precautions provide instructions that must be followed in order to
prevent personal injury to, or damage to property of you or any other person.
Danger Failure to observe Dangers will result in serious personal
injury or death.
Warning Failure to observe Warnings may result in serious personal
injury or death.
Caution Failure to observe Cautions may result in personal injury or
property damage.
This symbol indicates a prohibited action.
This symbol indicates a mandatory action.
Do NOT use this device if you are using a medical device such as:
• A pacemaker or any other implanted electronic medical device;
• A heart-lung machine or any other life-support electronic medical device; or
• An electrocardiograph or any other wearable electronic medical device.
Such use could cause a malfunction of these medical devices, and
severely impair your life.
Danger
Do not use for any other purpose than treatment.
Such use could cause an accident, problem or device failure.
Do not use this device around the heart, on the head, face, mouth,
pudendum or any blemished skin areas.
Such use could cause an accident, injury or ill health.
Warning
Do not allow children to use this device, or play on or ride on the main
unit or gel pad.
Such use could cause an accident or injury. This device is for single person use only.
Do not share the device with anyone else while using.
Otherwise, electric shock or accident may be caused.
Warning
Do not disassemble, repair or modify the device.
Otherwise, fire or electric shock may be caused.
Warning
Do not use nor store the device at the following locations:
• Under direct sunlight;
• In high temperature areas such as near heaters;
• In high humidity areas such as in bathrooms;
• Near water;
• In dusty areas;
• On a vibrating surface.
Otherwise, fire, electric shock or device failure may be caused.
Caution
Do not use while sleeping.
Such use could cause an accident or injury.
Do not use immediately before or while driving a car, riding a motorcy-
cle or a bicycle.
Such use could cause an accident or problem.
Do not attach a gel pad to the skin for too long.
Otherwise, skin inflammation may be caused.
Do not use a travel converter or any other power converter to charge
the device.
Otherwise, overheating or fire may be caused.
Do not charge in a car using the cigarette lighter receptacle or any other
means.
Otherwise, fire, overheating or electric shock may be caused.
Do not touch the dedicated USB cable or gel pad with a wet hand.
Otherwise, electric shock, device failure or accident may be caused.
Do not use if the dedicated USB cable is damaged, or the USB port is
loose.
Otherwise, fire or electric shock may be caused.
Avoid excessive pulling or bending of the cable, or placing heavy
objects on the cable.
Otherwise, cable damage or breakage, fire or electric shock may be
caused.
Do not insert any metallic object into the USB port.
Otherwise, overheating or fire may be caused.
Avoid touching the USB port with any part of your body such as a hand
or a finger.
Otherwise, electric shock, impairment or device failure may be caused.
Do not use the supplied dedicated USB cable for other than charging
the main unit. The dedicated USB cable may not be used for communi-
cation or charging other devices.
Caution
Part Names Preparation
Caution:
Please make sure all components are included. Although we aim to ensure that
all our products are carefully packaged.
Optional Parts
The following optional parts are available:
Power button (mode selection button)
[+] (Strong) button
Main unit
USB port (for charging)
LED indicator
[-] (Weak) button
Connectors (on the gel pad)
Protective film
Gel pad
Main unit Gel pad (2 Point Pad)
(Consumables)
Dedicated USB cable Storage sheet
Storage bag
User’s Manual (this document)
USB port
Caution:
If a person who has one of the following conditions uses the device, they
should consult a physician prior to use:
• Being in the care of a physician, or feeling particularly ill;
• Having a malignant tumor;
• Having a cardiac or cranial nerve abnormality.
• During pregnancy, or immediately after delivery;
• Having a temperature of 38°C or above (febrile) (ex. 1: Presenting with
pronounced acute-onset symptoms (fatigue, chills, changes in blood
pressure, etc.), ex. 2: Being debilitated);
• Having an infectious disease;
• Having a skin sensory abnormality or skin problem;
• Having an acute (algetic) disease such as vertebral fracture, sprain or
muscle strain;
• Being in need of rest;
• Being on medication;
• Having abnormal blood pressure;
• Having a limb disability;
• Being incapable of expressing one’s own will;
• Having a sensory abnormality due to a severe peripheral circulatory
disorder from diabetes or other causes;
• Having a low body temperature;
• Having vascular insufficiency;
• Showing no effect after using for a while;
• The gel pad does not suit the skin.
Such use could cause an accident or ill health.
Connectors (on the main unit)
Type-A USB connector Micro Type-B USB connector
Do not use this device simultaneously with any other therapeutic device.
Such use could cause discomfort or ill health.
Make sure the device is turned OFF before connecting or disconnecting
the main unit and gel pad, or placing, relocating or removing the gel pad.
Such use could cause an electric shock or device failure.
Do not allow any metallic object such as a watch or a necklace to come
into contact with the gel pad during treatment.
Such use could cause an accident or injury.
Do not use this device if the surface of a gel pad is chipped or
damaged.
Such use could cause an accident, problem or device failure.
Do not use this device to treat one region for longer than 15 minutes.
Such use could cause an accident or ill health.
Please make sure the device works properly by testing the device as
per the User’s Manual before using for the first time, or when it has not
been used for a long period of time.
Please make sure the main unit and the gel pad are connected correctly
before using the device.
Please make sure all buttons are working properly before using the
device.
Do not use this device when the gel pad is wet.
Otherwise, electric shock may be caused.
Do not let water or liquid enter the main unit, nor wet the main unit.
Otherwise, overheating, burst or fire may be caused.
Keep the device out of the reach of children.
Otherwise, an accident may be caused. If a child swallows the main unit,
consult a physician immediately.
Caution
Please dispose of the device according to the applicable municipal
regulations.
If device failure occurs, stop its use immediately, and turn OFF the
device.
Thank you for purchasing the ELECOM ECLEAR refree.
This manual describes the operating instructions and safety precautions for using the
device.
Please be sure to read this manual carefully before using the device. After reading,
keep the manual safe for future reference.
If you feel a painful sensation, or experience a skin problem such as
eczema, flares or itching while using the device, stop immediately and
consult with a physician.
Otherwise, accident or ill health may be caused.
Caution:
Be sure to remove sweat and water from the skin before using the device.
Be sure to use only the gel pads specified by our company.
Caution:
When replacing gel pads, please read the instruction manual
for gel pads as well.
Be sure to charge at least once every three months.
If the device is fully discharged, it may not be recharged.
Make sure the dedicated USB cable is connected securely when
charging.
If connected incompletely while charging, fire or an electric shock may be
caused.
Do not use this device placing a gel pad on another pad.
Otherwise, electric shock or accident may be caused.
The symbols shown classify and explain the seriousness of possible hazards or
damage if you ignore the precautions and use the device incorrectly.
Main Unit
Gel Pad
Dedicated USB Cable
The use of a travel converter or any other power converter to charge
the device may cause overheating or fire.
The device cannot be used while charging.
The operating time of a fully charged battery becomes shorter with
repeated charging of the main unit. If the operating time becomes
extremely short, the battery has reached the end of its life. However,
the battery is not replaceable.
Replacement of Gel Pads
LED indicator
Blinks red when the battery falls below 80%;
blinks green when charged 80% or more; glows
solid green when the battery is fully charged.
Micro Type-B connector
Dedicated USB cable
Charging the device.
Connecting the gel pad to the main unit.
When using for the first time, take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Turn OFF the power of the main unit, and make sure the LED
indicator is off.
Connect the main unit to the connector on the gel pad until a
“click” is heard.
Connect the Micro Type-B USB connector of the dedicated USB
cable to the USB port on the main unit.
Note: When correctly connected, you will hear the sound “pip,” and
the LED indicator on the main unit will blink or glow.
When fully charged, you will hear the sound “peep.”
Disconnect the main unit from the gel pad.
Make sure the power of the main unit is turned OFF (the
LED indicator is off).
Connect the main unit to the connector on the gel pad until
a “click” is heard.
Take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Be sure to fully charge the device before using (for the first time after purchase, or
when it has not been used for a long time), or when the battery has run out during use.
Intended Use or Indications
This product is a low-frequency electronic pulse massager designed to prevent
atrophy of numb muscles and provide massage benefits.
This product is intended for home use.
About Low-Frequency Electronic Pulse Massager
A Low-Frequency Electronic Pulse Massager relieves stiff muscles by sending
weak low-frequency electrical impulses across the surface of the skin through
electrodes placed on the body to induce muscle contraction and produce
muscle pump action and vasodilation that improve blood flow. The
low-frequency electrical impulses also relieve pain by stimulating nerves and
blocking pain signals to your brain.
Standard Treatment Time
The standard treatment time is approximately 15 minutes for one treatment area.
Excessive use (over 15 minutes) at a time could cause ill health.
This product is equipped with a timer that will automatically power off the device
after about 15 minutes of treatment.
Effective Treatment Time
The treatment is more effective when administered after a bath. It is more
effective in increasing blood flow when the body is warmed up.
Charge time: approximately 3.5 hours
Don’t Touch with
Wet Hands
Do Not
Disassemble

2 3 4 5
7
8 9 10 11
6
12 13
Trade name: Gel pad P01
Medical device submission No.: 27B2X00293000001
1 Point Pads (pair)
Wide Pad (single)
2 Point Pads (pair)
Model No.: HCM-P01G1 Model No.: HCM-P01G2
Model No.: HCM-P01G3
LED indicator is off
Low-Frequency Electronic Pulse Massager P01
User’s Manual
HCM-P01 Series
2nd edition, August, 2016
Safety Precautions (Please be sure to follow the precautions)
Package Contents
Product Features
The following precautions provide instructions that must be followed in order to
prevent personal injury to, or damage to property of you or any other person.
Danger Failure to observe Dangers will result in serious personal
injury or death.
Warning Failure to observe Warnings may result in serious personal
injury or death.
Caution Failure to observe Cautions may result in personal injury or
property damage.
This symbol indicates a prohibited action.
This symbol indicates a mandatory action.
Do NOT use this device if you are using a medical device such as:
• A pacemaker or any other implanted electronic medical device;
• A heart-lung machine or any other life-support electronic medical device; or
• An electrocardiograph or any other wearable electronic medical device.
Such use could cause a malfunction of these medical devices, and
severely impair your life.
Danger
Do not use for any other purpose than treatment.
Such use could cause an accident, problem or device failure.
Do not use this device around the heart, on the head, face, mouth,
pudendum or any blemished skin areas.
Such use could cause an accident, injury or ill health.
Warning
Do not allow children to use this device, or play on or ride on the main
unit or gel pad.
Such use could cause an accident or injury. This device is for single person use only.
Do not share the device with anyone else while using.
Otherwise, electric shock or accident may be caused.
Warning
Do not disassemble, repair or modify the device.
Otherwise, fire or electric shock may be caused.
Warning
Do not use nor store the device at the following locations:
• Under direct sunlight;
• In high temperature areas such as near heaters;
• In high humidity areas such as in bathrooms;
• Near water;
• In dusty areas;
• On a vibrating surface.
Otherwise, fire, electric shock or device failure may be caused.
Caution
Do not use while sleeping.
Such use could cause an accident or injury.
Do not use immediately before or while driving a car, riding a motorcy-
cle or a bicycle.
Such use could cause an accident or problem.
Do not attach a gel pad to the skin for too long.
Otherwise, skin inflammation may be caused. Do not use a travel converter or any other power converter to charge
the device.
Otherwise, overheating or fire may be caused.
Do not charge in a car using the cigarette lighter receptacle or any other
means.
Otherwise, fire, overheating or electric shock may be caused.
Do not touch the dedicated USB cable or gel pad with a wet hand.
Otherwise, electric shock, device failure or accident may be caused.
Do not use if the dedicated USB cable is damaged, or the USB port is
loose.
Otherwise, fire or electric shock may be caused.
Avoid excessive pulling or bending of the cable, or placing heavy
objects on the cable.
Otherwise, cable damage or breakage, fire or electric shock may be
caused.
Do not insert any metallic object into the USB port.
Otherwise, overheating or fire may be caused.
Avoid touching the USB port with any part of your body such as a hand
or a finger.
Otherwise, electric shock, impairment or device failure may be caused.
Do not use the supplied dedicated USB cable for other than charging
the main unit. The dedicated USB cable may not be used for communi-
cation or charging other devices.
Caution
Part Names Preparation
Caution:
Please make sure all components are included. Although we aim to ensure that
all our products are carefully packaged.
Optional Parts
The following optional parts are available:
Power button (mode selection button)
[+] (Strong) button
Main unit
USB port (for charging)
LED indicator
[-] (Weak) button
Connectors (on the gel pad)
Protective film
Gel pad
Main unit Gel pad (2 Point Pad)
(Consumables)
Dedicated USB cable Storage sheet
Storage bag
User’s Manual (this document)
USB port
Caution:
If a person who has one of the following conditions uses the device, they
should consult a physician prior to use:
• Being in the care of a physician, or feeling particularly ill;
• Having a malignant tumor;
• Having a cardiac or cranial nerve abnormality.
• During pregnancy, or immediately after delivery;
• Having a temperature of 38°C or above (febrile) (ex. 1: Presenting with
pronounced acute-onset symptoms (fatigue, chills, changes in blood
pressure, etc.), ex. 2: Being debilitated);
• Having an infectious disease;
• Having a skin sensory abnormality or skin problem;
• Having an acute (algetic) disease such as vertebral fracture, sprain or
muscle strain;
• Being in need of rest;
• Being on medication;
• Having abnormal blood pressure;
• Having a limb disability;
• Being incapable of expressing one’s own will;
• Having a sensory abnormality due to a severe peripheral circulatory
disorder from diabetes or other causes;
• Having a low body temperature;
• Having vascular insufficiency;
• Showing no effect after using for a while;
• The gel pad does not suit the skin.
Such use could cause an accident or ill health.
Connectors (on the main unit)
Type-A USB connector Micro Type-B USB connector
Do not use this device simultaneously with any other therapeutic device.
Such use could cause discomfort or ill health.
Make sure the device is turned OFF before connecting or disconnecting
the main unit and gel pad, or placing, relocating or removing the gel pad.
Such use could cause an electric shock or device failure.
Do not allow any metallic object such as a watch or a necklace to come
into contact with the gel pad during treatment.
Such use could cause an accident or injury.
Do not use this device if the surface of a gel pad is chipped or
damaged.
Such use could cause an accident, problem or device failure.
Do not use this device to treat one region for longer than 15 minutes.
Such use could cause an accident or ill health.
Please make sure the device works properly by testing the device as
per the User’s Manual before using for the first time, or when it has not
been used for a long period of time.
Please make sure the main unit and the gel pad are connected correctly
before using the device.
Please make sure all buttons are working properly before using the
device.
Do not use this device when the gel pad is wet.
Otherwise, electric shock may be caused.
Do not let water or liquid enter the main unit, nor wet the main unit.
Otherwise, overheating, burst or fire may be caused.
Keep the device out of the reach of children.
Otherwise, an accident may be caused. If a child swallows the main unit,
consult a physician immediately.
Caution
Please dispose of the device according to the applicable municipal
regulations.
If device failure occurs, stop its use immediately, and turn OFF the
device.
Thank you for purchasing the ELECOM ECLEAR refree.
This manual describes the operating instructions and safety precautions for using the
device.
Please be sure to read this manual carefully before using the device. After reading,
keep the manual safe for future reference.
If you feel a painful sensation, or experience a skin problem such as
eczema, flares or itching while using the device, stop immediately and
consult with a physician.
Otherwise, accident or ill health may be caused.
Caution:
Be sure to remove sweat and water from the skin before using the device.
Be sure to use only the gel pads specified by our company.
Caution:
When replacing gel pads, please read the instruction manual
for gel pads as well.
Be sure to charge at least once every three months.
If the device is fully discharged, it may not be recharged.
Make sure the dedicated USB cable is connected securely when
charging.
If connected incompletely while charging, fire or an electric shock may be
caused.
Do not use this device placing a gel pad on another pad.
Otherwise, electric shock or accident may be caused.
The symbols shown classify and explain the seriousness of possible hazards or
damage if you ignore the precautions and use the device incorrectly.
Main Unit
Gel Pad
Dedicated USB Cable
The use of a travel converter or any other power converter to charge
the device may cause overheating or fire.
The device cannot be used while charging.
The operating time of a fully charged battery becomes shorter with
repeated charging of the main unit. If the operating time becomes
extremely short, the battery has reached the end of its life. However,
the battery is not replaceable.
Replacement of Gel Pads
LED indicator
Blinks red when the battery falls below 80%;
blinks green when charged 80% or more; glows
solid green when the battery is fully charged.
Micro Type-B connector
Dedicated USB cable
Charging the device.
Connecting the gel pad to the main unit.
When using for the first time, take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Turn OFF the power of the main unit, and make sure the LED
indicator is off.
Connect the main unit to the connector on the gel pad until a
“click” is heard.
Connect the Micro Type-B USB connector of the dedicated USB
cable to the USB port on the main unit.
Note: When correctly connected, you will hear the sound “pip,” and
the LED indicator on the main unit will blink or glow.
When fully charged, you will hear the sound “peep.”
Disconnect the main unit from the gel pad.
Make sure the power of the main unit is turned OFF (the
LED indicator is off).
Connect the main unit to the connector on the gel pad until
a “click” is heard.
Take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Be sure to fully charge the device before using (for the first time after purchase, or
when it has not been used for a long time), or when the battery has run out during use.
Intended Use or Indications
This product is a low-frequency electronic pulse massager designed to prevent
atrophy of numb muscles and provide massage benefits.
This product is intended for home use.
About Low-Frequency Electronic Pulse Massager
A Low-Frequency Electronic Pulse Massager relieves stiff muscles by sending
weak low-frequency electrical impulses across the surface of the skin through
electrodes placed on the body to induce muscle contraction and produce
muscle pump action and vasodilation that improve blood flow. The
low-frequency electrical impulses also relieve pain by stimulating nerves and
blocking pain signals to your brain.
Standard Treatment Time
The standard treatment time is approximately 15 minutes for one treatment area.
Excessive use (over 15 minutes) at a time could cause ill health.
This product is equipped with a timer that will automatically power off the device
after about 15 minutes of treatment.
Effective Treatment Time
The treatment is more effective when administered after a bath. It is more
effective in increasing blood flow when the body is warmed up.
Charge time: approximately 3.5 hours
Don’t Touch with
Wet Hands
Do Not
Disassemble
2 3 4 5 7
8
9 10 11
6
12 13
Trade name: Gel pad P01
Medical device submission No.: 27B2X00293000001
1 Point Pads (pair)
Wide Pad (single)
2 Point Pads (pair)
Model No.: HCM-P01G1 Model No.: HCM-P01G2
Model No.: HCM-P01G3
LED indicator is off
Low-Frequency Electronic Pulse Massager P01
User’s Manual
HCM-P01 Series
2nd edition, August, 2016
Safety Precautions (Please be sure to follow the precautions)
Package Contents
Product Features
The following precautions provide instructions that must be followed in order to
prevent personal injury to, or damage to property of you or any other person.
Danger Failure to observe Dangers will result in serious personal
injury or death.
Warning Failure to observe Warnings may result in serious personal
injury or death.
Caution Failure to observe Cautions may result in personal injury or
property damage.
This symbol indicates a prohibited action.
This symbol indicates a mandatory action.
Do NOT use this device if you are using a medical device such as:
• A pacemaker or any other implanted electronic medical device;
• A heart-lung machine or any other life-support electronic medical device; or
• An electrocardiograph or any other wearable electronic medical device.
Such use could cause a malfunction of these medical devices, and
severely impair your life.
Danger
Do not use for any other purpose than treatment.
Such use could cause an accident, problem or device failure.
Do not use this device around the heart, on the head, face, mouth,
pudendum or any blemished skin areas.
Such use could cause an accident, injury or ill health.
Warning
Do not allow children to use this device, or play on or ride on the main
unit or gel pad.
Such use could cause an accident or injury. This device is for single person use only.
Do not share the device with anyone else while using.
Otherwise, electric shock or accident may be caused.
Warning
Do not disassemble, repair or modify the device.
Otherwise, fire or electric shock may be caused.
Warning
Do not use nor store the device at the following locations:
• Under direct sunlight;
• In high temperature areas such as near heaters;
• In high humidity areas such as in bathrooms;
• Near water;
• In dusty areas;
• On a vibrating surface.
Otherwise, fire, electric shock or device failure may be caused.
Caution
Do not use while sleeping.
Such use could cause an accident or injury.
Do not use immediately before or while driving a car, riding a motorcy-
cle or a bicycle.
Such use could cause an accident or problem.
Do not attach a gel pad to the skin for too long.
Otherwise, skin inflammation may be caused. Do not use a travel converter or any other power converter to charge
the device.
Otherwise, overheating or fire may be caused.
Do not charge in a car using the cigarette lighter receptacle or any other
means.
Otherwise, fire, overheating or electric shock may be caused.
Do not touch the dedicated USB cable or gel pad with a wet hand.
Otherwise, electric shock, device failure or accident may be caused.
Do not use if the dedicated USB cable is damaged, or the USB port is
loose.
Otherwise, fire or electric shock may be caused.
Avoid excessive pulling or bending of the cable, or placing heavy
objects on the cable.
Otherwise, cable damage or breakage, fire or electric shock may be
caused.
Do not insert any metallic object into the USB port.
Otherwise, overheating or fire may be caused.
Avoid touching the USB port with any part of your body such as a hand
or a finger.
Otherwise, electric shock, impairment or device failure may be caused.
Do not use the supplied dedicated USB cable for other than charging
the main unit. The dedicated USB cable may not be used for communi-
cation or charging other devices.
Caution
Part Names Preparation
Caution:
Please make sure all components are included. Although we aim to ensure that
all our products are carefully packaged.
Optional Parts
The following optional parts are available:
Power button (mode selection button)
[+] (Strong) button
Main unit
USB port (for charging)
LED indicator
[-] (Weak) button
Connectors (on the gel pad)
Protective film
Gel pad
Main unit Gel pad (2 Point Pad)
(Consumables)
Dedicated USB cable Storage sheet
Storage bag
User’s Manual (this document)
USB port
Caution:
If a person who has one of the following conditions uses the device, they
should consult a physician prior to use:
• Being in the care of a physician, or feeling particularly ill;
• Having a malignant tumor;
• Having a cardiac or cranial nerve abnormality.
• During pregnancy, or immediately after delivery;
• Having a temperature of 38°C or above (febrile) (ex. 1: Presenting with
pronounced acute-onset symptoms (fatigue, chills, changes in blood
pressure, etc.), ex. 2: Being debilitated);
• Having an infectious disease;
• Having a skin sensory abnormality or skin problem;
• Having an acute (algetic) disease such as vertebral fracture, sprain or
muscle strain;
• Being in need of rest;
• Being on medication;
• Having abnormal blood pressure;
• Having a limb disability;
• Being incapable of expressing one’s own will;
• Having a sensory abnormality due to a severe peripheral circulatory
disorder from diabetes or other causes;
• Having a low body temperature;
• Having vascular insufficiency;
• Showing no effect after using for a while;
• The gel pad does not suit the skin.
Such use could cause an accident or ill health.
Connectors (on the main unit)
Type-A USB connector Micro Type-B USB connector
Do not use this device simultaneously with any other therapeutic device.
Such use could cause discomfort or ill health.
Make sure the device is turned OFF before connecting or disconnecting
the main unit and gel pad, or placing, relocating or removing the gel pad.
Such use could cause an electric shock or device failure.
Do not allow any metallic object such as a watch or a necklace to come
into contact with the gel pad during treatment.
Such use could cause an accident or injury.
Do not use this device if the surface of a gel pad is chipped or
damaged.
Such use could cause an accident, problem or device failure.
Do not use this device to treat one region for longer than 15 minutes.
Such use could cause an accident or ill health.
Please make sure the device works properly by testing the device as
per the User’s Manual before using for the first time, or when it has not
been used for a long period of time.
Please make sure the main unit and the gel pad are connected correctly
before using the device.
Please make sure all buttons are working properly before using the
device.
Do not use this device when the gel pad is wet.
Otherwise, electric shock may be caused.
Do not let water or liquid enter the main unit, nor wet the main unit.
Otherwise, overheating, burst or fire may be caused.
Keep the device out of the reach of children.
Otherwise, an accident may be caused. If a child swallows the main unit,
consult a physician immediately.
Caution
Please dispose of the device according to the applicable municipal
regulations.
If device failure occurs, stop its use immediately, and turn OFF the
device.
Thank you for purchasing the ELECOM ECLEAR refree.
This manual describes the operating instructions and safety precautions for using the
device.
Please be sure to read this manual carefully before using the device. After reading,
keep the manual safe for future reference.
If you feel a painful sensation, or experience a skin problem such as
eczema, flares or itching while using the device, stop immediately and
consult with a physician.
Otherwise, accident or ill health may be caused.
Caution:
Be sure to remove sweat and water from the skin before using the device.
Be sure to use only the gel pads specified by our company.
Caution:
When replacing gel pads, please read the instruction manual
for gel pads as well.
Be sure to charge at least once every three months.
If the device is fully discharged, it may not be recharged.
Make sure the dedicated USB cable is connected securely when
charging.
If connected incompletely while charging, fire or an electric shock may be
caused.
Do not use this device placing a gel pad on another pad.
Otherwise, electric shock or accident may be caused.
The symbols shown classify and explain the seriousness of possible hazards or
damage if you ignore the precautions and use the device incorrectly.
Main Unit
Gel Pad
Dedicated USB Cable
The use of a travel converter or any other power converter to charge
the device may cause overheating or fire.
The device cannot be used while charging.
The operating time of a fully charged battery becomes shorter with
repeated charging of the main unit. If the operating time becomes
extremely short, the battery has reached the end of its life. However,
the battery is not replaceable.
Replacement of Gel Pads
LED indicator
Blinks red when the battery falls below 80%;
blinks green when charged 80% or more; glows
solid green when the battery is fully charged.
Micro Type-B connector
Dedicated USB cable
Charging the device.
Connecting the gel pad to the main unit.
When using for the first time, take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Turn OFF the power of the main unit, and make sure the LED
indicator is off.
Connect the main unit to the connector on the gel pad until a
“click” is heard.
Connect the Micro Type-B USB connector of the dedicated USB
cable to the USB port on the main unit.
Note: When correctly connected, you will hear the sound “pip,” and
the LED indicator on the main unit will blink or glow.
When fully charged, you will hear the sound “peep.”
Disconnect the main unit from the gel pad.
Make sure the power of the main unit is turned OFF (the
LED indicator is off).
Connect the main unit to the connector on the gel pad until
a “click” is heard.
Take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Be sure to fully charge the device before using (for the first time after purchase, or
when it has not been used for a long time), or when the battery has run out during use.
Intended Use or Indications
This product is a low-frequency electronic pulse massager designed to prevent
atrophy of numb muscles and provide massage benefits.
This product is intended for home use.
About Low-Frequency Electronic Pulse Massager
A Low-Frequency Electronic Pulse Massager relieves stiff muscles by sending
weak low-frequency electrical impulses across the surface of the skin through
electrodes placed on the body to induce muscle contraction and produce
muscle pump action and vasodilation that improve blood flow. The
low-frequency electrical impulses also relieve pain by stimulating nerves and
blocking pain signals to your brain.
Standard Treatment Time
The standard treatment time is approximately 15 minutes for one treatment area.
Excessive use (over 15 minutes) at a time could cause ill health.
This product is equipped with a timer that will automatically power off the device
after about 15 minutes of treatment.
Effective Treatment Time
The treatment is more effective when administered after a bath. It is more
effective in increasing blood flow when the body is warmed up.
Charge time: approximately 3.5 hours
Don’t Touch with
Wet Hands
Do Not
Disassemble

2 3 4 5 7
8
9 10
11
6
12 13
Trade name: Gel pad P01
Medical device submission No.: 27B2X00293000001
1 Point Pads (pair)
Wide Pad (single)
2 Point Pads (pair)
Model No.: HCM-P01G1 Model No.: HCM-P01G2
Model No.: HCM-P01G3
LED indicator is off
Low-Frequency Electronic Pulse Massager P01
User’s Manual
HCM-P01 Series
2nd edition, August, 2016
Safety Precautions (Please be sure to follow the precautions)
Package Contents
Product Features
The following precautions provide instructions that must be followed in order to
prevent personal injury to, or damage to property of you or any other person.
Danger Failure to observe Dangers will result in serious personal
injury or death.
Warning Failure to observe Warnings may result in serious personal
injury or death.
Caution Failure to observe Cautions may result in personal injury or
property damage.
This symbol indicates a prohibited action.
This symbol indicates a mandatory action.
Do NOT use this device if you are using a medical device such as:
• A pacemaker or any other implanted electronic medical device;
• A heart-lung machine or any other life-support electronic medical device; or
• An electrocardiograph or any other wearable electronic medical device.
Such use could cause a malfunction of these medical devices, and
severely impair your life.
Danger
Do not use for any other purpose than treatment.
Such use could cause an accident, problem or device failure.
Do not use this device around the heart, on the head, face, mouth,
pudendum or any blemished skin areas.
Such use could cause an accident, injury or ill health.
Warning
Do not allow children to use this device, or play on or ride on the main
unit or gel pad.
Such use could cause an accident or injury. This device is for single person use only.
Do not share the device with anyone else while using.
Otherwise, electric shock or accident may be caused.
Warning
Do not disassemble, repair or modify the device.
Otherwise, fire or electric shock may be caused.
Warning
Do not use nor store the device at the following locations:
• Under direct sunlight;
• In high temperature areas such as near heaters;
• In high humidity areas such as in bathrooms;
• Near water;
• In dusty areas;
• On a vibrating surface.
Otherwise, fire, electric shock or device failure may be caused.
Caution
Do not use while sleeping.
Such use could cause an accident or injury.
Do not use immediately before or while driving a car, riding a motorcy-
cle or a bicycle.
Such use could cause an accident or problem.
Do not attach a gel pad to the skin for too long.
Otherwise, skin inflammation may be caused. Do not use a travel converter or any other power converter to charge
the device.
Otherwise, overheating or fire may be caused.
Do not charge in a car using the cigarette lighter receptacle or any other
means.
Otherwise, fire, overheating or electric shock may be caused.
Do not touch the dedicated USB cable or gel pad with a wet hand.
Otherwise, electric shock, device failure or accident may be caused.
Do not use if the dedicated USB cable is damaged, or the USB port is
loose.
Otherwise, fire or electric shock may be caused.
Avoid excessive pulling or bending of the cable, or placing heavy
objects on the cable.
Otherwise, cable damage or breakage, fire or electric shock may be
caused.
Do not insert any metallic object into the USB port.
Otherwise, overheating or fire may be caused.
Avoid touching the USB port with any part of your body such as a hand
or a finger.
Otherwise, electric shock, impairment or device failure may be caused.
Do not use the supplied dedicated USB cable for other than charging
the main unit. The dedicated USB cable may not be used for communi-
cation or charging other devices.
Caution
Part Names
Preparation
Caution:
Please make sure all components are included. Although we aim to ensure that
all our products are carefully packaged.
Optional Parts
The following optional parts are available:
Power button (mode selection button)
[+] (Strong) button
Main unit
USB port (for charging)
LED indicator
[-] (Weak) button
Connectors (on the gel pad)
Protective film
Gel pad
Main unit Gel pad (2 Point Pad)
(Consumables)
Dedicated USB cable Storage sheet
Storage bag
User’s Manual (this document)
USB port
Caution:
If a person who has one of the following conditions uses the device, they
should consult a physician prior to use:
• Being in the care of a physician, or feeling particularly ill;
• Having a malignant tumor;
• Having a cardiac or cranial nerve abnormality.
• During pregnancy, or immediately after delivery;
• Having a temperature of 38°C or above (febrile) (ex. 1: Presenting with
pronounced acute-onset symptoms (fatigue, chills, changes in blood
pressure, etc.), ex. 2: Being debilitated);
• Having an infectious disease;
• Having a skin sensory abnormality or skin problem;
• Having an acute (algetic) disease such as vertebral fracture, sprain or
muscle strain;
• Being in need of rest;
• Being on medication;
• Having abnormal blood pressure;
• Having a limb disability;
• Being incapable of expressing one’s own will;
• Having a sensory abnormality due to a severe peripheral circulatory
disorder from diabetes or other causes;
• Having a low body temperature;
• Having vascular insufficiency;
• Showing no effect after using for a while;
• The gel pad does not suit the skin.
Such use could cause an accident or ill health.
Connectors (on the main unit)
Type-A USB connector Micro Type-B USB connector
Do not use this device simultaneously with any other therapeutic device.
Such use could cause discomfort or ill health.
Make sure the device is turned OFF before connecting or disconnecting
the main unit and gel pad, or placing, relocating or removing the gel pad.
Such use could cause an electric shock or device failure.
Do not allow any metallic object such as a watch or a necklace to come
into contact with the gel pad during treatment.
Such use could cause an accident or injury.
Do not use this device if the surface of a gel pad is chipped or
damaged.
Such use could cause an accident, problem or device failure.
Do not use this device to treat one region for longer than 15 minutes.
Such use could cause an accident or ill health.
Please make sure the device works properly by testing the device as
per the User’s Manual before using for the first time, or when it has not
been used for a long period of time.
Please make sure the main unit and the gel pad are connected correctly
before using the device.
Please make sure all buttons are working properly before using the
device.
Do not use this device when the gel pad is wet.
Otherwise, electric shock may be caused.
Do not let water or liquid enter the main unit, nor wet the main unit.
Otherwise, overheating, burst or fire may be caused.
Keep the device out of the reach of children.
Otherwise, an accident may be caused. If a child swallows the main unit,
consult a physician immediately.
Caution
Please dispose of the device according to the applicable municipal
regulations.
If device failure occurs, stop its use immediately, and turn OFF the
device.
Thank you for purchasing the ELECOM ECLEAR refree.
This manual describes the operating instructions and safety precautions for using the
device.
Please be sure to read this manual carefully before using the device. After reading,
keep the manual safe for future reference.
If you feel a painful sensation, or experience a skin problem such as
eczema, flares or itching while using the device, stop immediately and
consult with a physician.
Otherwise, accident or ill health may be caused.
Caution:
Be sure to remove sweat and water from the skin before using the device.
Be sure to use only the gel pads specified by our company.
Caution:
When replacing gel pads, please read the instruction manual
for gel pads as well.
Be sure to charge at least once every three months.
If the device is fully discharged, it may not be recharged.
Make sure the dedicated USB cable is connected securely when
charging.
If connected incompletely while charging, fire or an electric shock may be
caused.
Do not use this device placing a gel pad on another pad.
Otherwise, electric shock or accident may be caused.
The symbols shown classify and explain the seriousness of possible hazards or
damage if you ignore the precautions and use the device incorrectly.
Main Unit
Gel Pad
Dedicated USB Cable
The use of a travel converter or any other power converter to charge
the device may cause overheating or fire.
The device cannot be used while charging.
The operating time of a fully charged battery becomes shorter with
repeated charging of the main unit. If the operating time becomes
extremely short, the battery has reached the end of its life. However,
the battery is not replaceable.
Replacement of Gel Pads
LED indicator
Blinks red when the battery falls below 80%;
blinks green when charged 80% or more; glows
solid green when the battery is fully charged.
Micro Type-B connector
Dedicated USB cable
Charging the device.
Connecting the gel pad to the main unit.
When using for the first time, take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Turn OFF the power of the main unit, and make sure the LED
indicator is off.
Connect the main unit to the connector on the gel pad until a
“click” is heard.
Connect the Micro Type-B USB connector of the dedicated USB
cable to the USB port on the main unit.
Note: When correctly connected, you will hear the sound “pip,” and
the LED indicator on the main unit will blink or glow.
When fully charged, you will hear the sound “peep.”
Disconnect the main unit from the gel pad.
Make sure the power of the main unit is turned OFF (the
LED indicator is off).
Connect the main unit to the connector on the gel pad until
a “click” is heard.
Take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Be sure to fully charge the device before using (for the first time after purchase, or
when it has not been used for a long time), or when the battery has run out during use.
Intended Use or Indications
This product is a low-frequency electronic pulse massager designed to prevent
atrophy of numb muscles and provide massage benefits.
This product is intended for home use.
About Low-Frequency Electronic Pulse Massager
A Low-Frequency Electronic Pulse Massager relieves stiff muscles by sending
weak low-frequency electrical impulses across the surface of the skin through
electrodes placed on the body to induce muscle contraction and produce
muscle pump action and vasodilation that improve blood flow. The
low-frequency electrical impulses also relieve pain by stimulating nerves and
blocking pain signals to your brain.
Standard Treatment Time
The standard treatment time is approximately 15 minutes for one treatment area.
Excessive use (over 15 minutes) at a time could cause ill health.
This product is equipped with a timer that will automatically power off the device
after about 15 minutes of treatment.
Effective Treatment Time
The treatment is more effective when administered after a bath. It is more
effective in increasing blood flow when the body is warmed up.
Charge time: approximately 3.5 hours
Don’t Touch with
Wet Hands
Do Not
Disassemble

2 3 4 5 7
8 9 10
11
6
12
13
Trade name: Gel pad P01
Medical device submission No.: 27B2X00293000001
1 Point Pads (pair)
Wide Pad (single)
2 Point Pads (pair)
Model No.: HCM-P01G1 Model No.: HCM-P01G2
Model No.: HCM-P01G3
LED indicator is off
Low-Frequency Electronic Pulse Massager P01
User’s Manual
HCM-P01 Series
2nd edition, August, 2016
Safety Precautions (Please be sure to follow the precautions)
Package Contents
Product Features
The following precautions provide instructions that must be followed in order to
prevent personal injury to, or damage to property of you or any other person.
Danger Failure to observe Dangers will result in serious personal
injury or death.
Warning Failure to observe Warnings may result in serious personal
injury or death.
Caution Failure to observe Cautions may result in personal injury or
property damage.
This symbol indicates a prohibited action.
This symbol indicates a mandatory action.
Do NOT use this device if you are using a medical device such as:
• A pacemaker or any other implanted electronic medical device;
• A heart-lung machine or any other life-support electronic medical device; or
• An electrocardiograph or any other wearable electronic medical device.
Such use could cause a malfunction of these medical devices, and
severely impair your life.
Danger
Do not use for any other purpose than treatment.
Such use could cause an accident, problem or device failure.
Do not use this device around the heart, on the head, face, mouth,
pudendum or any blemished skin areas.
Such use could cause an accident, injury or ill health.
Warning
Do not allow children to use this device, or play on or ride on the main
unit or gel pad.
Such use could cause an accident or injury. This device is for single person use only.
Do not share the device with anyone else while using.
Otherwise, electric shock or accident may be caused.
Warning
Do not disassemble, repair or modify the device.
Otherwise, fire or electric shock may be caused.
Warning
Do not use nor store the device at the following locations:
• Under direct sunlight;
• In high temperature areas such as near heaters;
• In high humidity areas such as in bathrooms;
• Near water;
• In dusty areas;
• On a vibrating surface.
Otherwise, fire, electric shock or device failure may be caused.
Caution
Do not use while sleeping.
Such use could cause an accident or injury.
Do not use immediately before or while driving a car, riding a motorcy-
cle or a bicycle.
Such use could cause an accident or problem.
Do not attach a gel pad to the skin for too long.
Otherwise, skin inflammation may be caused. Do not use a travel converter or any other power converter to charge
the device.
Otherwise, overheating or fire may be caused.
Do not charge in a car using the cigarette lighter receptacle or any other
means.
Otherwise, fire, overheating or electric shock may be caused.
Do not touch the dedicated USB cable or gel pad with a wet hand.
Otherwise, electric shock, device failure or accident may be caused.
Do not use if the dedicated USB cable is damaged, or the USB port is
loose.
Otherwise, fire or electric shock may be caused.
Avoid excessive pulling or bending of the cable, or placing heavy
objects on the cable.
Otherwise, cable damage or breakage, fire or electric shock may be
caused.
Do not insert any metallic object into the USB port.
Otherwise, overheating or fire may be caused.
Avoid touching the USB port with any part of your body such as a hand
or a finger.
Otherwise, electric shock, impairment or device failure may be caused.
Do not use the supplied dedicated USB cable for other than charging
the main unit. The dedicated USB cable may not be used for communi-
cation or charging other devices.
Caution
Part Names
Preparation
Caution:
Please make sure all components are included. Although we aim to ensure that
all our products are carefully packaged.
Optional Parts
The following optional parts are available:
Power button (mode selection button)
[+] (Strong) button
Main unit
USB port (for charging)
LED indicator
[-] (Weak) button
Connectors (on the gel pad)
Protective film
Gel pad
Main unit Gel pad (2 Point Pad)
(Consumables)
Dedicated USB cable Storage sheet
Storage bag
User’s Manual (this document)
USB port
Caution:
If a person who has one of the following conditions uses the device, they
should consult a physician prior to use:
• Being in the care of a physician, or feeling particularly ill;
• Having a malignant tumor;
• Having a cardiac or cranial nerve abnormality.
• During pregnancy, or immediately after delivery;
• Having a temperature of 38°C or above (febrile) (ex. 1: Presenting with
pronounced acute-onset symptoms (fatigue, chills, changes in blood
pressure, etc.), ex. 2: Being debilitated);
• Having an infectious disease;
• Having a skin sensory abnormality or skin problem;
• Having an acute (algetic) disease such as vertebral fracture, sprain or
muscle strain;
• Being in need of rest;
• Being on medication;
• Having abnormal blood pressure;
• Having a limb disability;
• Being incapable of expressing one’s own will;
• Having a sensory abnormality due to a severe peripheral circulatory
disorder from diabetes or other causes;
• Having a low body temperature;
• Having vascular insufficiency;
• Showing no effect after using for a while;
• The gel pad does not suit the skin.
Such use could cause an accident or ill health.
Connectors (on the main unit)
Type-A USB connector Micro Type-B USB connector
Do not use this device simultaneously with any other therapeutic device.
Such use could cause discomfort or ill health.
Make sure the device is turned OFF before connecting or disconnecting
the main unit and gel pad, or placing, relocating or removing the gel pad.
Such use could cause an electric shock or device failure.
Do not allow any metallic object such as a watch or a necklace to come
into contact with the gel pad during treatment.
Such use could cause an accident or injury.
Do not use this device if the surface of a gel pad is chipped or
damaged.
Such use could cause an accident, problem or device failure.
Do not use this device to treat one region for longer than 15 minutes.
Such use could cause an accident or ill health.
Please make sure the device works properly by testing the device as
per the User’s Manual before using for the first time, or when it has not
been used for a long period of time.
Please make sure the main unit and the gel pad are connected correctly
before using the device.
Please make sure all buttons are working properly before using the
device.
Do not use this device when the gel pad is wet.
Otherwise, electric shock may be caused.
Do not let water or liquid enter the main unit, nor wet the main unit.
Otherwise, overheating, burst or fire may be caused.
Keep the device out of the reach of children.
Otherwise, an accident may be caused. If a child swallows the main unit,
consult a physician immediately.
Caution
Please dispose of the device according to the applicable municipal
regulations.
If device failure occurs, stop its use immediately, and turn OFF the
device.
Thank you for purchasing the ELECOM ECLEAR refree.
This manual describes the operating instructions and safety precautions for using the
device.
Please be sure to read this manual carefully before using the device. After reading,
keep the manual safe for future reference.
If you feel a painful sensation, or experience a skin problem such as
eczema, flares or itching while using the device, stop immediately and
consult with a physician.
Otherwise, accident or ill health may be caused.
Caution:
Be sure to remove sweat and water from the skin before using the device.
Be sure to use only the gel pads specified by our company.
Caution:
When replacing gel pads, please read the instruction manual
for gel pads as well.
Be sure to charge at least once every three months.
If the device is fully discharged, it may not be recharged.
Make sure the dedicated USB cable is connected securely when
charging.
If connected incompletely while charging, fire or an electric shock may be
caused.
Do not use this device placing a gel pad on another pad.
Otherwise, electric shock or accident may be caused.
The symbols shown classify and explain the seriousness of possible hazards or
damage if you ignore the precautions and use the device incorrectly.
Main Unit
Gel Pad
Dedicated USB Cable
The use of a travel converter or any other power converter to charge
the device may cause overheating or fire.
The device cannot be used while charging.
The operating time of a fully charged battery becomes shorter with
repeated charging of the main unit. If the operating time becomes
extremely short, the battery has reached the end of its life. However,
the battery is not replaceable.
Replacement of Gel Pads
LED indicator
Blinks red when the battery falls below 80%;
blinks green when charged 80% or more; glows
solid green when the battery is fully charged.
Micro Type-B connector
Dedicated USB cable
Charging the device.
Connecting the gel pad to the main unit.
When using for the first time, take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Turn OFF the power of the main unit, and make sure the LED
indicator is off.
Connect the main unit to the connector on the gel pad until a
“click” is heard.
Connect the Micro Type-B USB connector of the dedicated USB
cable to the USB port on the main unit.
Note: When correctly connected, you will hear the sound “pip,” and
the LED indicator on the main unit will blink or glow.
When fully charged, you will hear the sound “peep.”
Disconnect the main unit from the gel pad.
Make sure the power of the main unit is turned OFF (the
LED indicator is off).
Connect the main unit to the connector on the gel pad until
a “click” is heard.
Take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Be sure to fully charge the device before using (for the first time after purchase, or
when it has not been used for a long time), or when the battery has run out during use.
Intended Use or Indications
This product is a low-frequency electronic pulse massager designed to prevent
atrophy of numb muscles and provide massage benefits.
This product is intended for home use.
About Low-Frequency Electronic Pulse Massager
A Low-Frequency Electronic Pulse Massager relieves stiff muscles by sending
weak low-frequency electrical impulses across the surface of the skin through
electrodes placed on the body to induce muscle contraction and produce
muscle pump action and vasodilation that improve blood flow. The
low-frequency electrical impulses also relieve pain by stimulating nerves and
blocking pain signals to your brain.
Standard Treatment Time
The standard treatment time is approximately 15 minutes for one treatment area.
Excessive use (over 15 minutes) at a time could cause ill health.
This product is equipped with a timer that will automatically power off the device
after about 15 minutes of treatment.
Effective Treatment Time
The treatment is more effective when administered after a bath. It is more
effective in increasing blood flow when the body is warmed up.
Charge time: approximately 3.5 hours
Don’t Touch with
Wet Hands
Do Not
Disassemble

2 3 4 5 7
8 9 10 11
6
12
13
Trade name: Gel pad P01
Medical device submission No.: 27B2X00293000001
1 Point Pads (pair)
Wide Pad (single)
2 Point Pads (pair)
Model No.: HCM-P01G1 Model No.: HCM-P01G2
Model No.: HCM-P01G3
LED indicator is off
Low-Frequency Electronic Pulse Massager P01
User’s Manual
HCM-P01 Series
2nd edition, August, 2016
Safety Precautions (Please be sure to follow the precautions)
Package Contents
Product Features
The following precautions provide instructions that must be followed in order to
prevent personal injury to, or damage to property of you or any other person.
Danger Failure to observe Dangers will result in serious personal
injury or death.
Warning Failure to observe Warnings may result in serious personal
injury or death.
Caution Failure to observe Cautions may result in personal injury or
property damage.
This symbol indicates a prohibited action.
This symbol indicates a mandatory action.
Do NOT use this device if you are using a medical device such as:
• A pacemaker or any other implanted electronic medical device;
• A heart-lung machine or any other life-support electronic medical device; or
• An electrocardiograph or any other wearable electronic medical device.
Such use could cause a malfunction of these medical devices, and
severely impair your life.
Danger
Do not use for any other purpose than treatment.
Such use could cause an accident, problem or device failure.
Do not use this device around the heart, on the head, face, mouth,
pudendum or any blemished skin areas.
Such use could cause an accident, injury or ill health.
Warning
Do not allow children to use this device, or play on or ride on the main
unit or gel pad.
Such use could cause an accident or injury. This device is for single person use only.
Do not share the device with anyone else while using.
Otherwise, electric shock or accident may be caused.
Warning
Do not disassemble, repair or modify the device.
Otherwise, fire or electric shock may be caused.
Warning
Do not use nor store the device at the following locations:
• Under direct sunlight;
• In high temperature areas such as near heaters;
• In high humidity areas such as in bathrooms;
• Near water;
• In dusty areas;
• On a vibrating surface.
Otherwise, fire, electric shock or device failure may be caused.
Caution
Do not use while sleeping.
Such use could cause an accident or injury.
Do not use immediately before or while driving a car, riding a motorcy-
cle or a bicycle.
Such use could cause an accident or problem.
Do not attach a gel pad to the skin for too long.
Otherwise, skin inflammation may be caused. Do not use a travel converter or any other power converter to charge
the device.
Otherwise, overheating or fire may be caused.
Do not charge in a car using the cigarette lighter receptacle or any other
means.
Otherwise, fire, overheating or electric shock may be caused.
Do not touch the dedicated USB cable or gel pad with a wet hand.
Otherwise, electric shock, device failure or accident may be caused.
Do not use if the dedicated USB cable is damaged, or the USB port is
loose.
Otherwise, fire or electric shock may be caused.
Avoid excessive pulling or bending of the cable, or placing heavy
objects on the cable.
Otherwise, cable damage or breakage, fire or electric shock may be
caused.
Do not insert any metallic object into the USB port.
Otherwise, overheating or fire may be caused.
Avoid touching the USB port with any part of your body such as a hand
or a finger.
Otherwise, electric shock, impairment or device failure may be caused.
Do not use the supplied dedicated USB cable for other than charging
the main unit. The dedicated USB cable may not be used for communi-
cation or charging other devices.
Caution
Part Names Preparation
Caution:
Please make sure all components are included. Although we aim to ensure that
all our products are carefully packaged.
Optional Parts
The following optional parts are available:
Power button (mode selection button)
[+] (Strong) button
Main unit
USB port (for charging)
LED indicator
[-] (Weak) button
Connectors (on the gel pad)
Protective film
Gel pad
Main unit Gel pad (2 Point Pad)
(Consumables)
Dedicated USB cable Storage sheet
Storage bag
User’s Manual (this document)
USB port
Caution:
If a person who has one of the following conditions uses the device, they
should consult a physician prior to use:
• Being in the care of a physician, or feeling particularly ill;
• Having a malignant tumor;
• Having a cardiac or cranial nerve abnormality.
• During pregnancy, or immediately after delivery;
• Having a temperature of 38°C or above (febrile) (ex. 1: Presenting with
pronounced acute-onset symptoms (fatigue, chills, changes in blood
pressure, etc.), ex. 2: Being debilitated);
• Having an infectious disease;
• Having a skin sensory abnormality or skin problem;
• Having an acute (algetic) disease such as vertebral fracture, sprain or
muscle strain;
• Being in need of rest;
• Being on medication;
• Having abnormal blood pressure;
• Having a limb disability;
• Being incapable of expressing one’s own will;
• Having a sensory abnormality due to a severe peripheral circulatory
disorder from diabetes or other causes;
• Having a low body temperature;
• Having vascular insufficiency;
• Showing no effect after using for a while;
• The gel pad does not suit the skin.
Such use could cause an accident or ill health.
Connectors (on the main unit)
Type-A USB connector Micro Type-B USB connector
Do not use this device simultaneously with any other therapeutic device.
Such use could cause discomfort or ill health.
Make sure the device is turned OFF before connecting or disconnecting
the main unit and gel pad, or placing, relocating or removing the gel pad.
Such use could cause an electric shock or device failure.
Do not allow any metallic object such as a watch or a necklace to come
into contact with the gel pad during treatment.
Such use could cause an accident or injury.
Do not use this device if the surface of a gel pad is chipped or
damaged.
Such use could cause an accident, problem or device failure.
Do not use this device to treat one region for longer than 15 minutes.
Such use could cause an accident or ill health.
Please make sure the device works properly by testing the device as
per the User’s Manual before using for the first time, or when it has not
been used for a long period of time.
Please make sure the main unit and the gel pad are connected correctly
before using the device.
Please make sure all buttons are working properly before using the
device.
Do not use this device when the gel pad is wet.
Otherwise, electric shock may be caused.
Do not let water or liquid enter the main unit, nor wet the main unit.
Otherwise, overheating, burst or fire may be caused.
Keep the device out of the reach of children.
Otherwise, an accident may be caused. If a child swallows the main unit,
consult a physician immediately.
Caution
Please dispose of the device according to the applicable municipal
regulations.
If device failure occurs, stop its use immediately, and turn OFF the
device.
Thank you for purchasing the ELECOM ECLEAR refree.
This manual describes the operating instructions and safety precautions for using the
device.
Please be sure to read this manual carefully before using the device. After reading,
keep the manual safe for future reference.
If you feel a painful sensation, or experience a skin problem such as
eczema, flares or itching while using the device, stop immediately and
consult with a physician.
Otherwise, accident or ill health may be caused.
Caution:
Be sure to remove sweat and water from the skin before using the device.
Be sure to use only the gel pads specified by our company.
Caution:
When replacing gel pads, please read the instruction manual
for gel pads as well.
Be sure to charge at least once every three months.
If the device is fully discharged, it may not be recharged.
Make sure the dedicated USB cable is connected securely when
charging.
If connected incompletely while charging, fire or an electric shock may be
caused.
Do not use this device placing a gel pad on another pad.
Otherwise, electric shock or accident may be caused.
The symbols shown classify and explain the seriousness of possible hazards or
damage if you ignore the precautions and use the device incorrectly.
Main Unit
Gel Pad
Dedicated USB Cable
The use of a travel converter or any other power converter to charge
the device may cause overheating or fire.
The device cannot be used while charging.
The operating time of a fully charged battery becomes shorter with
repeated charging of the main unit. If the operating time becomes
extremely short, the battery has reached the end of its life. However,
the battery is not replaceable.
Replacement of Gel Pads
LED indicator
Blinks red when the battery falls below 80%;
blinks green when charged 80% or more; glows
solid green when the battery is fully charged.
Micro Type-B connector
Dedicated USB cable
Charging the device.
Connecting the gel pad to the main unit.
When using for the first time, take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Turn OFF the power of the main unit, and make sure the LED
indicator is off.
Connect the main unit to the connector on the gel pad until a
“click” is heard.
Connect the Micro Type-B USB connector of the dedicated USB
cable to the USB port on the main unit.
Note: When correctly connected, you will hear the sound “pip,” and
the LED indicator on the main unit will blink or glow.
When fully charged, you will hear the sound “peep.”
Disconnect the main unit from the gel pad.
Make sure the power of the main unit is turned OFF (the
LED indicator is off).
Connect the main unit to the connector on the gel pad until
a “click” is heard.
Take the gel pad from the bag.
(Do not remove the protective film from the gel pad yet.)
Be sure to fully charge the device before using (for the first time after purchase, or
when it has not been used for a long time), or when the battery has run out during use.
Intended Use or Indications
This product is a low-frequency electronic pulse massager designed to prevent
atrophy of numb muscles and provide massage benefits.
This product is intended for home use.
About Low-Frequency Electronic Pulse Massager
A Low-Frequency Electronic Pulse Massager relieves stiff muscles by sending
weak low-frequency electrical impulses across the surface of the skin through
electrodes placed on the body to induce muscle contraction and produce
muscle pump action and vasodilation that improve blood flow. The
low-frequency electrical impulses also relieve pain by stimulating nerves and
blocking pain signals to your brain.
Standard Treatment Time
The standard treatment time is approximately 15 minutes for one treatment area.
Excessive use (over 15 minutes) at a time could cause ill health.
This product is equipped with a timer that will automatically power off the device
after about 15 minutes of treatment.
Effective Treatment Time
The treatment is more effective when administered after a bath. It is more
effective in increasing blood flow when the body is warmed up.
Charge time: approximately 3.5 hours
Don’t Touch with
Wet Hands
Do Not
Disassemble
15 16 17 18 20
22 23 24 25
19
26 27
14
21

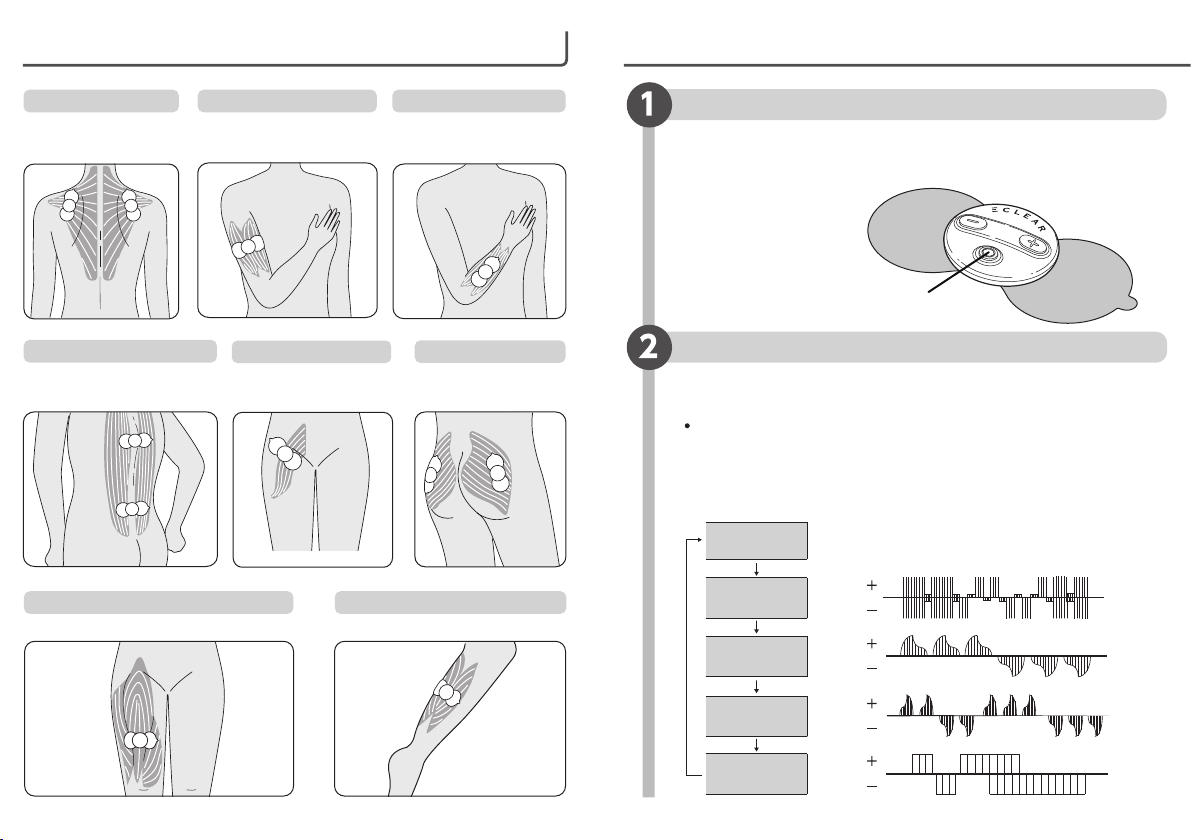

Placement of the Gel Pad
Disposal
Gel Pad Placement Guide Treatment Maintenance Storage
The following procedures are to dispose of the product; not to
repair it.
The product will not be repaired if it has been disassembled.
Product Specifications Limitation of Liability
Power button
Mode Pattern
Automatic Repeats Deep Shiatsu → Shiatsu → Knead → Beat.
Deep Shiatsu Electrical
current Time
Shiatsu Time
Knead Time
Beat Time
[-] (Weak) button [+] (Strong) button
[-] (Weak) button
Power button
[+] (Strong) button
Troubleshooting
ECLEAR refree HCM-P01 Series
User’s Manual
August 2016, Ver. 2
ELECOM Co., Ltd.
©2016 ELECOM Co., Ltd. All Rights Reserved.
• The copyright of this manual is owned by ELECOM Co., Ltd.
• Unauthorized reproduction/reprint of all or part of this manual is prohibited.
• The specifications and appearance of this product may be changed without prior
notice for product improvement purposes.
• We shall bear no responsibility for any device failure or malfunction of other devices
resulting from the use of this product.
• Permission for export or service transaction under the Foreign Exchange and Foreign
Trade Control Act is required in order to export this product or parts of this product
that constitute strategic materials or services.
• Company names, product names, and other names in this manual are generally
trademarks or registered trademarks.
Remove the main unit from the gel pad when cleaning.
Caution:
Do not leave in high temperature or humidity areas, nor under direct
sunlight.
Caution:
Please perform maintenance of your low-frequency electric pulse massager that has been used for years!
Stop
use
Refurbishment
Maintenance
Does it
have one of
these
problems?
Turn off the product or
disconnect the USB cable to
prevent accidents, and be
sure to contact the retailer
and request a maintenance
service.
Caution:
Do not apply the gel pad on metallic objects such as necklaces.
*1 As per JIS C 8711.
*2 Equipped with overcharge, over-discharge and overvoltage protection.
*3 Approximate time when fully charging an expired battery
*4 Varies depending on operation states and conditions.
Be careful not to let water enter the inside of the main unit and USB port.
Fully discharge the battery if it is not completely depleted.
Follow the procedures below to disassemble the product using a screwdriver.
Be careful not to short-circuit the positive and negative terminals of the removed
battery. Tape the terminal ends to isolate them.
This product is for domestic use only. We will bear no responsibility for use outside
Japan. Support for inquiries is available only in Japanese. We will retain repair parts at
least for five years after the end of production.
Place on stiff muscles. Place on stiff muscles in
the upper arm.
Place on stiff muscles in
the forearm.
Place on the top of
the hips.
Place on stiff muscles.
Warning
Handling of Gel Pad
Do not touch the adhesive surface of the gel pad. When
the adhesiveness becomes weak, please see “How to
Clean Gel Pad” (P. 19).
Do not bend the gel pad.
Electrical
current
Electrical
current
Electrical
current
How to Clean a Gel pad
Clean the gel pad when:
The gel pad is not sticking well;
Treatment stimulation feels weaker;
An unpleasant sensation is felt during treatment;
The gel pad is dirty;
The gel pad does not stick to the storage sheet.
If stimulation is weak or you feel an unpleasant sensation even after
cleaning, replace the gel pad.
How to Clean Main Unit
Wipe dirt off the main unit with soft cloth.
An unusual noise or vibration
occurs during charging or
operation.
The main unit is overheating.
The main unit has deformed,
or has a burnt smell.
Recycling of Lithium-Ion Battery
This product contains a lithium-ion battery. Since lithium-ion
batteries are recyclable, valuable resources, we strongly
encourage customers to recycle. Please dispose of the device
according to the applicable municipal regulations.
Do not disassemble the battery when disposing of it.
Do not disposed of the device in regular household waste.
Improperly disposed of lithium-ion batteries will break in the
garbage truck, and can short-circuit, overheat and catch
fire.
How to Remove Lithium-ion Battery Trade name Low-Frequency Electronic Pulse Massager P01
Classification Machinery and equipment 78: Electronic
Therapeutic Device for Home Use
Generic name Low-Frequency Electronic Pulse Massager for
Home Use (Code: 70986000)
Medical device type Controlled medical device
Medical device
certification No. 228ADBZX00037000
Power supply voltage DC 5.0 V ± 5% (lithium-ion battery)
Internal battery 40 mAh *1 *2
Amount of charge cyclesApproximately 500 times *1
Charge time Approximately 3.5 hours *3
Operation time Approximately 150 minutes (when fully charged) *4
Maximum output currentApproximately 10 mA or less
Rated output voltage Approximately 32 V
Fundamental frequency Approximately 2 - 550 Hz
Output pulse width Approximately 200 μS
Power consumption Approximately 0.2 W
Timer Approximately 15 minutes
Main unit dimensions Approximately 44 mm × D 11 mm
Cable length Approximately 200 mm
Main unit weight Approximately 13 g
Operating temperature
& humidity range 0 °C - 40 °C; 20 - 85 % RH
Storage temperature
& humidity range - 10 °C - 60 °C; 20 - 85 % RH
Marketing
authorization holder
ELECOM Healthcare Co., Ltd.
8F L. A. Tower, 4-1-1 Fushimi-machi, Chuo-ku, Osaka, Japan
Manufacturer ZHANGZHOU EASEPAL INDUSTRIAL CORPORATION
Country of origin China
(Recommended maintenance interval: once per 30 times of use)
Pull the tab on the gel pad, and remove it from the protective film.
Apply the gel pad to a treatment area.
Make sure the gel pad is firmly stuck to the skin.
Note: If the gel pad separates from the skin, the main unit will
automatically power off.
Note: For the second or subsequent use of the device, remove the
gel pad from the storage sheet.
Turn ON the device.
Select a mode.
Adjust the intensity level.
Turn OFF the device.
Press and hold the Power button for about two seconds. You will hear
the sound “peep,” the device will be powered on and begin treatment.
The LED indicator lights up green.
Store the device.
After about 15 minutes of treatment, you will hear the sound
“peep,” and the device will automatically power off.
Note: To turn off the device during treatment, press and hold [+]
(Strong) button or [-] (Weak) button for about two seconds.
Note: If the gel pad separates from the skin, or the main unit is
removed from the gel pad, the device automatically powers off.
We recommend Deep Shiatsu mode for areas where pain such as
neuralgia is felt.
Shoulder -trapezius muscles-
Upper arm -brachial muscle- Arm -flexor muscles of forearm-
Upper & lower back -erector spinae muscles-
Lower back -psoas major muscles- Hips -gluteus maximus muscles-
Thighs -hamstring muscles- Calf -triceps surae muscles-
Place on stiff muscles outside
of the spine.
Place on the top of the
front groin.
Place on stiff muscles or pain.
Note: When removing a Wide
Pad, pull both of the
tabs to remove the pad.
Do NOT disassemble other than to dispose of the product.
Press the Power button during treatment to select a mode.
Note: When turned on, the device always begins in Automatic mode.
When the Power button is pressed, you will hear the sound
“pip,” and the modes change in the sequence shown below:
Select one of 10 intensity levels, as you prefer.
Note: When the device is turned on, or when modes are changed,
the intensity is set at level 1.
When [+] (Strong) button is pressed, you will hear the sound
“pip,” and the intensity increases by one level.
When [-] (Weak) button is pressed, you will hear the sound
“pip-pip,” and the intensity decreases by one level.
When [+] (Strong) button is pressed at level 10, or when [-]
(Weak) button is pressed at level 1, you will hear the sound
"pip-pip-pip," and the intensity level does not change.
Remove the gel pad from the skin.
Pull the tab to remove the gel
pad; do not touch the adhesive
surface of the gel pad.
Attach it to the storage sheet; do not disconnect the main unit and
the gel pad.
Note: When using a pair, attach them to both sides of the storage sheet.
Keep in the supplied storage bag.
Clean gently with your fingertips for a few seconds under slowly running water.
Note: Do not pour on too much water. Otherwise, poor adhesion or
deterioration of the adhesive surface may be caused.
Pull the tab and drain the water off, and let the pad dry naturally.
Note: If not dried thoroughly, adhesion decreases.
Note: Do not wipe the adhesive surface with a tissue or cloth.
Note: Avoid direct sunlight.
Store the product in an environment with the following conditions:
Storage temperature: - 10°C - 60°C
Storage humidity: 20 - 85% RH
Precautions for Cleaning and Storage
Do not use liquids such as benzine or thinner to clean
the product.
Do not store in the following areas:
– Under direct sunlight;
– In high temperature or high humidity areas,
near water, or in dusty areas;
– On a vibrating surface;
– Where chemical agents are stored, or a corrosive gas is produced.
Keep out of the reach of babies and infants.
If not using for a long period of time, store the product fully charged, and
try to keep at room temperature (10°C - 30°C).
Charge the battery at least once every three months. If the device is fully
discharged, it cannot be recharged.
Stick a flathead screwdriver into the
gap just under the Power button on the
main unit.
Remove the screws that hold the
circuit board.
Remove the battery.
Cut the wires of the battery from the
back of the circuit board using
Diagonal pliers, from the black wire on
the negative.
Benzine
Thinner
Tab
Storage sheet
Battery
Gap
Nail polish remover
Alcohol
Front groin area
Problem
The device does not turn on. The battery is not charged enough, or is dead. Turn off and charge the device.P.11
The battery is being charged.
After finishing charging the battery, disconnect the dedicated USB cable, and use the device.

P.11
The adhesive surface of the gel pad peels or moves.
The adhesive surface of the gel pad is moist with too much sweat or water.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The battery runs out very quickly.
The device turns off while in use.
The battery is not charged enough, or is dead. Turn off and charge the device. P.11
The main unit and the gel pad are not connected properly. Turn off the device, and reconnect the main unit and the gel pad.P.12 · P.13·
The gel pad is not securely attached to the skin. Turn off the device, and attach the gel pad firmly to the skin.P.14
The battery cannot be charged. The battery has fully discharged after being stored
for a long time.
Unusable. Make sure you charge the battery once every three months to avoid it becoming
fully discharged.P. 21, P.22
Cause Solution
The gel pad is not sticking to
the skin.
The transparent protective film has not been removed
from the adhesive surface of the gel pad.
Remove the protective film from the adhesive surface of the gel pad.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
Used immediately after washed with water. Drain water off adequately, and let the adhesive surface dry naturally.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The skin turns red/
becomes irritated.
Treatment time is too long.
Use the device up to 15 minutes on one treatment area, and remove the gel pad from the skin after treatment.

P.18
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin.P.14
The adhesive surface of the gel pad is dirty or has dried out.
Clean gently with your fingertips for a few seconds under slowly running water.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
Cannot feel any stimulation/
stimulation is weak.
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin. P.14
The gel pad is placed on another pad. Place the pad apart from other pads.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
The gel pad is not connected correctly. Connect properly until a “click” is heard.P.12
The intensity level is low. Adjust the intensity level.P.17
The battery is not charged enough, or is running out. Charge the battery. P.11
The adhesive surface of the gel pad is dirty, or has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
In no event will ELECOM Co., Ltd be liable for any lost profits or special,
consequential, indirect, punitive damages arising out of the use of this product.
ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other
problems that may occur to any devices connected to this product.

15 16
17 18 20
22 23 24 25
19
26 27
14
21
Placement of the Gel Pad
Disposal
Gel Pad Placement Guide Treatment
Maintenance Storage
The following procedures are to dispose of the product; not to
repair it.
The product will not be repaired if it has been disassembled.
Product Specifications Limitation of Liability
Power button
Mode Pattern
Automatic Repeats Deep Shiatsu → Shiatsu → Knead → Beat.
Deep Shiatsu Electrical
current Time
Shiatsu Time
Knead Time
Beat Time
[-] (Weak) button [+] (Strong) button
[-] (Weak) button
Power button
[+] (Strong) button
Troubleshooting
ECLEAR refree HCM-P01 Series
User’s Manual
August 2016, Ver. 2
ELECOM Co., Ltd.
©2016 ELECOM Co., Ltd. All Rights Reserved.
• The copyright of this manual is owned by ELECOM Co., Ltd.
• Unauthorized reproduction/reprint of all or part of this manual is prohibited.
• The specifications and appearance of this product may be changed without prior
notice for product improvement purposes.
• We shall bear no responsibility for any device failure or malfunction of other devices
resulting from the use of this product.
• Permission for export or service transaction under the Foreign Exchange and Foreign
Trade Control Act is required in order to export this product or parts of this product
that constitute strategic materials or services.
• Company names, product names, and other names in this manual are generally
trademarks or registered trademarks.
Remove the main unit from the gel pad when cleaning.
Caution:
Do not leave in high temperature or humidity areas, nor under direct
sunlight.
Caution:
Please perform maintenance of your low-frequency electric pulse massager that has been used for years!
Stop
use
Refurbishment
Maintenance
Does it
have one of
these
problems?
Turn off the product or
disconnect the USB cable to
prevent accidents, and be
sure to contact the retailer
and request a maintenance
service.
Caution:
Do not apply the gel pad on metallic objects such as necklaces.
*1 As per JIS C 8711.
*2 Equipped with overcharge, over-discharge and overvoltage protection.
*3 Approximate time when fully charging an expired battery
*4 Varies depending on operation states and conditions.
Be careful not to let water enter the inside of the main unit and USB port.
Fully discharge the battery if it is not completely depleted.
Follow the procedures below to disassemble the product using a screwdriver.
Be careful not to short-circuit the positive and negative terminals of the removed
battery. Tape the terminal ends to isolate them.
This product is for domestic use only. We will bear no responsibility for use outside
Japan. Support for inquiries is available only in Japanese. We will retain repair parts at
least for five years after the end of production.
Place on stiff muscles. Place on stiff muscles in
the upper arm.
Place on stiff muscles in
the forearm.
Place on the top of
the hips.
Place on stiff muscles.
Warning
Handling of Gel Pad
Do not touch the adhesive surface of the gel pad. When
the adhesiveness becomes weak, please see “How to
Clean Gel Pad” (P. 19).
Do not bend the gel pad.
Electrical
current
Electrical
current
Electrical
current
How to Clean a Gel pad
Clean the gel pad when:
The gel pad is not sticking well;
Treatment stimulation feels weaker;
An unpleasant sensation is felt during treatment;
The gel pad is dirty;
The gel pad does not stick to the storage sheet.
If stimulation is weak or you feel an unpleasant sensation even after
cleaning, replace the gel pad.
How to Clean Main Unit
Wipe dirt off the main unit with soft cloth.
An unusual noise or vibration
occurs during charging or
operation.
The main unit is overheating.
The main unit has deformed,
or has a burnt smell.
Recycling of Lithium-Ion Battery
This product contains a lithium-ion battery. Since lithium-ion
batteries are recyclable, valuable resources, we strongly
encourage customers to recycle. Please dispose of the device
according to the applicable municipal regulations.
Do not disassemble the battery when disposing of it.
Do not disposed of the device in regular household waste.
Improperly disposed of lithium-ion batteries will break in the
garbage truck, and can short-circuit, overheat and catch
fire.
How to Remove Lithium-ion Battery Trade name Low-Frequency Electronic Pulse Massager P01
Classification Machinery and equipment 78: Electronic
Therapeutic Device for Home Use
Generic name Low-Frequency Electronic Pulse Massager for
Home Use (Code: 70986000)
Medical device type Controlled medical device
Medical device
certification No. 228ADBZX00037000
Power supply voltage DC 5.0 V ± 5% (lithium-ion battery)
Internal battery 40 mAh *1 *2
Amount of charge cyclesApproximately 500 times *1
Charge time Approximately 3.5 hours *3
Operation time Approximately 150 minutes (when fully charged) *4
Maximum output currentApproximately 10 mA or less
Rated output voltage Approximately 32 V
Fundamental frequency Approximately 2 - 550 Hz
Output pulse width Approximately 200 μS
Power consumption Approximately 0.2 W
Timer Approximately 15 minutes
Main unit dimensions Approximately 44 mm × D 11 mm
Cable length Approximately 200 mm
Main unit weight Approximately 13 g
Operating temperature
& humidity range 0 °C - 40 °C; 20 - 85 % RH
Storage temperature
& humidity range - 10 °C - 60 °C; 20 - 85 % RH
Marketing
authorization holder
ELECOM Healthcare Co., Ltd.
8F L. A. Tower, 4-1-1 Fushimi-machi, Chuo-ku, Osaka, Japan
Manufacturer ZHANGZHOU EASEPAL INDUSTRIAL CORPORATION
Country of origin China
(Recommended maintenance interval: once per 30 times of use)
Pull the tab on the gel pad, and remove it from the protective film.
Apply the gel pad to a treatment area.
Make sure the gel pad is firmly stuck to the skin.
Note: If the gel pad separates from the skin, the main unit will
automatically power off.
Note: For the second or subsequent use of the device, remove the
gel pad from the storage sheet.
Turn ON the device.
Select a mode.
Adjust the intensity level.
Turn OFF the device.
Press and hold the Power button for about two seconds. You will hear
the sound “peep,” the device will be powered on and begin treatment.
The LED indicator lights up green.
Store the device.
After about 15 minutes of treatment, you will hear the sound
“peep,” and the device will automatically power off.
Note: To turn off the device during treatment, press and hold [+]
(Strong) button or [-] (Weak) button for about two seconds.
Note: If the gel pad separates from the skin, or the main unit is
removed from the gel pad, the device automatically powers off.
We recommend Deep Shiatsu mode for areas where pain such as
neuralgia is felt.
Shoulder -trapezius muscles-
Upper arm -brachial muscle- Arm -flexor muscles of forearm-
Upper & lower back -erector spinae muscles-
Lower back -psoas major muscles- Hips -gluteus maximus muscles-
Thighs -hamstring muscles- Calf -triceps surae muscles-
Place on stiff muscles outside
of the spine.
Place on the top of the
front groin.
Place on stiff muscles or pain.
Note: When removing a Wide
Pad, pull both of the
tabs to remove the pad.
Do NOT disassemble other than to dispose of the product.
Press the Power button during treatment to select a mode.
Note: When turned on, the device always begins in Automatic mode.
When the Power button is pressed, you will hear the sound
“pip,” and the modes change in the sequence shown below:
Select one of 10 intensity levels, as you prefer.
Note: When the device is turned on, or when modes are changed,
the intensity is set at level 1.
When [+] (Strong) button is pressed, you will hear the sound
“pip,” and the intensity increases by one level.
When [-] (Weak) button is pressed, you will hear the sound
“pip-pip,” and the intensity decreases by one level.
When [+] (Strong) button is pressed at level 10, or when [-]
(Weak) button is pressed at level 1, you will hear the sound
"pip-pip-pip," and the intensity level does not change.
Remove the gel pad from the skin.
Pull the tab to remove the gel
pad; do not touch the adhesive
surface of the gel pad.
Attach it to the storage sheet; do not disconnect the main unit and
the gel pad.
Note: When using a pair, attach them to both sides of the storage sheet.
Keep in the supplied storage bag.
Clean gently with your fingertips for a few seconds under slowly running water.
Note: Do not pour on too much water. Otherwise, poor adhesion or
deterioration of the adhesive surface may be caused.
Pull the tab and drain the water off, and let the pad dry naturally.
Note: If not dried thoroughly, adhesion decreases.
Note: Do not wipe the adhesive surface with a tissue or cloth.
Note: Avoid direct sunlight.
Store the product in an environment with the following conditions:
Storage temperature: - 10°C - 60°C
Storage humidity: 20 - 85% RH
Precautions for Cleaning and Storage
Do not use liquids such as benzine or thinner to clean
the product.
Do not store in the following areas:
– Under direct sunlight;
– In high temperature or high humidity areas,
near water, or in dusty areas;
– On a vibrating surface;
– Where chemical agents are stored, or a corrosive gas is produced.
Keep out of the reach of babies and infants.
If not using for a long period of time, store the product fully charged, and
try to keep at room temperature (10°C - 30°C).
Charge the battery at least once every three months. If the device is fully
discharged, it cannot be recharged.
Stick a flathead screwdriver into the
gap just under the Power button on the
main unit.
Remove the screws that hold the
circuit board.
Remove the battery.
Cut the wires of the battery from the
back of the circuit board using
Diagonal pliers, from the black wire on
the negative.
Benzine
Thinner
Tab
Storage sheet
Battery
Gap
Nail polish remover
Alcohol
Front groin area
Problem
The device does not turn on. The battery is not charged enough, or is dead. Turn off and charge the device.P.11
The battery is being charged.
After finishing charging the battery, disconnect the dedicated USB cable, and use the device.

P.11
The adhesive surface of the gel pad peels or moves.
The adhesive surface of the gel pad is moist with too much sweat or water.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The battery runs out very quickly.
The device turns off while in use.
The battery is not charged enough, or is dead. Turn off and charge the device. P.11
The main unit and the gel pad are not connected properly. Turn off the device, and reconnect the main unit and the gel pad.P.12 · P.13·
The gel pad is not securely attached to the skin. Turn off the device, and attach the gel pad firmly to the skin.P.14
The battery cannot be charged. The battery has fully discharged after being stored
for a long time.
Unusable. Make sure you charge the battery once every three months to avoid it becoming
fully discharged.P. 21, P.22
Cause Solution
The gel pad is not sticking to
the skin.
The transparent protective film has not been removed
from the adhesive surface of the gel pad.
Remove the protective film from the adhesive surface of the gel pad.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
Used immediately after washed with water. Drain water off adequately, and let the adhesive surface dry naturally.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The skin turns red/
becomes irritated.
Treatment time is too long.
Use the device up to 15 minutes on one treatment area, and remove the gel pad from the skin after treatment.

P.18
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin.P.14
The adhesive surface of the gel pad is dirty or has dried out.
Clean gently with your fingertips for a few seconds under slowly running water.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
Cannot feel any stimulation/
stimulation is weak.
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin. P.14
The gel pad is placed on another pad. Place the pad apart from other pads.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
The gel pad is not connected correctly. Connect properly until a “click” is heard.P.12
The intensity level is low. Adjust the intensity level.P.17
The battery is not charged enough, or is running out. Charge the battery. P.11
The adhesive surface of the gel pad is dirty, or has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
In no event will ELECOM Co., Ltd be liable for any lost profits or special,
consequential, indirect, punitive damages arising out of the use of this product.
ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other
problems that may occur to any devices connected to this product.

15 16
17 18
20
22 23 24 25
19
26 27
14
21
Placement of the Gel Pad
Disposal
Gel Pad Placement Guide Treatment Maintenance Storage
The following procedures are to dispose of the product; not to
repair it.
The product will not be repaired if it has been disassembled.
Product Specifications Limitation of Liability
Power button
Mode Pattern
Automatic Repeats Deep Shiatsu → Shiatsu → Knead → Beat.
Deep Shiatsu Electrical
current Time
Shiatsu Time
Knead Time
Beat Time
[-] (Weak) button [+] (Strong) button
[-] (Weak) button
Power button
[+] (Strong) button
Troubleshooting
ECLEAR refree HCM-P01 Series
User’s Manual
August 2016, Ver. 2
ELECOM Co., Ltd.
©2016 ELECOM Co., Ltd. All Rights Reserved.
• The copyright of this manual is owned by ELECOM Co., Ltd.
• Unauthorized reproduction/reprint of all or part of this manual is prohibited.
• The specifications and appearance of this product may be changed without prior
notice for product improvement purposes.
• We shall bear no responsibility for any device failure or malfunction of other devices
resulting from the use of this product.
• Permission for export or service transaction under the Foreign Exchange and Foreign
Trade Control Act is required in order to export this product or parts of this product
that constitute strategic materials or services.
• Company names, product names, and other names in this manual are generally
trademarks or registered trademarks.
Remove the main unit from the gel pad when cleaning.
Caution:
Do not leave in high temperature or humidity areas, nor under direct
sunlight.
Caution:
Please perform maintenance of your low-frequency electric pulse massager that has been used for years!
Stop
use
Refurbishment
Maintenance
Does it
have one of
these
problems?
Turn off the product or
disconnect the USB cable to
prevent accidents, and be
sure to contact the retailer
and request a maintenance
service.
Caution:
Do not apply the gel pad on metallic objects such as necklaces.
*1 As per JIS C 8711.
*2 Equipped with overcharge, over-discharge and overvoltage protection.
*3 Approximate time when fully charging an expired battery
*4 Varies depending on operation states and conditions.
Be careful not to let water enter the inside of the main unit and USB port.
Fully discharge the battery if it is not completely depleted.
Follow the procedures below to disassemble the product using a screwdriver.
Be careful not to short-circuit the positive and negative terminals of the removed
battery. Tape the terminal ends to isolate them.
This product is for domestic use only. We will bear no responsibility for use outside
Japan. Support for inquiries is available only in Japanese. We will retain repair parts at
least for five years after the end of production.
Place on stiff muscles. Place on stiff muscles in
the upper arm.
Place on stiff muscles in
the forearm.
Place on the top of
the hips.
Place on stiff muscles.
Warning
Handling of Gel Pad
Do not touch the adhesive surface of the gel pad. When
the adhesiveness becomes weak, please see “How to
Clean Gel Pad” (P. 19).
Do not bend the gel pad.
Electrical
current
Electrical
current
Electrical
current
How to Clean a Gel pad
Clean the gel pad when:
The gel pad is not sticking well;
Treatment stimulation feels weaker;
An unpleasant sensation is felt during treatment;
The gel pad is dirty;
The gel pad does not stick to the storage sheet.
If stimulation is weak or you feel an unpleasant sensation even after
cleaning, replace the gel pad.
How to Clean Main Unit
Wipe dirt off the main unit with soft cloth.
An unusual noise or vibration
occurs during charging or
operation.
The main unit is overheating.
The main unit has deformed,
or has a burnt smell.
Recycling of Lithium-Ion Battery
This product contains a lithium-ion battery. Since lithium-ion
batteries are recyclable, valuable resources, we strongly
encourage customers to recycle. Please dispose of the device
according to the applicable municipal regulations.
Do not disassemble the battery when disposing of it.
Do not disposed of the device in regular household waste.
Improperly disposed of lithium-ion batteries will break in the
garbage truck, and can short-circuit, overheat and catch
fire.
How to Remove Lithium-ion Battery Trade name Low-Frequency Electronic Pulse Massager P01
Classification Machinery and equipment 78: Electronic
Therapeutic Device for Home Use
Generic name Low-Frequency Electronic Pulse Massager for
Home Use (Code: 70986000)
Medical device type Controlled medical device
Medical device
certification No. 228ADBZX00037000
Power supply voltage DC 5.0 V ± 5% (lithium-ion battery)
Internal battery 40 mAh *1 *2
Amount of charge cyclesApproximately 500 times *1
Charge time Approximately 3.5 hours *3
Operation time Approximately 150 minutes (when fully charged) *4
Maximum output currentApproximately 10 mA or less
Rated output voltage Approximately 32 V
Fundamental frequency Approximately 2 - 550 Hz
Output pulse width Approximately 200 μS
Power consumption Approximately 0.2 W
Timer Approximately 15 minutes
Main unit dimensions Approximately 44 mm × D 11 mm
Cable length Approximately 200 mm
Main unit weight Approximately 13 g
Operating temperature
& humidity range 0 °C - 40 °C; 20 - 85 % RH
Storage temperature
& humidity range - 10 °C - 60 °C; 20 - 85 % RH
Marketing
authorization holder
ELECOM Healthcare Co., Ltd.
8F L. A. Tower, 4-1-1 Fushimi-machi, Chuo-ku, Osaka, Japan
Manufacturer ZHANGZHOU EASEPAL INDUSTRIAL CORPORATION
Country of origin China
(Recommended maintenance interval: once per 30 times of use)
Pull the tab on the gel pad, and remove it from the protective film.
Apply the gel pad to a treatment area.
Make sure the gel pad is firmly stuck to the skin.
Note: If the gel pad separates from the skin, the main unit will
automatically power off.
Note: For the second or subsequent use of the device, remove the
gel pad from the storage sheet.
Turn ON the device.
Select a mode.
Adjust the intensity level.
Turn OFF the device.
Press and hold the Power button for about two seconds. You will hear
the sound “peep,” the device will be powered on and begin treatment.
The LED indicator lights up green.
Store the device.
After about 15 minutes of treatment, you will hear the sound
“peep,” and the device will automatically power off.
Note: To turn off the device during treatment, press and hold [+]
(Strong) button or [-] (Weak) button for about two seconds.
Note: If the gel pad separates from the skin, or the main unit is
removed from the gel pad, the device automatically powers off.
We recommend Deep Shiatsu mode for areas where pain such as
neuralgia is felt.
Shoulder -trapezius muscles-
Upper arm -brachial muscle- Arm -flexor muscles of forearm-
Upper & lower back -erector spinae muscles-
Lower back -psoas major muscles- Hips -gluteus maximus muscles-
Thighs -hamstring muscles- Calf -triceps surae muscles-
Place on stiff muscles outside
of the spine.
Place on the top of the
front groin.
Place on stiff muscles or pain.
Note: When removing a Wide
Pad, pull both of the
tabs to remove the pad.
Do NOT disassemble other than to dispose of the product.
Press the Power button during treatment to select a mode.
Note: When turned on, the device always begins in Automatic mode.
When the Power button is pressed, you will hear the sound
“pip,” and the modes change in the sequence shown below:
Select one of 10 intensity levels, as you prefer.
Note: When the device is turned on, or when modes are changed,
the intensity is set at level 1.
When [+] (Strong) button is pressed, you will hear the sound
“pip,” and the intensity increases by one level.
When [-] (Weak) button is pressed, you will hear the sound
“pip-pip,” and the intensity decreases by one level.
When [+] (Strong) button is pressed at level 10, or when [-]
(Weak) button is pressed at level 1, you will hear the sound
"pip-pip-pip," and the intensity level does not change.
Remove the gel pad from the skin.
Pull the tab to remove the gel
pad; do not touch the adhesive
surface of the gel pad.
Attach it to the storage sheet; do not disconnect the main unit and
the gel pad.
Note: When using a pair, attach them to both sides of the storage sheet.
Keep in the supplied storage bag.
Clean gently with your fingertips for a few seconds under slowly running water.
Note: Do not pour on too much water. Otherwise, poor adhesion or
deterioration of the adhesive surface may be caused.
Pull the tab and drain the water off, and let the pad dry naturally.
Note: If not dried thoroughly, adhesion decreases.
Note: Do not wipe the adhesive surface with a tissue or cloth.
Note: Avoid direct sunlight.
Store the product in an environment with the following conditions:
Storage temperature: - 10°C - 60°C
Storage humidity: 20 - 85% RH
Precautions for Cleaning and Storage
Do not use liquids such as benzine or thinner to clean
the product.
Do not store in the following areas:
– Under direct sunlight;
– In high temperature or high humidity areas,
near water, or in dusty areas;
– On a vibrating surface;
– Where chemical agents are stored, or a corrosive gas is produced.
Keep out of the reach of babies and infants.
If not using for a long period of time, store the product fully charged, and
try to keep at room temperature (10°C - 30°C).
Charge the battery at least once every three months. If the device is fully
discharged, it cannot be recharged.
Stick a flathead screwdriver into the
gap just under the Power button on the
main unit.
Remove the screws that hold the
circuit board.
Remove the battery.
Cut the wires of the battery from the
back of the circuit board using
Diagonal pliers, from the black wire on
the negative.
Benzine
Thinner
Tab
Storage sheet
Battery
Gap
Nail polish remover
Alcohol
Front groin area
Problem
The device does not turn on. The battery is not charged enough, or is dead. Turn off and charge the device.P.11
The battery is being charged.
After finishing charging the battery, disconnect the dedicated USB cable, and use the device.

P.11
The adhesive surface of the gel pad peels or moves.
The adhesive surface of the gel pad is moist with too much sweat or water.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The battery runs out very quickly.
The device turns off while in use.
The battery is not charged enough, or is dead. Turn off and charge the device. P.11
The main unit and the gel pad are not connected properly. Turn off the device, and reconnect the main unit and the gel pad.P.12 · P.13·
The gel pad is not securely attached to the skin. Turn off the device, and attach the gel pad firmly to the skin.P.14
The battery cannot be charged. The battery has fully discharged after being stored
for a long time.
Unusable. Make sure you charge the battery once every three months to avoid it becoming
fully discharged.P. 21, P.22
Cause Solution
The gel pad is not sticking to
the skin.
The transparent protective film has not been removed
from the adhesive surface of the gel pad.
Remove the protective film from the adhesive surface of the gel pad.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
Used immediately after washed with water. Drain water off adequately, and let the adhesive surface dry naturally.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The skin turns red/
becomes irritated.
Treatment time is too long.
Use the device up to 15 minutes on one treatment area, and remove the gel pad from the skin after treatment.

P.18
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin.P.14
The adhesive surface of the gel pad is dirty or has dried out.
Clean gently with your fingertips for a few seconds under slowly running water.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
Cannot feel any stimulation/
stimulation is weak.
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin. P.14
The gel pad is placed on another pad. Place the pad apart from other pads.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
The gel pad is not connected correctly. Connect properly until a “click” is heard.P.12
The intensity level is low. Adjust the intensity level.P.17
The battery is not charged enough, or is running out. Charge the battery. P.11
The adhesive surface of the gel pad is dirty, or has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
In no event will ELECOM Co., Ltd be liable for any lost profits or special,
consequential, indirect, punitive damages arising out of the use of this product.
ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other
problems that may occur to any devices connected to this product.

15 16 17 18
20
22 23 24 25
19
26 27
14
21
Placement of the Gel Pad
Disposal
Gel Pad Placement Guide Treatment
Maintenance Storage
The following procedures are to dispose of the product; not to
repair it.
The product will not be repaired if it has been disassembled.
Product Specifications Limitation of Liability
Power button
Mode Pattern
Automatic Repeats Deep Shiatsu → Shiatsu → Knead → Beat.
Deep Shiatsu Electrical
current Time
Shiatsu Time
Knead Time
Beat Time
[-] (Weak) button [+] (Strong) button
[-] (Weak) button
Power button
[+] (Strong) button
Troubleshooting
ECLEAR refree HCM-P01 Series
User’s Manual
August 2016, Ver. 2
ELECOM Co., Ltd.
©2016 ELECOM Co., Ltd. All Rights Reserved.
• The copyright of this manual is owned by ELECOM Co., Ltd.
• Unauthorized reproduction/reprint of all or part of this manual is prohibited.
• The specifications and appearance of this product may be changed without prior
notice for product improvement purposes.
• We shall bear no responsibility for any device failure or malfunction of other devices
resulting from the use of this product.
• Permission for export or service transaction under the Foreign Exchange and Foreign
Trade Control Act is required in order to export this product or parts of this product
that constitute strategic materials or services.
• Company names, product names, and other names in this manual are generally
trademarks or registered trademarks.
Remove the main unit from the gel pad when cleaning.
Caution:
Do not leave in high temperature or humidity areas, nor under direct
sunlight.
Caution:
Please perform maintenance of your low-frequency electric pulse massager that has been used for years!
Stop
use
Refurbishment
Maintenance
Does it
have one of
these
problems?
Turn off the product or
disconnect the USB cable to
prevent accidents, and be
sure to contact the retailer
and request a maintenance
service.
Caution:
Do not apply the gel pad on metallic objects such as necklaces.
*1 As per JIS C 8711.
*2 Equipped with overcharge, over-discharge and overvoltage protection.
*3 Approximate time when fully charging an expired battery
*4 Varies depending on operation states and conditions.
Be careful not to let water enter the inside of the main unit and USB port.
Fully discharge the battery if it is not completely depleted.
Follow the procedures below to disassemble the product using a screwdriver.
Be careful not to short-circuit the positive and negative terminals of the removed
battery. Tape the terminal ends to isolate them.
This product is for domestic use only. We will bear no responsibility for use outside
Japan. Support for inquiries is available only in Japanese. We will retain repair parts at
least for five years after the end of production.
Place on stiff muscles. Place on stiff muscles in
the upper arm.
Place on stiff muscles in
the forearm.
Place on the top of
the hips.
Place on stiff muscles.
Warning
Handling of Gel Pad
Do not touch the adhesive surface of the gel pad. When
the adhesiveness becomes weak, please see “How to
Clean Gel Pad” (P. 19).
Do not bend the gel pad.
Electrical
current
Electrical
current
Electrical
current
How to Clean a Gel pad
Clean the gel pad when:
The gel pad is not sticking well;
Treatment stimulation feels weaker;
An unpleasant sensation is felt during treatment;
The gel pad is dirty;
The gel pad does not stick to the storage sheet.
If stimulation is weak or you feel an unpleasant sensation even after
cleaning, replace the gel pad.
How to Clean Main Unit
Wipe dirt off the main unit with soft cloth.
An unusual noise or vibration
occurs during charging or
operation.
The main unit is overheating.
The main unit has deformed,
or has a burnt smell.
Recycling of Lithium-Ion Battery
This product contains a lithium-ion battery. Since lithium-ion
batteries are recyclable, valuable resources, we strongly
encourage customers to recycle. Please dispose of the device
according to the applicable municipal regulations.
Do not disassemble the battery when disposing of it.
Do not disposed of the device in regular household waste.
Improperly disposed of lithium-ion batteries will break in the
garbage truck, and can short-circuit, overheat and catch
fire.
How to Remove Lithium-ion Battery Trade name Low-Frequency Electronic Pulse Massager P01
Classification Machinery and equipment 78: Electronic
Therapeutic Device for Home Use
Generic name Low-Frequency Electronic Pulse Massager for
Home Use (Code: 70986000)
Medical device type Controlled medical device
Medical device
certification No. 228ADBZX00037000
Power supply voltage DC 5.0 V ± 5% (lithium-ion battery)
Internal battery 40 mAh *1 *2
Amount of charge cyclesApproximately 500 times *1
Charge time Approximately 3.5 hours *3
Operation time Approximately 150 minutes (when fully charged) *4
Maximum output currentApproximately 10 mA or less
Rated output voltage Approximately 32 V
Fundamental frequency Approximately 2 - 550 Hz
Output pulse width Approximately 200 μS
Power consumption Approximately 0.2 W
Timer Approximately 15 minutes
Main unit dimensions Approximately 44 mm × D 11 mm
Cable length Approximately 200 mm
Main unit weight Approximately 13 g
Operating temperature
& humidity range 0 °C - 40 °C; 20 - 85 % RH
Storage temperature
& humidity range - 10 °C - 60 °C; 20 - 85 % RH
Marketing
authorization holder
ELECOM Healthcare Co., Ltd.
8F L. A. Tower, 4-1-1 Fushimi-machi, Chuo-ku, Osaka, Japan
Manufacturer ZHANGZHOU EASEPAL INDUSTRIAL CORPORATION
Country of origin China
(Recommended maintenance interval: once per 30 times of use)
Pull the tab on the gel pad, and remove it from the protective film.
Apply the gel pad to a treatment area.
Make sure the gel pad is firmly stuck to the skin.
Note: If the gel pad separates from the skin, the main unit will
automatically power off.
Note: For the second or subsequent use of the device, remove the
gel pad from the storage sheet.
Turn ON the device.
Select a mode.
Adjust the intensity level.
Turn OFF the device.
Press and hold the Power button for about two seconds. You will hear
the sound “peep,” the device will be powered on and begin treatment.
The LED indicator lights up green.
Store the device.
After about 15 minutes of treatment, you will hear the sound
“peep,” and the device will automatically power off.
Note: To turn off the device during treatment, press and hold [+]
(Strong) button or [-] (Weak) button for about two seconds.
Note: If the gel pad separates from the skin, or the main unit is
removed from the gel pad, the device automatically powers off.
We recommend Deep Shiatsu mode for areas where pain such as
neuralgia is felt.
Shoulder -trapezius muscles-
Upper arm -brachial muscle- Arm -flexor muscles of forearm-
Upper & lower back -erector spinae muscles-
Lower back -psoas major muscles- Hips -gluteus maximus muscles-
Thighs -hamstring muscles- Calf -triceps surae muscles-
Place on stiff muscles outside
of the spine.
Place on the top of the
front groin.
Place on stiff muscles or pain.
Note: When removing a Wide
Pad, pull both of the
tabs to remove the pad.
Do NOT disassemble other than to dispose of the product.
Press the Power button during treatment to select a mode.
Note: When turned on, the device always begins in Automatic mode.
When the Power button is pressed, you will hear the sound
“pip,” and the modes change in the sequence shown below:
Select one of 10 intensity levels, as you prefer.
Note: When the device is turned on, or when modes are changed,
the intensity is set at level 1.
When [+] (Strong) button is pressed, you will hear the sound
“pip,” and the intensity increases by one level.
When [-] (Weak) button is pressed, you will hear the sound
“pip-pip,” and the intensity decreases by one level.
When [+] (Strong) button is pressed at level 10, or when [-]
(Weak) button is pressed at level 1, you will hear the sound
"pip-pip-pip," and the intensity level does not change.
Remove the gel pad from the skin.
Pull the tab to remove the gel
pad; do not touch the adhesive
surface of the gel pad.
Attach it to the storage sheet; do not disconnect the main unit and
the gel pad.
Note: When using a pair, attach them to both sides of the storage sheet.
Keep in the supplied storage bag.
Clean gently with your fingertips for a few seconds under slowly running water.
Note: Do not pour on too much water. Otherwise, poor adhesion or
deterioration of the adhesive surface may be caused.
Pull the tab and drain the water off, and let the pad dry naturally.
Note: If not dried thoroughly, adhesion decreases.
Note: Do not wipe the adhesive surface with a tissue or cloth.
Note: Avoid direct sunlight.
Store the product in an environment with the following conditions:
Storage temperature: - 10°C - 60°C
Storage humidity: 20 - 85% RH
Precautions for Cleaning and Storage
Do not use liquids such as benzine or thinner to clean
the product.
Do not store in the following areas:
– Under direct sunlight;
– In high temperature or high humidity areas,
near water, or in dusty areas;
– On a vibrating surface;
– Where chemical agents are stored, or a corrosive gas is produced.
Keep out of the reach of babies and infants.
If not using for a long period of time, store the product fully charged, and
try to keep at room temperature (10°C - 30°C).
Charge the battery at least once every three months. If the device is fully
discharged, it cannot be recharged.
Stick a flathead screwdriver into the
gap just under the Power button on the
main unit.
Remove the screws that hold the
circuit board.
Remove the battery.
Cut the wires of the battery from the
back of the circuit board using
Diagonal pliers, from the black wire on
the negative.
Benzine
Thinner
Tab
Storage sheet
Battery
Gap
Nail polish remover
Alcohol
Front groin area
Problem
The device does not turn on. The battery is not charged enough, or is dead. Turn off and charge the device.P.11
The battery is being charged.
After finishing charging the battery, disconnect the dedicated USB cable, and use the device.

P.11
The adhesive surface of the gel pad peels or moves.
The adhesive surface of the gel pad is moist with too much sweat or water.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The battery runs out very quickly.
The device turns off while in use.
The battery is not charged enough, or is dead. Turn off and charge the device. P.11
The main unit and the gel pad are not connected properly. Turn off the device, and reconnect the main unit and the gel pad.P.12 · P.13·
The gel pad is not securely attached to the skin. Turn off the device, and attach the gel pad firmly to the skin.P.14
The battery cannot be charged. The battery has fully discharged after being stored
for a long time.
Unusable. Make sure you charge the battery once every three months to avoid it becoming
fully discharged.P. 21, P.22
Cause Solution
The gel pad is not sticking to
the skin.
The transparent protective film has not been removed
from the adhesive surface of the gel pad.
Remove the protective film from the adhesive surface of the gel pad.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
Used immediately after washed with water. Drain water off adequately, and let the adhesive surface dry naturally.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The skin turns red/
becomes irritated.
Treatment time is too long.
Use the device up to 15 minutes on one treatment area, and remove the gel pad from the skin after treatment.

P.18
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin.P.14
The adhesive surface of the gel pad is dirty or has dried out.
Clean gently with your fingertips for a few seconds under slowly running water.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
Cannot feel any stimulation/
stimulation is weak.
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin. P.14
The gel pad is placed on another pad. Place the pad apart from other pads.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
The gel pad is not connected correctly. Connect properly until a “click” is heard.P.12
The intensity level is low. Adjust the intensity level.P.17
The battery is not charged enough, or is running out. Charge the battery. P.11
The adhesive surface of the gel pad is dirty, or has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
In no event will ELECOM Co., Ltd be liable for any lost profits or special,
consequential, indirect, punitive damages arising out of the use of this product.
ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other
problems that may occur to any devices connected to this product.

15 16 17 18 20
22
23 24 25
19
26 27
14
21
Placement of the Gel Pad
Disposal
Gel Pad Placement Guide Treatment Maintenance Storage
The following procedures are to dispose of the product; not to
repair it.
The product will not be repaired if it has been disassembled.
Product Specifications Limitation of Liability
Power button
Mode Pattern
Automatic Repeats Deep Shiatsu → Shiatsu → Knead → Beat.
Deep Shiatsu Electrical
current Time
Shiatsu Time
Knead Time
Beat Time
[-] (Weak) button [+] (Strong) button
[-] (Weak) button
Power button
[+] (Strong) button
Troubleshooting
ECLEAR refree HCM-P01 Series
User’s Manual
August 2016, Ver. 2
ELECOM Co., Ltd.
©2016 ELECOM Co., Ltd. All Rights Reserved.
• The copyright of this manual is owned by ELECOM Co., Ltd.
• Unauthorized reproduction/reprint of all or part of this manual is prohibited.
• The specifications and appearance of this product may be changed without prior
notice for product improvement purposes.
• We shall bear no responsibility for any device failure or malfunction of other devices
resulting from the use of this product.
• Permission for export or service transaction under the Foreign Exchange and Foreign
Trade Control Act is required in order to export this product or parts of this product
that constitute strategic materials or services.
• Company names, product names, and other names in this manual are generally
trademarks or registered trademarks.
Remove the main unit from the gel pad when cleaning.
Caution:
Do not leave in high temperature or humidity areas, nor under direct
sunlight.
Caution:
Please perform maintenance of your low-frequency electric pulse massager that has been used for years!
Stop
use
Refurbishment
Maintenance
Does it
have one of
these
problems?
Turn off the product or
disconnect the USB cable to
prevent accidents, and be
sure to contact the retailer
and request a maintenance
service.
Caution:
Do not apply the gel pad on metallic objects such as necklaces.
*1 As per JIS C 8711.
*2 Equipped with overcharge, over-discharge and overvoltage protection.
*3 Approximate time when fully charging an expired battery
*4 Varies depending on operation states and conditions.
Be careful not to let water enter the inside of the main unit and USB port.
Fully discharge the battery if it is not completely depleted.
Follow the procedures below to disassemble the product using a screwdriver.
Be careful not to short-circuit the positive and negative terminals of the removed
battery. Tape the terminal ends to isolate them.
This product is for domestic use only. We will bear no responsibility for use outside
Japan. Support for inquiries is available only in Japanese. We will retain repair parts at
least for five years after the end of production.
Place on stiff muscles. Place on stiff muscles in
the upper arm.
Place on stiff muscles in
the forearm.
Place on the top of
the hips.
Place on stiff muscles.
Warning
Handling of Gel Pad
Do not touch the adhesive surface of the gel pad. When
the adhesiveness becomes weak, please see “How to
Clean Gel Pad” (P. 19).
Do not bend the gel pad.
Electrical
current
Electrical
current
Electrical
current
How to Clean a Gel pad
Clean the gel pad when:
The gel pad is not sticking well;
Treatment stimulation feels weaker;
An unpleasant sensation is felt during treatment;
The gel pad is dirty;
The gel pad does not stick to the storage sheet.
If stimulation is weak or you feel an unpleasant sensation even after
cleaning, replace the gel pad.
How to Clean Main Unit
Wipe dirt off the main unit with soft cloth.
An unusual noise or vibration
occurs during charging or
operation.
The main unit is overheating.
The main unit has deformed,
or has a burnt smell.
Recycling of Lithium-Ion Battery
This product contains a lithium-ion battery. Since lithium-ion
batteries are recyclable, valuable resources, we strongly
encourage customers to recycle. Please dispose of the device
according to the applicable municipal regulations.
Do not disassemble the battery when disposing of it.
Do not disposed of the device in regular household waste.
Improperly disposed of lithium-ion batteries will break in the
garbage truck, and can short-circuit, overheat and catch
fire.
How to Remove Lithium-ion Battery
Trade name Low-Frequency Electronic Pulse Massager P01
Classification Machinery and equipment 78: Electronic
Therapeutic Device for Home Use
Generic name Low-Frequency Electronic Pulse Massager for
Home Use (Code: 70986000)
Medical device type Controlled medical device
Medical device
certification No. 228ADBZX00037000
Power supply voltage DC 5.0 V ± 5% (lithium-ion battery)
Internal battery 40 mAh *1 *2
Amount of charge cyclesApproximately 500 times *1
Charge time Approximately 3.5 hours *3
Operation time Approximately 150 minutes (when fully charged) *4
Maximum output currentApproximately 10 mA or less
Rated output voltage Approximately 32 V
Fundamental frequency Approximately 2 - 550 Hz
Output pulse width Approximately 200 μS
Power consumption Approximately 0.2 W
Timer Approximately 15 minutes
Main unit dimensions Approximately 44 mm × D 11 mm
Cable length Approximately 200 mm
Main unit weight Approximately 13 g
Operating temperature
& humidity range 0 °C - 40 °C; 20 - 85 % RH
Storage temperature
& humidity range - 10 °C - 60 °C; 20 - 85 % RH
Marketing
authorization holder
ELECOM Healthcare Co., Ltd.
8F L. A. Tower, 4-1-1 Fushimi-machi, Chuo-ku, Osaka, Japan
Manufacturer ZHANGZHOU EASEPAL INDUSTRIAL CORPORATION
Country of origin China
(Recommended maintenance interval: once per 30 times of use)
Pull the tab on the gel pad, and remove it from the protective film.
Apply the gel pad to a treatment area.
Make sure the gel pad is firmly stuck to the skin.
Note: If the gel pad separates from the skin, the main unit will
automatically power off.
Note: For the second or subsequent use of the device, remove the
gel pad from the storage sheet.
Turn ON the device.
Select a mode.
Adjust the intensity level.
Turn OFF the device.
Press and hold the Power button for about two seconds. You will hear
the sound “peep,” the device will be powered on and begin treatment.
The LED indicator lights up green.
Store the device.
After about 15 minutes of treatment, you will hear the sound
“peep,” and the device will automatically power off.
Note: To turn off the device during treatment, press and hold [+]
(Strong) button or [-] (Weak) button for about two seconds.
Note: If the gel pad separates from the skin, or the main unit is
removed from the gel pad, the device automatically powers off.
We recommend Deep Shiatsu mode for areas where pain such as
neuralgia is felt.
Shoulder -trapezius muscles-
Upper arm -brachial muscle- Arm -flexor muscles of forearm-
Upper & lower back -erector spinae muscles-
Lower back -psoas major muscles- Hips -gluteus maximus muscles-
Thighs -hamstring muscles- Calf -triceps surae muscles-
Place on stiff muscles outside
of the spine.
Place on the top of the
front groin.
Place on stiff muscles or pain.
Note: When removing a Wide
Pad, pull both of the
tabs to remove the pad.
Do NOT disassemble other than to dispose of the product.
Press the Power button during treatment to select a mode.
Note: When turned on, the device always begins in Automatic mode.
When the Power button is pressed, you will hear the sound
“pip,” and the modes change in the sequence shown below:
Select one of 10 intensity levels, as you prefer.
Note: When the device is turned on, or when modes are changed,
the intensity is set at level 1.
When [+] (Strong) button is pressed, you will hear the sound
“pip,” and the intensity increases by one level.
When [-] (Weak) button is pressed, you will hear the sound
“pip-pip,” and the intensity decreases by one level.
When [+] (Strong) button is pressed at level 10, or when [-]
(Weak) button is pressed at level 1, you will hear the sound
"pip-pip-pip," and the intensity level does not change.
Remove the gel pad from the skin.
Pull the tab to remove the gel
pad; do not touch the adhesive
surface of the gel pad.
Attach it to the storage sheet; do not disconnect the main unit and
the gel pad.
Note: When using a pair, attach them to both sides of the storage sheet.
Keep in the supplied storage bag.
Clean gently with your fingertips for a few seconds under slowly running water.
Note: Do not pour on too much water. Otherwise, poor adhesion or
deterioration of the adhesive surface may be caused.
Pull the tab and drain the water off, and let the pad dry naturally.
Note: If not dried thoroughly, adhesion decreases.
Note: Do not wipe the adhesive surface with a tissue or cloth.
Note: Avoid direct sunlight.
Store the product in an environment with the following conditions:
Storage temperature: - 10°C - 60°C
Storage humidity: 20 - 85% RH
Precautions for Cleaning and Storage
Do not use liquids such as benzine or thinner to clean
the product.
Do not store in the following areas:
– Under direct sunlight;
– In high temperature or high humidity areas,
near water, or in dusty areas;
– On a vibrating surface;
– Where chemical agents are stored, or a corrosive gas is produced.
Keep out of the reach of babies and infants.
If not using for a long period of time, store the product fully charged, and
try to keep at room temperature (10°C - 30°C).
Charge the battery at least once every three months. If the device is fully
discharged, it cannot be recharged.
Stick a flathead screwdriver into the
gap just under the Power button on the
main unit.
Remove the screws that hold the
circuit board.
Remove the battery.
Cut the wires of the battery from the
back of the circuit board using
Diagonal pliers, from the black wire on
the negative.
Benzine
Thinner
Tab
Storage sheet
Battery
Gap
Nail polish remover
Alcohol
Front groin area
Problem
The device does not turn on. The battery is not charged enough, or is dead. Turn off and charge the device.P.11
The battery is being charged.
After finishing charging the battery, disconnect the dedicated USB cable, and use the device.

P.11
The adhesive surface of the gel pad peels or moves.
The adhesive surface of the gel pad is moist with too much sweat or water.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The battery runs out very quickly.
The device turns off while in use.
The battery is not charged enough, or is dead. Turn off and charge the device. P.11
The main unit and the gel pad are not connected properly. Turn off the device, and reconnect the main unit and the gel pad.P.12 · P.13·
The gel pad is not securely attached to the skin. Turn off the device, and attach the gel pad firmly to the skin.P.14
The battery cannot be charged. The battery has fully discharged after being stored
for a long time.
Unusable. Make sure you charge the battery once every three months to avoid it becoming
fully discharged.P. 21, P.22
Cause Solution
The gel pad is not sticking to
the skin.
The transparent protective film has not been removed
from the adhesive surface of the gel pad.
Remove the protective film from the adhesive surface of the gel pad.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
Used immediately after washed with water. Drain water off adequately, and let the adhesive surface dry naturally.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The skin turns red/
becomes irritated.
Treatment time is too long.
Use the device up to 15 minutes on one treatment area, and remove the gel pad from the skin after treatment.

P.18
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin.P.14
The adhesive surface of the gel pad is dirty or has dried out.
Clean gently with your fingertips for a few seconds under slowly running water.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
Cannot feel any stimulation/
stimulation is weak.
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin. P.14
The gel pad is placed on another pad. Place the pad apart from other pads.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
The gel pad is not connected correctly. Connect properly until a “click” is heard.P.12
The intensity level is low. Adjust the intensity level.P.17
The battery is not charged enough, or is running out. Charge the battery. P.11
The adhesive surface of the gel pad is dirty, or has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
In no event will ELECOM Co., Ltd be liable for any lost profits or special,
consequential, indirect, punitive damages arising out of the use of this product.
ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other
problems that may occur to any devices connected to this product.

15 16 17 18 20
22
23 24
25
19
26 27
14
21
Placement of the Gel Pad
Disposal
Gel Pad Placement Guide Treatment Maintenance Storage
The following procedures are to dispose of the product; not to
repair it.
The product will not be repaired if it has been disassembled.
Product Specifications Limitation of Liability
Power button
Mode Pattern
Automatic Repeats Deep Shiatsu → Shiatsu → Knead → Beat.
Deep Shiatsu Electrical
current Time
Shiatsu Time
Knead Time
Beat Time
[-] (Weak) button [+] (Strong) button
[-] (Weak) button
Power button
[+] (Strong) button
Troubleshooting
ECLEAR refree HCM-P01 Series
User’s Manual
August 2016, Ver. 2
ELECOM Co., Ltd.
©2016 ELECOM Co., Ltd. All Rights Reserved.
• The copyright of this manual is owned by ELECOM Co., Ltd.
• Unauthorized reproduction/reprint of all or part of this manual is prohibited.
• The specifications and appearance of this product may be changed without prior
notice for product improvement purposes.
• We shall bear no responsibility for any device failure or malfunction of other devices
resulting from the use of this product.
• Permission for export or service transaction under the Foreign Exchange and Foreign
Trade Control Act is required in order to export this product or parts of this product
that constitute strategic materials or services.
• Company names, product names, and other names in this manual are generally
trademarks or registered trademarks.
Remove the main unit from the gel pad when cleaning.
Caution:
Do not leave in high temperature or humidity areas, nor under direct
sunlight.
Caution:
Please perform maintenance of your low-frequency electric pulse massager that has been used for years!
Stop
use
Refurbishment
Maintenance
Does it
have one of
these
problems?
Turn off the product or
disconnect the USB cable to
prevent accidents, and be
sure to contact the retailer
and request a maintenance
service.
Caution:
Do not apply the gel pad on metallic objects such as necklaces.
*1 As per JIS C 8711.
*2 Equipped with overcharge, over-discharge and overvoltage protection.
*3 Approximate time when fully charging an expired battery
*4 Varies depending on operation states and conditions.
Be careful not to let water enter the inside of the main unit and USB port.
Fully discharge the battery if it is not completely depleted.
Follow the procedures below to disassemble the product using a screwdriver.
Be careful not to short-circuit the positive and negative terminals of the removed
battery. Tape the terminal ends to isolate them.
This product is for domestic use only. We will bear no responsibility for use outside
Japan. Support for inquiries is available only in Japanese. We will retain repair parts at
least for five years after the end of production.
Place on stiff muscles. Place on stiff muscles in
the upper arm.
Place on stiff muscles in
the forearm.
Place on the top of
the hips.
Place on stiff muscles.
Warning
Handling of Gel Pad
Do not touch the adhesive surface of the gel pad. When
the adhesiveness becomes weak, please see “How to
Clean Gel Pad” (P. 19).
Do not bend the gel pad.
Electrical
current
Electrical
current
Electrical
current
How to Clean a Gel pad
Clean the gel pad when:
The gel pad is not sticking well;
Treatment stimulation feels weaker;
An unpleasant sensation is felt during treatment;
The gel pad is dirty;
The gel pad does not stick to the storage sheet.
If stimulation is weak or you feel an unpleasant sensation even after
cleaning, replace the gel pad.
How to Clean Main Unit
Wipe dirt off the main unit with soft cloth.
An unusual noise or vibration
occurs during charging or
operation.
The main unit is overheating.
The main unit has deformed,
or has a burnt smell.
Recycling of Lithium-Ion Battery
This product contains a lithium-ion battery. Since lithium-ion
batteries are recyclable, valuable resources, we strongly
encourage customers to recycle. Please dispose of the device
according to the applicable municipal regulations.
Do not disassemble the battery when disposing of it.
Do not disposed of the device in regular household waste.
Improperly disposed of lithium-ion batteries will break in the
garbage truck, and can short-circuit, overheat and catch
fire.
How to Remove Lithium-ion Battery Trade name Low-Frequency Electronic Pulse Massager P01
Classification Machinery and equipment 78: Electronic
Therapeutic Device for Home Use
Generic name Low-Frequency Electronic Pulse Massager for
Home Use (Code: 70986000)
Medical device type Controlled medical device
Medical device
certification No. 228ADBZX00037000
Power supply voltage DC 5.0 V ± 5% (lithium-ion battery)
Internal battery 40 mAh *1 *2
Amount of charge cyclesApproximately 500 times *1
Charge time Approximately 3.5 hours *3
Operation time Approximately 150 minutes (when fully charged) *4
Maximum output currentApproximately 10 mA or less
Rated output voltage Approximately 32 V
Fundamental frequency Approximately 2 - 550 Hz
Output pulse width Approximately 200 μS
Power consumption Approximately 0.2 W
Timer Approximately 15 minutes
Main unit dimensions Approximately 44 mm × D 11 mm
Cable length Approximately 200 mm
Main unit weight Approximately 13 g
Operating temperature
& humidity range 0 °C - 40 °C; 20 - 85 % RH
Storage temperature
& humidity range - 10 °C - 60 °C; 20 - 85 % RH
Marketing
authorization holder
ELECOM Healthcare Co., Ltd.
8F L. A. Tower, 4-1-1 Fushimi-machi, Chuo-ku, Osaka, Japan
Manufacturer ZHANGZHOU EASEPAL INDUSTRIAL CORPORATION
Country of origin China
(Recommended maintenance interval: once per 30 times of use)
Pull the tab on the gel pad, and remove it from the protective film.
Apply the gel pad to a treatment area.
Make sure the gel pad is firmly stuck to the skin.
Note: If the gel pad separates from the skin, the main unit will
automatically power off.
Note: For the second or subsequent use of the device, remove the
gel pad from the storage sheet.
Turn ON the device.
Select a mode.
Adjust the intensity level.
Turn OFF the device.
Press and hold the Power button for about two seconds. You will hear
the sound “peep,” the device will be powered on and begin treatment.
The LED indicator lights up green.
Store the device.
After about 15 minutes of treatment, you will hear the sound
“peep,” and the device will automatically power off.
Note: To turn off the device during treatment, press and hold [+]
(Strong) button or [-] (Weak) button for about two seconds.
Note: If the gel pad separates from the skin, or the main unit is
removed from the gel pad, the device automatically powers off.
We recommend Deep Shiatsu mode for areas where pain such as
neuralgia is felt.
Shoulder -trapezius muscles-
Upper arm -brachial muscle- Arm -flexor muscles of forearm-
Upper & lower back -erector spinae muscles-
Lower back -psoas major muscles- Hips -gluteus maximus muscles-
Thighs -hamstring muscles- Calf -triceps surae muscles-
Place on stiff muscles outside
of the spine.
Place on the top of the
front groin.
Place on stiff muscles or pain.
Note: When removing a Wide
Pad, pull both of the
tabs to remove the pad.
Do NOT disassemble other than to dispose of the product.
Press the Power button during treatment to select a mode.
Note: When turned on, the device always begins in Automatic mode.
When the Power button is pressed, you will hear the sound
“pip,” and the modes change in the sequence shown below:
Select one of 10 intensity levels, as you prefer.
Note: When the device is turned on, or when modes are changed,
the intensity is set at level 1.
When [+] (Strong) button is pressed, you will hear the sound
“pip,” and the intensity increases by one level.
When [-] (Weak) button is pressed, you will hear the sound
“pip-pip,” and the intensity decreases by one level.
When [+] (Strong) button is pressed at level 10, or when [-]
(Weak) button is pressed at level 1, you will hear the sound
"pip-pip-pip," and the intensity level does not change.
Remove the gel pad from the skin.
Pull the tab to remove the gel
pad; do not touch the adhesive
surface of the gel pad.
Attach it to the storage sheet; do not disconnect the main unit and
the gel pad.
Note: When using a pair, attach them to both sides of the storage sheet.
Keep in the supplied storage bag.
Clean gently with your fingertips for a few seconds under slowly running water.
Note: Do not pour on too much water. Otherwise, poor adhesion or
deterioration of the adhesive surface may be caused.
Pull the tab and drain the water off, and let the pad dry naturally.
Note: If not dried thoroughly, adhesion decreases.
Note: Do not wipe the adhesive surface with a tissue or cloth.
Note: Avoid direct sunlight.
Store the product in an environment with the following conditions:
Storage temperature: - 10°C - 60°C
Storage humidity: 20 - 85% RH
Precautions for Cleaning and Storage
Do not use liquids such as benzine or thinner to clean
the product.
Do not store in the following areas:
– Under direct sunlight;
– In high temperature or high humidity areas,
near water, or in dusty areas;
– On a vibrating surface;
– Where chemical agents are stored, or a corrosive gas is produced.
Keep out of the reach of babies and infants.
If not using for a long period of time, store the product fully charged, and
try to keep at room temperature (10°C - 30°C).
Charge the battery at least once every three months. If the device is fully
discharged, it cannot be recharged.
Stick a flathead screwdriver into the
gap just under the Power button on the
main unit.
Remove the screws that hold the
circuit board.
Remove the battery.
Cut the wires of the battery from the
back of the circuit board using
Diagonal pliers, from the black wire on
the negative.
Benzine
Thinner
Tab
Storage sheet
Battery
Gap
Nail polish remover
Alcohol
Front groin area
Problem
The device does not turn on. The battery is not charged enough, or is dead. Turn off and charge the device.P.11
The battery is being charged.
After finishing charging the battery, disconnect the dedicated USB cable, and use the device.

P.11
The adhesive surface of the gel pad peels or moves.
The adhesive surface of the gel pad is moist with too much sweat or water.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The battery runs out very quickly.
The device turns off while in use.
The battery is not charged enough, or is dead. Turn off and charge the device. P.11
The main unit and the gel pad are not connected properly. Turn off the device, and reconnect the main unit and the gel pad.P.12 · P.13·
The gel pad is not securely attached to the skin. Turn off the device, and attach the gel pad firmly to the skin.P.14
The battery cannot be charged. The battery has fully discharged after being stored
for a long time.
Unusable. Make sure you charge the battery once every three months to avoid it becoming
fully discharged.P. 21, P.22
Cause Solution
The gel pad is not sticking to
the skin.
The transparent protective film has not been removed
from the adhesive surface of the gel pad.
Remove the protective film from the adhesive surface of the gel pad.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
Used immediately after washed with water. Drain water off adequately, and let the adhesive surface dry naturally.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The skin turns red/
becomes irritated.
Treatment time is too long.
Use the device up to 15 minutes on one treatment area, and remove the gel pad from the skin after treatment.

P.18
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin.P.14
The adhesive surface of the gel pad is dirty or has dried out.
Clean gently with your fingertips for a few seconds under slowly running water.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
Cannot feel any stimulation/
stimulation is weak.
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin. P.14
The gel pad is placed on another pad. Place the pad apart from other pads.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
The gel pad is not connected correctly. Connect properly until a “click” is heard.P.12
The intensity level is low. Adjust the intensity level.P.17
The battery is not charged enough, or is running out. Charge the battery. P.11
The adhesive surface of the gel pad is dirty, or has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
In no event will ELECOM Co., Ltd be liable for any lost profits or special,
consequential, indirect, punitive damages arising out of the use of this product.
ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other
problems that may occur to any devices connected to this product.

15 16 17 18 20
22 23 24
25
19
26
27
14
21
Placement of the Gel Pad
Disposal
Gel Pad Placement Guide Treatment Maintenance Storage
The following procedures are to dispose of the product; not to
repair it.
The product will not be repaired if it has been disassembled.
Product Specifications Limitation of Liability
Power button
Mode Pattern
Automatic Repeats Deep Shiatsu → Shiatsu → Knead → Beat.
Deep Shiatsu Electrical
current Time
Shiatsu Time
Knead Time
Beat Time
[-] (Weak) button [+] (Strong) button
[-] (Weak) button
Power button
[+] (Strong) button
Troubleshooting
ECLEAR refree HCM-P01 Series
User’s Manual
August 2016, Ver. 2
ELECOM Co., Ltd.
©2016 ELECOM Co., Ltd. All Rights Reserved.
• The copyright of this manual is owned by ELECOM Co., Ltd.
• Unauthorized reproduction/reprint of all or part of this manual is prohibited.
• The specifications and appearance of this product may be changed without prior
notice for product improvement purposes.
• We shall bear no responsibility for any device failure or malfunction of other devices
resulting from the use of this product.
• Permission for export or service transaction under the Foreign Exchange and Foreign
Trade Control Act is required in order to export this product or parts of this product
that constitute strategic materials or services.
• Company names, product names, and other names in this manual are generally
trademarks or registered trademarks.
Remove the main unit from the gel pad when cleaning.
Caution:
Do not leave in high temperature or humidity areas, nor under direct
sunlight.
Caution:
Please perform maintenance of your low-frequency electric pulse massager that has been used for years!
Stop
use
Refurbishment
Maintenance
Does it
have one of
these
problems?
Turn off the product or
disconnect the USB cable to
prevent accidents, and be
sure to contact the retailer
and request a maintenance
service.
Caution:
Do not apply the gel pad on metallic objects such as necklaces.
*1 As per JIS C 8711.
*2 Equipped with overcharge, over-discharge and overvoltage protection.
*3 Approximate time when fully charging an expired battery
*4 Varies depending on operation states and conditions.
Be careful not to let water enter the inside of the main unit and USB port.
Fully discharge the battery if it is not completely depleted.
Follow the procedures below to disassemble the product using a screwdriver.
Be careful not to short-circuit the positive and negative terminals of the removed
battery. Tape the terminal ends to isolate them.
This product is for domestic use only. We will bear no responsibility for use outside
Japan. Support for inquiries is available only in Japanese. We will retain repair parts at
least for five years after the end of production.
Place on stiff muscles. Place on stiff muscles in
the upper arm.
Place on stiff muscles in
the forearm.
Place on the top of
the hips.
Place on stiff muscles.
Warning
Handling of Gel Pad
Do not touch the adhesive surface of the gel pad. When
the adhesiveness becomes weak, please see “How to
Clean Gel Pad” (P. 19).
Do not bend the gel pad.
Electrical
current
Electrical
current
Electrical
current
How to Clean a Gel pad
Clean the gel pad when:
The gel pad is not sticking well;
Treatment stimulation feels weaker;
An unpleasant sensation is felt during treatment;
The gel pad is dirty;
The gel pad does not stick to the storage sheet.
If stimulation is weak or you feel an unpleasant sensation even after
cleaning, replace the gel pad.
How to Clean Main Unit
Wipe dirt off the main unit with soft cloth.
An unusual noise or vibration
occurs during charging or
operation.
The main unit is overheating.
The main unit has deformed,
or has a burnt smell.
Recycling of Lithium-Ion Battery
This product contains a lithium-ion battery. Since lithium-ion
batteries are recyclable, valuable resources, we strongly
encourage customers to recycle. Please dispose of the device
according to the applicable municipal regulations.
Do not disassemble the battery when disposing of it.
Do not disposed of the device in regular household waste.
Improperly disposed of lithium-ion batteries will break in the
garbage truck, and can short-circuit, overheat and catch
fire.
How to Remove Lithium-ion Battery
Trade name Low-Frequency Electronic Pulse Massager P01
Classification Machinery and equipment 78: Electronic
Therapeutic Device for Home Use
Generic name Low-Frequency Electronic Pulse Massager for
Home Use (Code: 70986000)
Medical device type Controlled medical device
Medical device
certification No. 228ADBZX00037000
Power supply voltage DC 5.0 V ± 5% (lithium-ion battery)
Internal battery 40 mAh *1 *2
Amount of charge cyclesApproximately 500 times *1
Charge time Approximately 3.5 hours *3
Operation time Approximately 150 minutes (when fully charged) *4
Maximum output currentApproximately 10 mA or less
Rated output voltage Approximately 32 V
Fundamental frequency Approximately 2 - 550 Hz
Output pulse width Approximately 200 μS
Power consumption Approximately 0.2 W
Timer Approximately 15 minutes
Main unit dimensions Approximately 44 mm × D 11 mm
Cable length Approximately 200 mm
Main unit weight Approximately 13 g
Operating temperature
& humidity range 0 °C - 40 °C; 20 - 85 % RH
Storage temperature
& humidity range - 10 °C - 60 °C; 20 - 85 % RH
Marketing
authorization holder
ELECOM Healthcare Co., Ltd.
8F L. A. Tower, 4-1-1 Fushimi-machi, Chuo-ku, Osaka, Japan
Manufacturer ZHANGZHOU EASEPAL INDUSTRIAL CORPORATION
Country of origin China
(Recommended maintenance interval: once per 30 times of use)
Pull the tab on the gel pad, and remove it from the protective film.
Apply the gel pad to a treatment area.
Make sure the gel pad is firmly stuck to the skin.
Note: If the gel pad separates from the skin, the main unit will
automatically power off.
Note: For the second or subsequent use of the device, remove the
gel pad from the storage sheet.
Turn ON the device.
Select a mode.
Adjust the intensity level.
Turn OFF the device.
Press and hold the Power button for about two seconds. You will hear
the sound “peep,” the device will be powered on and begin treatment.
The LED indicator lights up green.
Store the device.
After about 15 minutes of treatment, you will hear the sound
“peep,” and the device will automatically power off.
Note: To turn off the device during treatment, press and hold [+]
(Strong) button or [-] (Weak) button for about two seconds.
Note: If the gel pad separates from the skin, or the main unit is
removed from the gel pad, the device automatically powers off.
We recommend Deep Shiatsu mode for areas where pain such as
neuralgia is felt.
Shoulder -trapezius muscles-
Upper arm -brachial muscle- Arm -flexor muscles of forearm-
Upper & lower back -erector spinae muscles-
Lower back -psoas major muscles- Hips -gluteus maximus muscles-
Thighs -hamstring muscles- Calf -triceps surae muscles-
Place on stiff muscles outside
of the spine.
Place on the top of the
front groin.
Place on stiff muscles or pain.
Note: When removing a Wide
Pad, pull both of the
tabs to remove the pad.
Do NOT disassemble other than to dispose of the product.
Press the Power button during treatment to select a mode.
Note: When turned on, the device always begins in Automatic mode.
When the Power button is pressed, you will hear the sound
“pip,” and the modes change in the sequence shown below:
Select one of 10 intensity levels, as you prefer.
Note: When the device is turned on, or when modes are changed,
the intensity is set at level 1.
When [+] (Strong) button is pressed, you will hear the sound
“pip,” and the intensity increases by one level.
When [-] (Weak) button is pressed, you will hear the sound
“pip-pip,” and the intensity decreases by one level.
When [+] (Strong) button is pressed at level 10, or when [-]
(Weak) button is pressed at level 1, you will hear the sound
"pip-pip-pip," and the intensity level does not change.
Remove the gel pad from the skin.
Pull the tab to remove the gel
pad; do not touch the adhesive
surface of the gel pad.
Attach it to the storage sheet; do not disconnect the main unit and
the gel pad.
Note: When using a pair, attach them to both sides of the storage sheet.
Keep in the supplied storage bag.
Clean gently with your fingertips for a few seconds under slowly running water.
Note: Do not pour on too much water. Otherwise, poor adhesion or
deterioration of the adhesive surface may be caused.
Pull the tab and drain the water off, and let the pad dry naturally.
Note: If not dried thoroughly, adhesion decreases.
Note: Do not wipe the adhesive surface with a tissue or cloth.
Note: Avoid direct sunlight.
Store the product in an environment with the following conditions:
Storage temperature: - 10°C - 60°C
Storage humidity: 20 - 85% RH
Precautions for Cleaning and Storage
Do not use liquids such as benzine or thinner to clean
the product.
Do not store in the following areas:
– Under direct sunlight;
– In high temperature or high humidity areas,
near water, or in dusty areas;
– On a vibrating surface;
– Where chemical agents are stored, or a corrosive gas is produced.
Keep out of the reach of babies and infants.
If not using for a long period of time, store the product fully charged, and
try to keep at room temperature (10°C - 30°C).
Charge the battery at least once every three months. If the device is fully
discharged, it cannot be recharged.
Stick a flathead screwdriver into the
gap just under the Power button on the
main unit.
Remove the screws that hold the
circuit board.
Remove the battery.
Cut the wires of the battery from the
back of the circuit board using
Diagonal pliers, from the black wire on
the negative.
Benzine
Thinner
Tab
Storage sheet
Battery
Gap
Nail polish remover
Alcohol
Front groin area
Problem
The device does not turn on. The battery is not charged enough, or is dead. Turn off and charge the device.P.11
The battery is being charged.
After finishing charging the battery, disconnect the dedicated USB cable, and use the device.

P.11
The adhesive surface of the gel pad peels or moves.
The adhesive surface of the gel pad is moist with too much sweat or water.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The battery runs out very quickly.
The device turns off while in use.
The battery is not charged enough, or is dead. Turn off and charge the device. P.11
The main unit and the gel pad are not connected properly. Turn off the device, and reconnect the main unit and the gel pad.P.12 · P.13·
The gel pad is not securely attached to the skin. Turn off the device, and attach the gel pad firmly to the skin.P.14
The battery cannot be charged. The battery has fully discharged after being stored
for a long time.
Unusable. Make sure you charge the battery once every three months to avoid it becoming
fully discharged.P. 21, P.22
Cause Solution
The gel pad is not sticking to
the skin.
The transparent protective film has not been removed
from the adhesive surface of the gel pad.
Remove the protective film from the adhesive surface of the gel pad.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
Used immediately after washed with water. Drain water off adequately, and let the adhesive surface dry naturally.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The skin turns red/
becomes irritated.
Treatment time is too long.
Use the device up to 15 minutes on one treatment area, and remove the gel pad from the skin after treatment.

P.18
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin.P.14
The adhesive surface of the gel pad is dirty or has dried out.
Clean gently with your fingertips for a few seconds under slowly running water.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
Cannot feel any stimulation/
stimulation is weak.
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin. P.14
The gel pad is placed on another pad. Place the pad apart from other pads.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
The gel pad is not connected correctly. Connect properly until a “click” is heard.P.12
The intensity level is low. Adjust the intensity level.P.17
The battery is not charged enough, or is running out. Charge the battery. P.11
The adhesive surface of the gel pad is dirty, or has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
In no event will ELECOM Co., Ltd be liable for any lost profits or special,
consequential, indirect, punitive damages arising out of the use of this product.
ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other
problems that may occur to any devices connected to this product.

15 16 17 18 20
22 23 24 25
19
26
27
14
21
Placement of the Gel Pad
Disposal
Gel Pad Placement Guide Treatment Maintenance Storage
The following procedures are to dispose of the product; not to
repair it.
The product will not be repaired if it has been disassembled.
Product Specifications Limitation of Liability
Power button
Mode Pattern
Automatic Repeats Deep Shiatsu → Shiatsu → Knead → Beat.
Deep Shiatsu Electrical
current Time
Shiatsu Time
Knead Time
Beat Time
[-] (Weak) button [+] (Strong) button
[-] (Weak) button
Power button
[+] (Strong) button
Troubleshooting
ECLEAR refree HCM-P01 Series
User’s Manual
August 2016, Ver. 2
ELECOM Co., Ltd.
©2016 ELECOM Co., Ltd. All Rights Reserved.
• The copyright of this manual is owned by ELECOM Co., Ltd.
• Unauthorized reproduction/reprint of all or part of this manual is prohibited.
• The specifications and appearance of this product may be changed without prior
notice for product improvement purposes.
• We shall bear no responsibility for any device failure or malfunction of other devices
resulting from the use of this product.
• Permission for export or service transaction under the Foreign Exchange and Foreign
Trade Control Act is required in order to export this product or parts of this product
that constitute strategic materials or services.
• Company names, product names, and other names in this manual are generally
trademarks or registered trademarks.
Remove the main unit from the gel pad when cleaning.
Caution:
Do not leave in high temperature or humidity areas, nor under direct
sunlight.
Caution:
Please perform maintenance of your low-frequency electric pulse massager that has been used for years!
Stop
use
Refurbishment
Maintenance
Does it
have one of
these
problems?
Turn off the product or
disconnect the USB cable to
prevent accidents, and be
sure to contact the retailer
and request a maintenance
service.
Caution:
Do not apply the gel pad on metallic objects such as necklaces.
*1 As per JIS C 8711.
*2 Equipped with overcharge, over-discharge and overvoltage protection.
*3 Approximate time when fully charging an expired battery
*4 Varies depending on operation states and conditions.
Be careful not to let water enter the inside of the main unit and USB port.
Fully discharge the battery if it is not completely depleted.
Follow the procedures below to disassemble the product using a screwdriver.
Be careful not to short-circuit the positive and negative terminals of the removed
battery. Tape the terminal ends to isolate them.
This product is for domestic use only. We will bear no responsibility for use outside
Japan. Support for inquiries is available only in Japanese. We will retain repair parts at
least for five years after the end of production.
Place on stiff muscles. Place on stiff muscles in
the upper arm.
Place on stiff muscles in
the forearm.
Place on the top of
the hips.
Place on stiff muscles.
Warning
Handling of Gel Pad
Do not touch the adhesive surface of the gel pad. When
the adhesiveness becomes weak, please see “How to
Clean Gel Pad” (P. 19).
Do not bend the gel pad.
Electrical
current
Electrical
current
Electrical
current
How to Clean a Gel pad
Clean the gel pad when:
The gel pad is not sticking well;
Treatment stimulation feels weaker;
An unpleasant sensation is felt during treatment;
The gel pad is dirty;
The gel pad does not stick to the storage sheet.
If stimulation is weak or you feel an unpleasant sensation even after
cleaning, replace the gel pad.
How to Clean Main Unit
Wipe dirt off the main unit with soft cloth.
An unusual noise or vibration
occurs during charging or
operation.
The main unit is overheating.
The main unit has deformed,
or has a burnt smell.
Recycling of Lithium-Ion Battery
This product contains a lithium-ion battery. Since lithium-ion
batteries are recyclable, valuable resources, we strongly
encourage customers to recycle. Please dispose of the device
according to the applicable municipal regulations.
Do not disassemble the battery when disposing of it.
Do not disposed of the device in regular household waste.
Improperly disposed of lithium-ion batteries will break in the
garbage truck, and can short-circuit, overheat and catch
fire.
How to Remove Lithium-ion Battery Trade name Low-Frequency Electronic Pulse Massager P01
Classification Machinery and equipment 78: Electronic
Therapeutic Device for Home Use
Generic name Low-Frequency Electronic Pulse Massager for
Home Use (Code: 70986000)
Medical device type Controlled medical device
Medical device
certification No. 228ADBZX00037000
Power supply voltage DC 5.0 V ± 5% (lithium-ion battery)
Internal battery 40 mAh *1 *2
Amount of charge cyclesApproximately 500 times *1
Charge time Approximately 3.5 hours *3
Operation time Approximately 150 minutes (when fully charged) *4
Maximum output currentApproximately 10 mA or less
Rated output voltage Approximately 32 V
Fundamental frequency Approximately 2 - 550 Hz
Output pulse width Approximately 200 μS
Power consumption Approximately 0.2 W
Timer Approximately 15 minutes
Main unit dimensions Approximately 44 mm × D 11 mm
Cable length Approximately 200 mm
Main unit weight Approximately 13 g
Operating temperature
& humidity range 0 °C - 40 °C; 20 - 85 % RH
Storage temperature
& humidity range - 10 °C - 60 °C; 20 - 85 % RH
Marketing
authorization holder
ELECOM Healthcare Co., Ltd.
8F L. A. Tower, 4-1-1 Fushimi-machi, Chuo-ku, Osaka, Japan
Manufacturer ZHANGZHOU EASEPAL INDUSTRIAL CORPORATION
Country of origin China
(Recommended maintenance interval: once per 30 times of use)
Pull the tab on the gel pad, and remove it from the protective film.
Apply the gel pad to a treatment area.
Make sure the gel pad is firmly stuck to the skin.
Note: If the gel pad separates from the skin, the main unit will
automatically power off.
Note: For the second or subsequent use of the device, remove the
gel pad from the storage sheet.
Turn ON the device.
Select a mode.
Adjust the intensity level.
Turn OFF the device.
Press and hold the Power button for about two seconds. You will hear
the sound “peep,” the device will be powered on and begin treatment.
The LED indicator lights up green.
Store the device.
After about 15 minutes of treatment, you will hear the sound
“peep,” and the device will automatically power off.
Note: To turn off the device during treatment, press and hold [+]
(Strong) button or [-] (Weak) button for about two seconds.
Note: If the gel pad separates from the skin, or the main unit is
removed from the gel pad, the device automatically powers off.
We recommend Deep Shiatsu mode for areas where pain such as
neuralgia is felt.
Shoulder -trapezius muscles-
Upper arm -brachial muscle- Arm -flexor muscles of forearm-
Upper & lower back -erector spinae muscles-
Lower back -psoas major muscles- Hips -gluteus maximus muscles-
Thighs -hamstring muscles- Calf -triceps surae muscles-
Place on stiff muscles outside
of the spine.
Place on the top of the
front groin.
Place on stiff muscles or pain.
Note: When removing a Wide
Pad, pull both of the
tabs to remove the pad.
Do NOT disassemble other than to dispose of the product.
Press the Power button during treatment to select a mode.
Note: When turned on, the device always begins in Automatic mode.
When the Power button is pressed, you will hear the sound
“pip,” and the modes change in the sequence shown below:
Select one of 10 intensity levels, as you prefer.
Note: When the device is turned on, or when modes are changed,
the intensity is set at level 1.
When [+] (Strong) button is pressed, you will hear the sound
“pip,” and the intensity increases by one level.
When [-] (Weak) button is pressed, you will hear the sound
“pip-pip,” and the intensity decreases by one level.
When [+] (Strong) button is pressed at level 10, or when [-]
(Weak) button is pressed at level 1, you will hear the sound
"pip-pip-pip," and the intensity level does not change.
Remove the gel pad from the skin.
Pull the tab to remove the gel
pad; do not touch the adhesive
surface of the gel pad.
Attach it to the storage sheet; do not disconnect the main unit and
the gel pad.
Note: When using a pair, attach them to both sides of the storage sheet.
Keep in the supplied storage bag.
Clean gently with your fingertips for a few seconds under slowly running water.
Note: Do not pour on too much water. Otherwise, poor adhesion or
deterioration of the adhesive surface may be caused.
Pull the tab and drain the water off, and let the pad dry naturally.
Note: If not dried thoroughly, adhesion decreases.
Note: Do not wipe the adhesive surface with a tissue or cloth.
Note: Avoid direct sunlight.
Store the product in an environment with the following conditions:
Storage temperature: - 10°C - 60°C
Storage humidity: 20 - 85% RH
Precautions for Cleaning and Storage
Do not use liquids such as benzine or thinner to clean
the product.
Do not store in the following areas:
– Under direct sunlight;
– In high temperature or high humidity areas,
near water, or in dusty areas;
– On a vibrating surface;
– Where chemical agents are stored, or a corrosive gas is produced.
Keep out of the reach of babies and infants.
If not using for a long period of time, store the product fully charged, and
try to keep at room temperature (10°C - 30°C).
Charge the battery at least once every three months. If the device is fully
discharged, it cannot be recharged.
Stick a flathead screwdriver into the
gap just under the Power button on the
main unit.
Remove the screws that hold the
circuit board.
Remove the battery.
Cut the wires of the battery from the
back of the circuit board using
Diagonal pliers, from the black wire on
the negative.
Benzine
Thinner
Tab
Storage sheet
Battery
Gap
Nail polish remover
Alcohol
Front groin area
Problem
The device does not turn on. The battery is not charged enough, or is dead. Turn off and charge the device.P.11
The battery is being charged.
After finishing charging the battery, disconnect the dedicated USB cable, and use the device.

P.11
The adhesive surface of the gel pad peels or moves.
The adhesive surface of the gel pad is moist with too much sweat or water.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The battery runs out very quickly.
The device turns off while in use.
The battery is not charged enough, or is dead. Turn off and charge the device. P.11
The main unit and the gel pad are not connected properly. Turn off the device, and reconnect the main unit and the gel pad.P.12 · P.13·
The gel pad is not securely attached to the skin. Turn off the device, and attach the gel pad firmly to the skin.P.14
The battery cannot be charged. The battery has fully discharged after being stored
for a long time.
Unusable. Make sure you charge the battery once every three months to avoid it becoming
fully discharged.P. 21, P.22
Cause Solution
The gel pad is not sticking to
the skin.
The transparent protective film has not been removed
from the adhesive surface of the gel pad.
Remove the protective film from the adhesive surface of the gel pad.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
Used immediately after washed with water. Drain water off adequately, and let the adhesive surface dry naturally.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
The skin turns red/
becomes irritated.
Treatment time is too long.
Use the device up to 15 minutes on one treatment area, and remove the gel pad from the skin after treatment.

P.18
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin.P.14
The adhesive surface of the gel pad is dirty or has dried out.
Clean gently with your fingertips for a few seconds under slowly running water.P.19
The adhesive surface of the gel pad has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
Cannot feel any stimulation/
stimulation is weak.
The gel pad is not firmly attached to the skin. Attach the gel pad firmly to the skin. P.14
The gel pad is placed on another pad. Place the pad apart from other pads.P.14
The adhesive surface of the gel pad is dirty. Clean gently with your fingertips for a few seconds under slowly running water.P.19
The gel pad is not connected correctly. Connect properly until a “click” is heard.P.12
The intensity level is low. Adjust the intensity level.P.17
The battery is not charged enough, or is running out. Charge the battery. P.11
The adhesive surface of the gel pad is dirty, or has deteriorated.
The gel pad is a consumable. When the adhesive surface has deteriorated, stop using and purchase optional pads.

P. 9
In no event will ELECOM Co., Ltd be liable for any lost profits or special,
consequential, indirect, punitive damages arising out of the use of this product.
ELECOM Co., Ltd will have no liability for any loss of data, damages, or any other
problems that may occur to any devices connected to this product.
