Electrolux Professional TD6-6LAC User manual

Installation manual
Tumble dryer
TD6–6LAC
Type N1130..
Original instructions
438917530/GB, IE
2024.01.11

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................6
1.2 Commercial use only..................................................................................................................6
1.3 Copyright ..................................................................................................................................6
1.4 Ergonomics certification .............................................................................................................6
1.5 Symbols....................................................................................................................................7
2 Warranty terms and exclusions.............................................................................................................8
3 Technical data.....................................................................................................................................9

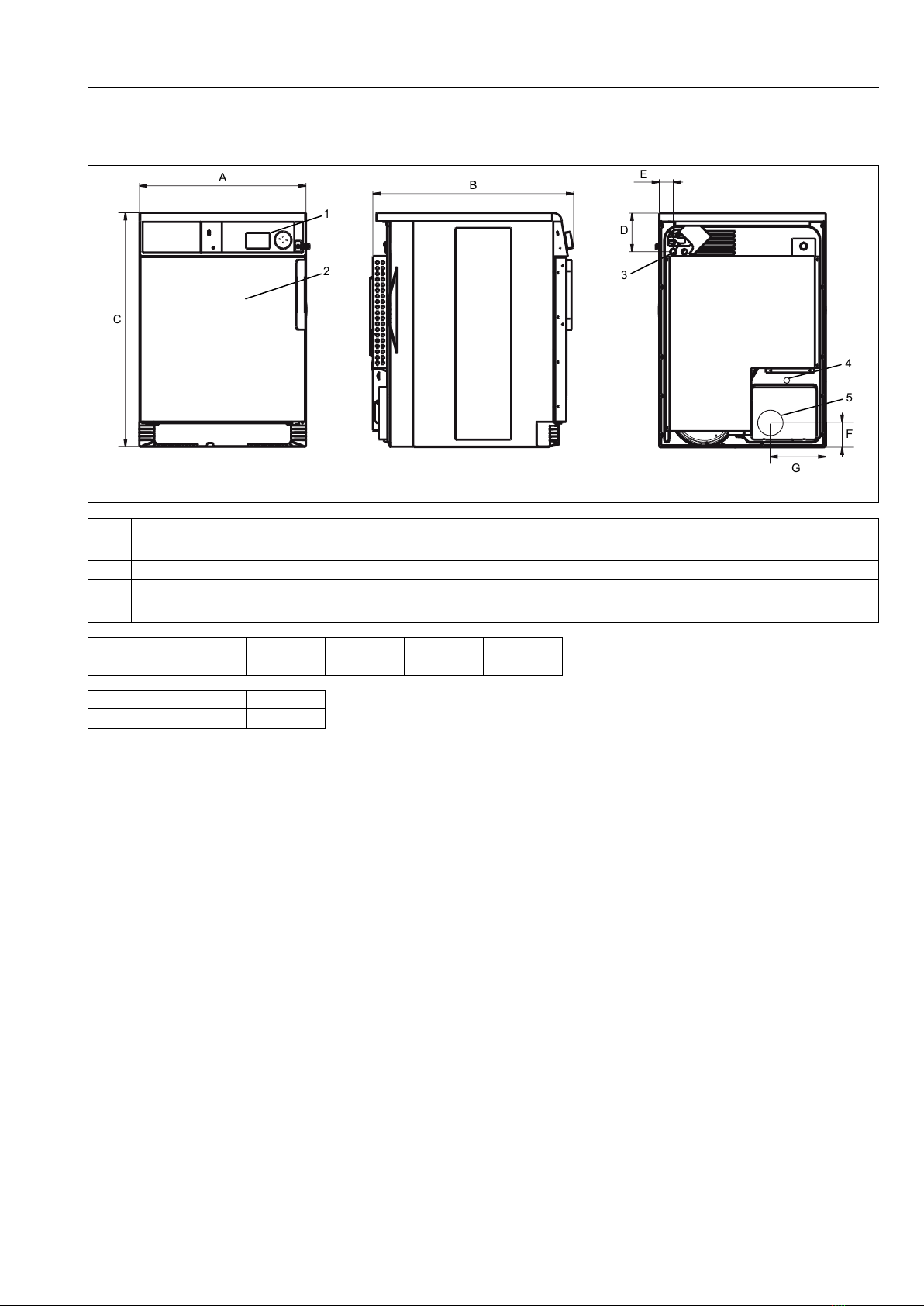

3.1 Drawing ....................................................................................................................................9
3.2 Technical data .........................................................................................................................10
3.3 Connections ............................................................................................................................10
4 Setup ............................................................................................................................................... 11
4.1 Unpacking............................................................................................................................... 11
4.2 Recycling instruction for packaging ...........................................................................................12
4.3 Siting ......................................................................................................................................13
4.4 Mechanical installation .............................................................................................................13
4.5 Stacking frame ........................................................................................................................14
5 Evacuation system ............................................................................................................................15

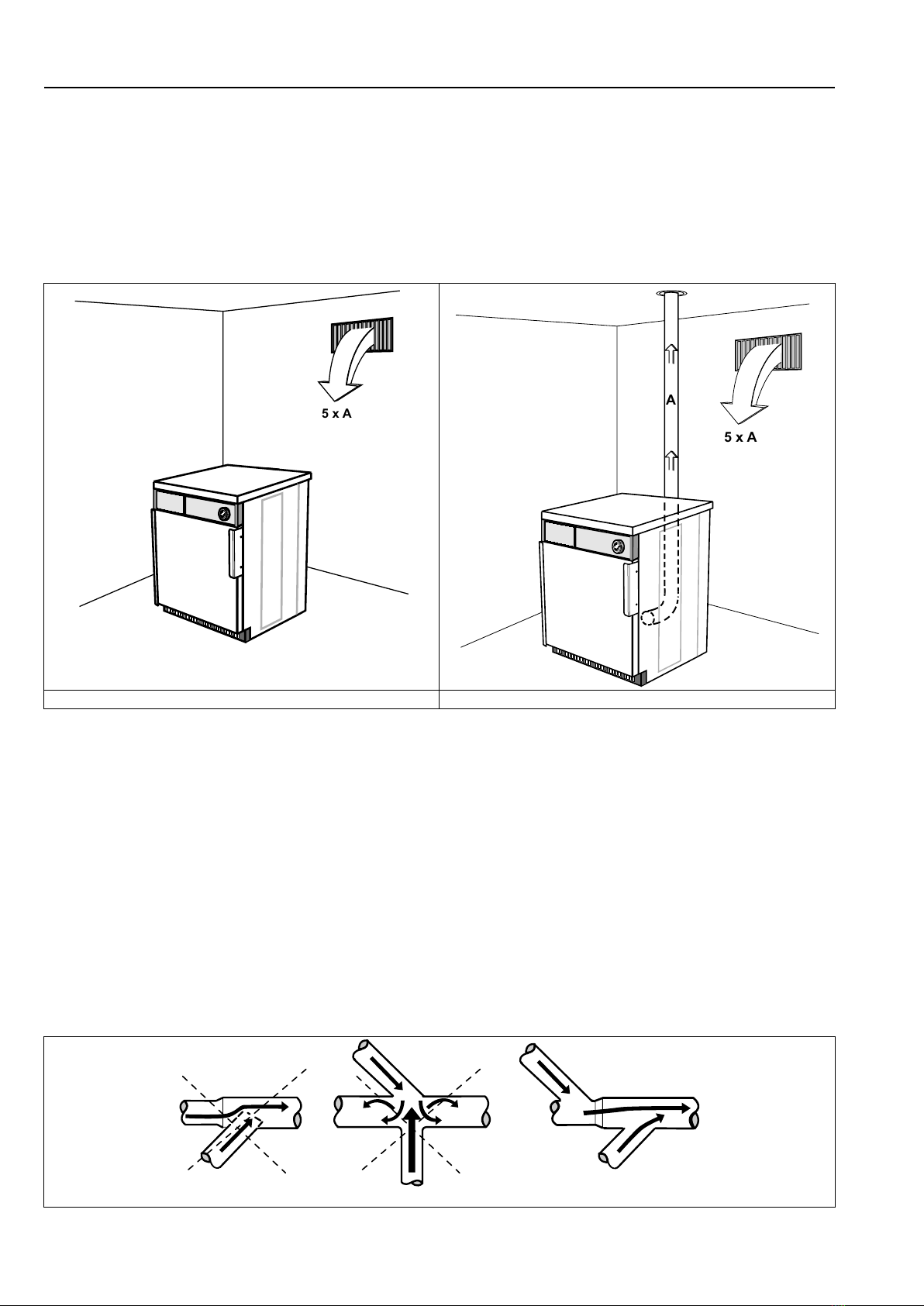

5.1 Air principle .............................................................................................................................15
5.2 Fresh air..................................................................................................................................16
5.2.1 Exhaust duct..................................................................................................................16

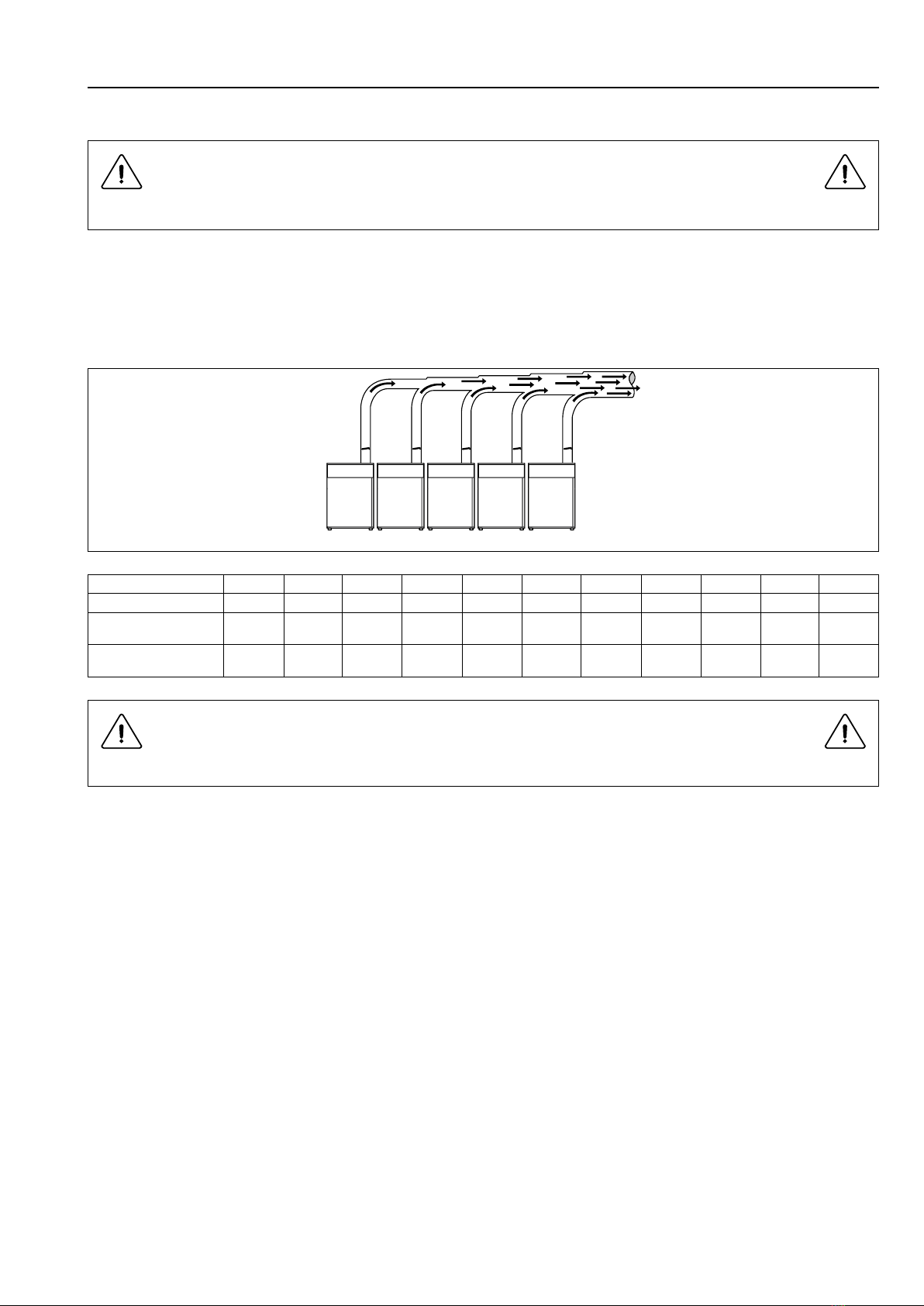

5.2.2 Shared exhaust duct.......................................................................................................17
5.2.3 Exhaust dimensioning.....................................................................................................17
6 Electrical connection..........................................................................................................................18
6.1 Electrical installation ................................................................................................................18
6.2 Single-phase connection ..........................................................................................................19
6.3 Three-phase connection...........................................................................................................20

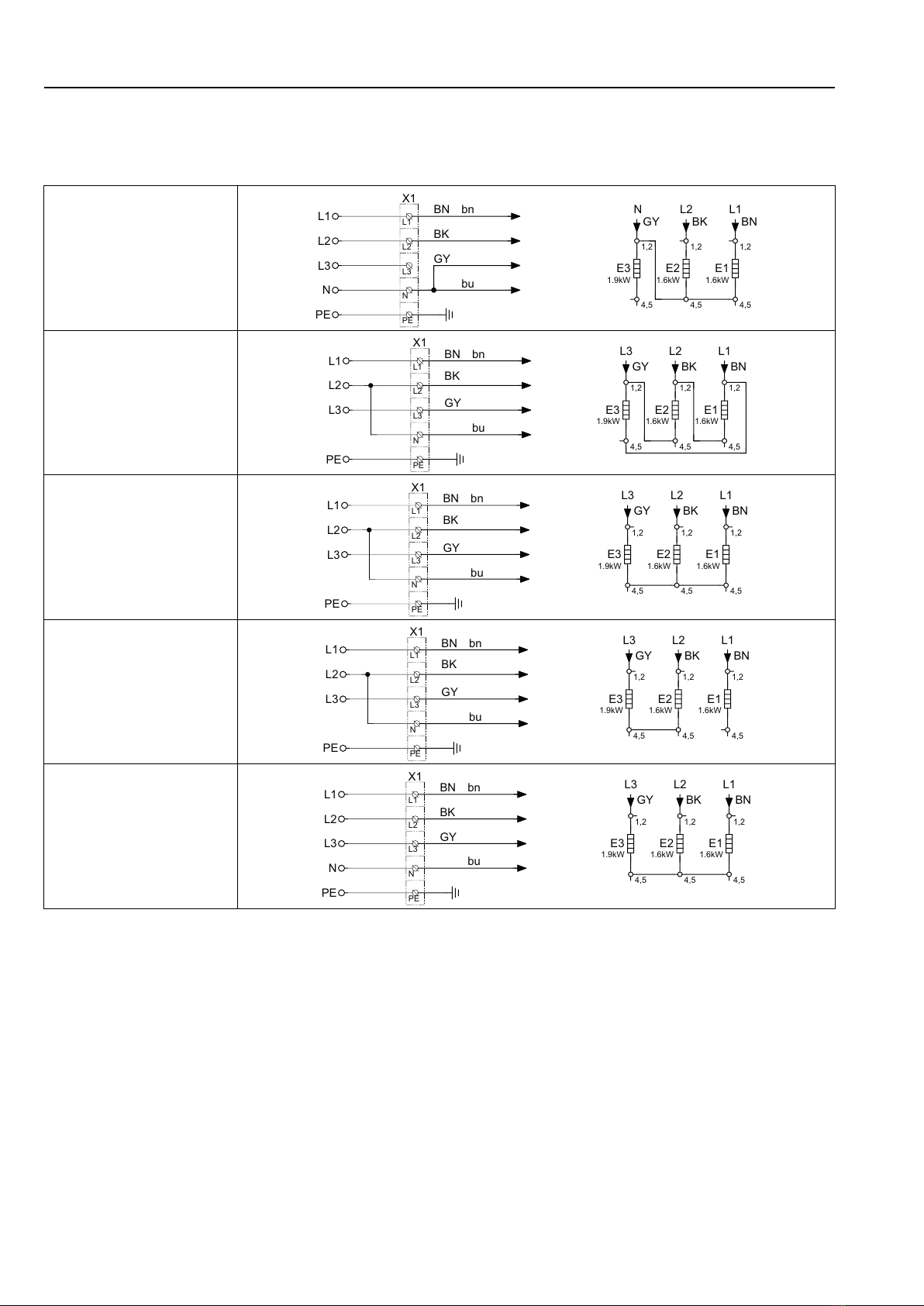

6.4 Electrical connections ..............................................................................................................21
7 Reversing the door ............................................................................................................................22
8 At first power up ................................................................................................................................24
8.1 Select language.......................................................................................................................24
8.2 Set time and date.....................................................................................................................24
9 Function check..................................................................................................................................25
10 Disposal information..........................................................................................................................26
10.1 Disposal of appliance at end of life ............................................................................................26
10.2 Disposal of packing..................................................................................................................26
The manufacturer reserves the right to make changes to design and component specifications.

Installation manual 5
1 Safety Precautions
• Servicing shall be carried out only by authorized personnel.
• Only authorized spare parts, accessories and consumables shall be used.
• The machine is not to be used if industrial chemicals have been used for cleaning.
• Do not dry unwashed items in the machine.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, pet-
rol, kerosene, spot removers, turpentine, waxes and wax removers should be washed
in hot water with an extra amount of detergent before being dried in the machine.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber
backed articles and clothes or pillows fitted with foam rubber pads should not be dried
in the machine.
• Fabric softeners or similar products should be used as specified by the fabric softener
instructions.
• The final part of a drying cycle occurs without heat (cool down cycle) to ensure that the
items are left at a temperature that ensures that the items will not be damaged.
• Remove all objects from pockets such as lighters and matches.
• WARNING. Never stop the machine before the end of the drying cycle unless all items
are quickly removed and spread out so that the heat is dissipated.
• Adequate ventilation has to be provided to avoid the back flow of gases into the room
for appliances burning other fuels, including open fires.
• Exhaust air must not be discharged into a flue which is used for exhausting fumes from
appliances burning gas or other fuels.
• The machine must not be installed behind a lockable door, a sliding door or a door with
a hinge on the opposite side to that of the machine in such a way that a full opening of
the machine is restricted.
• If the machine has a lint trap this has to be cleaned frequently.
• The lint must not be accumulated around the machine.
• DO NOT MODIFY THIS APPLIANCE.
• When performing service or replacing parts, the power must be disconnected.
• When the power is disconnected, the operator must see that the machine is discon-
nected (that the plug is removed and remains removed) from any point to which he has
access. If this is not possible, due to the construction or installation of the machine, a
disconnection with a locking system in the isolated position shall be provided.
• In accordance with the wiring rules: mount a multi-pole switch prior to the machine to
facilitate installation and service operations.
• WARNING: The appliance must not be supplied through an external switching device,
such as a timer, or connected to a circuit that is regularly switched on and off by a utility.
• If different rated voltages or different rated frequencies (separated by a /) are stated at
the machine data plate, instructions for adjusting the appliance for operation at the re-
quired rated voltage or rated frequency are stated in the installation manual.
• Stationary appliances not fitted with means for disconnection from the supply mains
having a contact separation in all poles that provide full disconnection under overvolt-
age category III, means for disconnection must be incorporated in the fixed wiring in
accordance with the wiring rules.
• The openings in the base, shall not be obstructed by a carpet.

6Installation manual
• Oil-affected items can ignite spontaneously, especially when exposed to heat sources
such as in a tumble dryer. The items become warm, causing an oxidation reaction in
the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot
enough to catch fire. Piling, stacking or storing oil-affected items can prevent heat from
escaping and so create a fire hazard.
• If it is unavoidable that fabrics that contain vegetable or cooking oil or have been conta-
minated by hair care products be placed in a tumble dryer they should first be washed
in hot water with extra detergent – this will reduce, but not eliminate, the hazard.
• Maximum mass of dry cloth: 6 kg.
• A-weighted emission sound pressure level at working stations: 70 dB(A).
• Additional requirements for the following countries; AT, BE, BG, HR, CY, CZ, DK, EE,
FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH,
TR, UK:
– The appliance can be used in public areas.
– This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be made by chil-
dren without supervision.
• Additional requirements for other countries:
– This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, un-
less they have been given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
1.1 General safety information
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Commercial use only
The machine/machines covered by this manual is/are made for commercial and industrial use only.
1.3 Copyright
This manual is intended solely for consultation by the operator and can only be given to third parties with the permis-
sion of Electrolux Professional AB company.
1.4 Ergonomics certification
The human body is designed for movement and activity but physical stress injuries as a result of static and repetitive
movements or unfavorable working postures may occur.
The ergonomic features of your product, the ones which may influence your physical and cognitive interaction with it,
have been assessed and certified.
A product which exhibits ergonomic features, in fact, shall fulfil specific ergonomic requirements, belonging to three
different areas: Polytechnic, Biomedical and Psychosocial (usability and satisfaction).
For each of these areas, specific tests with real users have been performed. The product was therefore compliant
with the ergonomic acceptability criteria requested by the standards.

Installation manual 7
In case several machines are managed by the same operator the repetitive movements will increase and as a conse-
quence of this the related biomechanical risk will increase exponentially.
The possible postural risks are the interaction with the door handle in case the machine is placed directly on the floor
without a base and with the door handle and the user interface, display and knob, in case the machine is placed on
top of a washing machine.
Follow the below recommendations to avoid, as much as possible, operators acquiring bodily injury.
• Place the machine on a base instead of directly on the floor so that the operator does not need to bend his/her
back unnecessarily when loading and unloading.
Minimum suggested height of bases is 300 mm.
• Make sure there are suitable trolleys or baskets for loading, unloading and transportation.
• Organize job rotation in the working place in the case several machines are managed by the same operator.
1.5 Symbols
Caution
Caution, hot surface
Caution, high voltage
Warning, risk of fire / flammable material
Danger, crush hazard
Read the instructions before using the machine

8Installation manual
2 Warranty terms and exclusions
If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and sub-
ject to the product being installed and used for the purposes as designed, and as described within the appropriate
equipment documentation.
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance
in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec-
tronic format.
Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling
agents to obtain optimal results and maintain product efficiency over time.
The Electrolux Professional warranty does not cover:
• service trips cost to deliver and pick up the product;
• installation;
• training on how to use/operate;
• replacement (and/or supply) of wear and tear parts unless resulting from defects in materials or workmanship re-
ported within one (1) week from the failure;
• correction of external wiring;
• correction of unauthorized repairs as well as any damages, failures and inefficiencies caused by and/or resulting
from;
– insufficient and/or abnormal capacity of the electrical systems (current/voltage/frequency, including spikes and/
or outages);
– inadequate or interrupted water supply, steam, air, gas (including impurities and/or other that does not comply
with the technical requirements for each appliance);
– plumbing parts, components or consumable cleaning products that are not approved by the manufacturer;
– customer’s negligence, misuse, abuse and/or non-compliance with the use and care instructions detailed within
the appropriate equipment documentation;
– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried out
by third parties not authorized third parties) and modification of safety systems;
– Use of non-original components (e.g.: consumables, wear and tear, or spare parts);
– environment conditions provoking thermal (e.g. overheating/freezing) or chemical (e.g. corrosion/oxidation)
stress;
– foreign objects placed in- or connected to- the product;
– accidents or force majeure;
– transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of
delivery unless otherwise agreed;
• product with original serial numbers that have been removed, altered or cannot be readily determined;
• replacement of light bulbs, filters or any consumable parts;
• any accessories and software not approved or specified by Electrolux Professional.
Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of
cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.
Check on Electrolux Professional website the list of authorized customer care.

Installation manual 9
3 Technical data
3.1 Drawing
C
23
4
5
F
G
E
D
A
1
B
fig.W00648D
1 Operating panel
2 Door opening, ⌀370 mm
3 Electrical connection
4 Condense connection (only for condense machines)
5Exhaust connection (only for exhaust machines)
ABCDE
mm 595 715 840 140 50
F G
mm 90 200

10 Installation manual
3.2 Technical data
Exhaust Condense
Weight, net kg 58 57
Drum volume litres 130 130
Drum diameter mm 575 575
Drum depth mm 500 500
Drum speed rpm 53 53
G-factor, max. 0.9 0.9
Rated capacity, filling factor 1:22 (Max. load) kg 6 6
Heating: Electricity kW 5.1 3.0
kW 3.2
A-weighted emission sound pressure level at working stations dB(A) 70 70
Heat emission of installed power, max % 15 15
3.3 Connections
Exhaust Condense
Air outlet ⌀mm 100 -
Condensate outlet -1/2”

Installation manual 11
4 Setup
4.1 Unpacking
Remove the machine from the pallet.
Note!
When moving the machine, handle it with care. The drum has no transport clamps.
Place the machine on its final position.

12 Installation manual
4.2 Recycling instruction for packaging
4
3
1
2
5
6
fig.X02404A
Fig. Description Code Type
1 Wrapping film LDPE 4 Plastics
2 Corner protection PS 6 Plastics
3 Cardboard packaging PAP 20 Paper
4 Pallet FOR 50 Wood
5 Plastic bag PET 1 Plastics
6 Cable Tie
(Only for Marine)
Nylon

Installation manual 13
4.3 Siting
The machine should be positioned so that there is plenty of room for working, both for the user and service personnel.
The figure shows minimum distance to a wall and/or other machines.
A A
B
fig.X00959
A 50 mm
B 500 mm
Note!
The machine should be positioned so that there will be enough space for working, both for the user and
service personnel.
Respecting the given recommendations will provide easy access for maintenance and service operations.
In case of space limitations, it is possible to install machines without respecting to the given recommendations. If so,
keep in mind that it might be necessary to disconnect and move other machines to be able to reach and perform
service on affected machine.
4.4 Mechanical installation
Level the machine with the feet of the machine. The maximum height adjustment of the feet is 14 mm.
fig.W00177

14 Installation manual
4.5 Stacking frame
The machine can be installed on top of a another 130 litre tumble dryer or a 53 litre washer extractor.
Make sure that the machine that shall be at the bottom is in level.
Also make sure the top panel is clean before starting the installation.
Place the stacking frame on top of the machine that shall be at the bottom and fasten the bracket (A) on the stacking
frame.
A
fig.W00188
Before placing the machine on top of the other, screw up the feet as far as possible to prevent them from touching
the other machine.
Place the machine on top of the other. The front of the machines shall be in line.
Fasten the screws (B), this will prevent the machine from tilting.
Note!
Make sure there is holes for the screws (B) to fasten the stacking frame on the machine. If not, drill 3.3 mm
holes on the machine.
B
B
B
fig.W00189A

Installation manual 15
5 Evacuation system
5.1 Air principle
The condensate machine does not have evacuation of air into the open.
The air is circulated in a closed system between the machine and the condensing unit. The water in the garments
condenses in the condensing unit and is led out to the drain. The drain hose shall hang freely with a gentle bend.
fig.W00203A
Exhaust model:
The fan creates low pressure in the machine, drawing air into the drum via the heating unit.
The heated air passes through the garments and the drum holes.
The air then flows out through a lint filter positioned in the door. After this, the air is evacuated through the fan and ex-
haust system.
Note!
It is very important that the machine gets enough fresh air in order to get the best drying result.

16 Installation manual
5.2 Fresh air
For maximum efficiency and the shortest possible drying time, it is important to ensure that fresh air is able to enter
the room from the outside in the same volume as that is blown out of the room.
To avoid draught in the room it is important to place the air inlet behind the machine.
Provisions for adequate air supply: The area of the air inlet opening should be five times the size of the exhaust pipe
area. The area of the inlet opening is the area through which the air can flow without resistance from the grating/slat-
ted cover.
The resistance in the grating/slats on the air inlet cover panel should not exceed 10 Pa (0.1 mbar).
5 x A
A
5 x A
Condense model Exhaust model
Note!
Gratings/slatted covers often block half of the total fresh air vent area. Remember to take this into account.
5.2.1 Exhaust duct
• Only rigid or flexible metal duct should be used for exhausting.
• Plastic ducting is not to be used.
• Recommended material for exhaust is galvanized steel.
• The duct is not to be assembled with screws or other fastening means that extend into the duct and catch lint.
• The exhaust air should not be vented into a wall, a ceiling, or a concealed space of building.
• The exhaust duct must lead clear of the building as condensation may cause frost damage to the building.
• The exhaust duct must lead to the outdoors.
• The exhaust duct must be placed in such a way that it is protected on the outside.
• The exhaust duct must be smooth on the inside (low air resistance).
• The exhaust duct must have gentle bends.

Installation manual 17
5.2.2 Shared exhaust duct
It is recommended that each machine is connected to a separate exhaust duct.
When several machines shall use the same exhaust duct the exhaust duct must increase after each machine. The
recommended diameter increase progression is the one in the table.
If several machines are installed on the same exhaust pipe, it is recommended to adjust the airflow on the machines
when all machines are started and running a program with no heat.
Please consider that unnecessarily large ducts create issues with the draught.
The exhaust duct must have a nonreturn flap after each dryer.
fig.6329
Number of machines 1 2 3 4 5 6 7 8 9 10
Exhaust duct ⌀mm 100 160 200 200 250 250 315 315 315 315
Recommended area
of fresh air intake
m20.04 0.1 0.16 0.16 0.25 0.25 0.39 0.39 0.39 0.39
Minimum area of
fresh air intake
m20.011 0.022 0.033 0.044 0.055 0.066 0.077 0.088 0.099 0.11
The exhaust duct diameter must not be reduced.
5.2.3 Exhaust dimensioning
It is important that the machine has correct air volume compared to each machines power.
If the air flow is smaller or larger this will result in a longer drying period.
If the outlet pipe is long or the ventilation is not properly designed we recommend to clean the outlet pipes periodi-
cally. Usually, longer ducts need more frequent cleaning.
The exhaust pipes shall be short in order for the machine to work in the best way.
All cover panels must be mounted in order for the machine to work in the best way.

18 Installation manual
6 Electrical connection
6.1 Electrical installation
The electrical installation may only be carried out by qualified personnel.
Machines with frequency-controlled motors can be incompatible with certain types of earth leakage circuit break-
er. It is important to know that the machines are designed to provide a high level of personal safety, which is why
items of external equipment such as earth leakage circuit breakers are not necessary but is recommended. If you
still want to connect your machine across an earth leakage circuit breaker, please remember the following:
• contact a skilled, authorised installation company to ensure that the appropriate type of breaker is chosen and
that the dimensioning is correct
• for maximum reliability, connect only one machine per earth leakage circuit breaker
• it is important that the earth wire is properly connected.
In instances where the machine is not equipped with an omni-polar switch, one must be installed beforehand.
In accordance with the wiring rules: mount a multi-pole switch prior to the machine to facilitate installation and service
operations.
The connecting cable shall hang in a gentle curve.

Installation manual 19
6.2 Single-phase connection
Demount the cover panel from the supply unit. Connect the earth and other wires as shown.
Exhaust model
208–240V 1~ 3.2kW
bn
BK
GY
bu
BN
GY BK BN
L1L2
X1
L1
L2
L3
N
PE
E3
1.9kW
E2
1.6kW
E1
1.6kW
1,2 1,2 1,2
4,5 4,54,5
L1
PE
L2
220–240V 1N~ 3.2kW
bn
BK
GY
bu
BN L1N
GY BK BN
X1
L1
L2
L3
N
PE
E3
1.9kW
E2
1.6kW
E1
1.6kW
1,2 1,2
4,54,54,5
1,2
L1
PE
N
220–240V 1N~ 3.5kW
bn
BK
GY
bu
BN L1N
GY BK BN
X1
L1
L2
L3
N
PE
E3
1.9kW
E2
1.6kW
E1
1.6kW
1,2 1,21,2
4,5 4,54,5
L1
PE
N
Condense model
208–240V 1~ 3.0kW
U1 V1 W1
BK
L1 L2L2bn
GY
BU bu
BK GY BU
E1
1000W
E2
2000W
X1
L1
L2
L3
N
PE
L1
PE
L2
220–240V 1N~ 3.0kW
U1 V1 W1
N L1L1
GY BU BK
bn
BK
GY
BU bu
E1
1000W
E2
2000W
X1
L1
L2
L3
N
PE
N
L1
PE
When the installation is completed remount the cover panel and check:
• That the drum is empty.
• That the machine operates by connecting the power to the machine and start a program with heat.

20 Installation manual
6.3 Three-phase connection
Demount the cover panel from the supply unit. Connect the earth and other wires as shown.
Exhaust model
380–415V 3N~ 3.2kW
bn
BK
GY
bu
BN L2N L1
BK BNGY
X1
L1
L2
L3
N
PE
E2
1.6kW
E1
1.6kW
1,21,2
E3
1.9kW
1,2
4,5 4,54,5
N
L1
PE
L2
L3
200–240V 3~ 5.1kW
bn
BK
GY
bu
BN L2L3 L1
BK BNGY
X1
L1
L2
L3
N
PE
E2
1.6kW
E1
1.6kW
1,2
E3
1.9kW
1,2 1,2
4,54,54,5
L1
PE
L2
L3
380–440V 3~ 5.1kW
bn
BK
GY
bu
BN L2L3 L1
BK BNGY
X1
L1
L2
L3
N
PE
E2
1.6kW
E1
1.6kW
1,2
E3
1.9kW
1,2 1,2
4,54,5 4,5
L1
PE
L2
L3
440V 3~ 2.6kW
bn
BK
GY
bu
BN
BK BNGY
L2L3 L1
X1
L1
L2
L3
N
PE
E2
1.6kW
E1
1.6kW
1,2
E3
1.9kW
1,2 1,2
4,5 4,5 4,5
L1
PE
L2
L3
380–415V 3N ~ 5.1kW
bn
BK
GY
bu
BN
BK BNGY
L2L3 L1
X1
L1
L2
L3
N
PE
E2
1.6kW
E1
1.6kW
1,2
E3
1.9kW
1,2 1,2
4,54,5 4,5
N
L1
PE
L2
L3
