EN AIR CONDITIONER USER MANUAL
ESV099C1NA
ESV129C1NA
ESV189C1NA
ESV097C1SA
ESV127C1SA
ESV187C1SA
ESV125C2WA
ESV185C2WA
ESV245C2WA

WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has been
designed with you in mind. So whenever you use it, you can be safe in the knowledge that
you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number
Warning / Caution-Safety information.
General information and tips
Environmental information.
Subject to change without notice.
2 www.electrolux.com
CONTENTS
1. SAFETY INSTRUCTIONS .................................................................................... 3
2. PRODUCT DESCRIPTION................................................................................... 5
3. INDOOR UNIT DISPLAY ...................................................................................... 6
4. REMOTE CONTROLLER..................................................................................... 6
5. REMOTE CONTROLLER DESCRIPTION ............................................................. 8
6. HOW TO USE THE REMOTE CONTROLLER .................................................... 10
7. HOW TO USE THE INDOOR UNIT..................................................................... 14
8. OPERATING TEMPERATURE ............................................................................ 15
9. EMERGENCY OPERATION ............................................................................... 15
10. CLEANING AND MAINTENANCE ...................................................................... 16
11. OPERATION TIPS.............................................................................................. 18
12. TROUBLESHOOTING ....................................................................................... 20
13. CORRECT DISPOSAL OF THIS PRODUCT....................................................... 21

3ENGLISH
1. SAFETY INSTRUCTIONS
Before the installation and use of the
appliance, carefully read the supplied
instructions. The manufacturer is not
responsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance
for future reference.
1.1 Children and vulnerable
people safety
WARNING!
Risk of suffocation, injury or
permanent disability.
• This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by a
person responsible for their safety.
• Children should be supervised to
ensure that they do not play with the
appliance.
1.2 Installation and Use
WARNING!
Risk of suffocation, injury or
permanent disability.
• Contact an authorised installer for
installation of this unit.
• Contact an authorised service
technician for repair or maintenance of
this unit.
• The socket outlet required to supply
power must be connected and
commissioned by a licenced contractor.
• If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualied
persons in order to avoid a hazard.
• Installation work must be performed
in accordance with the national wiring
standards and the electricity suppliers
service rules by authorised personnel
only.
• If the unit is to be moved to another
location or disposed of, only a suitably
qualied person is permitted to
undertake such work.
• If you notice an unusal situation, such
as a burning smell, please switch off
the power to the air conditioner and
contact an Electrolux service agent. If
this abnormal status continues the air
conditioner may be damaged or even
cause electric shock or re.
• Do not operate the air conditioner with
wet hands. This may cause electric
shock.
• Do not damage or cut off the power
cord or other wires. If this occurs,
please have it repaired or replaced by
an accredited technician.
• Do not connect this air conditioner to a
multi outlet power board.
• Please switch off the power supply to
the air conditioner if it is not to be used
for an extended period. Otherwise, it
will accumulate dust and may cause a
re.
• Before cleaning the air conditioner,
please disconnect the power supply
in order to eliminate the possibility of
electric shock.
• The power supply should be matched
with the air conditioner. Air conditioners
provided with a supply cord should
be connected directly to a power
outlet with a suitable safety switch. Air
conditioners that are hard wired must
be connected to a suitable safety circuit
breaker.
• Please ensure that the power supply
to the air conditioner is stable and
meets the requirements set out in the
installation manual.
• Always ensure the product is installed
with appropriate earthing.
• For safety, be sure to turn off the
circuit breaker before performing any
maintenance or cleaning or when the

4 www.electrolux.com
product is not used for an extended
period of time. Accumulated dust may
cause re or electric shock.
• Select the most appropriate
temperature. It can save electricity.
• Do not keep windows and doors open
for a long time during operation. It will
result in insufcient performance.
• Do not block the air inlet or outlet. It will
result in insufcient performance and
cause malfunctions.
• Keep combustible materials away from
the units at least 1meter. It may cause
re.
• Do not step on the top of the outdoor
unit or place heavy things on it. It may
cause damage or injury.
• Do not attempt to repair the air conditioner
by yourself. Incorrect repairs may cause
electric shock or re. Please contact your
local authorised service centre.
• Do not insert your hands or objects into
the air inlet or outlet. It may cause injury.
• Do not expose animals or plants directly
to the airflow.
• Do not use the unit for any other
purpose, such as preserving food or
drying clothes.
• Do not splash water on the air conditioner.
It may cause electric shock or malfunction.

5ENGLISH
345 2 6
11
14
10
13
9
8
12
7
1

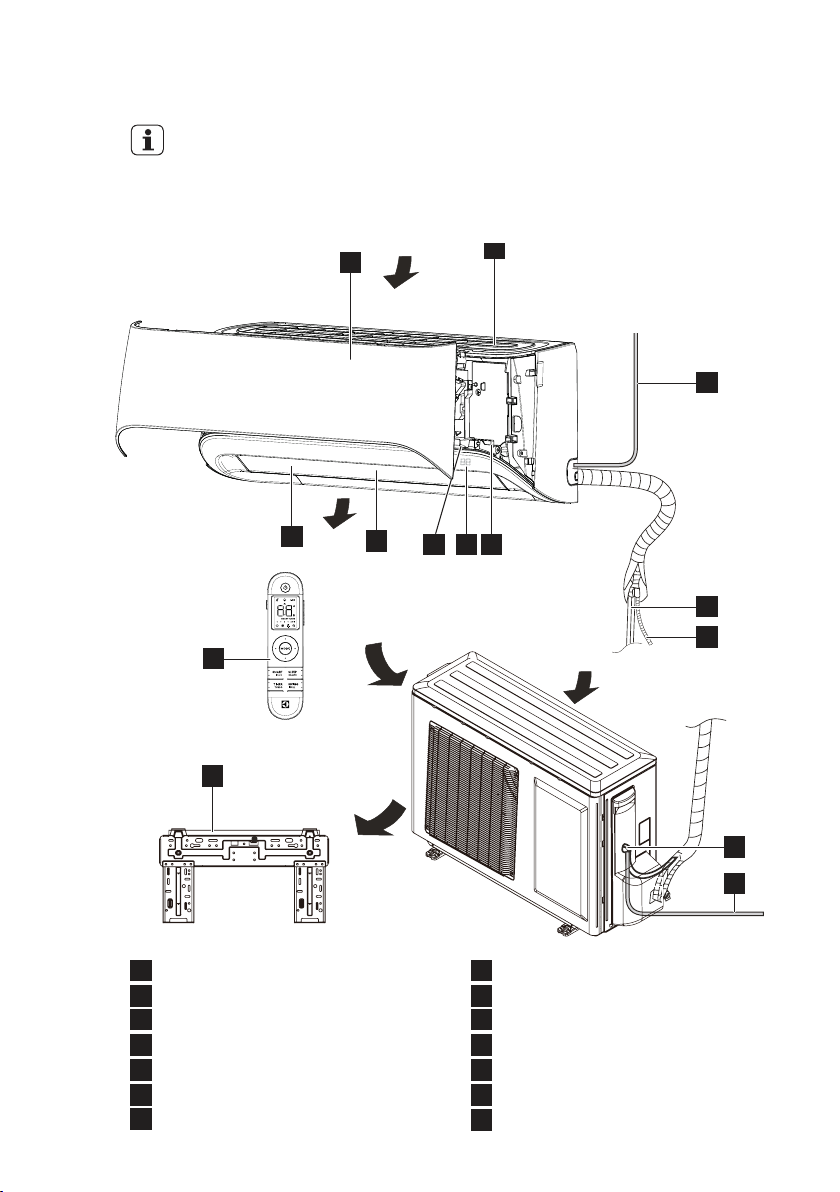

Air inlet
Air Outlet
Air inlet (side)
Air inlet (rear)
Air outlet
1 Front panel
2 Digital display
3 Horizontal air flow louver
4 Vertical air flow louver (inside)
5 Manual control button
6 Ion generator (if applicable)
7 Remote controller
8 Refrigerant pipe
9 Drain hose
10 Power cable (some units)
11 Mounting plate
12 Connecting cable
13 Power cable (some units)
14 Dust lter
All the pictures in this manual are for explanation
purposes only. The actual shape of the indoor unit
you purchased may be slight different on front
panel and display window. The actual shape shall
prevail.
2. PRODUCT DESCRIPTION

6 www.electrolux.com
3. INDOOR UNIT DISPLAY
4. REMOTE CONTROLLER
4.1 How to use the Remote
controller
1. Keep the remote controller where its
signal can reach the receiver of the
indoor unit.
2. When operate the air conditioner, make
sure the remote controller is pointing to
the signal receiver of the indoor unit.
3. When the remote controller sends out
a signal, the symbol “ ” will blink in the
display of the remote controller.
4. The indoor unit will acknowledge the
signal with a beep sound when it
receives the signal from the remote
controller.
5. Please press the button of the remote
controller and resend the signal if you
did not hear a beep sound from the
indoor unit.
• The air conditioner will not
operate if curtains, doors or
other materials block the signals
from the remote controller to the
indoor unit.
• Prevent any liquid from falling
into the remote controller. Do not
expose the remote controller to
direct sunlight or heat.
• If the infrared signal receiver on
the indoor unit is exposed to
direct sunlight, the air conditioner
may not function properly. Use
curtains to prevent the receiver
being exposed to sunlight.
• If other electrical appliances react
to the remote controller, either
move these appliances or consult
your local dealer.
21
1 Wireless indication lamp
• Lights up when Wireless feature is
activated.
2 TEMPERATURE indication lamp
• Displays the setting or room temperature
when the unit is operational.
• Displays the malfunction code when fault
occurs.
• Displays the feature code when some
feature is activated.
**Feature code in indoor unit display
“SC” Displays when unit is in X-fan.
“CL” Displays when unit is in I-Clean.

7ENGLISH
4.2 Location of the Remote Controller
Max. 8m
• Keep the remote controller where its
signal can reach the receiver of the
indoor unit (a maximum distance of
8 m is allowed).
• When the remote controller sends
out a signal, the symbol “ ” will blink
on the display. The indoor unit will
acknowledge the signal with a beep
sound when it receives an effective
signal.
4.3 Battery installation/replacement
• Remove the back cover from the
remote controller, exposing the
battery compartment and insert two
new alkaline dry batteries (2x AAA 1.5
Volt). Make sure that the polarity of (+)
or (-) is installed correctly.
• Slide the battery compartment cover
back on.
• When changing batteries, do
not use old or varied ones,
otherwise, it may cause
problems with the remote
controller.
• If the remote controller is not
used for a long time, remove
the batteries as old batteries
may leak or corrode and
damage the remote controller.
• The battery life during normal
use is about six months.
• If the remote controller does
not operate normally, please
remove and ret the batteries. If
abnormal operation continues,
replace with new batteries.

8 www.electrolux.com
5. REMOTE CONTROLLER DESCRIPTION
4
1
18
19 15
16
22
21
20
6
2
17
5
8
7
23 28
24
13
14
26
25
27
3
9
10
11
12

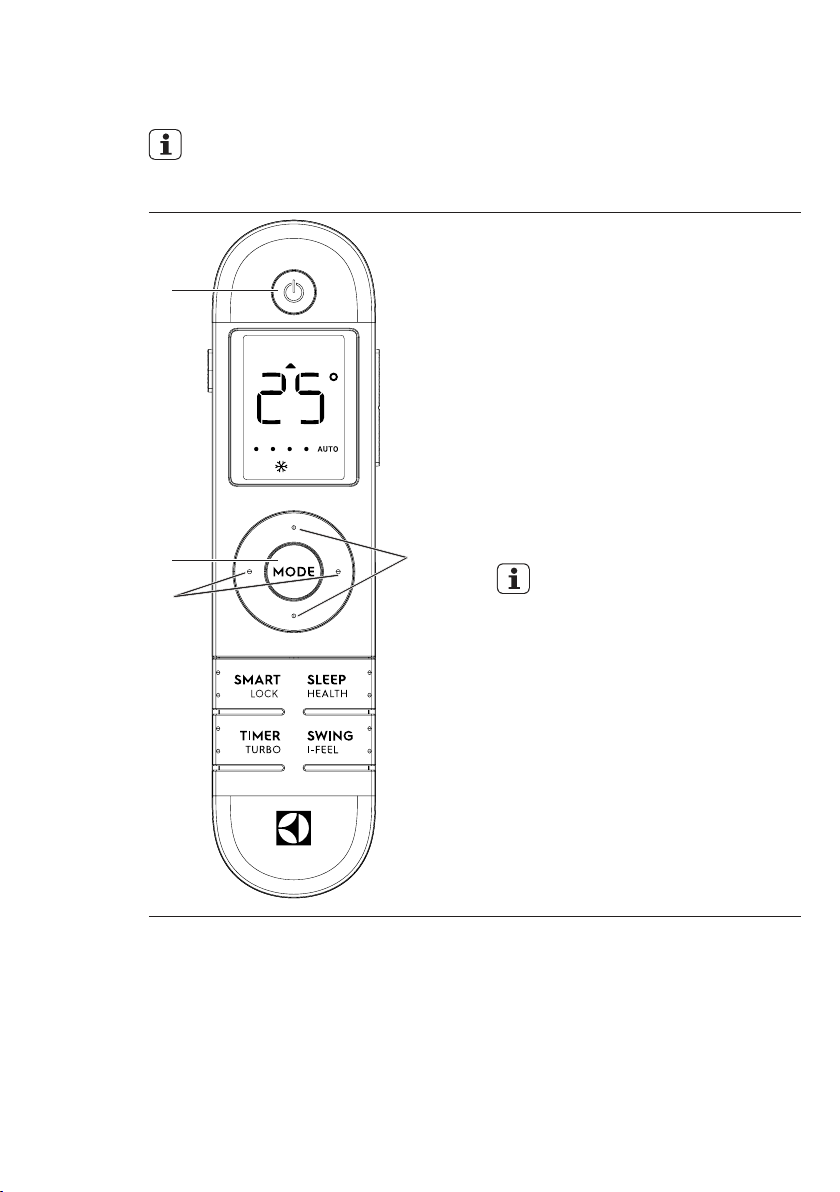

1. ON/OFF BUTTON
Press the button to switch on or off the
unit
2. MODE BUTTON
Press the button to set the operation
mode: AUTO, COOL, DRY, FAN and
HEAT. Default setting: AUTO.
AUTO
AUTO
HEATCOOL FANDRY
• For Cooling only models, there is
no HEAT mode available.
• In AUTO mode, user can still set
desired temperature.
3. UP/DOWN BUTTON
Press the button to increase/decrease the
temperature. Keep the button pressed for
1 second to accelerate the process.
4. LEFT/RIGHT BUTTON
Press the button to set the fan speed: -
AUTO - Quiet “• ” - LOW “ • • ” -
MID “ • • • ” - HIGH “ • • • • ” - TURBO.
Default setting: AUTO. In DRY mode,
fan speed can not be set. The fan speed
under Dry mode will be xed at LOW.
5. SMART BUTTON
Press this button when appliance on and
not under the Smart will turn on the Smart
function, the icon ” ” will display on

9ENGLISH
the RC screen, Swing-up/down will be
off, ionizer and X-FAN will be on, the fan
speed will be auto fan.
6. LOCK BUTTON
Long press the button for 5s will activate
the enable or disable LOCK feature.
Default setting: OFF.
7. TIMER BUTTON
Press the button to set/cancel the timer
setting.
See section “How to use the remote
controller“ for the Timer function
description in details.
8. TURBO BUTTON
Long press the button for 5s to enable or
disable the Turbo function.
9. SLEEP BUTTON
Press the button to enable or disable
Sleep function. If the Sleep function is
enabled, the Sleep symbol ” ” will be
shown. Default setting: OFF.
10. HEALTH BUTTON
Long press the button for 5s to enable
or disable Health function (depending on
models). If the Health function is enabled,
the Health symbol ” ” will be shown.
Default setting: OFF.
11. SWING BUTTON
Press the button to enable or disable the
auto swing feature.
12. I-FEEL BUTTON
Long press the button for 5s to enable/
disable the I-FEEL function. Default set-
ting: OFF.
13. LIGHT BUTTON
Press the button to enable/disable the
LCD display show in indoor unit. Default
setting: ON.
14. MUTE BUTTON
Long press the button for 3s to mute/
unmute the beep sound from the indoor
unit when you send the signal.
15. X-FAN BUTTON
Press the button to enable or disable the
X-FAN feature. Default setting: OFF.
16. I-CLEAN BUTTON
Press the button to enable or disable the
I-CLEAN feature. .
17. HEALTH DISPLAY
Displays when the HEALTH function is
enabled.
18. MUTE DISPLAY
Displays when you mute the indoor unit.
19. TEMP DISPLAY
Displays the temperature or timer setting
shows in the display.
20. SMART DISPLAY
Displays when the SMART function is
enabled.
21. FAN SPEED DISPLAY
Displays the selected fan speed:
AUTO - Quiet “• ” - LOW “ • • ” -
MID “ • • • ” - HIGH “ • • • • ” - TURBO.
22. TIMER DISPLAY
Displays when TIMER feature is activated.
23. COOL DISPLAY
Displays when COOL mode is selected.
24. X-FAN DISPLAY
Displays when X-FAN function is activated.
25. HOUR DISPLAY
Displays when setting the TIMER feature.
26. TURBO DISPLAY
Displays when TURBO fan speed is
selected.
27. SLEEP DISPLAY
Displays when Sleep function is enabled.
28. HEAT DISPLAY
Displays when HEAT mode is selected.
• See section “How to use the remote controller“ for the the functions description
in details.

10 www.electrolux.com
6. HOW TO USE THE REMOTE CONTROLLER
Ensure the unit is plugged in and power is available. The indicators on the display
panel of the indoor unit illuminates.
Basic Operation
A
B
D
C
1. Press the ON/OFF button (A) to start
the air conditioner.
2. Press the MODE button (B) to select
Auto, Cool, Dry, Fan or Heat mode.
3. Press the UP/DOWN button (C)
to set the desired temperature.
The temperature can be set in 1ºC
increments. Keep the button pressed
for 1 second to accelerate the
process.
4. Press the LEFT/RIGHT button (D) to
select the fan speed.
5. Press the SWING button (E) to enable
the swing up/down feature.
6. Press the ON/OFF button (A) to turn
the air conditioner off.
• In the Auto mode, the air
conditioner can logically
choose the mode of Cool,
Fan, and Heat by sensing the
difference between the actual
ambient room temperature
and the set temperature on the
remote controller.
• In the Dry mode, the fan speed
can not be switched.
• In the Fan mode, you can also
adjust the setting temperature.
• Turn off the swing up/down
function, the louvre will stop at
its current position.

11ENGLISH
Timer Operation
When the unit is off, press TIMER button
can set the time point when to turn on
the unit.
When the unit is on, press TIMER button
can set the time point when to turn off
the unit.
Example of Timer setting
1. Press the TIMER button once,
the Timer symbol “ ” and “H“ will
flashing on the display for 5 seconds.
2. In this period, press the UP and
DOWN button to set your desired
time to turn on or off the unit.
3. Press the TIMER button again in 5
seconds, the Timer symbol “ ” and
“H“ will stop flashing, then the Timer
symbol remains on and this function
is activated. The digital display on
your remote controller will then return
to the temperature display.
4. When timer setting nished, press the
TIMER button again, the left time will
display on remote controller screen
for 3 seconds, press the button one
more time within this 3 seconds,
timer setting will be canceled.
• When setting the Timer on or
Timer off functions, the time will
increase in 1 hour increments
with each press up to 24 hours.
The timer will revert to zero
after 24 hours.
A

12 www.electrolux.com
Advanced Functions Operations
1. I-Clean function
Press the I-Clean button to activate the
I-Clean feature, “CL“ will show in the
remote controller with flasing in 3 seconds,
your unit will clean itself automatically after
you turned off the indoor unit. Airborne
bacteria can grow in the moisture that
condenses around heat exchanger in
the unit. With regular use, most of this
moisture is evaporated from the unit. You
can use self clean feature as often as you
like.
2. Health function (Optional)
Long press the Health button for 5
seconds to enable or disable the Health
function. When the function is initiated,
the Ionizer/Plasma Dust Collector
(depending on models) is energized and
will help to clean the air. This function is
recommended when the indoor air quality
is in bad condition.
3. Sleep function
When you press the Sleep button,
the economic running function will be
activated, the set temperature will increase
(cooling) or decrease (heating) by 1ºC(2ºF)
per hour over a 2 hour period. The nal
temperature will then be maintained till
further changes made by the user.
The SLEEP function is not available
in AUTO, FAN or DRY mode or
SMART function.
4. I-FEEL function
Long press the I-Feel button for 5
seconds, the I Feel function will be
activated, the remote controller works as a
remote thermostat, providing an accurate
temperature control and maximum
comfort. The remote control sends the
temperature information at its location to
the indoor unit every serveral minutes. The
air conditioner will quit I Feel operation if
no temperature information is received
from the remote control for successive
minutes.
5. Wireless function
Long press the On/Off button for 5
seconds, the unit will enter the wireless
binding status.
• Please refer to the “Quick
Connection Guide” for the
Wireless connection details.
6. Lock function
Long press the Lock button for 5 seconds
to lock or unlock the remote controller.
7. Smart function
Press the Smart button when appliance
on and not under the Smart will turn on
the Smart function. When the function is
initiated, Swing-up/down will be off, ionizer
and X-FAN will be on, the fan speed will
be auto fan. When appliance step into
Smart at rst time, the default setting
temperature will be 24oC, if not the rst
time, new setting temperature will replace
the default 24oC.
When mode button is pressed under
Smart, remote controller will step back
into the mode before Smart.
When press following buttons, remote
controller will quit the Smart and step into
Auto mode with disabling auto fan speed:
Fan speed, HEALTH, X-FAN.
1ºC
1hour
Cooling
Set
Tem.
1hour
1ºC
1ºC
1hour
Heating
Set
Tem.
1hour
1ºC

13ENGLISH
8. X-Fan function
In Cool and Dry mode, press the X-Fan
button (A)to active the X-Fan fuction.
When the function is initiated, after the unit
is turned off the indoor fan will continue
operation for 2 minutes to dry the indoor
unit prevent from bacteria and mildew
growing.

14 www.electrolux.com
7. HOW TO USE THE INDOOR UNIT
WARNING!
• Do not operate the air
conditioner for long periods
with the air flow direction set
downward in cool or dry mode.
Otherwise, condensation
may occur on the surface of
the horizontal louver causing
moisture to drop on to the floor
or on furnishings.
• When the air conditioner is
started immediately after it
was stopped, the horizontal
louver might not move for
approximately 10 seconds.
Louver in closed position.
1. Adjust the air flow direction properly
otherwise it might cause discomfort
or cause uneven room temperatures.
2. Adjust the horizontal louver using the
remote controller.
3. Adjust the vertical louver manually.
To set the vertical air flow (Up -
Down) direction
Perform this function while the unit is
in operation. Use the remote controller
to adjust the air flow direction. The
horizontal louver can swing up and
down automatically.
To set the horizontal air flow
direction (Left - Right)
Perform this function while the unit is
in operation. Move the vertical louver
manually to adjust the air flow in the
direction you prefer.
IMPORTANT!
Do not put your ngers into the panel
of blower and suction side. The high-
speed fan inside may cause danger.
• Open angle of the horizontal louver
should not be set too small, as
COOLING or HEATING performance
may be impaired due to too restricted
air flow area.
• Do not move the horizontal louver
manually, otherwise the horizontal
louver will be out of sync. Please
cease operating, unplug power for
a few seconds, then restart the air
conditioner.
• Do not operate unit with horizontal
louver in closed position.
Vertical louver
Range
Range

15ENGLISH
8. OPERATING TEMPERATURE
9. EMERGENCY OPERATION
Units are equipped with a switch to run
emergency operation mode. It can be
accessed by opening the front panel.
This switch is used for manual operation
in case the remote controller fails to work
or maintenance necessary.
1. Open and lift the front panel up to
an angle until it remains xed with a
clicking sound.
2. One press of the manual control
switch will lead to the forced AUTO
operation. If press the switch twice
within ve seconds, the unit will
operate under forced COOL operation.
3. Close the panel rmly to its original
position.
• The unit must be turned off
before operating the manual
control button. If the unit is
operational, continue pressing
the manual control button until
the unit is off.
• This switch is used for testing
purposes only. You had better
not choose it.
• To restore the remote controller
operation, use the remote
controller directly.
Manual control button
Operating temperature ranges
Model climate Type Ambient temperature (Cooling)Ambient temperature (Heating)
T1 18°C~43°C -7°C~24°C
Important!
1. Optimum performance will be achieved
within these operating temperatures.
If air conditioner is used outside of
the above conditions, certain safety
protection features might come into
operation and cause the unit to function
abnormally.
2. If the air conditioner runs for a long time
in cooling mode and the humidity is
high, condensed water may drip out of
the unit. Please sets the vertical air flow
louver to its maximum angle (vertically
to the floor), and set HIGH fan mode.

16 www.electrolux.com
10. CLEANING AND MAINTENANCE
10.1 Before Maintenance
Turn the system off before cleaning. To
clean, wipe with a soft, dry cloth. Do not
use bleach or abrasives.
WARNING!
Power supply must be disconnectd
before cleaning the indoor unit.
• A cloth dampened with cold
water may be used on the indoor
unit if it is very dirty. Then wipe it
with a dry cloth.
• Do not use a chemically treated
cloth or duster to clean the unit.
• Do not use benzine, thinner,
polishing powder, or similar
solvents for cleaning. These may
cause the plastic surface to crack
or deform.
• Never use water hotter than
40ºC/104ºF to clean the front
panel, it could cause deformation
and discoloration.
10.2 Cleaning the Unit
Wipe the unit with a soft dry cloth only. If
the unit is very dirty, wipe it with a cloth
soaked in warm water.

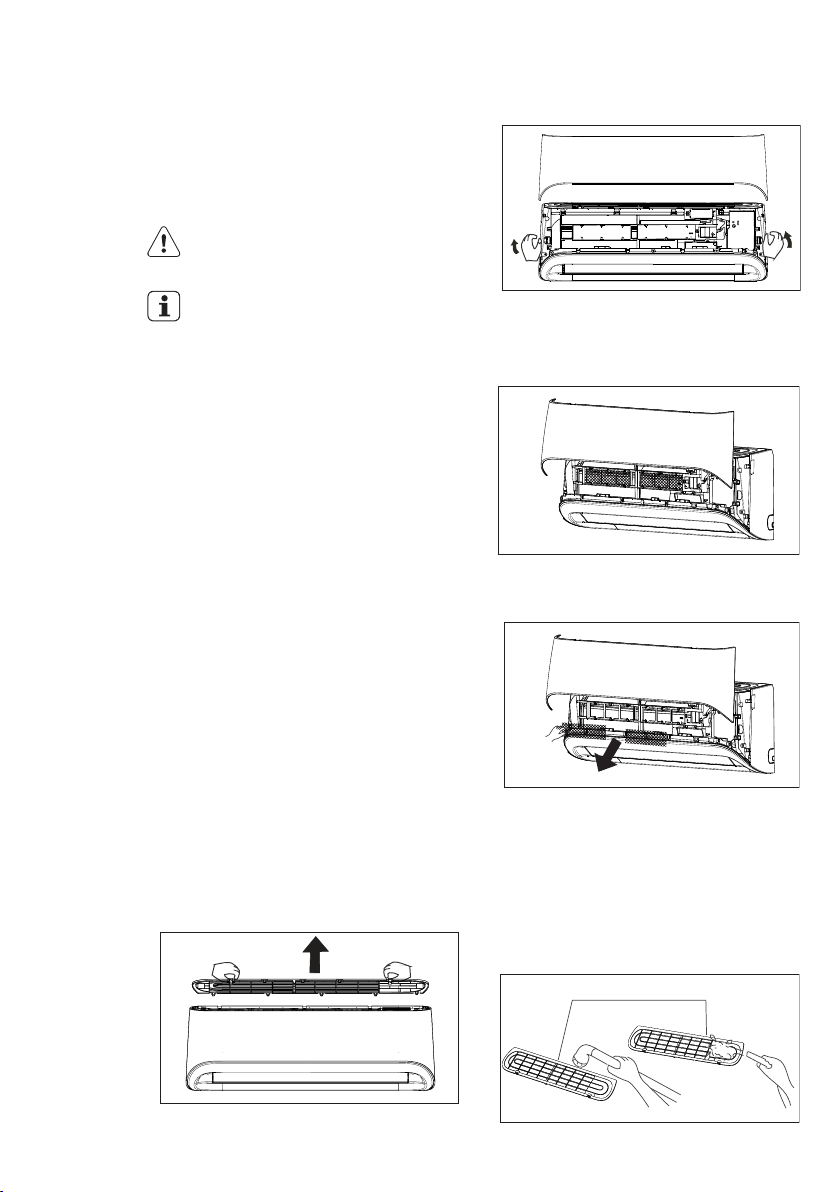

10.3 Cleaning the Filters
A clogged air lter reduces the cooling
efciency of this unit. Please clean the lter
once every 2 weeks.
1. The lter locates on the top of the
indoor unit.
2. Push the hooks and lift up to take the
lter out of the indoor unit.
3. Grasp the front panel nger recess and
take it away.
4. The healthy air freshening lter (if
applicable) are xed on the frame.
• Remove the healthy lter from the
frame of the indoor unit.
• Replace the healthy lter every 6
months.
• Clean with vacuum cleaner if
possible.
Clean the Dust lter with a vacuum
cleaner or water, then dry it up in cool
place.
Dust lter

17ENGLISH

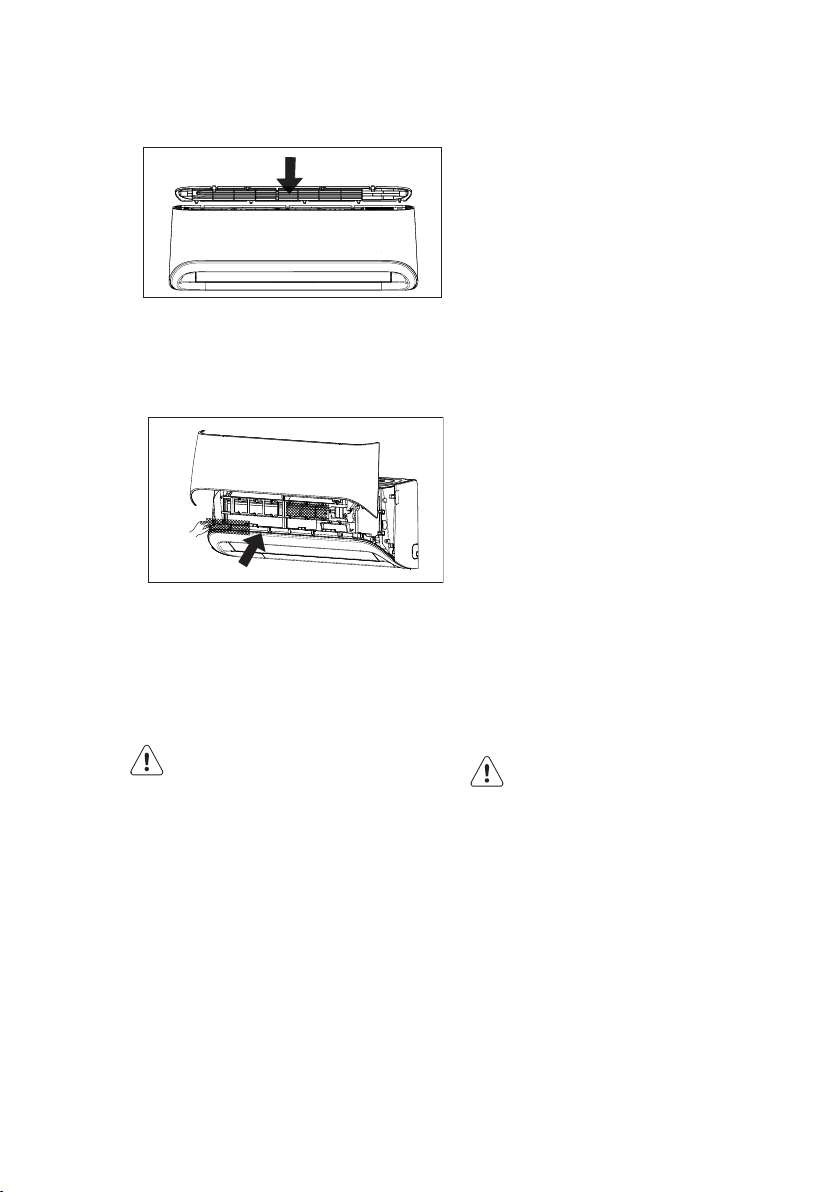

5. Install the dust lter back into position.
6. Insert the healthy air freshening lter
back into the frame, and install the front
panel back into position, taking care
that the left and right edges line up
correctly and place lter into position.
10.4 Cleaning the air outlet and
the panel
1. Use a dry and soft cloth to wipe it.
2. Pure water or mild detergent may be
used if it is very dirty.
WARNING!
• Do not use benzine, thinner,
polishing powder, or similar
solvents for cleaning. These may
cause the surface to crack or
deform.
• To avoid the risk of electrical
shock or re, do not let water fall
into the indoor unit.
• Never wipe the air flow louver
violently.
• An air conditioner without air
lter can not expel the dust out
of the room, which would cause
malfunctions by accumulation.
10.5 Replacement the lters
1. Remove the air lter.
2. Remove the air freshening lter.
3. Install a new air freshening lter.
4. Reinstall the air lter and securely close
the front panel.
10.6 Preparation for extended
non-operation
If you plan to idle the unit for a long time,
perform the following:
1. Clean the indoor unit and lters.
2. Operate the fan for about half a day to
dry the inside of the unit.
3. Stop the air conditioner and disconnect
power.
4. Remove the batteries from the remote
controller. The outdoor unit requires
periodic maintenance and cleaning. Do
not attempt to do this yourself. Contact
your dealer or service provider.
10.7 Pre-season inspection
1. Check that the wiring is not broken off
or disconnected.
2. Clean the indoor unit and lters.
3. Check that the air lter is installed.
4. Check if the air outlet or inlet is blocked
after the air conditioner has not been
used for a long time.
WARNING!
• Do not touch the metal parts of
the unit when removing the lter.
Injuries can occur when handling
sharp metal edges.
• Do not use water to clean inside
the air conditioner. Exposure to
water can destroy the insulation,
leading to possible electric
shock.
• When cleaning the unit, rst
make sure that the power and
circuit breaker are turned off.
• Do not wash air lter with hot
water at more than 40ºC/104ºF.
Shake off moisture completely
and dry it in the shade. Do not
expose it directly to the sun, it
may shrink.

18 www.electrolux.com
The following events may occur during
normal operation.
1. Protection of the air conditioner
Compressor
• The compressor can’t restart for
3-4 minutes after it stops.
2. Anti-cold air (Cooling and heating
models only)
• The unit is designed not to blow cold air
on HEAT mode, when the indoor heat
exchanger is in one of the following
three situations and the set temperature
has not been reached.
A) When heating has just started.
B) Defrosting.
C) Low temperature heating.
• The indoor or outdoor fan stop running
when defrosting (Cooling and heating
models only).
3. Defrosting (Cooling and heating
models only)
• Frost may be generated on the outdoor
unit during heat cycle when outdoor
temperature is low and humidity is high
resulting in lower heating efciency of
the air conditioner.
• During this condition air conditioner
will stop heating operation and start
defrosting automatically.
• The time to defrost may vary from 4 to
10 minutes according to the outdoor
temperature and the amount of frost
built up on the outdoor unit.
4. A white mist coming out from the
indoor unit
• A white mist may generate due to a
large temperature difference between
air inlet and air outlet on COOL mode in
an indoor environment that has a high
relative humidity.
• A white mist may generate due to
moisture generated from defrosting
process when the air conditioner
restarts in HEAT mode operation after
defrosting.
5. Abnormal noise of the air
conditioner
• You may hear a low hissing sound
when the compressor is running or has
just stopped running. It is the sound of
the refrigerant flowing or coming to a
stop.
• You can also hear a low “squeak”
sound when the compressor is running
or has just stopped running. This is
caused by heat expansion and cold
contraction of the plastic parts in the
unit when the temperature is changing.
• A noise may be heard due to louver
restoring to its original position when
power is turned on.
6. Dust is blown out from the indoor
unit
This is a normal condition when the air
conditioner has not been used for a
long time or during rst use of the unit.
7. A peculiar smell comes out from
the indoor unit
This is caused by the indoor unit giving
off smells permeated from building
material, from furniture, or smoke.
8. The air conditioner turns to FAN
only mode from COOL or HEAT
(For cooling and heating models
only) mode
When indoor temperature reaches the
temperature setting on air conditioner,
the compressor will stop automatically,
and the air conditioner turns to FAN
only mode. The compressor will start
again when the indoor temperature
rises on COOL mode or falls on HEAT
mode (For cooling and heating models
only).
9. Insufficient Heat (For cooling and
heating models only)
The air conditioner draws in heat
from the outdoor unit and releases
it via the indoor unit during heating
operation. When the outdoor
temperature falls, heat drawn in by the
11. OPERATION TIPS

19ENGLISH
air conditioner decreases accordingly.
At the same time, heat loading of
the air conditioner increases due to
larger difference between indoor and
outdoor temperature. If a comfortable
temperature can’t be achieved by the
air conditioner, we suggest you use a
supplementary heating device.
10. Auto-restart function
• Power failure during operation will stop
the unit completely.
• For the unit without Auto-restart
feature, when the power restores, the
OPERATION indicator on the indoor unit
will flash for 1 second. To restart the
operation, push the ON/OFF button on
the remote controller. For the unit with
Auto-restart feature, when the power
restores, the unit restarts automatically
with all the previous settings preserved
by the memory function.

20 www.electrolux.com
12. TROUBLESHOOTING
Trouble
OPERATION (RUN) indicator
or other indicators continue
flashing.
The unit may stop operation
or continue to run in a safety
condition(depending on models).
Waiting for about 10 minutes,
the fault may be recovered
automatically, if not, disconnect the
power and then connect it in again.
If the problem still exists, disconnect
the power and contact the nearest
customer service center.
If one of the following code ap-
pears on the display area:
• E(x), P(x), F(x)
• EH(xx), EL(xx), EC(xx)
• PH(xx), PL(xx), PC(xx)
Fuse blows frequently or circuit
breaker trips frequently.
Stop the air conditioner immediately,
disconnect the power and contact
the nearest customer service center.
Other objects or water fall into
the air conditioner.
Terrible odors are smelled or
abnormal sounds are heard.
Malfunctions Cause What should be done?
Unit does not
start
Power cut Wait for power to be restored.
Unit may have become
Unplugged.
Check that plug is securely in wall
receptacle.
Fuse may have blown. Replace the fuse.
Battery in Remote controller
may have been exhausted. Replace the battery.
The time you have set with
timer is incorrect. Wait or cancel timer setting.
Unit not
cooling or
heating
(Cooling/
heating
models only)
room very
well while air
flowing out
from the air
conditioner
Inappropriate temperature
setting.
Set temperature correctly. For
detailed method please refer to
“HOW TO USE THE REMOTE
CONTROLLER” section.
Air lter is blocked. Clean the air lter.
Doors or Windows are open. Close the doors or windows.
Air inlet or outlet of indoor or
outdoor unit has been blocked.
Clear obstructions away rst, then
restart the unit.
Compressor 3 minutes
protection has been activated. Wait
If the trouble has not been corrected, please contact a local dealer or the nearest
customer service center. Be sure to inform them of the detailed malfunctions and unit
model number. Do not attempt to repair the unit yourself. Always consult an authorized
service provider.
