Electrolux EAS(C User manual

INSTRUCTIONS MANUAL
SPLIT TYPE ROOM AIR CONDITIONER
MODELS:
Please read this manual completely before operating your room air conditioner.
110823P
S(351-358)EM_ENGLISH
EAS(C,E)09C2ASK(W,S,M) / EAS(C,E)12C2ASK(W,S,M)
EAS(C,E)18C2ASK(W,S,M) / EAS(C,E)24C2ASK(W,S,M)
EAS(C,E)09P5ASK(W,S,M) / EAS(C,E)12P5ASK(W,S,M)
EAS(C,E)18P5ASK(W,S,M) / EAS(C,E)24P5ASK(W,S,M)

Thank you for choosing Electrolux. This manual contains all of the information
required to guarantee your safety and the appropriate use of your air
conditioner.
Please read all of the instructions before using the air conditioner and keep this
manual for future reference.
We know you will enjoy your new air conditioner and thank you for choosing our
product. We hope you will consider us for future purchase.
The air conditioner that you have bought may be slightly different from the one
illustrated in this manual. Please refer to the information related to the model
you have.
This air conditioner is for domestic use only. It is not reccomended for
commercial or industrial use.
The air conditioner you have may carry a different plug than the one illustrated
in this manual. The plug that comes with the product follows the electrical
specification of the country where it is sold.
The packaging material used is recyclable; we
recommend that you separate plastic, paper and
cardboard and give them to recycling companies.
According to WEEE (Waste of Electrical and
Electronic Equipment) guidelines, waste from
electrical and electronic devices should be
collected separately. If you need to dispose of this
appliance in the future, do NOT throw it away with
the rest of your domestic garbage. Instead, please
take the appliance to the nearest WEEE collection
point, where available.
The air conditioner you purchased has R410a gas
refrigerant a environmental friendly gas which does
not damage the ozone layer.
Environmental Advices
Welcome to the world of
simple handling and no worries.
01 electrolux welcome
Contents
01. Welcome.........................................................................................................01
02. Environmental advices....................................................................................01
03. Contents..........................................................................................................02
04. Safety precautions..........................................................................................04
05. Installation.......................................................................................................08
5.1 Choosing the installation site..............................................................08
5.2 Parts list...............................................................................................10
5.3 Indoor unit installation..........................................................................12
5.4 Outdoor unit installation.......................................................................16
5.5 Refrigerant pipe connection................................................................18
5.6 Electrical work......................................................................................20
5.7 Electrical safety....................................................................................28
5.8 Gas leak check....................................................................................28
5.9 Operation test.......................................................................................29
06. Operation........................................................................................................30
6.1 Preparing the device for operation......................................................30
6.2 Product description.............................................................................31
6.3 Remote control....................................................................................33
- Remote control operation
- Remote control battery
- When should the batteries be replaced
- To replace batteries
- Remote control instructions

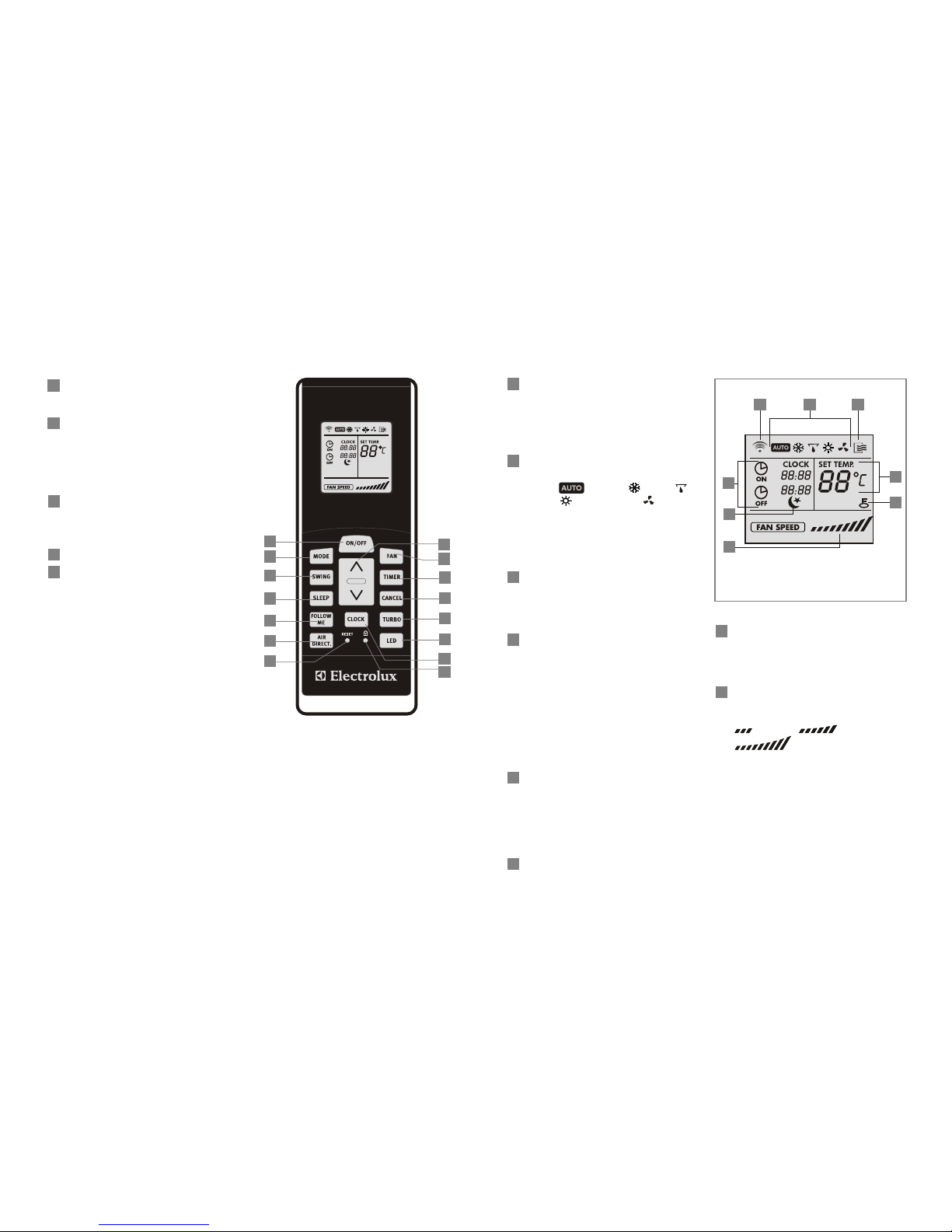

6.4 Remote control description.................................................................35
- On/off
- Mode
- Swing
- Sleep
- Follow me
- Direction
- Restart
- Temperature
- Fan speed
- Timer
- Cancel
- Turbo
- LED
- Clock
- Lock
6.5 LCD display indicators........................................................................38
6.6 Clock adjustment.................................................................................39
contents electrolux 02

6.7 How the air conditioner works.............................................................40
- Automatic operation
- Cool/Heat and Fan only operation
- Dry operation
- Air flow direction adjustment
- Sleep mode
- Timer
- Cancel timer operation
- Optimal operation
6.8 How to use the indoor unit...................................................................44
- Adjusting the air flow direction
- Adjusting the vertical air flow direction (up-down)
- To set the horizontal air flow direction (left-right)
- To automatically swing the air flow direction (up-down)
6.9 Manual operation..................................................................................46
07. Maintenance.........................................................................................47
08. Operation tips.......................................................................................49
09. Solutions for problems.........................................................................51
10. Technical specifications.......................................................................52
03 electrolux contents
To prevent injury to the user or other people and property damage, the following
instructions must be followed.
Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
Safety precautions
1. Connect with the power properly.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
2. Do not modify power cord length
or share the outlet with other
appliances. It may cause electric
shock or fire due to heat
generation.
3. Always ensure effective earthing.
No earthing may cause electric
shock.
4. Disconnect the power if strange
sounds, smell, or smoke comes
from it. It may cause fire and
electric shock.
5. Keep firearms away. It may cause
fire.
6. Do not operate or stop the unit by
switching on or off the power. It
may cause electric shock or fire
due to heat generation.
7. Do not operate with wet hands or
in damp environment. It may cause
electric shock.
8. Do not allow water to run into
electric parts. It may cause failure
of machine or electric shock.

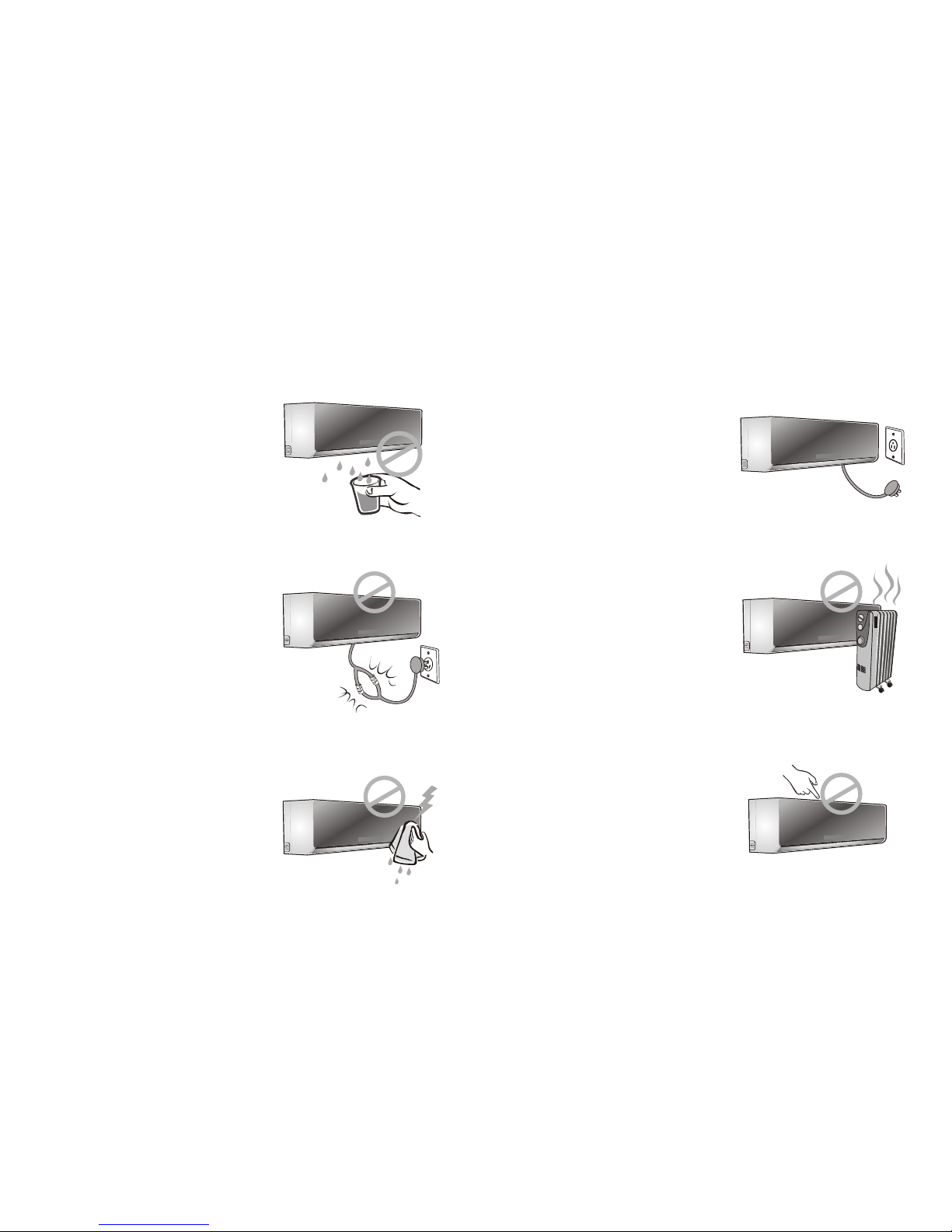

9. Do not drink water drained from air
safety precautions electrolux 04

conditioner. It contains
contaminants and could make you
sick.
10.Do not use the power cord close to
heating appliances. It may cause
fire and electric shock.
11.Do not damage or use an
unspecified power cord. It may
cause electric shock or fire.
12.Do not direct airflow at room
occupants only. This could damage
your health.
13.Always install circuit breaker and a
dedicated power circuit. No
installation may cause fire and
electric shock.
14.Do not open the unit during
operation. It may cause electric
shock.
15.Do not use the power cord near
flammable gas or combustibles,
such as gasoline, benzene, thinner,
etc. It may cause an explosion or
fire.
16.Ventilate room before operating air
conditioner if there is a gas leakage
from another appliance. It may
cause explosion, fire and, burns.
17.Do not disassemble or modify unit.
It may cause failure and electric
shock.
18.When the air filter is to be removed,
do not touch the metal parts of the
unit. It may cause an injury.
19.Do not clean the air conditioner
with water. Water may enter the
unit and degrade the insulation. It
05 electrolux safety precautions
may cause an electric shock.
20.Ventilate the room well when used
together with a stove, etc. An
oxygen shortage may occur.
21.When the unit is to be cleaned,
switch off, and turn off the circuit
breaker. Do not clean unit when
power is on as it may cause fire
and electric shock, it may cause
an injury.
22.Do not put a children, pet or house
plant where it will be exposed to
direct air flow. This could injure the
pet or plant.
23.Do not use for special purposes.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects. It
may cause deterioration of quality,
etc.
24.Stop operation and close the
window in storm or hurricane.
Operation with windows opened
may cause wetting of indoor and
soaking of household furniture.
25.Turn off the main power switch
when not using the unit for a long
time. It may cause failure of
product or fire.
26.Do not use strong detergent such
as wax or thinner. Use a soft cloth
for cleaning. Appearance may be
deteriorated due to change of
product color or scratching of its
surface.
27.Ensure that the installation bracket
of the outdoor appliance is not
damaged due to prolonged
exposure. If bracket is damaged,
safety precautions electrolux 06

there is concern of damage due to
falling of unit.
28.Always insert the filters securely.
Clean filter once every two weeks.
Operation without filters may
cause failure.
29.Do not place heavy object on the
power cord and take care so that
the cord is not compressed. There
is danger of fire or electric shock.
30.Do not place obstacles around air-
inlets or inside of air-outlet. It may
cause failure of appliance or
accident.
07 electrolux safety precautions
7. The indoor unit must be at least 2.3
meters (7.5 feet) from the ground.
8. The site must allow for the easy
removal of the connector pipe and
drain hose.
9. The unit must be installed at a site
protected from direct sunlight.
Precautions for Installation
Installation at the following sites may cause problems. If you must inevitably
install the unit at one of these sites, please consult your local distributor
beforehand:
1. Site with machine oil.
2. Sites with a high concentration of salinity, such as coastal areas.
3. Sites with sulfuric gas, such as hot water springs.
4. Sites with high frequency equipment, such as wireless equipment, welding
machines and medical installations.
5. Sites with flammable gases or volatile material.
6. Sites with special environmental conditions.
7. Laundry rooms.
Indoor Unit
1. The unit must be installed at a site
that does not obstruct the flow of
air.
2. The site must support the weight
of the indoor unit.
3. The site must be easily accessible
for maintenance and replacement
of the air filter.
4. The site must allow for the
necessary space around the
indoor unit, as shown in the
following figure.
5. There should be at least 1 meter (3
feet) between the unit and radio
and television devices. It is ideal
that the unit be installed at the
center of the environment.
6. It must be far from fire, smoke or
flammable gases.
Choosing the installation site
More
than 15cm
More
than 12cm
More
than 200cm
More
than 12cm
choosing the installation site electrolux 08

1
2
1

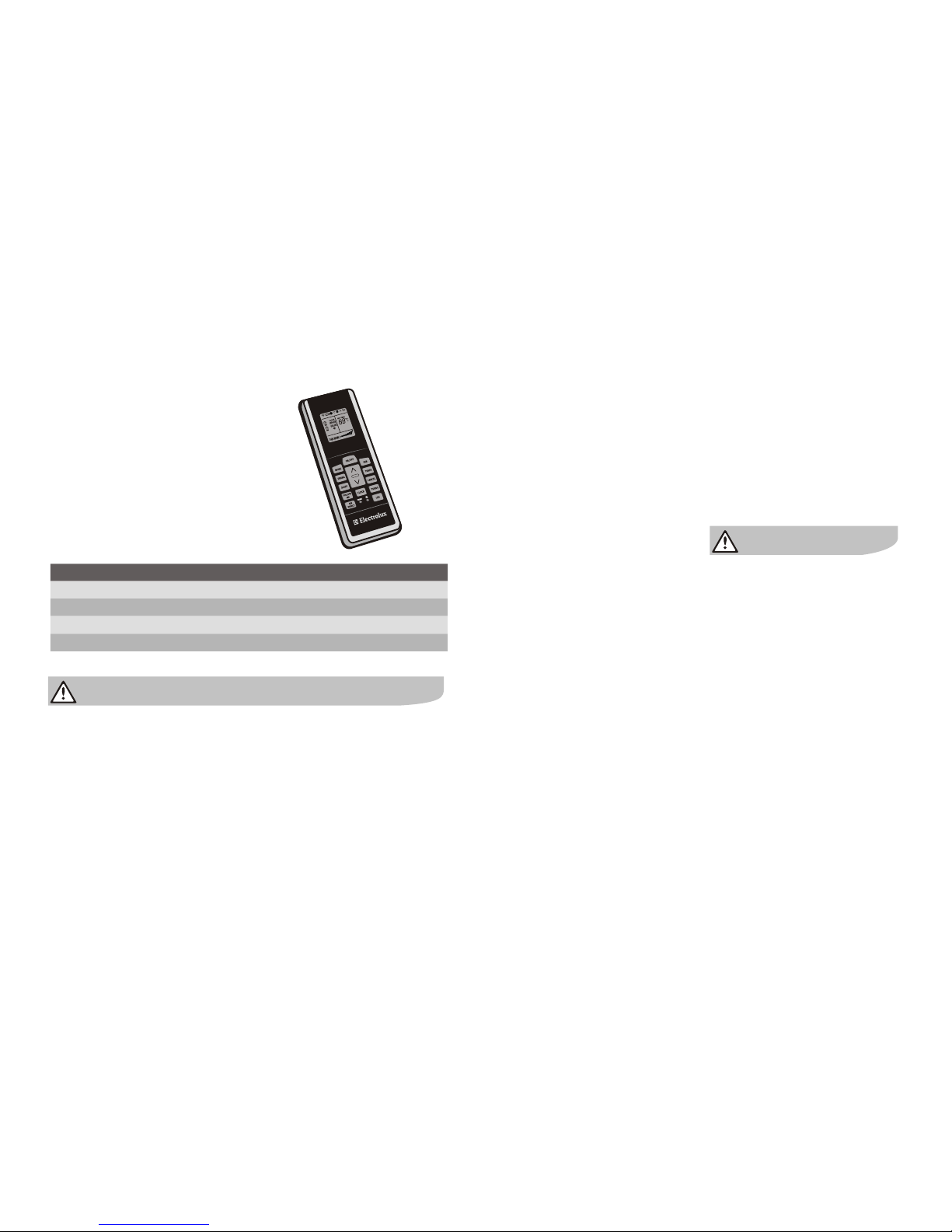

Remote controller
Self-tapping screw B ST2.9x10
Remote controller holder
7
8
9

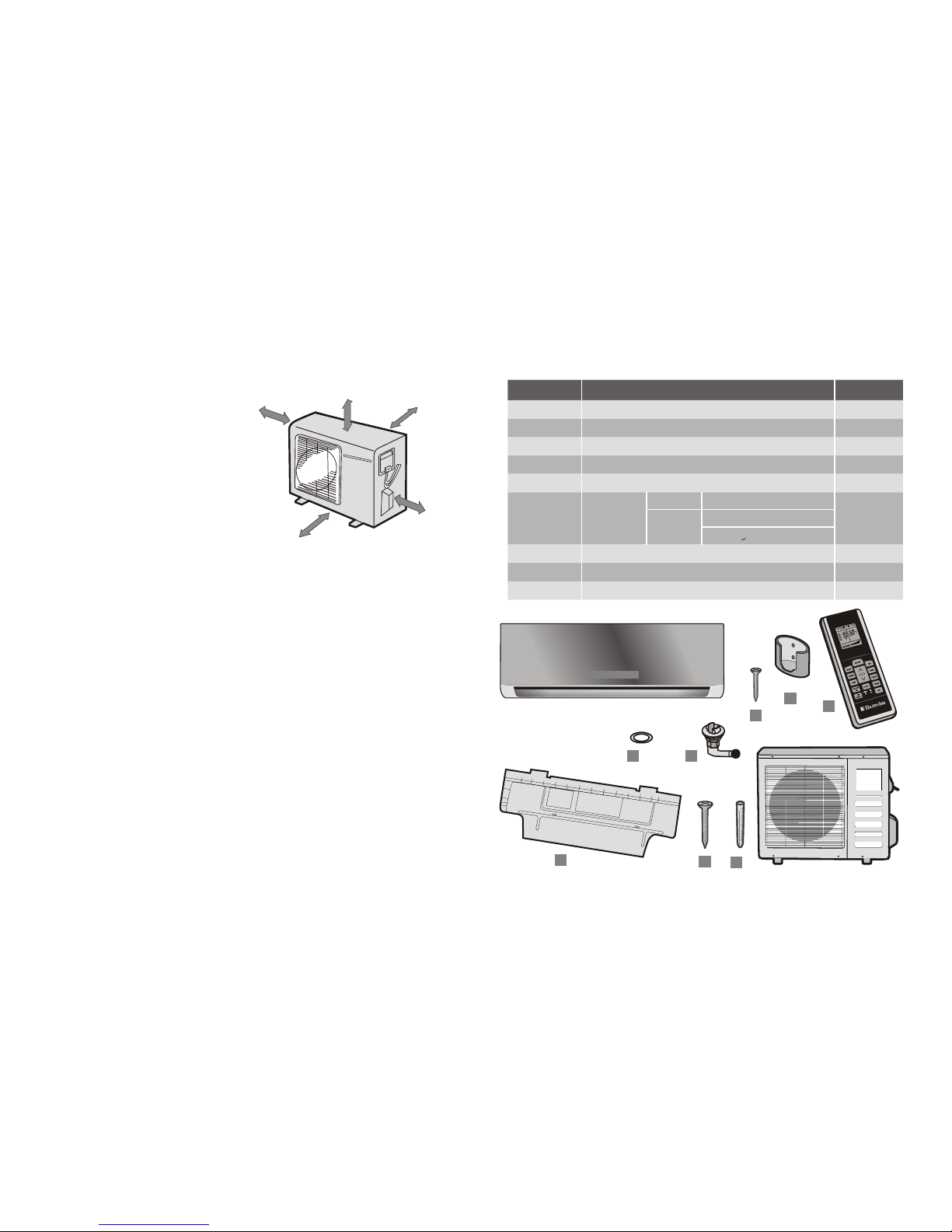

Outdoor Unit
1. The outdoor unit must be installed
at a convenient site that is not
exposed to strong winds. The site
should be dry and well ventilated.
2. The site must support the weight
of the outdoor unit and allow for
vertical installation.
3. There must not be the possibility of
increased noise and vibration at
the site.
4. The unit must be installed at a site
where the noise produced by its
operation and air discharge does
not disturb the neighbors or
animals.
5. The site cannot have any leakage
of flammable gases.
6. The site must allow for a piping
extension of no less than 5 meters
(16 feet) and for pipes measuring
at least 10 meters (33 feet) in
length.
7. The site must provide enough
space around the unit, as shown in
the diagram.
8. Children must not be able to
access the installation site.
More
than 60cm
More
than 30cm
More
than 200cm
More
than 30cm
More
than 60cm
09 electrolux outdoor unit
Parts list
NUMBERING PART NAME
Installation plate
Clip anchor
Self-tapping screw A ST3.9x25
Seal
Drain Joint
QTY.
1
2
3
4
5
6
1
8
8
1
1
Connecting
pipe
assembly*
Liquid side Ø6,35
Gas side Ø9,52
Parts you must
purchase
(< modelos 12000 Btu’s)
Ø12,7
(> modelos 12000 Btu’s)
2
54
3
1
8 7
Indoor unit
Outdoor unit
parts list electrolux 10
9
8

1. This illustration is for explanation purposes only.
2. Copper lines must be insulated independently
7
5
4
23
1
Indoor unit
Outdoor
unit
6
6More than 12cm
More than 12cm
Air filter
More than 200cm
More than
60cm
More than 30cm
More than 60cm
More than 15cm
A
BC
11 electrolux parts list
Indoor unit installation
Installation plate description
indoor unit installation electrolux 12
Modelos 18000 Btu’s
above 150mm from
the ceiling
Indoor unit outline Installation plate
above 120mm
from the wall
above 120mm
from the wall
Refrigerant pipe
hole (left) Ø 65 Refrigerant pipe
hole (right) Ø 65
45
45
293
90
45
920
(A)
(B)
above 150mm from
the ceiling
Indoor unit outline Installation plate
above 120mm
from the wall
above 120mm
from the wall
Refrigerant pipe
hole (left) Ø 65
Refrigerant pipe
hole (right) Ø 65
45
45
305
90
45
850
272
80 489
A
abov 15 m from e0m
tc i ing
he elnion plaI stallat te
Indo it ou e
or un tlin
bove 120m
a m
from the wall
above 120mm
omfr the wall
Rfiger nt pipe
er a
h (leftØ 65
ole )
f ant piRe riger pe
(i ) Ø
hole r ght 65
B
45 90
40
40
o s <12000 B ( :710, : 25
M del tu’s A B 0)
Model 12000 B ( : 790, : 26
tu’s A B 5)

Fixing the installation plate
Drilling the Hole
1. Install the installation plate
horizontally over the structural
parts on the wall using the spaces
indicated on the plate, as shown in
the figure above.
2. In the case of tiled, concrete or
similar walls, create 5 mm-
diameter holes. Place anchorage
supports for the appropriate
assembly screws.
3. If expansion screws are used, the
holes must measure 11x20 or
11x26, with a distance of 450 mm
between each.
4. Fix the installation plate to the wall.
1. Determine the position of the hole
for the pipe using the installation
plate and drill the pipe hole (ø
65mm) so that it is titled slightly
downward.
2. Always use a pipe cover with an
opening when drilling a metal bar.
Placa de instalación
Fit the Installation Plate and drill holes
in the wall according to the wall
structure and corresponding mounting
points on the installation plate
(Dimensions are in “mm” unless
otherwise stated).
Wall
Indoorunit Outdoorunit
5-7mm
Do not put the end
of drain hose into water.
Do not block
water flow
by a rise.
Connective pipe and drainage installation
Drainage
1. Run the drain hose sloping
downward. Do not install the drain
hose as illustrated below.
2. When connecting extension drain
hose, insulate the connecting part
of extension drain hose with a
shield pipe, do not let the drain
hose slack.
13 electrolux indoor unit installation
Connective pipe installation
1. For the left-hand and right-hand
piping, remove the pipe cover from
the side panel.
2. For the rear-right-hand and rear-left-
hand piping, install the piping as
shown. Bend the connective pipe to
be laid at 43mm height or less from
the wall.
3. Fix the end of the connective pipe.
Right back
piping
Pipe cover
(left)
Pipe
holder
Pipe cover
(right)
Right piping
Connective
pipe
Indoor unit
outline
43mm
indoor unit installation electrolux 14
Do not block
water flow
by a rise.
1. Pass the piping through the hole in
the wall.
2. Put the upper claw at the back of the
indoor unit on the upper hook of the
installation plate, move the indoor
unit from side to side to see that it is
securely hooked (see Fig.10 &
Fig.11).
Fastening the Indoor Unit
Upper hook
Lower hook
150mm del techo
above 120mm
from the wall
998
293
above 120mm
from the wall
Indoor unit outline
50
130
Refrigerant pipe
hole (left) Ø 65
119380380
50
130
41
Modelos 24000 Btu’s

Piping and wrapping
1. Bundle the tubing, connecting
cable, and drain hose with tape
securely, evenly as shown.
2. Because the condensed water
from rear of the indoor unit is
gathered in ponding box and is
piped out of room. Do not put
anything else in the box.
1. Connect the indoor unit first, then the outdoor unit.
2. Do not allow the piping to let out from the back of the indoor unit.
3. Be careful not to let the drain hose slack.
4. Heat insulated both of the auxiliary piping.
5. Be sure that the drain hose is located at the lowest side of the bundle.
Locating at the upper side can cause drain pan to overflow inside the unit.
6. Never intercross nor intertwist the power wire with any other wiring.
7. Run the drain hose sloped downward to drain out the condensed water
smoothly.
15 electrolux indoor unit installation
1. Install the outdoor unit on a rigid
base to prevent increasing noise
level and vibration.
2. Determine the air outlet direction
where the discharged air is not
blocked. In the case that the
installation place is exposed to
strong wind such as a seaside,
make sure the fan operating
properly by putting the unit
lengthwise along the wall or using
a dust or shield plates.
3. Specially in windy area, install the
unit to prevent the admission of
wind. If need suspending
installation, the installation bracket
should accord with technique
requirement in the installation
bracket diagram.
4. The installation wall should be solid
brick, concrete or the same
intensity construction, or actions to
reinforce, damping supporting
should be taken. The connection
between bracket and wall, bracket
and the air conditioner should be
firm, stable and reliable.
5. Be sure there is no obstacle which
block radiating air.
Outdoor unit installation
Strong wind
outdoor unit installation electrolux 16
Indoor unit
Cable
de conexión
Ponding
box
Pipe room
Wrapping
belt
Drain hose
Connective
pipe
3. Piping can easily be made by lifting
the indoor unit with a cushioning
material between the indoor unit
and the wall. Get it out after finish
piping.
4. Push the lower part of the indoor unit
up on the wall, then move the
indoor unit from side to side, up and
down to check if it is hooked
securely.
Cushioning
material

Settlement of outdoor unit
Anchor the outdoor unit with
a bolt and nut 10 or 8 tightly
and horizontally on a concrete
or rigid mount.
MODEL A (mm) B (mm)
Drain joint installation
Fit the seal into the drain elbow, then
insert the drain joint into the base pan
hole of outdoor unit, rotate 90 to
securely assemble them.
Connecting the drain joint with an
extension drain hose (Locally
purchased), in case of the water
draining off the outdoor unit during the
heating mode.
17 electrolux outdoor unit installation
Flaring work
Main cause for refrigerant leakage is
due to defect in the flaring work.
Carry out correct flaring work using
the following procedure:
1. Cut the pipes and the cable.
A) Use the piping kit accessory or
pipes purchased locally.
B) Measure the distance between the
indoor and the outdoor unit.
C) Cut the pipes a little longer than
the measured distance.
D) Cut the cable 1.5m longer than the
pipe length.
2. Burr removal
A) Completely remove all burrs from
the cut cross section of pipe/tube.
B) Put the end of the copper
tube/pipe in a downward direction as
you remove burrs in order to avoid
dropping burrs into the tubing.
3. Putting nut on
A) Remove flare nuts attached to
indoor and outdoor unit, then put
them on pipe/tube having completed
burr removal.(not possible to put them
on after flaring work)
Refrigerant pipe connection
refrigerant pipe connection electrolux 18
Air inlet
Air
inlet
Air outlet
A
B
Base pan hole
of outdoor unit
Seal Drain joint
Seal
Drain pipe
+ =
Pipe
Correct Wrong
Oblique Roughness Burr
Pipe
Reamer
Point
down
Flare nut
Cooper tube
458
460
549
530
523
560
590
250
276
276
290
340
335
333
700x535x235
685x430x260
780x540x250
760x590x285
820x600x345
845x695x335
895x860x330

4. Flaring work
A) Firmly hold copper pipe in a die in
the dimension shown in the table
below.
1,3
1,6
1,8
2,4
Máx.
0,7
1,0
1,0
2,2
A (mm)
Mín.
OUTER
DIAMETER (mm)
6,35
9,53
12,70
16
Connection Adjustment
1. Align the pipes to be connected.
2. Unscrew the flare nut with your
fingers and then with a wrench and
screw wrench, as shown in the
following figure.
OUTER
DIAMETER (mm)
6,35
9,53
12,70
16
TIGHTENING
TORQUE(cm)
1570 (160 kgf/cm)
2940 (300 kgf/cm)
4900 (500 kgf/cm)
7360 (750 kgf/cm)
ADDITIONAL TIGHTENING
TORQUE(cm)
1960 (200 kgf/cm)
3430 (350 kgf/cm)
5390 (550 kgf/cm)
7850 (800 kgf/cm)
Caution: Excessive torque can
break nut depending on installation
conditions.
19 electrolux refrigerant pipe connection
Electrical work
1. If there is serious safety problem
about the power supply, the
technicians should refuse to install
the air conditioner and explain to
the client until the problem is
solved.
2. Power voltage should be in the
range of 90%~110%of rated
voltage.
3. The creepage protector and main
power switch with a 1.5 times
capacity of Max. Current of the unit
should be installed in power circuit.
4. Ensure the air conditioner is
grounded well.
5. According to the attached Electrical
Connection Diagram located on the
panel of the outdoor unit to connect
the wire.
6. All wiring must comply with local
and national electrical codes and be
installed by qualified and skilled
electricians.
7. An individual branch circuit and
single receptacle used only for this
air conditioner must be available.
See the following table for
suggested wire sizes and fuse
specifications:
Electric safety regulations for the initial Installation
electrical work electrolux 20
Bar
Copper
pipe
Handle
Clamp
handle
Yoke
Red arrow mark
Flare
nut
Pipings
Indoor unit
tubing
MODEL INPUT RATED AMP
Switch / Fuse
POWER SUPPLY CABLE
SIZE
Note: The supply voltage must be consistent with the rate voltage of the air conditioner.
9000 Btu’s
12000 Btu’s
18000 Btu’s
24000 Btu’s
220-240V~/ 50Hz
220-230V~/ 60Hz
220-240V~/ 50Hz
220-230V~/ 60Hz
220-240V~/ 50Hz
220-230V~/ 60Hz
10A
16A
25A
32A
1 mm²
1,5 mm²
2,5 mm²
> 2,5 mm²

1. The inside and outside connecting
cable can be connected without
removing the front grille.
2. Connecting cable between indoor unit
and outdoor unit shall be approved
polychloroprene sheathed flexible cord,
type designation H07RN-F or heavier
cord.
3. Lift the indoor unit panel up, remove
the electrical box cover by loosening
the screw.
4. Ensure the colour of wires of outdoor
unit and the terminal Nos. are the same
to the indoors respectively.
5. Wrap those cables not connected with
terminals with insulation tapes, so that
they will not touch any electrical
components. Secure the cable onto the
control board with the cord clamp.
Connect the cable to the indoor unit
Electrical box
cover
21 electrolux electrical work electrical work electrolux 22
40mm
40mm
10mm
10mm
< 18000 btu's (Cool model)CABLE
> 18000 btu's (Heat & Cool model)CABLE
Cable code
< 18000 btu's (Heat & Cool model)CABLE
40mm
10mm
40mm
10mm
"Cable A"
"Cable C”
"Cable B"
or
Cable code
Cable code
Cable code
< 24000
COOL MODELS
Btu's
MODELS
24000 Btu's
< 24000 Btu's
HEAT AND COOL MODELS
1 2(N) 3 4 1 2(N) 3 4
1 2(N) 3 4 1 2(N)
or or
Wire connector of indoor unit
Wire connector of indoor unit
Wire connector of indoor unit
or or "Connector A"
"Connector A”
"Connector A"
"Connector B" "Connector B"
Cables
board Cables
board
Cables
board
Cables
board
Cables
board

1. Remove the electrical control board
cover from the outdoor unit by
loosening the screw.
2. Connect the cables to the terminals as
identified with their respective
matched numbers on the terminal
block of indoor and outdoor units.
3. To prevent the ingress of water, from a
loop of the connective cable as
illustrated in the installation diagram of
indoor and outdoor units.
4. Insulate unused cords (conductors)
with PVC-tape.Process them so they
do not touch any electrical or metal
parts.
Connect the cable to the outdoor unit
Screw
Cover
40mm
40mm
10mm
10mm
< 18000 btu's (Cool model)CABLE
> 18000 btu's (Heat & Cool model)CABLE
Código del cable
< 18000 btu's (Heat & Cool model)CABLE
40mm
10mm
40mm
10mm
"Cable D”
"Cable F”
"Cable E”
or
Cable code
Cable code
Cable code
< 24
COOL MODEL
000 Btu's
MODELS
24000 Btu's
< 24000 Btu's
HEAT & COOL MODEL
or
or
or
or
or
or
"Connector A"
"Connector A"
"Connector A"
"Connector C”
"Connector B" "Connector B"
"Connector D”
Cables
board
Cables
board
Cables
board
Cables
board
Cables
board
Cables
board
Cables
board
Wire connector of outdoor unit
Wire connector of outdoor unit
Wire connector of outdoor unit
Wire connector of outdoor unit
12(N)
1
2(N)
41 3
2(N) 41 3
2(N)
134
2(N)
41 3
2(N)
23 electrolux electrical work electrical work electrolux 24

1. Never fail to have an individual power circuit specifically for the air
conditioner. As for the method of wiring, be guided by the circuit diagram
posted on the inside of control cover.
2. The screw which fasten the wiring in the casing of electrical fittings are
liable to come loose from vibrations to which the unit is subjected during
the course of transportation. Check them and make sure that they are all
tightly fastened. (If they are loose, it could cause burn-out of the wires.)
3. Specification of power source.
4. Confirm that electrical capacity is sufficient.
5. See to that the starting voltage is maintained at more than 90 percent of the
rated voltage marked on the name plate.
6. Confirm that the cable thickness is as specified in the power source
specification.
7. Always install an earth leakage circuit breaker in a wet or moist area.
8. The following would be caused by voltage drop. Vibration of a magnetic
switch, which will damage the contact point, fuse breaking, disturbance of
the normal function of the overload.
9. The means for disconnection from a power supply shall be incorporated in
the fixed wiring and have an air gap contact separation of at least 3mm in
each active (phase) conductors.
Caution
After the confirmation of the above conditions, prepare the wiring as follows:
Air purging
Air and moisture in the refrigerant system have undesirable effects as
indicated below:
1. Pressure in the system rises.
2. Operating current rises.
3. Cooling or heating efficiency
drops.
4. Moisture in the refrigerant circuit
may freeze and block capillary
tubing.
5. Water may lead to corrosion of
parts in the refrigeration system.
6. Therefore, the indoor unit and
tubing between the indoor and
outdoor unit must be leak tested
and evacuated to remove any
noncondensables and moisture
from the system.
25 electrolux electrical work
Air purging with vacuum pump
1. Check that each tube(both liquid and gas side tubes) between the indoor
and outdoor units have been properly connected and all wiring for the test
run has been completed. Remove the service valve caps from both the gas
and the liquid side on the outdoor unit. Note that both the liquid and the gas
side service valves on the outdoor unit are kept closed at this stage.
2. When relocate the unit to another place, perform evacuation using vacuum
pump.
3. Pipe length and refrigerant amount:
Caution in handling the packed valve
1. Open the valve stem until it hits against the stopper. Do not try to open it
further.
2. Securely tighten the valve stem cap with a spanner or the like. Valve stem
cap tightening torque (See Tightening torque table in page 19).
electrical work electrolux 26
Air purging
metod
Less than 5 m
5~10 m
Additional amount of
refrigerant to be charged
Connective
pipe length
Use vacuum pump.
Use vacuum pump.
Half union
Refrigerant
AC
D
B
Packed valve
Gas
Indoor unitOutdoor unit
Flare nut
Stopper
Cap
Valve stem
Valve body
Liquid side: Ö6.35
(Pipe lenght) x 30g

When using the vacuum pump
For method of using a manifold valve, refer to its operation manual.
1. Completely tighten the flare nuts,
A, B, C, D, connect the manifold
valve charge hose to a charge port
of the low-pressure valve on the
gas pipe side.
2. Connect the charge hose
connection to the vacuum pump.
3. Fully open the handle Lo of the
manifold valve.
4. Operate the vacuum pump to
evacuate. After starting
evacuation, slightly loose the flare
nut of the Lo valve on the gas pipe
side and check that the air is
entering (Operation noise of the
vacuum pump changes and a
compound meter indicates 0
instead of minus)
5. After the evacuation is complete,
fully close the handle Lo of the
manifold valve and stop the
operation of the vacuum pump.
Make evacuation for 15 minutes or
more and check that the
compound meter indicates -
76cmHg (-1x10 Pa).
6. Turn the stem of the packed valve
B about 45o counterclockwise for
6~7 seconds after the gas coming
out, then tighten the flare nut
again. Make sure the pressure
display in the pressure indicator is
a little higher than the atmosphere
pressure.
7. Remove the charge hose from the
Low pressure charge hose.
Vacuum pump
Charge hose
Manifold valve
-76cm/Hg
Charge
hose
Handle Lo Handle Hi
Outdoor unit
Indoor unit
8. Fully open the packed valve stems
B and A.
9. Securely tighten the cap of the
packed valve.
27 electrolux electrical work
Electrical safety
Perform the electric safe check after completing installation:
Gas leak check
Soap water method
Apply a soap water or a liquid neutral
detergent on the indoor unit
connection or outdoor unit
connections by a soft brush to check
for leakage of the connecting points
of th piping. If bubbles come out, the
pipes have leakage.
Leak detector
Use the leak detector to check for
leakage.
Caution
A: Lo packed valve, B: Hi packed
valve C and D are ends of indoor unit
connection.
1. Insulated resistance: The insulated resistance must be more than 2M .
2. Grounding work: After finishing grounding work, measure the grounding
resistance by visual detection and grounding resistance tester. Make sure the
grounding resistance is less than 4 .
3. Electrical leakage check (performing during test running): During test
operation after finishing installation, the serviceman can use the electroprobe
and multimeter to perform the electrical leakage check. Turn off the unit
immediately if leakage happens. Check and find out the solution ways till the
unit operate properly.
electrical safety electrolux 28
Cover
indoor unit
check point
Outdoor unit
check point

Operation test
Perform test operation after completing gas leak check at the flare nut
connections and electrical safety check.
1. Connect the power, press the
ON/OFF button on the remote
controller to turn the unit on.
2. Use the MODE button to select
COOL, HEAT, AUTO and FAN to
check if all the functions works
well.
3. When the ambient temperature is
too low(lower than 17ºC), the unit
cannot be controlled by the remote
controller to run at cooling mode,
manual operation can be taken.
Manual operation is used only when
the remote controller is disable or
maintenance necessary.
29 electrolux operation test
1. Contact a specialist to install the device.
2. Guarantee that the unit is appropriately fastened and complies with all of
the aforementioned safety norms.
3. Before operating the air conditioner, ensure that the air filter is installed
correctly.
4. If the unit has been out of use for a long period of time, it is recommended
that the air filter be cleaned before use. During continuous use, clean the air
filter every two weeks.
5. This air conditioner was designed for use under the following conditions:
If air conditioner is used outside of the above conditions, certain safety protection
features may come into operation and cause the unit to function abnormally.
Room relative humidity less than 80%. If the air conditioner operates in excess of
this figure, the surface of the air conditioner may attract condensation. Please
sets the vertical air flow louver to its maximum angle (vertically to the floor), and
set HIGH fan mode.
Optimum performance will be achieved within these operating temperature.
Preparing the device for operation
preparing the device for operation electrolux 30
Manual control button
Auto/Cool
Manual control
button
Auto
Cool
or
* (-5°C~43°C cooling only)
Cool Heat Deshumidifier
MODE
Room TemperatureRoom TemperatureRoom Temperature
Indoor Outdoor* Indoor Outdoor Indoor Outdoor
17°C~32°C 18°C~43°C 17°C~30°C -7°C~24°C 17°C~32°C 11°C~43°C

Product description
Air outlet
Air inlet
Outdoor unit
All the pictures in this manual are for
explanation purpose only. They may be
slightly different from the air conditioner
you purchased.
31 electrolux product description
The description in the control is based
on a typical model. The functions are
the same in your air conditioner, even if
there are some differences in the
appearance.
Display panel
(indoor unit)
DEFROST*: Displayed when the
air conditioner starts defrosting
automatically or when the warm air
control feature is activated in
heating operation.
*Nota: For Heating & Cooling model
only.
OPERATION: Displayed when the
air conditioner is in operation.
TURBO: Displayed when select
TURBO function on cooling
operation or on heating
operation(available for the type
adopts PTC in the indoor unit only).
DIGITAL DISPLAY: Displays the
current setting temperature when
the air conditioner is in operation.
AUTO: Displayed during Auto
operation.
TIMER: Displayed during Timer
operation.
CLEAN AIR (optional): Displayed
when CLEAN AIR feature is
activated.
Signal receptor.
13
16
17
18
19
20
14
15
product description electrolux 32
Front panel frame
Front panel
Air filter
(inside front panel)
Horizontal airflow grille
Vertical airflow grille
Temperature sensor
(inside front panel)
Panel
Infra-red signal receiver
Drain hose connector and
refrigerant gas connector
Remote control
Connector cable
Detection valve
Drain hose and refrigerant
connecting pipe
1
2
3
4
5
6
7
8
9
10
11
12
13
13
10
11
9
12
88
17 1913 18 20 14 15 16
6
Air inlet
2
Air outlet
4
32
5
1
87

Remote control
Remote control battery
To use the remote control, it is necessary to install two (R03/Ir03x2) alkaline
AAA batteries.
1. The air conditioner will not operate when curtains, doors other materials
block the signals between the remote control and the indoor unit.
2. Avoid spilling any liquid in the remote control. Do not expose to sunlight or
any heat source.
3. If the infrared signal receiver in the indoor unit is exposed to sunlight, the air
conditioner unit might not work properly. Use curtains or shades to avoid
having sunlight directly to the receiver.
4. If other electrical equipment react to the signals sent by the remote control,
change the position or consult with you local sales department.
or
1. Operation mode: Cool, Heat (Only for
the models with cool/heat), DRY, FAN,
and AUTO (Automatic).
2. Timer 24 hrs.
3. Internal temperature range selection:
17º - 30º.
4. LCD
5. Night light operation mode.
Remote control operation
33 electrolux remote control
When should the batteries be
replaced
1. When there is not a “beep”
anymore from the indoor unit
when using the control remote or
the signal light indicator does not
lit.
2. The indoor unit does not respond
to the remote control commands
to activate the programs.
To replace batteries
1. Slide out the battery
compartment cover ( located in
the back part of the remote
control).
2. Install the two AAA batteries in
the compartment (indicated in the
drawing located inside the
compartment).
3. Slide in the cover.
4. If the remote control is not
operated for long period of times,
batteries should be discarded.
Remote control instructions
1. The signal reach distance of the
remote control to the receiver that
is inside the main unit of the air
conditioner is 8 meters. Any
obstruction placed between the
receiver and the remote control
can cause interference, limiting
the capacity of the programming.
2. Any time that a button is pressed
in the remote control, the air
conditioner emits a “beep” that
indicates that a command has
1. When replacing batteries, do not
use old batteries or a different type
battery. This may cause the remote
control to malfunction.
2. If you do not use the remote
controller for several weeks remove
the batteries. Otherwise battery
leakage may damage the remote
controller.
3. The average battery life under
normal use is about 6 months.
4. Replace the batteries when there is
no answering beep from the indoor
unit or if the Transmission Indicator
light fails to light.
been received and transmitted in the
indoor unit.
3. When selecting the function of
timer, the remote control sends
(automatically) a signal to the indoor
unit at the specific moment. If the
control remote is left in a position
that the signal is blocked, a 15
minute delay can be produced.
remote control electrolux 34
Rated voltage
Lowest of voltage of CPU emiting signal
Transmission distance
Environment
3 V
2,0 V
8 m*
-5ºC ~ 60ºC
* (with 3 V, it reaches 11 m)
REMOTE CONTROLLER SPECIFICATIONS

ON/OFF: Push this button to start
operation, push the button again to
stop operation.
MODE: Each time you push the
button, a mode is selected in a
sequence that goes from AUTO,
COOL*, DRY, HEAT and FAN, as the
following figure indicates:
* Note: Only for heating and cooling
models.
SWING: Push this button, the
louver would swing up and down
automatically. Push again to stop it.
SLEEP: Press this button to go into
the Energy-Saving operation mode.
Press it again to cancel. This
function is only can be used on
COOL, HEAT and AUTO mode and
maintain the most comfortable
temperature for you.
Note: While the unit is running
under SLEEP operation mode, it
would be canceled if you press the
other button.
FOLLOW ME (on some
models): Push this button to initiate
the Follow Me feature, the remote
display is actual temperature at its
location. The remote control will
send this signal to the air
conditioner every 3 minutes interval
until press the Follow Me button
again. The air conditioner will beep
to indicate the Follow Me feature
has ended if it does not receive the
signal during any 7 minute interval.
1
2
3
4
5
Remote control description
35 electrolux remote control description
DIRECTION: Press this button to
change the swing angle of the
louver. The swing angle of the
louver is 6o for each press. When
the louver swing at a certain
angle which would affect the
cooling and heating effect of the
air conditioner, it would
automatically change the swing
direction . No symbol will appear
in the display area when press
this button.
RESET: When you press the
recessed RESET button, all
current settings are cancelled and
the control will return to the initial
settings.
TEMP/TIME: Push the
button to increase the indoor
temperature setting or to adjust
the TIMER in a clockwise
direction. Push the button to
decrease the indoor temperature
setting or to adjust the TIMER in
a counter-clockwise direction.
FAN SPEED: Used to select the
Fan Speed in four steps- AUTO,
LOW, MED or HIGH. Each time
the button is pressed, the fan
speed mode is shifted.
TIMER: This button is used to
preset the time ON(start to
operate) and the time OFF(turn off
the operation).
6
7
8
9
remote control description electrolux 36
10
AUTO COOL DRY HEAT* FAN
AUTO LOW MED HIGH
1
11
2
10
12
13
6
8
14
9
15
7
3
5
4
1
11
2
10
12
13
6
8
14
9
15
7
3
5
4

CANCEL: Push this button to
cancel the TIMER ON/OFF
settings.
TURBO*: Push this button on
COOL mode, the air conditioner
goes into powerful cooling
operation. Push again to cancel
the TURBO function.
*Note: Only for some models.
LED: Press this button to clear
the digit display in the air
conditioner, press it again to
activate it.
CLOCK: Use to set the time.
LOCK: When you press the
LOCK button, all current settings
are locked in and the remote
controller does not accept any
operation except that of the
LOCK. Press again to cancel the
LOCK mode.
12
13
14
15
37 electrolux remote control description
LCD display indicators
1 2 3
ATTENTION: All displays on the remote
controller are shown for illustration purposes
only.
45
6
7
8
TRANSMISSION INDICATOR: This
transmission indicator lights when
remote controller transmits signals
to the indoor unit.
MODE: Displays the current
operation mode. Including
AUTO( ), COOL( ), DRY( ),
HEAT*( ) , FAN ONLY ( )and back
to AUTO.
*Note: Not applicable to cooling
only models.
ON/OFF: Displayed by pressing the
ON/OFF button. Press the ON/OFF
button again to remove.
TIMER: Indicate Timer on/off time(0
23:50 hours) or clock time. The
clock time is indicated only when
no AUTO-ON/OFF timer is set.
When AUTOTIMER feature is
operating, it displays the AUTO-
ON/OFF time. To check the current
time, press the CLOCK button, and
the time will display.
TEMPERATURE: Displays the
temperature setting (17ºC to 30ºC
When you set the operating mode
to FAN ONLY, no temperature
setting is displayed.
LOCK: Displayed by pressing the
LOCK button. Press the LOCK
button again to remove.
SLEEP: Displayed by pressing the
SLEEP button. Press the SLEEP
button again to remove.
FAN SPEED: Displays the
selected fan speed, AUTO(no
display) and three fan speed levels
" " (LOW) " " (MED) and
" “ (HIGH) can be
indicated.
1
2
3
4
5
6
7
8
lcd display indicators electrolux 38
11
1
11
2
10
12
13
6
8
14
9
15
7
3
5
4
