Page 1 KSSSI71
Copyright 2012 ELECTROLUX HOME PRODUCTS PTY LTD Technical Services
KELVINATOR
INVERTER
SPLIT SYSTEM
AIR
CONDITIONER
SERVICE MANUAL
Issue: 4
Technical Publication Nº KSSSI116 Date: 12/12
MODELS:
KSV26HRC
KSV35HRC
KSV53HRC
KSV62HRC
KSV70HRC
KSV80HRC
ELECTROLUX HOME PRODUCTS PTY LTD
ABN 51 004 762 341

Page 2 KSSSI116
Index:
1. Required Qualifications: refer to Page 4.
2. Precautions: refer to Pages 5 to 9.
Warnings relating to personal & product safety.
Earth Continuity Testing.
3. Electrostatic Discharge: refer to Pages 10 to 12.
Understanding Electrostatic Discharge.

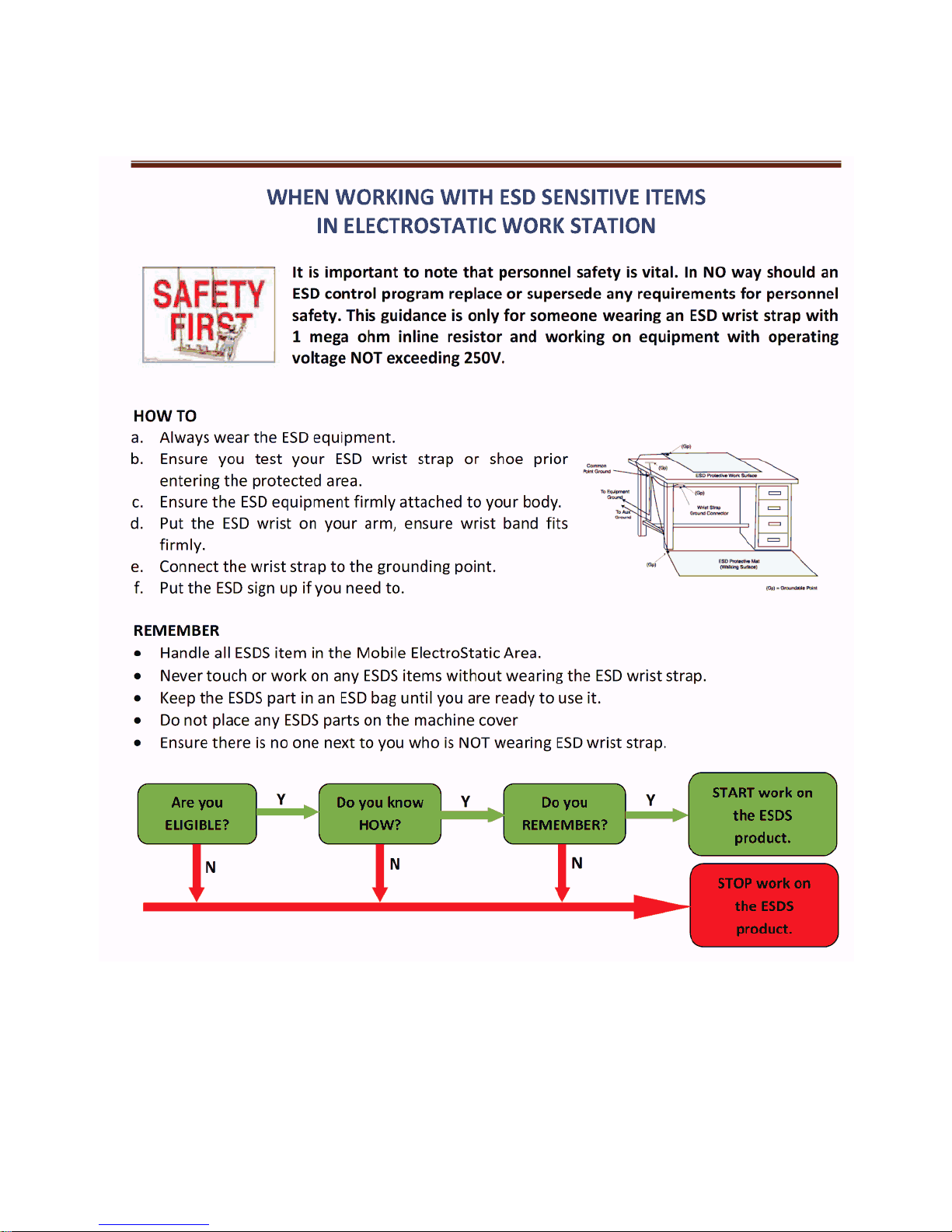

When Working With ESD Sensitive Items in Electrostatic Work Station.
When Working With ESD Sensitive Items in Field Service.
4. Specifications: refer to Pages 13 to 26.
5. Componenet Overview: 27 & 28.
6. Dimentions: refer to Pages 29 to 34.
Indoor & Outdoor Units.
7. Installation Breif: refer to Pages 35 to 39.
Operating Temperatures.
Installation Site (Indoor & Outdoor).
Refrigerant Pipe Flaring & Connection.
Connecting the Cable to the Indoor Unit.
Connecting the Cable to the Outdoor Unit.
8. Electrical Function: refer to Pages 40 to 54.
Temperature Parameters.
Cooling Mode.
Dry Mode.
Heating Mode.
Defrosting.
Residual Heat Removal.
Cold Air Prevention.
Fan Only Mode.
Auto Mode.
Auto Mode Protection Function.
Save Function.
Time-On & Time-Off Button.
Sleep Mode.
Turbo Button.
X-Fan Button.
Indoor Fan Control.
Horizontal Louver Function.
ION Filter (Cold Plasma Function)
Vertical Louver Swing.
Indoor Operation & Mode Icons.
Memory Function.
I FEEL Function.

Page 3 KSSSI116
9. Safe Electrical Working Practices: refer to Page 55.
10.Positive Lock Terminals: refer to Page 56.
11.Capacitor Discharge: refer to Page 57.
12.Troubleshooting: refer to Pages 58 to 109.
Indoor & Outdoor Unit Error Code Display index.
LED Flash Code Sequence Description (Indoor & Outdoor)
Diagnostic Display Mode Description.
Fault Code, Condition Code & Test State Description/Solution.
13.Wiring Diagrams: refer to Pages 110 to 116.
Indoor Wiring Diagrams.
Outdoor Wiring Diagrams.
14.Temperature Sensors: refer to Pages 117 to 119.
Resistance Values in Accordance to Temperature.
15.Disassembly: refer to Pages 120 to 131.
16.DRED Installation Location: refer to Page 132.
17.Sizing Chart: refer to Page 133.

Page 4 KSSSI116
Required Qualifications:
Certificate in Engineering Refrigeration & Air Conditioning (Basic Trade).
Refrigerant Handling Licence.

Page 5 KSSSI116
Precautions:
Warning:
Be sure to disconnect the power cable plug from the plug socket before
disassembling the equipment for a repair.
Working on the equipment that is connected to a power supply can cause an
electrical shock.
If it is necessary to supply power to the equipment to conduct the repair or
inspecting the circuits, do not touch any electrically charged sections of the
equipment.
If the refrigerant gas discharges during the repair work, do not touch the
discharging refrigerant gas.
The refrigerant gas can cause frostbite.
When disconnecting the suction or discharge pipe of the compressor at the
welded section, release the refrigerant gas completely at a well-ventilated
place first.
If there is a gas remaining inside the compressor, the refrigerant gas or
refrigerating machine oil discharges when the pipe is disconnected, and it can
cause injury.
If the refrigerant gas leaks during the repair work, ventilate the area. The
refrigerant gas can generate toxic gases when it contacts flames.
The step-up capacitor supplies high-voltage electricity to the electrical
components of the outdoor unit.
Be sure to discharge the capacitor completely before conducting repair work.
A charged capacitor can cause an electrical shock.

Page 6 KSSSI116
Warning:
Do not start or stop the air conditioner operation by plugging or unplugging the
power cable plug.
Plugging or unplugging the power cable plug to operate the equipment can
cause an electrical shock or fire.
Do not repair the electrical components with wet hands.
Working on the equipment with wet hands can cause an electrical shock.
Do not clean the air conditioner by splashing water.
Washing the unit with water can cause an electrical shock.
Be sure to provide the grounding when repairing the equipment in a humid or
wet place, to avoid electrical shocks.
Be sure to turn off the power switch and unplug the power cable when cleaning
the equipment.
The internal fan rotates at a high speed, and cause injury.
Do not tilt the unit when removing it.
The water inside the unit can spill and wet the furniture and floor.
Be sure to check that the refrigerating cycle section has cooled down
sufficiently before conducting repair work.
Working on the unit when the refrigerating cycle section is hot can cause burns.
Use the welder in a well-ventilated place.
Using the welder in an enclosed room can cause oxygen deficiency.
Caution:
Be sure to use parts listed in the service parts list of the applicable model and
appropriate tools to conduct repair work. Never attempt to modify the
equipment.
The use of inappropriate parts or tools can cause an electrical shock,
excessive heat generation or fire.
When relocating the equipment, make sure that the new installation site has
sufficient strength to withstand the weight of the equipment.
If the installation site does not have sufficient strength and if the installation work is not
conducted securely, the equipment can fall and cause injury.

Page 7 KSSSI116
Warning:
Incorrect use of the installation frame and improper installation can cause the
equipment to fall, resulting in injury.
If the unit is not securely mounted, it can fall and cause injury.
Be sure to use an exclusive power circuit for the equipment, and follow the
technical standards related to the electrical equipment, the internal wiring
regulations and the instruction manual for installation when conducting
electrical work.
Insufficient power circuit capacity and improper electrical work can cause an
electrical shock or fire.
Be sure to use the specified cable to connect between the indoor and outdoor
units. Make the connections securely and route the cable properly so that there
is no force pulling the cable at the connection terminals.
Improper connections can cause excessive heat generation or fire.
When connecting the cable between the indoor and outdoor units, make sure
that the terminal cover does not lift off or dismount because of the cable.
If the cover is not mounted properly, the terminal connection section can cause
an electrical shock, excessive heat generation or fire.
Do not damage or modify the power cable.
Damaged or modified power cable can cause an electrical shock or fire.
Placing heavy items on the power cable, and heating or pulling the power cable
can damage the cable.

Page 8 KSSSI116
Warning:
Do not mix air or gas other than the specified refrigerant (R-410A / R22) in the
refrigerant system.
If air enters the refrigerating system, an excessively high pressure results,
causing equipment damage and injury.
If the refrigerant gas leaks, be sure to locate the leak and repair it before
charging the refrigerant. After charging refrigerant, make sure that there is no
refrigerant leak.
If the leak cannot be located and the repair work must be stopped, be sure to
perform pump-down and close the service valve, to prevent the refrigerant gas
from leaking into the room. The refrigerant gas itself is harmless, but it can
generate toxic gases when it contacts flames, such as fan and other heaters,
stoves and ranges.
When replacing the coin battery in the remote controller, be sure to disposed
of the old battery to prevent children from swallowing it.
Caution:
Installation of a leakage breaker is necessary to prevent electrical shocks.
Do not install the equipment in a place where there is a possibility of
combustible gas leaks.
If a combustible gas leaks and remains around the unit, it can cause a fire.
If the packing and seal are not installed properly, water can enter the room and
wet the furniture and floor.

Page 9 KSSSI116
Warning:
Check to make sure that the power cable plug is not dirty or loose, then insert
the plug into a power outlet all the way.
If the plug has dust or loose connection, it can cause an electrical shock or fire.
If the power cable and lead wires have scratches or deteriorated, be sure to
replace them.
Damaged cable and wires can cause an electrical shock, excessive heat
generation or fire.
Do not use a joined power cable or extension cable, or share the same power
outlet with other electrical appliances, since it can cause an electrical shock,
excessive heat generation or fire.
Caution:
Check to see if the parts and wires are mounted and connected properly, and
if the connections at the soldered or crimped terminals are secure.
Improper installation and connections can cause excessive heat generation,
fire or an electrical shock.
If the installation platform or frame has corroded, replace it.
Corroded installation platform or frame can cause the unit to fall, resulting in
injury.
Check the grounding, and repair it if the equipment is not properly grounded.
Improper grounding can cause an electrical shock.
Be sure to measure the insulation resistance after the repair, and make sure
that the resistance is 1 Mohm or higher.
Faulty insulation can cause an electrical shock.
Be sure to check the drainage of the indoor unit after the repair.
Faulty drainage can cause the water to enter the room and wet the furniture.

Page 10 KSSSI116
Electrostatic Discharge:

Page 11 KSSSI116

Page 12 KSSSI116

Page 13 KSSSI116
Specifications:
Model & PNC (Indoor)
KSV26CRC/950132916
KSV26HRC/950132910
Power
Supply
Rated Voltage
V～
220-240
220-240
Rated Frequency
Hz
50
50
Phases
1
1
Power Supply Mode
Indoor
Indoor
Cooling Capacity (Min～Max)
W
2600
2600
Heating Capacity (Min～Max)
W
-
3000
Cooling Power Input (Min～Max)
W
650
650
Heating Power Input (Min～Max)
W
-
750
Cooling Power Current
A
2.85
2.85
Heating Power Current
A
-
3.30
Rated Input
W
1300
1300
Rated Current
A
6.50
6.50
Air Flow Volume((SH/H/MH/M/L/ML/SL)
m3/h
550/490/420/370/330/290/230
550/490/420/370/330/290/230
Dehumidifying Volume
L/h
0.8
0.8
EER
W/W
4.00
4.00
COP
W/W
-
4.00
Application Area
m2
12-18
12-18
Indoor
Unit
Model of indoor unit
KSV26CRC(indoor)
KSV26HRC(indoor)
Fan Type
Cross-flow
Cross-flow
Fan Motor Cooling Speed
(SH/H/MH/M/L/ML/SL)
r/min
1350/1070/1000/900/
800/700/500
1350/1070/1000/900/
800/700/500
Fan Motor Heating Speed
(SH/H/MH/M/L/ML/SL)
r/min
-
1350/1250/1080/1030/
980/900/850
Output of Fan Motor
W
15
15
Fan Motor RLA
A
0.07
0.07
Evaporator Form
Aluminum Fin-copper Tube
Aluminum Fin-copper Tube
Pipe Diameter
mm
Φ7
Φ7
Row-fin Gap
mm
2-1.4
2-1.4
Coil Length (LXDXW)
mm
612X25.4X304.8
612X25.4X304.8
Swing Motor Model
MP24HA/MP24HB/MP24HC
MP24HA/MP24HB/MP24HC
Output of Swing Motor
W
2
2
Fuse
A
3.15
3.15
Sound Pressure Level
(SH/H/MH/M/L/ML/SL)
dB (A)
41/36/34/32/30/26/22
41/36/34/32/30/26/22
Sound Power Level
(SH/H/MH/M/L/ML/SL)
dB (A)
53/48/46/44/40/36/34
53/48/46/44/40/36/34
Dimension (WXHXD)
mm
844X316X205
844X316X205
Dimension of Carton Box
(LXWXH)
mm
899X385X280
899X385X280
Dimension of Package (LXWXH)
mm
902X388X295
902X388X295
Net Weight
kg
11
11
Gross Weight
kg
13
13

Page 14 KSSSI116
Outdoor
Unit
Model & PNC (Outdoor Unit)
KSV26CRC/950132916
KSV26HRC/950132910
Compressor
Manufacturer/Trademark
PANASONIC WANBAO
COMPERSSOR
(GUANGZHOU)
CO.LTD/PANASONIC
PANASONIC WANBAO
COMPERSSOR
(GUANGZHOU)
CO.LTD/PANASONIC
Compressor Model
5RS102ZJA21
5RS102ZJA21
Compressor Oil
FV50S
FV50S
Compressor Type
Rotary
Rotary
L.R.A.
A
25
25
Compressor RLA
A
4.47
4.47
Compressor Power Input
W
985
985
Overload Protector
1NT11L-5270
1NT11L-5270
Throttling Method
Capillary
Capillary
Operation temp
ºC
16 / 30
16 / 30
Ambient temp (cooling)
ºC
18 / 48
18 / 48
Ambient temp (heating)
ºC
-
-15 / 24
Condenser Form
Aluminum Fin-copper Tube
Aluminum Fin-copper Tube
Pipe Diameter
mm
Φ7
Φ7
Rows-fin Gap
mm
2-1.4
2-1.4
Coil Length (LXDXW)
mm
798X38.1X508
798X38.1X508
Fan Motor Speed
rpm
900/680
900/680
Output of Fan Motor
W
52
52
Fan Motor RLA
A
0.22
0.22
Fan Motor Capacitor
μF
-
-
Air Flow Volume of Outdoor Unit
m3/h
1800
1800
Fan Type
Axial-flow
Axial-flow
Fan Diameter
mm
Φ400
Φ400
Defrosting Method
-
Automatic Defrosting
Climate Type
T1
T1
Isolation
I
I
Moisture Protection
IP24
IP24
Permissible Excessive Operating
Pressure for the Discharge Side
MPa
4.3
4.3
Permissible Excessive Operating
Pressure for the Suction Side
MPa
2.5
2.5
Sound Pressure Level (Maximum)
dB (A)
50
50
Sound Power Level (Maximum)
dB (A)
60
60
Dimension (WXHXD)
mm
848X540X320
848X540X320
Dimension of Carton Box
(LXWXH)
mm
878X360X580
878X360X580
Dimension of Package (LXWXH)
mm
881X363X605
881X363X605
Net Weight
kg
33
34
Gross Weight
kg
35
36
Refrigerant
R410A
R410A
Refrigerant Charge
kg
1.07
1.07
Connecti
on Pipe
Length (Standard)
m
7.5
7.5
Gas Additional Charge(> 7.5m)
g/m
20
20
Outer Diameter Liquid Pipe
mm
6.35 - 1/4
6.35 - 1/4
Outer Diameter Gas Pipe
mm
9.52 - 3/8
9.52 - 3/8
Max Distance Height
m
10
10
Max Distance Length
m
15
15

Page 15 KSSSI116
Model & PNC (Indoor)
KSV35CRC/950132917
KSV35HRC/950132911
Power
Supply
Rated Voltage
V～
220-240
220-240
Rated Frequency
Hz
50
50
Phases
1
1
Power Supply Mode
Indoor
Indoor
Cooling Capacity (Min～Max)
W
3500
3500
Heating Capacity (Min～Max)
W
-
4000
Cooling Power Input (Min～Max)
W
910
910
Heating Power Input (Min～Max)
W
-
1040
Cooling Power Current
A
4.00
4.00
Heating Power Current
A
-
5.00
Rated Input
W
1600
1600
Rated Current
A
7.00
7.00
Air Flow Volume(SH/H/MH/M/L/ML/SL)
m3/h
750/670/610/530/460/410/380
750/670/610/530/460/410/380
Dehumidifying Volume
L/h
1.4
1.4
EER
W/W
3.85
3.85
COP
W/W
-
3.85
Application Area
m2
22-26
22-26
Indoor
Unit
Model of indoor unit
KSV35CRC(indoor)
KSV35HRC(indoor)
Fan Type
Cross-flow
Cross-flow
Fan Motor Cooling Speed
(SH/H/MH/M/L/ML/SL)
r/min
1350/1070/1000/900/
800/700/500
1350/1070/1000/900/
800/700/500
Fan Motor Heating Speed
(SH/H/MH/M/L/ML/SL)
r/min
-
1350/1150/1080/1030/
980/900/850
Output of Fan Motor
W
15
15
Fan Motor RLA
A
0.07
0.07
Evaporator Form
Aluminum Fin-copper Tube
Aluminum Fin-copper Tube
Pipe Diameter
mm
Φ7
Φ7
Row-fin Gap
mm
2-1.5
2-1.5
Coil Length (LXDXW)
mm
662X25.4X304.8
662X25.4X304.8
Swing Motor Model
MP24HA/MP24HB/MP24HC
MP24HA/MP24HB/MP24HC
Output of Swing Motor
W
2
2
Fuse
A
3.15
3.15
Sound Pressure Level
(SH/H/MH/M/L/ML/SL)
dB (A)
42/38/36/34/30/26/24
42/38/36/34/30/26/24
Sound Power Level
(SH/H/MH/M/L/ML/SL)
dB (A)
54/48/46/44/40/36/24
54/48/46/44/40/36/24
Dimension (WXHXD)
mm
896X316X205
896X316X205
Dimension of Carton Box
(LXWXH)
mm
950X385X280
950X385X280
Dimension of Package(LXWXH)
mm
953X383X295
953X383X295
Net Weight
kg
12
12
Gross Weight
kg
14
14

Page 16 KSSSI116
Model & PNC (Outdoor Unit)
KSV35CRC/950132917
KSV35HRC/950132911
Compressor
Manufacturer/Trademark
PANASONIC WANBAO
COMPERSSOR
(GUANGZHOU)
CO.LTD/PANASONIC
PANASONIC WANBAO
COMPERSSOR
(GUANGZHOU)
CO.LTD/PANASONIC
Compressor Model
5RS102ZJA21
5RS102ZJA21
Compressor Oil
FV50S
FV50S
Compressor Type
Rotary
Rotary
L.R.A.
A
25
25
Compressor RLA
A
4.47
4.47
Compressor Power Input
W
985
985
Overload Protector
1NT11L-5270
1NT11L-5270
Throttling Method
Capillary
Capillary
Operation temp
ºC
16 / 30
1630
Ambient temp (cooling)
ºC
18 / 48
18～48
Ambient temp (heating)
ºC
-
-15～24
Condenser Form
Aluminum Fin-copper Tube
Aluminum Fin-copper Tube
Pipe Diameter
mm
Φ9.52
Φ9.52
Rows-fin Gap
mm
2-1.4
2-1.4
Coil Length (LXDXW)
mm
704X44X559
704X44X559
Fan Motor Speed
rpm
900/680
900/680
Output of Fan Motor
W
52
52
Fan Motor RLA
A
0.22
0.22
Fan Motor Capacitor
μF
-
-
Air Flow Volume of Outdoor Unit
m3/h
2000
2000
Fan Type
Axial-flow
Axial-flow
Fan Diameter
mm
400
400
Defrosting Method
-
Automatic Defrosting
Climate Type
T1
T1
Isolation
I
I
Moisture Protection
IP24
IP24
Permissible Excessive Operating
Pressure for the Discharge Side
MPa
4.3
4.3
Permissible Excessive Operating
Pressure for the Suction Side
MPa
2.5
2.5
Sound Pressure Level
(Maximum)
dB (A)
51
51
Sound Power Level (Maximum)
dB (A)
61
61
Dimension (WXHXD)
mm
848X592X320
848X592X320
Dimension of Carton Box
(LXWXH)
mm
878X360X630
878X360X630
Dimension of Package (LXWXH)
mm
881X363X645
881X363X645
Net Weight
kg
35
36
Gross Weight
kg
38
39
Refrigerant
R410A
R410A
Refrigerant Charge
kg
1.27
1.27
Length (Standard)
m
7.5
7.5
Gas Additional Charge (>7.5M)
g/m
20
20
Outer Diameter Liquid Pipe
mm
Φ6.35
Φ6.35
Outer Diameter Gas Pipe
mm
Φ9.52
Φ9.52
Max Distance Height
m
10
10
Max Distance Length
m
20
20

Page 17 KSSSI116
Model
KSV53HRC
Product Code
CB407000500
Power
Supply
Rated Voltage
V～
220-240
Rated Frequency
Hz
50
Phases
1
Power Supply Mode
Indoor
Cooling Capacity
W
5200
Heating Capacity
W
5800
Cooling Power Input
W
1450
Heating Power Input
W
1640
Cooling Current Input
A
7
Heating Current Input
A
7.9
Rated Input
W
2500
Rated Current
A
12.5
Air Flow Volume(SH/H/M/L/SL)
m3/h
950/870/790/710/630/560/480
Dehumidifying Volume
L/h
1.8
EER
W/W
3.59
COP
W/W
3.54
SEER
W/W
/
HSPF
W/W
/
Application Area
m2
23-34
Indoor
Unit
Indoor Unit Model
KSV53HRC(Indoor)
Indoor Unit Product Code
CB407N00500
Fan Type
Cross-flow
Fan Diameter Length(DXL)
mm
Φ100X765
Cooling Speed
r/min
1250/1150/1050/950/850/750/650
Heating Speed
r/min
1300/1200/1100/1000/900/800/700
Fan Motor Power Output
W
25
Fan Motor RLA
A
0.1
Fan Motor Capacitor
μF
/
Heater Power Input
W
/
Evaporator Form
Aluminum Fin-copper Tube
Evaporator Pipe Diameter
mm
φ7
Evaporator Row-fin Gap
mm
2-1.5
Evaporator Coil Length (LXDXW)
mm
765X25.4X342.9
Swing Motor Model
MP28VC/MP35DA/MP24AA
Swing Motor Power Output
W
2/2.5/1.5
Fuse Current
A
/
Sound Pressure Level (SH/H/M/L/SL)
dB (A)
46/44/41/39/36/33/30
Sound Power Level (SH/H/M/L/SL)
dB (A)
58/56/53/51/48/45/42
Dimension (WXHXD)
mm
1047X346X234
Dimension of Carton Box (LXWXH)
mm
1102X416X316
Dimension of Package(LXWXH)
mm
1105X419X331
Net Weight
kg
15
Gross Weight
kg
20

Page 18 KSSSI116
Outdoor
Unit
Model & PNC (Outdoor Unit)
KSV53HRC/950132912
Compressor Manufacturer/Trademark
MITSUBISHI/MITSUBISHI ELECTRIC
(GUANGZHOU)COMP
Compressor Model
SNB130FGYMC-L1
Compressor Oil
FV50S
Compressor Type
Rotary
Compressor LRA.
A
27
Compressor RLA
A
8.4
Compressor Power Input
W
1245
Compressor Overload Protector
1NT11L-6578
Throttling Method
Capillary
Set Temperature Range
ºC
16～30
Cooling Operation Ambient Temperature
Range
ºC
10～48
Heating Operation Ambient Temperature
Range
ºC
-15～24
Condenser Form
Aluminum Fin-copper Tube
Condenser Pipe Diameter
mm
Φ7
Condenser Rows-fin Gap
mm
3-1.4
Condenser Coil Length (LXDXW)
mm
823.5X38.1X649
Fan Motor Speed
rpm
700
Fan Motor Power Output
W
60
Outdoor Unit Air Flow Volume
m3/h
3200
Fan Type
Axial-flow
Fan Diameter
mm
520
Defrosting Method
Automatic Defrosting
Climate Type
T1
Isolation
I
Moisture Protection
IP24
Permissible Excessive Operating Pressure
for the Discharge Side
MPa
4.3
Permissible Excessive Operating Pressure
for the Suction Side
MPa
2.5
Sound Pressure Level (Maximum)
dB (A)
54
Sound Power Level (Maximum)
dB (A)
66
Dimension (WXHXD)
mm
955X700X396
Dimension of Carton Box (LXWXH)
mm
1026X455X735
Dimension of Package(LXWXH)
mm
1029X458X750
Net Weight
kg
50
Gross Weight
kg
55
Refrigerant
R410A
Refrigerant Charge
kg
1.6
Connection Pipe Length (Standard)
m
7.5
Connection Pipe Gas Additional Charge
(>7.5M)
g/m
50
Outer Diameter Liquid Pipe
mm
6.35 –1/4
Outer Diameter Gas Pipe
mm
15.88 –5/8
Max Distance Height
m
10
Max Distance Length
m
25

Page 19 KSSSI116
Model & PNC (Indoor Unit)
KSV62HRC/950132913
Power
Supply
Rated Voltage
V～
220-240
Rated Frequency
Hz
50
Phases
1
Power Supply Mode
Indoor
Cooling Capacity (Min～Max)
W
6050(1300～7200)
Heating Capacity (Min～Max)
W
6700(1200～7300)
Cooling Power Input (Min～Max)
W
1730(400～2400)
Heating Power Input (Min～Max)
W
1910(400~2500)
Cooling Power Current
A
7.67
Heating Power Current
A
8.49
Rated Input
W
2700
Rated Current
A
11.98
Air Flow Volume(SH/H/MH/M/ML/L/SL)
m3/h
1200/1130/1060/990/920/850/780
Dehumidifying Volume
L/h
2.5
EER
W/W
3.50
COP
W/W
3.50
Application Area
m2
41-50
Indoor
Unit
Model of indoor unit
KSV62HRC(Indoor)
Fan Type
Cross-flow
Fan Motor Cooling Speed
(SH/H/MH/M/ML/L/SL)
r/min
1400/1300/1200/1100/1000/850/750
Fan Motor Heating Speed
(SH/H/MH/M/ML/L/SL)
r/min
1400/1300/1200/1100/1000/850/750
Output of Fan Motor
W
60
Fan Motor RLA
A
0
Evaporator Form
Aluminum Fin-copper Tube
Pipe Diameter
mm
Φ7
Row-fin Gap
mm
2-1.5
Coil Length (LXDXW)
mm
903X25.4X381
Swing Motor Model
MP35CS/MP35CP/MP24HB/MP24HC
Output of Swing Motor
W
2.5/2.5/1.5
Sound Pressure Level (SH/H/MH/M/ML/L/SL)
dB (A)
49/47/45/43/41/39/36
Sound Power Level (SH/H/MH/M/ML/L/SL)
dB (A)
59/57/55/53/51/49/46
Dimension (WXHXD)
mm
1193X338X252
Dimension of Carton Box (L/W/H)
mm
1247X408X340
Dimension of Package (L/W/H)
mm
1250X411X355
Net Weight
kg
18
Gross Weight
kg
24

Page 20 KSSSI116
Model & PNC (Outdoor Unit)
KSV62HRC/950132913
Compressor Manufacturer/Trademark
MITSUBISHI/MITSUBISHI ELECTRIC
(GUANGZHOU)COMP
Compressor Model
SNB130FGYMC-L1
Compressor Oil
FV50S
Compressor Type
Rotary
L.R.A.
A
27.00
Compressor RLA
A
8.40
Compressor Power Input
W
1245
Overload Protector
1NT11L-6578
Throttling Method
Capillary
Operation temp
℃
16 / 30
Ambient temp (cooling)
℃
10 / 48
Ambient temp (heating)
℃
-15 / 24
Condenser Form
Aluminium Fin-copper Tube
Pipe Diameter
mm
Φ7
Rows-fin Gap
mm
3-1.4
Coil Length (LXDXW)
mm
823.5X38.1X649
Fan Motor Speed
rpm
700
Output of Fan Motor
W
60
Air Flow Volume of Outdoor Unit
m3/h
3200
Fan Type
Axial-flow
Fan Diameter
mm
Φ520
Defrosting Method
Automatic Defrosting
Climate Type
T1
Isolation
I
Moisture Protection
IP24
Permissible Excessive Operating Pressure for the
Discharge Side
MPa
4.3
Permissible Excessive Operating Pressure for the
Suction Side
MPa
2.5
Sound Pressure Level (Maximum)
dB
(A)
56
Sound Power Level (Maximum)
dB
(A)
66
Dimension (WXHXD)
mm
955X700X396
Dimension of Carton Box (L/W/H)
mm
1026X455X735
Dimension of Package (L/W/H)
mm
1029X458X750
Net Weight
kg
50
Gross Weight
kg
54
Refrigerant
R410A
Refrigerant Charge
kg
1.90
Length (Standard)
m
7.5
Gas Additional Charge (>7.5M)
g/m
50
Outer Diameter Liquid Pipe
mm
Φ6.35
Outer Diameter Gas Pipe
mm
Φ16
Max Distance Height
m
10
Max Distance Length
m
25
