Use & Care Guide
Built-In Coffee Maker
81Electrolux I,c o NTM
E24CM75GSS E24CM76GSS 102220RevD-2

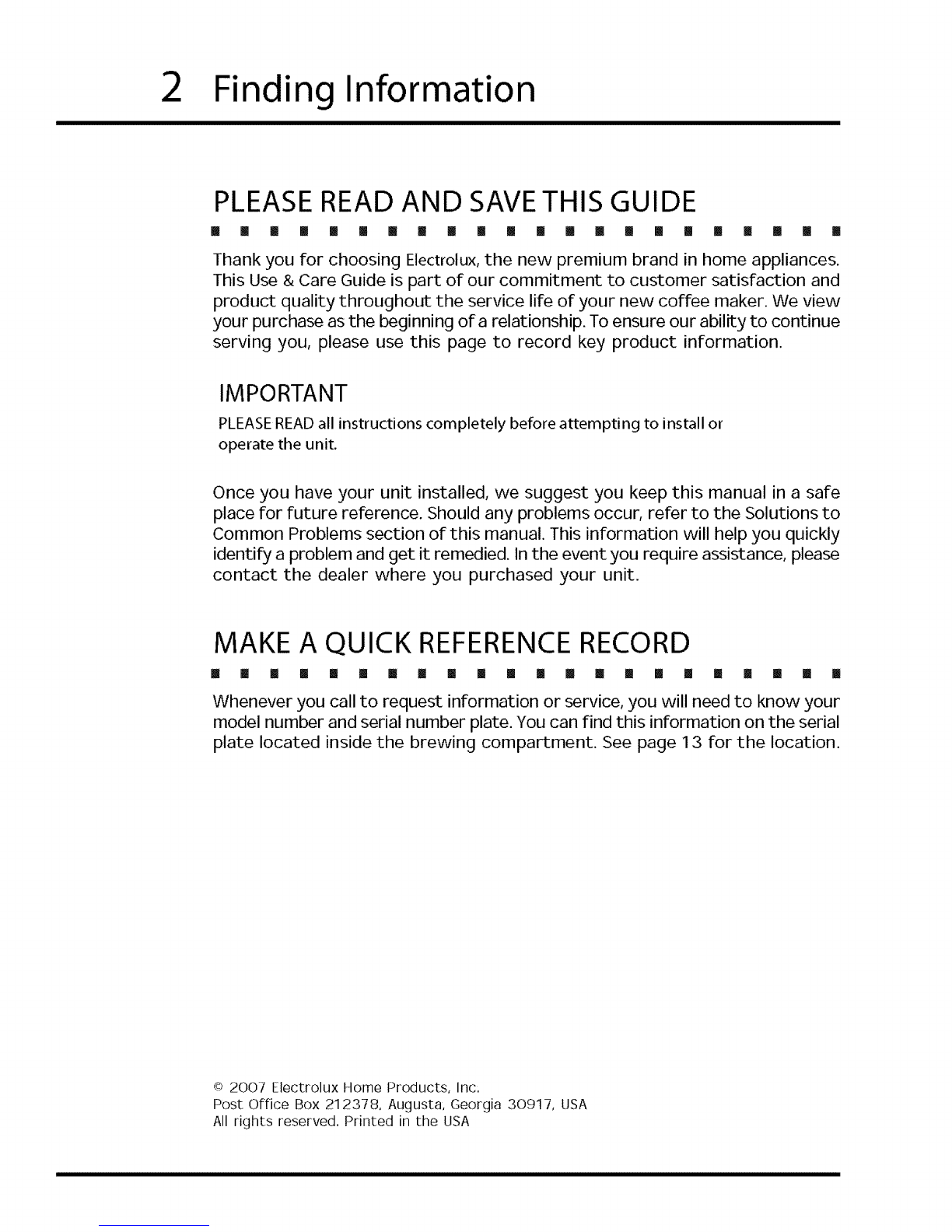

2Finding Information
PLEASEREAD AND SAVETHIS GUIDE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Thank you for choosing Electrolux, the new premium brand in home appliances.
This Use & Care Guide is part of our commitment to customer satisfaction and
product quality throughout the service life oFyour new coffee maker. We view
your purchase as the beginning of a relationship. To ensure our ability to continue
serving you, please use this page to record key product information.
IMPORTANT
PLEASE READ all instructions completely before attempting to install or
operate the unit.
Once you have your unit installed, we suggest you keep this manual in a safe
place For Future reference. Should any problems occur, refer to the Solutions to
Common Problems section of this manual. This information will help you quickly
identify a problem and get it remedied. In the event you require assistance, please
contact the dealer where you purchased your unit.
MAKE A QUICK REFERENCERECORD
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Whenever you call to request information or service, you will need to know your
model number and serial number plate. You can rind this information on the serial
plate located inside the brewing compartment. See page 13 For the location.
© 2007 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA

Finding Information 3
PRODUCT REGISTRATIONCARD
Ii [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
The package containing this manual also includes your product registration
information. Warranty coverage begins at the time your Electrolux coffee maker
was purchased.
If you received a damaged product, immediately contact your dealer or builder. Do
not install or use a damaged appliance.
NOTE
Registering your product with Electrolux enhances our ability to serve
you. You can register online (at the Internet address below) or by dropping
your Product Registration Card in the mail. Complete and mail the Product
Registration Card as soon as possible to validate the registration date.
Please record the purchase date of your Electrolux unit and your dealer's name,
address and telephone number.
Purchase Date
Electrolux Model Number
Electrolux Serial Number
Dealer Name
Dealer Address
Dealer Telephone
Keep this manual and the sales receipt together in a safe place for further
reference.
QUESTIONS?
I [] [] I [] m [] [] [] [] [] [] [] [] [] []
For toll-free telephone support in the U.S. and Canada:
1-877- 4ELECTROLUX (1-877-435-3287)
For online support and Internet product information:
www.electroluxusa.com
[] [] [] [] [] []

4Finding Information

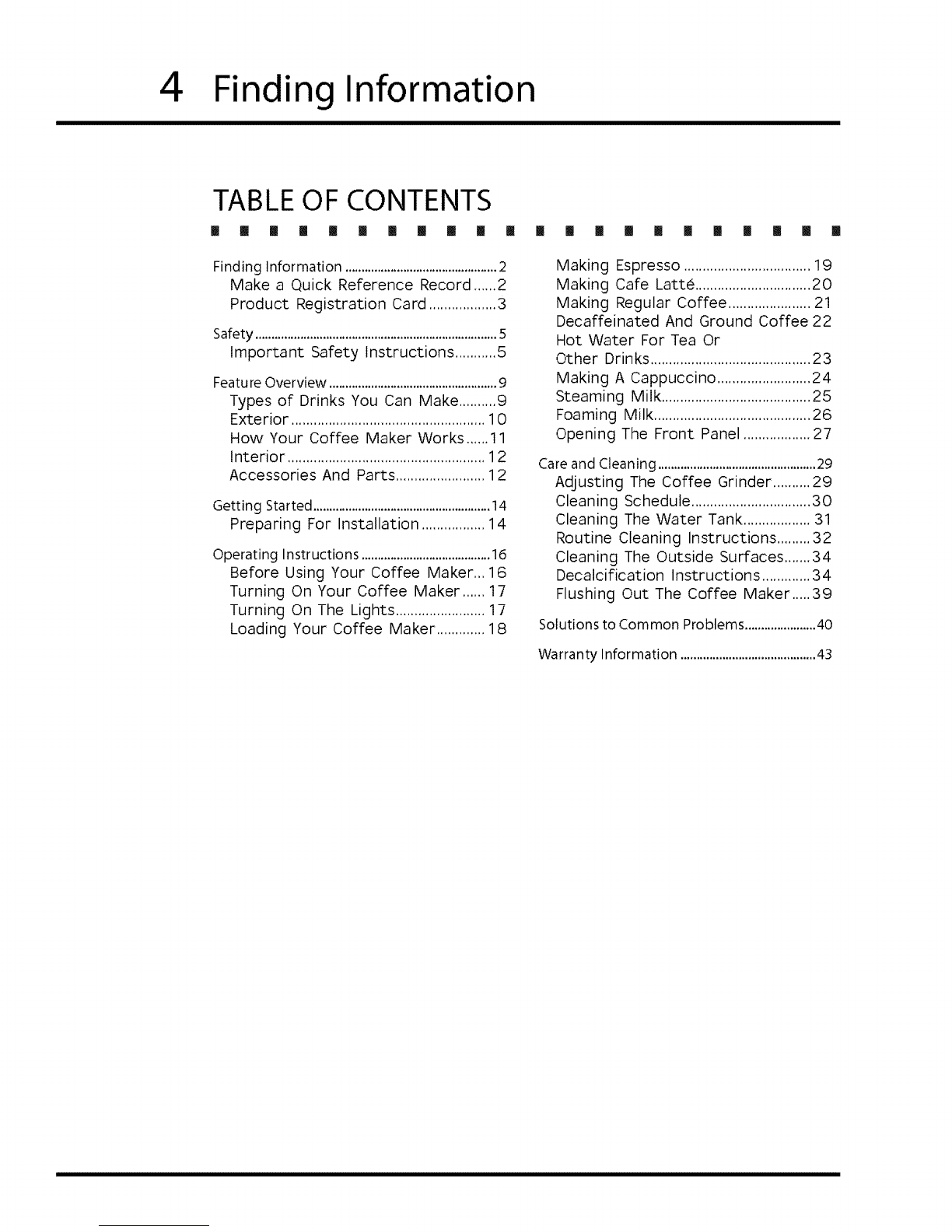

TABLE OF CONTENTS
[] [] [] [] [] [] [] [] [] [] []
Finding Information ...............................................2
Make a Quick Reference Record ......2
Product Registration Card ..................3
Safety ...........................................................................5
Important Safety Instructions ...........5
Feature Overview ....................................................9
Types of Drinks You Can Make ..........9
Exterior ....................................................10
How Your Coffee Maker Works ......11
Interior .....................................................12
Accessories And Parts ........................12
Getting Started .......................................................14
Preparing For Installation .................14
Operating Instructions ........................................16
Before Using Your Coffee Maker... 16
Turning On Your Coffee Maker ...... 17
Turning On The Lights ........................17
Loading Your Coffee Maker .............18
!! [] [] [] il [] [] [] [] [] []
Making Espresso ..................................19
Making Cafe Latte ...............................20
Making Regular Coffee ......................21
Decaffeinated And Ground Coffee 22
Hot Water For Tea Or
Other Drinks ...........................................23
Making A Cappuccino .........................24
Steaming Milk ........................................25
Foaming Milk ..........................................26
Opening The Front Panel ..................27
Care and Cleaning .................................................29
Adjusting The Coffee Grinder ..........29
Cleaning Schedule ................................30
Cleaning The Water Tank ..................31
Routine Cleaning Instructions .........32
Cleaning The Outside Surfaces .......34
Decalcification Instructions .............34
Flushing Out The Coffee Maker .....39
Solutions to Common Problems ......................40
Warranty Information ..........................................43

Safety 5
IMPORTANT SAFETY INSTRUCTIONS
[] [] [] [] [] [] [] [] [] [] II [] [] [] [] [] [] II [] II [] []
Safety Precautions
Do not attempt to install or operate this appliance until you read the safety
precautions in this guide. Safety items throughout this guide are labeled with a
WARNING or CAUTION based on the risk type.
Definitions
_ti This symbol isthe safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow it to avoid
possible injury or death.
Z_WARNING
WARNING indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury,
Z_CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
CAUTION
CAUTION used without the safety alert symbol indicates a potentially
hazardous situation which, if not avoided, may result in property damage.
IMPORTANT
Indicates installation, operation or maintenance information which is
important but not hazard related.

6Safety
General Precautions
Z WARNING
To reduce the risk of fire, electrical shock, or injury when using your coffee
maker, follow basic precautions including the following:
Read all instructions before operating the coffee maker.
IMPORTANT: Before performing any type of service or installation, make sure
that electric power to the coffee maker is disconnected.
IMPORTANT: To avoid the possibility of explosion or fire, do not store or use
combustible, flammable or explosive liquids or vapors (such as gasoline) inside
or in the vicinity of this or any other appliance.
IMPORTANT: This appliance is equipped
with a three-prong grounding plug for your
protection against possible electric shock
hazards. It must be plugged into a dedicated,
grounded receptacle. Where astandard
two-prong wall receptacle is encountered, it ®
is the personal responsibility and obligation
of the customer to have it replaced with a
dedicated, properly grounded three-prong wall
receptacle. Do not under any circumstances,
cut or remove the third (ground) prong from
the power cord. Do not use an adapter plug. Do not use an extension cord.
Do not use a power cord that is frayed or damaged. The use of a ground fault
interrupter (GFI) is not recommended.
• Do not install or use a damaged appliance. If you receive a damaged
appliance, immediately contact your dealer or builder.
Do not use the coffee maker until it has been properly installed by a
qualified installer according to the accompanying installation instructions.
Have the installer show you the location of the power plug so that you know
where and how to disconnect power to the coffee maker.
• Do not install, repair or replace any part of the coffee maker unless
specifically recommended in the literature accompanying it. A qualified
service technician should perform all other service.
• Keep packaging materials away from children. Plastic sheets and bags can
cause suffocation.
• Use the coffee maker only for tasks expected of a home appliance as
outlined in this manual. This appliance is not intended for commercial use.
Save These Instructions for Future Reference

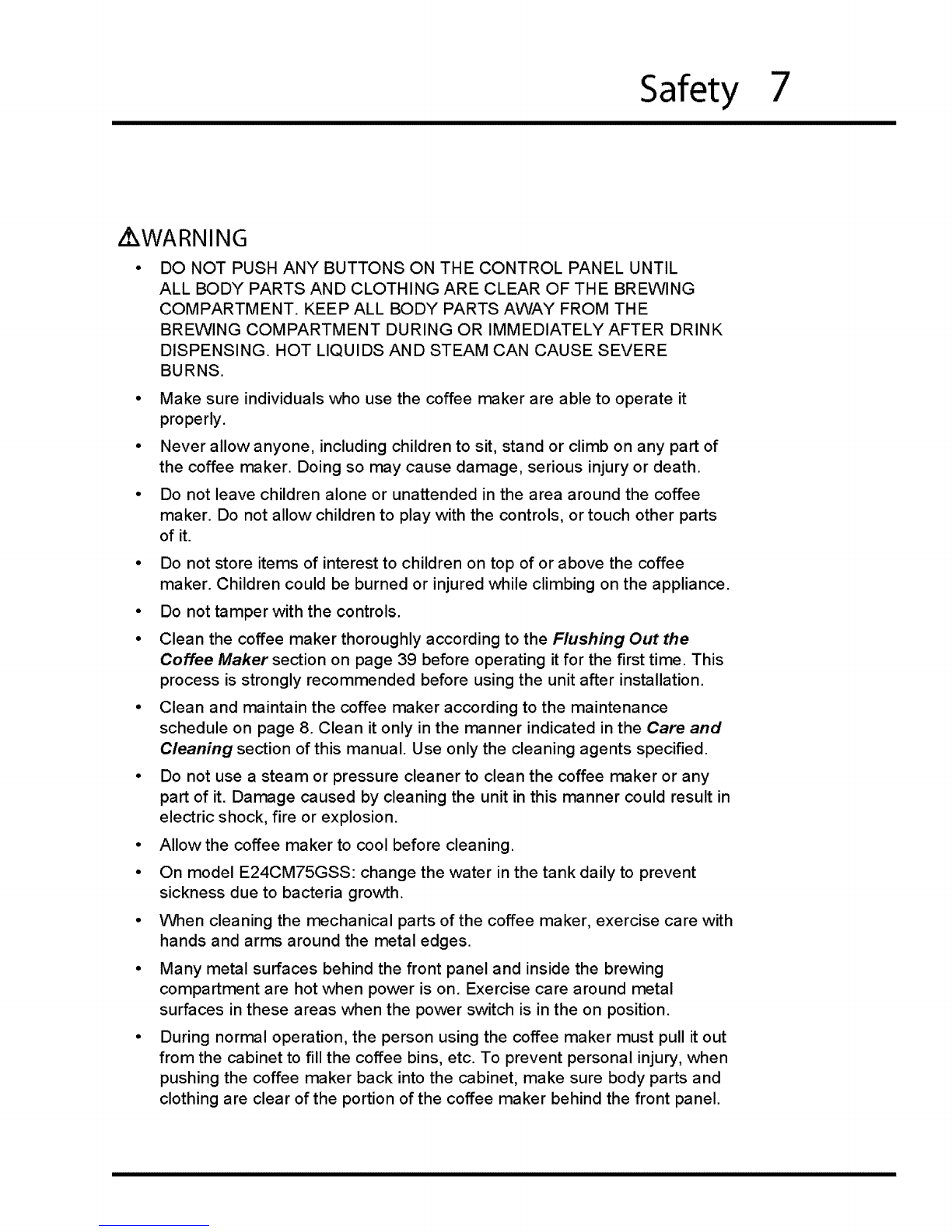

Safety 7
i WARNING
DO NOT PUSH ANY BUTTONS ON THE CONTROL PANEL UNTIL
ALL BODY PARTS AND CLOTHING ARE CLEAR OF THE BREWING
COMPARTMENT. KEEP ALL BODY PARTS AWAY FROM THE
BREWING COMPARTMENT DURING OR IMMEDIATELY AFTER DRINK
DISPENSING. HOT LIQUIDS AND STEAM CAN CAUSE SEVERE
BURNS.
• Make sure individuals who use the coffee maker are able to operate it
properly.
• Never allow anyone, including children to sit, stand or climb on any part of
the coffee maker. Doing so may cause damage, serious injury or death.
Do not leave children alone or unattended in the area around the coffee
maker. Do not allow children to play with the controls, or touch other parts
of it.
Do not store items of interest to children on top of or above the coffee
maker. Children could be burned or injured while climbing on the appliance.
Do not tamper with the controls.
Clean the coffee maker thoroughly according to the Flushing Out the
Coffee Maker section on page 39 before operating it for the first time. This
process is strongly recommended before using the unit after installation.
Clean and maintain the coffee maker according to the maintenance
schedule on page 8. Clean it only in the manner indicated in the Care and
Cleaning section of this manual. Use only the cleaning agents specified.
Do not use a steam or pressure cleaner to clean the coffee maker or any
part of it. Damage caused by cleaning the unit in this manner could result in
electric shock, fire or explosion.
Allow the coffee maker to cool before cleaning.
On model E24CM75GSS: change the water in the tank daily to prevent
sickness due to bacteria growth.
When cleaning the mechanical parts of the coffee maker, exercise care with
hands and arms around the metal edges.
Many metal surfaces behind the front panel and inside the brewing
compartment are hot when power is on. Exercise care around metal
surfaces in these areas when the power switch is in the on position.
During normal operation, the person using the coffee maker must pull it out
from the cabinet to fill the coffee bins, etc. To prevent personal injury, when
pushing the coffee maker back into the cabinet, make sure body parts and
clothing are clear of the portion of the coffee maker behind the front panel.

8 Safety
General Precautions (continued)
CAUTION
To prevent jamming of the grinding mechanism, use only the types of coffee
beans specified in this manual.
Remove the drip tray before closing the front panel door. Closing the front
panel door without the drip tray removed could damage parts of the coffee
maker.
• To prevent clogging of the internal parts, use only filtered water as specified
below. Do not used distilled water.
Do not put any part of your coffee maker in a dishwasher. Many of the parts
are not dishwasher safe.
Before
Keep the coffee maker keys in a safe place. Replacement keys are not
covered by the warranty.
Clean the coffee maker regularly according to the chart below. See the
Care and Cleaning section for complete instructions.
operating your coffee maker for the first time...
1) Make sure you are using the right type of water.
• Call your local water company. Ask them for the water hardness level of the water
supplied to the building where your coffee maker will be installed.
• If the water hardness level is above four grains per gallon (4 gpg):
>> For model E24CM76GSS, contact a water treatment specialist and have a water
treatment system installed to reduce the water hardness level to 4 gpg or less
according the installation instructions.
>> For model E24CM75GSS, pour only filtered water with a hardness level of 4 gpg or
less into the water tank. Do not use distilled water.
2) Flush the system to remove bacteria that may have accumulated during storage and
shipping (See page 39).
IMPORTANT: For model E24CM76GSS, regardless of the water hardness
measured, Electrolux highly recommends installation of the Electrolux filter kit. The
coffee maker requires periodic decalcification. Decalcification will be much simpler
with the filter kit installed according to the installation instructions.
Coffee Maker Cleaning Schedule
WaterTank Routine Decalcification Service Call
(E24CM75GSS) Cleaning
Daily X
Every 30 cycles X
(or once a week)
Monthly X
Every 2500 cycles X
(Approx.2 1/2)/ears)

Feature Overview 9
TYPESOF DRINKS YOU CAN MAKE
I [] m [] ! [] [] [] B [] [] [] [] [] [] [] [] [] [] I [] []
Your coffee maker comes from the factory set upto make the types of drinks listed
below. See the Operating Instructions section for step by step instructions.
Espresso One "shot" of espresso is a little over one ounce of strong
coffee. The Single Espresso button brews one shot of
espresso. The Double Espresso button brews two shots.
CareLatt_ Care latte is a large espresso (about three ounces) with
six ounces of steamed milk. Use the care latte buttons and
Cappuccino Steamer to make a care latte.
Large Coffee Coffee is less concentrated than espresso and larger in
volume.
Teaand Hot Use the HotWater button to brew tea and other hot flavored
Chocolate drinks.
Cappuccino Cappuccino is a coffee drink with about one ounce of
espresso and one ounce of foamed milk on top. Use the
espresso buttons and the Cappuccino Steamer to make a
cappuccino.
Steamed milk is milk that is heated with few bubbles using the
Cappuccino Steamer.
Foamed milk is hot milk with large bubbles. Use the
Cappuccino Steamer to created foamed milk.
Steamed Milk
Foamed Milk
• You can add "just a touch" of espresso, coffee or hot water to any drink.
° Make your favorite drink according to the operating instructions.
• Push the Single Espresso, Large Coffee or Hot Water button.
° Push the Single Espresso, Large Coffee or Hot Water button again
to make the coffee maker stop so that only the amount you want is
dispensed.
• You can experiment to come up with all sorts of drinks that suit your
personal preference!

10 Feature Overview
EXTERIOR
[] II [] [] [] [] [] III II [] [] [] [] [] [] [] [] [] [] [] [] II
Front Panel
Display
Brewing Compartment
Coffee Dispenser
The front panel has buttons across it that are used to
operate your coffee maker. It also has a display which
provides useful information. The front panel opens up
to allow cleaning, maintenance and programming*.
The display tells you valuable information about your
coffee maker when the power switch is turned on.
The brewing compartment is the area where drinks
and water are dispensed.
Coffee drinks are dispensed from the coffee dispenser.
You can adjust the nozzle on the dispenser up or
down.
Power Switch
Light Switch
Drip Tray
Front Panel Lock
Coffee Bean Container
Ground Coffee Chute
Water Tank
Door Release Button
Use the power switch to turn your coffee system
on or off. It is located on the ceiling of the brewing
compartment, below the buttons.
Use the light switch to turn the lights in the brewing
compartment on or off. It is located on the ceiling of the
brewing compartment, below the display.
The drip tray catches spills and water that the coffee
system purges during the process of making coffee.
The front panel of the coffee system is equipped with a
lock to keep it from being easily opened. Remove the
drip tray before opening the front panel.
The coffee system grinds the roasted coffee beans you
put in the coffee bean container.
When making a cup of coffee using pre-ground coffee,
put the coffee grounds in the ground coffee chute. The
ground coffee feature is good for making decaffeinated
coffee or _tround flavored coffee.
Model E24CM75GSS only. The water tank holds the
filtered vvater used to make coffee. Use only water with
a hardness of four grains per gallon (gpg) or less.
The door release button is used to open the front panel
for cleaning, maintenance, and programming.
NOTE
* Your coffee maker is pre-programed for best performance at the factory. It
is possible to reprogram the coffee maker to change the water volume and
coffee strength using our optional programming guide. Contact Electrolux
for details.
