Use _ Care Guide
Radiant/Induction Electric Cooktop

Finding information
MAKEA RECORDFORFUTUREUSE
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Brand
Purchase Date
Model Number
Serial Number
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
For toll-free telephone support in the U.S. and Canada:
1=877=4ELECTROLUX (1 =877=435-3287)
For online support and internet product information:
www.electrolu×appliances,com
@2008 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved. Printed in the USA

Finding Information

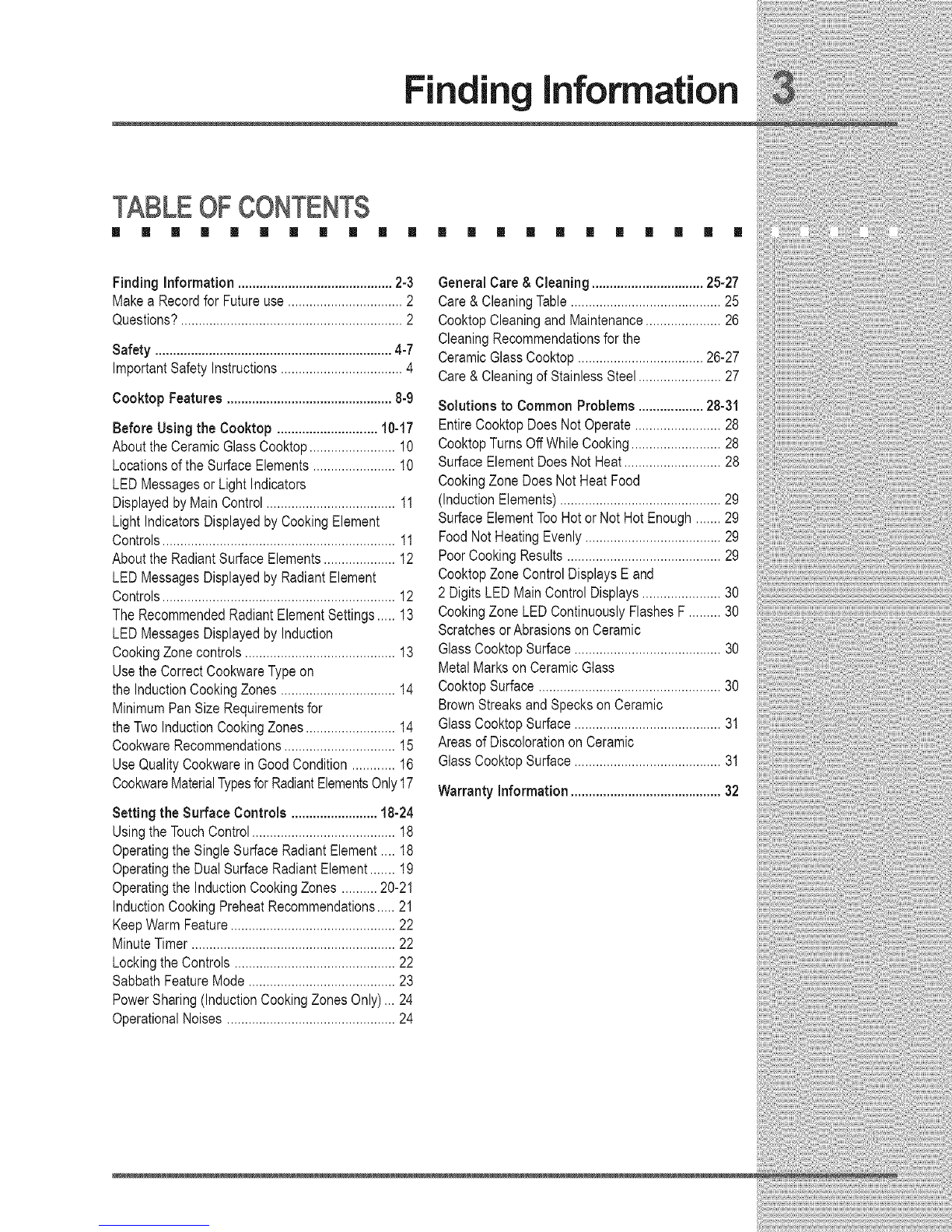

TABLEOFCONTENTS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Findinginformation...........................................2-3
Makea Recordfor Futureuse................................2
Questions?..............................................................2
Safety..................................................................4-7
ImportantSafetyInstructions..................................4
Cooktop Features ..............................................8-9
Before Using the Cooktop ............................10-17
AbouttheCeramicGlassCooktop........................10
LocationsoftheSurfaceElements.......................10
LEDMessagesor LightIndicators
DisplayedbyMainControl....................................11
LightIndicatorsDisplayedbyCookingElement
Controls.................................................................11
AbouttheRadiantSurfaceElements....................12
LEDMessagesDisplayedbyRadiantElement
Controls.................................................................12
TheRecommendedRadiantElementSettings..... 13
LEDMessagesDisplayedby Induction
CookingZonecontrols..........................................13
UsetheCorrectCookwareTypeon
theInductionCookingZones................................14
MinimumPanSizeRequirementsfor
theTwoInductionCookingZones.........................14
CookwareRecommendations...............................15
UseQualityCookwareinGoodCondition............16
CookwareMaterialTypesforRadiantElementsOnly17
Setting the Surface Contro(s ........................18-24
UsingtheTouchControl........................................18
OperatingtheSingleSurfaceRadiantElement.... 18
OperatingtheDualSurfaceRadiantElement.......19
Operatingthe InductionCookingZones ..........20-21
InductionCookingPreheatRecommendations.....21
KeepWarmFeature..............................................22
MinuteTimer.........................................................22
LockingtheControls.............................................22
SabbathFeatureMode.........................................23
PowerSharing(InductionCookingZonesOnly)... 24
OperationalNoises...............................................24
GeneralCare& Cleaning...............................25-27
Care& CleaningTable..........................................25
CooktopCleaningand Maintenance.....................26
CleaningRecommendationsfor the
CeramicGlassCooktop...................................26-27
Care& CleaningofStainlessSteel.......................27
Solutions to CommonProblems ..................28-31
EntireCooktopDoesNotOperate........................28
CooktopTurnsOffWhileCooking.........................28
SurfaceElementDoesNotHeat...........................28
CookingZoneDoesNotHeatFood
(InductionElements).............................................29
SurfaceElementTooHotor NotHot Enough.......29
FoodNot HeatingEvenly......................................29
PoorCookingResults...........................................29
CooktopZoneControlDisplaysE and
2 DigitsLEDMainControlDisplays......................30
CookingZoneLEDContinuouslyFlashesF.........30
ScratchesorAbrasionsonCeramic
GlassCooktopSurface.........................................30
MetalMarksonCeramicGlass
CooktopSurface...................................................30
BrownStreaksandSpecksonCeramic
GlassCooktopSurface.........................................31
Areasof DiscolorationonCeramic
GlassCooktopSurface.........................................31
Warrantyinformation..........................................32

Safety
I [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Read all instructions before using this appliance. Save these instructions for future reference.
This manual contains important safety symbols and instructions. Please pay attention to these
symbols and followallinstructionsgiven.
This symbol will help alert you to situations that may cause serious bodily harm, death or property
damage•
,:J_- ,-,'-- /, 7"_1,,_<_ _ d_;',
This symbol will help alert you to situations that may cause bodily injury or property damage•
" '_"r_Dt_,,?#_,r_$__"I;j_,_,_C;
•,_,_,"_l,Sz/-ct_'_,L_a__'L: _¢2_
Toreducethe riskoffire, electrical shock, orinjurywhenusing yourelectriccooktop,follow basic
precautionincludingthe following;
This unit has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 18 of the FCC rules These limits are designed to provide reasonable
protection against harmful interference in a residential installation This unit generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications However
there is no guarantee that interference will not occur in a particular installation If this unit
does cause harmful interference to radio or television reception, which can be determined
by turning the unit off and on, the user _sencouraged to try to correct the interference by
one or more of the following measures
Reorient or relocate the recew_ng antennae
• Increase the d_stance between the unit and recewer
• Connect the unit _nto an outlet or a c_rcu_t different from that to which the recewer _s
connected
Personswitha pacemakeror similarmedicaldeviceshouldexercisecautionusingorstandingnearan
inductionunitwNe _tis _noperation,astheelectromagneticfieldmayaffecttheworkingofthepacemakeror
similarmedicaldevice ItwouldbeadvisabletoconsultyourDoctororthepacemakerorsimilarmedical
devicemanufactureraboutyourparticularsituation
• Remove all tape and packaging wrap before using the appliance, Destroy the carton
and plastic bags after unpacking the appliance, Never allow children to play with
packaging material
• Proper Installation, Be sure your appliance is properly installed and grounded by a
qualified technician in accordance with the National Electrical Code No, 70 - latest

Safety
edition in the United States, or CSA C22.1, Part 1in Canada, and local code
requirements. Install only per installation instructions provided in the literature package
for this appliance.
Ask your dealer to recommend a qualifed technician and an authorized repair service. Know
how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in
case of an emergency.
, User Servicing. Do not repair or replace any part of the appliance unless specifically
recommended in the manuals. All other servicing should be done only by a qualified
technician to reduce the risk of personal injury and damage to the appliance.
, Never modify or alter the construction of an appliance such as removal of panels,
wire covers or any other permanent part of the appliance.
•Storage on Appliance. Flammable materials should not be stored near surface units.
This includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as
well as flammable liquids. Do not store explosives, such as aerosol cans, on or near the
appliance. Flammable materials may explode and result in fire or property damage.
, Do not leave children alone. Children should not be left alone or unattended in the
area where an appliance is in use. They should never be allowed to sit or stand on any
part of the appliance.
.DO NOT TOUCH SURFACE UNITS OR AREAS NEAR THESE UNITS. Surface units may
be hot even though they are dark in color. Areas near surface units may become hot
enough to cause burns. During and after use, do not touch, or let clothing or other flammable
materials touch these areas until they have had sufficient time to cool. Among these areas
are the cooktop and areas facing the cooktop.
• Wear Proper Apparel. Loose-fitting or hanging garments should never be worn while
using the appliance. Do not let clothing or other flammable materials contact hot surfaces.
•Do Not Use Water or Flour on Grease Fires. Smother the fire with a pan lid, or use
baking soda, adry chemical or foam=type extinguisher.
* When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to
become too hot.

Safety
• Use Only Dry Pot holders. Moist or damp pot holders on hot surfaces may result in
burns from steam. Do not let the pot holders touch hot surface units. Do not use a towel
or other bulky cloth instead of a pot holder.
•Do Not Heat Unopened Food Containers. Buildup of pressure may cause the
container to burst and result in injury.
iMPORTANT. Do not attempt to operate the cooktop during a power failure. If the power
fails, always turn off the cooktop. If the cooktop is not turned off and the power resumes,
the cooktop will not operate and an error message will be displayed.
IMPORTANT SAFETY INSTRUCTIONS FOR USING YOUR COOKTOP
• Know which touch key pads controls each surface unit.
Clean the appliance regularly to keep all parts free of grease that could catch fire.
Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease
to accumulate on hood or filter. Greasy deposits in the fan could catch fire. When flaming
food under the hood, turn fan on. Refer to hood manufacturer's instructions for cleaning.
Use Proper Pan Size. This appliance isequipped with one or more surface units of different
sizes. Select utensils having flat bottoms large enough to cover the surface unit. The use
of undersized utensils will expose a portion of the surface heating unit to direct contact and
may result in ignition of clothing. Proper relationship of utensil to element will also improve
efficiency.
• Utensil Handles Should Be Turned inward and Not Extend Over Adjacent Surface
Units. To reduce the risk of burns, ignition of flammable materials, and spillage due to
unintentional contact with the utensil.
• Never Leave Surface Units Unattended. Boilovers cause smoking and greasy spillovers
that may ignite, or a pan that has boiled dry may melt.
Protective Liners. Do not use aluminum foil to line any part of the appliance. Only use
aluminum foil as recommended for baking if used as a cover placed on the food. Any other
use of protective liners or aluminum foil may result in a risk of electric shock or fire or short
circuit.
Glazed Cooking Utensils. Only certain types of glass, glass/ceramic, ceramic,
earthenware, or other glazed utensils are suitable for range top service without breaking due
to the sudden change in temperature. Check the manufacturer's recommendations for
cooktop use.
• Ventilating hood. The ventilating hood above your cooking surface should be cleaned
frequently, so the grease from cooking vapors does not accumulate on the hood or filter.

Safety
FOR CERAMIC-GLASS COOKTOP ONLY
.Do Not Clean or Operate aBroken Cooktop. If cooktop should break, cleaning solutions
and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact
a qualified technician immediately.
• Clean Cooktop with Caution. Ira wet sponge orcloth is used to wipe spillsona hot cooking
area, be careful to avoid a steam burn. Some cleaners can produce harmful fumes ifapplied
to a hot surface.
.Do Not Place Hot Cookware on Cold Cooktop Glass. This could cause glass to break.
•Do not slide pan across the cooktop surface. They may scratch the cooktop surface.
.Do Not Let Pans Boil Dry. This may cause permanent damage in the form of breakage,
fusion, or marking that can affect the ceramic-glass cooktop. (This type of damage is not
covered by your warranty).

i i: ii
iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_i_i!_ii!_i!_!_!!_!!_!!_!_i_ii!i_i!i_i_!!_!!!i!!ii!ii!!i_iiii!!!iii_iiii!iii!iii_ili_liii!i_""_:'iiiiiiii)i!iii!ii!iii!!
Cooktop Features
READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE COOKTOP
INDUCTIONELEMENT CHA_CTERISTHCS (RIGHTFRONTANDREARELEMENTS)
A COOLER COOKTOP- A unique feature of the Induction Cooktop is whether turned ON or
OFF,thecooktopsurfaceremainscoolerthanstandardceramiccooktops.
MAO.ETmDETECTOR-Theoo,sensorautomat_caHydetectswhetherthepan_smag-
neticand eliminates accidental 'turn-On.
PANS_ZEDETECTION-Thepanrecognitionsensorautomaticallydetectsandadaptsthe
Cooking Zones to the pan sizes inuse.
EFFICIENT- Induction cooking heats faster while using less energy. Induction power levels
are quick to boil and when simmering,
1. Left Rear Single Radiant Element (Fig. 1)
Left Rear Double Radiant Element (Fig. 2)
2. Left Front Double Radiant Element
3. Right Rear Single Induction Element
4. Right Front Double Induction Element
5. Center Rear Single Radiant Element (Fig. 2 only)
6. Left Front Element Control Pads
7. Left Rear Element Control Pads
8. Right Front Element Control Pads
9. Right Rear Element Control Pads
10. Main Cooktop Controls
11. Center Rear Element Control Pads (Fig. 2 only)
12. Minute Timer Key Pads
Fig. 1 - 30" model
_I0 _7
Fig. 2 - 36" Model

Cooktop Features
coo., ?oo:'o2,,,,,,,,,
lllllmlil// I! i ;i
10 Main Cooktop Controls 12 Minute Timer Key Pads
. m|
6 7 8 9 11 Element Controls (at 4 or 5 locations)
Fig. 3
13. Cooktop ON/OFF Key Pad
14. Cooktop ON/OFF Indicator Light
15. Controls Lock Key Pad
16. Keep Warm Setting Key Pad
17. Minute Timer Setting - (decrease) Key Pad
18. Minute Timer LED (displays up to 99 minutes)
19. Minute Timer Setting + (increase) Key Pad
20. Element Power Key Pad (for each element)
21. Element - Io Key Pad (for each element)
22. Element Power Level LED (for each element)
23. Element + hi Key Pad (for each element)
24. Element Size Key Pad (double radiant elements only)
25. Element Size Indicator Lights

Before Usi the Cooktop
ABOUT THECE MIC G 8S COOKTOP
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Fig.1-30"Model-Cooktop
The ceramic cooktop has radiant and induction surface elements located below
the surface of the glass, The design of the ceramic cooktop outlines the area of
the surface element underneath, Make sure the diameter of the pan matches
the diameter of the element outline on the cooktop (See Figs, 1 & 2).
Heat is transferred up through the surface of the cooktop to the cookware. Only
flat-bottom cookware should be used, The type and size of cookware, the
number of surface elements in use and their settings are all factors that will affect
the amount of heat that will spread to areas beyond the surface elements, The
areas surrounding the elements may become hot enough to cause burns.
Fig.2- 36' Model-Cooktop
LOCATIONSOFTHESURFACEELEMENTS
Fig. 3 - 30" cooktop
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
Fig. 4 - 36" cooktop
Your cooktop is equipped with radiant and induction surface elements with
different wattage ratings, The ability to heat food quicker and in larger volumes
increases as the element wattage increases,
The surface elements are located on the 30" cooktop as follows:
- 1 small radiant element located at the left rear position;
- 1 dual radiant element located at the left front position;
- 1 small induction element located at the right rear position;
- 1 dual induction element located at the right front position,
The surface elements are located on the 36" cooktop as follows:
- 1 small radiant elements located at the center rear position;
- 2 dual radiant elements located at the left front and rear positions;
- 1 small induction element located at the right rear position;
- 1 dual induction element located at the right front position,
