Electrolux ICON Designer E30GC70FSS User manual

30" GAS DROP-IN, DEEP SUMP COOKTOP
Configuration
FEATURES
Deep Sump Formed Stainless Steel Platform
Stainless Steel Finish Knobs
Sealed Power Burner™(BTU)
Sealed Power Burner™(BTU)
Sealed Burner (BTU)
Sealed Precision Burner™(BTU)
Linear Flow Burner Valves
Electronic Ignition
Continuous Grates
ACCESSORIES
Granite Countertop Installation Kit – PN# 903103-9010
Grill/Griddle – PN# 318251603
Wok Ring – PN# 318254301
Simmer Plate – PN# 318254200
Black Burner Knob Kit – PN# 318242222
SPECIFICATIONS
Overall Exterior Dimensions –
Height
Width
Depth
Gas Inlet/Power Supply Location
LP Gas Conversion Kit
Voltage Rating
Connected Load (kW Rating) @120 Volts‡
Electrical Cable
Approved for Single Oven Combination Installation*
Approved for Downdraft Vent Combination Installation*
Shipping Weight (Approx.)
‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a
separate ground wire. Appliance must be grounded for safe operation.
* Approved to be used over any Electrolux ICON®Single Wall Oven and in combination
with an Electrolux ICON®Downdraft Vent.
NOTE: Always consult local and/or national electric and gas codes. Refer to Product
Installation Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
4 Sealed Burners
Yes
4
1 (17,000)
1 (16,000)
1 (9,500)
1 (5,000 – 750)
Yes
Yes
2
Optional
Optional
Optional
Optional
Optional
4-1/4"
30"
21-3/4"
Right Rear
Included
120V/1.2W/60Hz/15A
0.001
Included
Yes
Yes
48 Lbs.
electroluxicon.com
4 Sealed Burner Configuration
Our Power Burners™can bring a large stockpot
to boil in just moments. A standard burner, along
with the Precision Burner™, work in concert with
the Power Burners™to create awesome power
in a small space. The burners are sealed for
easy cleanup.
Professional-Style Controls
The large, surface-mounted knobs provide
easy and accurate settings. Optional black
knobs available.
Continuous Grates
Designed for cooking multiple dishes at varying
temperatures on a single cooktop. Continuous
grates spread weight over a broad area,
providing a stable cooking surface.
Deep Sump Cooktop
The deep sump design of this cooktop contains
spills for easy cleanup and creates a countertop-
level cooking surface that simplifies maneuvering
of oversized pots and pans.
Designed for the well-lived home.
Gas Drop-In, Deep Sump Cooktop
E30GC70FSS

Gas Drop-In, Deep Sump Cooktop
E30GC70FSS
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
E30GC70FSS 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Gas Drop-In, Deep Sump Cooktop Specifications
•
Product Weight – 43 Lbs.
•
Voltage Rating –120V/ 60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.001kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded for
safe operation.)
•
Amps @120 Volts = 0.008 Amps
•
Always consult local and/or national electric and gas codes.
•
Recommended location for grounded 120V outlet is on rear wall in an
8" wide by 10" high area, positioned 22" above floor surface and
12" to right side of cooktop centerline. Access to underside of cooktop
and junction box must be provided for inspection and service.
•
Cooktop ships with 3/4" factory regulator.
•
LP Gas conversion kit supplied.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of cooktop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No. 28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
Allow 2-1/2" minimum distance between rear edge of cutout to nearest
combustible surface above countertop.
•
Allow 7" minimum clearance from edge of cooktop to nearest
combustible wall on either side of unit.
•
Drawers cannot be installed beneath this cooktop.
•
To reduce risk of fire when using overhead cabinetry, install vent hood
that projects horizontally a recommended minimum of 5" beyond bottom
of cabinets.
•
Gas Drop-In, Deep Sump Cooktop model E30GC70FSS is approved to
be used over any Electrolux ICON®Single Wall Oven. (Refer to Gas
Cooktop Installation Over 30" Electric Single Wall Oven Specifications
page on web.)
•
Gas Drop-In, Deep Sump Cooktop model E30GC70FSS is approved
to be used in combination with an Electrolux ICON®30” Downdraft
Vent. (Refer to Drop-In Cooktop / Downdraft Vent Countertop
Preparation page on web for detailed installation specifications.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
Granite Countertop Installation Kit – (PN # 903103-9010).
•
Grill/Griddle – (PN # 318251603).
•
Simmer Plate – (PN # 318254200).
•
Wok Ring – (PN # 318254301).
•
Black Burner Knob Kit – (PN # 318242222).
8" min.*
25"min.
13"
max.
cabinet
depth
18"
min.
30" min. for
unprotected cabinet
24" min. for
protected surface
24"
Opening to route 48" power
cable & gas supply
21/2" minimum distance between
rear edge of cutout and nearest
vertical combustible surface
7" min. to nearest
combustible wall
(either side of unit)
191/8" min.
193/4" max.
*Includes a 5"space beneath
cooktop for connection to
gas supply line
19" 27"
30" 213/4"
30"
271/4"min.
281/2"max.
41/4"

Gas Cooktop Installation
Over 30"Electric Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
GC_EW INST 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Electric Single Wall Oven Cutout
For models: E30EW75GPS
& E30EW75GSS
For all approved gas cooktop models, a minimum
height opening of 6-1/2" (from top of counter) required
in right cabinet side panel and/or filler panel, to route
gas and electric hookups. (Refer to Gas Cooktop
Utility Hookup Diagram)
Oven cutout
120V/60Hz
grounded
outlet, for
gas cooktop
Cooktop
cutout**
28 1/2" min.
28 7/8" max.
240/208V
Junction box
for wall oven
Approx. 3"
24" min.
cutout depth
To route armoured cable to junction box through left cabinet side panel
and/or filler panel, cut minimum 4" x 4" opening in wood base and runner
*Critical dimension – MUST be applied
**For cooktop cutout dimensions refer to model-specific
product page or installation guide on web
5"
61/2"
min.
Pressure regulator
Manual shutoff valve
(Must be accessible)
Cabinet sides
and/or filler panel
Flare union
Manifold
pipe
Flexible connector Flare
union
4"
Countertop
18"max.
120V/60Hz
grounded outlet
Cooktop
Gas
Cooktop
Utility
Hookup
Side filler panels necessary to isolate oven from
adjoining cabinets. Panel height may need to
be modified to accommodate the depth of approved
gas cooktop models
4-1/2" maximum height allowed
from oven base to floor if cooktop
is installed directly over wall oven.
(5" maximum height allowed
with no cooktop.)
Side View
Cooktop
Wall Oven
36"
min.
Unit will overlap cutout (minimum) edges by 1"
Install 3/4" full plywood base on 2 runners, flush
with toe plate, capable of supporting 200 lbs.
24"min.*
281/2"min.
29"max.
30" Electric Single Wall Oven Under-Counter
Installation Specifications
•
Product Weights – (E30EW75GPS) 178 Lbs. / (E30EW75GSS) 175 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =16.6/14.4 Amps
•
Always consult local and/or national electric codes.
•
Minimum 23-1/4" clearance for oven door depth when open.
•
Minimum 24" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. Install over two runners and flush with toe plate.
•
Base must be level and cabinet front must be square with finish-cut
bottom edge.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
•
Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Gas Cooktop Installation
Over 30" Electric Single Wall Oven Specifications
Electrolux ICON®Single Wall Oven models E30EW75GPS and
E30EW75GSS are approved to be used beneath Electrolux ICON®
gas cooktop models E36GC70FSS and E30GC70FSS (gas cooktop
models NOT approved for use in this installation are E36GC75GSS,
E48GC76EPS, E36GC76GPS and E30GC74GPS).
For detailed Gas Cooktop installation, refer to model-specific
product page and installation guide on web.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth of
approved gas cooktop models.
•
Minimum height opening of 6-1/2" (from top of counter) required in right
cabinet side panel and/or filler panel, to route gas and electric hookups.
•
Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.

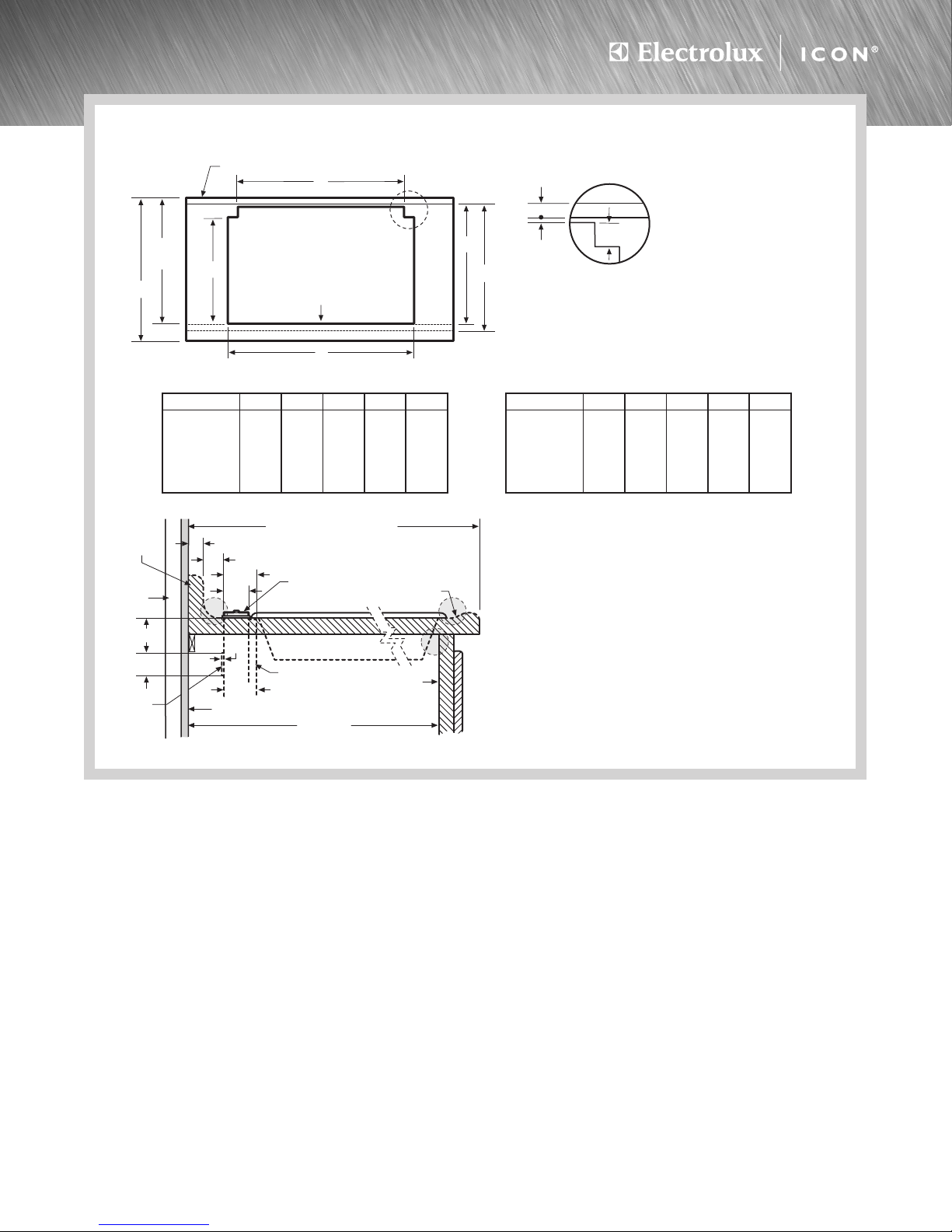

Drop-In Cooktop/Downdraft Vent
Countertop Preparation Specifications
•
For detailed Drop-In Cooktop installation, refer to model-specific product
page and installation guide on web. Plan installation so that all required
minimum clearances between cooktop, overhead cabinets and adjacent
vertical walls are provided.
•
Position cooktop/vent cutout so all required minimum clearances are met.
•
Minimum flat countertop area must meet or exceed combined overall
width and depth as shown. Standard 25" countertop depth may NOT be
adequate for some cooktop/vent installations, especially with backsplash.
•
Separate circuits required for cooktop and vent. (Refer to product-specific
electrical specifications.)
•
Always consult local and/or national electric and gas codes. Check local
building codes for installation requirements, as they may vary per locale.
Downdraft Vent Specifications
•
For detailed Downdraft Vent installations, refer to model-specific
product page and installation guide on web.
•
Voltage Rating –120V/ 60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.0kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts = 8.0 Amps
•
Vent unit outside of building only.
•
Vent must be installed in vertical orientation only.
•
1,600 CFM remote exhaust blower (PN# 5304444802)
included with vent – shipped in separate box.
•
Do not use flexible duct. Round duct instead of rectangular duct
recommended, especially when elbows are required.
•
When multiple elbows are necessary, ensure a minimum of 24" of
straight duct between any two elbows.
•
Thermal breaks such as short section of nonmetallic duct, should
be used in areas of extreme cold.
•
For most efficient airflow exhaust, use a straight run or as few elbows
as possible.
•
Cold weather installations should have additional backdraft damper
installed.
•
Installing a Downdraft Vent in combination with any gas cooking
surface will affect optimum burner efficiency.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Drop-In Cooktop/Downdraft Vent
Countertop Preparation
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •
electroluxicon.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxicon.ca
DIC_DDV_PREP 01/09 © 2009 Electrolux Home Products, Inc. Printed in the U.S.A.
Countertop Preparation for 30" & 36" Drop-In Cooktop/Downdraft Vent Installation
29/16"
1/4"min.
flat ledge
Backsplash
3/4"max.
*Overall flat ledge behind
backside of cabinet front
** Minimum flat surface required
to fit top surface of cooktop
and downdraft vent cap
A
Vertical noncombustible surface - rear wall
25"
B
Top
231/4"
min. Flush with
back side of
cabinet front
D*
E**
C
Stiffener
Back side of
cabinet front
Vent unit
21/8"Countertop
raised lip
Countertop
backsplash
Downdraft
chimney top
Cooktop
25" (standard countertop) *
231/4"min.
213/16"
3"
Vertical noncombustible surface - rear wall
Studwall
3/4"max. backsplash thickness
1/4"min. flat ledge
115/16"
9/32"
213/16"
Cooktop Installation Note:
To ensure proper installation, refer to model-specific installation
guide on web for cooktop dimensions, cutout dimensions and
cabinet requirements. Due to varying cooktop depths, tight fit
is possible between cooktop and vent.
Countertop Preparation Note:
Be aware of areas of potential interference called out in
illustration. Countertop with raised lip and/or backsplash may
not allow enough flat area for proper installation, 2-13/16"
of flat countertop required behind cooktop. No gap required
between back of cooktop and front of downdraft trim piece.
*Standard 25" countertop depth may NOT be adequate for
some cooktop/vent installations, especially with backsplash.
E30DD75ESS/30" Cooktop Cutout Dimensions
30" Cooktops A B C D E
E30EC65ESS 30" 273/4" 20 3/8" 23 3/16" 24 3/16"
E30EC70FSS 30" 273/4" 20 1/4" 231/16" 241/16"
E30GC64ESS 271/2" 273/4" 19 7/8" 2211/16" 23 11/16"
E30GC70FSS 281/2" 273/4" 19 3/4" 22 9/16" 23 9/16"
E30IC75FSS 293/4" 273/4" 201/2" 23 5/16" 24 5/16"
E36DD75ESS/36" Cooktop Cutout Dimensions
36" Cooktops A B C D E
E36EC65ESS 36" 33 3/4" 20 3/8" 23 3/16" 24 3/16"
E36EC70FSS 36" 33 3/4" 201/2" 235/16" 245/16"
E36GC65ESS 33 3/4" 33 3/4" 19 7/8" 2211/16" 2311/16"
E36GC70FSS 341/2" 33 3/4" 19 3/4" 22 9/16" 23 9/16"
E36IC75FSS 36" 33 3/4" 201/2" 23 5/16" 24 5/16"
For detailed cooktop and
downdraft vent installation
specifications, refer to
model-specific product
page and installation
guide on web
