Electrolux E30IC80ISS1 User manual

Use Care Guide
Induction Cooktop
i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!i!_i_'iiii!ii!i!_i!_ii_i!_i!_i!_i!_i_i!_!i!_i!_i!_i!_i!_!ii_i!_!_i!_i!_i!_i!i_!_!_i!ili_ii_t!!!!!!i!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!ii!_i!i'_'__

Finding information
MAKEA RECORDFORFUTURE
mm[] mmmmm[] mmmmm
Purchase Date
Model Number
Serial Number
I I I [] [] I
For toll-free telephone support in the U.S. and Canada:
1-877-4ELECTROLUX (1-877-435-3287)
For online support and internet product information:
www.electroluxicon.com
(92008 Electrolux Home Products, Inc.
Post Office Box 212378, Augusta, Georgia 30917, USA
All rights reserved.
Printed in the USA

Fin ing information

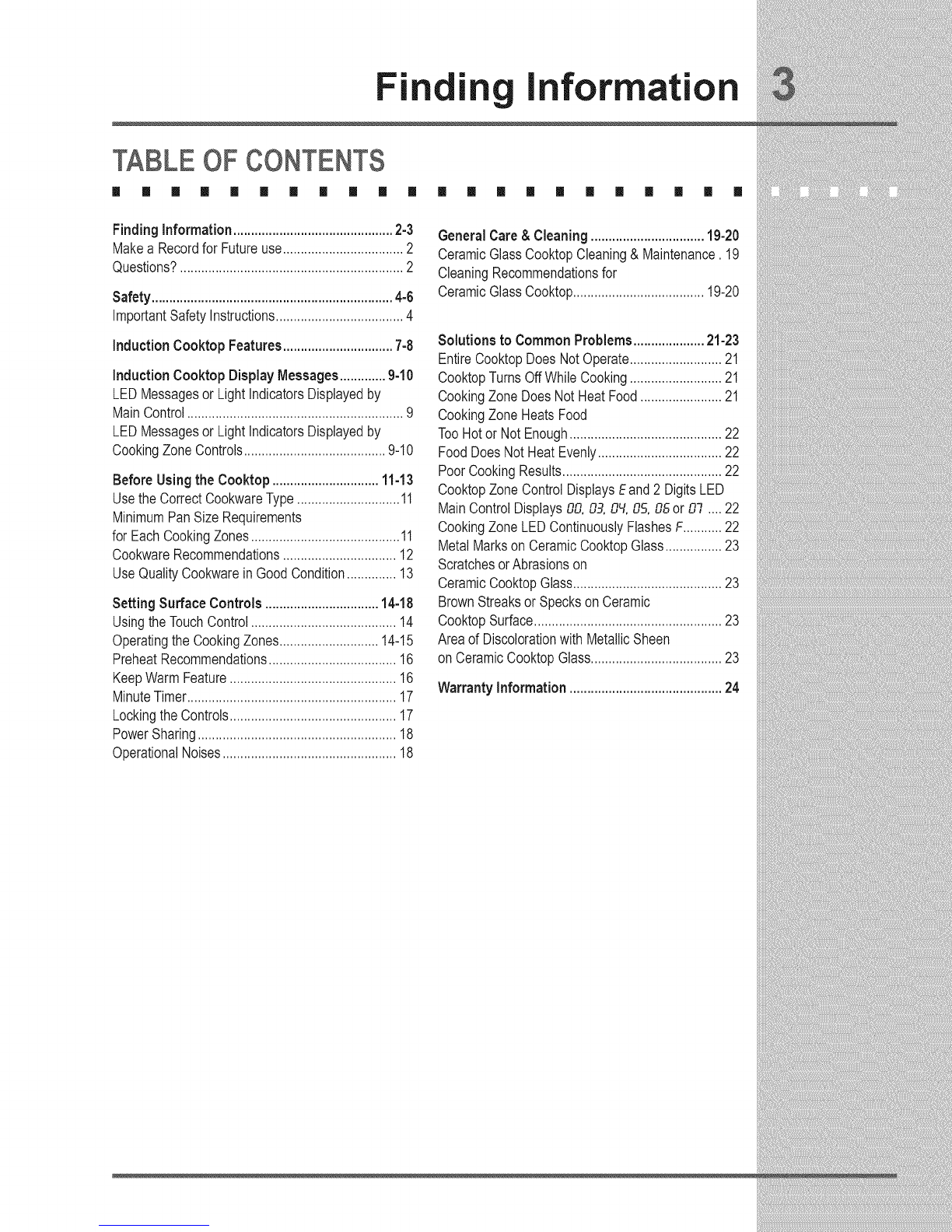

TABLE OF CONTENTS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
FindingInformation.............................................2-3
Makea Recordfor Futureuse..................................2
Questions?...............................................................2
Safety....................................................................4-6
ImportantSafetyInstructions....................................4
InductionCooktop Features...............................7-8
Induction Cooktop DisplayMessages.............9-10
LEDMessagesor LightIndicatorsDisplayedby
MainControl.............................................................9
LEDMessagesor LightIndicatorsDisplayedby
CookingZoneControls........................................9-10
Before Usingthe Cooktop..............................11-13
UsetheCorrectCookwareType.............................11
MinimumPanSizeRequirements
forEachCookingZones..........................................11
CookwareRecommendations................................12
UseQualityCookwareinGoodCondition..............13
Setting SurfaceControls ................................14-18
UsingtheTouchControl.........................................14
OperatingtheCookingZones............................14-15
PreheatRecommendations....................................16
KeepWarmFeature...............................................16
MinuteTimer...........................................................17
LockingtheControls...............................................17
PowerSharing........................................................18
OperationalNoises.................................................18
GeneralCare& Cleaning................................19-20
CeramicGlassCooktopCleaning& Maintenance,19
CleaningRecommendationsfor
CeramicGlassCooktop.....................................19-20
Solutions to CommonProblems....................21-23
EntireCooktopDoesNotOperate..........................21
CooktopTurnsOffWhileCooking..........................21
CookingZoneDoesNotHeatFood.......................21
CookingZoneHeatsFood
TooHotor NotEnough...........................................22
FoodDoesNotHeatEvenly...................................22
PoorCookingResuJts.............................................22
CooktopZoneControlDisplaysEand2 DigitsLED
MainControlDisplaysDO.03.Off.O5.B5or O/ ....22
CookingZoneLEDContinuouslyFlashesF...........22
MetalMarkson CeramicCooktopGlass................23
ScratchesorAbrasionson
CeramicCooktopGlass..........................................23
BrownStreaksor Speckson Ceramic
CooktopSurface.....................................................23
Areaof Discolorationwith MetallicSheen
on CeramicCooktopGlass.....................................23
WarrantyInformation...........................................24

Safety

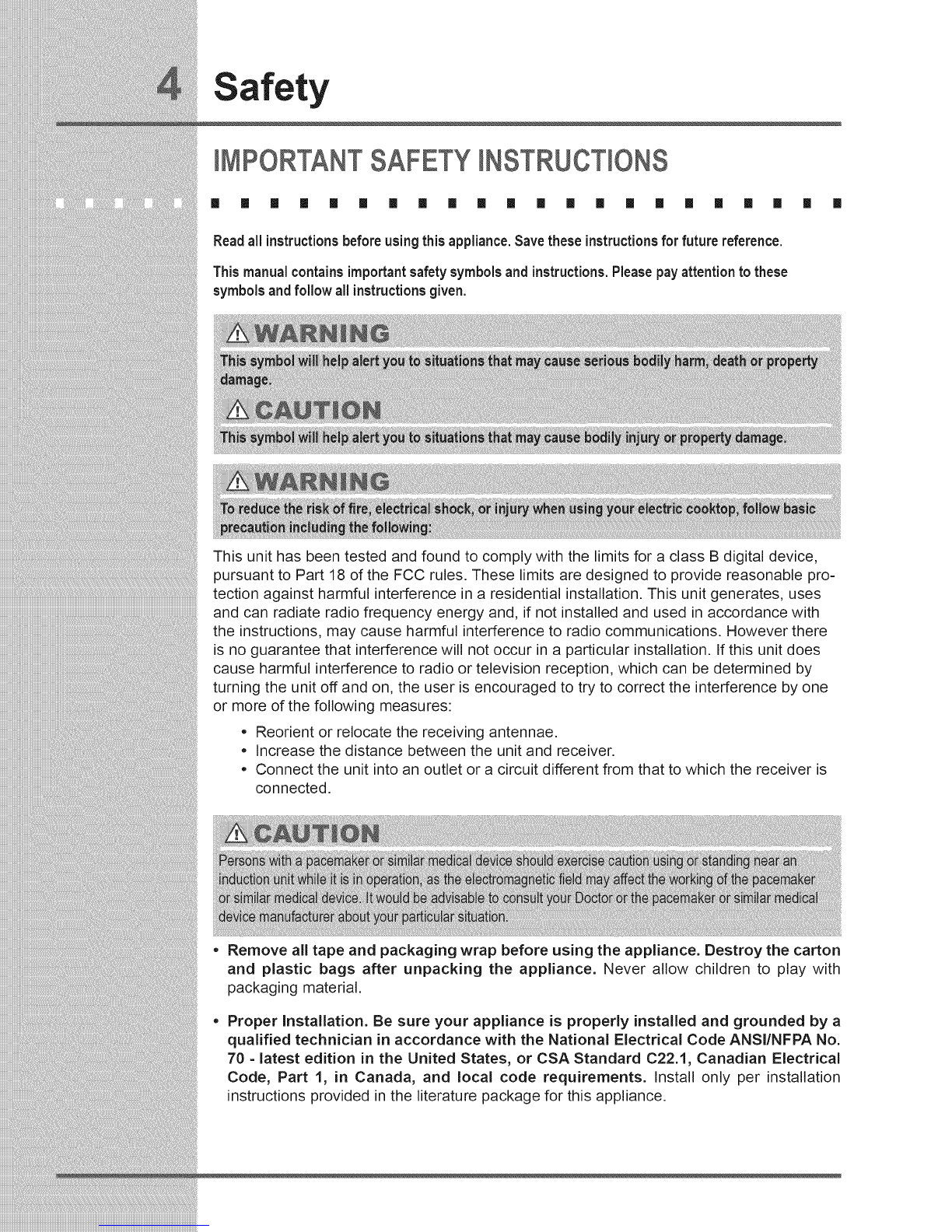

MPORTANTSAFETY NSTRUCT ONS
Ii [] [] [] il il il il [] il il il il il il il il [] il il
Readall instructions beforeusing this appliance.Savethese instructions for future reference.
This manualcontains important safety symbols and instructions.Pleasepayattention to these
symbolsand follow all instructionsgiven.
[] I
This unit has been tested and found to comply with the limits for a class B digital device,
pursuant to Part 18 of the FCC rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation. This unit generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However there
is no guarantee that interference will not occur in a particular installation. If this unit does
cause harmful interference to radio or television reception, which can be determined by
turning the unit off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
o Reorient or relocate the receiving antennae.
Increase the distance between the unit and receiver.
• Connect the unit into an outlet or a circuit different from that to which the receiver is
connected.
Remove all tape and packaging wrap before using the appliance. Destroy the carton
and plastic bags after unpacking the appliance. Never allow children to play with
packaging material.
Proper installation. Be sure your appliance is properly installed and grounded by a
qualified technician in accordance with the National Electrical Code ANSI/NFPA No.
70 =latest edition in the United States, or CSA Standard O22.1, Canadian Electrical
Code, Part 1, in Canada, and local code requirements. Install only per installation
instructions provided in the literature package for this appliance.

Safety
Ask your dealer to recommend a qualified technician and an authorized repair service. Know
how to disconnect the electrical power to the appliance at the circuit breaker or fuse box in
case of an emergency.
•User Servicing. Do not repair or replace any part of the appliance unless specifically
recommended in the manuals. All other servicing should be done only by a qualified
technician to reduce the risk of personal injury and damage to the appliance.
•Never modify or alter the construction of an appliance such as removal of panels,
wire covers or any other permanent part of the product.
• Storage onAppliance. Flammable materials should not be stored near or on the cook=
ing surface. This includes paper, plastic and cloth items, such as cookbooks, plasticware
and towels, as well as flammable liquids. Do not store explosives, such as aerosol cans,
on or near the appliance. Flammable materials may explode and result in fire or property
damage.
•Do not leave children alone. Children should not be left alone or unattended in the
area where an appliance is in use. They should never be allowed to sit or stand on any
part of the appliance.
•Wear Proper Apparel. Loose-fitting or hanging garments should never be worn
while using the appliance. Do not let clothing or other flammable materials contact hot
surfaces.
•Do Not Use Water or Flour on Grease Fires. Smother the fire with a pan lid, or use
baking soda, a dry chemical or foam-type extinguisher.
•When heating fat or grease, watch it closely. Fat or grease may catch fire if allowed to
become too hot.
• Use Only Dry Pot holders. Moist or damp pot holders on hot surfaces may result in
burns from steam. Do not let the pot holders touch hot surface units. Do not use a towel
or other bulky cloth instead of a pot holder.
•Do Not Heat Unopened Food Containers. Buildup of pressure may cause the container
to burst and result in injury.

Safety
iMPORTANT SAFETY iNSTRUCTiONS FOR USING YOUR COOKTOP
• Know which touch key pads controls each surface of the Cooking Zones.
Clean the appliance regularly to keep all parts free of grease that could catch fire.
Exhaust fan ventilation hoods and grease filters should be kept clean. Do not allow grease
to accumulate on hood or filter. Greasy deposits in the fan could catch fire. When flaming
food under the hood, turn fan on. Refer to hood manufacturer's instructions for cleaning.
Use Proper Pan Size. This appliance is equipped with one or more Cooking Zones of dif-
ferent sizes. Select utensils having flat bottoms large enough to cover the Cooking Zones.
The pan detection sensors will not allow the affected Cooking Zones to operate without a
pan present.
•Utensil Handles Should Be Turned Inward and Should Not Extend Over Adjacent
Cooking Zones. To reduce the risk of burns, ignition of flammable materials, and spillage
due to unintentional contact with the utensil.
Never Leave Prepared Food on the Cooking Zones. Boilovers cause smoking and greasy
spillovers that may ignite, or a pan that has boiled dry may melt or become damaged.
Protective Liners. Do not use aluminum foil to line any part of the cooktop. Only use alu-
minum foil as recommended after cooking process, if used as a cover to be placed over
the food. Any other use of aluminum foil may result in the risk of electric shock, fire or short
circuit.
Glazed Cooking Utensils. Only certain types of glass, glass/ceramic, ceramic, earthen-
ware, or other glazed utensils are suitable for range top service without breaking due to the
sudden change in temperature. Check the manufacturer's recommendations for cooktop
use.
• Ventilating hood. The ventilating hood above your cooking surface should be cleaned
frequently, so the grease from cooking vapors does not accumulate on the hood or filter,
FOR CERAMIC-GLASS COOKTOP ONLY
• Do Not Clean or Operate a Broken Cooktop. Ifcooktop should break, cleaning solutions
and spillovers may penetrate the broken cooktop and create a risk of electric shock. Contact
a qualified technician immediately.
• Clean Cooktop with Caution. If a wet sponge or cloth is used to wipe spills on a hot cook-
ing area, be careful to avoid a steam burn, Some cleaners can produce harmful fumes if
applied to a hot surface,
•Do Not Place Hot Cookware on Cold Cooktop Glass. This could cause glass to break.
•Do Not Slide Pan Across the Cooktop Surface. They may scratch the cooktop surface.
•Do Not Let Pans Boil Dry. This may cause permanent damage in the form of breakage,
fusion, or marking that can affect the ceramic-glass cooktop. (This type of damage is not
covered by your warranty).

uction Cooktop Features
NDUCT ONCOOKTOPFEATURES
[] [] [] [] [] [] [] [] _ [] [] _ [] [] [] [] _ [] [] [] []
READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE COOKTOP
A COOLER COOKTOP - A unique feature of the induction Cooktop is whether turned ON
or OFF, the cooktop surface remains cooler than standard ceramic cooktops.
MAGNETIC DETECTOR =The coil sensor automatically detects whether the pan is
magnetic and eliminates accidental "tum-ONs."
PAN SIZE DETECTION - The pan recognition sensor automatically detects and adapts the
Cooking Zones to the pan sizes in use.
EFFICIENT - Induction cooking heats faster while using less energy. Induction power levels
are quick to boil and delicate when simmering.

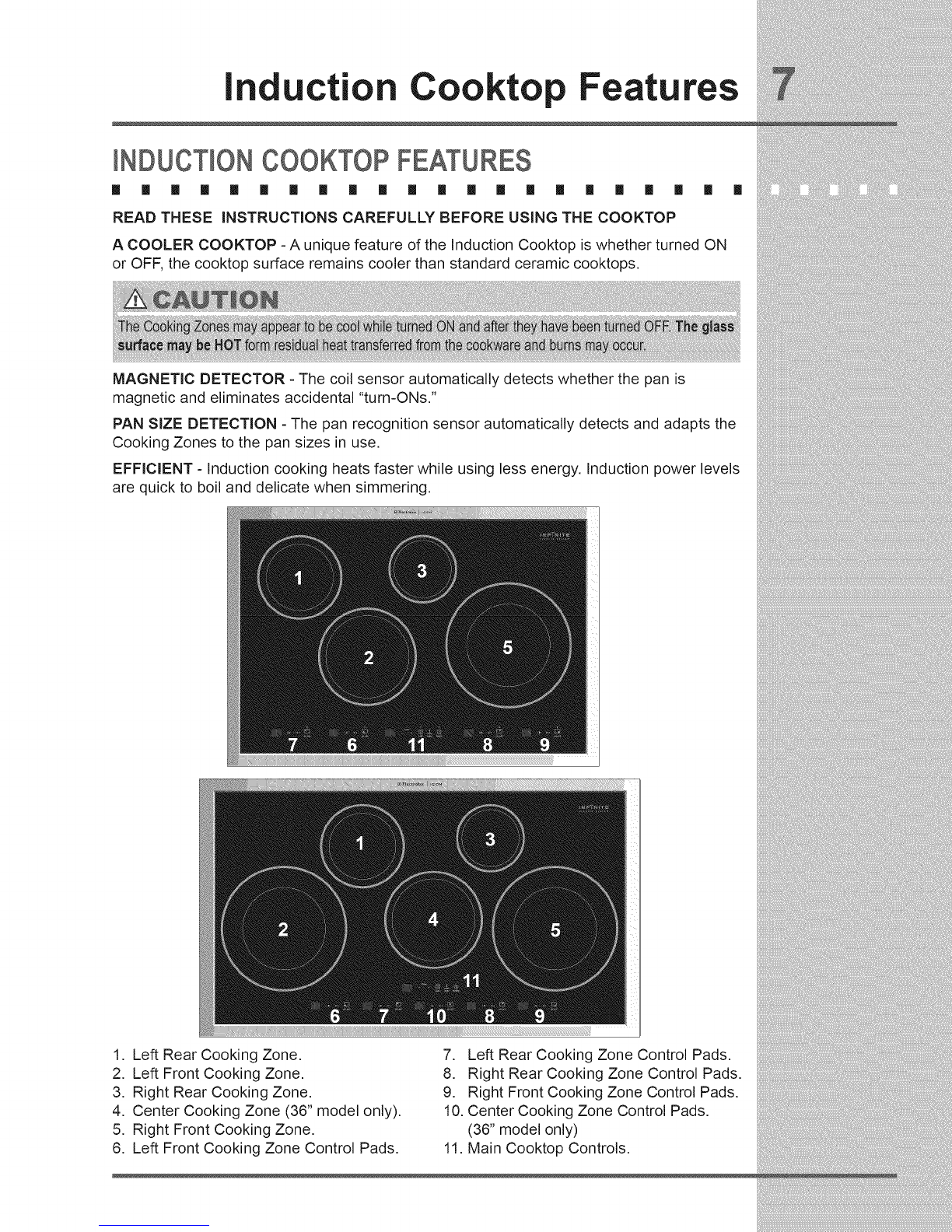

1. Left Rear Cooking Zone.
2. Left Front Cooking Zone.
3. Right Rear Cooking Zone.
4. Center Cooking Zone (36" model only).
5. Right Front Cooking Zone.
6. Left Front Cooking Zone Control Pads.
7. Left Rear Cooking Zone Control Pads.
8. Right Rear Cooking Zone Control Pads.
9. Right Front Cooking Zone Control Pads,
10. Center Cooking Zone Control Pads.
(36" model only)
11. Main Cooktop Controls.

Ill uction Cooktop Features
NDUCT ON COOKTOP FEATURES (CONT'D)
[] [] [] [] [] [] [] [] n [] [] [] [] [] [] [] [] n [] [] n []

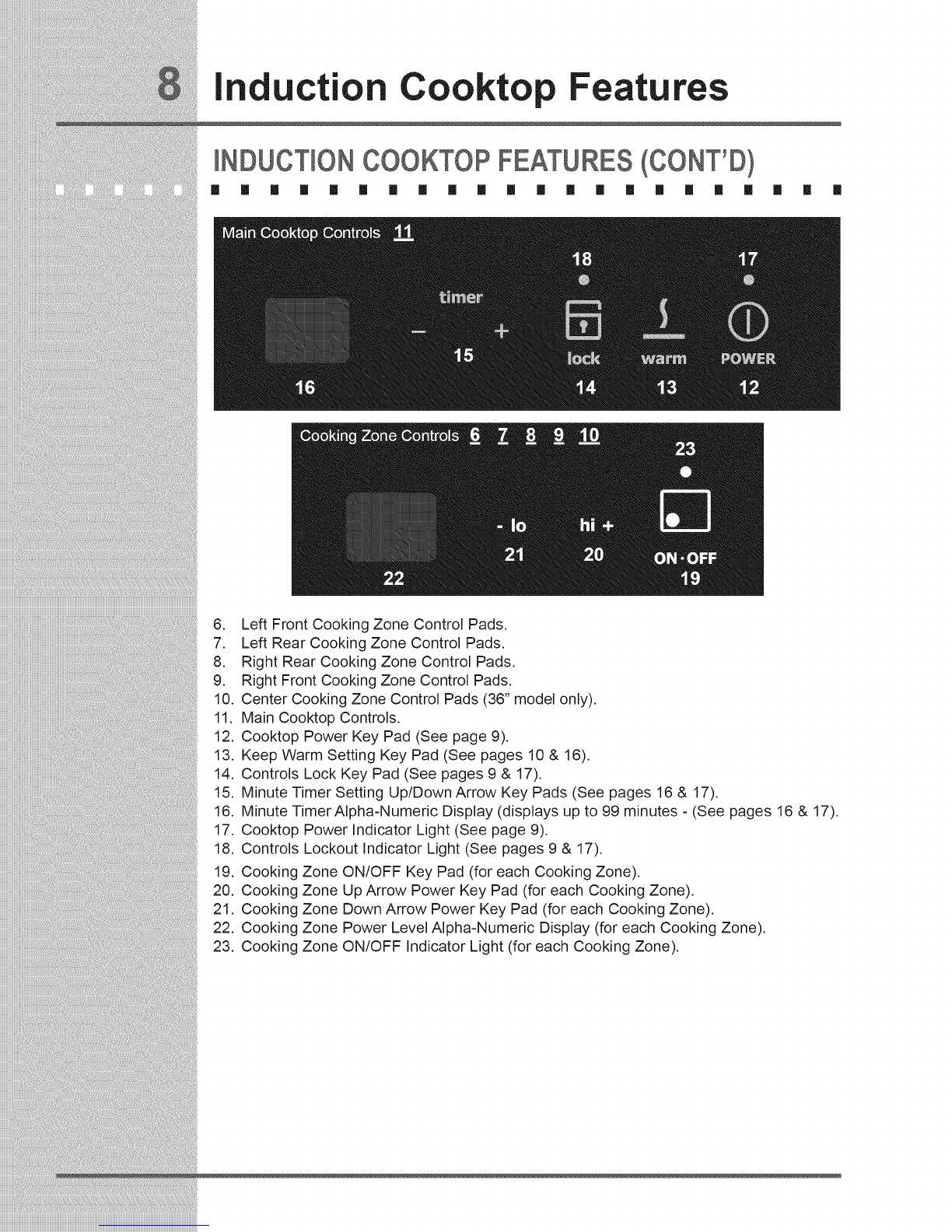

6. Left Front Cooking Zone Control Pads.
7. Left Rear Cooking Zone Control Pads.
8. Right Rear Cooking Zone Control Pads.
9. Right Front Cooking Zone Control Pads.
10. Center Cooking Zone Control Pads (36" model only).
11. Main Cooktop Controls.
12. Cooktop Power Key Pad (See page 9).
13. Keep Warm Setting Key Pad (See pages 10 & 16).
14. Controls Lock Key Pad (See pages 9 & 17).
15. Minute Timer Setting Up/Down Arrow Key Pads (See pages 16 & 17).
16. Minute TimerAIpha-Numeric Display (displays up to 99 minutes - (See pages 16 & 17).
17. Cooktop Power Indicator Light (See page 9).
18. Controls Lockout Indicator Light (See pages 9 & 17).
19. Cooking Zone ON/OFF Key Pad (for each Cooking Zone).
20. Cooking Zone Up Arrow Power Key Pad (for each Cooking Zone).
21. Cooking Zone Down Arrow Power Key Pad (for each Cooking Zone).
22. Cooking Zone Power Level Alpha-Numeric Display (for each Cooking Zone).
23. Cooking Zone ON/OFF Indicator Light (for each Cooking Zone).

induction Cooktop Display Messages
LEDMESSAGESORUGHT ND CATORSD SPLAYED
BY MAmNCONTROL
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
CONTROLS LOCK - This feature allows the cooktop to be locked only when the
cooktop is switched to OFF. Touch and hold the LOCK key pad for 5 seconds. A
beep will sound and the Lock indicator light will glow (Fig. 2). Once locked, no other
displays will glow and no Cooking Zones will activate. To turn the Controls Lock
OFF, touch and hold the LOCK key pad for 5 seconds. A beep will sound, the Lock
indicator light will turn OFF (Fig. 1) and the cooktop may be used normally (See p.
17 for more instructions).
COOKTOP POWER - The Cooktop POWER key pad activates the entire Cooktop.
To power the cooktop, touch and hold the POWER key pad for 2 seconds. A beep
will sound and the Power LED will glow (See Fig. 4). The cooktop will be in a ready
mode for 10 seconds. If no other key pads are touched the Cooktop Main POWER
will turn OFF automatically. To turn the Main Power OFF touch and hold the Main
POWER key pad for 1 second. Abeep will sound and the Power indicator Light will
turn OFF (See Fig. 3).
ERROR CODES ALPHA-NUMERIC DISPLAY EOXX - An Alpha-Numeric Display
shows "E0" and a two digits error code (Fig. 5 & 6) in another cooking zone Alpha-
Numeric Display to show the complete error code.
Fig. 3
LEDMESSAGESORUGHT ND CATORSD SPLAY
BYCOOKINGZONECONTROLS
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
COOKING ZONE ON/OFF PAD - Each of the Cooking Zones have separate ON/
OFF key pads. Once the Main Power key pad has been touched to activate the
cooktop, touch the corresponding Cooking Zone ON/OFF key pad once to activate
the Cooking Zone needed. "- -"will appear in the Alpha-Numeric display. The Cooking
Zone ON/OFF LED will glow (Fig. 8). If the corresponding hi + or - |o key pad is
not touched within 10 seconds, the request to turn the Cooking Zone ON will cancel
and the Cooktop will go back to ready mode. To set a Cooking Zone power level
touch the corresponding Cooking Zone hi + or = Io key pad once. To turn OFF a
Cooking Zone, touch the Cooking Zone ON/OFF key pad once. The Cooking Zone
LED will turn OFF (Fig. 7).
Fig. 7
Fig. 4
Fig. 6
Fig. 8

Fig.lO
Fig. 14
induction Cooktop Display Messages
LEDMESSAGESORUGHT ND CATORSD SPLAYED
BYCOOKmNGZONE CONTROLS (CONTD)
[] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] [] []
POWER LEVEL SETTINGS - The Cooking Zones have separate Power Level Alpha-Numeric
displays. Once active, the Cooking Zones will provide 22 Power Levels to choose from. These
include L o (Fig. 11), 2, 9, _, 5, 6, 7,8, 9and HI; as well as precise .2 increment Cooking Zone
Power Levels between Lo and 9(Fig. 9); and half-increment power levels between 9and
7 (Fig. 12). The highest setting of Pb or "Power Boost" provides up to 150% power for 10
minutes (See Fig. 10). Each key pad touch (or just holding down the Power Level key pad)
will scroll through all the available power levels for any Cooking Zone quickly.
RESIDUAL HEAT - Once any Cooking Zone has been used for cooking and turned OFF,
and if the cooktop surface temperature on any of the Cooking Zones is still too HOT, HE (See
Fig. 13) will appear in the Alpha-Numeric display for the affected Cooking Zone. The HE will
continue to display if the temperature is still too HOT.
KEEP WARM - Use the WARM key pad to activate the Warm setting for any of the Cooking
Zones. The ON/OFF key pad for the desired Cooking Zone must be activated first, then touch
the WARM key pad located in the Cooktop Main Control area once to set. LH(low heat) should
appear in the corresponding Cooking Zone Alpha-Numeric display (See Fig. 14).
PAN DETECTION - All Cooking Zones will provide a Pan Detection message. If a Cooking
Zone is turned ON and no pan is detected, or the pan has been moved or is not centered
correctly, or is not made of magnetic material, power level will flash in the affected Cooking
Zone Alpha-Numeric display.
