Electrolux ESS4105 User manual

Steam generator ESS4105

Components
A. Hot soleplate indicator
B. Steam button
C. Handle
D. Temperature selector
E. Temperature ready
indicator light
F. Steam hose
G. Power cord
H. Steam generator unit
I. Power cord storage
J. Water tank
K. Maximum water level
indicator
L. Non-stick soleplate
M. Iron rest
N. Power indicator light
O. Descaling indicator light
P. Low water level indicator
light
Q. Steam level indicator light
(Low, Medium, High)
R. Rell reset button
S. Power button
T. Steam selector
U. Anti-calc cartridge
EN KRCNTCNS
组件图示
A. 底板高温指示灯
B. 蒸汽喷射按钮
C. 把手
D. 温度旋钮
E. 温度就绪指示灯
F. 蒸汽软管
G. 电源线
H. 蒸汽发生器
I. 电源线收纳槽
J. 水箱
K. 最高水位指示线
L. 不粘底板
M. 熨斗搁架
N. 电源指示灯
O. 除垢指示灯
P. 低水位指示灯
Q. 蒸汽水平指示灯
（低、中、高）
R. 注水复位按钮
S. 电源按钮
T. 蒸汽选档旋钮
U. 防钙化盒
부품
A. 바닥 열판 표시기
B. 스팀 버튼
C. 손잡이
D. 온도 선택기
E. 온도 준비 표시등
F. 스팀 호스
G. 전원 코드
H. 스팀 발생 장치
I. 전원 코드 보관 장치
J. 물탱크
K. 최대 수위 표시기
L. 논스틱 바닥판
M. 다리미 받침대
N. 전원 표시등
O. 디스케일링 표시등
P. 낮은 수위 표시등
Q. 스팀 레벨 표시등 (저, 중, 고)
R. 재충전 리셋 버튼
S. 전원 버튼
T. 스팀 선택기
U. 석회 침착 방지 카트리지
組件圖示
A. 底板高溫指示燈
B. 蒸汽噴射按鈕
C. 把手
D. 溫度調節鈕
E. 溫度就緒指示燈
F. 蒸汽軟管
G. 電源線
H. 蒸汽發生器
I. 電源線收納槽
J. 水箱
K. 最高水位指示燈
L. 不粘底板
M. 熨斗擱架
N. 電源指示燈
O. 除垢指示燈
P. 低水位指示燈
Q. 蒸汽水平指示燈
（低、中、高）
R. 注水複位按鈕
S. 電源按鈕
T. 蒸汽選檔旋鈕
U. 防鈣化盒
F
E
D
C
B
M
K
J
U
H
N O
R S T
P
Q
G
I
L
A

3
EN
Before using the appliance for the first time, read the following instruction carefully and save for future reference.
The following advice will help you to use your new appliance safely.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be performed by children without supervision.
• Keep the appliance and its power cord out of the reach of children when the appliance is connected to power
supply or cooling down.
• The appliance can only be connected to a power supply whose voltage and frequency comply with the
specifications on the rating plate.
• The appliance must only be connected to an earthed mains socket.
• If the appliance or its power cord is damaged, it must be replaced by the Electrolux or its service agent in order to
avoid hazard.
• Never leave the appliance unattended while it is connected to the power supply.
• The appliance must be switched off and the mains plug withdrawn each time after use, before cleaning and
maintenance.
• Do not immerse the appliance in water or any other liquid.
• This iron has been designed to use normal tap water. If the tap water in your area is very hard, you can fill the tank
with 50% tap water and 50% bottled distilled water. Never use distilled water only. Never put scented water, vinegar
or ironing aids in the water tank. This may cause brown spitting and staining of garment.
• The iron is not to be used if it has been dropped, if there are visible signs of damage on the iron or if it is leaking.
• The iron must be used and rested on a stable surface. When placing the iron on its stand, ensure that the surface on
which the stand is placed is stable.
• The mains plug must be removed from the mains socket before the water tank is filled with water.
• The power cord must not come into contact with any hot parts of the appliance.
• The surfaces are liable to get hot during use.
• Do not exceed the maximum filling volume as indicated on the appliances.
• The water tank lid must not be opened during use.
• This appliance is intended for domestic use only. Electrolux does not accept any liability for possible damage caused
by improper or incorrect use.
Safety advice

4
EN
3. Always rell the water tank to
MAX level using normal tap water.
Insert the water tank into the base
unit. Ensure that the water tank
latches securely into place. Never
use distilled water only. Never put
scented water, vinegar or ironing
aids in the water tank. This may
cause brown spitting and staining
of garment.
CAUTION! Never operate the
steam generator without any water
in the water tank.
2. Remove the water tank by
gripping the slot on the underside
and pulling it gently away from
the base unit. Make sure the steam
generator unit’s power cord is
unplugged. Detach the anti-calc
cartridge and then immerse it in
water for more than one minute.
Insert the anti-calc catridge back.
Fill the water tank using normal
tap water. If the tap water in your
area is very hard, you can ll the
tank with 50% tap water and 50%
bottled distilled water. Empty the
water tank to rinse out any foreign
particles which may remain from
the manufacturing process.
Getting started

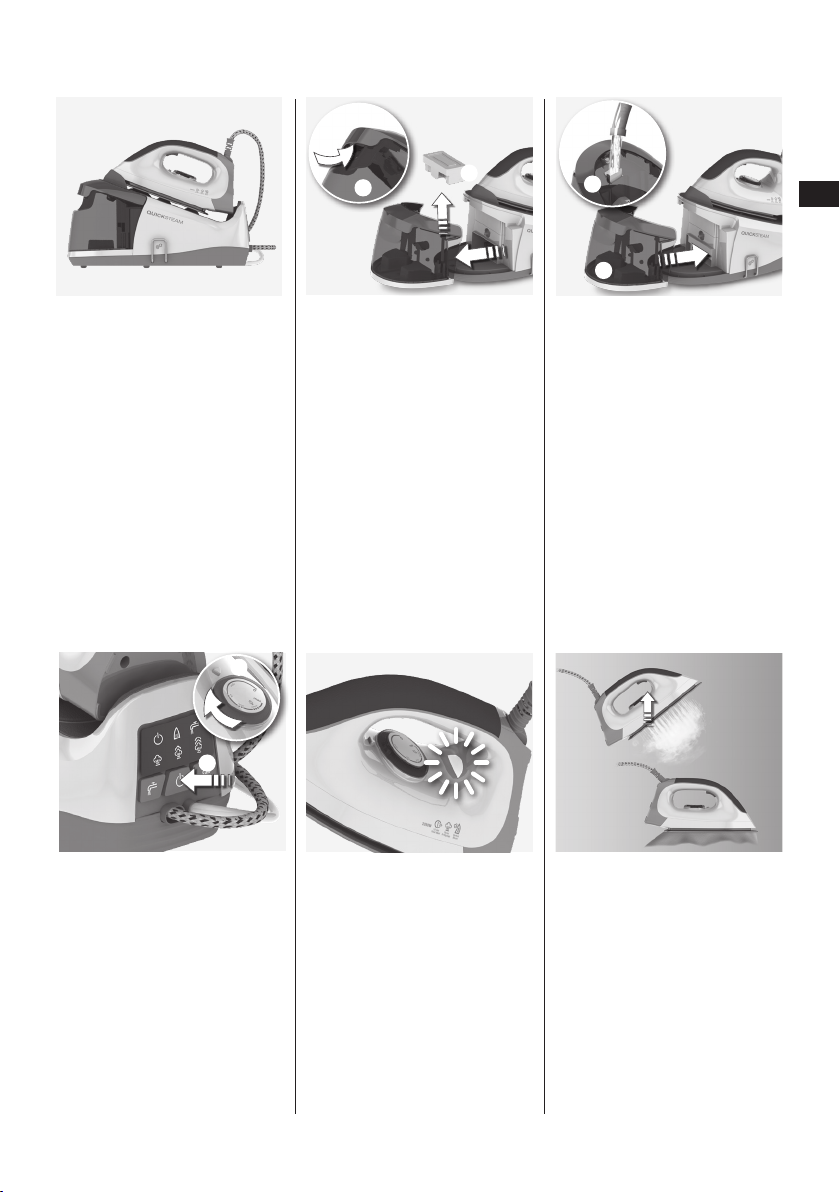

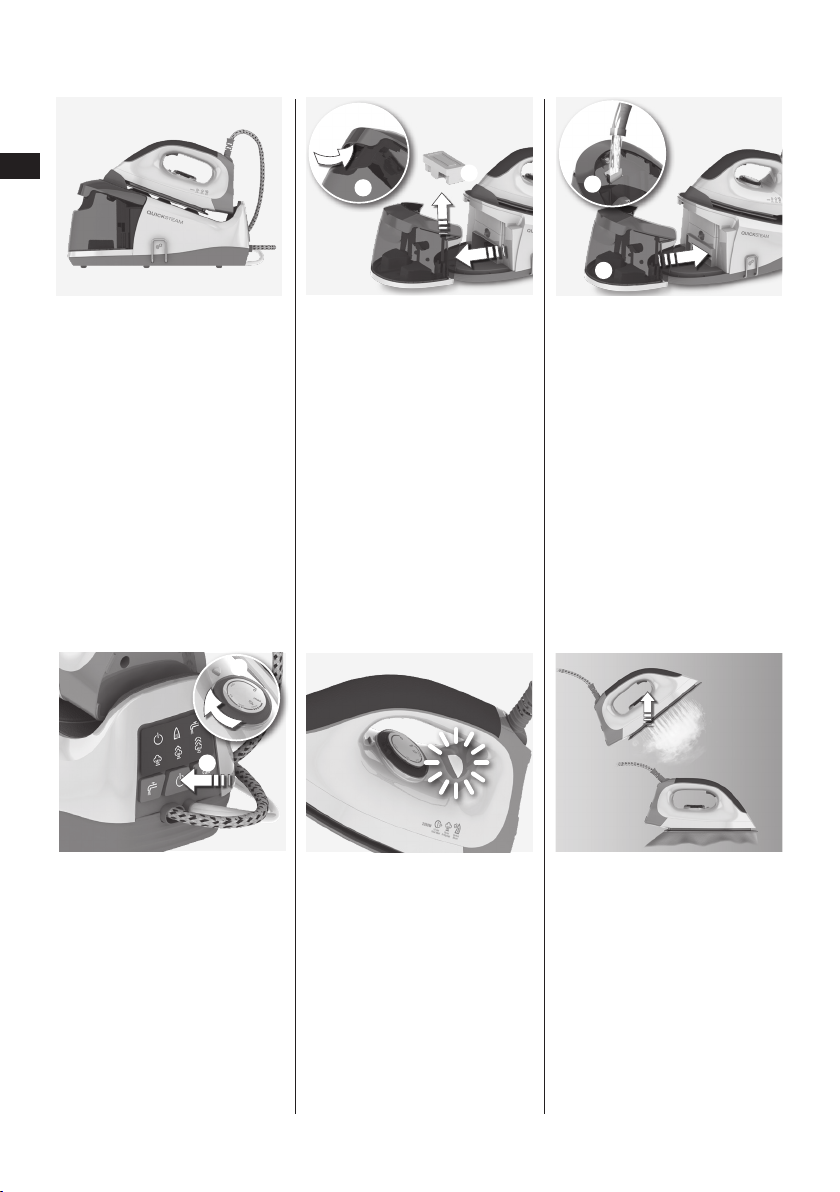

1. Before rst use. Remove all
adhesive remains and gently rub
with a dampened cloth. Position
the steam generator horizontally
on the ironing-board or on a heat
resistant, secure surface at the
same height as an ironing-board.
Unwind and straighten the power
cord and the steam cord. When
switched on for the rst time,
temporary vapours/odours may
occur.
11
2
2
4. Connect the steam generator to
the mains socket. Press the power
button. Set the iron temperature
selector according to the fabric
type by referring to the garment
label or the ironing chart. The
temperature indicator light on the
iron will illuminate. Then, select a
steam level on the control panel,
from low - medium - high steam.
6. Iron an old towel, to ensure that
any residues inside the iron are
not transferred to the laundry. If
necessary, wipe the soleplate with
a slightly damp cloth.
5. When the temperature indicator
light turns on, the steam generator
is pre-heating. When the light
turns o, it is ready to be used. The
hot soleplate indicator turns red
when the iron reaches 40°C. Press
the steam button to discharge a
concentrated shot of steam. Then
hold one more minute in order to
clean the steam generating system.
1
2

5
EN
Cleaning and care
7. If the low water level indicator
is illuminated (followed with two
beep sounds), rell the water tank.
After relling the water tank, press
and hold the rel reset button for
about 6 seconds. The low water
level indicator light will turn o.
Steam can now be used again.
10. When nished using the appliance,
turn the temperature selector to
the OFF (“0“) position. Always cool
the iron fully on the iron rest before
stowing away. Once the iron has
cool down, empty the water tank.
Note: Do not store the steam
generator with water in the tank.
8. To activate the steam, press the
steam button. When releasing the
button, use up the steam before
putting it back on the iron rest.
11.Always store the cord wound
safely by the side of the steam
generator. NEVER wind the power
cord around the iron.
9. To switch o the iron, press the
power button until a beep sound.
Once the iron is unplugged, the
hot soleplate indicator will slowly
revert to black as the soleplate
cools down. Wait for the indicator
stripe to revert to black again
before touching the soleplate or
storing the iron. If the iron is left
unattended on the iron rest, it will
automatically switches o after 10
minutes.
2
1

6
EN

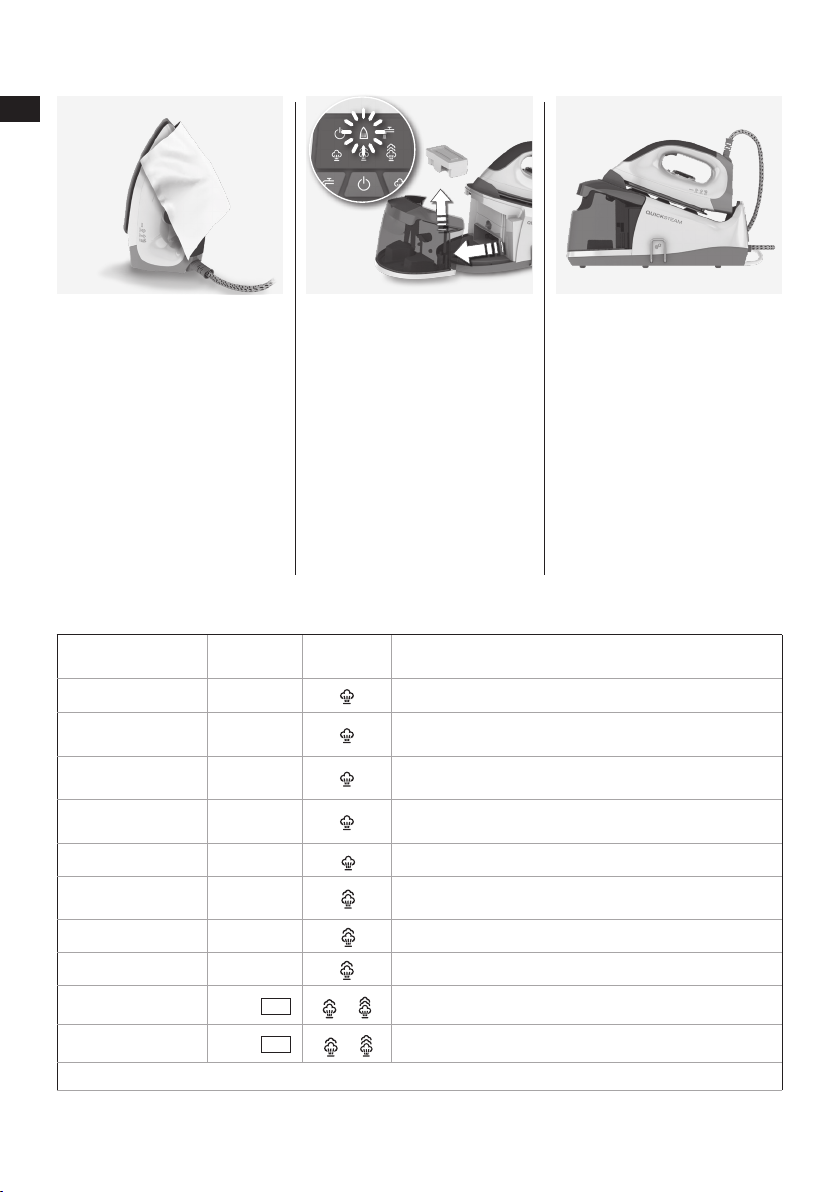

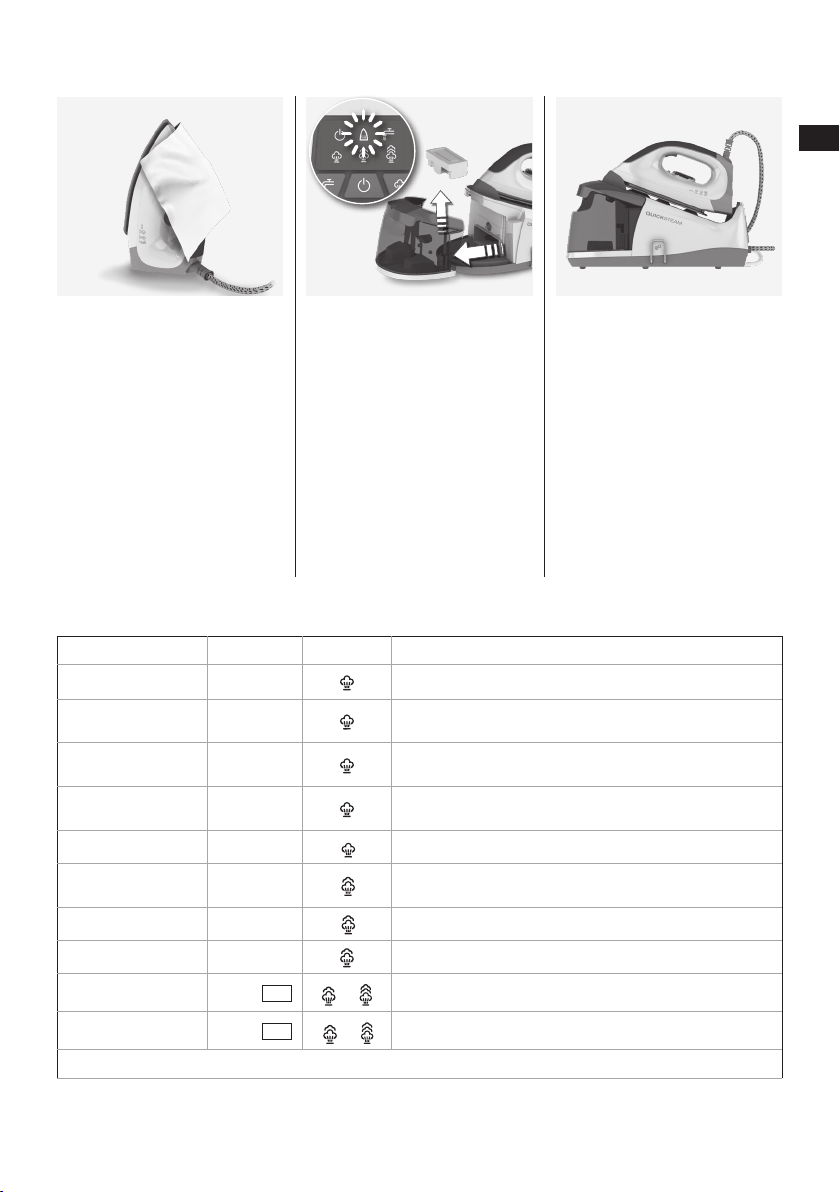

3. To signicantly reduce the built-
up of lime scale in your steam
generator, we recommend to
change the anti-calc cartridge
according to the hardness of
water: For hard water, change
the cartridge for every 10 tanks.
For medium water, change the
cartridge for every 20 tanks. For
soft water, change the cartrdige for
every 40 tanks.
For the best performance, we
recommend cartridge EDC06 from
Menalux range
2. Replacing the anti-calc cartridge:
If the descaling indicator is
illuminated, detach the water tank.
Remove the anti-calc cartridge
by pulling it upwards. Immerse a
new anti-calc cartridge in water for
more than one minute, then place
it inside the water tank. Ensure the
new anti-calc cartridge is correctly
positioned, if not, the descaling
indicator will keep ashing.
Cleaning and Maintenance
1. To clean exterior surfaces, use a
damp soft cloth and wipe dry.
Caution: Do not use any chemical
solvents, as these will damage the
surface.
Ironing chart
Fabric Temperature
Setting
Steam
Setting Ironing Recommendation
Acrylic, Rayon •Dry ironing on reverse side of fabric. Do not press the steam button.
Acetate, Nylon,
Polyamide & Polyester •Dry ironing on reverse side of fabric while still damp or use spray to
dampen. Do not press the steam button.
Viscose •Dry ironing using a damp ironing cloth to prevent shine marks. Do not
press the steam button.
Silk •Dry ironing using a damp ironing cloth to prevent shine marks. Do not
press the steam button.
Wool & Wool Blends •• Dry ironing on reverse side of fabric or use ironing cloth.
Cotton Blends •• Check garment label and follow manufacturer's instructions. Use
setting for the bre requiring lowest setting.
Cotton ••• Steam ironing on reverse side of fabric.
Corduroy ••• Steam ironing on reverse side of fabric or use ironing cloth.
Linen •••to max to Steam ironing on reverse side of fabric or use ironing cloth.
Denim •••to max to
Please note: When the temperature setting is at •, the iron will not produce steam. The iron heats up faster than it cools down.

7
EN
Disposal
Packaging materials
The packaging materials are environmentally friendly and can be recycled. The plastic components are identied by
markings, e.g. >PE<, >PS<, etc. Please dispose the packaging materials in the appropriate container at the community waste
disposal facilities.
Old appliance
The symbol on the product or on its packaging indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment
and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed
information about recycling of this product, please contact your local city oce, your household waste disposal service or
the shop where you purchased the product.
Troubleshooting
Problem Possible cause Solution
The soleplate is not heating even
though the iron is turned on.
The temperature selector is in the
OFF (“0”) position.
Select appropriate temperature setting.
The iron does not produce
steam.
There is not enough water in
water tank.
Fill water tank (see “Getting started”, № 2).
The steam selector is set at
position.
Select a steam level by turning the steam selector between ,
or . (see “Ironing chart”).
The steam shot function does
not work.
The steam shot function was
used very frequently within a
short period.
Place the iron on its stand and wait before using steam function
again.
Water leaks from the soleplate
during ironing.
The iron is not hot enough. Turn the temperature selector to a temperature (••to max )
suitable for steam ironing. Put the iron on its stand and wait until
the light on the iron has gone out before you start ironing.
Flakes and impurities come out
of the soleplate during ironing.
Hard water was used which has
caused scale akes to develop in
the heater block or soleplate.
Press and hold the steam button for about one minute to get
steam. Then hold one more minute in order to clean the steam
generating system. Iron an old towel, to ensure that any residues
inside the iron are not transferred to the laundry. Change the
anti-calc cartridge regularly. (see "Cleaning and maintenance”, №
2 and 3).
Brown streaks come out of the
soleplate while ironing and stain
the linen.
Fabric bres have accumulated
in the holes of the soleplate and
are burning.
Clean the soleplate with a damp soft cotton cloth.
Scented water, vinegar or ironing
aids was used in the water tank.
Empty the water tank. Fill the water tank with clean water.
Perform steaming for some time until all dirt has been gushed
out. Clean the soleplate with a damp soft cotton cloth.
Ironing chart

8
CNS
安全提示
首次使用本产品前，请仔细阅读以下说明，并妥善保管说明书以备日后参考。以下建议有助于您安全使用本产品。
• 本产品不宜由身体残疾、知觉或智力水平不佳者（含儿童）、或缺乏必要的经验或知识的人士使用，除非其安
全监护人已给予他们有关本机使用的指导或说明。
• 应监护儿童，确保其不会玩耍本产品。
• 无适当监护的条件下，不应由儿童对本产品进行清洁和维护。
• 本产品接通电源或正在冷却时，请将本产品及其电源线放置于儿童接触不到的地方。
• 本产品仅可连接符合铭牌上所标示的电压和频率规格的电源。
• 本产品必须仅连接接地插座。
• 如果本产品或其电源线出现损坏，为避免出现危险，必须由Electrolux或其维修代理进行更换。
• 在本产品接通电源期间，使用者不得离开。
• 每次使用之后以及清洁和维护之前，请关闭本产品，并从插座中拔下电源插头。
• 请勿将本产品浸入水或其它任何液体中。
• 此熨斗适合使用普通自来水。如果您所在区域的自来水硬度较高，您可以向水槽中注入50%的自来水 + 50%的
瓶装蒸馏水。请勿仅使用蒸馏水。请勿向水槽内注入香水、醋或烫衣剂，以免导致衣物变色或染色。
• 如果电熨斗曾跌落，熨斗本身已经明显损坏或出现渗漏，请勿再次使用。
• 一定要在平稳的表面使用和放置熨斗。将熨斗放在其底座上时，必须确保底座所处的表面平稳。
• 向水槽注水之前，必须从电源插座上拔下插头。
• 电源线不得接触到本产品的任何高温部件。
• 使用期间，产品表面容易发热。
• 注水时，请勿超出本产品上标示的最大注水量。
• 使用期间，不得打开水槽盖。
• 本产品仅限于家庭使用。对于不当或错误使用造成的任何可能的损失或损坏，Electrolux一概不予负责。

9
CNS
入门指南
3. 请务必向水箱内注入常温水，至
最高水位。注满水后，将水箱顺
着槽口插入底座，并确保水箱盖
牢固锁闭。禁止仅使用蒸馏水。
请勿向水箱内注入香水、醋或熨
衣剂，以免导致衣物变色或染
色。
小心：切勿在水箱无水的情况下
操作蒸汽发生器。
2. 取下水箱。顺着底部的槽口，轻
轻从底座上将水箱拉出。确保蒸
汽发生器电源线的插头已经拔
掉。拆下防钙化盒，然后将其浸
入水中一分钟以上。
将防钙化盒重新插入原位。向水
箱内注入常温水。如果您所在区
域使用的自来水硬度较高，您可
以使用50%的自来水+50%的瓶
装蒸馏水。初次使用时应清空水
箱，并用水冲掉制造过程中可能
残留的异物。
1. 首次使用前。请先用湿布轻轻擦
拭，清理掉设备上所有粘附残留
物。然后将蒸汽发生器水平放置
在熨衣板或者与熨衣板高度相同
且耐热安全的台面上。展开并拉
直电源线和蒸汽软管。首次使用
时，本产品可能会在短时间内发
出气味/异味。
11
2
2
4. 将蒸汽发生器插入电源插座。按
下电源按钮。参照衣物标签或织
物熨烫设置表，根据熨烫的衣物
类型将温度旋钮调至合适位置。
熨斗上的温度就绪指示灯随即亮
起。然后在控制面板上旋转蒸汽
旋钮，从“低 - 中- 高”中选择合
适的蒸汽档位。
6. 用旧毛巾试熨烫。将熨斗放在一
块旧毛巾上反复熨烫，以确保熨
斗内残留的任何杂物不会粘到熨
烫过的衣物上。必要时，可用微
湿的棉布清洁底板。
5. 准备进行蒸汽熨烫。熨斗温度指
示灯亮起时，蒸汽发生器开始预
热。当指示灯熄灭时，即表示熨
斗已准备就绪。当熨斗达到40°C
时，底板高温指示灯变为红色。
按下蒸汽喷射按钮，喷射出一股
蒸汽。按住蒸汽喷射按钮保持至
少一分钟，以便清洁蒸汽发生系
统。
1
2

10
CNS
清洁和保养
7. 如果低水位指示灯亮起（随后会
发出两声哔哔声），应重新向水
箱注水。水箱再次注满后，按住
注水复位按钮约6秒钟。低水位
指示灯将熄灭。蒸汽功能恢复正
常，熨斗可再次使用。
10. 本产品用毕之后，将温度旋钮旋
转至“关闭”（0）位置。收纳熨
斗之前，请务必让其在熨斗搁架
上充分冷却。待熨斗冷却后，立
即倒空水箱内的水。
注意：请勿在水箱内仍有水的情
况下存放蒸汽发生器。
8. 如要启动蒸汽喷射功能，按下蒸
汽喷射按钮。放开按钮后，应将
释放出的蒸汽用完之后再将熨斗
放回搁架上。
11.请务必使用蒸汽发生器侧面的电
源线收纳槽存放电源线。请勿将
电源线卷在熨斗上。
9. 如要关闭熨斗，请按下电源按
钮，直至听到哔哔声即可。随着
底板慢慢冷却，底板高温指示灯
再次恢复到黑色。在该指示灯回
复黑色之前，请勿触摸底板或存
放熨斗。如果将熨斗静置在搁架
上无人看管，10分钟后熨斗自动
关闭。
2
1
