ENGLISH 2
CONTENTS
1. SAFETY INFORMATION ......................................................................3
2. SAFETY INSTRUCTIONS ....................................................................4
3. PRODUCT DESCRIPTION...................................................................6
4. BEFORE USING FOR THE FIRST TIME..............................................7
5. CONTROL PANEL................................................................................7
6. DAILY USE ...........................................................................................8
7. VACUUM FOOD PACKAGING FOR.....................................................9
8. VACUUM PACKAGING FOR FOOD PRESERVATION ......................10
9. ADDITIONAL FUNCTIONS.................................................................11
10. CLEANING AND MAINTENANCE ....................................................12
11. TROUBLESHOOTING ......................................................................12
12. ENVIRONMENT CONCERNS ..........................................................13
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time. Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux .com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information.
General information and tips.
Environmental information.
Subject to change without notice.

3 www.electrolux.com
1. SAFETY INFORMATION
Carefully read the instructions before installing and
using the equipment. The manufacturer is not liable for
improper installation and use of the equipment that may
cause injuries and damage. Always keep the
instructions at hand, so they can be easily referred to
during use.
1.1.Safety of children and vulnerable adults
WARNING!
Risk of choking, injury or permanent disability.
This appliance can be used by children aged 8 years
and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they are given supervision or
instructions concerning how to use the appliance in a
safe way and understand the hazards involved.
Children should not play with the appliance.
Keep packaging materials away from children.
Keep children and pets away from the appliance
during operation or when cooling.
Cleaning and maintenance should not be done by
children without supervision.
1.2.Warnings on general safety
Do not use steam cleaners to clean the appliance.
Do not use abrasive detergents or metal scrapers to
clean the appliance.
Only qualified personnel can install the appliance and
replace the cable.
The electric system must be equipped with a means
for disconnection, with a contact separation in all
poles that provide full disconnection under
overvoltage category III.
The connection should include correct earthing, in
compliance with current norms.

ENGLISH 4
Disconnect the appliance from the power supply
before carrying out any maintenance operation.
2. SAFETY INSTRUCTIONS
2.1. Installation
WARNING!
Installation must be carried out by
qualified personnel only
Remove the packaging material.
Do not install or use the appliance if
damaged.
Comply with the instructions supplied
with the appliance.
Always pay attention when moving the
appliance and wear safety gloves.
Do not turn the appliance upside down
or tilt it! This may cause oil to leak from
the pump and damage the equipment.
Respect the minimum distance from
other appliances.
Make sure the appliance is installed
and secured to a fixed structure.
The sides of the appliance must be
adjacent to other equipment or units
having the same height.
2.2. Electrical connection
WARNING!
Risk of fire and electric shock.
All the electrical connections must be
made by a qualified electrician.
The appliance must be earthed.
Make sure that all the electrical data
shown in the data plate of the model
correspond to those of the system.
Otherwise, contact an electrician.
Always use a correctly installed
shockproof socket.
Do not use multi-plug adapters or
extension cables.
Make sure not to damage the mains
plug and the mains cable. Contact the
Assistance Service or an electrician to
change any damaged mains cable.
Shock protection devices must be
fastened in such a way that they
cannot be removed without tools.
Connect the mains plug to the mains
socket only once installation has been
completed. Make sure that the mains
plug can be accessed after installation.
Do not connect the mains plug if the
mains socket is loose.
Do not pull the mains cable to
disconnect the appliance. Pull only the
mains plug.
Use only suitable isolation devices:
circuit breakers, fuses (screw type
fuses must be removed from the fuse
holder), earth fault current releases
and relays.
2.3. Use
WARNING!
Risk of injury, burns, electric shock
or explosion
Use this appliance in a household
environment.
Do not modify the specifications of this
appliance.
Do not leave the appliance unattended
during operation.
Switch off the appliance after use.
Do not use the appliance with wet
hands or when it could come into
contact with water.
Do not apply pressure on the drawer.
Do not use the appliance as a work
surface or as a support surface.
Avoid the presence of sparks or open
flames near the appliance when you
open the drawer.
Do not place or keep flammable
liquids, materials or objects on the
appliance, or inside or close to it.

5 www.electrolux.com
WARNING!
You may damage the appliance
Pay attention when you remove or
insert the accessories.
Do not touch the sealing bar (5)
immediately after sealing. You may get
burnt due to the residual heat.
In the event of a power failure during a
work cycle with closed cover (3), do
not force the cover with a tool to open
it, wait until power is restored.
Do not place any weight on the cover
(3)!
Prevent any object from falling on the
cover! This can compromise the
integrity, causing cracks or damage.
Do not proceed with packaging if the
cover has cracks or is broken.
Contact the Technical Assistance
Service to replace it.
2.4. Cleaning and maintenance
WARNING!
There is a risk of injury, fire or
damage.
Before carrying out any maintenance
operation, switch off the appliance and
disconnect the plug from the mains
socket
Check that the appliance is cold.
Clean the appliance on a regular basis
to prevent the surface materials from
wearing.
Clean the appliance using a damp and
soft cloth. Use neutral detergents only.
Do not use abrasive products, alcohol-
based detergents, abrasive sponges,
solvents or metal objects.
Follow the safety instructions indicated
on the packaging, in the event you use
sprays.
2.5. Disposal
WARNING!
Risk of injury and choking.
Disconnect the plug from the power
supply.
Remove the main cable and dispose of
it.
5
3
3

ENGLISH 6
3. PRODUCT DESCRIPTION
This product is ideal for:
Vacuum food packaging for the “SOUS
VIDE” cooking methods (see chapter
7).
Removing the air from the pouches
ensures perfect cooking results,
thanks to the homogeneous heat.
transfer and retention of minerals and
vitamins that would otherwise be
dispersed.
Vacuum packaging for food
preservation (see chapter 8).
Food marinades/infusion (see chapter
8).

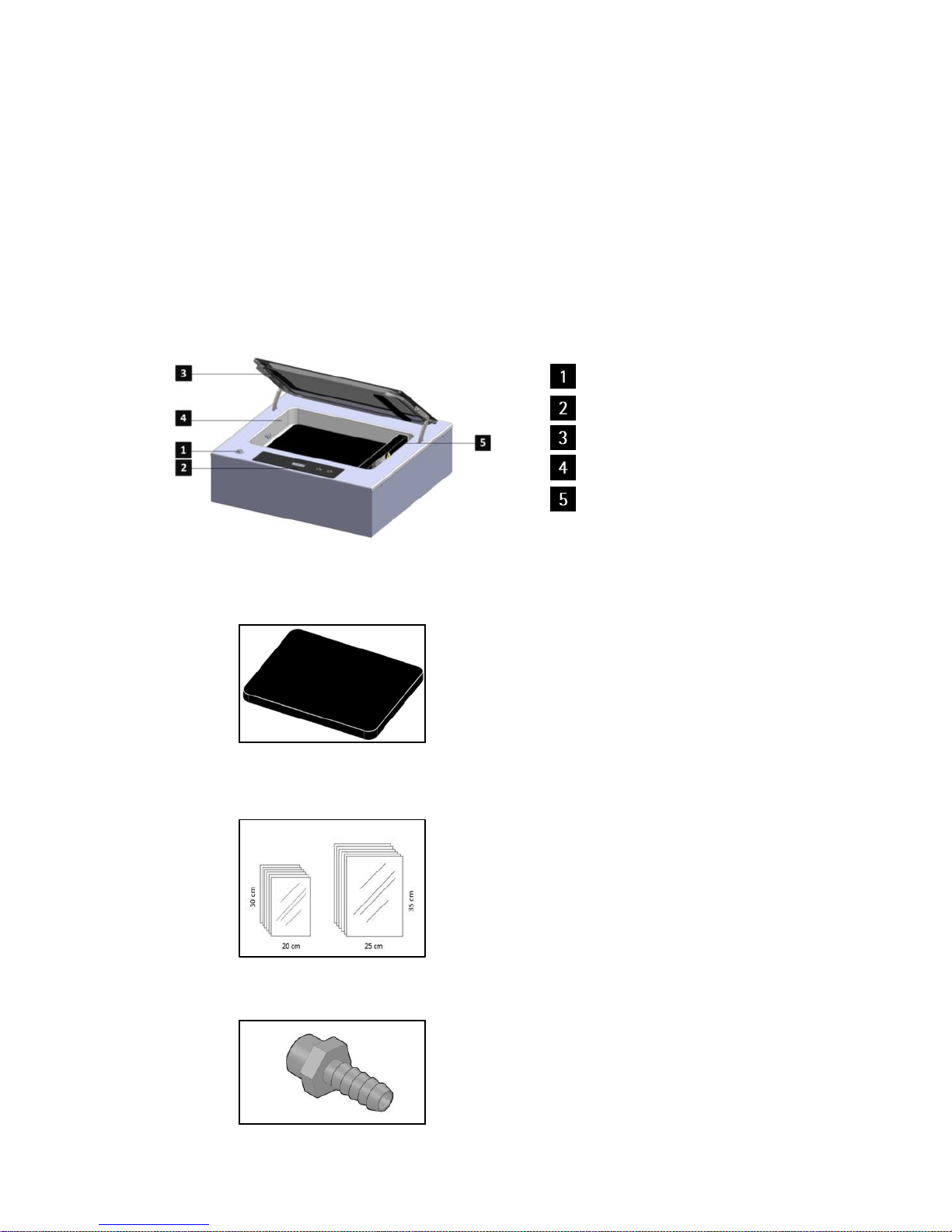

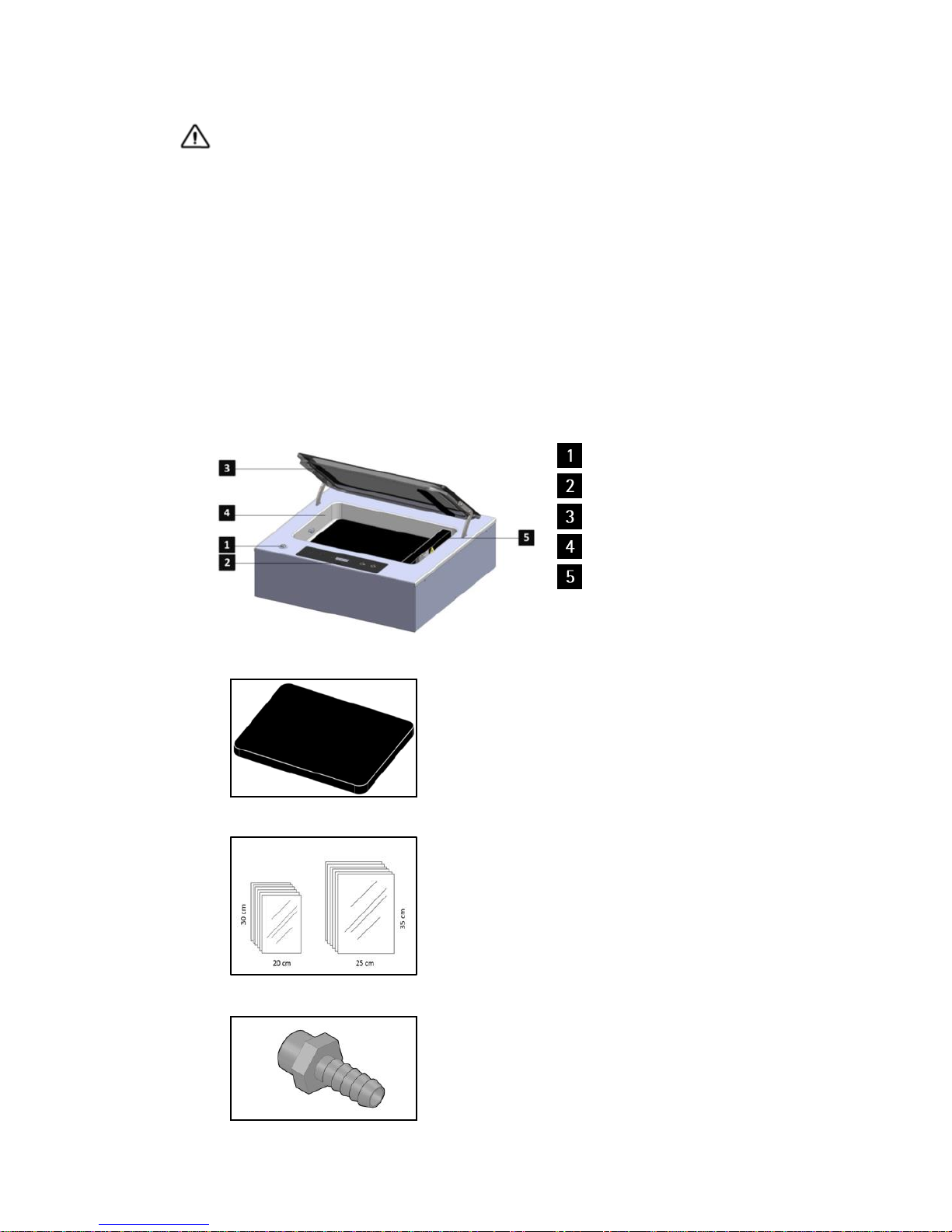

3.1.Accessories
Volume Reducer
With these pouches, food can be stored
and cooked at a temperature ranging
between 0°C and 120°C (max. 30min at
120ºC)
The supplied pouches are ideal for the
“sous vide” vacuum cooking method.
Pouches order code:9029793941
50 pouches for vacuum cooking and
storage.
(25 pieces, dimensions: 20x30 cm + 25
pieces dimensions: 25x35 cm)
www.electrolux.com/shop
External vacuum” fitting”
(see chapter 9).
ON/OFF switch
Control panel
Cover
Tank
Sealing bar

7 www.electrolux.com
4. BEFORE USING FOR THE FIRST TIME
WARNING!
Refer to the chapters on safety.
4.1.Cleaning for the first time
Remove all the parts from the
appliance.
Clean the appliance before you use it
for the first time.
4.2.First connection
Connect the appliance to the power
supply.
Use the ON/OFF switch -1- locate to
the left of the control panel to switch
the appliance on.
Before using the appliance, proceed
with the “Conditioning Program” as
shown below:
Close the cover with the empty tank.
Select program P7 using the keys -9-
and -10-.
Press Start -8-.
Wait for the cycle to end (about 3
minutes).
At the end of the cycle, the display
shows P7 again.
Now the machine is ready for use

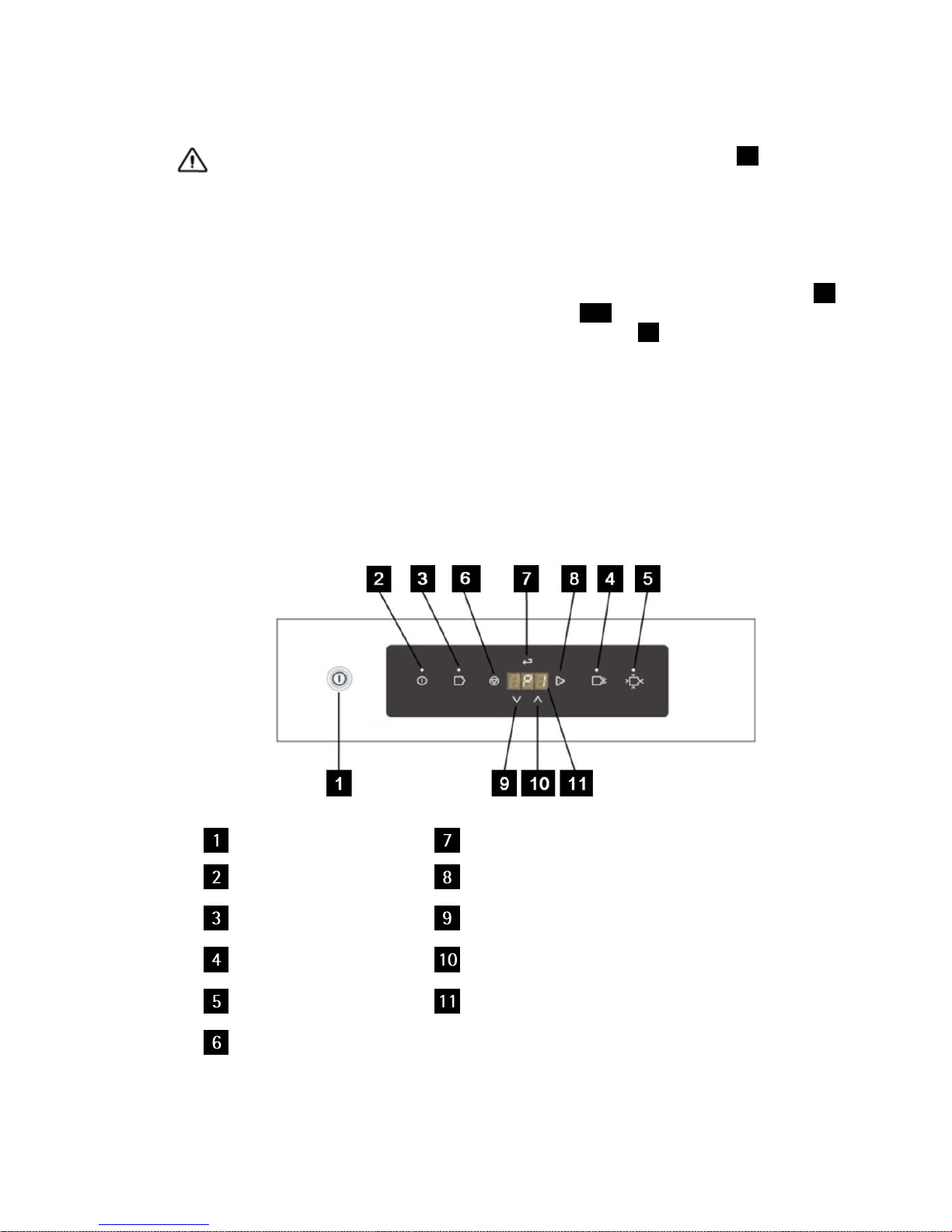

5. CONTROL PANEL
ON/OFF switch
Selection button
ON/OFF LED
Start button
Vacuum function LED
“DECREASE” button, reduces the set function
values and selects the programs
Sealing function LED
“INCREASE” button, increases the set
function values and selects the programs
Air return function LED
Display - displays the selected functions and
the corresponding setting data.
Stop button

ENGLISH 8
6. DAILY USE
WARNING!
Refer to the chapters on safety
Switch the appliance on using the
ON/OFF -1- switch and wait until the
display shows the last program
performed (e.g. P1).

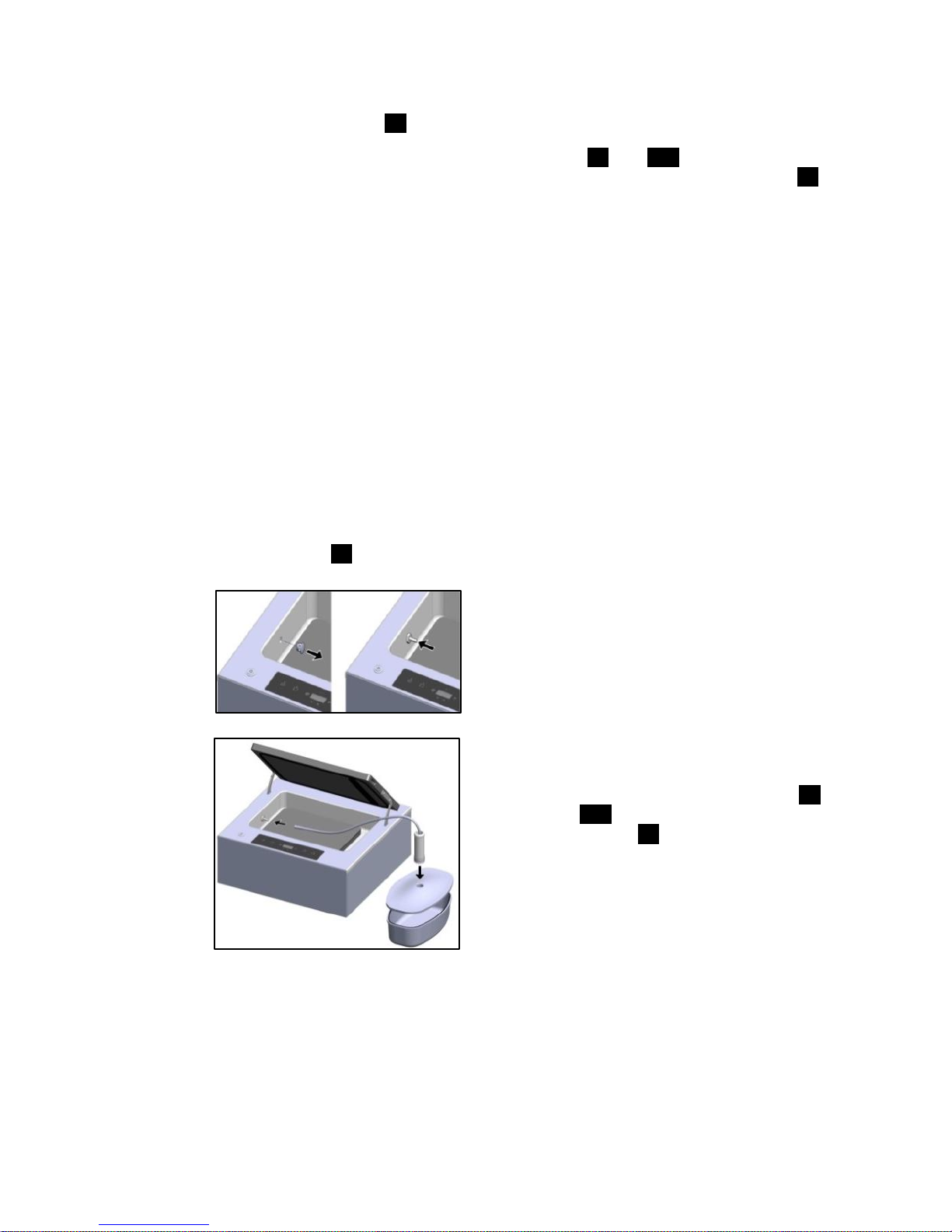

Lift the cover and place the pouch
containing the food to be packed
inside the tank, leaving at least 2 cm
beyond the sealing bar (see figure)
For small products, use the supplied filler
plate, as it helps position the pouch in
the correct position with respect to the
sealing bar.
Close the cover and select the
required program pressing
DECREASE/ INCREASE -9-, -10- and
then press Start -8-.
During the vacuum stage, the display
shows the progress (in percentage)
until the set value is reached.
The display now shows the sealing time,
after which the environmental pressure is
restored inside the tank.
Now you can open the cover, as soon
as the display shows the program
number (e.g. P1).
Programs from P1 to P5 can be set
according to the consumer's
requirements.
By default, the set vacuum is 99.9%
and the recommended sealing time for
the supplied pouches is 2 seconds.
These parameters are suitable for the
normal use of the machine.
Refer to the following table for other
settings.
Recommended vacuum % table
“Value for food preservation purpose”
Food
Vacuum Recommended
Meat
99.9%
Cheese
99.9%
Grated cheese
35 - 50%
Fruit
99.9%
Jam and cream
99.9%
Soups
99.9%
Sandwiches
60 - 70%
Pasta
99.9%

9 www.electrolux.com
Food
Vacuum Recommended
Fish, shellfish
99.9%
Sausages
99.9%
Cured meats
99.9%
Vegetables
99.9%
Fresh vegetables (salad, tomatoes)
35 - 50%
Stop button
This button immediately stops suction
and the machine proceeds by sealing the
pouch automatically. This function must
be used for packing liquid and hot
products, which can boil during the
vacuum cycle.
Modifying the parameters
We recommend modifying the “vacuum
% ” parameters for some foods (see the
recommended vacuum % table).
The pouch sealing time can be modified
(from 0 to 4 seconds) for pouches with
different thickness compared to those
supplied.To modify these parameters,
proceed as follows:
Press buttons -9-, -10- to select the
program to be modified (e.g. P2).
Press the selection button -7- . The
display shows the vacuum percentage
(99.9%).
Enter the desired number by pressing
buttons -9-, -10-
Press the selection button -7- . The
display shows the sealing time (2
seconds).
Enter the desired value by pressing
buttons -9-, -10-
By pressing -7- again, the display
shows the program (e.g. P2). The
displayed program means that the set
parameters have been saved.
7. VACUUM FOOD PACKAGING FOR “SOUS VIDE”
COOKING METHOD
With this method, the food sealed in the
vacuum pouch is then slowly steam
cooked or cooked in low temperature
water.
Vacuum is set at 99.9%, which is ideal
for this cooking method.
The benefits provided are many:
The flavour and texture of the food are
better
Both flavour and aromas are
preserved, as the cooking process
does not disperse them
The reduced loss of liquid makes the
food softer and less dry.
Nutrients like minerals and vitamins
are preserved by the sealed pouch.
You don't need to add oils or fats for
cooking.
