Elkay Soft Sides ECDFPW314FP Instructions for use

Page 1 98011C (Rev. L - 02/18)
ECDFPW314FP
Installation & Use Manual
Soft Sides®Freeze Resistant Fountain
Elkay Fountains are among the easiest to install Fountains on the market today. To assure you install these
models easily and correctly, PLEASE READ THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE
INSTALLATION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH PLUMBING, ELECTRICAL,
AND OTHER APPLICABLE CODES. After installation, leave these instructions with the Fountain for future
reference. This Freeze Resistant Fountain is shipped in two separate cartons. The second carton(s) contains
the Freeze Resistant Package(s) LKFRB1 that are installed on an interior heated wall. The interior space must
maintain a minimium temperature of 50° F (10° C). Refer to the Freeze Resistant Package for the rough-in
dimensions for installation.
INSTALLER
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON.
IMPORTANT! INSTALLER PLEASE NOTE.
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES
IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM
THE BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN
ELECTROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE
WATER. THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN
FITTINGS PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE
FOUNTAIN FROM THE BUILDING PLUMBING SYSTEM.
WWW.RESTROOMDIRECT.COM 704 • 937 • 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115

Page 2
98011C (Rev. L - 02/18)
ECDFPW314FP
LEGEND A = RECOMMENDED WATER SUPPLY LOCATION. 3/8 O.D. UNPLATED COPPER TUBE CONNECT STUBBED 1-1/2" (38mm) FROM WALL. SHUT OFF BY OTHERS. B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4" (44 mm) O.D. DRAIN. C = RECOMMENDED LOCATION FOR OPERATING CABLE 7/8" (22 mm) DIA. HOLE NOTE: REINFORCE THE WALL IN THE SHADED AREAS.
ECDFPW314FPC
MOUNTING BOLT AND ACCESS HOLE LAYOUT
FIG. 1
23 1/16"
586mm
6"
152mm
39 9/16"
1005mm
26 7/16"
672mm
25 3/16"
640mm
16"
406mm
1/2" 13mm
B
A
BACK PANEL
WALL PLATE
ASSEMBLY
1/4" (6mm) DIA HOLES FOR
MOUNTING PLATE TO WALL
3/8" (10mm) DIA HOLES
FOR MOUNTING PLATE
TO WALL (10)
5 1/4"
133mm
5 1/4"
133mm
8"
203mm
8"
203mm
12"
305mm
MAX. WALL THICKNESS
7 1/4"
184mm
12 1/8"
307mm
FINISHED FLOOR
C
1" 25mm
WWW.RESTROOMDIRECT.COM 704 • 937 • 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115

Page 3 98011C (Rev. L - 02/18)
ECDFPW314FP
ECDFPW314FPC
ROUGH-IN DRAWING
1. Wall should already be framed for the fountains using dimensions shown in Fig. 1. Shown dimensions pertain to installation location.
These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only). 2. Remove bottom covers from fountains and save the screws. 3. Install the fountains using bolts and washers (provided). Tighten securely. 4. Attach drain tubes to fountains and cut to required length using the freeze resistant boxes as guides. 5. Install freeze-resistant boxes - see box instructions. 6. Replace bottom covers. FIG. 2
WWW.RESTROOMDIRECT.COM 704 • 937 • 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115

Page 4
98011C (Rev. L - 02/18)
ECDFPW314FP
FIG. 6 FIG. 7
FIG. 3 FIG. 4
See Fig. 7
See Fig. 3 FIG. 5
CABLE SHEATH ADJUSTMENT
To Increase Free Play
To Reduce Free Play
WWW.RESTROOMDIRECT.COM 704 • 937 • 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115

Page 5 98011C (Rev. L - 02/18)
ECDFPW314FP
The freeze resistant package must be mounted on an interior wall in a heated area. The room temperature of the
interior heated area must be 50° F (10° C) or higher. The freeze resistant package may be surface or recessed
mounted. If recess mounted the surface of the cover must be ush with the interior wall surface. The package is
furnished with screws for mounting the cover to the box. If the box is recess mounted, do not fasten the top and bottom
of the cover to the box. Use the holes on the front only.
1. Assemble the operating cable to the fountain bracket. (Fountain should be mounted to exterior wall). The
adjustment nuts should be in the middle of threaded area on the operating cable. See Figure 3. Create a loop in
the cable and thread the free end of the cable through the wall into the freeze resistant box
2. Connect free end of operating cable to the valve-operating bracket in the freeze resistant box.
3. Remove cable free play by adjusting the jam nuts on the ends of the operating cable. See Figure 4.
4. Connect water line from fountain bubbler into freeze resistant box. The connection to the box uses a quick
connect water tting. Position the water line, in the fountain, to drain back into interior mounted box. Any water left
standing, in the exterior line, can freeze.
To insert tubing, push tube straight into tting until it reaches a positive stop. To remove tubing from the ttings,
relieve water pressure, push in on dark gray collar while pulling out on the tubing. See Figure 9.
5. Connect drain and water supply lines to the freeze resistant fountain. Refer to Figure 1 for component positions.
Inline strainer must be used on the inlet water line. See Figure 8.
Start-up
1. Turn on building water supply and check all connections for leaks. Repair as required.
2. Stream height is factory set at 35 PSI. If stream height needs to be changed adjust the regulator in the freeze
resistant package. Clockwise adjustment raises stream height, counter clockwise adjustment will lower stream.
3. Adjust operating cable as required. Cable system should have a minimal amount of free play to allow for proper
valve operation. If the system is too tight the valve will stay in the on position creating constant water ow. Too
much free play will result in non-operation of the valve with the push-buttons.
4. Note: Water from the drain back tube in the freeze resistant package, will continue to run while the valve is
actuated.
5. After cable system is adjusted properly stuff exible insulation into any openings between the outside wall and the
interior box.
6. Recheck all connections. If all connections are leak free replace cover on the freeze resistant box and fountain.

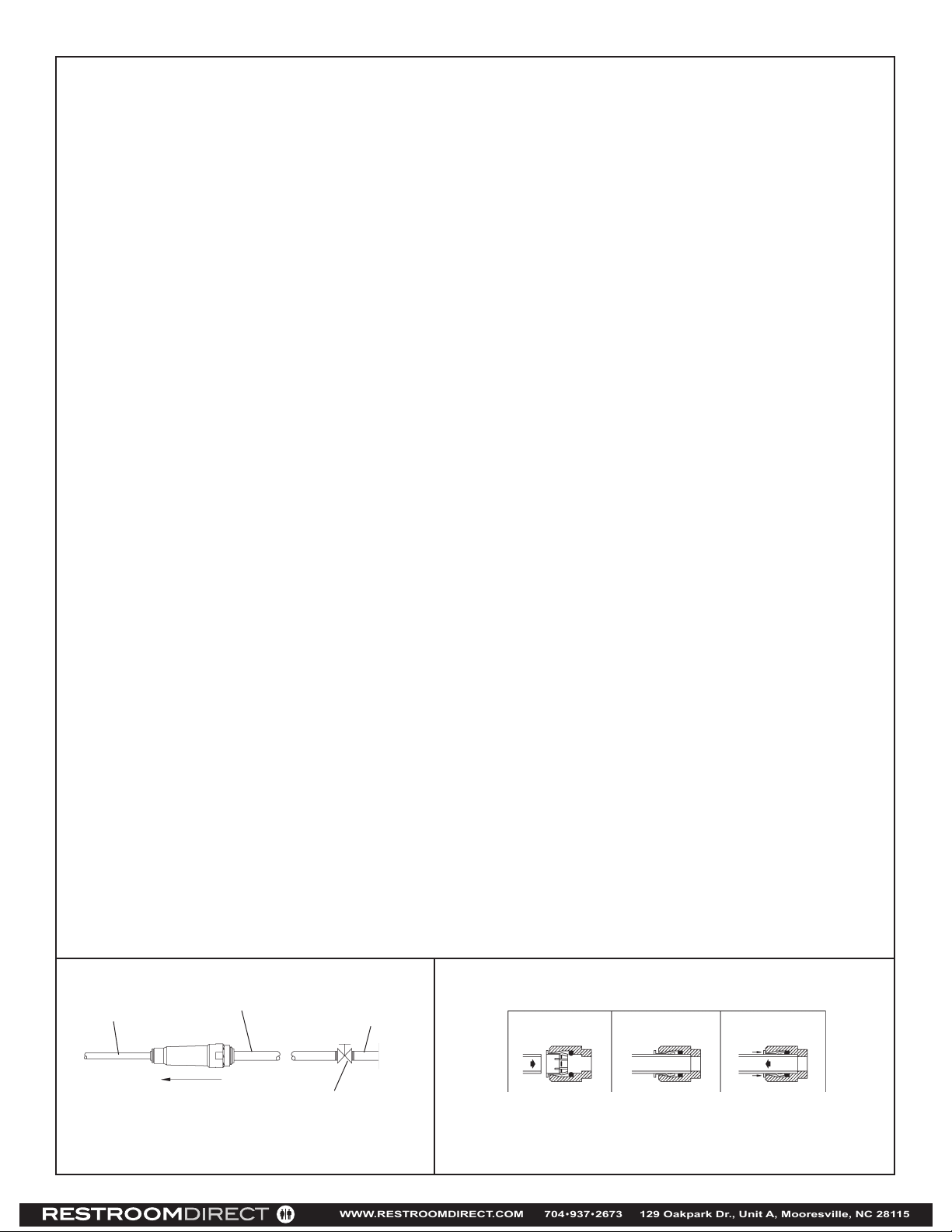

FIG. 8
NOTE: WATER FLOW DIRECTION
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
1/4" O.D. TUBE
WATER INLET
3/8" O.D. UNPLATED COP-
PER TUBE CONNECT
COLD WATER SUPPLY
TUBE IS SECURED
IN POSITION
SIMPLY PUSH IN
TUBE TO ATTACH
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
FIG. 9
OPERATION OF QUICK CONNECT FITTINGS
WWW.RESTROOMDIRECT.COM 704 • 937 • 2673 129 Oakpark Dr., Unit A, Mooresville, NC 28115

Page 6
98011C (Rev. L - 02/18)
ECDFPW314FP
PART NO.ITEM NO.
PARTS LIST
Drain - Strainer
Bracket-Regulator Mounting
Push Button
Push Button Sleeve
Bracket-Basin
Bracket-Basin Pivot
Retainer
Snap Bushing
Bumper-Reg. Valve Assy
Cap Screw
Kit - Pinned Torx Screw/T-25 Bit
Fountain Arm - Long
Bottom Cover Plate - Long
Back Panel
Hex Nut
Push Button (Extension)
Screw - Mach. 5/16-18 x 3/4
Washer - Flat .339/.359ID Steel
VR Bubbler Assembly
Poly Tubing (Cut To Length)
Mounting Plate Assy
Kit - Drain/Tailpipe
Drain Adapter
Gasket - Tail Pipe
Pivot Rod
40575C
28824C
45662C
45663C
27945C
27946C
40206000
50198C
51667C
75672C
0000001190
28790C
55000665
28290C
40045C
55919C
111577243890
75541C
97446C
56092C
28286C
0000000930
45805C
50074C
70379C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
DESCRIPTION
FIG. 13
FIG. 11
FIG. 12
FIG. 10
FIG. 10
19
20
11 13 22,23,24
14
21
17, 18
25
2
9
15
7
5
8
6
12
1
3
4
10
16
8
BASIN
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 • www.elkay.com
PRINTED IN U.S.A.
