Elkay Soft Sides EDFP210FP B Series Installation manual

97565C (Rev. K - 1/08)
EDFP210FP*B EDFP214FP*B EDFP217FP*B
Installation/Care/Use Manual
EDFP210FPC EDFP214FPC EDFP217FPC
Soft Sides™Freeze Resistant Fountains
IMPORTANT! INSTALLER PLEASE NOTE.
THEGROUNDINGOFELECTRICALEQUIPMENTSUCHASTELEPHONE,COMPUTERS,ETC.TO
WATERLINES ISACOMMONPROCEDURE.THISGROUNDINGMAYBEINTHEBUILDINGORMAY
OCCURAWAYFROMTHE BUILDING.THISGROUNDING CAN CAUSE ELECTRICALFEEDBACK
INTOAFOUNTAIN,CREATINGAN ELECTROLYSIS WHICH CAUSESAMETALLICTASTE ORAN
INCREASEINTHEMETALCONTENTOFTHE WATER.THISCONDITIONISAVOIDABLEBYUSING
THEPROPERMATERIALSASINDICATED.ANYDRAINFITTINGSPROVIDEDBYTHE INSTALLER
SHOULDBEMADEOFPLASTICTOELECTRICALLYISOLATETHE FOUNTAINFROMTHEBUILDING
PLUMBINGSYSTEM.
IMPORTANT
ALLSERVICETO BE PERFORMEDBY AN AUTHORIZEDSERVICE PERSON
EDFP210FPC EDFP217FPC
Toassureyouinstallthismodeleasilyandcorrectly,PLEASEREADTHESESIMPLE
INSTRUCTIONSBEFORESTARTINGTHEINSTALLATION.CHECKYOURINSTALLA-
TIONFORCOMPLIANCEWITHPLUMBING,ELECTRICALANDOTHERAPPLICABLE
CODES.Afterinstallation,leavetheseinstructionsinsidethefountainforfuturereference.
ThisFreezeResistantFountainisshippedintwoseparatecartons.Thesecondcarton(s)
containstheFreezeResistantPackage(s)LKFRB1 thatareinstalledonaninterior
heatedwall.Theinteriorspacemustmaintainaminimumtemperatureof50°F(10°C).
RefertotheFreezeResistantPackagefortherough-indimensionsforinstallation.
Installer
EDFP214FPC

97565C (Rev. K - 1/08)
EDFP210FP*B EDFP214FP*B EDFP217FP*B
FIG.1
PAGE 2
LEGEND A= MOUNTING BOLT LOCATIONS (4) (3/8" DIA. NOT PROVIDED) B = 7/8" DIA. (22mm) HOLE FOR WATER SUPPLY TUBE C = 7/8" DIA. (22mm) HOLE FOR OPERATING CABLE D = 1-3/4" (44mm) HOLE FOR WASTE LINE
FINISHEDFLOOR
EDFP210FP/EDFP214FP
MOUNTING BOLT AND ACCESS HOLE LAYOUT

97565C (Rev. K - 1/08)
EDFP210FP*B EDFP214FP*B EDFP217FP*B
PAGE 3
FIG. 2
FINISHEDFLOOR
1. Wall should already be framed for the fountain using dimensions shown in Fig. 1. Shown dimensions pertain to installation location. These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only). 2. Remove bottom cover from fountain and save the screws. 3. Install the fountain using bolts and washers (not provided). Tighten securely. 4. Attach drain tube to fountain and cut to required length using the freeze resistant box as a guide. 5. Install freeze-resistant box - see box instructions. 6. Replace bottom cover.
EDFP210FP/EDFP214FP
ROUGH-IN DRAWINGS

97565C (Rev. K - 1/08)
EDFP210FP*B EDFP214FP*B EDFP217FP*B
FINISHEDFLOOR
PAGE 4
FIG.3
LEGEND A = 3/8" DIA. (10mm) SLOTS (FOR MOUNTING UPPER HANGER BRACKET) B = 7/8" DIA. (22mm) HOLE FOR WATER SUPPLY TUBE C = 7/8" DIA. (22mm) HOLE FOR OPERATING CABLE D = MOUNTING BOLT LOCATIONS (8) (3/8" DIA. NOT PROVIDED) E = 1-3/4" (44mm) HOLE FOR WASTE LINE
EDFP217FP
MOUNTING BOLT AND ACCESS HOLE LAYOUT

97565C (Rev. K - 1/08)
EDFP210FP*B EDFP214FP*B EDFP217FP*B
1. Wall should already be framed for the fountains using dimensions shown in Fig. 3. Shown dimensions pertain to installation location. These dimensions are required for compliance with ANSI Standard A117.1. and ADA (Framing shown for reference only). 2. Remove bottom covers from fountains and save the screws. 3. Install the fountains using bolts and washers (not provided). Tighten securely. 4. Attach drain tubes to fountains and cut to required length using the freeze resistant boxes as guides. 5. Install freeze-resistant boxes - see box instructions. 6. Replace bottom covers.
FIG.4
FINISHEDFLOOR
PAGE 5
EDFP217FP
ROUGH-IN DRAWINGS

97565C (Rev. K - 1/08)
EDFP210FP*B EDFP214FP*B EDFP217FP*B
PAGE 6
FIG. 8 FIG. 9
FIG. 5 FIG. 6
See Fig. 9
See Fig. 5 FIG. 7
CABLESHEATHADJUSTMENT
To Increase FreePlay
To Reduce FreePlay

97565C (Rev. K - 1/08)
EDFP210FP*B EDFP214FP*B EDFP217FP*B
PAGE 7
Thefreeze resistant package must be mounted on an interior wall in a heated area. The roomtemperature ofthe interior
heated area must be 50° F (10° C) or higher. The freeze resistant package may be surface or recessed mounted. If recess
mounted the surface of the cover must be flush with the interior wall surface. The package is furnished with screws for
mounting the cover to the box. If the box is recess mounted, do not fasten the top and bottom of the cover to the box. Use
the holes on the front only.
1. Assemble the operating cable to the fountain bracket. (Fountain should be mounted to exterior wall) Create a loop in
the cable and thread the free end of the cable through the wall into the freeze resistant box. The adjustment nuts should
be in the middle of threaded area on the operating cable. See Figure 9
2. Connectfree end of operating cable to the valve-operating bracket. Theend ofthe cablesmust be recessed into the
indents on the pivot brackets.
3. Remove cable free play by adjusting the jam nuts on the ends of the operating cable. See Figure 6
4. Connect water line from fountain bubbler into freeze resistant box. The connection to the box uses a quick connect
water fitting. Position the water line, in the fountain, to drain back into interior mounted box. Any water left standing, in
theexterior line, can freeze.

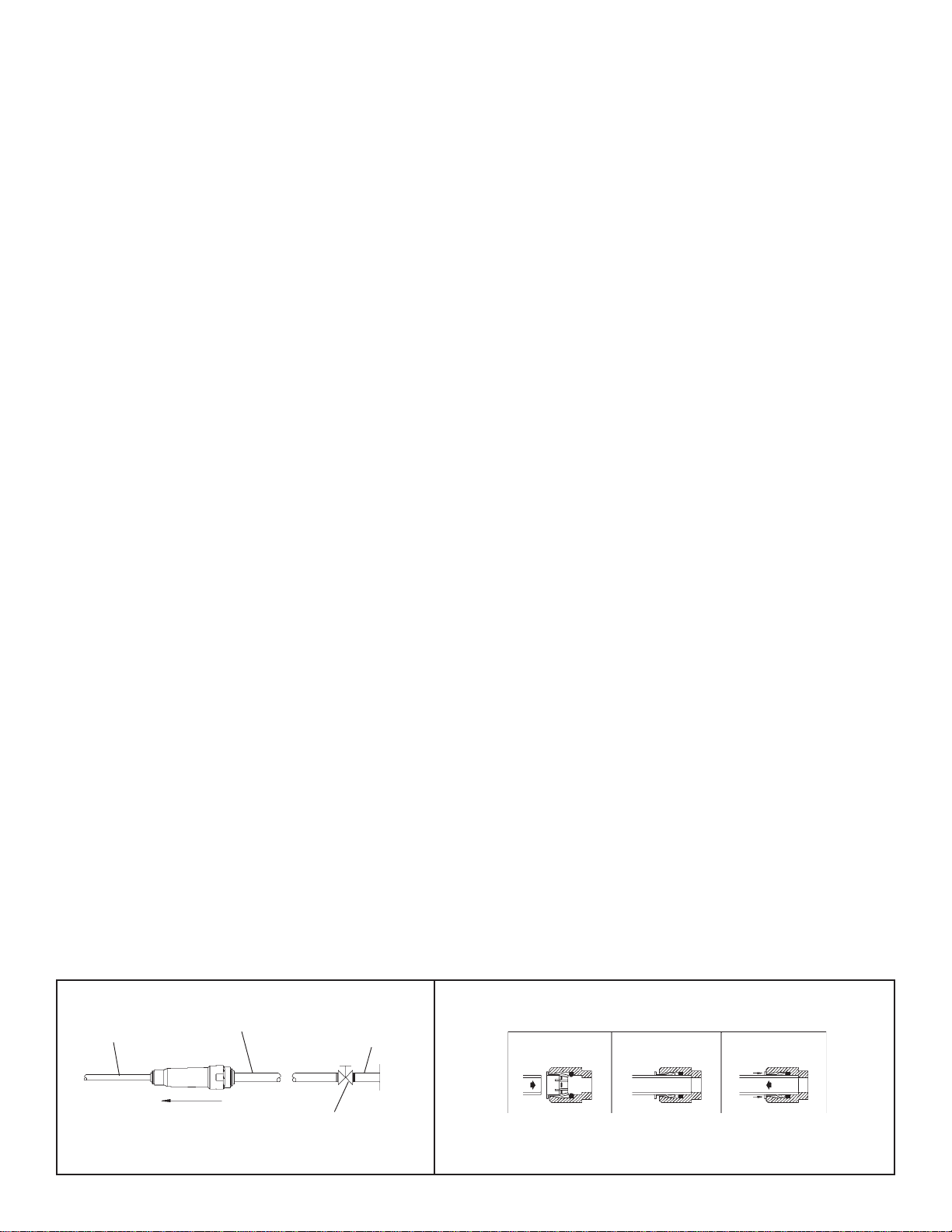

To insert tubing, push tube straight into fitting until it reaches a positive stop. To remove tubing from the fittings, relieve
water pressure, push in on dark gray collar while pulling out on the tubing. See Figure 11
5. Connect drain and water supply lines to the freeze resistant fountain. Refer to Figure 1 for component positions. Inline
strainer must be used on the inlet water line.
Start-up
1. Turn on building water supply and check all connections for leaks. Repair as required.
2. Stream height is factory set at 35 PSI. If stream height needs to be changed adjust the regulator in the freeze resistant
package. Clockwise adjustment raises stream height, counter clockwise adjustment will lower stream.
3. Adjustoperating cable as required. Cable systemshould havea minimal amount of freeplay to allow for propervalve
operation. If the system is too tight the valve will stay in the on position creating constant water flow. Too much free
playwill result innon-operation of thevalve with the push-buttons.
4. Note: Water from the drain back tube in the freeze resistant package, will continue to run while the valve is actuated.
5. After cable system is adjusted properly stuff flexible insulation into any openings between the outside wall and the
interiorbox.
6. Recheckall connections. If all connections are leak free replace cover(s) on the freeze resistant box(es) andfountain(s).
FIG. 10
NOTE:WATERFLOWDIRECTION
BUILDINGWATER
INLET
SERVICESTOP
(NOT FURNISHED)
1/4"O.D. TUBE
WATERINLET
3/8"O.D. UNPLATED
COPPERTUBECONNECT
COLDWATERSUPPLY
TUBE IS
SECURED
IN POSITION
SIMPLY PUSH IN
TUBE TO ATTACH PUSH IN COLLET TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
FIG. 11
OPERATIONOFQUICKCONNECTFITTINGS

97565C (Rev. K - 1/08)
EDFP210FP*B EDFP214FP*B EDFP217FP*B
PAGE 8
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484
PARTNO.ITEMNO.
PARTSLIST
GASKET
SCREW-#10X .50PINNEDTORX
NIPPLEASSY
BRACKET-REGULATORMOUNTING
BRACKET-BASIN
BRACKET-BASINPIVOT
HEXNUT1-5/16
RETAINER
BUBBLERASSEMBLY
PUSHBUTTON
SLEEVE-PUSHBUTTONGUIDE
SNAPBUSHING
BUMPER-REG.VALVEASSY
PUSHBUTTON(EXTENSION)
PIVOTROD
FOUNTAINARM- SHORT
FOUNTAINARM-LONG
BOTTOMCOVERPLATE-SHORT
BOTTOMCOVERPLATE-LONG
BACKPANELASSY- EDFP217FPC
CAPSCREW
WASTE ARMASSY
POLYTUBING (CUTTOLENGTH)
BIT-PINNEDTORX
EDGETRIM
100322740560
75570C
15009C
28823C
27945C
27946C
40045C
40206000
98118C
45662C
45663C
50198C
51667C
55919C
70425C
28782C
28783C
55000661
55000665
27971C
75672C
72000833
56092C
75520C
56280C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
NS
NS
21
DESCRIPTION
2, 17
SEE FIG. 13
20
18
SEE FIG. 14
12
4
11,19
10
14
8
15
13
576
12
16
FIG. 13
FIG. 12
9
1
3
FIG. 14
21
21
