Elkay ERPA8C Installation manual

97674C (REV. B - 5/01)
ERPA8C ERPAVR8C LPFEA8C
Installation/Care/Use Manual
SwirlFlo®Refrigerated Fountains with FLEXI-GUARD®
To assure you install this model easily and correctly, PLEASE READ
THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLA-
TION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH
PLUMBING, ELECTRICAL AND OTHER APPLICABLE CODES. After
installation, leave these instructions inside the fountain for future reference.
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
FIG. 2
FIG. 1
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES
IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE
BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN ELEC-
TROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE WATER.
THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS
PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN
FROM THE BUILDING PLUMBING SYSTEM.
IMPORTANT! INSTALLER PLEASE NOTE.
Installer
NOTE: WATER FLOW
DIRECTION
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
1/4" O.D. TUBE
WATER INLET
TO COOLER
3/8" O.D. UNPLATED
COPPER TUBE CONNECT
COLD WATER SUPPLY
NOTE: WHEN INSTALLING
REPLACEMENT BUBBLER
AND PEDESTAL, TIGHTEN
NUT (ITEM 5 OR 51) ONLY
TO HOLD PARTS SNUG
IN POSITION. DO
NOT OVER
TIGHTEN.
FIG. 3
2
3
4
5
1
FIG. 4
SEE FIG. 4 OR 5
35
36, 38, 39
37
37
40
SEE FIG. 11
41
42
43
44
45
BASIN
FIG. 5
49
50
51

97674C (REV. B - 5/01)
ERPA8C ERPAVR8C LPFEA8C
FIG. 6
PAGE 2
LEGEND
A = 3/8" O.D. TUBE CONNECT (CHILLER WATER OUTLET)
B = 3/8" O.D. TUBE CONNECT (CHILLER WATER INLET) SHUT OFF VALVE BY OTHERS
C = 1-1/4" TRAP NOT FURNISHED
D = ELECTRICAL INLET
MODEL LPFEA8C

97674C (REV. B - 5/01)
ERPA8C ERPAVR8C LPFEA8C
PAGE 3
FIG. 7

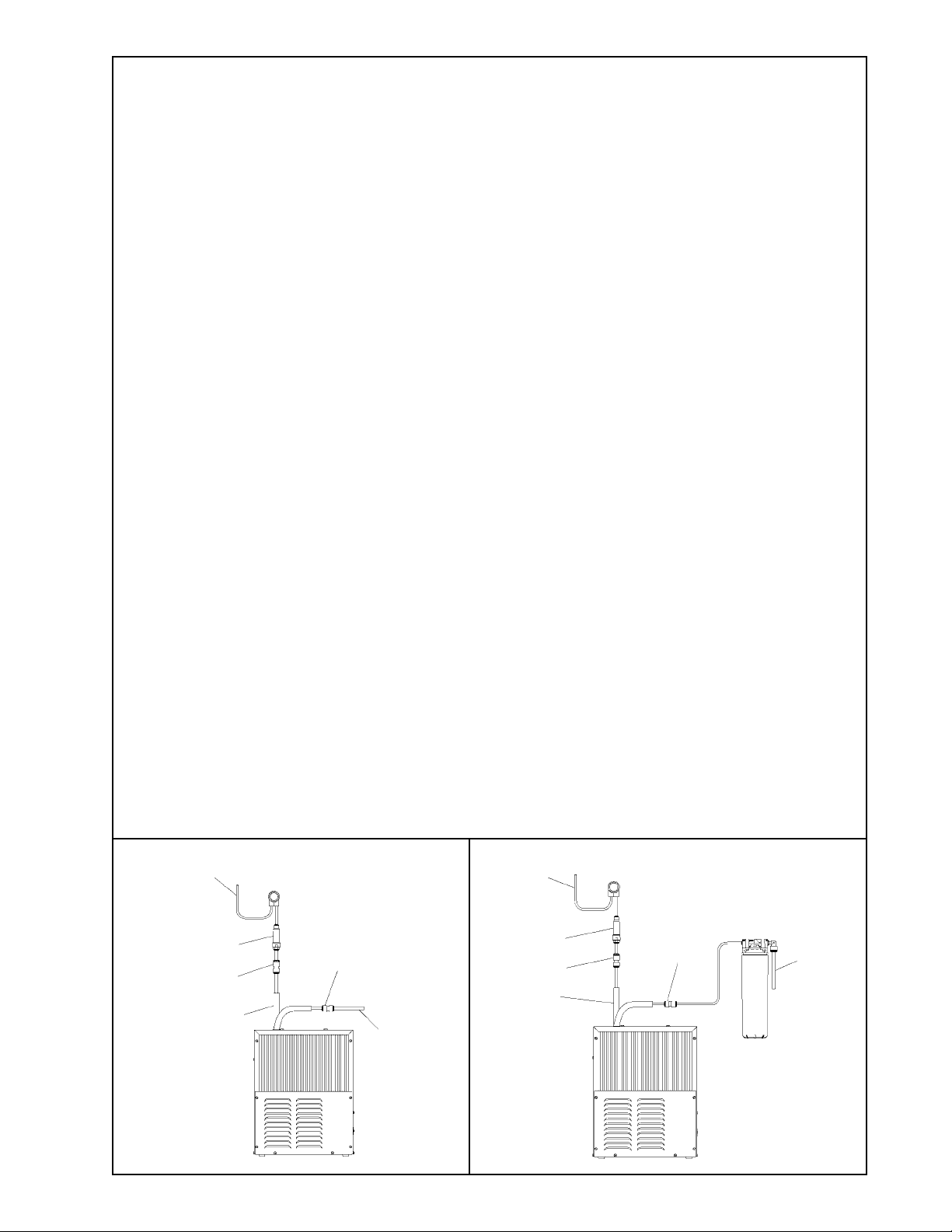

ERPA8C TUBE ROUTING
INSTALLATION INSTRUCTIONS
1. Install remote chiller. Remove front panel of chiller. Remove and discard cardboard inner pack from between compressor and
side panel. Slide chiller onto the shelf and position it to the left side of shelf. (See Figure 6)
NOTE: Building construction must allow for adequate air flow on both sides, top, and back of chiller. See chiller instructions for
additional instructions.
2. Make water supply connections. Install a shut-off valve and union connection to building water supply (valve and union not
provided). Turn on the water supply and flush the line thoroughly.
3. ERPA MODELS: Make connection between remote chiller and building supply line. Inlet port is marked on the chiller (1/4" O.D.
copper tube). Bend the copper tube (provided) at an appropriate length from chiller to opening in frame. Install a 1/4" x 3/8" union
(provided) on the marked chiller inlet port. Connect building supply line to union. (See Figure 7)
LPFEA MODEL: Mount filter head assembly to side of chiller (See Figure 9). Make connection between filter and building supply
line (3/8" O.D. tube not provided). Inlet port is marked on the chiller (1/4" O.D. copper tube). Install a 1/4" x 1/4" union (provided).
Bend the copper tube (provided) at an appropriate length from the filter and connect to the union on the chiller. (See Figure 8).
4. Hang the upper panel on the mounting frame hanger. Align holes in the panel with the holes in the mounting frame. Be sure that
panel is engaged with hanger at top of frame before releasing it.
5. Install the fountain. Remove access cover plate on underside of fountains and save the screws. Mount the fountain to the
upper panel and the wall frame with (4) 5/16" x 1 3/4" (44mm) long bolts and nuts (provided). Install spacers on bottom two
bolts. Tighten securely.
6. Attach waste tube (1 1/4" OD) to 1 1/4" OD slip trap (provided by others).
7. ERPA MODELS: Make connections between remote chiller outlet tube and fountain strainer. Outlet port is marked on the chiller
(3/8" O.D. copper tube). Install a 3/8" x 3/8" union (provided) on the marked chiller outlet port. Insert the 3/8" unplated copper
water line (provided) into the union and the inlet side of the strainer by pushing it in until it reachs a positive stop, approximately
3/4" (19mm). Connect 1/4" copper tubing coming from fountain to the strainer. Turn on water supply and check for leaks. DO NOT
SOLDER TUBES INSERTED INTO THE STRAINER AS DAMAGE TO THE O-RINGS MAY RESULT. (See Figure 7).
LPFEA MODEL: Make connections between remote chiller outlet tube and fountain strainer. Outlet port is marked on the chiller
(3/8" O.D. copper tube). Install a 3/8" x 3/8" union (provided) on the marked chiller outlet port. Insert the 3/8" unplated copper
water line (provided) into the union and the inlet side of the strainer by pushing it in until it reaches a positive stop, approximately
3/4" (19mm). Connect 1/4" copper tubing coming from fountain to the strainer. Turn on water supply and check for leaks. DO NOT
SOLDER TUBES INSERTED INTO THE STRAINER AS DAMAGE TO THE O-RINGS MAY RESULT. (See Figure 8).
8. These products are designed to operate on 20-105 PSIG supply line pressure. If inlet pressure is above 105 PSIG, a pressure
regulator must be installed in the supply line. Any damage caused by reason of connecting these products to supply line
pressures lower than 20 PSIG or higher than 105 PSIG is not covered by warranty.
9. Make electrical connections to the chiller. See chiller instructions.
10. Check stream height from bubbler. Stream height is factory set at 35 PSI. If supply pressure varies greatly from this, turn
adjustment screw on regulator (Item 12). Clockwise adjustment will raise stream height and counter-clockwise
will lower stream height. For best adjustment stream should hit basin approximately 6 1/2" from the bubbler.
11. Mount lower panel. Loosen the (2) #10-24 x 5/8" (16mm) screws at frame bottom lip. Slide upper tongue of lower panel under
lower edge of already installed upper panel. Tighten previously loosened screws securely.
12. Replace bottom access panel to fountain basin using screws provided. Tighten securely.
TROUBLE SHOOTING AND MAINTENANCE
1. Orifice Assy: Mineral deposits on orifice can cause water flow to spurt or not regulate. Mineral deposits may be removed
from orifice with a small round file not over 1/8" diameter or a small diameter wire. CAUTION: Do not file or cut orifice materials.
2. Stream Regulator: If orifice is free of material deposits, regulate flow according to instruction 10 stated above.
3. Actuation of Quick Connect Water Fittings: Cooler is provided with lead-free connectors which utilize an o-ring water
seal. To remove tubing from the fitting, relieve water pressure, push in on the gray collar while pulling on the tubing (See Fig. 2)
To insert tubing, push tube straight into the fitting until it reaches a positive stop, approximately 3/4".
4. Caution: Cleaning of Bronzetone Models requires special care. Outer surfaces must be cleaned with a mild detergent or
mixture of vinegar and water only, rinsed and wiped dry. Abrasive and acidic cleaners may eventually damage the
Bronzetone finish.
CHILLER
INLET
CHILLER
OUTLET
32
46
33
TO BUBBLER TO BUBBLER
WATER
INLET
CHILLER
OUTLET
32 34
LPFEA8C TUBE ROUTING
FIG. 8
46

97674C (REV. B - 5/01)
ERPA8C ERPAVR8C LPFEA8C
PAGE 4
PARTNO.ITEM NO.
PARTS LIST
Bubbler Assy
Bubbler Assy (Bronzetone)
Orifice Assy
Orifice Assy (Bronzetone)
Housing Assembly
Pedestal
Pedestal (Bronzetone)
Bubbler Locknut
Push Bar Mounting Bracket
Push Bar Assy
Push Bar Assy (Bronzetone)
Regulator Activator Arm
Screw - #8-32 X .25 THMS
Holder-Regulator
Hex Nut
Regulator
Retaining Nut
Clip
Bushing - Nylon
Rod - Pivot
Rod - Pivot
Rod - Push
Clip - Push Rod
Screw - #10 X .50 HHSM
Pivot Rod Bracket
Retainer
Screw - #10-24 X .37 PHTC
Filter Mounting Bracket
Filter Head Assy
Filter Assy
Regulator Mounting Bracket
Screw - #8-18 x .75" PH
Elbow - 3/8" (10mm)
Fitting - Superseal 1/4" (6mm)
Fitting - Superseal 3/8" (10mm)
Union - 3/8 X 3/8
Union - 3/8 X 1/4
Union - 1/4 X 1/4
Lower Panel
Lower Panel (Bronzetone)
Fountain Body & Shell
Fountain Body & Shell (Bronzetone)
Screw - #10-24 X .62 HHMS
Cover Plate
Cover Plate (Bronzetone)
Speed Nut
Back Panel
Back Panel (Bronzetone)
Basin - Swirlflow
Basin - Swirlflow (Bronzetone)
Strainer & Ferrule Assy
Strainer & Ferrule Assy (Bronzetone)
Gasket - Tailpipe
Gasket - Tailpipe
Waste Arm
Strainer
Tube - Water In
Poly Tubing 48" (Cut To Length)
Bubbler-(VR Model Only)
Gasket-(VR Model Only)
Bubbler-Nipple-(VR Model Only)
Bolt - 5/16-18 x 1.75 Lg.
Nut - Hex 5/16-18
Spacer
51349C
56044C
40322C
45383C
50934C
50168C
56042C
75580C
21804C
21810C
21833C
21806C
70426C
50986C
40045C
61313C
15005C
75555C
50198C
70410C
70425C
70378C
21705C
70002C
21844C
40206000
112627543890
22490C
51294C
51299C
21803C
70792C
70818C
70822C
70823C
70870C
70745C
70683C
26833C
28258C
21823C
21832C
111008343890
21846C
21836C
70055C
28183C
28184C
55001026
21827C
45336C
45337C
50074C
50377C
45330C
55996C
62086C
56092C
45392C
100322740560
15009C
70199C
70020C
74080053
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
NS
NS
NS
DESCRIPTION
FIG. 9
25
24
28
29
31
26
30
FIG. 10
14
15
6
16
9
7
15
19
18 22
20
10
21
20
17
15
23
15
27
15
11 12 13 15
8
22
FIG. 11
47
48
