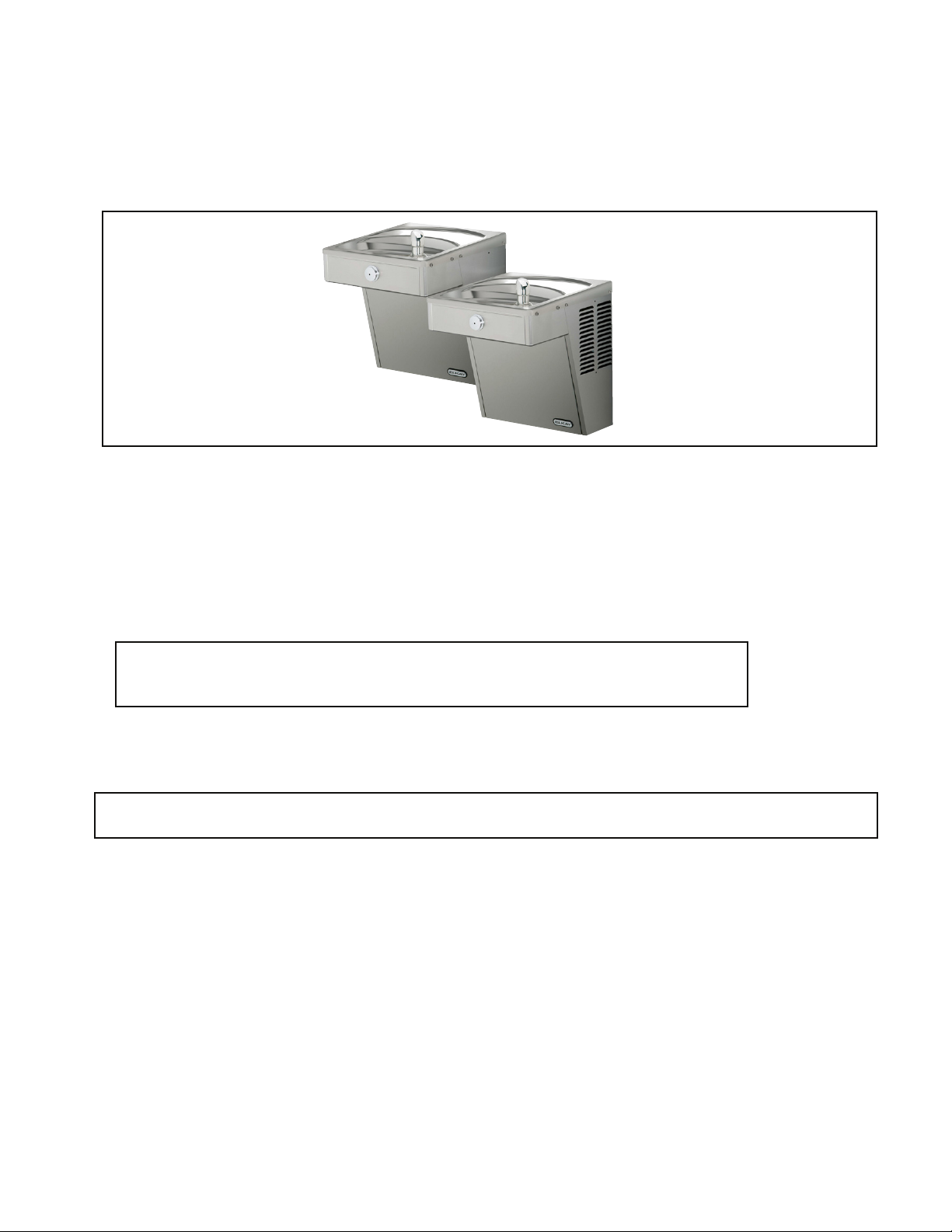

Elkay VRCTL8 2C Series Installation manual

Page 1 1000002483 (Rev. B - 11/15)
VRCTL8_2C
Description
Combination Refrigerated Drinking Fountain (Cooler) delivers chilled, clean potable drinking water. Two Level Water Cooler houses the refrigeration
and delivers a steady stream of water for direct drinking with push button activated water supply.
Ratings
• Electrical: 230Vac, 50Hz, (See Nameplate for Amperage), 1 phase.
• Ambient Air Temperature: 50-100.4 °F (10-38 °C).
• Water Pressure: 20-100 psig (0.14-0.69 MPa).
• Maximum Water Temperature: 90 °F (32 °C).
• Refrigerant: HFC-R134a
• Ingress Protection: IP21
• For Indoor Commercial Use only.
• Water Inlet: 3/8”O.D. unplated copper tube.
• Waste Water Outlet: 1-1/2” (38.1mm) O.D. tube
DANGER – Indicates death or serious injury will result if proper precautions are not taken.
WARNING – Indicates death, serious injury or property damage can result if proper precautions are not taken.
CAUTION – Indicates some injury or property damage may result if proper precautions are not taken.
Denitions
Authorized Service Personnel – Factory trained personnel or personnel having working knowledge of electrical, plumbing and
machine (appliance) maintenance procedures.
Safety
DANGER
• Please read these instructions completely before starting the installation or performing any service. Failure to follow the instructions and
safety precautions in this manual can result in serious injury or death.
• After installation, keep these instructions in a safe location for future reference.
• Electric supply must be identical in voltage, cycle, and phase to that specied on nameplate.
• Electrical supply must have Ground Fault Circuit Interrupter (GFCI) protection.
• A means for disconnecting electrical supply to the unit must be incorporated in the xed wiring in accordance with wiring rules. This is
to allow electrical disconnection of the unit from electrical supply after installation.
WARNING
• For use with clean, clear potable drinking water only. Do not use with water that is microbiologically unsafe or of unknown quality
without adequate disinfection before the system.
• Installation and connection to water and electrical mains must be in compliance with local and national laws.
• All Installation and Service work must be performed by an authorized service personnel.
CAUTION
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental
capabilities or lack of experience and knowledge if they have been given supervision or instructions concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
• To prevent a metallic taste or increased metal content in the water due to an electrolysis process caused by electrical feedback from
the grounding of electrical equipment to water supply and water waste mains, connect to these mains using non-conductive
materials. The provided in-line strainer meets this requirement.
Installation / Care / Use Manual
Original Instructions
Model: VRCTL8S2JOC

Page 2
VRCTL8_2C
1000002483 (Rev. B - 11/15)
Installation
For correct and safe installation, please read these instructions completely.
• All Installation work must be performed by an authorized service personnel.
• Disconnect electrical supply serving the Installation area to reduce risk of electrocution.
• Unit not suitable for installations where water jets could be used.
DANGER
WARNING
• Shut off water supply serving the Installation area to reduce risk of water damage.
• Ensure proper ventilation by maintaining clearance from cabinet louvers to wall on each side of Cooler as specied in Rough-In.
• Never wire compressor directly to electrical supply.
• Thoroughly ush all water lines and ttings of all foreign matter before connecting to Cooler.
• Warranty is void if Installation is not made in accordance with current Manufacturing instructions.
CAUTION
• Hose-sets are not to be used for connecting to water mains.
• If inlet pressure is above 100 psig (0.69 MPa), a pressure regulator must be installed in water supply line. Any damage caused by
reason of connecting this product to water supply line pressure outside it’s rated pressure, is not covered by warranty.
• Tools/Items required but not provided.
o Water Shut-off Valve with 3/8” (9.5mm) compression outlet.
o Waste Trap (non-metallic)
o Safety Glasses
o Protective Gloves
o Fasteners for wall type
Installation: Cooler Mounting
1. Remove Hanger Bracket fastened to back of cooler by removing one (1) screw.
2. Mount Hanger Bracket as shown in Figure 1.
• NOTE: Hanger Bracket MUST be supported securely. Add xture support carrier if wall will not provide adequate support. Anchor hanger securely
to wall using all ve (5) 5/16” (8mm) diameter mounting holes.
• IMPORTANT: 4-3/4” (121mm) dimension from wall to center line of trap must be maintained for proper t.
3. Hang Cooler on the Hanger Bracket. Be certain the Hanger Bracket is engaged properly in the slots on the cooler back as shown in Figure 1.
4. Loosen two (2) screws holding the lower front panel at the bottom of the cooler base and two (2) screws at the top using the T-25 Torx bit
(Provided). Remove front panel and set aside.
5. Fasten cooler to wall using three (3) 7/16 (11.1mm) Dia. holes. See Figure 1, Item F.
Installation: Water Line connection
1. Ensure Mains Water Supply has Water Shut-off Valve with 3/8” (9.5mm) compression outlet.
2. Connect loose end of supplied 3/8” (9.5mm) unplated copper tube to Water Shut-off Valve. Other end of tube should be connected to inlet of in-
line strainer (Item 47). If not connected, simply insert into inlet tting of strainer until positive stop - approximately 3/4” (19mm).
• NOTE: If 3/8” (9.5mm) copper tube must be cut for proper t, remove all burrs from the outside of tube and re-ush before use.
3. Install waste trap. Remove the slip nut and gasket from the waste trap and install them on the cooler waste line making sure that the end of the
waste line ts into the waste trap. Assemble the slip nut and gasket to the waste trap and tighten securely.
4. It is recommended that the waste trap be insulated to avoid excessive condensation due to chilled water running through the waste trap.
5. Turn on building water supply and open Water Shut-off Valve. Check all connections for leaks and correct any found.
Installation: Electrical connection
1. Rotate fan to insure proper clearance and free fan action.
2. Connect modular (C-13) end of International Power Cord Set (sold
separately) into Power Inlet on Cooler and ensure plug-end reaches
electrical outlet. Do not plug into electrical outlet!
230V Wiring Diagram
POWER INLET

Page 3 1000002483 (Rev. B - 11/15)
VRCTL8_2C
Rough-In: VRCTL8
Figure 1
Service
For proper and safe servicing, please read these instructions completely.
DANGER
• All Service and Maintenance must be performed by an authorized service personnel.
• Disconnect electrical supply to the unit before any service work to reduce risk of electrocution.
• Shut off water supply serving the unit before any service work to reduce risk of water damage.
CAUTION
• Tools/Items required but not provided, for Servicing:
o Safety Glasses
o Protective gloves
o Flathead Screwdriver
Service: Adjustments
1. Temperature Control: Factory set for 50ºF ± 5º (10ºC ± 2.8º) water under normal conditions. To adjust water temperature, turn screw on Item
No. 8 clockwise for colder, counter clockwise for warmer.
2. Water Stream Height: Stream height is factory set at 35 psig (0.24 MPa). If supply pressure varies greatly from this, adjust screw using th
access hole in the pushbutton by inserting a athead screwdriver. Clockwise adjustment will raise stream and Counterclockwise adjustment
will lower stream. For best adjustment, stream should hit basin approximately 6-1/2” (165mm) from bubbler on the downward slope of the basin.
3. Water coming out of Bubbler continuously: When this occurs at the end of the compressor cycle, turn the cold control warmer (counterclockwise)
¼ turn.
Operation: Start-Up
1. Turn on the building water supply and check all connections for leaks.
2. Purge air from all water lines by activating both pushbuttons with your hand.
3. Recheck all water and drain connections with water owing through system.
4. Rotate fan to ensure proper clearance and free fan action.
5. Connect plug-end of International Power Cord Set (sold separately) into electrical outlet.
6. After verifying that the water cooler is properly connected and operational, replace and reattach the cooler front panel by tightening (4) screws.
F
D
F
E
E
2 7/16"
63mm
10"
254mm
5"
127mm
1 1/2"
38mm
A
37 1/2"
952mm
6 1/2"
166mm
ORIFICE
HEIGHT
ALTURA DEL
ORIFICIO
HAUTEUR DE
L'ORIFICE
ORIFICE
HEIGHT
ALTURA DEL
ORIFICIO
HAUTEUR DE
L'ORIFICE
C
L
C
L
1 3/8"
35mm 1 3/8"
35mm
5 3/4"
146mm 5 3/4" 146mm
1 3/8"
35mm 1 3/8" 35mm
5 3/4"
146mm 5 3/4"
146mm
18 1/16"
459mm
FINISHED FLOOR
PISO ACABADO
PLANCHER FINI
5/16" (8mm) DIA. (10 HOLES)
8mm (10 AGUJEROUS)
8mm (10 TROUS)
20 1/8"
511mm
4 1/2"
114mm
6 1/4"
159mm
18 3/4"
476mm
25 1/8"
638mm
B
3 1/2"
89mm
C
RIM HEIGHT
ALTURA DEL
ORIFICIO
HAUTEUR DE
L 'ORIFICE
18 5/8"
474mm
12 5/16"
312mm
4 3/4"
121mm
27"
686mm
31 7/8"
810mm
32 15/16"
837mm
39 1/2"
1003mm
2 5/8"
67mm
8"
203mm
13 7/8"
351mm
20 3/8"
518mm
HANGER BRACKET
FIJADOR DE SUSPENSION
SUPPORT DE SUSPENSION
*6 3/4"
173mm
* REDUCE HEIGHT BY 3” FOR INSTALLATION OF CHILDRENS ADA COOLER * ADA REQUIREMENT
LEGEND:
A = Water Mains Supply, 3/8” (9.5mm) O.D. compression outlet of Shut-off Valve (not provided) to be 1-1/2” (38mm) from Wall.
B = Waste Outlet, 1-1/4” (31.8mm) O.D. Drain Tube
C = 1-1/4” (31.8mm) Trap (not provided).
D = Electrical Mains Supply Duplex Outled, 3-wire in Recessed Box. Must have Ground Fault Circuit Interrupter (GFCI) protection.
E = Ensure proper ventilation by maintaining 6” (152mm) minimum clearance from cabinet louvers to wall.
F = 7/16” (11mm) Bolt holes for fastening unit to wall.

Page 4
VRCTL8_2C
1000002483 (Rev. B - 11/15)
7. Actuation of Quick Connect Water Fittings: Cooler is provided with lead-free
connectors which utilize o-ring water seal. To remove tubing from the tting,
relieve water pressure, push in on the gray collar before pulling on the tubing.
To insert tubing, push tube straight into tting until it reaches a positive stop,
approximately 3/4” (19mm). See Figure 2.
Service: Inspection/Replacement
• Inspect Cooler twice each year for proper operation and performance.
• Inspection of the unit will require disconnecting electrical supply, removal of panels, etc. and reassembly and return to service practices.
1. Lower Front Panel and Front Dispenser Panel: To access the refrigeration system and plumbing connections, loosen two (2) screws holding the
lower front panel at the bottom of cooler base and two (2) screws at the top using the provided T-25 Torx bit. To gain access to the regulator,
bubbler, and push button assembly remove (2) screws on the underside of the front dispenser panel (Item 34) using the provided T-20 Torx Bit.
Tilt the bottom of the panel toward you, and slide the panel down to remove it.
2. Bubbler: To remove the bubbler, rst disconnect the electrical and water supply. The underside of the bubbler can be reached through the front
dispenser panel (Item 34). Follow the above instructions to remove the Front Dispenser Panel. To remove the bubbler, loosen bubbler nipple from
the underside of the bubbler (Item 4) and remove the tubing from the quick connect tting. See Figure 2. When installing replacement bubbler,
tighten nipple only to hold parts snug in position. Do Not Overtighten. After servicing, replace the Front Dispenser panel and two (2) screws.
3. Cleaning Strainer: To clean the strainer (Item 47), rst shut off water supply and remove strainer from waterline. Remove plug and screen. Clean
screen and rinse thoroughly with water. Insert screen back into strainer and reassemble. Lubricate O-Ring with food grade pharmaceutical mineral
oil. Do not overtighten plug or ttings. See gure 3.
B CA
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
OPERATION OF QUICK CONNECT FITTINGS
SIMPLY PUSH IN
TUBE TO ATTACH
TUBE IS SECURED
IN POSITION
PUSH IN COLLET
TO RELEASE TUBE
PUSHING TUBE IN BEFORE
PULLING IT OUT HELPS TO
RELEASE TUBE
A B C
Service: Inspection/Cleaning
• Inspect Cooler twice each year for proper operation and performance.
• Inspection of the unit will require disconnecting electrical supply, removal of panels, etc. and reassembly and return to service practices.
1. Cleaning: Warm, soapy water or mild household cleaning products can be used to clean the exterior panels. Extra caution should be used to
clean the mirror nished stainless steel panels. They can be easily scratched and should only be cleaned with mild soap and water or Windex
glass cleaner and a clean, soft cloth. Use of harsh chemicals or petroleum based or abrasive cleaners will void the warranty.
2. Bubbler: Mineral deposits on the orice can cause water ow to spurt or not regulate. Mineral deposits may be removed from the orice with a
small round le not over 1/8” (3 mm) diameter or small diameter wire.
• CAUTION : DO NOT le or cut orice material. Care must be taken not to damage the orice(s)
3. Condenser Fan Motor: Conrm condenser fan turns freely. If the condenser fan does not spin freely, have an authorized service personnel replace.
4. Ventilation: Cabinet louvers and condenser ns should be periodically cleaned with a brush, air hose or vacuum cleaner. Cleaning should be
done twice each year or more frequently if needed due to environment. Excess dirt or poor ventilation can cause no cold water and compressor
cycling on the compressor overload protector.
5. Water Flow: Conrm proper water ow. If water ow is slow, inspect lter or inline strainer for restriction. Replace lter cartridge if required.
Disassemble inline strainer and clean if required.
6. Lubrication: Motors are lifetime lubricated.
ACBD
A = Plug with 7/8" (22.2mm) Hex
B = O-ring
C = Screen
D = Strainer Body with 1" (25.4mm) Hex Figure 3
Figure 2
VANDAL RESISTANT BUBBLER DETAIL
Basin
Estanque
Bassin
220V Power Inlet Detail
63
64
15
4
1
Figure 4
Figure 5

Page 5 1000002483 (Rev. B - 11/15)
VRCTL8_2C
Figure 6
30
1
49 (8)
23
15
25
4
40 (TL)
41 (TLR)
59 31
24
36
50
49
33
34
28
52
48
44
14, 17, 18
26
51
32
56
27
50
50
29
(Items 31 & 24 also
used on the LH unit)
1
50
49
51
13 9
62 61
54

Page 6
VRCTL8_2C
1000002483 (Rev. B - 11/15)
20
54
42, 43
60
46
1, 4
16
6, 7, 22, 45
See Fig. 4
See Fig. 6
25
25
34
21
19
11
36
35
49
49 12
21
53
40 (TL)
41 (TLR)
49 35 8
38 (TL)
39 (TLR)
57
37
21
59, 61, 62
46
16
16 9, 13,
23,30
2, 3, 5
1, 4
55
9, 13, 23, 30
54
34
47
58
Figure 7

Page 7 1000002483 (Rev. B - 11/15)
VRCTL8_2C
Replacement Parts: 230V Parts List *Includes Relay & Overload. If under Warranty, replace with same Compressor used
in original assembly.
NOTE: All correspondence pertaining to any of the above water cooler or orders for
repair parts MUST include Model number and Serial number of cooler, name and part
number of replacement part.
NOTE: “NS” indicates item is not shown on manual.
ITEM
NO. PART NO. DESCRIPTION
1
2
3
4
5
6
7
8
9
10
11*
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
NS
NS
NS
56305C
100806740570
101474551730
15009C
19037000
30664C
31431C
35839C
110868642550
35870C
1000002147
98751C
160270508640
50986C
45866C
56092C
15005C
61313C
66703C
66810C
70002C
70009C
600985451640
28617C
28963C
22897C
45662C
45737C
75672C
100147140560
28596C
See Color Table
See Color Table
See Color Table
See Color Table
See Color Table
See Color Table
See Color Table
See Color Table
See Color Table
See Color Table
66743C
56237C
40045C
70018C
75524C
55996C
45736C
75570C
75661C
70864C
56033C
66576C
45929C
27124C
55931C
45876C
75583C
56121C
70682C
75588C
75589C
35826C
35827C
75520C
75523C
28551C
Gasket - Bubbler
Grommet - Compressor Mtg.
Stud - Compressor Mtg.
Nipple - Bubbler
Clip - Compressor Mtg.
Fan Blade
Fan Motor
Cold Control
Screw - #10-24 x .75 Socket Hd.
Power Cord
Compressor Serv. Pak (50Hz)
Kit - Relay/OverLoad/Cover (50Hz)
Strainer - Bright
Holder - Regulator
Bubbler Assy.
Tubing - Poly (Cut To length)
Retaining Nut
Regulator
Drier
Evaporator Assembly
Screw - #10 x 1/2” Lg. HHSM
Screw - Fan Motor
Drain Plug 1-1/2
Screen - VR
Basin - Stainless Steel
Panel - Bottom Dispenser
Button - Push
Sleeve - Push Button
Cap Screw
Gasket - Drain
Panel - Screen
Panel - RH Dispenser Side
Panel - LH Dispenser Side
Panel - Dispenser Front
Panel - Front Lower
Panel - RH Rear
Panel - LH Rear
Panel - RH Rear TL
Panel - RH Rear TLR
Panel - LH Rear TL
Panel - LH Rear TLR
Condenser
Shroud Fan
Hex Nut
Hex Nut - Fan Blade
Clip (Front & Rear Panels)
Strainer
Half Nut - Regulator
Screw - #10 x .50 Pinned Torx
Screw - #8 x .50 Pinned Torx
Screw - #8 x .62 Torx/Slot
Washer
Heat Exchanger
Tube - Drain
Cover - Cold Control
Cover - Dispenser Bottom
Drain Tube Assy.
Elbow
Elbow - Drain
Tee 1/4
Nut - 1-1/4” Slip Joint
Gasket
Power Inlet
Wire Assembly
Torx Tool - T25
Torx Tool - T20
Hanger Bracket
Stainless Steel
PANEL COLOR
COLOR TABLE
Item No. 40
Part No.
Item No. 32
Part No.
Item No. 33
Part No.
Item No. 34
Part No.
Item No. 35
Part No.
Item No. 36
Part No.
28525C28519C 28516C 28536C28522C 22955C
Refrig. Unit Item No. 41
Part No.
28562C
Stainless Steel
PANEL COLOR
COLOR TABLE
Item No. 38
Part No.
Item No. 32
Part No.
Item No. 33
Part No.
Item No. 34
Part No.
Item No. 35
Part No.
Item No. 37
Part No.
28539C28519C 28516C 28528C28522C 22955C
Left Unit
Item No. 39
Part No.
28559C
For Replacement Parts, contact your local distributor or call 1.800.834.4816
Elkay Manufacturing Co. 2222 Camden Court – Oak Brook, IL 60523 U.S.A – 630.574.8484
