Elkay Square Front LKFEA8C A Series Installation manual

97871C (REV. A - 10/02)
ERHPA8C*A LKFEA8C*A
PAGE 1
Installation/Care/Use Manual
Square Front®Refrigerated Fountains with FLEXI-GUARD®
To assure you install this model easily and correctly, PLEASE READ
THESE SIMPLE INSTRUCTIONS BEFORE STARTING THE INSTALLA-
TION. CHECK YOUR INSTALLATION FOR COMPLIANCE WITH
PLUMBING, ELECTRICAL AND OTHER APPLICABLE CODES. After
installation, leave these instructions inside the fountain for future reference.
IMPORTANT
ALL SERVICE TO BE PERFORMED BY AN AUTHORIZED SERVICE PERSON
FIG. 2
FIG. 1
THE GROUNDING OF ELECTRICAL EQUIPMENT SUCH AS TELEPHONE, COMPUTERS, ETC. TO WATER LINES
IS A COMMON PROCEDURE. THIS GROUNDING MAY BE IN THE BUILDING OR MAY OCCUR AWAY FROM THE
BUILDING. THIS GROUNDING CAN CAUSE ELECTRICAL FEEDBACK INTO A FOUNTAIN, CREATING AN ELEC-
TROLYSIS WHICH CAUSES A METALLIC TASTE OR AN INCREASE IN THE METAL CONTENT OF THE WATER.
THIS CONDITION IS AVOIDABLE BY USING THE PROPER MATERIALS AS INDICATED. ANY DRAIN FITTINGS
PROVIDED BY THE INSTALLER SHOULD BE MADE OF PLASTIC TO ELECTRICALLY ISOLATE THE FOUNTAIN
FROM THE BUILDING PLUMBING SYSTEM.
IMPORTANT! INSTALLER PLEASE NOTE.
Installer
NOTE: WATER FLOW
DIRECTION
BUILDING WATER
INLET
SERVICE STOP
(NOT FURNISHED)
1/4" O.D. TUBE
WATER INLET
TO COOLER
3/8" O.D. UNPLATED
COPPER TUBE CONNECT
COLD WATER SUPPLY
NOTE: WHEN INSTALLING
REPLACEMENT BUBBLER
AND PEDESTAL, TIGHTEN
NUT (ITEM 5 ) ONLY TO HOLD
PARTS SNUG IN POSITION.
DO NOT OVER TIGHTEN.
2
3
4
5
1
FIG. 3
SEE FIG. 3
SEE FIG. 9
34
35
30
35
33

PAGE 2
FIG. 4
LEGEND
A = 1/4" O.D. TUBE CONNECT (CHILLER WATER OUTLET)
B = 3/8" O.D. TUBE CONNECT (CHILLER WATER INLET) SHUT OFF VALVE BY OTHERS
C = 1-1/4" TRAP FURNISHED
D = ELECTRICAL INLET
MODEL LKFEA8C
ERHPA8C*A LKFEA8C*A
97871C (REV. A - 10/02)

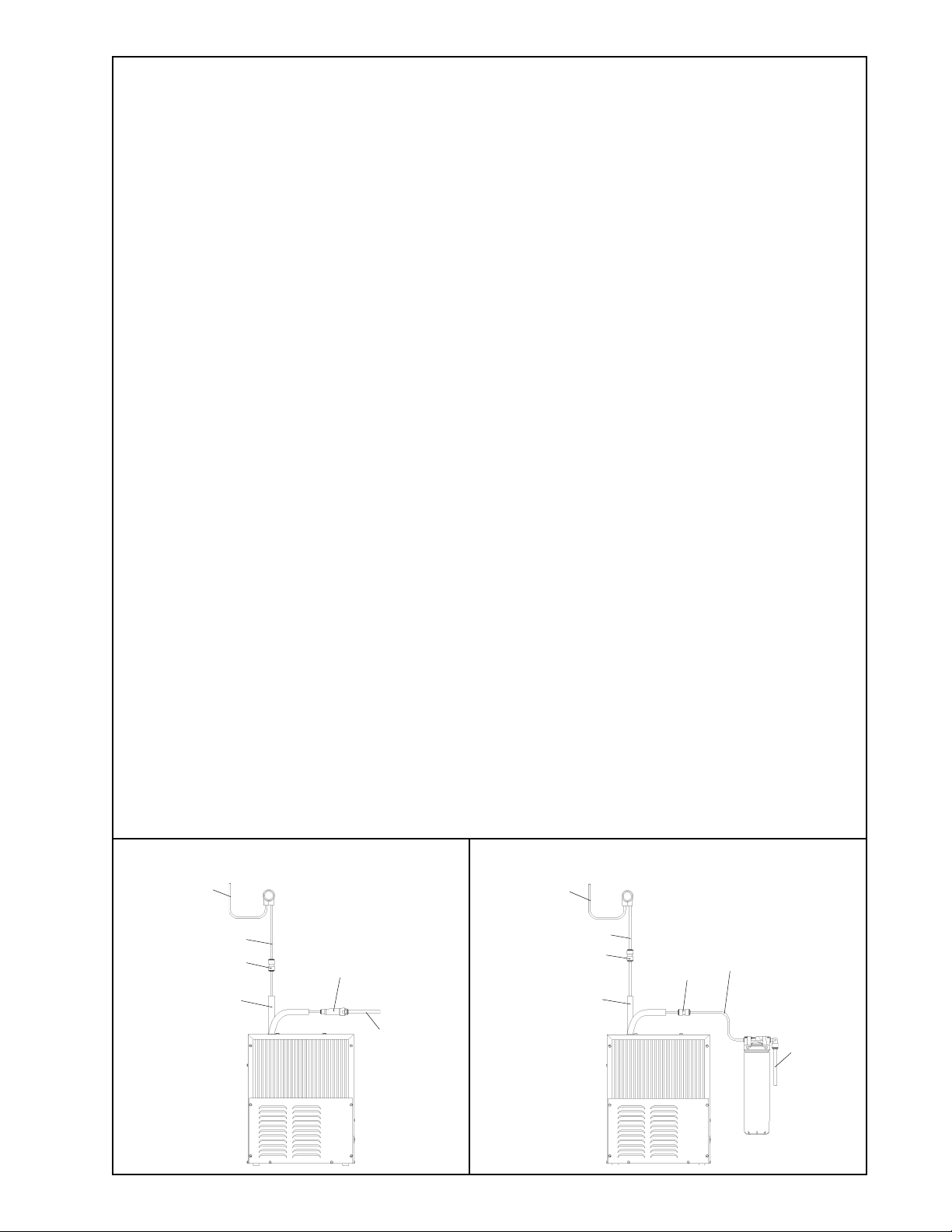

PAGE 3
FIG. 5
ERHPA8C TUBE ROUTING
INSTALLATION INSTRUCTIONS
1. Install remote chiller. Remove front panel of chiller. Remove and discard cardboard inner pack from between compressor and
side panel. Slide chiller onto the shelf and position it to the left side of shelf. (See Figure 4)
NOTE: Building construction must allow for adequate air flow on both sides, top, and back of chiller. See chiller instructions for
additional instructions.
2. Make water supply connections. Install a shut-off valve and union connection to building water supply (valve and union not
provided). Turn on the water supply and flush the line thoroughly.
3. ERHPA MODELS: Make connection between remote chiller and building supply line. Inlet port is marked on the chiller (1/4" O.D.
copper tube). Bend the copper tube (provided) at an appropriate length from chiller to opening in frame. Install the in-line strainer
(provided with chiller) by pushing it in until it reachs a positive stop, approximately 3/4" (19mm) on the marked chiller inlet port.
Connect building supply line to strainer. DO NOT SOLDER TUBES INSERTED INTO THE STRAINER AS DAMAGE TO THE
O-RINGS MAY RESULT. (See Figure 5).
LKFEA MODEL: Mount filter head assembly to side of chiller (See Figure 7). Make connection between filter and building supply
line (3/8" O.D. tube not provided). Inlet port is marked on the chiller (1/4" O.D. copper tube). Install a 1/4" x 1/4" union (provided).
Bend the copper tube (provided) at an appropriate length from the filter and connect to the union on the chiller. DO NOT
SOLDER TUBES INSERTED INTO THE UNION AS DAMAGE TO THE O-RINGS MAY RESULT. (See Figure 6).
4. Hang the upper panel on the mounting frame hanger. Align holes in the panel with the holes in the mounting frame. Be sure that
panel is engaged with hanger at top of frame before releasing it.
5. Install the fountain. Mount the fountain to the upper panel and the wall frame with (4) 1/4" x 3/4" (19mm) long bolts and nuts
(provided). Tighten securely.
6. Remove elbow from end of p-trap and attach it to drain tube. Re-attach elbow to p-trap and cut waste tube to required length
using plumbing hardware and trap as a guide.
7. ERHPA MODELS: Make connections between remote chiller outlet tube and fountain. Outlet port is marked on the chiller
(1/4" O.D. copper tube). Install a 1/4" x 1/4" union (provided) on the marked chiller outlet port. Insert the 1/4" poly tubing coming
from the fountain into the union. Turn on water supply and check for leaks. DO NOT SOLDER TUBES INSERTED INTO THE
UNION AS DAMAGE TO THE O-RINGS MAY RESULT. (See Figure 5).
LKFEA MODEL: Make connections between remote chiller outlet tube and fountain. Outlet port is marked on the chiller
(1/4" O.D. copper tube). Install a 1/4" x 1/4" union (provided) on the marked chiller outlet port. Insert the 1/4" poly tubing coming
from the fountain into the union. Turn on water supply and check for leaks. DO NOT SOLDER TUBES INSERTED INTO THE
UNION AS DAMAGE TO THE O-RINGS MAY RESULT. (See Figure 6).
8. These products are designed to operate on 20-105 PSIG supply line pressure. If inlet pressure is above 105 PSIG, a pressure
regulator must be installed in the supply line. Any damage caused by reason of connecting these products to supply line
pressures lower than 20 PSIG or higher than 105 PSIG is not covered by warranty.
9. Make electrical connections to the chiller. See chiller instructions.
10. Check stream height from bubbler. Stream height is factory set at 35 PSI. If supply pressure varies greatly from this, turn
adjustment screw on regulator (Item 12). Clockwise adjustment will raise stream height and counter-clockwise
will lower stream height. For best adjustment stream should hit basin approximately 6 1/2" from the bubbler.
11. Mount lower panel. Loosen the (2) #10-24 x 5/8" (16mm) screws at frame bottom lip. Slide upper tongue of lower panel under
lower edge of already installed upper panel. Tighten previously loosened screws securely.
12. Replace bottom access panel to fountain basin using screws provided. Tighten securely.
TROUBLE SHOOTING AND MAINTENANCE
1. Orifice Assy: Mineral deposits on orifice can cause water flow to spurt or not regulate. Mineral deposits may be removed
from orifice with a small round file not over 1/8" diameter or a small diameter wire. CAUTION: Do not file or cut orifice materials.
2. Stream Regulator: If orifice is free of material deposits, regulate flow according to instruction 10 stated above.
3. Actuation of Quick Connect Water Fittings: Cooler is provided with lead-free connectors which utilize an o-ring water
seal. To remove tubing from the fitting, relieve water pressure, push in on the gray collar while pulling on the tubing (See Fig. 2)
To insert tubing, push tube straight into the fitting until it reaches a positive stop, approximately 3/4".
CHILLER
INLET
CHILLER
OUTLET
32
31
36
31 - TO
BUBBLER
WATER
INLET
CHILLER
OUTLET
32
32
LKFEA8C TUBE ROUTING
FIG. 6
31
ERHPA8C*A LKFEA8C*A
31
31 - TO
BUBBLER
97871C (REV. A - 10/02)

ERHPA8C*A LKFEA8C*A
97871C (REV. A - 10/02) PAGE 4
PARTNO.ITEM NO.
PARTS LIST
Bubbler Assembly
Orifice Assembly
Housing Assembly
Pedestal
Bubbler Locknut
Bracket - Push Bar Mounting
Push Bar Assembly
Screw - #10-24 x .50 PHTC
Lever - Push
Holder-Regulator
Hex Nut
Regulator
Retaining Nut
Clip
Bushing - Nylon
Rod - Pivot
Rod - Pivot
Rod - Push
Clip - Push Rod
Screw - #10 X .50 HHSM
Retainer
Set Screw
Filter Mounting Bracket
Filter Head Assy
Filter Assy
Screw - #8-18 x .75" PH
Elbow - 3/8" (10mm)
Fitting - Superseal 1/4" (6mm)
Fitting - Superseal 3/8" (10mm)
Lower Panel
Poly Tubing (Cut To Length)
Union - 1/4 X 1/4
FTN Body Assembly
Upper Panel
Screw - #10-24 X .62 HHMS
Strainer
Screw - 1/4-20 X .75 PHMS
Nut- Hex 1/4-20
56073C
40322C
56011C
55997C
75580C
21696C
21708C
112627543890
21695C
50986C
40045C
61314C
15005C
75555C
50198C
70379C
70278C
70378C
21705C
70002C
40206000
70023C
22490C
51294C
51299C
70792C
70818C
70822C
70823C
26833C
56092C
70683C
55001083
28189C
111008343890
55996C
74070002
70018C
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
NS
NS
DESCRIPTION
FIG. 7
24
23
26
27
29
25
28
FIG. 8
FIG. 9
1
6
7
8
9
10
11
12 13
14
15
16
15
17
18
19
20
20
21
22
14
5
31 31
