Elo TouchSystems ET1587C User manual

Service Manual
Entuitive Touchmonitor
ET1587C/1787C/1987C/1788C/1988C/1545C/1745C/1945C/1985C
Chassis Family No.ET15,17,19
CONTENTS
1.REGULATORY INFORMATION..........................................................................1
2.INTRODUCTION...................................................................................................3
3.TOUCH TECHNOLOGY.......................................................................................3
4.TOUCHMONITOR SAFETY.................................................................................4
5.TECHNICAL SPECIFICATIONS..........................................................................4
6.INSTALLATION AND SETUP..............................................................................9
7.OPERATION..........................................................................................................13
8.ABOUT MONITOR ADJUSTMENTS ...................................................................16
9.MONITOR INSPECTION STANDARDS .............................................................27
10.CAUTION FOR SERVICING..............................................................................34
11.BLOCK DIAGRAM..............................................................................................35
12.TROUBLE SHOOTING CHART..........................................................................37
13.SERVICE COMPONENTS ..................................................................................52
14.ET15 PARTS LIST................................................................................................53
15.ET17 PARTS LIST................................................................................................71
16.ET19 PARTS LIST................................................................................................128
17.SPARE PARTS APPLICATION...........................................................................195
Elo TouchSystems Elo Document : ES500144 Rev. : G / Apr.20,2004

- 1-
REGULATORY INFORMATION
1.Electrical Safety Information
1.1 Compliance is required with respect to the voltage, frequency, and current
requirements indicated on the manufacturer’s label. Connection to a different
power source than those specified herein will likely result in improper operation or
damage to the equipment, or may pose a fire hazard if the limitations are exceeded.
1.2 There are no operator serviceable parts inside this equipment. This equipment
generates hazardous voltages that constitute a safety hazard. Service should be
provided only by a qualified service technician.
1.3 This equipment is provided with a detachable power cord that has an integral
safety ground wire and three-prong connector intended for connection to a
grounded safety outlet.
1.3.1 Do not substitute the cord with any cord other than the provided approved
type. Under no circumstances use an adapter plug to connect to a two-wire
outlet, as this will defeat the continuity of the grounding wire.
1.3.2 This equipment requires the use of the ground wire as a part of its safety
certification. Modification or misuse can provide a shock hazard that can
result in serious injury or death.
1.3.3 If there are any questions about the installation prior to connecting the
equipment to mains power, contact a qualified electrician or the manufacturer.
2.Emissions and Immunity Information
2.1 Notice to Users in the United States: This equipment has been tested and found to
comply with Part 15 Class B of FCC Rules for digital devices. These limits are
designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses , and can radiate radio frequency energy,
and if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
2.2 Notice to Users in Canada: This equipment has been tested and found to comply with
Class B radio noise emission limits as established by the Radio Interference Regulations
of Industries Canada for digital devices.
2.3 Notice to Users in the European Union: This equipment has been tested and found to
comply with the Class B requirements of CE marking for Information Technology
Equipment as require by :Low Voltage Directive 73/23/ECC and standard EN 60950 ;
EMC Directive 89/336/ECC, and per standard EN 55022.
2.4 General Information to All Users: This equipment generates, uses , and can radiate
radio frequency energy. If not installed nad used according to this manual, the
equipment may cause interference with radio and television communications. There is ,
however, no guarantee that interference will not occur in any particular installation due
to site-specific factors.
2.4.1 In order to meet emission and immunity requirements, the user must observe the
following:
2.4.1.1 Use only the provided I/O cables to connect this digital device with any

- 2-
computer.
2.4.1.2 To ensure compliance, use only the provided manufacturer-approved line
cord.
2.4.1.3 The user is cautioned that changes or modifications to the equipment not
expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
2.4.2 If this equipment appears to cause interference with radio or television reception,
or any other device:
2.4.2.1 Verify as an emission source by turning the equipment off and on.
2.4.2.2 If you determine that this equipment is causing the interference, try to
correct the interference by using one or more of the following measures:
•Move the digital device away from the affected receiver.
•Reposition (turn) the digital device with respect to the affected
receiver.
•Reorient the affected receiver’s antenna.
•Plug the digital device into a different AC outlet so the digital device
and the receiver are on different branch circuits.
•Disconnect and remove any I/O cables that the digital device does not
use. (Unterminated I/O cables are a potential source of high RF
emission levels.)
•Plug the digital device into only a grounded outlet receptacle. Do not
use AC adapter plugs. (Removing or cutting the line cord ground may
increase RF emission levels and may also present a lethal shock
hazard to the user.)
If you need additional help , consult your dealer, manufacturer, or an experienced radio
or television technician.
MPR II
DHHS

- 3-
1INTRODUCTION
Congratulations on your purchase of an Elo TouchSystems Entuitive touchmonitor. Your
new high-resolution touchmonitor combines the reliable performance of Elo’s touch
technology with the latest advances in CRT display design. This combination of features
creates a natural flow of information between a user and the touchmonitor.
1.Precautions
Follow all warnings, precautions and maintenance as recommended in this manual to
maximize the life of your unit. See page 4 B for more information on touchmonitor safety.
2. About the Product
Your CRT touchmonitor is a color display with the following features:
•13.8-inch viewable image 0.28mm dot pitch CDT for 15".
•15.7-inch viewable image 0.27mm dot pitch CDT for 17".
•18-inch viewable image 0.25mm dot pitch CDT for 19".
•Supports a wide range of screen refresh rates with flicker-free picture quality.
•Plug and Play functionality automatically adjusts the monitor to its optimum
performance.
•VESA DPMS (Display Power Management Signaling).
•Patented iTouchtechnology from Elo TouchSystems.
•RS-232 touch interface.
TOUCH TECHNOLOGY
1.Touchscreens: An Overview
Typically, users communicate with computers by using a mouse, a keyboard, or a
combination of the two. Users who are not keyboard-literate or mouse-savvy can become
frustrated with how long human-to-computer interactions take.
Computer literacy is learned. This is complicated by the fact that using a keyboard or a
mouse is neither intuitive nor natural for most people.
Touchscreens cut out the learning curve by eliminating keyboard/mouse intermediaries and
allowing a natural flow of information to develop between a user and a computer.
When a user wants to access information or perform a function on a computer with a
touchscreen installed, a touch quickly and accurately does the job that once required
complicated keyboard interactions or precise mouse movements.
A frustrating experience with a computer during a transaction can create dissatisfaction for
your customer. Touchscreens help eliminate unpleasant transactions by creating a natural
flow of information that enhances your product or service. Touchscreens speed up
user/computer interactions. People get what they want faster and are more satisfied with
the process.

- 4-
2.iTouch Touchscreens
Elo built on its IntelliTouch surface wave technology to create its iTouch "touch-on-tube"
solution. Elo eliminated the clear glass layer between the viewer and the display. iTouch
touchmonitors have been adopted by some of the largest manufacturers in the world in their
next generation games.
Elo CRT gaming monitors offer consistent features across all sizes:
•Touch directly on tube—no touchscreen overlay and no parallax.
•Preserves 100 percent of CRT brightness, clarity, antireflection and color properties.
•More durable and safer than even bonded touchscreen overlays.
•Same fast, accurate, stable performance as Elo’s IntelliTouch surface wave
touchscreen overlays.
•"Drift free" and not affected by surrounding metal or poor earths/grounding.
•Dual touches are not averaged, allowing extremely fast two-handed play.
•Z-axis for pressure can add a new dimension to games.
•No need for periodic recalibration.
TOUCHMONITOR SAFETY
DANGER
As this equipment is received it presents an electrical shock hazard that could result in
serious injury or death. Only qualified persons should work around this equipment when it
is energized. This equipment is intended to be used by a manufacturer only for building-in
to other equipment which will provide a proper electrical and fire safety enclosure.
This manual contains information that is important for the proper setup and maintenance of
your touchmonitor. Before setting up and powering on your new touchmonitor, read
through this manual, especially page 9, Installation and Setup, and page 13, Operation.
1.To reduce the risk of electric shock, follow all safety notices and never insert
conductive metal objects into the circuitry.
2.It is important that your touchmonitor remains dry. Do not pour liquid into or onto your
touchmonitor. If your touchmonitor becomes wet do not attempt to repair it yourself.
3.Your new monitor is equipped with a three-wire, grounding power connector, AMP
"Mate-N-Lock", part number 350767-1. Contacts inside the connector are female type,
AMP part number 350550-1.
Connector Information
Pin 1 Mains line hot monitor (brown)
Pin 2 Mains ground monitor (green)
Pin 3 Mains line neutral monitor (blue)
！

- 5-
Should you wish to construct your own custom power cable, Elo highly recommends
using AMP "Mate-N-Lock" part number 350766-1 and male type contacts, AMP part
number 350547-1.
After connecting the power cable to the monitor, but before applying power, ensure
that the power cable’s black or brown wire connects to the monitor’s brown wire; the
power cable’s green wire connects to the monitor’s green wire; and the power cable’s
white or blue wire connects to the monitor’s blue wire.
Note: The cable used must include a green (earth ground) wire, it must be 18AWG (or
larger), and it should be rated SVT 105C 600V (or better).
TECHNICAL SPECIFICATIONS
1.Touchmonitor Specifications
19"Monitor 17" Monitor 15" Monitor
Picture Tube 19”(18”diagonal viewable
image), 0.25-mm dot pitch. 17”(15.7”diagonal viewable image), 0.27-mm
dot pitch.
15”(13.8”diagonal
viewable image), 0.28-mm
dot pitch.
Maximum
Resolution 640x350/70Hz 720x400/70Hz
640x480/60, 72, 75, 85HZ
800x600/56,60,72,75,85HZ
1024x768/60, 70, 75, 85Hz
1280x1024/60Hz
Non-interlaced
640x350/70Hz
720x400/70Hz
640x480/60, 72, 75, 85HZ
800x600/56,60,72,75,85HZ
1024x768/60, 70, 75, 85Hz
1280x1024/60Hz
Non-interlaced
640x350/70Hz
720x400/70Hz
640x480/60, 72, 75, 85HZ
800x600/56,60,72,75,85HZ
1024x768/60Hz
Deflection
Frequency Horizontal: 30-70 kHz Vertical: 50-160 Hz Horizontal: 30-70 kHz Vertical: 50-160 Hz Horizontal: 30-55 kHz Vertical: 50-160 Hz
Maximum
Video
Input
Bandwidth
100 MHz 100 MHz 65 MHz
Display Area* H: 350 mm
V: 262 mm H:300 mm V: 225 mm H: 270 mm V: 202 mm
Input Signal R.G.B. Analog, 15 pin D-sub R.G.B. Analog, 15 pin D-sub R.G.B. Analog, 15 pin D-sub
Input Voltage 100-240 VAC, 50-60 Hz 100-240 VAC, 50-60 Hz 100-240 VAC, 50-60 Hz
Display
Colors* Analog input; unlimited colors Analog input; unlimited colors Analog input; unlimited colors
Typical Power
Consumption 75 watts 65 watts 60 watts
Power
Management Compliant with EPA/Energy Star, VESA DPMS signaling
method.
Compliant with EPA/Energy
Star, VESA DPMS signaling
method.
Compliant with EPA/Energy
Star, VESA DPMS signaling
method.
CRT Life Average operational CRT
life is 12,000 hours to half
brightness.
Average operational CRT
life is 12,000 hours to half
brightness.
Average operational CRT
life is 12,000 hours to half
brightness.

- 6-
On-Screen
Adjustments Brightness, Contrast, Exit, Zoom, V.Si ze, V. Po sition,
H. Size, H. Position,
Language, Save, Recall,
Starus, Degauss, Rotation,
Input Level, OSD, Color
Temperature, Trapezoid,
Parallel, Pin Balance, Top/
Bottom Corner, S/C Correct,
H/V Moire.
Brightness, Contrast, Exit,
Zoom, V.Si ze, V. Po sition,
H. Size, H. Position,
Language, Save, Recall,
Starus, Degauss, Rotation,
Input Level, OSD, Color
Temperature, Trapezoid,
Parallel, Pin Balance, Top/
Bottom Corner, S/C Correct,
H/V Moire.
Brightness, Contrast, Exit,
Zoom, V.Si ze, V. Po sition,
H. Size, H. Position,
Language, Save, Recall,
Starus, Degauss, Rotation,
Input Level, OSD, Color
Temperature, Trapezoid,
Parallel, Pin Balance, Top/
Bottom Corner, S/C Correct,
H/V Moire.
Safety
Regulations cRUus, DHHS, TÜV cRUus, DHHS, TÜV cRUus, DHHS, TÜV
EMC
IC ES-003
C-Tick
VCCI
FCC Class B, CE FCC Class B, CE FCC Class B, CE
Monitor
Dimensions 424w x 440d x 375h 397w x 405d x 343h 424w x 440d x 375h
Net Weight 17.8kg 14.7kg 11.7kg
Operating
Temperature 5-55°C 5-55°C 5-55°C
Humidity 10%-80% 10%-80% 10%-80%
2.iTouch Touchmonitor Specifications
Mechanical
Positional Accuracy
Standard deviation of error is less than 0.080 in. (2.03 mm). Equates to less than ±1%.
Touchpoint Density
More than 100,000 touchpoints/in2(15,500 touchpoints/cm2).
Touch Activation Force
Typically less than 3 ounces (85 grams).
Surface Durability
Surface durability is that of glass, Mohs’hardness rating of 7.
Expected Life
No known wear-out mechanism, as there are no layers, coatings, or moving parts.
Performance
iTouch technology has been operationally tested to more than 50 million touches in
one location without failure, using a stylus similar to a finger.
Sealing
Unit is sealed to protect against splashed liquids, dirt, and dust.
Optical
Light Transmission (per ASTM D1003)
100%
Visual Resolution
All measurements made using USAF 1951 Resolution Chart, under 30X agnification,
with test unit located approximately 1.5 in (38 mm) from surface of resolution chart.

- 7-
Clear surface: Excellent, with no noticeable degradation. Antiglare surface: 6:1
minimum.
Environmental
Chemical Resistance
The active area of the touchscreen is resistant to all chemicals that do not affect glass,
such as:
•Acetone
•Toluene
•Methyl ethyl ketone
•Isopropyl alcohol
•Methyl alcohol
•Ethyl acetate
•Ammonia-based glass cleaners
•Gasoline
•Kerosene
•Vinegar
Electrostatic Protection (per EN 61 000-4-2, 1995)
Meets Level 4 (15 kV air/8 kV contact discharges).
*Dependent on video controller/card used.
NOTE: All specifications are subject to change.
3. Signal PINOUT for 15",17" and 19" Monitors
PIN Number Signal
1. Red video 9. NC
2. Green video 10. Sync return
3. Blue video 11. Ground
4. Ground 12. SDA (Serial Data)
5. *VGA card detection (GND) 13. Horizontal Sync
6. Red return 14. Vertical Sync
7. Green return 15. SCL (Serial Clock)
8. Blue return
*Pin 5, self-test pin shall be grounded when signal connector is plugged in.
6
5 4 3 2 1
10 9 8 7
15 14 12
13 11

- 8-
4.Power Consumption
The touchmonitor comes with a power-saving feature that controls its power
consumption. This feature complies with both the EPA’s Energy Star
requirements. It also conforms to the Display Power Management System
(DPMS) power-down signaling method approved by the Video Electronics
Standard Association (VESA).
15" Monitor
Mode LED Power
consumption (W)
Normal Green 60
Standby Green/ blinking 15
Suspend Green/ blinking 15
Off Green/ blinking 5
Unplugged Not illuminated 0
17" Monitor
Mode LED Power
consumption (W)
Normal Green 65
Standby Green/ blinking 15
Suspend Green/ blinking 15
Off Green/ blinking 5
Unplugged Not illuminated 0
19" Monitor
Mode LED Power
consumption (W)
Normal Green 75
Standby Green/ blinking 15
Suspend Green/ blinking 15
Off Green/ blinking 5
Unplugged Not illuminated 0
NOTE: The only way to isolate the display unit completely from the mains supply is to unplug the
mains cable.

- 9-
INSTALLATION AND SETUP
This chapter discusses how to install your CRT touchmonitor and how to install Elo TouchSystems driver software.
1.Unpacking Your Touchmonitor
Check that the following 5 items are present and in good condition:
2.Connecting Your Touchmonitor
IMPORTANT: Before connecting the cables to your touchmonitor and PC, be sure that the computer
and touchmonitor are turned off.
Video cable
Connections on underside
Serial touchscreen
cable
Female 15-pin
video
connector
Female 9-pin serial
Touchscreen
connector
Power
CRT Touchmonitor
Serial cable VGA cable
CD Software
Quick Installation
CD
Software
Quick Installation Guide
Guide

- 10 -
3.Connect the Video Cable
Connect one end of the video cable to the video connector on your PC and the other
end of the cable to the video connector on your monitor. Secure the cable by turning
the thumbscrews on each connector.
4.Connect the Serial Touchscreen Cable
Connect the touchscreen cable. Connect one end to the appropriate port on
the back of your computer. Connect the other end of the cable to the
touchscreen connector on your touchmonitor. The touchscreen cable
connectors should fit snugly into the connectors on your touchmonitor and
computer. Secure the cable by turning the thumbscrews on each connector.
Video
cable Video port
Female 15-pin
video
connector
Connections on underside
Video
cable
Video
port
Female 9-pin
cable
connector
Connections on underside
Ferrite bead
Serial
cable
Serial
port

- 11 -
5.Connect the Power Cable
•Your monitor does not include a power cable. You may either purchase a country
specific power cable from Elo (www.elogaming.com), or construct your own custom
power cable (see page 4 for details). Connect the power cable to the AC connector on
your touchmonitor. To protect your equipment against risk of damage from electrical
surges in the power line, plug the touchmonitor’s power cord into a switched surge
protector, and then connect the surge protector to a grounded (three-pronged) AC
electrical outlet.
•Your touchmonitor has no power switch. Power on your monitor using the power switch
of the surge protector, and check that the power LED is on. If not, refer to page 32,
Troubleshooting.
•After a brief pause the picture should appear. If necessary, adjust the front panel controls
according to your personal preference (see page 13).
•Insert the Elo TouchTools CD-ROM in your computer’s CD-ROM drive to install the
appropriate touchscreen driver software. Follow the directions starting on the next page
to install the driver software.
6.Installing the Driver Software
Elo TouchSystems provides driver software that allows your touchmonitor to work
with your computer. Drivers are located on the enclosed CD-ROM for the following
operating systems:
•Windows XP
•Windows 2000
•Windows Me
•Windows 98
•Windows 95
•Windows NT 4.0
Additional drivers and driver information for other operating systems are available on the
Elo TouchSystems web site at www.elogaming.com.
Your Elo touchmonitor is plug-and-play compliant. Information on the video capabilities
Connections on underside
Power Cable
Power
cable

- 12 -
of your touchmonitor is sent to your video display adapter when
Windows starts. If Windows detects your touchmonitor, follow the instructions on the
screen to install a generic plug-and-play monitor.
Refer to the appropriate following section for driver installation instructions.
7.Installing the Touch Driver for Windows XP, Windows 20001, Me,
95/98 and NT 4.0
NOTE: For Windows 2000 and NT 4.0 you must have administrator access rights to
install the driver.
1.Insert the Elo CD-ROM in your computer’s CD-ROM drive.
If the AutoStart feature for your CD-ROM drive is active, the system
automatically detects the CD and starts the setup program.
2.Follow the directions on the screen to complete the driver setup for your version of
Windows.
If the AutoStart feature is not active:
1.Click Start > Run.
2.Click the Browse button to locate the EloCd.exe program on the CD-ROM.
3.Click Open, then OK to run EloCd.exe.
4.Follow the directions on the screen to complete the driver setup for your version of
Windows.
8.Installing the Touch Driver for MS-DOS and Windows 3.1
You must have a DOS mouse driver (MOUSE.COM) installed for your mouse if you
wish to continue using your mouse along with your touchmonitor in DOS.
To install Windows 3.x and MS-DOS from Windows 95/98, follow the directions
below:
1.Insert the Elo CD-ROM in your computer’s CD-ROM drive.
2.From DOS, type d:\EloDos_W31 to change to the correct directory on the CD-ROM
(your CD-ROM drive may be mapped to a different drive letter).
3.Type install and press Enter to start the installation.
4.Align the touchscreen.
You must have already completed Steps 1 and 2 before proceeding. Refer to page 9 of
the Elo DOS and Windows Driver Guide as necessary for additional installation
information.
To run the INSTALL program:
1.Type INSTALL at the DOS prompt in the directory containing the driver install files.
2.INSTALL asks you to select the software to install. Then choose d:\EloDos_W31
from the displayed list.
3.INSTALL also asks you for the paths to use during installation, or you may use its
defaults. INSTALL creates directories as necessary, and warns you if they exist.
If you are updating your software, you may wish to specify the paths containing the
earlier versions, and overwrite the obsolete files. All executable programs are upward
compatible. For a list of differences from each previous version of the drivers, be
sure to select "Differences from Previous Versions" during the installation process.
INSTALL updates your AUTOEXEC.BAT file with the drivers you select.
INSTALL makes a copy of your original AUTOEXEC.BAT file, called

- 13 -
AUTOEXEC.OLD. If you already have Elo driver commands in your
AUTOEXEC.BAT file, they will be commented out.
When INSTALL is finished, it leaves a file called GO.BAT in the subdirectory you
specified. GO loads the touchscreen driver, runs the calibration program
ELOCALIB, and gives you some final instructions.
If you are using Windows 3.1, you will also calibrate the touchscreen within Windows
3.1 with the Touchscreen Control Panel.
OPERATION
1.About Touchmonitor Adjustments
By design, your Elo Entuitive touchmonitor should not require any adjustments.
The factory settings will give you optimum video results with most standard PC video
display adapters.
However, after connecting your touchmonitor you can further optimize the settings to
meet your requirements by following the directions in this chapter.
All adjustments you make to the controls are automatically memorized, so you do not
need to reset your choices every time you unplug your touchmonitor or power it off
and on. If there is a power failure your touchmonitor settings will not default to the
factory specifications.
IMPORTANT: Do not insert conductive metal objects into the monitor's circuitry. The
monitor uses high voltages and the metal edges can be sharp.
Disassembly or realignment of the monitor circuitry voids the warranty.
2.Touchmonitor Controls
You can adjust the screen display by using the plastic knob labeled OSD located on
the right-hand side of the touch controller bracket.
2.1 Using the On Screen Display (OSD)
2.1.1 Push the OSD knob to access the OSD.
2.1.2 Turn the OSD knob to choose the item you want to adjust. The selected item
is highlighted. See figure 1 for OSD menu options.
2.1.3 Push the OSD knob to adjust the highlighted item.
The display unit automatically saves the new settings in about 45 seconds
after your last adjustments. The menu will automatically disappear or you can
push the OSD knob to make the menu disappear.

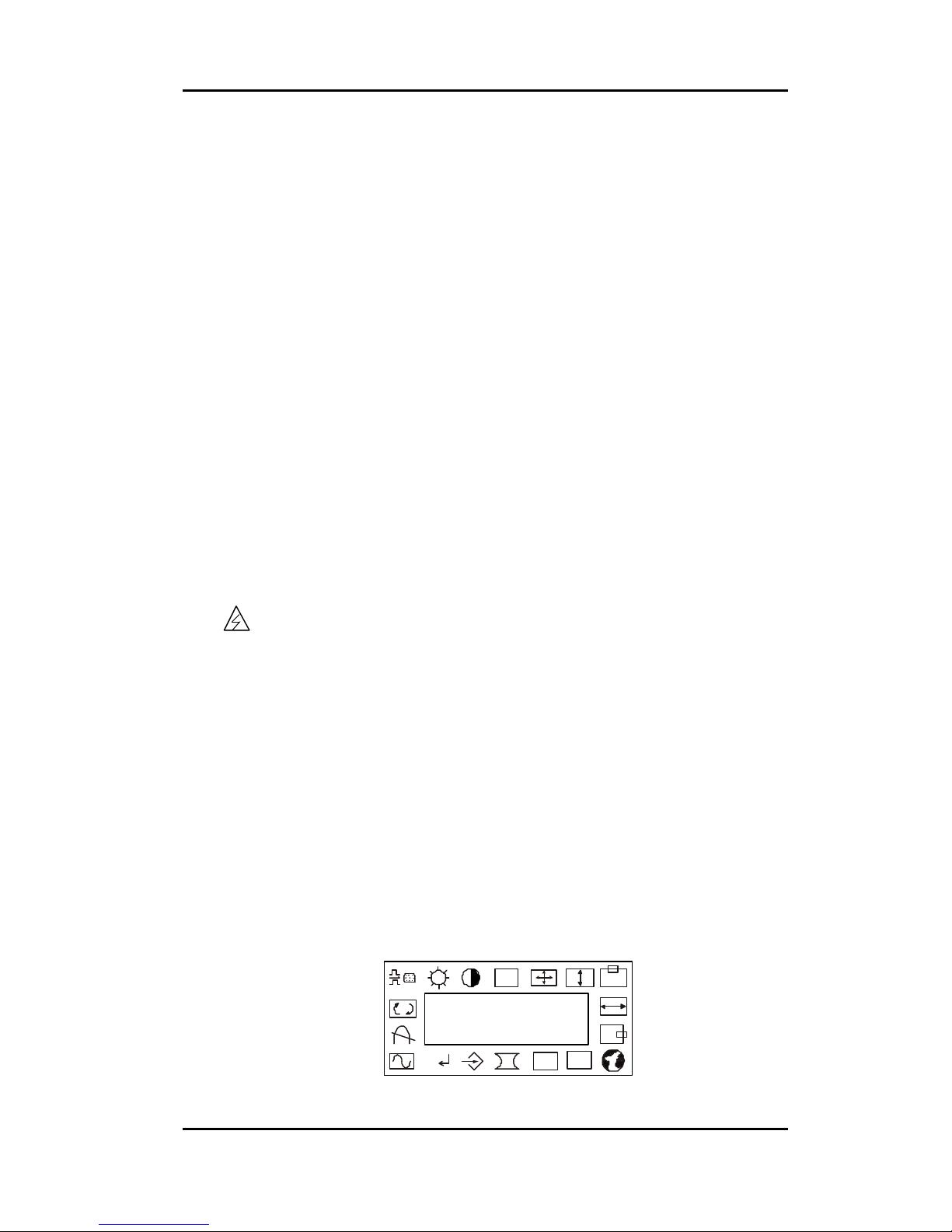

Figure 1 OSD Menu
EXIT
RGB
ROSD

- 14 -
3.2 OSD Adjustments
Symbol Function Process
H. Size Adjusts the horizontal size of the entire screen image.
H. Position Adjusts the horizontal position of the entire screen image.
V. Size Adjusts the vertical size of the entire screen image.
V. Position

Adjusts the vertical position of the entire screen image.
Zoom Simultaneously changes vertical and horizontal image size.
Geometry See Figure 4.
Pincushion If the vertical sides of the picture curve in or bulge out, you
can correct the distortion by using the pincushion adjustment.
Trapezoid If the picture is wider at the top or at the bottom, you can
correct the distortion by using the trapezoid adjustment.
Parallel If the sides of the screen image are tilted, you can correct the
distortion by using the parallel adjustment.
Pin
Balance If the sides of the picture are bowed to the right or the left, you can correct the pin cushion balance by using this adjustment.
Top
Corner Eliminates top corner distortion.
Bottom
Corner Eliminates bottom corner distortion.
S. Correct Corrects vertical center linearity.
C. Correct Corrects vertical top and bottom linearity.
V. Moire Clears vertical moire if a series of concentric circles or arcs
appear on your screen.
H. Moire Clears horizontal moire if a series of concentric circles or arcs
appear on your screen.
Note: Moire is an interface pattern that makes the screen seem
to have faint lines. A picture that israstered or consists of small
repeating figures is sensitive to moire interference.
Strong colors are also liable to intensifymoire. The moire
pattern on the screen does not affect the printout of the image.
Language You can select the language in which adjustment menus are
displayed. The following languages are available; English,
German, French, Italian, and Spanish.
Rotation If the entire screen image is tilted, you can correct the
distortion by using the rotation adjustment.
Input Level Selects video input level 0.7Vp-p or 1.0 Vp-p.
OSD,
H. Position,
V. Position
Timeout
OSD (Figure 2) Adjusts the horizontal and vertical position of the OSD window and determines how long (in seconds) the OSD
menu waits before closing automatically when no action has
been performed.
Color
Temp (Figure 3) To correct the color temperatures individually, use the red, green, and blue contrast and brightness
adjustments. To confirm the setting press the menu again.
Save Saves current setting.
Recall RRecalls factory settings of the image parameters.
RGB

- 15 -
Status Displays the horizontal and vertical frequency settings from
the computer.
Degauss If you have moved the display unit, you should perform
demagnetization. Demagnetizing takes place automatically
when the display unit is switched on, and the unit normally
maintains faultless color purity during operation.
If you have tilted, swiveled or moved the display unit, you
can perform demagnetization. During the process the
picture is distorted for a few seconds. After
demagnetization, the color impurities have disappeared if
caused by stray magnetic fields. Do not use the degauss
feature more than once every half hour or the degauss
function will not work.
Brightness Adjusts the brightness of the screen.
Contrast Adjusts the contrast of the screen.
Figure 2
Figure 3
Figure 4
ESC
OSD
OSD
ESC
ESC

- 16 -
ABOUT MONITOR ADJUSTMENTS
Check the monitor according to the Inspection Standards and, if necessary, follow the
procedures below to adjust the monitor.
1. Power Supply
1-1 Input Voltage:AC110V~AC230V.
1-2 Input Frequency:60 +/- 3Hz /50 +/-3Hz.
2. Note
2-1 Turn the monitor so the screen of the CDT faces eastward.
2-2 Before adjustments, warm up the monitor for 30 minutes.
2-3 Mode setting refer to table 1.
3. Control Confirmation
3-1 The 800×600 54K mode for 15”, 1024×768 69K mode for 17”, 19”, signal will
be used to check all display modes of the monitor.
3-2 To adjust the monitor, set the brightness control to its center position and the contrast
control to its maximum position.
4. Adjustment Equipment (for reference only)
4-1 Degaussing Coil
4-2 Oscilloscope and Probe
4-3 Digital Voltmeter (Model: Fluke 8050A or equivalent)
4-4 Colour Analyzer (Model: Minolta TV-2030 or CA-100)
4-5 Ruler (45 cm)
4-6 High-Voltage Probe (Model: Fluke 80K-40)
4-7 PC: PIII/P4 or equivalent
4-8 Chroma (Model: 1000, 2000 or 2130, 2135)
4-9 Power meter (model:2533 or equivalent)
4-10 Tool-1 uF 50V NP capacitor
4-11 Screw driver “-“& “+”

- 17 -
5.TIMING CHART
Timing 12345678910
Standard VGA VGA VGA VGA VGA VESA VESA VGA SVGA VGA
Data Pixel 536 536 640 640 640 800 1024 640 800 640
Data Line 420 420 350 400 480 600 768 480 600 480
H-Freq kHz 30.671 30.671 31.469 31.469 31.469 53.674 68.667 31.469 37.879 31.469
V-Freq Hz 49.953 59.904 70.087 70.087 59.942 85.061 84.997 59.941 60.317 59.941
Pix Rate 19.66 19.66 25.175 25.175 25.175 56.250 94.500 27 40 27
Hor.A (us) 0.763 0.763 0.636* 0.636 0.636* 0.569 0.508 1.407 1.0 1.778
Hor.B (us) 3.255 3.255 3.813 3.813 3.813 1.138 1.016 2.370 3.2 3.037
Hor.C (us) 1.272 1.272 1.907* 1.907 1.907* 2.702 2.201 4.296 2.2 3.07
Hor.D (us) 27.263 27.263 25.422 25.422 25.422 14.222 10.836 23.704 20 23.704
Hor.E (us) 32.604 32.604 31.778 31.778 31.778 18.631 14.561 31.778 26.4 31.778
Vert.A (ms) 2.445 0.783 0.381 0.381 0.381 0.019 0.015 0.286 0.026 0.064
Vert.B (ms) .130 0.130 0.064 0.064 0.064 0.056 0.044 0.191 0.106 0.059
Vert.C (ms) - - 1.875 1.112 1.048# 0.503 0.524
Vert.D (ms) 13.694 13.694 11.122 12.711 15.253 11.179 11.183 15.253 15.840 15.255
Vert.E (ms) 20.019 16.693 14.269 14.269 16.683 11.756 11.765 16.683 16.579 16.683
Sync.Pol. + / + + / + + / - - / + - / - + / + + / + - / - - / - - / -
Note:
1.Timing 5 is for 17”and 19”models only.
2.Timing 1,2 is for Bally 17”and 19”models only.
3.Timing 8~10 is for SEGA 19”model only.
C

- 18 -
Table 1 for mode setting
Model : ET15
Mode Card Item Freq. H. KHz Freq. V. KHz Resolutions
1VGA 31.5 70.08 640 ×400
2VGA 31.5 60 640 ×480
3VGA 31.5 70.08 640 ×350
4VESA 53.674 85.061 800 ×600
Model : ET17 & ET19
Mode Card Item Freq. H. KHz Freq. V. KHz Resolutions
1VGA 30 50 536 ×420
2VGA 30 60 536 ×420
3VGA 31.5 70.08 640 ×400
4VGA 31.5 60 640 ×480
5VGA 31.5 70.08 640 ×350
6VESA 53.674 85.061 800 ×600
7VESA 68.667 84.997 1024 ×768
8VGA 31 60 640 ×480
9SVGA 37 60 800 ×600
10 VGA 31 60 640 ×480
Note:
1. Mode 1~2 for ET17 and ET19 Bally models only.
2.Mode 7 for ET17 and ET19 models.
3.Mode 8~10 ET1988C-4SWA-1-SEGA TPS model.

- 19 -
6. Service Adjustment Control Locations
7. Adjustment
7-1 B+Voltage Adjustment:
-Apply the mode 3 signal with a full white pattern.
-Apply 220V AC to the unit.
-Set the Brightness and the Contrast to the Max, the display size to 270mm×
202mm for 15”, 300×225mm for 17”, 350mm×262mm for 19”.
-Apply the mode 4, the display size to 317 mm×237mm for Atronic model only.
-Apply the mode 1~7, the display size to 317 mm×237mm for ET17 Bally mode only
Size 350 mm×262mm for 19”.
-Apply the model 1~7, the display size to 356 mm×264mm for ET19 Bally model
only.
-Apply the mode 8 , 9, adjust the H-Size to 90% (OSD) with adjust the SUB H-Size
to 358 mm×268mm for ET1988C-4SWA-1-SEGA TPS model only.
-Put the DVM probe between D615 cathode and GND.
-Adjust the VR601 until 14.7 VDC +/-0.1V.
-Put the Hight Voltage DVM probe between the H.V. Cap and GND.
-Adjust the VR501 until 23.5 +/- 0.1KV (15”).
-Adjust the VR501 until 24.5 +/- 0.1KV (17”).
-Adjust the VR501 until 24 +/- 0.1KV (19”).
-Adust the screen VR until G2 to 550V ±10V (15”only)
1.
LED
2. OSD Function key ( SW5 )
2,3 Focus
4. H.V.Voltage (VR501)
6. B+ (VR601)
5VR601
T601
F.B.T
Part sideview-Main Board 2,3
Download Pin
U101
D615
VR501
4
SW5
