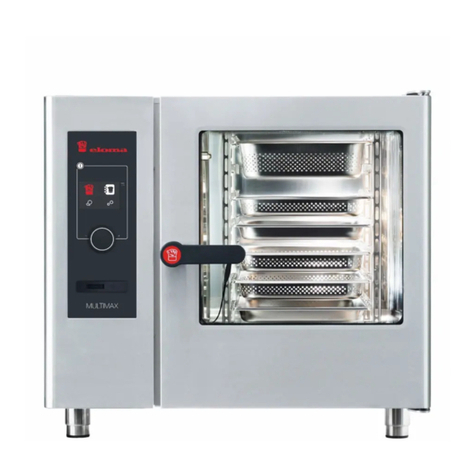

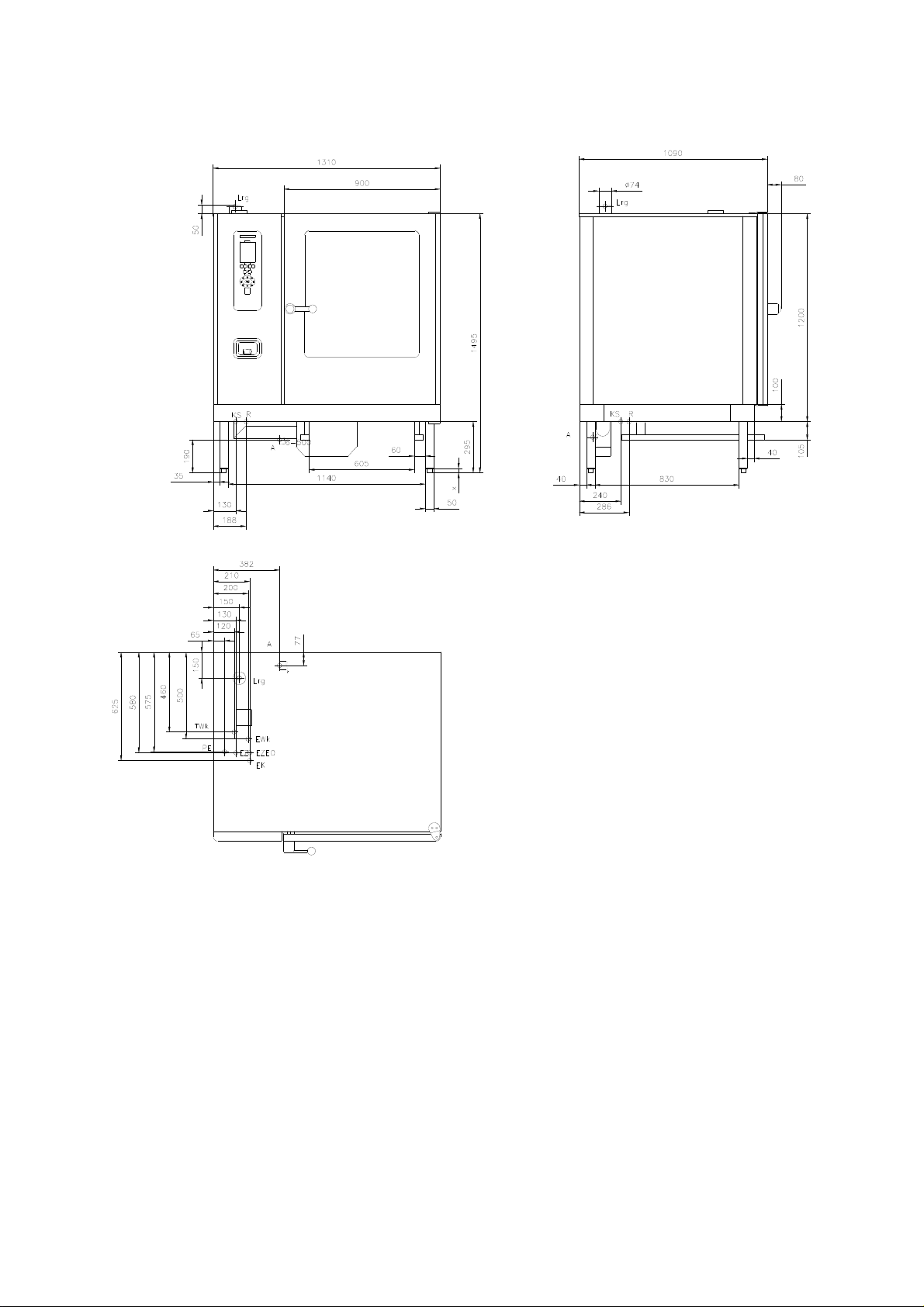

2.2 Hints for setting up
The floor underneath the appliance must be plane to ensure a smooth driving-in of the trolley
(roll-in pan-rack).
The trolley must be pane in the unit.
Fix the appliance after adjusting the level and angle, so that the oven can’t shift anymore.
There should be a minimum distance of 15 +/- 5 mm between the trolley and the top edge of
the oven cavity bottom.
The trolley must never touch the door gasket and must be level with the appliance.
2.3 Removal of protecting film from the floor models
Prior to starting the machine, the protective film must be removed from side, back and cover
surfaces. Use special cleaner to clean to perfection.
Do not operate the oven with the adhesive film.
2.4 Noise level
The emission value of the noise level is less than 70 dB (A).
2.5 Exhaust air
A built-in cooling function cools down water and steam of condensation, which runs down the
drain. It is therefore not necessary, however recommended, to install the appliance under a
ventilation hood.
If such a hood is installed, its design and power rates should comply with the German VDI
regulation 2052.
Condensation hood (option only for units with connection 208 V)
An optional condensation hood is available for Eloma combi steamers.
The condensation hood is controlled fully automatically via the combi steamer.
During the cooking process, steam is condensed as it passes over air-cooled plate condensers.
Observe the installation manual “condensation hood” for proper installation of the hood.
2.6 Heat emission into the area
Typ 6-11 10-11 20-11 12-21 20-21
Connected load kW 9.5 18.5 36.5 21.5 43.0
latent MJ/h 3.420 6.660 13.140 7.740 15.480
sensible MJ/h 2.394 4.662 9.198 5.418 10.836

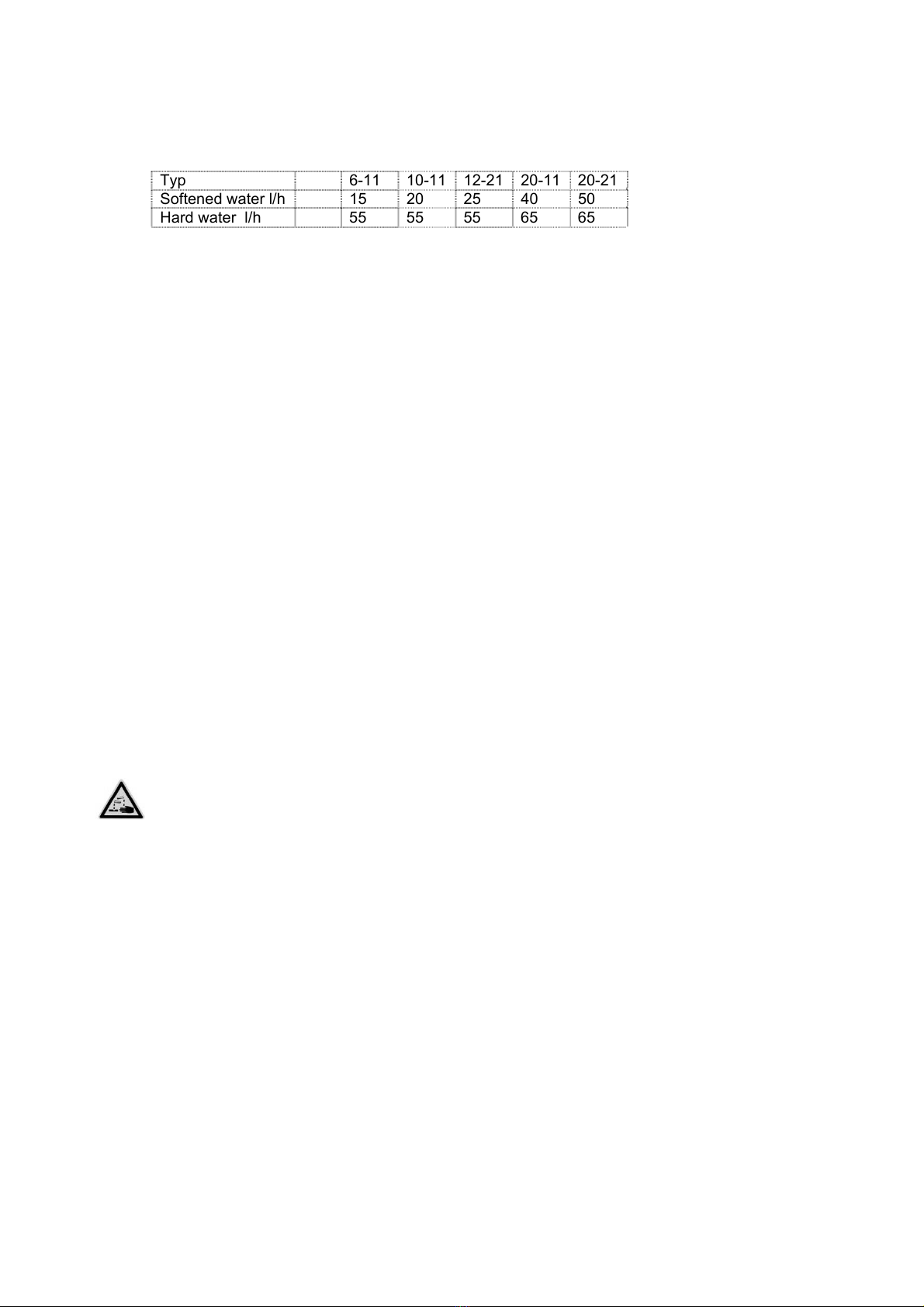

3. Water supply
Local water and regulation should be adhered to at all times.
The appliance must be connected to the drinking water supply in accordance with DIN EN 1717.
For UK the inlet supply shall be fed via fluid backflow prevention category three arrangements
such as a double check valve.
Our entire range of Combi Steamers comply to the following water regulations WRAS and
DVGW and can be connected to the drinking water supply without any other measures having
to be put in place. Non-return valves are integrated within the appliance.
Before connecting the oven to the water supply, wash out / clean the building pipe system!
All appliances are equipped as standard with 2 water-connections for soft water and hard water.
Both connections are under the indication plate and both must be connected.
The appliance must be connected to the water supply using a flexible hose that conforms to
EN 61770 resp. IEC 61770 with a 3/4” screw connection. The water supply hose must fulfil the
local or standard hygiene requirements for hoses in drinking water systems.
Ensure there is sufficient pipe length left (minimum 50cm) so as to allow for easy access when
servicing the appliance.
Install an easily accessible water shut-off-valve for every unit.
None corrosive connections (couplings) must be used at all times between the water
treatment equipment and the Combi Steamer, failure to do so could cause rust to form
within the unit. None compliance would be a breach of the warranty conditions.
Door gasket
15mm
5
Spacer
