ELTA FANS TWINFLOW STDR Maintenance and service guide

These instructions must be read fully before commencing installation.
TWINFLOW
STDR
Installation & Maintenance

Tel [phone] Fax [phone] Email [email protected] Website eltafans.com2
Installation Instructions
TWINFLOW STDR
1.0 General
1.1 It is important these Installation and Maintenance Instructions are fully adhered to.
1.2 Full details of the unit supplied are shown on the product nameplate. If in doubt about any detail contact Elta Fans Ltd or its agents for
clarification.
1.3 All electrical installation must be carried out by suitably qualified and competent personnel in accordance with all current statutory
requirements.
1.4 These instructions cover only the Elta Fans Ltd product and do not include the supply or installation of any safety equipment that
may be required e.g. adequate guarding or protection from rotating parts and proper electrical isolation.
1.5 Any declarations made by Elta Fans Ltd about product installation and safety, are dependant on the fan equipment being used
within installations which themselves meet the requirements of the relevant Standards and Directives of your region.
1.6 The fan is designed for use in an ambient temperature of -20°C up to +60°C and up to 95% relative humidity. The fan is not
suitable for corrosive or explosive atmospheres.
1.7 The installer should provide easy access to the fan to facilitate future maintenance.
1.8 The installer should ensure the fan is adequately supported.
1.9 This product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or instruction concerning use of the product by a person
responsible for their safety.
Children should be supervised to ensure that they do not play with the product.
1.10 At end-of-life, the unit must be disposed of in an environmentally friendly manner by suitably qualified and competent personnel in
accordance with the requirements of applicable Standards and Directive
2.0 Installation
WARNING – The fan must be isolated from the power supply during installation and maintenance. The fan must be earthed in
accordance with the local regulations.
2.1 Upon receipt, the fan equipment should be visually inspected to check for any damage. Ensure that the impeller is free to rotate.
2.2 If there are any queries concerning the fan equipment, Elta Fans Ltd should be contacted prior to the installation.
2.3 The fan must be securely mounted in the desired position to suit the application.
The fan is only suitable for horizontal mounting.
2.4 Check the details on the motor rating plate to ensure that the correct power supply (voltage, frequency and phase) is available.
An incorrect power supply will lead to permanent damage to the fan motor.
2.5 Refer to the appropriate wiring diagram. Ensure that all earth connections are made.
2.6 Means for electrical disconnection must be incorporated in the wiring installation in accordance with the relevant wiring and electrical
regulations.
2.7 Precaution must be taken to locate the exhaust discharge terminal so as to avoid the backflow of gases into the room from the open
flue of gas or other fuel burning appliances.
EC
Please note: This is an estimated adjustment guide
149-CD-POT
The 149-CD-POT is a commissiong device designed to be used with our EC range of fans.
This device will be as standard with our box fan range from May 2018.
The device will allow the for the installer to set the maximum operating speed of the fan that it is
connected to.
The installer or commissioning engineer can adjust the fan speed using the potentiometer built onto the
149-CD-POT board. This potentionmeter can either be used for single speed adjustment or to set a
maximum speed for the fan to operate at when an external control source is used.
If external speed control is required, the jumper connection next to the potentionmeter on the board
would need to be removed, the installer can then connect to ST1 (using the diagram provided).
When an external speed control is tted, the maximum speed setting available to the external control is
limited by the potentiometer setting of the commissioning device.
10/07/2018
MK-149-CD-POT Issue: Saved Date:A
Level / Speed OHMS (Ω)
10 10 (Ω)
99 (Ω)
88 (Ω)
77 (Ω)
66 (Ω)
55 (Ω)
44 (Ω)
33 (Ω)
21.5 (Ω)
1500 (Ω)
01 (Ω)
149-CD-POT

Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
Confirmation of dimensions and data will be supplied on request. 3
Installation Instructions
TWINFLOW STDR EC
3.0 Start Up
3.1 Before power is supplied to the unit, check that the wiring is correct as per the fan connection diagram.
3.2 At initial start-up, check that impeller rotation and airflow direction is correct.
3.3 Check that the motor amperage draw does not exceed the nameplate rating.
4.0 Fan Maintenance
4.1 Inspection of the fan at least once every 12 months is recommended to ensure that the motor, fan blades, and supporting guards,
are clean. Any build up of dust and deposits on the blades or guards should be removed using a non-abrasive cleaner.
4.2 All fastenings should be checked for tightness. In addition, all rotating items should be checked.
4.3 Bearings are of the ‘sealed for life’ type and will not need a detailed inspection.
WARNING – STDR fans are fitted with an auto-reset thermal contact which switches the fan off in the event of a fault condition.
Once the motor cools down the fan may start unexpectedly.
Fuses /circuit breakers are used to provide short circuit protection only. A starter panel with overload protection should be used to
protect the motor.
Only a suitably qualified and competent person may carry out maintenance after the electrical supply has been isolated.
GND 10V E1
MIN MAX
E1 GND
ST1
ST2
ST2
E1 10V GND
MAX MIN
ST1
GND E1
THE ABOVE DIAGRAM SHOWS "ST2".
"ST2" CONNECTIONS ARE FACTORY FITTED.
GND = COMMON •
10V = 10VDC INPUT •
E1 = 0-10VDC OUTPUT •
YOU CAN DETERMINE THE CURRENT VDC OUTPUT BY
DISCONNECTING POWER TO THE UNIT, SETTING A
MULTIMETER TO OHMS (Ω) AND PLACING THE TEST PROBES
BETWEEN GND AND E1
PLEASE USE THE ESTIMATED ADJUSTMENT GUIDE FOR REFERENCE
THIS IS THE INTERNAL POTENTIOMETER
THIS POTENTIOMETER CAN BE ADJUSTED FOR SINGLE SPEED
SETTING OR MAX SPEED SELECTION
THIS LINK/JUMPER SHOULD BE REMOVED
WHEN USING AN EXTERNAL POTENTIOMETER
OR EXTERNAL CONTROL SIGNAL CONNECTED
TO "ST1"
THE ABOVE DIAGRAM SHOWS "ST1".
"ST1" CONNECTIONS ARE CLASSED AS
"CUSTOMER/USER CONNECTIONS".
GND = COMMON •
+ = VDC OUTPUT AS SET BY •
INTERNAL POTENTIOMETER
E1 = 0-10VDC INPUT •
149-CD-POT
10/07/2018
MK-149-CD-POT
Issue: Saved Date: A
All wiring and control equipment must comply to the latest IEE regulations, in particular part 552-01-02/03.
149-CD-POT Issue A: 10.07.2018
Check the individual product accessories table for fan controller compatibility.
Please note: This is an estimated adjustment guide
149-CD-POT
The 149-CD-POT is a commissiong device designed to be used with our EC range of fans.
This device will be as standard with our box fan range from May 2018.
The device will allow the for the installer to set the maximum operating speed of the fan that it is connected to.
The installer or commissioning engineer can adjust the fan speed using the potentiometer built onto the 149-CD-POT board.
This potentionmeter can either be used for single speed adjustment or to set a maximum speed for the fan to operate at when an
external control source is used.
If external speed control is required, the jumper connection next to the potentionmeter on the board would need to be removed,
the installer can then connect to ST1 (using the diagram provided).
When an external speed control is fitted, the maximum speed setting available to the external control is limited by the potentiometer
setting of the commissioning device.

Tel [phone] Fax [phone] Email [email protected] Website eltafans.com4
Table 1: Operational Maintenance
Activity Frequency
Inspect AV mounts for Corrosion or “Sag” 6 months
Check earth bonding 6 months
Dampers check rubber stops and grease (lithium based) pivot points, by removing plastic caps Yearly
Check fixings tightness and conditions of brass track and rivets 26,000 hours / 3 years
Inspect and clean impeller 26,000 hours / 3 years
Remove dirt from motor cooling fins 26,000 hours / 3 years
Check operation of anti-condensation heaters 26,000 hours / 3 years
Check for even tip clearance between impeller and casing – For ATEX 10% of motor shaft
diameter with 2mm minimum and 13mm maximum. 26,000 hours / 3 years
Check motor Amps 26,000 hours / 3 years
Any corrosion - treat with suitable chemicals 26,000 hours / 3 years
Check casing seals 26,000 hours / 3 years
Table 2: Terminal Box Maintenance
Activity Frequency
Check that lid seal is in place and not damaged Each time the enclosure is opened
Check that lid fixing screws are in place and secured Each time the enclosure is closed
Check that the mounting bolts are tight and free from corrosion Annually
Check security of all cable glands Annually
Check that all screw clamps terminals are secure Annually and each time enclosure is opened
Check enclosure for damage Annually
5.0 Storage
5.1 If the fan is not to be used immediately then it should be stored in a clean, dry, vibration free and lockable location.
5.2 The impeller must be spun by hand (ensuring that it does not come to rest in the same position) on a monthly basis to prevent hardening
of the grease and possible damage to the bearings.
5.3 All items to be stored on pallets that afford adequate protection from damage, dust and high humidity.
5.4 If storage periods of longer than 1 month are anticipated then Elta (or their Agent) should be contacted prior to storage taking place,
to ensure the storage area provisions will not be detrimental to the well being of Elta products.
6.0 Guarantee
Elta Fans Ltd will, free of charge, within a period of 1 year from the date of dispatch from their works, repair or at its option replace any
goods which are proved to have defects as a result of defective materials or workmanship. The goods MUST be returned to Elta Fans Ltd
carriage paid for examination.
Installation Instructions
TWINFLOW STDR

Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
Confirmation of dimensions and data will be supplied on request. 5

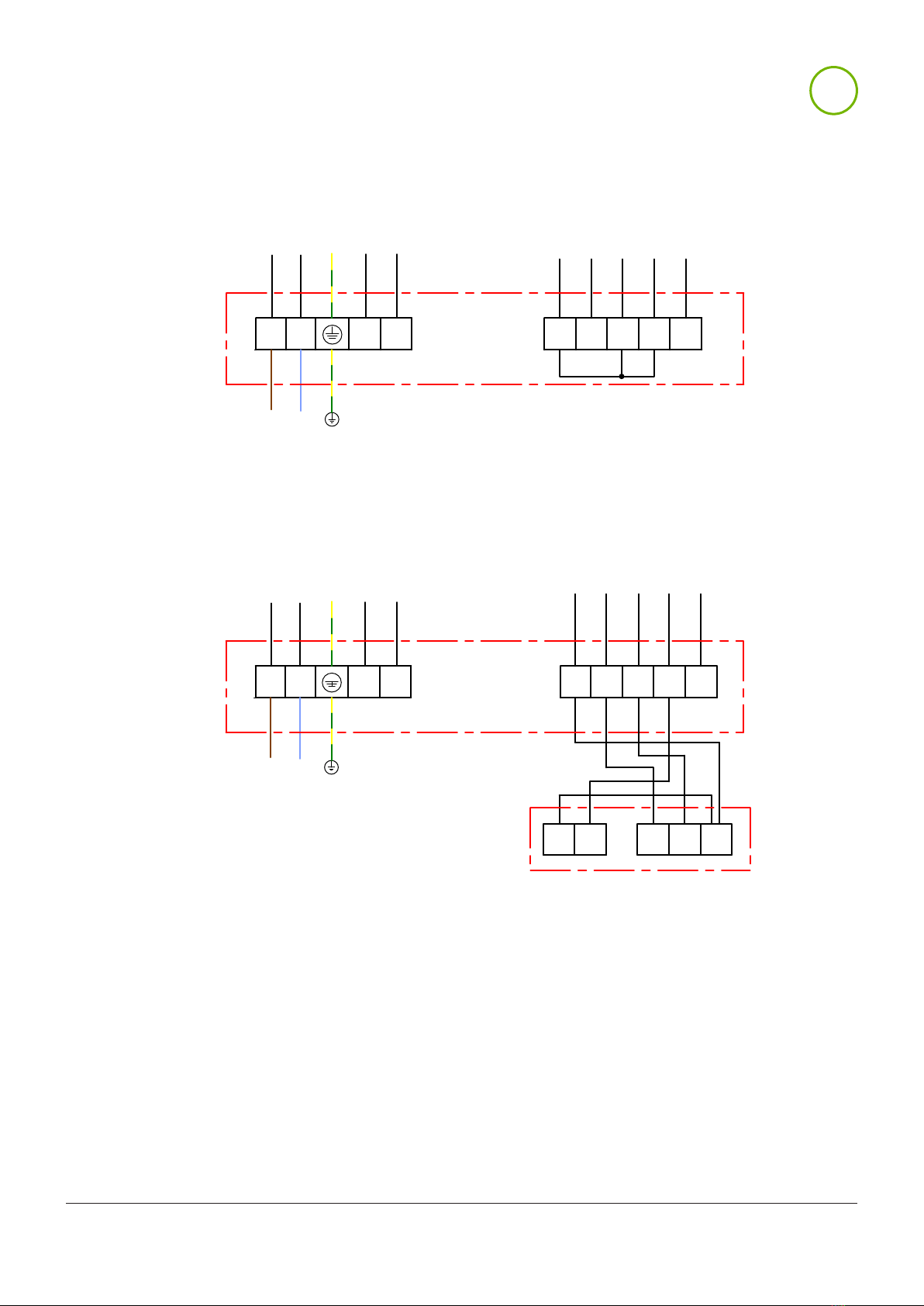

Wiring Diagrams
TWINFLOW STDR
EC
Please use the table(s) below to match up the product code and the wiring diagram number.
Single Phase 220V - 277V / 50Hz or 60Hz
Three Phase 380V - 480V / 50Hz or 60Hz
Page
No.
Product
Code
Wiring
Diagram No.
6STDR315-1EC 152-02298951
6STDR400-1EC 152-2MOEA03K1
6STDR500-1EC 152-2MOEA03K1
Page
No.
Product
Code
Wiring
Diagram No.
8STDR500-3EC 152-2MOEA03K3

Tel [phone] Fax [phone] Email [email protected] Website eltafans.com6

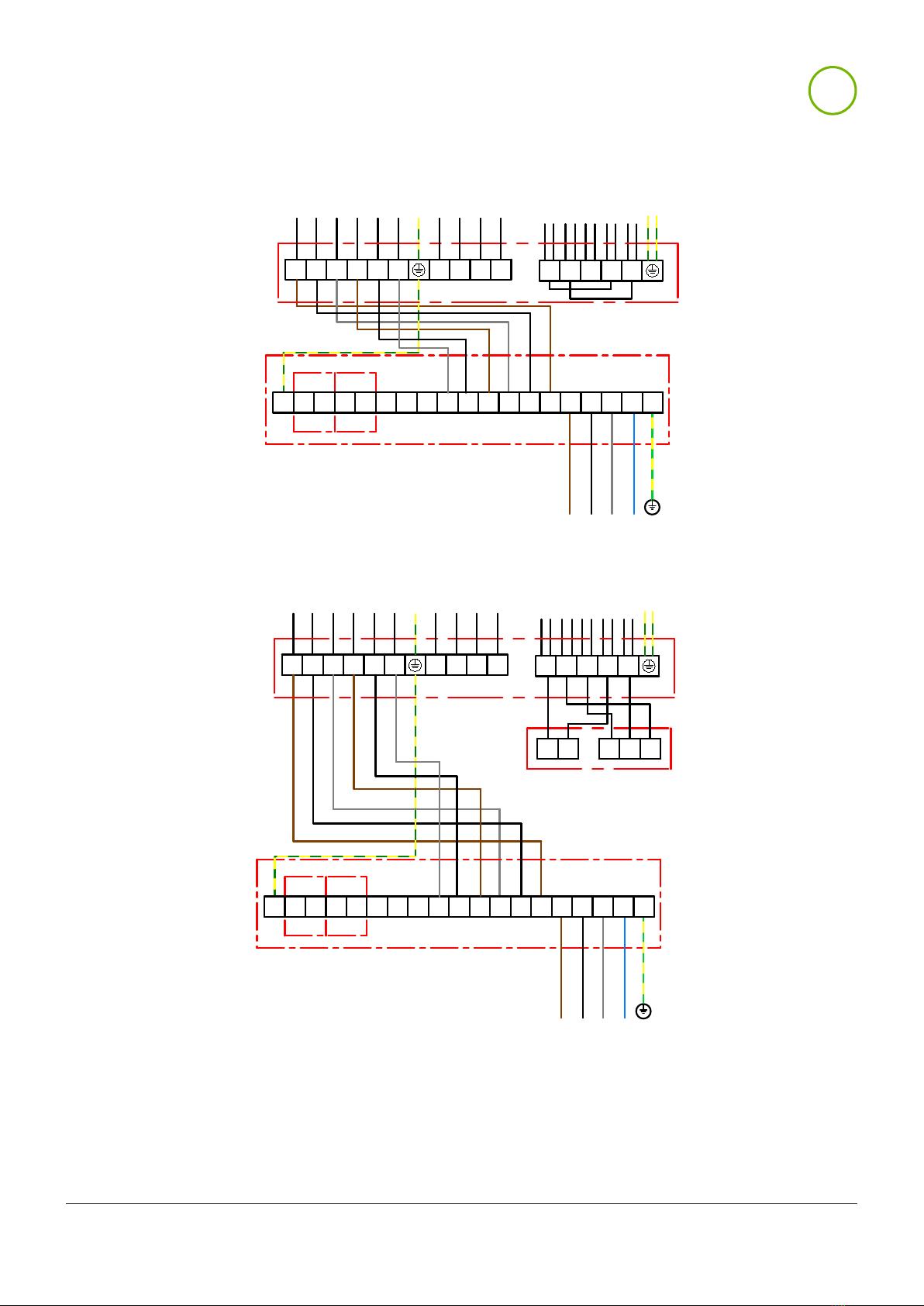

Wiring Diagrams
152-000236 EC
DM
23/11/12
ACO18 CHANGED TO
AC014E IN TITLES.
WRONG TYPE LISTED.
AWM
K0039C
DM
01/05/12
149-POT-10 PINS 5 AND 7
MOVED TO ACTUAL
PART LOCATION
AWMK0004B
C
DRAWING No.
SHEET OF ISSUE
DRAWN BY
DAT E
SCALE STATUS
APPROVED
CHECKED
ELTA FANS LTD,
17 BARNES WALLIS ROAD,
SEGENSWORTH INDUSTRIAL ESTATE,
FAREHAM, HAMPSHIRE. PO15 5ST.
Tel. [phone] Fax. [phone]
Elta Fans Ltd. own the copyright of this drawing/
in writing from its owners Elta Fans Ltd.
and must not be reproduced without permission
condence and which must not be used for any
specication document which is supplied in
C
DIMENSIONS ARE IN mm UNLESS STATED OTHERWISE
BYISS CN.
DAT E CHKD
ISS CN. BY
DAT E CHKD
ISS CN. BY
DAT E CHKD
ISS CN. BY
DAT E CHKD
A C D E
11C
23-11-11
DM
-
I
purpose other than that for which it is supplied
B
10
C
N/A
AWM
E
N
L
N1 L2 GNDE1N2L1 10VA1
VOLT FREE CONTACT
N/O CLOSE ON FAIL
230 VAC 5A
4 5 6 731 2 8 1211109
ACO PANEL
TWIN FAN
220 - 240V 1PH 50Hz SUPPLY
EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-ACO14E)
BROWN
BLUE
BLUE
BLUE
BROWN
BROWN
GREEN/YELLOW
GREEN/YELLOW
BLUE
BROWN
GREEN/YELLOW
GREEN/YELLOW
BLUE
BLUE
BROWN
BROWN
N1 L2 GNDE1N2L1 10VA1
VOLT FREE CONTACT
N/O CLOSE ON FAIL
230 VAC 5A
ACO PANEL
TWIN FAN
220 - 240V 1PH 50Hz SUPPLY
EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-ACO14E) AND SPEED CONTROLLER (149-POT-10)
L N E
1 2 9 10 11 1283 7654
1 149-POT-105672
ALL WIRING AND CONTROL EQUIPMENT MUST COMPLY TO THE
LATEST IEE REGULATIONS, IN PARTICULAR PART 552-01-02/03
A3A3
152-000236
NTS
All wiring and control equipment must comply to the latest IEE regulations, in particular part 552-01-02/03.
MK-152-00236 Issue C: 23.11.2012
Check the individual product accessories table for fan controller compatibility.

Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
Confirmation of dimensions and data will be supplied on request. 7

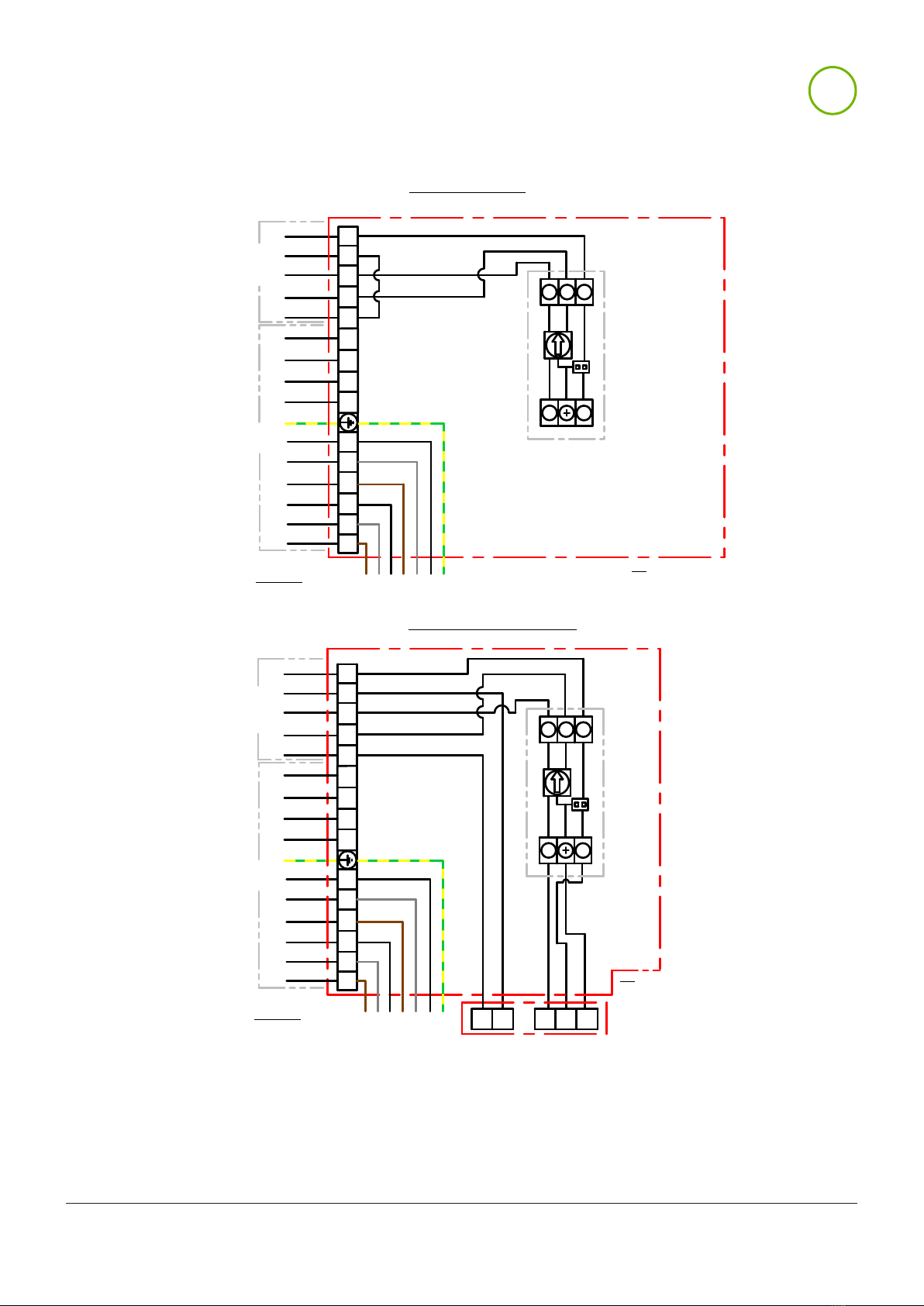

Wiring Diagrams
152-02177
AUXN
NL EL
9 10 11 12821 3 7654
L1 N2L2N1
E
L
CONTROLLER
TERMINAL BOX
N
VOLT FREE CONTACT
N/O CLOSE ON FAIL
230 VAC 5A
ACO PANEL
TERMINAL BOX
FAN TERMINAL
BOX
220 - 240V 1PH 50Hz SUPPLY
TWIN FAN C/W AUTO CHANGOVER PANEL AND CONTROLLER TYPE TC12,TC14, TC18, TC110,TC112
GREEN/YELLOW GREEN/YELLOW
GREEN/YELLOW
BROWN
BLUE
BROWN
BLUE
BLUE
BROWN
BROWN
BROWN
BLUE
E
BLUE BLUE
BROWN
BROWN
BROWN
BROWN
BLUE
BLUE
BROWN
GREEN/YELLOW
GREEN/YELLOW
E
L
CONTROLLER
TERMINAL BOX
N
VOLT FREE CONTACT
N/O CLOSE ON FAIL
230 VAC 5A
ACO PANEL
TERMINAL BOX
FAN TERMINAL
BOX
220 - 240V 1PH 50Hz SUPPLY
TWIN FAN C/W AUTO CHANGOVER PANEL AND CONTROLLER TYPE EL31, EL61
AUXU2N U1L
N1 L2 N2L1
4 5 6 731 2 8 1211109
BLUE
BLUE
BROWN
BROWN
GREEN/YELLOW
GREEN/YELLOW
BLUE
BROWN
ENL
N1 L2 N2L1
VOLT FREE CONTACT
N/O CLOSE ON FAIL
230 VAC 5A
4 5 6 731 2 8 1211109 ACO PANEL
TERMINAL BOX
FAN TERMINAL
BOX
220 - 240V 1PH 50Hz SUPPLY
TWIN FAN C/W AUTO CHANGOVER PANEL
ALL WIRING AND CONTROL EQUIPMENT MUST COMPLY TO THE
LATEST IEE REGULATIONS, IN PARTICULAR PART 552-01-02/03
06/01/2014
MK-152-2177 Issue: Saved Date:D
All wiring and control equipment must comply to the latest IEE regulations, in particular part 552-01-02/03.
MK-152-2177 Issue D: 06.01.2014
Check the individual product accessories table for fan controller compatibility.

Tel [phone] Fax [phone] Email [email protected] Website eltafans.com8
Wiring Diagrams
152-02298951 EC
4
3
2
1
10V D1
E1
GND
200-277V 1PH 50/60Hz
SUPPLY
LN
1411NL1
5
1
2
GREEN/YELLOW
3
4
TO MOTOR
FAN
1267 5
FAN C/W POTENTIOMETER SPEED CONTROL (149-POT-10)
149-POT-10
A1
A1
FAN
FAN ONLY
TO MOTOR
4
3
GREEN/YELLOW
2
1
5
4
3
2
1
L1 N 11 14 D1
E1
GND10V
N
L
200-277V 1PH 50/60Hz
SUPPLY
ALL WIRING AND CONTROL EQUIPMENT MUST COMPLY TO THE
LATEST IEE REGULATIONS, IN PARTICULAR PART 552-01-02/03
C
A3
DRAWING No.
SHEET OF ISSUE
DRAWN BY
DATE
SCALE STATUS
APPROVED
CHECKED
ELTA FANS LTD,
17 BARNES WALLIS ROAD,
SEGENSWORTH INDUSTRIAL ESTATE,
FAREHAM, HAMPSHIRE. PO15 5ST.
Tel. [phone] Fax. [phone]
Elta Fans Ltd. own the copyright of this drawing/
in writing from its owners Elta Fans Ltd.
and must not be reproduced without permission
condence and which must not be used for any
specication document which is supplied in
C
DIMENSIONS ARE IN mm UNLESS STATED OTHERWISE
BYISS CN.
DAT E CHKD
ISS CN. BY
DAT E CHKD
ISS CN. BY
DAT E CHKD
ISS CN. BY
DAT E CHKD
A C D E
11A
19-12-13
DM
-
I
A3
152-00298951
purpose other than that for which it is supplied
B
NTS
10
C
AWM
DMO05-03-14
NEW DRAWING SEE
CHANGE NOTE FOR DETAILS.
MBK0091A
All wiring and control equipment must comply to the latest IEE regulations, in particular part 552-01-02/03.
MK-152-02298951 Issue A: 12.19.2013
Check the individual product accessories table for fan controller compatibility.

Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
Confirmation of dimensions and data will be supplied on request. 9
Wiring Diagrams
152-02298951-CD EC
20/06/2018
MK-152-00298951-CD Issue: Saved Date:
B
ALL WIRING AND CONTROLS EQUIPMENT MUST COMPLY TO THE
LATEST IET REGULATIONS, IN PARTICULAR PART 552-01-02/03
CONTROL
200 - 277V 1PH 50Hz
MAINS SUPPLY
FOR USE WITH:
SQS315-1ECL
SSDR315-1EC
JUMPER
REMOVED*
MAX SPEED
TRIMMER
E1
10V GND D1 A1
149-CD-POT
ST2
ST1
GND E1
MAXMIN
E110VGND
2 7 6 5
149-POT-10
1
GREEN/YELLOW
BROWN
BLUE
1PH EC SINGLE FAN C/W 149-CD-POT & 149-POT-10
SINGLE FAN
14
11
N
L
L N PE
1
2
G/Y
4
3
POWER
2
1
4
3
5
NOTE:
*JUMPER REMOVED WHEN EXTERNAL
CONTROL SOURCE IS USED.
5
3
4
1
2
POWER
3
4
G/Y
2
1
PENL
LN11 14
SINGLE FAN
1PH EC SINGLE FAN C/W 149-CD-POT
BLUE
BROWN
GREEN/YELLOW
GND 10V E1
MIN MAX
E1GND
ST1
ST2
149-CD-POT
A1
D1
GND
10V E1
POTENTIOMETER FOR SINGLE
SPEED ADJUSTMENT OR MAX
SPEED SELECTION
REMOVE LINK WHEN USING
EXTERNAL POTENTIOMETER OR
EXTERNAL CONTROL SIGNAL
FOR USE WITH:
SQS315-1ECL
SSDR315-1EC
200 - 277V 1PH 50Hz
MAINS SUPPLY
CONTROL
All wiring and control equipment must comply to the latest IEE regulations, in particular part 552-01-02/03.
MK-152-00298951-CD Issue B: 20.06.2018
Check the individual product accessories table for fan controller compatibility.

Tel [phone] Fax [phone] Email [email protected] Website eltafans.com10
Wiring Diagrams
152-2MOEA03K1 EC
L1 L2 N2N1 111 141 112 142 GND24V 10V D1 E1
9 10 11 12821 3 7654
BLUE
BROWN
E
N
L
ACO PANEL
TWIN FAN
220 - 240V 1PH 50Hz SUPPLY
EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-AC0/18)
BROWN
BLUE
BLUE
BROWN
GREEN/YELLOW
GREEN/YELLOW
L1 L2 N2N1 111 141 112 142
BLUE
BROWN
TWIN FAN
EC TWIN FAN C/W AUTO CHANGOVER PANEL (149-AC0/18)
BLUE
BROWN
GREEN/YELLOW
BLUE
BROWN
220 - 240V 1PH 50Hz SUPPLY
ACO PANEL
LNE
4 5 6 731 2 8 1211109
GREEN/YELLOW
1 149-POT-105672
E1D1
10V24V GND
ALL WIRING AND CONTROL EQUIPMENT MUST COMPLY TO THE
LATEST IEE REGULATIONS, IN PARTICULAR PART 552-01-02/03
06/01/2014
MK-152-2MOEA03K1 Issue: Saved Date:B
All wiring and control equipment must comply to the latest IEE regulations, in particular part 552-01-02/03.
MK-152-2MOEA03K1 Issue B: 06.01.2014
Check the individual product accessories table for fan controller compatibility.

Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
Confirmation of dimensions and data will be supplied on request. 11
Wiring Diagrams
152-2MOEA03K1-CD EC
20/06/2018
MK-152-2MOEA03K1-CD Issue: Saved Date:A
ALL WIRING AND CONTROLS EQUIPMENT MUST COMPLY TO THE
LATEST IET REGULATIONS, IN PARTICULAR PART 552-01-02/03
200 - 277V 1PH 50Hz
MAINS SUPPLY
(SEE ACO NOTE)
FOR USE WITH:
SQT400-1ECL
SQT500-1ECL
STDR400-1EC
STDR500-1EC
REMOVE LINK WHEN USING
EXTERNAL POTENTIOMETER OR
EXTERNAL CONTROL SIGNAL
POTENTIOMETER FOR SINGLE
SPEED ADJUSTMENT OR MAX
SPEED SELECTION
CONTROLS
POWER
BLUE
BROWN
L1 N1 GND
24V 10V D1 E1
149-CD-POT
ST2
ST1
GND E1
MAXMIN
E110VGND
GREEN/YELLOW
BROWN
BLUE
TWIN FAN
142
112141111
N2
L2
1PH EC TWIN FAN C/W 149-CD-POT
L1 N1 L2 N2 PE
2
1
4
3
G/Y (X2)
5
6
7
8
1
2
3
4
5
NOTE:
AUTO CHANGE-OVER PANEL NOT
SHOWN FOR CLARITY.
WAGO BLOCK USED.
200 - 277V 1PH 50Hz
MAINS SUPPLY
(SEE ACO NOTE)
FOR USE WITH:
SQT400-1ECL
SQT500-1ECL
STDR400-1EC
STDR500-1EC
JUMPER
REMOVED*
MAX SPEED
TRIMMER
CONTROLS
POWER
BLUE
BROWN
L1 N1 GND
24V 10V D1 E1
149-CD-POT
ST2
ST1
GND E1
MAXMIN
E110VGND
2 7 6 5
149-POT-10
1
GREEN/YELLOW
BROWN
BLUE
TWIN FAN
142
112141111
N2
L2
1PH EC TWIN FAN C/W 149-CD-POT & 149-POT-10
L1 N1 L2 N2 PE
2
1
4
3
G/Y (X2)
5
6
7
8
1
2
3
4
5
NOTE:
AUTO CHANGE-OVER PANEL NOT
SHOWN FOR CLARITY.
*JUMPER REMOVED WHEN EXTERNAL
CONTROL SOURCE IS USED.
WAGO BLOCK USED.
All wiring and control equipment must comply to the latest IEE regulations, in particular part 552-01-02/03.
MK-152-2MOEA03K1-CD Issue A: 20.06.2018
Check the individual product accessories table for fan controller compatibility.

Tel [phone] Fax [phone] Email [email protected] Website eltafans.com12
Wiring Diagrams
152-2MOEA03K3 EC
1 2 67 5
149-POT-10
24V 10V GND D1 E1
2L3
FAN
FAN 1
TO MOTOR
GREEN/YELLOW
GREEN/YELLOW
1L1 1L2 1L3 142141 112
2L1 2L2
FAN 2
BROWN
BLACK
GREY
BLUE
GREEN/YELLOW
380 - 440V 3PH 50 Hz SUPPLY
ACO PANEL
TERMINAL BOX
ACO PANEL TYPES:
AC03/B AC03/BDV
AC03/BV AC03/BO
AC03/BD AC03/BDVO
L1 L2 L3 N E
FAN1FAN2
ONLY APPLICABLE
TO SUFFIX
'O'
MODELS
'V'
MODELS
ENABLE
VFC
FAIL
N/O
5 4 3 26E 7 1 W W V U L1 L2 L3 N E
AC03/BDO
FULL SPEED CONFIGURATION - WITH ACO PANEL
111
UV
ENL3L2L1UVWW17E 6 2345
FAIL
N/O
ENABLE
VFC
'V'
MODELS
'O'
MODELS
ONLY APPLICABLE
TO SUFFIX
FAN2 FAN1
ENL3L2L1
ACO PANEL
TERMINAL BOX
ACO PANEL TYPES:
AC03/B AC03/BDV
AC03/BV AC03/BO
AC03/BD AC03/BDVO
380 - 440V 3PH 50 Hz SUPPLY
GREEN/YELLOW
BLUE
GREY
BLACK
BROWN
FAN 2
2L22L1 112141 142
1L31L2
FAN
2L3 E1D1
GND10V24V
UV
FULL SPEED CONFIGURATION - WITH ACO PANEL
111
AC03/BDO
ALL WIRING AND CONTROL EQUIPMENT MUST COMPLY TO THE
LATEST IEE REGULATIONS, IN PARTICULAR PART 552-01-02/03
06/01/2014
MK-152-2MOEA03K3 Issue: Saved Date:B
All wiring and control equipment must comply to the latest IEE regulations, in particular part 552-01-02/03.
MK-152-2MOEA03K3 Issue B: 06.01.2014
Check the individual product accessories table for fan controller compatibility.

Elta Fans Limited has a policy of continuous product development and improvement and therefore reserves the right to supply products which may differ from those illustrated and described in this publication.
Confirmation of dimensions and data will be supplied on request. 13
Wiring Diagrams
152-2MOEA03K3-CD EC
20/06/2018
MK-152-2MOEA03K3-CD Issue: Saved Date:A
ALL WIRING AND CONTROLS EQUIPMENT MUST COMPLY TO THE
LATEST IET REGULATIONS, IN PARTICULAR PART 552-01-02/03
380-480V 3PH 50Hz
MAINS SUPPLY (SEE ACO NOTE)
FOR USE WITH:
SQT500-3ECL
STDR500-3EC
JUMPER
REMOVED*
MAX SPEED
TRIMMER
CONTROL
POWER
1L1 GND
24V 10V D1 E1
149-CD-POT
ST2
ST1
GND E1
MAXMIN
E110VGND
2 7 6 5
149-POT-10
1
GREEN/YELLOW
TWIN FAN
142
112141111
3PH EC TWIN FAN C/W 149-CD-POT & 149-POT-10
2
1
4
3
G/Y (X2)
7
8
9
10
1
2
3
4
5
1L2 1L3 2L32L2
2L1
5
6
L1 L2 L3 L1 L2 L3 PE
BROWN
GREY
BLACK
BROWN
GREY
BLACK
NOTE:
AUTO CHANGE-OVER PANEL NOT
SHOWN FOR CLARITY.
*JUMPER REMOVED WHEN EXTERNAL
CONTROL SOURCE IS USED.
WAGO BLOCK USED
380-480V 3PH 50Hz
MAINS SUPPLY (SEE ACO NOTE)
FOR USE WITH:
SQT500-3ECL
STDR500-3EC
REMOVE LINK WHEN USING
EXTERNAL POTENTIOMETER OR
EXTERNAL CONTROL SIGNAL
POTENTIOMETER FOR SINGLE
SPEED ADJUSTMENT OR MAX
SPEED SELECTION
CONTROL
POWER
1L1 GND
24V 10V D1 E1
149-CD-POT
ST2
ST1
GND E1
MAXMIN
E110VGND
GREEN/YELLOW
TWIN FAN
142
112141111
3PH EC TWIN FAN C/W 149-CD-POT
2
1
4
3
G/Y (X2)
7
8
9
10
1
2
3
4
5
1L2 1L3 2L32L2
2L1
5
6
L1 L2 L3 L1 L2 L3 PE
BROWN
GREY
BLACK
BROWN
GREY
BLACK
NOTE:
AUTO CHANGE-OVER PANEL NOT
SHOWN FOR CLARITY.
WAGO BLOCK USED.
All wiring and control equipment must comply to the latest IEE regulations, in particular part 552-01-02/03.
MK-152-2MOEA03K3 Issue A: 20.06.2018
Check the individual product accessories table for fan controller compatibility.

Tel [phone] Fax [phone] Email [email protected] Website eltafans.com14
EC Declaration of Conformity EC Declaration of Incorporation
Description of Equipment:
Building Services Ranges - Air movement fan
Equipment model numbers for safe area fans:
SCP, SPA, SAX, SCD, SDA, SCC, SLC, SCPP, SPP, SAMF, HIT, SEM,
SEL, ISEO IMF, SH, SSD, SQS, SQSDCV, SQU, SMB, STD, SQT, SQT-
DCV, SCH, SCHT, SSDR, SSDRDCV, STDR, STDRDCV, SB, SQU-HT,
SSQU-HT, SDF, ZFHIC, SRC, CF, TF
Relevant / applied directives:
Machinery directive 2006/42/EC, Low voltage directive 2014/35/EU
Relevant / applied directives where applicable:
Energy related products directive 2009/125/EC (when used in Europe)
Electromagnetic compatibility directive 2014/30/EU (where driven via
Inverter)
Relevant / applied directives where applicable:
BS EN ISO 12100 : 2010
BS EN 14694 : 2003 + A1 : 2011
BS EN 308:1997
BS EN ISO 5801:2008
In accordance with the Machinery Directive 2006/42/EC;
The design of the partly completed machine, listed above, complies
with the Essential Health and Safety Requirements (EHSRs) of ANNEX
I, sections 1.1.2, 1.1.5, 1.4.1, 1.5.1 in EC Machinery Directive 2006/42/
EC.
Machinery is incomplete and must not be put into service until such
time as the machinery which is partly complete, is to be incorporated,
and has been assessed and Declared in Conformity with the provi-
sions of any relevant parts of the Machinery Directive.
We undertake to transmit, upon reasoned request by appropriate na-
tional authorities, relevant information relating to the partly completed
machinery identified above.
Manufacturer:
Elta Fans Limited
46 Third Avenue
Pensnett Trading Estate
Kingswinford
West Midlands
DY6 7US
United Kingdom
Date / Signature of Manufacturer: Document last revised: 28th March 2017
Name / Position of Signatory: Mr. Robert Rees Q.A.Manager Elta Fans Ltd
This is an electronic document and is valid without a signature or date. Issue Status B
Herewith we declare that the air movement equipment below, on the basis of its design and construction as partly completed
machines brought onto the market complies with relevant health and safety requirements of the EC Directives stated below. In the
event that alterations are made to the machinery without prior consent from Elta Fans Ltd, this declaration becomes invalid.
EC Declaration of
conformity/incorporation

535-IOM0039 Issue A
eltafans.com
Tel [phone]
Fax [phone]
Email [email protected].uk
46 Third Avenue, Pensnett Trading Estate, Kingswinford,
West Midlands, DY6 7US United Kingdom
Tel [phone]
Fax [phone]
Email [email protected] /[e-mail]
17 Barnes Wallis Road, Segensworth East Industrial Estate,
Fareham, Hampshire, PO15 5ST United Kingdom
Applied Technology &
Building Services Export
Building Services
BS EN ISO 9001:2015 FM 556465
A member of
HEVAC ASSOCIATION
