Thank you for buying this AIS Class B transceiver.
This product has been engineered to offer you the highest level of
performance and durability and we hope that it will provide many years of
reliable service. We constantly strive to achieve the highest possible
quality standards, should you encounter any problems with this product,
please contact your dealer who will be pleased to offer whatever
assistance you require.
emtrack B212 manual v1.book Page 2 Friday, February 25, 2011 1:43 PM

1 Notices ..................................................................................................1
1.1 Safety warnings......................................................................................1
1.2 General notices......................................................................................1
2 About your AIS class B transceiver ...................................................3
2.1 About AIS...............................................................................................3
2.2 Static and dynamic vessel data..............................................................4
2.3 What's in the box?..................................................................................5
3 Installation ............................................................................................7
3.1 Preparing for Installation ........................................................................7
3.2 Installation procedures...........................................................................8
4 Configuring your AIS transceiver.....................................................15
4.1 Switching on your AIS transceiver for the first time..............................15
4.2 Introduction to the proAIS software......................................................16
4.3 Installing the proAIS software...............................................................16
4.4 Configuration using proAIS ..................................................................17
5 Operation ............................................................................................18
5.1 Using the AIS transceiver.....................................................................18
5.2 Indicator functions................................................................................18
5.3 Switch functions ...................................................................................19
5.4 Using proAIS with your AIS transceiver ...............................................19
6 Troubleshooting.................................................................................23
7 Specifications.....................................................................................24
Figure 1 The AIS network........................................................................ 3
Figure 2 Items included in the product.....................................................5
Figure 3 AIS transceiver overview........................................................... 6
Figure 4 Electrical connections to the AIS transceiver ............................6
Figure 5 Typical installation configuration................................................ 7
Figure 6 AIS transceiver dimensions....................................................... 9
Figure 7 AIS transceiver mounting ........................................................10
Figure 8 GPS antenna mounting........................................................... 11
Figure 9 Position of the GPS antenna connector .................................. 11
Figure 10 Position of the VHF antenna connector...................................11
Figure 11 NMEA0183 output connections...............................................12
Figure 12 Switch connections..................................................................13
Figure 13 RS232 connection...................................................................14
Figure 14 Connecting the power supply.................................................. 14
Figure 15 Indicators.................................................................................15
Figure 16 Entering static data into proAIS...............................................16
Figure 17 proAIS GPS status page ......................................................... 20
Figure 18 proAIS Diagnostics page......................................................... 20
Figure 19 proAIS Other vessels page...................................................... 21
Figure 20 proAIS Messages page........................................................... 21
Figure 21 proAIS Serial data page ..........................................................22
Table of contents Table of figures
emtrack B212 manual v1.book Page 1 Friday, February 25, 2011 1:43 PM

Notices
Page 1
1Notices
1.1 Safety warnings
1.2 General notices
Position source
All marine Automatic Identification System (AIS) transceivers utilise
a satellite based location system such as the Global Positioning
Satellite (GPS) network.
The accuracy of a GPS position fix is variable and is affected by
factors such as the antenna positioning, how many satellites are
used to determine a position and for how long satellite information
has been received.
Compass safe distance
The compass safe distance of this unit is 0.5m or greater for 0.3°
deviation.
RF emissions notice
Caution: The AIS transceiver generates and radiates radio
frequency electromagnetic energy. This equipment must be
installed and operated according to the instructions contained in this
manual. Failure to do so can result in personal injury and / or AIS
transceiver malfunction.
Caution: Never operate the AIS transceiver unless it is connected to
a VHF antenna.
To maximise performance and minimise human exposure to radio
frequency electromagnetic energy you must make sure that the
antenna is mounted at least 1.5 meters away from the AIS
transceiver and is connected to the AIS transceiver before power is
applied. The system has a Maximum Permissible Exposure (MPE)
radius of 1.5m. This has been determined assuming the maximum
power of the AIS transceiver and using antennas with a maximum
gain of 3dBi. The antenna should be mounted 3.5m above the deck
in order to meet RF exposure requirements. Higher gain antennas
will require a greater MPE radius. Do not operate the unit when
anyone is within the MPE radius of the antenna (unless they are
shielded from the antenna field by a grounded metallic barrier).
The antenna should not be co-located or operated in conjunction
with any other transmitting antenna.
The required antenna impedance is 50 ohms.
!
When reading this manual please pay attention to
warnings marked with the warning triangle shown on
the left. These are important messages for safety,
installation and usage of the product.
!
This equipment must be installed in accordance with
the instructions provided in this manual.
!
This equipment is intended as an aid to navigation and
is not a replacement for proper navigational judgement.
!
Do not install this equipment in a flammable
atmosphere such as in an engine room or near to fuel
tanks.
emtrack B212 manual v1.book Page 1 Friday, February 25, 2011 1:43 PM

Notices
Page 2
Disposal of this product and packaging
Please dispose of the AIS transceiver in accordance with the
European WEEE Directive or with the applicable local regulations
for disposal of electrical equipment.
Every effort has been made to ensure the packaging for this product
is recyclable. Please dispose of the packaging in an environmentally
friendly manner.
Accuracy of this manual
The AIS transceiver may be upgraded from time to time and future
versions of the AIS transceiver may therefore not correspond
exactly with this manual. Information contained in this manual is
liable to change without notice. The manufacturer of this product
disclaims any liability for consequences arising from omissions or
inaccuracies in this manual and any other documentation provided
with this product.
Declaration of conformity
The manufacturer of this product declares that this product is in
compliance with the essential requirements and other provisions of
the R&TTE directive 1995/5/EC.
The product carries the CE mark, notified body number and alert
symbol as required by the R&TTE directive.
The product is intended for sale in the following member states:
Great Britain, France, Spain, Sweden, Austria, Netherlands,
Portugal, Denmark, Norway, Belgium, Italy, Finland, Ireland,
Luxembourg, Germany, Czech Republic.
emtrack B212 manual v1.book Page 2 Friday, February 25, 2011 1:43 PM

About your AIS class B transceiver
Page 3
2 About your AIS class B
transceiver
2.1 About AIS
The marine Automatic Identification System (AIS) is a location and
vessel information reporting system. It allows vessels equipped with
AIS to automatically and dynamically share and regularly update
their position, speed, course and other information such as vessel
identity with similarly equipped vessels. Position is derived from the
Global Positioning System (GPS) and communication between
vessels is by Very High Frequency (VHF) digital transmissions.
Figure 1 The AIS network
There are a number of types of AIS device as follows:
•Class A transceivers. These are similar to class B transceivers,
but are designed to be fitted to large vessels such as cargo ships
and large passenger vessels. Class A transceivers transmit at a
higher VHF signal power than class B transceivers and therefore
can be received by more distant vessels, and also transmit more
frequently. Class A transceivers are mandatory on all vessels
over 300 gross tonnes on international voyages and certain types
of passenger vessels under the SOLAS mandate.
•Class B transceivers. Similar to class A transceivers in many
ways, but are normally lower cost due to the less stringent
performance requirements. Class B transceivers transmit at a
lower power and at a lower reporting rate than class A
transceivers.
•AIS basestations. AIS basestations are used by Vessel Traffic
Systems to monitor and control the transmissions of AIS
transceivers.
•Aids to Navigation (AtoN) transceivers. AtoNs are
transceivers mounted on buoys or other hazards to shipping
which transmit details of their location to the surroundingvessels.
•AIS receivers. AIS receivers will generally receive transmissions
from class A transceivers, class B transceivers, AtoNs and AIS
basestations but do not transmit any information about the vessel
on which they are installed.
The em-trak B212 is a Class B AIS transceiver.
emtrack B212 manual v1.book Page 3 Friday, February 25, 2011 1:43 PM

About your AIS class B transceiver
Page 4
2.2 Static and dynamic vessel data
There are two categories of information transmitted by an
AIS transceiver
: static and dynamic data.
The vessel's dynamic data, which includes location, speed over
ground (SOG) and course over ground (COG), is calculated
automatically using the internal GPS receiver.
Static data is information about the vessel which must be
programmed into the AIS transceiver. This includes:
• Maritime Mobile Service Identity (MMSI)
• Vessel name
• Vessel call sign (if available)
• Vessel type
• Vessel dimensions
In most countries the operation of an AIS transceiver is included
under the vessel's marine VHF licence provisions. The vessel on to
which the AIS unit is to be installed must therefore possess a
current VHF radiotelephone licence which lists the AIS system,
vessel Call Sign and MMSI number.
!
An MMSI number is required in order for the AIS
transceiver to operate. Please contact the relevant
authority in your country for more information.
emtrack B212 manual v1.book Page 4 Friday, February 25, 2011 1:43 PM

About your AIS class B transceiver
Page 5
2.3 What's in the box?

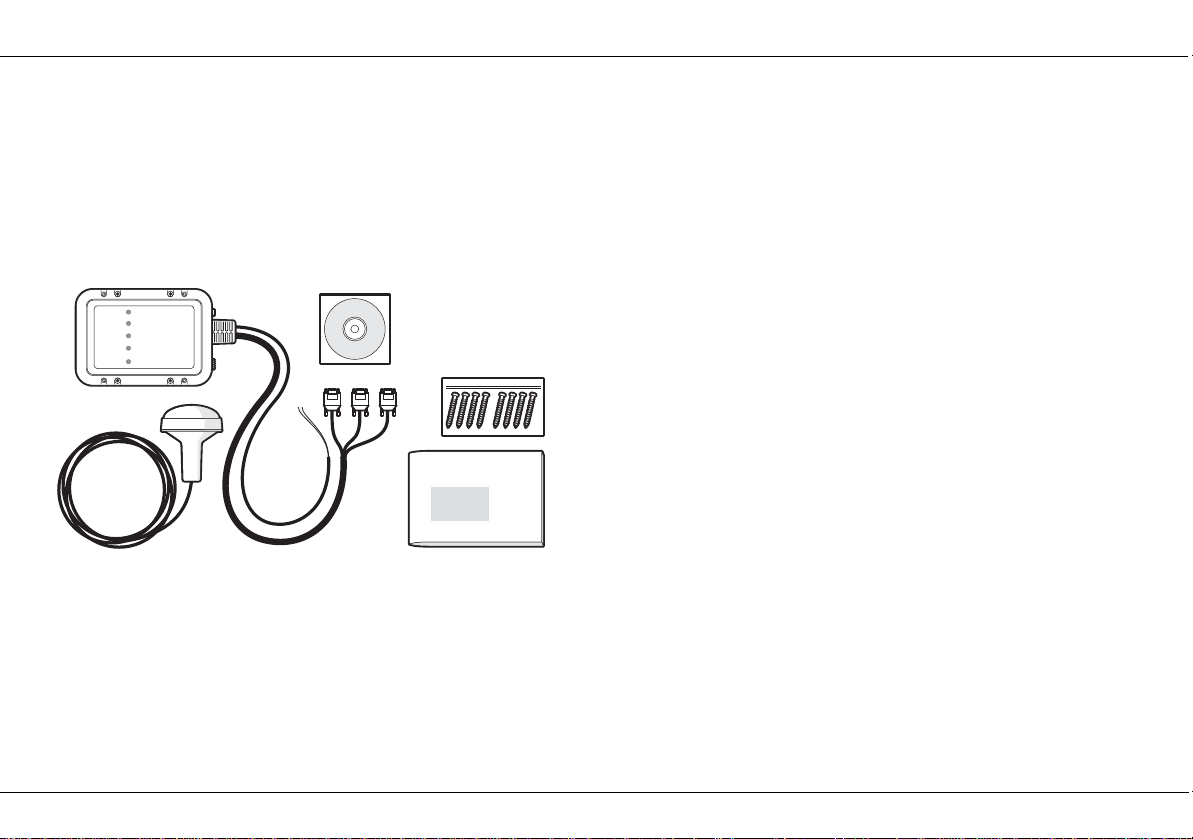

Figure 2 shows the items included with your AIS transceiver
purchase. The following sections give a brief overview of each item.
Please ensure all items are present and if any of the items are not
present contact your dealer.
Figure 2 Items included in the product
•ProductCD
The CD supplied with the package contains the proAIS software tool
necessary to configure the AIS transceiver. Please refer to section 4

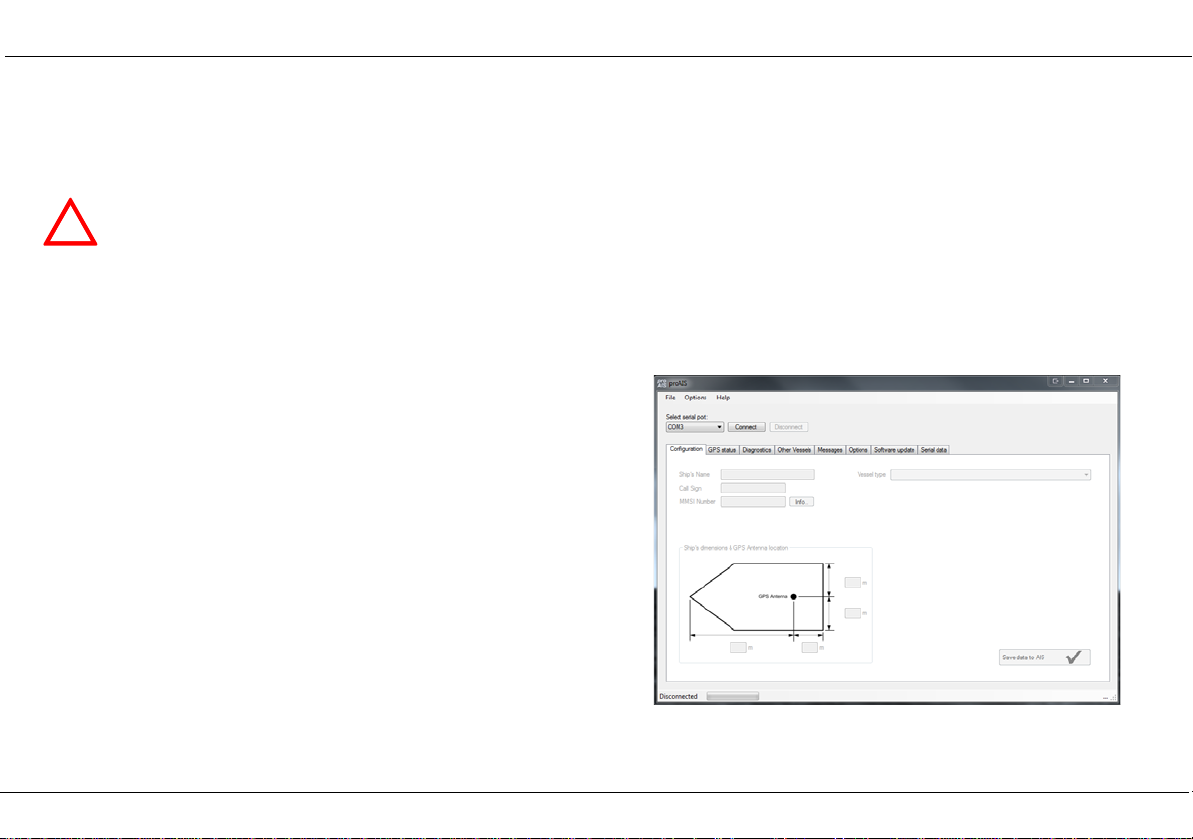

for details of the configuration process and how to use the proAIS
tool.
• Product manual
This document is the product manual and should be read thoroughly
prior to any attempt to install or use the AIS transceiver.
• GPS antenna
The GPS antenna forms an integral part of the product's internal
positioning system based on GPS. Please refer to section 3.2 for
details of how to install the GPS antenna.
•Fixingscrews
Fixing screws are provided with the product for mounting of the AIS
transceiver. Please refer to section 3.2 for details of how to mount
the AIS transceiver.
• AIS transceiver unit
Figure 3 shows an overview of the AIS transceiver unit.
The AIS transceiver has a number of indicators which provide
information to the user about the status of the AIS transceiver.
Please refer to section 5.2 for more details of indicator functions.
Product manual
GPS Antenna
Class B AIS transceiver
Screws
(packet of 8)
Product CD
emtrack B212 manual v1.book Page 5 Friday, February 25, 2011 1:43 PM

About your AIS class B transceiver
Page 6
Figure 3 shows key features of the AIS transceiver. Please refer to
section 3.2 for details of how to mount the AIS transceiver.
Figure 3 AIS transceiver overview
Electrical connections
The AIS transceiver has the following connections provided by the
attached cables:
• Power supply
• RS232 for connection to a PC
• NMEA0183 output for chart plotter
• Switch connections for high power transmit mode and silent
mode
In addition there are two other connections for the GPS antenna
and the VHF antenna.

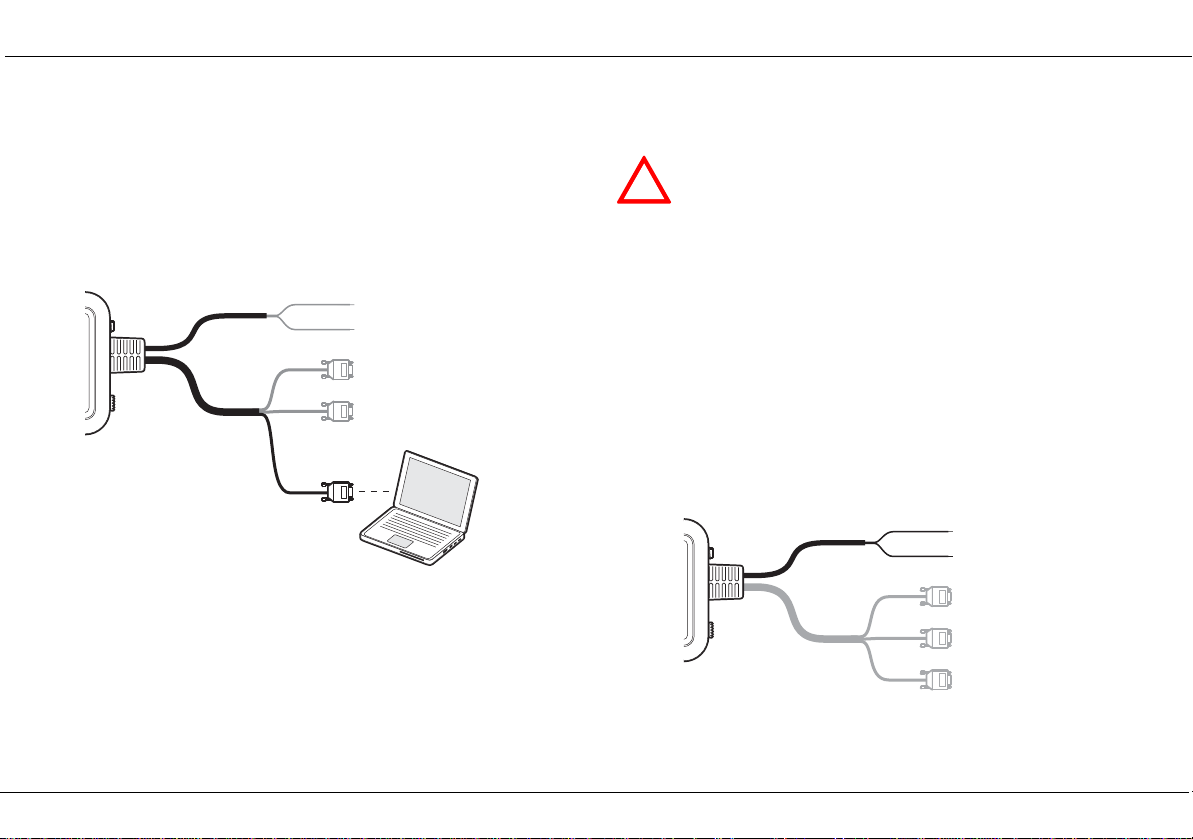

Figure 4 Electrical connections to the AIS transceiver
!
Do not attempt to adjust or remove the fixings next to
each of the four mounting holes. These fixings form
part of the sealing of the AIS transceiver and any
modification could affect the product's performance
and will invalidate the product's warranty.
Mounting
holes
Mounting
holes
Power and data cables
VHF antenna connector GPS antenna connector
Indicator lights
Power in
Switches
Green
NMEA
Blue
RS232
Red
Class B AIS transceiver
emtrack B212 manual v1.book Page 6 Friday, February 25, 2011 1:43 PM

Installation
Page 7
3Installation
3.1 Preparing for Installation
Figure 5 shows a typical installation configuration for the AIS
transceiver. Please take the time to familiarise yourself with the
system elements and their connections prior to attempting
installation.

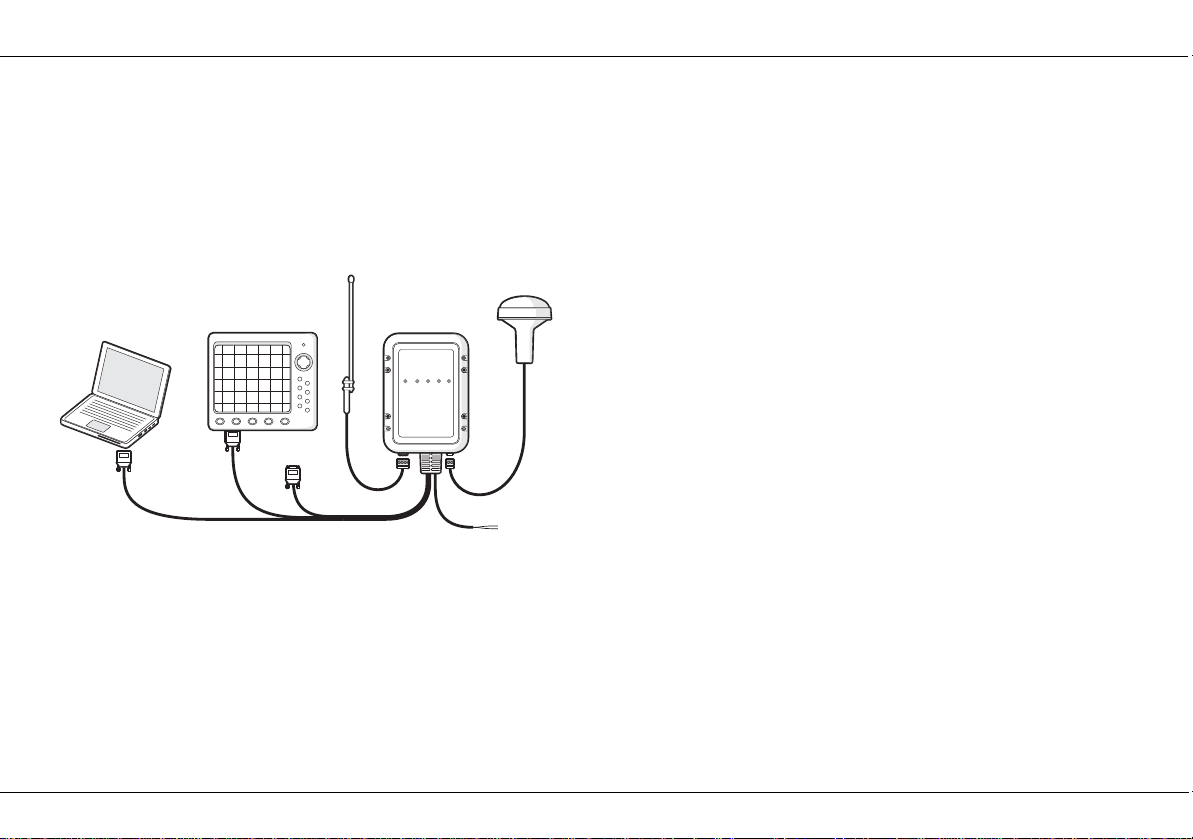

Figure 5 Typical installation configuration
In addition to the items provided with your AIS transceiver the
following items will be required for installation:
VHF antenna
Connection to a suitable VHF antenna will be required for the AIS
transceiver to operate. A standard marine band VHF antenna such
as that used with VHF voice radios will be sufficient. Please take
note of the warnings in section 1regarding the use of antennas.
Antenna cables
If the supplied GPS antenna cable is not sufficient to reach between
the desired GPS antenna location and the AIS transceiver unit you
will need an extension cable. Please contact your dealer for details.
For reference the GPS antenna connector type on the AIS
transceiver unit is TNC receptacle, and is intended to mate with a
TNC jack connector.
Please check that the VHF antenna you intend to use has sufficient
cable to reach between the VHF antenna and the AIS transceiver
unit. If it is not sufficient you will need an extension cable. Please
contact your dealer for details of suitable products. For reference
the VHF antenna connector type on the AIS transceiver unit is SO
239, and is intended to mate with a PL 259 connector.
Power and data cables
The AIS transceiver unit is supplied with a one metre long power
and data cable as an integral part of the AIS transceiver unit. If you
require longer cables to reach your power supply, please ensure the
cables are capable of carrying currents of up to 2A peak and 500mA
on average. Means of connecting the cables together will also be
required. The use of Scotchlok
TM
connectors is recommended for
this purpose.
Connection to a Chartplotter
An optional chartplotter can be connected to the AIS transceiver in
order to display AIS targets. The chartplotter should be connected
Power in
GPS Antenna
Class B AIS transceiverChartplotter
Switches
VHF Antenna
PC (optional)
emtrack B212 manual v1.book Page 7 Friday, February 25, 2011 1:43 PM

Installation
Page 8
to the NMEA0183 output connector as described in section 3.2.
Please refer to the chart plotter manufactures documentation for
further details on connection of AIS equipment and display
configuration.
Connection to a PC
The RS232 port can be used to connect the AIS equipment to a PC.
This allows the AIS transceiver to be configured with vessel data
using the supplied proAIS software. After configuration this
connection can also be used to display AIS target information in AIS
compatible PC charting applications.
GPS antenna mount
A one inch 14 TPI pole mount is required to mount the supplied
GPS antenna. Please contact your dealer for details of suitable
products.
3.2 Installation procedures
Before beginning installation of your AIS transceiver, please ensure
you have the necessary additional items as detailed in section 3.1. It
is strongly recommended that you read all of the instructions in this
manual prior to installation.
If after reading this manual you are unsure about any element of the
installation process please contact your dealer for advice.
The following sections explain the installation process step by step
for each of the main elements of the system.
Step 1 - Installing the AIS transceiver
Please note the following guidelines when selecting a location for
your AIS transceiver:
• The AIS transceiver must be fitted in a location where it is at least
0.5m from a compass or any magnetic device.
• There should be adequate space around the AIS transceiver for
routing of cables. See Figure 6 for details of the AIS transceiver
dimensions.
• The ambient temperature around the AIS transceiver should be
maintained between -10°C and +55°C.
• The AIS transceiver should not be located in a flammable or
hazardous atmosphere such as in an engine room or near to fuel
tanks.
• The AIS transceiver is fully waterproof to ingress protection
rating IPx7, however it is recommended that the AIS transceiver
is not subjected to extended periods of exposure to spray or
submersion.
emtrack B212 manual v1.book Page 8 Friday, February 25, 2011 1:43 PM

Installation
Page 9
• It is recommended that the AIS transceiver is installed in a 'below
decks' environment.
• It is acceptable to mount the AIS transceiver either vertically or
horizontally.
• The product is supplied with four self tapping screws for
attachment of the AIS transceiver to a suitable surface. Please
refer to Figure 7 for guidance.
• The AIS transceiver should be mounted in a location where the
indicators are readily visible as these provide important
information on the status of the AIS transceiver.
Figure 6 AIS transceiver dimensions
215 mm
84 mm
185 mm
150 mm
137 mm 67 mm
emtrack B212 manual v1.book Page 9 Friday, February 25, 2011 1:43 PM

Installation
Page 10
Figure 7 AIS transceiver mounting
Step 2 - Installing the GPS antenna
For mounting of the GPS antenna provided with your AIS
transceiver you will require a one inch 14 TPI thread pole.
You should ensure the GPS antenna has a good clear view of the
entire sky.
It is not recommended that the GPS antenna is mounted up a mast
where the motion of the vessel will cause the antenna to swing and
potentially reduce the accuracy of the GPS position.
Do not mount your antenna in the direct path of a radar transmitter.
Feed the ten metre long cable attached to the GPS antenna cable
through the pole and screw the antenna onto the pole mount as
shown in Figure 8.
Route the cable to your AIS transceiver unit, adding any necessary
extension cables.
Connect the cable from the GPS antenna to the GPS connector on
the AIS transceiver as shown in Figure 9.
emtrack B212 manual v1.book Page 10 Friday, February 25, 2011 1:43 PM

Installation
Page 11

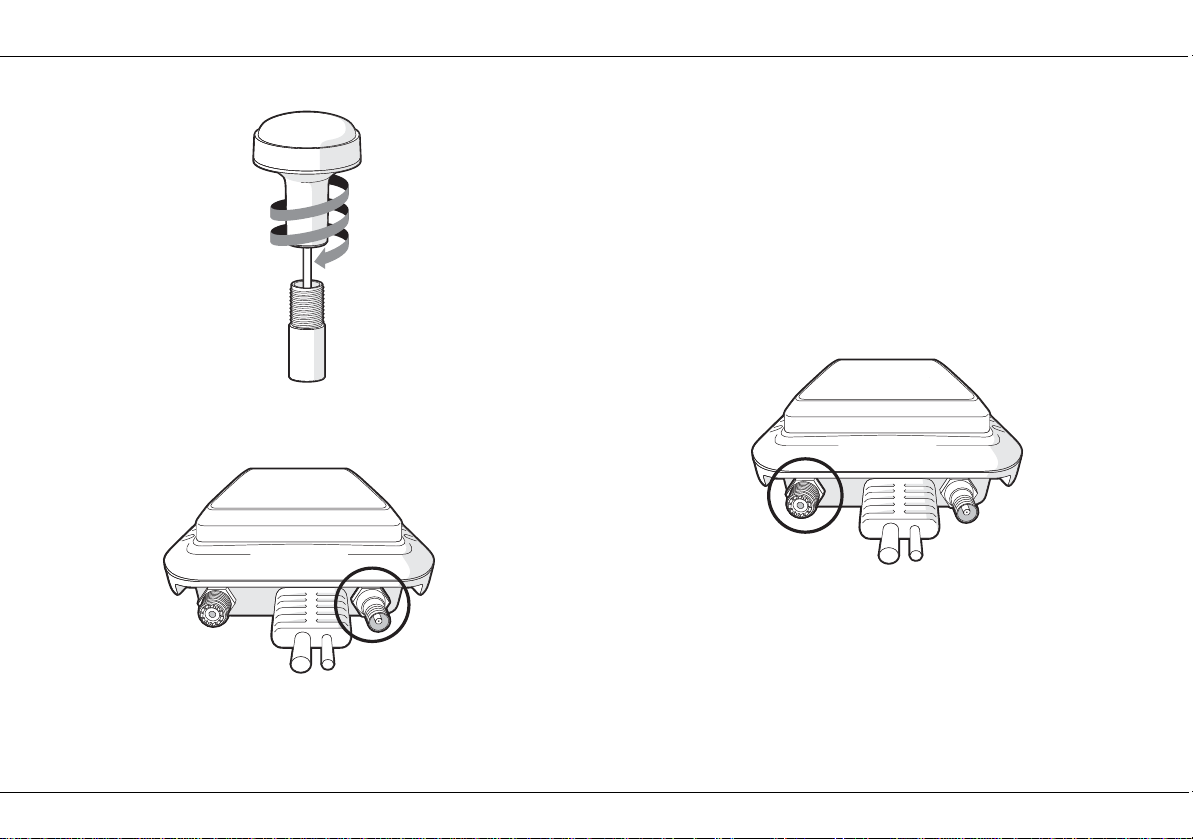

Figure 8 GPS antenna mounting
Figure 9 Position of the GPS antenna connector
Step 3 - Connecting the VHF antenna
Route the cable from the VHF antenna to the AIS transceiver and
connect to the VHF connector on the AIS transceiver as shown in
Figure 10.
A standard marine band VHF antenna or AIS antenna should be
used with the AIS transceiver. The connector type on the AIS
transceiver is SO239. Your chosen VHF antenna requires a PL259
connector to mate with this. If your VHF antenna does not use this
type of connector please contact your dealer for details of available
adaptors.
Figure 10 Position of the VHF antenna connector
GPS Antenna
VHF Antenna
GPS Antenna
VHF Antenna
emtrack B212 manual v1.book Page 11 Friday, February 25, 2011 1:43 PM

Installation
Page 12
Step 4 - Connecting to a chart plotter
The NMEA0183 data port (blue label) provides the connection to
your chartplotter. Connection can either be made using the 9 way D-
type connector provided, or by cutting off the connector and
connecting the wires according to the colour code in the tables
below. The NMEA0183 connections are also described in Figure 11.
Connect the wires to the appropriate connections on your chart
plotter. Please refer to your chart plotter manual for more
information.
The NMEA0183 data port operates at a baud rate of 38400. Please
ensure your chart plotter is configured to receive data from the AIS
transceiver via its NMEA0183 port at 38400 baud.

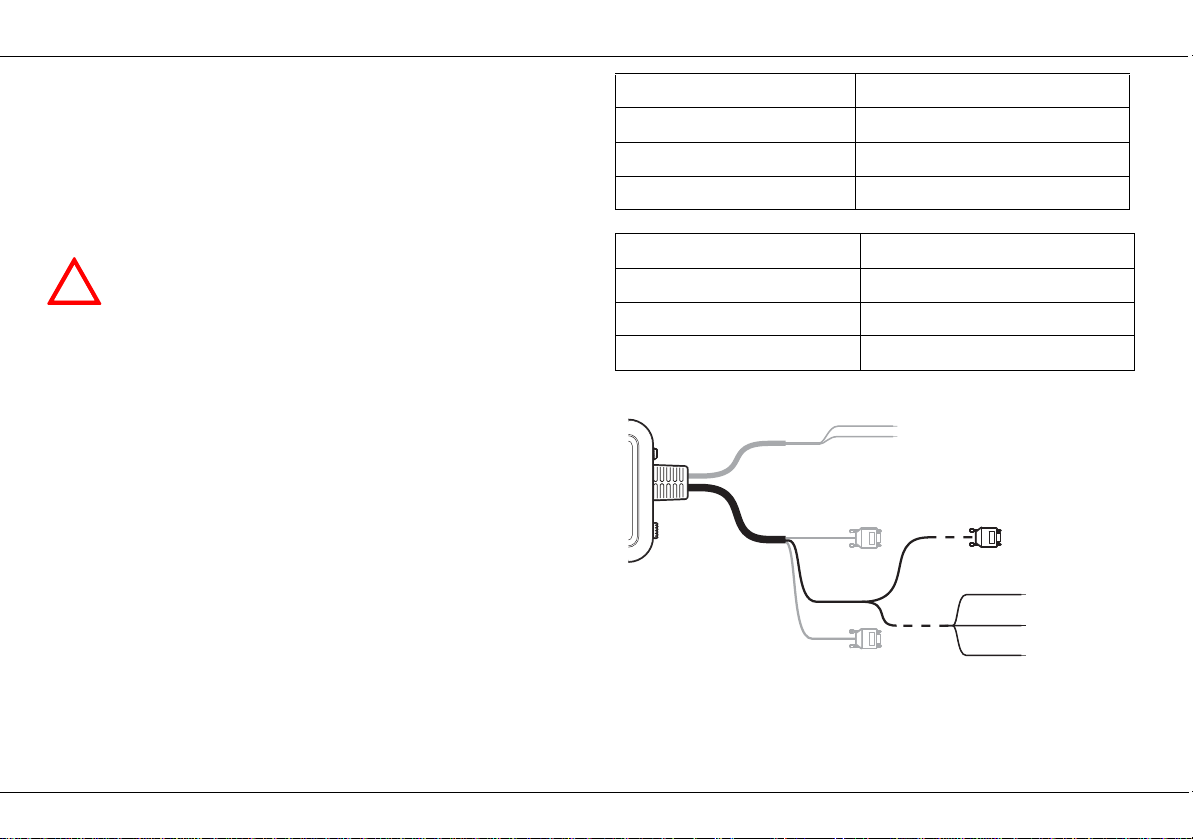

Figure 11 NMEA0183 output connections
NMEA0183 function Wire colour (if connector removed)
Transmit+ Red
Transmit- Black
NMEA0183 function Connector pin (blue connector)
Transmit+ Pin 2
Transmit- Pin 5
Red
Black
Transmit +
Transmit –
Power
NMEA output
(Blue label)
(wire colours if connector removed)
emtrack B212 manual v1.book Page 12 Friday, February 25, 2011 1:43 PM

Installation
Page 13
Step 5 - Connecting mode switches
The mode switches connector (green label) provides connections
for two toggle switches (not supplied). These switches can be used
to control the AIS transceiver silent mode and transmitter power
mode. When enabled, silent mode will block all transmissions from
your AIS transceiver. You will continue to receive position reports
from other AIS equipped vessels.
Warning: Your AIS position is not visible to other AIS
equipped vessels when silent mode is active.
The transmitter power mode switch is used to adjust the transmitter
power between 2W (Class B default) and 12.5W (high power
mode). Use of the high power transmit mode may be subject to
authorisation by the relevant local authority.
Switch connections can either be made using the 9 way D-type
connector provided, or by cutting off the connector and connecting
the wires according to the colour code in the tables below. The
switch connections are also described in Figure 12. The switches
must be latching toggle switches connected between the switch
input and ground connection provided. Do not connect any voltage
source to the mode switch inputs.
Figure 12 Switch connections
!
Switch connection Connector pin (green connector)
Transmit power mode switch input 3
Silent mode switch input 9
Switch ground connection 6
Switch connection Wire colour (if connector removed)
Transmit power mode switch input Orange
Silent mode switch input Yellow
Switch ground connection Violet
Orange
Yellow
Transmit power
mode switch input
Silent mode
switch input
Power
Mode switches
(Green label)
Violet Switch ground
emtrack B212 manual v1.book Page 13 Friday, February 25, 2011 1:43 PM

Installation
Page 14
Step 6 - Connecting to a PC
The AIS transceiver is supplied with an RS232 port for connection
to a PC. The RS232 connector (red label) can be connected directly
to the RS232 port on the PC or via a serial to USB converter if no
RS232 port is available. For configuration of the AIS transceiver it is
necessary to connect to a PC if your AIS transceiver has not been
pre-configured by your dealer. See section 4 for more details of
configuration. The RS232 connection is also described in Figure 13.
Figure 13 RS232 connection
Step 7 - Connecting to a power supply
The AIS transceiver requires a 12V power supply typically provided
by the vessel's battery.
It is recommended that crimped and soldered lugs are used to
connect the AIS transceiver to the power source. It is recommended
that the power supply is connected via a suitable circuit breaker
and/or 3A fuse block.
1. Connect the red wire to a 12V power supply positive terminal.
2. Connect the black wire to the supply negative terminal.
The power connections are shown in Figure 14.
Figure 14 Connecting the power supply
Red
Black
Power supply +
Power supply –
NMEA0183 (Blue connector)
Mode switches (Green connector)
RS232
(Red connector)
!
Do not use a 24V power supply with the AIS
transceiver. Should a 24V supply be connected to the
AIS transceiver, an internal protection system will be
invoked and the AIS transceiver will not operate as
normal. However, no permanent damage will be caused
to the AIS transceiver. The AIS transceiver will operate
as normal once connected to a 12V power supply.
Red
Black
Power supply+
Power supply–
emtrack B212 manual v1.book Page 14 Friday, February 25, 2011 1:43 PM

Configuring your AIS transceiver
Page 15
4 Configuring your AIS
transceiver
4.1 Switching on your AIS transceiver
for the first time
A few seconds after applying power to the AIS transceiver for the
first time all five indicators will blink twice. The indicator sequence
following this will depend on whether your transceiver is pre-
configured.
Transceiver is pre-configured:
The amber indicator will illuminate until the transceiver has
transmitted an AIS message.
Transceiver is not pre-configured:
The amber and red indicator will illuminate. This indicates the unit
cannot transmit until it is configured with a valid MMSI.
Figure 15 Indicators
Prior to use the AIS transceiver requires programming with the
vessel's static data to ensure that the data transmitted by the AIS
transceiver matches that of the host vessel.
+
Power
(green)
Transmit
timeout
(amber)
Error
(red)
Silent
mode
(blue)
High power
mode
(red)
!
US Customers only: It is a violation of the rules of the
Federal Communications Commission for the end user
to programme the static data. The static data must only
be programmed by a competent installer. If your AIS
transceiver has not been preconfigured for you please
refer to your dealer for advice on how to have the AIS
transceiver configured by a competent installer.
emtrack B212 manual v1.book Page 15 Friday, February 25, 2011 1:43 PM

Configuring your AIS transceiver
Page 16
4.2 Introduction to the proAIS software
Included in the CD supplied with your product is a configuration
software tool called 'proAIS'.
proAIS is a software tool which provides the facility to configure,
monitor and diagnose issues with your AIS transceiver.
Section 4.3 provides instructions on how to install the proAIS
software.
Section 4.4 describes how to use proAIS to configure the static data
and other settings for your AIS transceiver.
Section 5.3 describes how to use proAIS to monitor the status of
your AIS transceiver.
4.3 Installing the proAIS software
This software is designed to be installed and used with a PC
connected to the AIS transceiver via the data lead provided as
standard with the AIS transceiver unit. If the PC being used for
programming does not have a 9-pin serial port then a commercially
available USB to serial adaptor may be required. This connects
between the supplied data lead and the PC.
To install proAIS on your PC:
1. Locate and run the setup.exe file on the CD and then follow the
on-screen prompts.
2. If a security warning appears, click 'Install' to continue with the
installation.
3. Once installation is complete, proAIS will launch automatically
and a start menu folder and shortcut will be created for future use.
4. Once proAIS has launched you should see a window as shown
in Figure 16.
5. Please follow the instructions in section 4.4 to configure your
AIS transceiver.
Figure 16 Entering static data into proAIS
!
proAIS is only compatible with Windows based
operating systems and is not compatible with Apple
MAC operating systems.
emtrack B212 manual v1.book Page 16 Friday, February 25, 2011 1:43 PM

Configuring your AIS transceiver
Page 17
4.4 Configuration using proAIS
Follow the steps below to configure the AIS transceiver:
1. Connect your AIS transceiver to the PC using the RS232 lead as
described in section 3.2. Apply 12V power to the AIS transceiver
as described in section 3.2.
2. Select the appropriate serial port in proAIS and press 'Connect'.
3. proAIS should launch with the 'static data' page active (see
Figure 16). If this is not the case please select the 'configuration’
page.
4. Carefully enter the data fields on the screen including:
• MMSI - the vessel's MMSI must be 9 digits in length and should
be the same as that used for any other digital radio equipment
such as a VHF DSC radio.
• Ship's name - the ship's name can be up to 20 characters in
length.
• Call sign - the call sign can be up to seven characters in length.
Not all vessels are issued with a call sign and it is acceptable to
leave this field blank.
• Vessel type - select the vessel type from the drop down list which
most closely matches your vessel.
• GPS antenna location - use the on-screen guide to specify the
distances from your GPS antenna to the edges of the vessel as
shown. The distances are entered in metres.
5. Once all data has been entered correctly, press 'Save data to
AIS'. This will permanently store the data to the unit.
6. You will see a pop-up window warning you that the MMSI can
only be entered once and should therefore be entered correctly.
Please double check you have entered the correct MMSI.
7. All other static data can be modified by repeating the steps
above.
8. If you need to change the MMSI for any reason please contact
your dealer who will be able to reset the unit.
!
Please ensure that you enter all static data accurately.
Failure to do so could result in other vessels failing to
identify your vessel correctly.
!
The vessel MMSI can only be programmed once using
proAIS, please take care to programme your MMSI
correctly. If you need to change the MMSI for any
reason, please contact your dealer who will arrange to
have the MMSI reset.
emtrack B212 manual v1.book Page 17 Friday, February 25, 2011 1:43 PM
