emerio FN-121525.1 User manual

FN-121525.1
Stand fan (EN)
Stand Ventilator (DE)
Ventilateur sur pied (FR)
Ventilator op standaard (NL)
Podstawka wentylatora (PL)

- 1 -
Content –Inhalt –Teneur –Inhoud –Treść
Instruction manual –English......................................................................................- 2 -
Bedienungsanleitung –German .................................................................................- 9 -
Mode d’emploi – French ..........................................................................................- 17 -
Gebruiksaanwijzing –Dutch.....................................................................................- 25 -
Instrukcja obsługi – Polish........................................................................................- 33 -

- 2 -
Instruction manual –English
SAFETY INSTRUCTIONS
Before use make sure to read all of the below instructions in
order to avoid injury or damage, and to get the best results
from the appliance. Make sure to keep this manual in a safe
place. If you give or transfer this appliance to someone else
make sure to also include this manual.
In case of damage caused by user failing to follow the
instructions in this manual the warranty will be void. The
manufacturer/importer accepts no liability for damages
caused by failure to follow the manual, a negligent use or
use not in accordance with the requirements of this manual.
1. This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction
concerning use of the appliance in a safe way and
understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by
children without supervision.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
5. Before inserting the plug into the mains socket, please
check that the voltage and frequency comply with the
specifications on the rating label.
6. If an extension cord is used it must be suited to the power
consumption of the appliance, otherwise overheating of
the extension cord and/or plug may occur. There is a
potential risk of injuries from tripping over the extension
cord. Be careful to avoid dangerous situations.
7. Disconnect the mains plug from the socket when the
appliance is not in use and before cleaning.

- 3 -
8. Ensure that the mains cable is not hung over sharp edges
and keep it away from hot objects and open flames.
9. Do not immerse the appliance or the mains plug in water
or other liquids. There is danger to life due to electric
shock!
10. To remove the plug from the plug socket, pull the plug. Do
not pull the power cord.
11. Do not touch the appliance if it falls into water. Remove
the plug from its socket, turn off the appliance and send it
to an authorized service center for repair.
12. Do not plug or unplug the appliance from the electrical
outlet with a wet hand.
13. Never attempt to open the housing of the appliance, or to
repair the appliance yourself. This could cause electric
shock.
14. Never leave the appliance unattended during use.
15. This appliance is not designed for commercial use.
16. Do not use the appliance for other than intended use.
17. Do not wind the cord around the appliance and do not
bend it.
18. Keep the appliance away from damp, and protect from
splashes.
19. Use the appliance on a flat, dry and heat resistance
surface.
20. Do not store or operate the appliance in the open air.
21. Keep the appliance in a dry place for storage, inaccessible
to children (in its packaging).
22. Never put fingers or any other objects through the fan
guards when the fan is running.
23. Never operate the product without the fan guards in place,
as serious personal injury may result.
24. The appliance must be assembled completely before use.
25. Watch out for long hair! It can be caught in the fan owing
to the air turbulence.
26. Do not point the air flow at people for a long time.
27. Ensure that the fan is switched off from the supply mains
before removing the guard.

- 4 -
FN-121525.1 EN
PARTS DESCRIPTION
1. Front guard
2. Locking clips
3. Blade fastening screw
4. Fan blade
5. Guard fastening screw
6. Rear guard
7. Motor shaft
8. Oscillation button
9. Motor
10. Fastening screw
11. Height adjustment pipe
12. Pipe fastening screw
13. Standing shaft
14. Cover piece
15. Standing base
16. Fastener and L screw
17. Control panel
18. Small nut and bolt
Control panel
/remote control
19. On and speed button
20. Off button
21. Timer indicators
22. Speed indicators
23. Power indicator
24. Mode indicator
25. Mode button
26. Timer button
INSTALLING THE BATTERIES
Open the battery cover on the back of the remote control. Place two AAA batteries in the compartment as
indicated by the polarity symbols (+/-). Replace the cover.
ASSEMBLING INSTRUCTIONS
** Please assemble correctly by the following orders when using.
1. Assemble the stand
Rotate the fastener and the L screw out from the bottom of the standing shaft.
Attach the cover piece onto the standing base, and then put the standing shaft into the cover piece.
Tighten the standing shaft to the base with fastener and the L screw.

- 5 -
2. The whole assembly
Pull the height adjustment pipe out and tighten the fasten set.
Link the fan main body and the height adjustment pipe together by the fastening screw and then fix them.
3. Rear grille assembly
Unscrew the guard fastening screw from the motor shaft.
Fix the rear guard onto the two pillars of the motor front shell. Make sure the handle is in the upside.
Screw the guard fastening screw tightly in clockwise direction.
4. The assembly of fan blade
Take the black shaft protective cover out of the shaft. Insert fan blade onto shaft ensuring blade fits
properly.
Tighten blade screw onto shaft. Note: Blade screw should be tightened in anti-clockwise.
5. Front grille assembly
Open up all locking clips on the sides of the front guard.
Place the front guard into position by lining up the location plate over the top of the rear guard and push
down.
Unscrew the small nut and bolt at the bottom of the front grille, then fasten the two guards together with
them.
Secure the two guards by closing the clips over the outer rim.
OPERATION
Please press the buttons on the control panel or the buttons on the remote control to choose your desired
function. The corresponding LED lights will illuminate accordingly.
1. On/Off function
Press the button “ON/SPEED” once to turn on the unit. The unit starts to work under normal mode at low
speed.
Press the button “OFF” to turn off the unit.
2. Speed function
When the appliance is on, continue to press the “ON/SPEED” button to set your desired wind speed from
low, mid, high, indicated with the speed lights illuminating one by one.
3. Oscillation
To make the fan head oscillate, push down the oscillation knob. To stop the fan head from oscillating, pull
up the oscillation knob.
4. Mode function
Press the mode button in your remote control to set your desired working mode:
Normal mode (mode indicator: red)
Nature mode (mode indicator: green)
Sleep mode (mode indicator: off).
1) Normal: under this mode, the motor works with the preset speed. You can press button “ON/SPEED”
to choose speed Low /Mid /High.

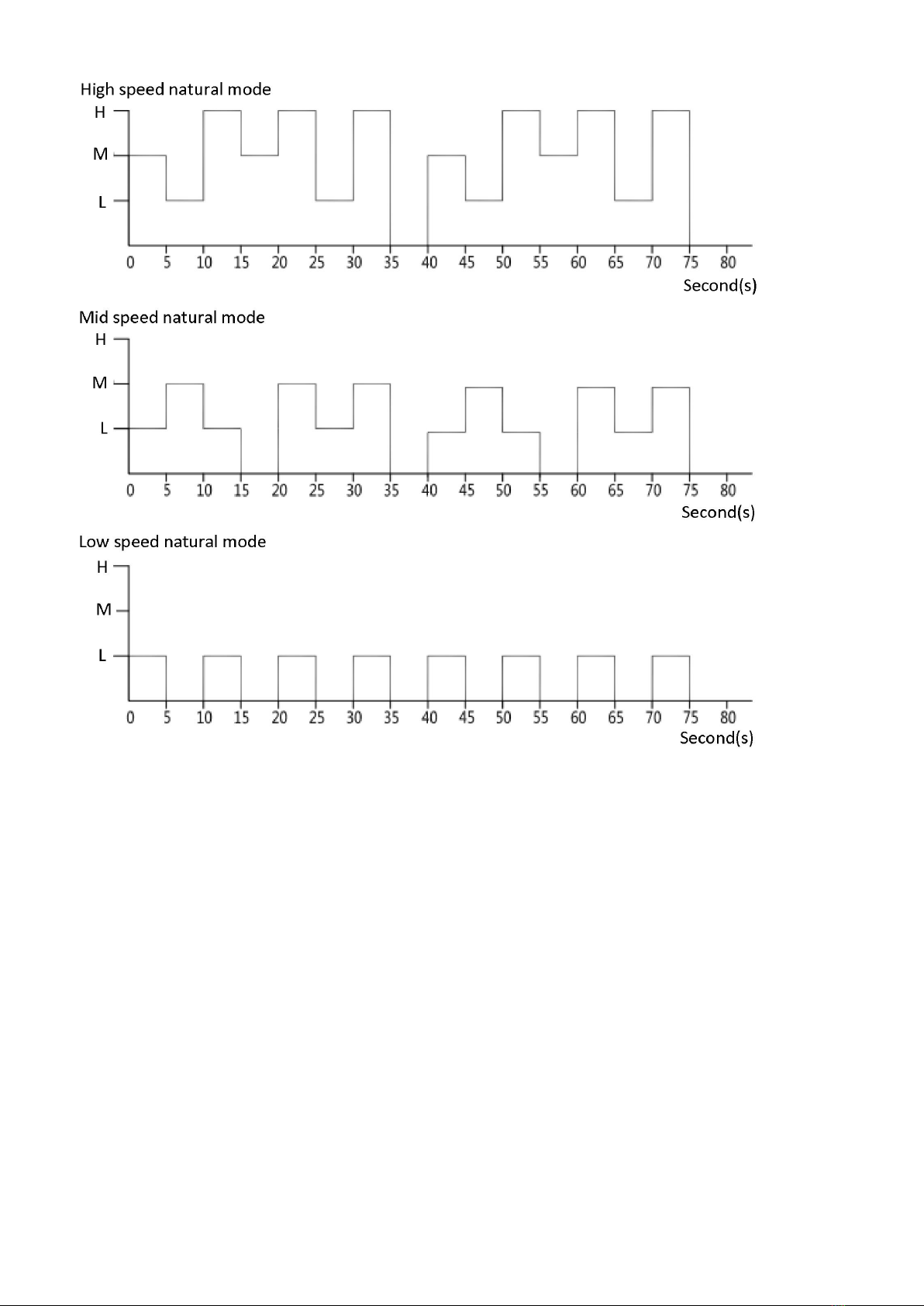

2) Natural: under this mode, you can press button “ON/SPEED” to choose speed Low /Mid /High. The
fan will operate as follows:

- 6 -
3) Sleeping: under this mode, you can press button “ON/SPEED” to choose speed Low /Mid /High. The
fan will operate as follows:
a. In high speed: 30 minutes high natural wind →30 minutes medium natural wind → continuous low
natural wind
b. In mid speed: 30 minutes medium natural wind → continuous low natural wind
c. In low speed: continuous low natural wind
5. Timer function
Press the timer button in the remote control to set your desired working time from 0.5h to 7.5h
(increment by 0.5h).
CLEANING
1. Before servicing the fan and after each occasion of use, switch off the appliance and unplug the mains
cable from the socket.
2. Never immerse the appliance in water (danger of short-circuit). To clean the appliance, only wipe it
down with a damp cloth and dry it carefully. Always take out the mains plug first.
3. Take care that excessive dust does not build up in the air-intake and air-outlet grille, and clean it
occasionally using a dry brush or vacuum cleaner.

- 7 -
TECHNICAL DATA
Operating voltage: 220-240V ~ 50/60Hz
Power consumption: 45W
GUARANTEE AND CUSTOMER SERVICE
Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred
during production or transportation, please return the device to your dealer. In addition to statutory legal
rights, the purchaser has an option to claim under the terms of the following guarantee:
For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a
defective product, you can directly go back to the point of purchase.
Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs
by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt,
without the receipt you can’t claim any form of warranty. Damage caused by not following the instruction
manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.
Neither can we hold responsible for material damage or personal injury caused by improper use if the
instruction manual is not properly executed. Damage to accessories does not mean free replacement of the
whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts
is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning,
maintenance or the replacement of said parts are not covered by the warranty and are to be paid.
ENVIRONMENT FRIENDLY DISPOSAL
Recycling –European Directive 2012/19/EU
This marking indicates that this product should not be disposed with other household wastes. To
prevent possible harm to the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material resources. To return your used
device, please use the return and collection systems or contact the retailer where the product was purchased.
They can take this product for environmental safe recycling.
BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE
OR IN FIRE OR SHORT CIRCUIT.
Manufactured by: Emerio Deutschland GmbH
Höffer Weg 14, 51519 Odenthal Germany

- 8 -
ERP information (EN)
Supplier: Emerio Deutschland GmbH
Höffer Weg 14
51519 Odenthal
Germany
Declare that the product detailed below:
Information requirements
Information to identify the FN-121525.1 to which the information relates to
[Stand fan]
Description
Symbol
Value
Unit
Maximum fan flow rate
F
54,30
m3/min
Fan power input
P
39,00
W
Service value
SV
1,39
(m3/min)/W
Standby power consumption
PSB
0,42
W
Fan sound power level
LWA
53,29
dB(A)
Maximum air velocity
c
3,24
meters/sec
Measurement standard for service
value
IEC 60879:1986 (corr. 1992)
Contact details for obtaining more
information
Emerio Deutschland GmbH
Höffer Weg 14
51519 Odenthal
Germany
Satisfies the requirement of the Council Directives:
COMMISSION REGULATION (EU) No 206/2012 of 6 March 2012 and Amending COMMISSION
REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of
the Council with regard to ecodesign requirements for air conditioners and comfort fans
Regarding information for consumers on how to install, use and maintain the product, WEEE
information, please check the instruction manual provided with packaging.

- 9 -
Bedienungsanleitung –German
SICHERHEITSHINWEISE
Lesen Sie vor dem Gebrauch unbedingt die nachfolgenden
Anleitungen, um Verletzungen oder Beschädigungen zu
vermeiden und das beste Ergebnis mit dem Gerät zu erzielen.
Bewahren Sie diese Bedienungsanleitung an einem sicheren
Ort auf. Wenn Sie dieses Gerät an eine andere Person
weitergeben, stellen Sie sicher, dass Sie auch diese
Bedienungsanleitung aushändigen.
Im Falle von Beschädigungen, die durch die Missachtung der
Anleitungen in dieser Bedienungsanleitung verursacht
wurden, wird die Garantie ungültig. Der Hersteller/Importeur
haftet nicht für Schäden, die durch Missachtung der
Bedienungsanleitung, fahrlässigen Gebrauch oder Benutzung,
die nicht in Übereinstimmung mit den Anforderungen dieser
Bedienungsanleitung erfolgt, verursacht wurden.
1. Dieses Gerät kann von Kindern ab 8 Jahren und Personen
mit eingeschränkten körperlichen, sensorischen oder
geistigen Fähigkeiten oder mangelnder Erfahrung und
Kenntnis benutzt werden, wenn sie beaufsichtigt werden
oder in die sichere Benutzung des Gerätes unterwiesen
werden und die damit verbundenen Gefahren verstehen.
2. Kinder dürfen nicht mit dem Gerät spielen.
3. Die Reinigung und vom Benutzer auszuführende
Wartungsarbeiten dürfen von Kindern nur unter Aufsicht
durchgeführt werden.
4. Wenn das Netzkabel beschädigt ist, muss es vom
Hersteller, seinem Kundendienst oder einer ähnlich
qualifizierten Person ausgewechselt werden, um Gefahren
zu vermeiden.
5. Bevor Sie den Stecker mit der Netzsteckdose verbinden,
prüfen Sie bitte, ob die Spannung und die Frequenz mit
den Angaben auf dem Typenschild übereinstimmen.
6. Falls ein Verlängerungskabel verwendet wird, muss es für
den Stromverbrauch des Gerätes geeignet sein, sonst kann
