Emerson Rosemount 3051S Series User manual

Quick Start Guide
00825-0100-4804, Rev BC
August 2016
Rosemount 3051S Electronic Remote
Sensor (ERS)™ System
with HART®Protocol

August 2016
2
Quick Start Guide
NOTICE
This guide provides basic guidelines for the Rosemount 3051S ERS System. It does not provide instructions for
diagnostics, maintenance, service, or troubleshooting. Refer to the Rosemount 3051S ERS Reference Manual
for more instruction. This document is also available electronically on EmersonProcess.com/Rosemount.
Explosions could result in death or serious injury.
Installation of this transmitter in an explosive environment must be in accordance with the appropriate local,
national, and international standards, codes, and practices. Review the approvals section of the Rosemount
3051S ERS Reference Manual for any restrictions associated with a safe installation.
Before connecting a Field Communicator in an explosive atmosphere, ensure the instruments in the loop
are installed in accordance with intrinsically safe or non-incendive field wiring practices.
In an Explosion-proof/Flameproof installation, do not remove the transmitter covers when power is
applied to the unit.
Process leaks may cause harm or result in death.
Install and tighten process connectors before applying pressure.
Electrical shock can result in death or serious injury.
Avoid contact with the leads and terminals. High voltage that may be present on leads can cause electrical
shock.
Conduits/cable entries
Unless otherwise marked, the conduit / cable entries in the Rosemount 3051S ERS housing enclosure use a
1/2–14 NPT form. Only use plugs, adapters, glands, or conduit with a compatible thread form when
closing these entries.
Contents
Identify all Rosemount 3051S ERS System
components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Mount each Rosemount 3051S ERS . . . . . . . . . 3
Consider housing rotation . . . . . . . . . . . . . . . . . 6
Set switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Connect wiring and power up . . . . . . . . . . . . . . 7
Verify configuration . . . . . . . . . . . . . . . . . . . . . . 13
Calibrate the Rosemount 3051S ERS System 15
Product Certifications . . . . . . . . . . . . . . . . . . . . 16

Quick Start Guide
3
August 2016
1.0 Identify all Rosemount 3051S ERS System
components
A complete Rosemount ERS system contains two sensors. One is mounted on the
high-pressure (PHI) process connection, and the other is mounted on the
low-pressure (PLO) process connection. An optional remote display and interface
may also be included (not pictured) if ordered.
1. Look at the wire-on tag on the Rosemount 3051S sensor to identify whether it
is configured as the PHI or PLO sensor.
2. Locate the second sensor that will be used in the Rosemount 3051S ERS
system:
For new installations or applications, the second Rosemount 3051S ERS
sensor may have been shipped in a separate box.
If servicing or replacing part of an existing Rosemount 3051S ERS system,
the other sensor may already be installed.
2.0 Mount each Rosemount 3051S ERS
Mount the PHI and PLO sensors at the correct process connections for the
application. Common Rosemount 3051S ERS installations are shown in Figure 1
and Figure 2.
2.1 Vertical installation
In a vertical installation such as on a vessel or distillation column, the PHI sensor
should be installed at the bottom process connection. The PLO sensor should be
installed at the top process connection.

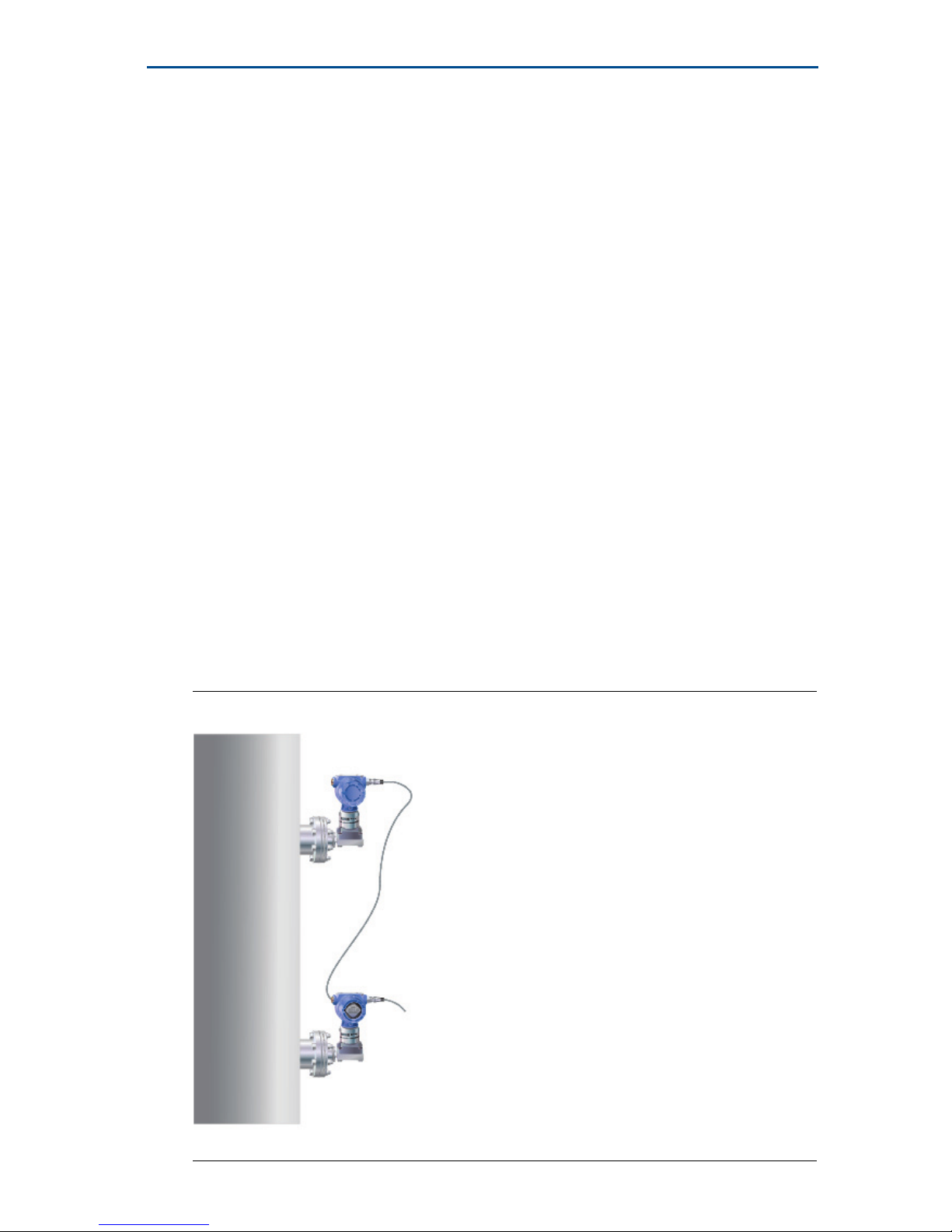

Figure 1. Vertical Rosemount 3051S ERS Installation
P sensor
HI
P sensor
LO

August 2016
4
Quick Start Guide
2.2 Horizontal installation
In a horizontal installation, the PHI sensor should be installed at the upstream
process connection. The PLO sensor should be installed downstream.

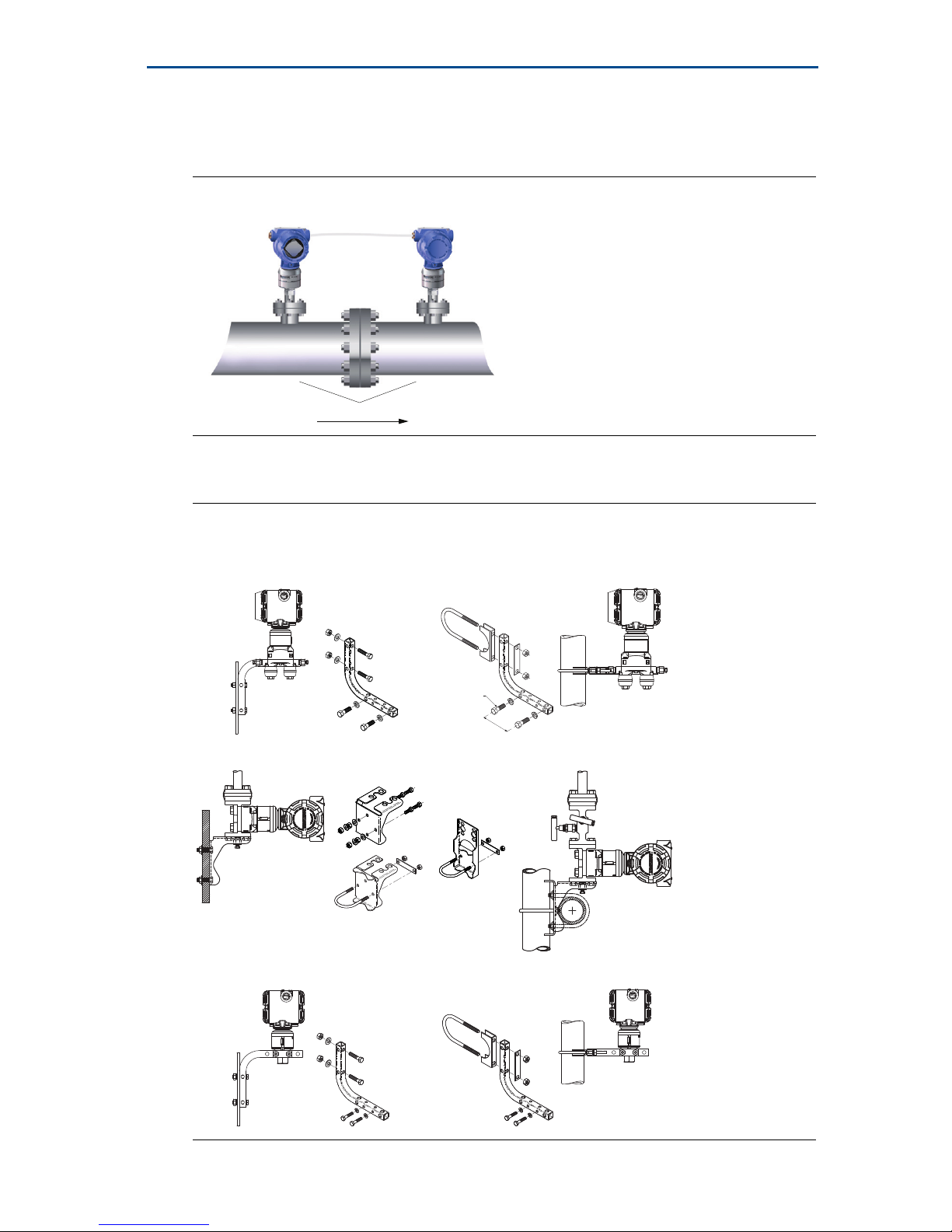

Figure 2. Horizontal Rosemount 3051S ERS Installation
2.3 Mounting bracket
Figure 3. Mounting Bracket Assemblies
Panel mount Pipe mount
Coplanar flange
Traditional flange
In-line
P sensor
HI
P sensor LO
Pressure drop

Quick Start Guide
5
August 2016
2.4 Bolting
If the installation requires assembly of a process flange, manifold, or flange
adaptors, follow these assembly guidelines to ensure a tight seal for optimal
performance characteristics of the Rosemount 3051S ERS System. Only use bolts
supplied with the transmitter or sold by Emerson™Process Management as spare
parts. Figure 4 illustrates common transmitter assemblies with the bolt length
required for proper transmitter assembly.

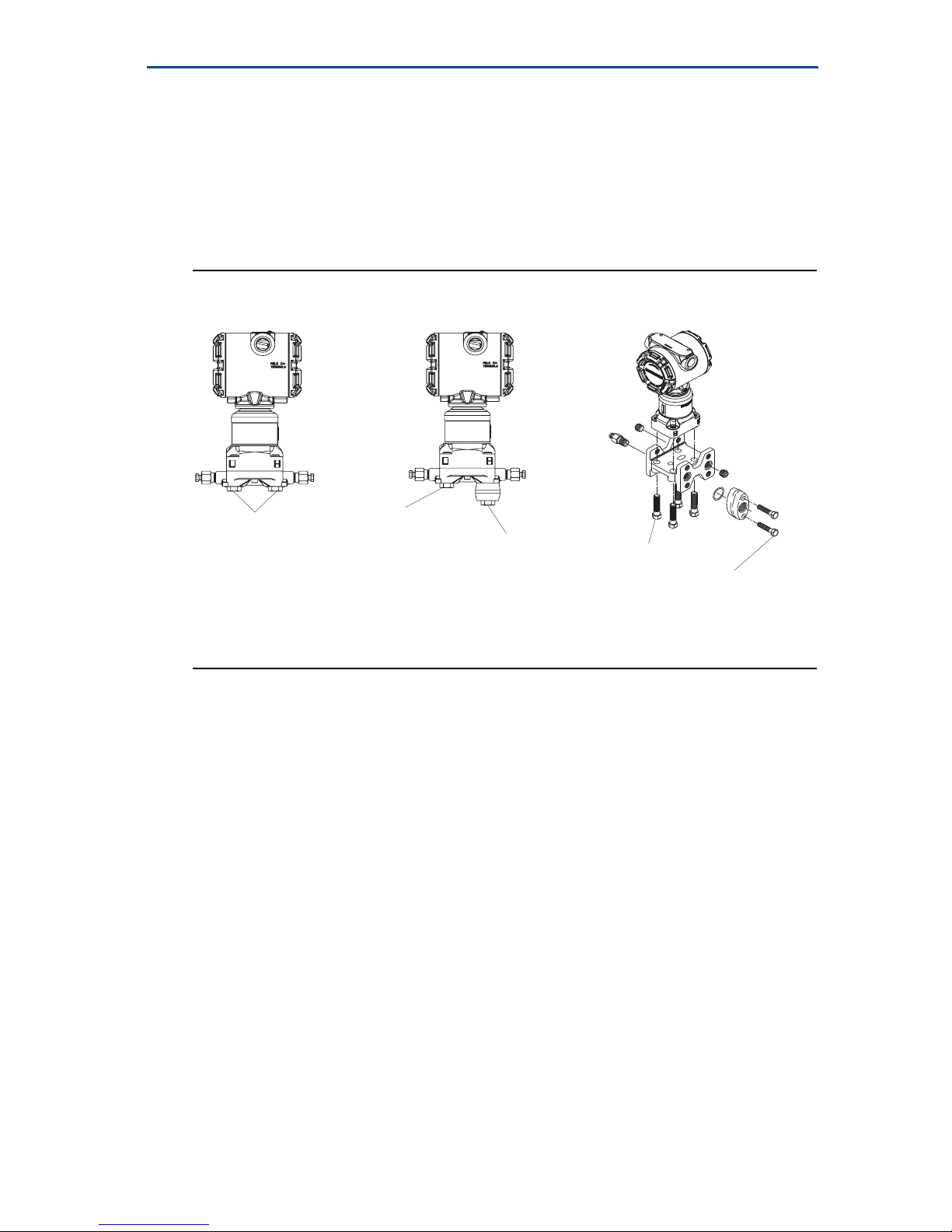

Figure 4. Common Transmitter Assemblies
A. Transmitter with coplanar flange
B. Transmitter with coplanar flange and flange adapters
C. Transmitter with traditional flange and flange adapters
Bolts are typically carbon steel or stainless steel. Confirm the material by viewing
the marking on the head of the bolt and referencing Table 1. If bolt material is not
shown in Table 1, contact your local Emerson Process Management
representative for more information.
Use the following bolt installation procedure:
1. Carbon steel bolts do not require lubrication. Stainless steel bolts are coated
with a lubricant to ease installation, however no additional lubricant should be
applied when installing either type of bolt.
2. Finger-tighten the bolts.
3. Torque the bolts to the initial torque value using a crossing pattern.
See Table 1 for initial torque value.
4. Torque the bolts to the final torque value using the same crossing pattern.
See Table 1 for final torque value.
5. Verify that the flange bolts are protruding through the module isolator plate
before applying pressure (See Figure 5).
A
4 × 1.75-in. (44 mm)
C
4 ×1.50-in. (38 mm)
B
4 × 2.88-in. (73 mm)
4 × 1.75-in. (44 mm)
4 × 1.75-in. (44 mm)

August 2016
6
Quick Start Guide
Figure 5. Module Isolator Plate
O-rings with flange adapters
3.0 Consider housing rotation
To improve field access to wiring or to better view the optional LCD display:
1. Loosen the housing rotation set screw.
2. Turn the housing up to 180° left or right of its original (as shipped) position.
3. Retighten the housing rotation set screw.
Figure 6. Housing Rotation
A. Housing rotation set screw (3/32-in.)
A. Bolt
B. Sensor module isolator plate
C. Coplanar flange
D. Flange adapters
Table 1. Torque Values for the Flange and Flange Adapters Bolts
Bolt material Head markings Initial torque Final torque
Carbon Steel (CS) 300 in-lb 650 in-lb
Stainless Steel (SST) 150 in-lb 300 in-lb
Use only the O-rings included with the flange adapter for the 3051S ERS sensor. Failure to install proper
fitting flange adapter O-rings may cause process leaks, which can result in death or serious injury.
When removing flanges or adapters, visually inspect the PTFE O-rings. Replace them if there are any
signs of damage such as nicks or cuts. If replacing O-rings, re-torque the flange bolts after installation
to compensate for seating of the PTFE O-ring.
PlantWeb Junction box
A
B
C
D
B7M
316
316
316
SW
316
STM
316
R
B8M
A
A

Quick Start Guide
7
August 2016
Note
Do not rotate the housing on each transmitter more than 180° without first performing a
disassembly procedure (see Section 2 of the Rosemount 3051S ERS Reference Manual for
more information). Over-rotation may sever the electrical connection between the sensor
module and feature board electronics.
4.0 Set switches
If the Rosemount 3051S ERS sensor is equipped with alarm and security hardware
switches, verify the desired configuration (default: alarm = HI, security = OFF).
1. If the sensor is installed, secure the loop and remove power.
2. Remove the housing cover opposite the field terminals side. Do not remove
the housing cover in explosive environments.
3. Slide the security and alarm switches into the preferred positions by using a
small screwdriver.
4. Reinstall the housing cover so that metal contacts metal to meet
explosion-proof requirements.

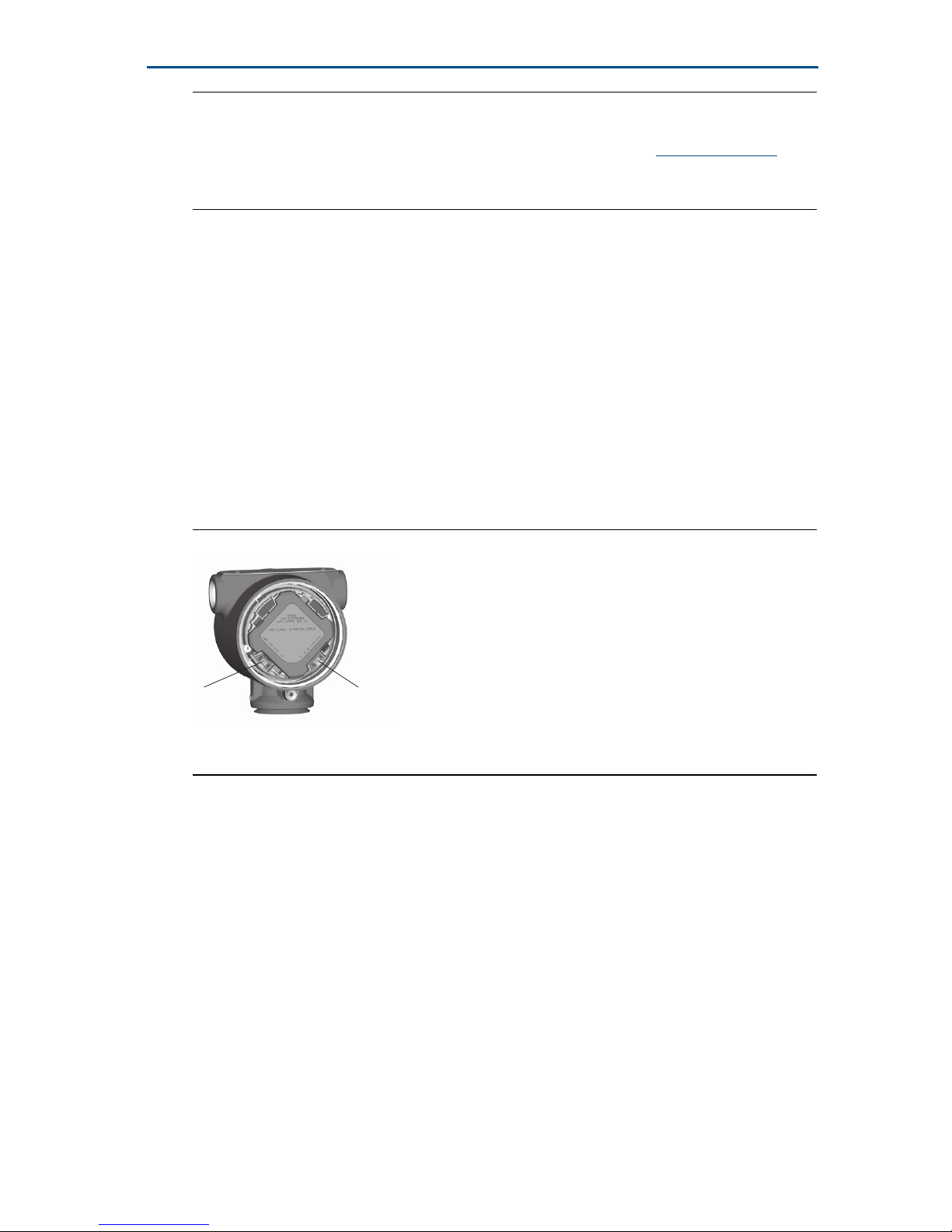

Figure 7. Transmitter Switch Configuration
A. Security switch
B. Alarm switch
5.0 Connect wiring and power up
A Rosemount 3051S ERS System can be wired in a variety of configurations,
depending on the hardware that was ordered.
5.1 Standard Rosemount 3051S ERS system (Figure 8)
1. Remove the housing cover labeled “Field Terminals” on both Rosemount
3051S ERS sensors.
2. Using the Rosemount 3051S ERS communication cable (if ordered) or an
equivalent 4-wire shielded assembly per the specifications detailed below,
connect the 1, 2, A, and B terminals between the two sensors per Figure 8.
3. Connect the Rosemount 3051S ERS System to the control loop by connecting
the + and - PWR/COMM terminals to the positive and negative leads,
respectively.
4. Plug and seal all unused conduit connections.
AB

August 2016
8
Quick Start Guide
5. If applicable, install wiring with a drip loop. Arrange the drip loop so that the
bottom is lower than the conduit connections on the transmitter housings.
6. Reinstall and tighten the housing covers on both sensors so that metal
contacts metal to meet explosion-proof requirements.
5.2 Rosemount 3051S ERS system with remote display and
interface (Figure 9 and Figure 10)
1. Remove the housing cover labeled “Field Terminals” on both Rosemount
3051S ERS sensors and the remote housing.
2. Using the Rosemount 3051S ERS communication cable (if ordered) or an
equivalent 4-wire shielded assembly per the specifications detailed below,
connect the 1, 2, A, and B terminals between the two sensors and remote
housing in a “tree” (Figure 9) or “daisy-chain” (Figure 10) configuration.
3. Connect the Rosemount 3051S ERS System to the control loop by connecting
the + and - PWR/COMM terminals on the remote housing to the positive and
negative leads, respectively.
4. Plug and seal all unused conduit connections.
5. If applicable, install wiring with a drip loop. Arrange the drip loop so that the
bottom is lower than the conduit connections on the transmitter housings.
6. Reinstall and tighten all housing covers so that metal contacts metal to meet
explosion-proof requirements.
5.3 Wiring diagrams
Figure 8 to Figure 10 show the wiring connections necessary to power a
Rosemount 3051S ERS System and enable communications with a hand-held
Field Communicator.
Note
The wiring connection between the sensors (and remote housing if applicable) must be
made directly. An intrinsically safe barrier or other high-impedance device will cause the
Rosemount 3051S ERS System to malfunction if placed in between any of the Rosemount
3051S ERS sensors.
5.4 Rosemount 3051S ERS cable specifications
Cable type: Recommend Madison AWM Style 2549 cable. Other comparable
cable may be used as long as it has independent dual twisted shielded pair wires
with an outer shield. The power wires (pin terminals 1 and 2) must be 22 AWG
minimum and the communication wires (pin terminals A and B) must be 24 AWG
minimum.
Cable length: Up to 150 ft (45,7 m) depending upon cable capacitance.
Cable capacitance: The capacitance between the communication terminals (pin
terminals A and B) as wired must be less than 5000 picofarads total. This allows
up to 50 picofarads per ft (0,3 m) for a 100 ft (31 m) cable.
Cable outside diameter (O.D.): 0.270-in. (6,86 mm)

Quick Start Guide
9
August 2016

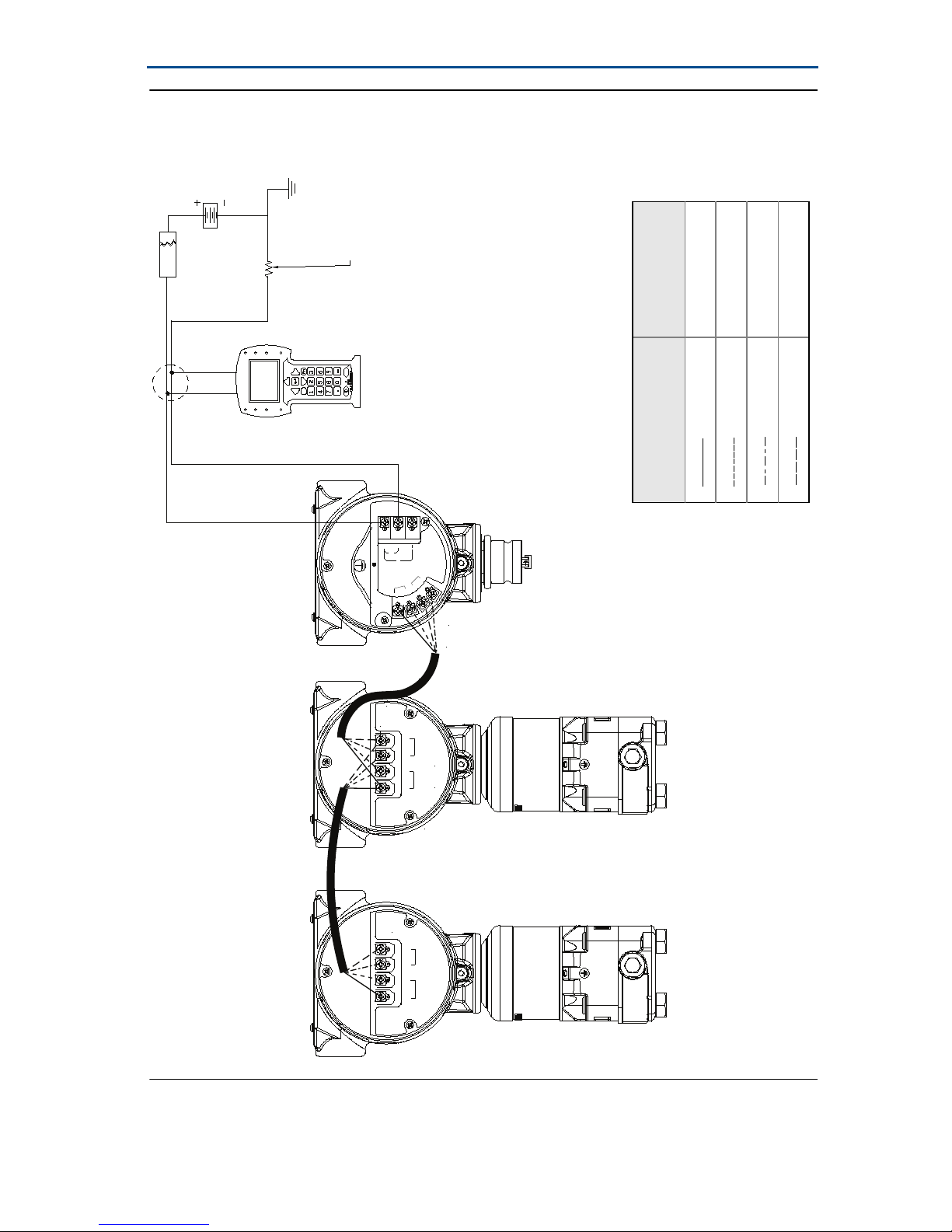

Figure 8. Wiring Diagram for Standard Rosemount 3051S ERS System
TEST
PWR/
COMM
+
_
_
12AB
WIRE TO ERS PRIMARY
1
2
A
B
WIRE TO ERS SECONDARY
A
B
C
A. Power supply B. 250ΩResistor needed for HART communications
C. Field Communicator
Table 2. Wiring Legend
Wire Terminal
connection
Red 1
Black 2
White A Blue B

August 2016
10
Quick Start Guide
Figure 9. Wiring Diagram for Rosemount 3051S ERS System with Remote Display
in “Tree” Configuration
TEST
PWR/
COMM
+
_
_
12A B
WIRE TO ERS PRIMARY
12A B
WIRE TO ERS PRIMARY
1
2
A
B
WIRE TO ERS SECONDARY
C
B
A
A. Power supply B. 250ΩResistor needed for HART communications
C. Field Communicator
Table 3. Wiring Legend
Wire Terminal
connection
Red 1
Black 2
White A Blue B

Quick Start Guide
11
August 2016
Figure 10. Wiring Diagram for Rosemount 3051S ERS System with Remote Display
in “Daisy-Chain” Configuration
TEST
PWR/
COMM
+
_
_
12A B 12AB
WIRE TO ERS PRIMARY
1
2
A
B
WIRE TO ERS SECONDARY
WIRE TO ERS PRIMARY
C
B
A
A. Power supply B. 250ΩResistor needed for HART communications
C. Field Communicator
Table 4. Wiring Legend
Wire Terminal
connection
Red 1
Black 2
White A Blue B

August 2016
12
Quick Start Guide
5.5 Shield grounding
Connect the shield from the Rosemount 3051S ERS communication cable
assembly to each housing case as shown for the applicable wiring configuration in
Figure 11.
Figure 11. Shield Grounding
A. Cable shield
A
A
12AB
WIRE TO ERS PRIMARY
1
2
A
B
WIRE TO
ERS
SECONDARY
A
12A B
WIRE TO ERS PRIMARY
12A B
WIRE TO ERS PRIMARY
1
2
A
B
WIRE TO
ERS
SECONDARY
1
2
A
B
WIRE TO
ERS
SECONDARY
12A B
WIRE TO ERS PRIMARY
12A B
WIRE TO ERS PRIMARY

Quick Start Guide
13
August 2016
5.6 Power supply
The DC power supply should provide power with less than two percent ripple. The
total resistance load is the sum of the resistance of the two signal leads and the
load resistance of the controller, indicator, intrinsic safety barriers, and related
components.
Figure 12. Load Limitation
If supply voltage ≤16.74 Vdc,
Maximum loop resistance = 277.8 ⫻(Power supply voltage – 16.0)
If supply voltage > 16.74 Vdc,
Maximum loop resistance = 43.5 ⫻(Power supply voltage – 12.0)
6.0 Verify configuration
As part of the basic commissioning process of the Rosemount 3051S ERS System,
the parameters in Table 5 should be verified/configured with a HART-compliant
master (see Figure 8 to Figure 10 for connecting a hand-held Field
Communicator):
Table 5. Basic Configuration HART Fast Key Sequence
Function Fast Key sequence
Device Tagging
Tag 2, 1, 1, 1, 1
Long Tag 2, 1, 1, 1, 2
Descriptor 2, 1, 1, 1, 3
Message 2, 1, 1, 1, 4
Units of Measure
PLO Pressure 2, 1, 1, 2, 1, 1
PLO Module Temperature 2, 1, 1, 2, 1, 2
System DP 2, 1, 1, 2, 1, 3
PHI Module Temperature 2, 1, 1, 2, 1, 4
PHI Pressure 2, 1, 1, 2, 1, 5
1322
Load (Ohms)
206
0
16 16.74 42.4
Volta
g
e
(
Vdc
)
Operating
Region

August 2016
14
Quick Start Guide
The items in Table 6 are considered “optional” and can be configured as
necessary:
Damping
PLO Pressure 2, 1, 1, 2, 2, 1
System DP 2, 1, 1, 2, 2, 2
PHI Pressure 2, 1, 1, 2, 2, 3
Variable Mapping
Primary Variable 2, 1, 1, 3, 1
2nd Variable 2, 1, 1, 3, 2
3rd Variable 2, 1, 1, 3, 3
4th Variable 2, 1, 1, 3, 4
Analog Output
Primary Variable 2, 1, 1, 4, 1
Upper Range Value 2, 1, 1, 4, 2
Lower Range Value 2, 1, 1, 4, 3
Alarm and Saturation Levels 2, 1, 1, 5
Table 6. Optional Configuration HART Fast Key Sequence
Function Fast Key sequence
Device Display 2, 1, 3
Burst Mode
Burst Mode 2, 1, 4, 1
Burst Option 2, 1, 4, 2
Scaled Variable
Linear (2-point) Scaled Variable 2, 1, 5, 1
Non-Linear (Multi-point) Scaled Variable 2, 1, 5, 2
Change Module Assignments
View Module 1 Assignment 2, 1, 6, 1
View Module 2 Assignment 2, 1, 6, 2
Set Module 1 = PHI, Module 2 = PLO 2, 1, 6, 3
Set Module 1 = PLO, Module 2 = PHI 2, 1, 6, 4
View Device Topology 2, 1, 6, 5
Table 5. Basic Configuration HART Fast Key Sequence
Function Fast Key sequence

Quick Start Guide
15
August 2016
7.0 Calibrate the Rosemount 3051S ERS System
Each Rosemount 3051S ERS sensor is shipped fully calibrated per request or with
the factory default of full scale. After the Rosemount 3051S ERS System has been
installed and wired, either a zero trim or a lower sensor trim should be performed
on each sensor to compensate for installation effects.
A zero sensor trim should be performed after installing a gage sensor. A zero
sensor trim should not be performed on an absolute sensor or on a gage
sensor that is at line pressure.
A lower sensor trim should be performed after installing an absolute sensor or
a gage sensor that is at line pressure.
Additionally, a “System DP Zero” trim should be performed to establish a
zero-based DP reading. The “System DP Zero” trim should be performed after a
zero/lower trim has been performed on each sensor.
The steps outlined below detail the procedures for the sensor trims and the
“System DP Zero” trim.
7.1 Rosemount 3051S ERS System calibration
1. Equalize or vent both Rosemount 3051S ERS sensors and connect a Field
Communicator as shown in Figure 8 to Figure 10.
2. Input the following Fast Key sequence on the Field Communicator to trim each
sensor and the DP reading. Follow the commands prompted by the Field
Communicator.
Note
1. The “System DP Zero Trim” should be performed after the P-Hi and P-Lo sensor trims.
2. Refer to the Rosemount 3051S ERS Reference Manual for the recommended calibration
procedure for performing a sensor trim at line pressure.
Table 7. ERS Calibration HART Fast Key Sequence
Function Fast Key sequence
P-Hi Sensor Zero Trim 3, 4, 3, 1, 3
P-Hi Sensor Lower Trim 3, 4, 3, 1, 2
P-Lo Sensor Zero Trim 3, 4, 4, 1, 3
P-Lo Sensor Lower Trim 3, 4, 4, 1, 2
System DP Zero Trim 3, 4, 2, 1, 3

August 2016
16
Quick Start Guide
8.0 Product Certifications
Rev 1.9
8.1 European Directive Information
A copy of the EU Declaration of Conformity can be found at the end of the Quick
Start Guide. The most recent revision of the EU Declaration of Conformity can be
found at EmersonProcess.com/Rosemount.
8.2 Ordinary Location Certification
As standard, the transmitter has been examined and tested to determine that the
design meets the basic electrical, mechanical, and fire protection requirements
by a nationally recognized test laboratory (NRTL) as accredited by the Federal
Occupational Safety and Health Administration (OSHA).
8.3 Installing Equipment in North America
The US National Electrical Code®(NEC) and the Canadian Electrical Code (CEC)
permit the use of Division marked equipment in Zones and Zone marked
equipment in Divisions. The markings must be suitable for the area classification,
gas, and temperature class. This information is clearly defined in the respective
codes.
8.4 USA
E5 FM Explosionproof (XP) and Dust-Ignitionproof (DIP)
Certificate: 3008216
Standards: FM Class 3600 – 2011, FM Class 3615 – 2006, FM Class 3616 – 2011,
FM Class 3810 – 2005, ANSI/NEMA®250 – 2003
Markings: XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E, F, G; CL III;
T5(–50 °C ≤Ta≤+85 °C); Factory Sealed; Type 4X
I5 FM Intrinsic Safety (IS) and Nonincendive (NI)
Certificate: 3012350
Standards: FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004,
FM Class 3810 – 2005, NEMA 250 – 2003
Markings: IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F, G; Class III; Class 1,
Zone 0 AEx ia IIC T4; NI CL 1, DIV 2, GP A, B, C, D;
T4(–50 °C ≤Ta≤+70 °C) [HART]; T4(–50 °C ≤Ta≤+60 °C) [Fieldbus];
when connected per Rosemount drawing 03151-1006; Type 4X
Special Condition for Safe Use:
1. The Rosemount 3051S/3051S-ERS Pressure Transmitter contains aluminum
and is considered to constitute a potential risk of ignition by impact or friction.
Care must be taken into account during installation and use to prevent impact
and friction.
Note
Transmitters marked with NI CL 1, DIV 2 can be installed in Division 2 locations using general
Division 2 wiring methods or Nonincendive Field Wiring (NIFW). See Drawing 03151-1006.

Quick Start Guide
17
August 2016
IE FM FISCO
Certificate: 3012350
Standards: FM Class 3600 – 2011, FM Class 3610 – 2010, FM Class 3611 – 2004,
FM Class 3810 – 2005, NEMA 250 – 2003
Markings: IS CL I, DIV 1, GP A, B, C, D; T4(–50 °C ≤Ta≤+60 °C); when connected
per Rosemount drawing 03151-1006; Type 4X
Special Condition for Safe Use:
1. The Rosemount 3051S/3051S-ERS Pressure Transmitter contains aluminum
and is considered to constitute a potential risk of ignition by impact or friction.
Care must be taken into account during installation and use to prevent impact
and friction.
8.5 Canada
E6 CSA Explosionproof, Dust-Ignitionproof, and Division 2
Certificate: 1143113
Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 25-1966,
CSA Std C22.2 No. 30-M1986, CAN/CSA C22.2 No. 94-M91,
CSA Std C22.2 No. 142-M1987, CSA Std C22.2 No. 213-M1987,
ANSI/ISA 12.27.01-2003, CSA Std C22.2 No. 60529:05
Markings: Explosionproof Class I, Division 1, Groups B, C, D; Dust-Ignitionproof
Class II, Division 1, Groups E, F, G; Class III; suitable for Class I, Zone 1,
Group IIB+H2, T5; suitable for Class I, Division 2, Groups A, B, C, D;
suitable for Class I, Zone 2, Group IIC, T5; when connected per
Rosemount drawing 03151-1013; Type 4X
I6 CSA Intrinsically Safe
Certificate: 1143113
Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 30-M1986,
CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987,
CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003,
CSA Std C22.2 No. 60529:05
Markings: Intrinsically Safe Class I, Division 1; Groups A, B, C, D; suitable for
Class 1, Zone 0, IIC, T3C; when connected per Rosemount drawing
03151-1016 [3051S] 03151-1313 [ERS]; Type 4X
IF CSA FISCO
Certificate: 1143113
Standards: CAN/CSA C22.2 No. 0-10, CSA Std C22.2 No. 30-M1986,
CAN/CSA C22.2 No. 94-M91, CSA Std C22.2 No. 142-M1987,
CSA Std C22.2 No. 157-92, ANSI/ISA 12.27.01-2003,
CSA Std C22.2 No. 60529:05
Markings: FISCO Intrinsically Safe Class I, Division 1; Groups A, B, C, D; suitable
for Class 1, Zone 0, IIC, T3C; when connected per Rosemount drawing
03151-1016 [3051S] 03151-1313 [ERS]; Type 4X

August 2016
18
Quick Start Guide
8.6 Europe
E1 ATEX Flameproof
Certificate: KEMA 00ATEX2143X
Standards: EN 60079-0:2012, EN 60079-1:2007, EN 60079-26:2007
(3051SFx models with RTD are certified to EN60079-0:2006)
Markings: II 1/2 G Ex d IIC T6…T4 Ga/Gb, T6(–60 °C ≤Ta≤+70 °C),
T5/T4(–60 °C ≤Ta≤+80 °C)
Special Conditions for Safe Use (X):
1. The device contains a thin wall diaphragm. Installation, maintenance and use
shall take into account the environmental conditions to which the diaphragm
will be subjected. The manufacturer’s instructions for installation and
maintenance shall be followed in detail to assure safety during its expected
lifetime.
2. For information on the dimensions of the flameproof joints, the manufacturer
shall be contacted.
I1 ATEX Intrinsic Safety
Certificate: BAS01ATEX1303X
Standards: EN 60079-0:2012, EN 60079-11:2012
Markings: II 1 G Ex ia IIC T4 Ga, T4(–60 °C ≤Ta≤+70 °C)
Special Conditions for Safe Use (X):
1. The Rosemount 3051S Transmitters fitted with transient protection are not
capable of withstanding the 500 V test as defined in Clause 6.3.13 of EN
60079-11:2012. This must be taken into account during installation.
2. The terminal pins of the Rosemount 3051S SuperModule must be provided
with a degree of protection of at least IP20 in accordance with IEC/EN 60529.
3. The Rosemount 3051S enclosure may be made of aluminum alloy and given a
protective polyurethane paint finish; however, care should be taken to protect
it from impact or abrasion if located in a zone 0 area.
Temperature class Process temperature
T6 –60 °C to +70 °C
T5 –60 °C to +80 °C
T4 –60 °C to +120 °C
Model UiIiPiCiLi
SuperModule™30 V 300 mA 1.0 W 30 nF 0
3051S...A; 3051SF…A; 3051SAL…C 30 V 300 mA 1.0 W 12 nF 0
3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0
3051S …A…M7, M8, or M9;
3051SF …A…M7, M8, or M9;
3051SAL…C… M7, M8, or M9
30 V 300 mA 1.0 W 12 nF 60 μH
3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 μH
3051SAL…M7, M8, or M9
3051SAM…M7, M8, or M9 30 V 300 mA 1.0 W 12 nF 93 μH
RTD Option for 3051SF 5 V 500 mA 0.63 W N/A N/A

Quick Start Guide
19
August 2016
IA ATEX FISCO
Certificate: BAS01ATEX1303X
Standards: EN 60079-0:2012, EN 60079-11:2012
Markings: II 1 G Ex ia IIC T4 Ga, T4(–60 °C ≤Ta≤+70 °C)
Special Conditions for Safe Use (X):
1. The Rosemount 3051S Transmitters fitted with transient protection are not
capable of withstanding the 500 V test as defined in Clause 6.3.13 of EN
60079-11:2012. This must be taken into account during installation.
2. The terminal pins of the Rosemount 3051S SuperModule must be provided
with a degree of protection of at least IP20 in accordance with IEC/EN 60529.
3. The Rosemount 3051S enclosure may be made of aluminum alloy and given a
protective polyurethane paint finish; however, care should be taken to protect
it from impact or abrasion if located in a zone 0 area.
ND ATEX Dust
Certificate: BAS01ATEX1374X
Standards: EN 60079-0:2012, EN 60079-31:2009
Markings: II 1 D Ex ta IIIC T105 °C T500 95 °C Da, (–20 °C ≤Ta≤ +85 °C),
Vmax = 42.4 V
Special Conditions for Safe Use (X):
1. Cable entries must be used which maintain the ingress protection of the
enclosure to at least IP66.
2. Unused cable entries must be filled with suitable blanking plugs which
maintain the ingress protection of the enclosure to at least IP66.
3. Cable entries and blanking plugs must be suitable for the ambient
temperature range of the apparatus and capable of withstanding a 7 J impact
test.
4. The SuperModule(s) must be securely screwed in place to maintain the ingress
protection of the enclosure(s).
N1 ATEX Type n
Certificate: BAS01ATEX3304X
Standards: EN 60079-0:2012, EN 60079-15:2010
Markings: II 3 G Ex nA IIC T5 Gc, (–40 °C ≤Ta≤+85 °C), Vmax = 45 V
Special Condition for Safe Use (X):
1. The equipment is not capable of withstanding the 500 V insulation test
required by clause 6.5 of EN 60079-15:2010. This must be taken into account
when installing the equipment.
Note
RTD Assembly is not included with the Rosemount 3051SFx Type n Approval.
Parameter FISCO
Voltage Ui17.5 V
Current Ii380 mA
Power Pi5.32 W
Capacitance Ci0
Inductance Li0

August 2016
20
Quick Start Guide
8.7 International
E7 IECEx Flameproof and Dust
Certificate: IECEx KEM 08.0010X (Flameproof)
Standards: IEC 60079-0:2011, IEC 60079-1:2007, IEC 60079-26:2006
(3051SFx models with RTD are certified to IEC 60079-0:2004)
Markings: Ex d IIC T6…T4 Ga/Gb, T6(–60 °C ≤Ta≤+70 °C),
T5/T4(–60 °C ≤Ta≤+80 °C)
Special Conditions for Safe Use (X):
1. The device contains a thin wall diaphragm. Installation, maintenance and use
shall take into account the environmental conditions to which the diaphragm
will be subjected. The manufacturer’s instructions for installation and
maintenance shall be followed in detail to assure safety during its expected
lifetime.
2. For information on the dimensions of the flameproof joints the manufacturer
shall be contacted.
Certificate: IECEx BAS 09.0014X (Dust)
Standards: IEC 60079-0:2011, IEC 60079-31:2008
Markings: Ex ta IIIC T 105 °C T500 95 °C Da, (–20 °C ≤Ta≤+85 °C), Vmax = 42.4 V
Special Conditions for Safe Use (X):
1. Cable entries must be used which maintain the ingress protection of the
enclosure to at least IP66.
2. Unused cable entries must be filled with suitable blanking plugs which
maintain the ingress protection of the enclosure to at least IP66.
3. Cable entries and blanking plugs must be suitable for the ambient
temperature range of the apparatus and capable of withstanding a 7 J impact
test.
4. The Rosemount 3051S SuperModule must be securely screwed in place to
maintain the ingress protection of the enclosure.
I7 IECEx Intrinsic Safety
Certificate: IECEx BAS 04.0017X
Standards: IEC 60079-0: 2011, IEC 60079-11:2011
Markings: Ex ia IIC T4 Ga, T4(–60 °C ≤Ta≤+70 °C)
Temperature class Process temperature
T6 –60 °C to +70 °C
T5 –60 °C to +80 °C
T4 –60 °C to +120 °C
Model UiIiPiCiLi
SuperModule 30 V 300 mA 1.0 W 30 nF 0
3051S...A; 3051SF…A; 3051SAL…C 30 V 300 mA 1.0 W 12 nF 0
3051S…F; 3051SF…F 30 V 300 mA 1.3 W 0 0
3051S …A…M7, M8, or M9;
3051SF …A…M7, M8, or M9;
3051SAL…C… M7, M8, or M9
30 V 300 mA 1.0 W 12 nF 60 μH
3051SAL or 3051SAM 30 V 300 mA 1.0 W 12 nF 33 μH
