1 About this guide
This guide provides basic guidelines for Rosemount 214C Sensor models. If
the sensor was ordered assembled to a temperature thermowell or
transmitter, see the appropriate product literature for information on
configuration and hazardous locations certifications.
1.1 Safety messages
NOTICE
Complications can arise when the sensors and the transmitters to which they
are assembled are certified to compatible, but each has different approvals.
Be aware of the following situations:
•If an I.S. approved Rosemount 214C Sensor is ordered with a housing, a
transmitter enclosed in that housing may have a different I.S. approval
rating. Refer to the transmitter IS certificate if applicable.
•If a sensor and transmitter have different certifications, or if either has
more certifications than the other, installation must comply with the
most restrictive requirements required by either component. This is
especially (but not exclusively) relevant when combination approvals are
ordered on either the sensor or transmitter. Review certifications on
both the sensor and transmitter for installation requirements and ensure
installation of the sensor/transmitter assembly complies with a single
certification that is shared by both of these components and that meets
the requirements of the application.
WARNING
Explosion
Explosions could result in death or serious injury.
Installation of sensor in an explosive environment must be in accordance
with appropriate local, national, and international standards, codes, and
practices.
May 2021 Quick Start Guide
Quick Start Guide 3

WARNING
Conduit/cable entries
Unless marked, the conduit/cable entries in the housing use a ½–14 NPT
thread form. Entries marked “M20” are M20 × 1.5 thread form. On
devices with multiple conduit entries, all entries will have the same
thread form. Only use plugs, adapters, glands, or conduit with a
compatible thread form when closing these entries.
When installing in a hazardous location, use only appropriately listed or
Ex certified plugs, glands, or adapters in cable/conduit entries.
Only use plugs, adapters, glands, or conduit with a compatible thread
form when closing these entries.
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
CAUTION
Refer to Product Certification section of this Quick Start Guide
documentation.
Quick Start Guide May 2021
4 Emerson.com/Rosemount

2 Wiring diagram for RTDs
Figure 2-1: RTD Lead Wire Configuration per IEC 60751 - Single Element
3-wire 4-wire
Red
Red
White
White
Red
Red
White
Note
To configure a single element, 4-wire RTD as a 3-wire system, connect only
one white lead. Insulate or terminate the unused white lead in a manner that
prevents shorting to the ground. To configure a single element, 4-wire RTD
as a 2-wire system, connect matching colored wires first and then connect
the paired wires to the terminal.
Figure 2-2: RTD Lead Wire Configuration per IEC 60751 - Dual Element
3-wire
Red
Red
White
Black
Black
Yellow
May 2021 Quick Start Guide
Quick Start Guide 5

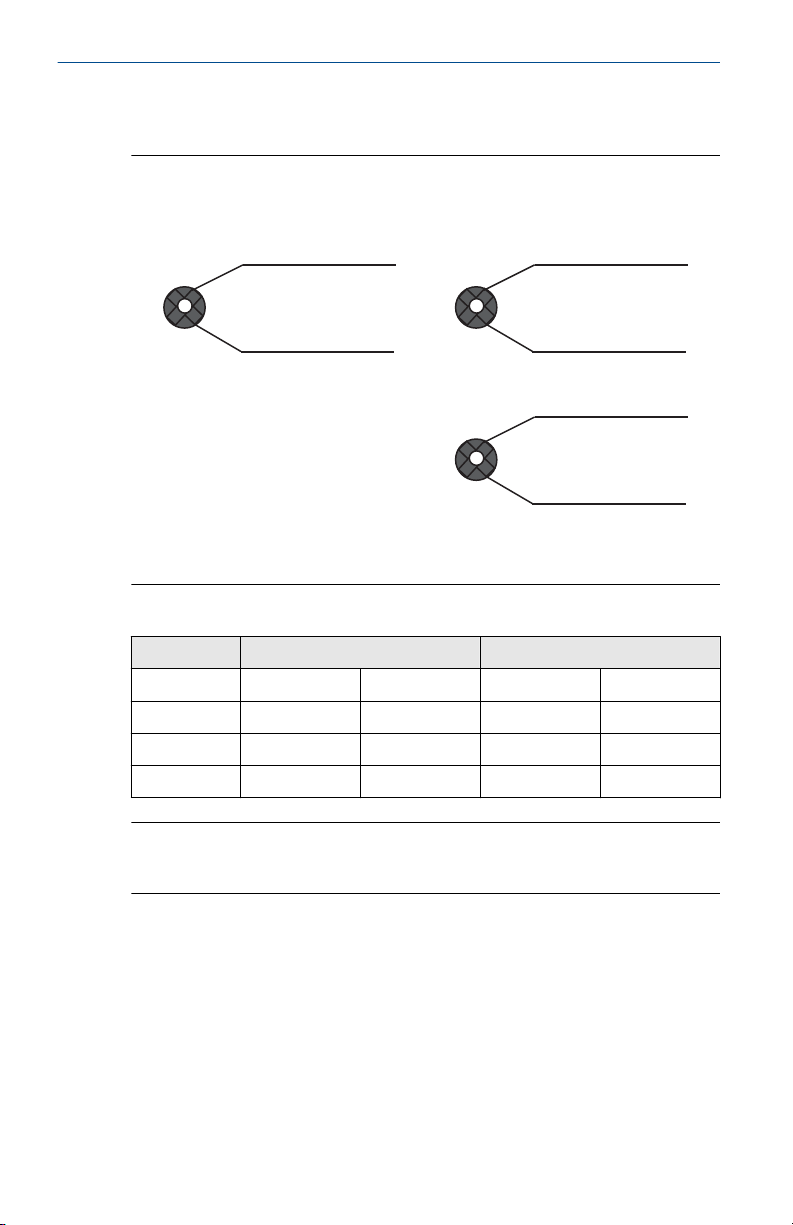

3 Wiring diagram for thermocouples
Figure 3-1: Thermocouple Lead Wire Configuration
Single thermocouple, 2-wire Dual thermocouple, 4-wire
( – )
( + ) ( + )
( + )
( – )
( – )
Table 3-1: Thermocouple Wire Color
IEC 60584 Themocouple ASTM E230 Thermocouple
Type POS (+) NEG (-) POS (+) NEG (-)
J Black White White Red
K Green White Yellow Red
T Brown White Blue Red
Note
Dual thermocouple sensors are shipped with one pair of the wires shrink-
wrapped together.
Quick Start Guide May 2021
6 Emerson.com/Rosemount

4 Additional RTD specifications
Note
All specifications in this section apply to all RTDs unless noted otherwise. All
RTDs meet and/or exceed type and routine tests for sensors/thermometers
per IEC 60751:2008.
4.1 Insulation resistance
1000 MΩ minimum insulation resistance when measured at 500 VDC at
room temperature.
4.2 Insulation resistance at elevated temperature
Insulation resistance at elevated temperatures for sensor types RT, RH, and
RW are tested and meet requirements according to IEC 60751:2008 6.5.1.
4.3 Time response
Sensor response time tested in flowing water according to IEC 60751:2008
6.5.2.
Sensor type RT: T50 average = 8.5 seconds; T90 average = 22.9 seconds
Sensor type RH: T50 average = 9.15 seconds; T90 average = 24.1 seconds
Sensor type RW: T50 average = 9.0 seconds; T90 average = 24.4 seconds
4.4 Stability
Stability at upper temperature limit tested and meets requirements
according to IEC 60751:2008 6.5.3.
4.5 Effects of temperature cycling
Effect of temperature cycling tested and meets requirements according to
IEC 60751:2008 6.5.5.
4.6 Hysteresis
Effect of hysteresis tested and meets requirements according to IEC
60751:2008 6.5.6.
4.7 Self heating
Self-heating tested and meets requirements according to IEC 60751:2008
6.5.7.
May 2021 Quick Start Guide
Quick Start Guide 7

4.8 Process immersion
Minimum immersion depth tested according to IEC 60751:2008 6.5.8.
Sensor type RT, single: Minimum immersion depth = 30 mm
Sensor type RT, dual: Minimum immersion depth = 45 mm
Sensor type RH, single and dual: Minimum immersion depth = 40 mm
Sensor type RW, single and dual: Minimum immersion depth = 50 mm
4.9 Vibration limits
Vibration tested according to IEC 60751:2008 6.6.4.
Sensor type RT ordered with VR1: Meets 10 g vibration between 20 and 500
Hz for 150 hours.
Sensor type RT and RH: Meets 3 g vibration between 20 and 500 Hz for 150
hours.
Sensor type RW: Meets 1 g vibration between 20 and 500 Hz for 150 hours.
4.10 Functional specifications
Power Overvoltage Category I
Environmental Pollution Degree 4
Quick Start Guide May 2021
8 Emerson.com/Rosemount

5 Additional thermocouple specifications
Note
All specifications in this section apply to all thermocouple types unless noted
otherwise. All thermocouples meet and/or exceed type and routine tests for
sensors/thermometers per IEC 61515:2016.
5.1 Insulation resistance
1000 MΩ minimum insulation resistance when measured at 500 VDC at
room temperature.
5.2 Time response
Sensor response time tested in flowing water according to IEC 61515:2016
5.3.2.8.
Grounded: T50 average = 1.9 seconds; T90 average = 4.0 seconds
Ungrounded: T50 average = 2.8 seconds; T90 average = 7.3 seconds
5.3 Process immersion
Minimum immersion depth tested according to IEC 60751:2008 6.5.8.
Grounded thermocouples: Minimum immersion depth = 5 mm
Ungrounded thermocouples: Minimum immersion depth = 10 mm
5.4 Continuity
Electrical continuity and polarity are tested and meet requirements
according to IEC 61515:2016 5.3.2.
5.5 Functional specifications
Power Overvoltage Category I
Environmental Pollution Degree 4
May 2021 Quick Start Guide
Quick Start Guide 9

6 Product certifications
Rev 2.7
European Directive information
A copy of the EU Declaration of Conformity can be found at the end of the
Quick Start Guide. The most recent revision of the EU Declaration of
Conformity can be found at Emerson.com/Rosemount.
Ordinary Location Certification
The Rosemount 214C has been examined and tested to determine that the
design meets the basic electrical, mechanical, and fire protection
requirements by a nationally recognized test laboratory (NRTL) as accredited
by the Federal Occupational Safety and Health Administration (OSHA).
Note
The terminal strip in the Aluminum with Terminal Strip (AT1 or AT3)
connection head requires sensor lead wires to have a wire termination (Ex:
Bootlace ferrule or spade lug).
North America
The US National Electrical Code® (NEC) and the Canadian Electrical Code
(CEC) permit the use of Division marked equipment in Zones and Zone
marked equipment in Divisions. The markings must be suitable for the area
classification, gas, and temperature class. This information is clearly defined
in the respective codes.
6.1 North America
6.1.1 E5 USA Explosionproof (XP) and Dust-Ignitionproof (DIP)
Certificate 70044744
Standards FM 3600:2011, FM 3615:2006, UL 50E:2007, UL
61010-1:2010, ANSI/ISA 60529:2004
Markings XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E, F, G; CL III; T6
(-50 °C ≤ Ta ≤ +80 °C), T5 (-50 °C ≤ Ta ≤ +95 °C); Seal not
required; installed per Rosemount drawing 00214-1030; Type
4X† and IP 66/67; Vmax 35 VDC, 750 mWmax
Special Conditions for Safe Use (X):
1. Flameproof joints are not intended for repair.
2. Cable entries must be used which maintain the ingress protection of
the enclosure. Unused cable entries must be filled with suitable
blanking plugs.
Quick Start Guide May 2021
10 Emerson.com/Rosemount

6.1.2 N5 USA Division 2 (NI)
Certificate 70044744
Standards FM 3600:2011, FM 3611:2004, UL 50E:2007, UL
61010-1:2010, ANSI/ISA 60529:2004
Markings NI CL I, DIV 2, GP A, B, C, D; T6 (-50 °C ≤ Ta ≤ +80 °C), T5 (-50 °C
≤ Ta ≤ +95 °C); installed per Rosemount drawing 00214-1030;
Type 4X† and IP 66/67; Vmax 35 VDC, 750 mWmax
6.1.3 E6 Canada Explosionproof (XP) and Dust-Ignitionproof (DIP)
Certificate 70044744
Standards CAN/CSA C22.2 No. 0:2010, CAN/CSA No. 25-1966 (R2000),
CAN/CSA C22.2 No. 30-M1986 (R2012), CAN/CSA C22.2 No.
94-M1991 (R2011), CAN/CSA C22.2 No. 61010-1:2012
Markings XP CL I, DIV 1, GP B*, C, D; DIP CL II, DIV 1, GP E, F, G; CL III; T6
(-50 °C ≤ Ta ≤ +80 °C), T5 (-50 °C ≤ Ta ≤ +95 °C); Seal not
required; installed per Rosemount drawing 00214-1030; Type
4X† and IP 66/67; Vmax 35 VDC, 750 mWmax
Special Conditions for Safe Use (X):
1. Flameproof joints are not intended for repair.
2. Cable entries must be used which maintain the ingress protection of
the enclosure. Unused cable entries must be filled with suitable
blanking plugs.
6.1.4 N6 Canada Division 2
Certificate 70044744
Standards CAN/CSA C22.2 No. 0:2010, CAN/CSA C22.2 No. 94-M1991
(R2011), CAN/CSA No. 213-M1987 (R2013), CAN/CSA C22.2
No. 61010-1:2012
Markings CL I, DIV 2, GP A, B, C, D; T6; (–50 °C ≤ Ta ≤ +80 °C), T5 (–50 °C
≤ Ta ≤ +95 °C); installed per Rosemount drawing 00214-1030;
Type 4X† and IP 66/67; Vmax 35 VDC, 750 mWmax
†Spring loaded indicator has reduced ingress and dust ratings. Spring loaded
sensors must be installed in a thermowell to maintain dust and ingress
ratings. Un-painted aluminum enclosures are Type 4 rated. *Assembly is not
Canada Explosionproof (E6) rated to Group B if the AT1 (Aluminum with
Terminal Strip) connection head is used.
May 2021 Quick Start Guide
Quick Start Guide 11

6.2 Europe
6.2.1 E1 ATEX Flameproof
Certificate DEKRA 19ATEX0076 X
Standards EN IEC 60079-0: 2018, EN 60079-1: 2014
Markings II 2 G Ex db IIC T6…T1 Gb, (-60 °C ≤ Ta ≤ +80 °C)
Special Conditions for Safe Use (X):
1. Flameproof joints are not intended for repair.
2. Non-Standard Paint options may cause risk from electrostatic
discharge. Avoid installations that cause electrostatic build-up on
painted surfaces, and only clean the painted surfaces with a damp
cloth. If paint is ordered through a special option code, contact the
manufacturer for more information.
3. When provided on their own, the adapter style sensors must be
assembled to a suitable Ex db enclosure with a free internal volume
no greater than 550 cm3.
4. Guard DIN sensors against impacts greater than 4J.
Process temperature
range (°C)(1)
Ambient temperature
range (°C)(1)
Temperature class
-60 °C to +80 °C -60 °C to +80 °C T6
-60 °C to +95 °C -60 °C to +80 °C T5
-60 °C to +130 °C -60 °C to +80 °C T4
-60 °C to +195 °C -60 °C to +80 °C T3
-60 °C to +290 °C -60 °C to +80 °C T2
-60 °C to +440 °C -60 °C to +80 °C T1
(1) Min. process temperature and min. ambient temperature is limited to
-50 °C for models with enclosure designation “AD1” or “SD1”
6.2.2 I1 ATEX Intrinsic Safety
Certificate Baseefa16ATEX0101X
Standards EN 60079-0:2012+A11:2013, EN 60079-11:2012
Markings II 1 G Ex ia IIC T5/T6 Ga (SEE CERTIFICATE FOR SCHEDULE)
Thermocouples; Pi = 500 mW T6 -60 °C ≤ Ta ≤ +70 °C
Quick Start Guide May 2021
12 Emerson.com/Rosemount

RTDs; Pi = 192 mW T6 -60 °C ≤ Ta ≤ +70 °C
RTDs; Pi = 290 mW T6 -60 °C ≤ Ta ≤ +60 °C
T5 -60 °C ≤ Ta ≤ +70 °C
Special Conditions for Safe Use (X):
The equipment must be installed in an enclosure which affords it a degree of
ingress protection of at least IP20.
6.2.3 N1 ATEX Zone 2
Certificate BAS00ATEX3145
Standards EN 60079-0:2012+A11:2013, EN 60079-15:2010
Markings II 3 G Ex nA IIC T5 Gc (-40 °C ≤ Ta ≤ 70 °C)
6.2.4 ND ATEX Dust Ignitionproof
Certificate DEKRA 19ATEX0076 X
Standards EN IEC 60079-0:2018, EN 60079-31:2014
Markings II 2 D Ex tb IIIC T130 °C Db, (-60 °C ≤ Ta ≤ +80 °C)
Special Conditions for Safe Use (X):
1. Non-Standard Paint options may cause risk from electrostatic
discharge. Avoid installations that cause electrostatic build-up on
painted surfaces, and only clean the painted surfaces with a damp
cloth. If paint is ordered through a special option code, contact the
manufacturer for more information.
2. When provided on their own, the adapter style sensors must be
assembled to a suitable Ex tb enclosure with a free internal volume
no greater than 550 cm3.
3. The spring loaded adapter style sensors and DIN style sensors must
be installed in a thermowell to maintain Ex tb protection.
4. The contact indicating adapter style sensor does not meet the
requirements for type of protection “tb”.
Process temperature
range (°C)(1)
Ambient temperature
range (°C)(1)
Maximum surface
temperature “T”
-60 °C to +100 °C -60 °C to +80 °C T130 °C
(1) Min. process temperature and min. ambient temperature is limited to
-50 °C for models with enclosure designation “AD1” or “SD1”.
May 2021 Quick Start Guide
Quick Start Guide 13

6.3 International
6.3.1 E7 IECEx Flameproof
Certificate IECEx DEK 19.0041X
Standards IEC 60079-0: 2017, IEC 60079-1: 2014
Markings Ex db IIC T6…T1 Gb (-60 °C ≤ Ta ≤ +80 °C)
Special Conditions for Safe Use (X):
1. Flameproof joints are not intended for repair.
2. Non-Standard Paint options may cause risk from electrostatic
discharge. Avoid installations that cause electrostatic build-up on
painted surfaces, and only clean the painted surfaces with a damp
cloth. If paint is ordered through a special option code, contact the
manufacturer for more information.
3. When provided on their own, the adapter style sensors must be
assembled to a suitable Ex db enclosure with a free internal volume
no greater than 550 cm3.
4. Guard DIN sensors against impacts greater than 4J.
Process temperature
range (°C)(1)
Ambient temperature
range (°C)(1)
Temperature class
-60 °C to +80 °C -60 °C to +80 °C T6
-60 °C to +95 °C -60 °C to +80 °C T5
-60 °C to +130 °C -60 °C to +80 °C T4
-60 °C to +195 °C -60 °C to +80 °C T3
-60 °C to +290 °C -60 °C to +80 °C T2
-60 °C to +440 °C -60 °C to +80 °C T1
(1) Min. process temperature and min. ambient temperature is limited to
-50 °C for models with enclosure designation “AD1” or “SD1”.
6.3.2 I7 IECEx Intrinsic Safety
Certificate IECEx BAS 16.0077X
Standards IEC 60079-0:2011, IEC 60079-11:2011
Markings Ex ia IIC T5/T6 Ga (SEE CERTIFICATE FOR SCHEDULE)
Thermocouples; Pi = 500 mW T6 -60 °C ≤ Ta ≤ +70 °C
Quick Start Guide May 2021
14 Emerson.com/Rosemount

RTDs; Pi = 192 mW T6 -60 °C ≤ Ta ≤ +70 °C
RTDs; Pi = 290 mW T6 -60 °C ≤ Ta ≤ +60 °C
T5 -60 °C ≤ Ta ≤ +70 °C
Special Condition for Safe Use (X):
The equipment must be installed in an enclosure which affords it a degree of
ingress protection of at least IP20.
6.3.3 N7 IECEx Zone 2
Certificate IECEx BAS 07.0055
Standards IEC 60079-0:2011, IEC 60079-15:2010
Markings Ex nA IIC T5 Gc; T5 (–40 °C ≤ Ta ≤ +70 °C)
6.3.4 NK IECEx Dust Ignitionproof
Certificate IECEx DEK 19.0041X
Standards IEC 60079-0:2017 and IEC 60079-31:2013
Markings Ex tb IIIC T130 °C Db, (-60 °C ≤ Ta ≤ +80 °C)
Special Conditions for Safe Use (X):
1. Non-Standard Paint options may cause risk from electrostatic
discharge. Avoid installations that cause electrostatic build-up on
painted surfaces, and only clean the painted surfaces with a damp
cloth. If paint is ordered through a special option code, contact the
manufacturer for more information
2. When provided on their own, the adapter style sensors must be
assembled to a suitable Ex tb enclosure with a free internal volume
no greater than 550 cm3.
3. The spring loaded adapter style sensors and DIN style sensors must
be installed in a thermowell to maintain Ex tb protection.
4. The contact indicating adapter style sensor does not meet the
requirements for type of protection “tb”.
Process temperature
range (°C)(1)
Ambient temperature
range (°C)(1)
Maximum surface
temperature “T”
-60 °C to +100 °C -60 °C to +80 °C T130 °C
(1) Min. process temperature and min. ambient temperature is limited to
-50 °C for models with enclosure designation “AD1” or “SD1”.
May 2021 Quick Start Guide
Quick Start Guide 15

6.4 Brazil
6.4.1 E2 Brazil Flameproof & Dust Ignitionproof
Certificate UL-BR 17.0199X
Standards ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-1:2016,
ABNT NBR IEC 60079-31:2014
Markings Ex db IIC T6…T1 Gb T6 (-50 °C ≤ Ta ≤ +80 °C), T5 (-50 °C ≤ Ta ≤
+95 °C), T4…T1 (-50 °C ≤ Ta ≤ +100 °C); Ex tb IIIC T130 °C Db
(-50 °C ≤ Ta ≤ +100 °C)
Special Conditions for Safe Use (X):
1. Refer to certificate for details regarding process and ambient
temperature limits.
2. When the Rosemount 214C Sensor is provided with an enclosure
with a display cover, the maximum ambient shall be 95 °C.
3. The non-metallic label on the device may store an electrostatic
charge and become a source of ignition in Group III atmospheres.
Care shall be taken to reduce electrostatic build-up. For example, the
non-metallic label may be rubbed with a damp cloth.
4. The display covers were impacted at 4 J according to a low risk of
mechanical danger. Guard the display covers against impact energies
greater than 4J.
5. Flameproof joints are not intended for repair.
6. The stand-alone Rosemount 214C Sensors without an enclosure
must be assembled to a suitable Ex certified enclosure of a volume no
greater than 0.55 L to maintain the types of protection “db” and
“tb”.
7. The spring loaded sensors and DIN sensors must be installed in a
thermowell to maintain IP6X ratings.
8. Contact indicating sensors do not meet requirements for protection
type “Ex tb” and therefore are not “Ex tb” rated on this certificate.
6.4.2 I2 Brazil Intrinsic Safety
Certificate UL-BR 18.0257X
Standards ABNT NBR IEC 60079-0:2013, ABNT NBR IEC 60079-11:2013
Markings Ex ia IIC T6…T5 Ga Thermocouples: Pi = 500 mW, T6 (-60 °C ≤
Ta ≤ +70 °C) RTDs: Pi = 192 mW, T6 (-60 °C ≤ Ta ≤ +70 °C) Pi =
290 mW, T6 (-60 °C ≤ Ta ≤ +60 °C), T5 (-60 °C ≤ Ta ≤ +70 °C)
Quick Start Guide May 2021
16 Emerson.com/Rosemount

Special Conditions for Safe Use (X):
The equipment must be installed in an enclosure which affords it a degree of
ingress protection of at least IP20.
6.5 China
6.5.1 E3 China Flameproof
Certificate GYJ17.1010X (CCC 认证)
Standards GB 3836.1-2010, GB 3836.2-2010, GB 12476.1-2013, GB
12476.5-2013
Markings Ex d IIC T6~T1 Gb, Ex tD A21 IP6X T130 °C
*Dust Ignitionproof approvals/markings are only available through the K3
option code
产品安全使用特殊条件
证书编号后缀“X”表明产品具有安全使用特殊条件：
1. 涉及隔爆接合面的维修须联系产品制造商.
2. 非金属铭牌可能带来静电放电危险，产品用于爆炸性粉尘危险场所
时需要采取措施以防止静电积聚.
产品使用注意事项
1. 产品温度组别和使用环境温度的关系为:
温度组别 环境温度
AR1、SR1、AD1、
SD1、AT1、AJ1、AJ2
AR2、SR2
T6 -50 ℃ ≤ Ta≤ +80 ℃-50 ℃ ≤ Ta ≤ +80 ℃
T5 -50 ℃ ≤ Ta≤ +95 ℃-50 ℃ ≤ Ta ≤ +95 ℃
T4~T1 -50 ℃ ≤ Ta≤ +100 ℃-50 ℃ ≤ Ta ≤+95 ℃
T130 ℃-50 ℃ ≤ Ta≤ +100 ℃-50 ℃ ≤ Ta ≤+95 ℃
2. 产品温度组别和过程温度的关系为:
外壳
类型
扩展
长度
过程温度（℃）
气体 粉尘
T6 T5 T4 T3 T2 T1 T130
℃
AR2,
SR2
无扩
展
55 70 95 95 95 95 95
May 2021 Quick Start Guide
Quick Start Guide 17

3’’ 55 70 100 100 100 100 100
6’’ 60 70 100 100 100 100 100
9’’ 65 75 110 110 110 110 110
AR1,
SR1,
AD1,
SD1,
AT1,
AJ1,
AJ2
任何
长度
85 100 135 200 300 450 130
3. 产品外壳设有接地端子，用户在使用时应可靠接地.
4. 安装现场应不存在对产品外壳有腐蚀作用的有害气体.
5. 现场安装时，电缆引入口须选用国家指定的防爆检验机构按检验认
可、具有 Ex d ⅡC Gb，Ex tD A21 IP6X 防爆等级的电缆引入装置或堵
封件，冗余电缆引入口须用堵封件有效密封.
6. 用于爆炸性气体环境中，现场安装、使用和维护必须严格遵守“断电
后开盖！”的警告语。用于爆炸性粉尘环境中，现场安装、使用和维
护必须严格遵守“爆炸性粉尘场所严禁开盖！”的警告语.
7. 用于爆炸性粉尘环境中，产品外壳表面需保持清洁，以防粉尘堆
积，但严禁用压缩空气吹扫.
8. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运
行中出现的故障，以杜绝损坏现象的发生.
9. 产品的安装、使用和维护应同时遵守产品使用说明书、
GB3836.13-2013“爆炸性环境 第13 部分：设备的修理、检修、修
复和改造”、GB/T3836.15-2017“爆炸性环境 第15 部分：电气装置
的设计、选型和安装”、GB/T3836.16-2017“爆炸性环境 第16 部
分：电气装置的检查和维护”、GB50257-2014“电气装置安装工程爆
炸和火灾危险环境电力装置施工及验收规范”和GB15577-2007“粉
尘防爆安全规程”的有关规定。
6.5.2 I3 China Intrinsic Safety
Certificate GYJ18.1024X (CCC 认证)
Standards GB 3836.1-2010, GB 3836.4-2010, GB 3836.20-2010
Markings Ex ia IIC T5/T6 Ga
Quick Start Guide May 2021
18 Emerson.com/Rosemount

产品安全使用特殊条件
证书编号后缀“X”表明产品具有安全使用特殊条件：产品必须安装于具有
IP20 外壳防护等级的外壳内方可使用.
产品使用注意事项
1. 产品使用环境温度和温度组别的关系为：
传感器类型 最大输入功率 Pi
(mW)
温度组别 使用环境温度
热电偶 500 T6 -60 ℃ ～ +70 ℃
RTD 192 T6 -60 ℃ ～ +70 ℃
RTD 290 T6 -60 ℃ ～ +60 ℃
T5 -60 ℃ ～ +70 ℃
2. 本安电气参数:
热电偶：
最高输入电
压
最大输入电
流
最大输入功
率
最大内部等效参数
Ui (V) Ii (mA) Pi (mW) Ci (pF) Li (nH)
60 100 500 75 600
最高输出电压
Uo (V)
最大输出电流
Io (mA)
最大输出功率
Po (mW)
0.1 50 25
RTD:
最高输入电
压
最大输入电
流
最大输入功
率
最大内部等效参数
Ui (V) Ii (mA) Pi (mW) Ci (pF) Li (nH)
60 100 192/290 75 600
3. 该产品必须与已通过防爆认证的关联设备配套共同组成本安防爆系
统方可使用于爆炸性气体环境。其系统接线必须同时遵守本产品和
所配关联设备的使用说明书要求，接线端子不得接错.
4. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运
行中出现的故障，以杜绝损坏现象的发生.
May 2021 Quick Start Guide
Quick Start Guide 19

5. 产品的安装、使用和维护应同时遵守产品使用说明书、
GB3836.13-2013“爆炸性环境 第13 部分：设备的修理、检修、修
复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第15 部
分：危险场所电气安装（煤矿除外）”、GB3836.16-2006“爆炸性气
体环境用电气设备 第16 部分：电气装置的检查和维护（煤矿除
外）”、GB3836.18-2010“爆炸性环境 第18 部分：本质安全系统”和
GB50257-2014“电气装置安装工程爆炸和火灾危险环境电力装置施
工及验收规范”的有关规定.
6.5.3 N3 China Zone 2
Certificate GYJ18.1025 (CCC 认证)
Standards GB 3836.1-2010, GB 3836.8-2014
Markings Ex nA IIC T5 Gc, T5 (-40 °C ≤ Ta ≤ +70 °C)
产品使用注意事项
1. 产品使用环境温度为：-40 ℃～+70 ℃
2. 输入参数：
类型 输入参数 Ui
变送器 42.4 V
热电阻端子 5 V
热电偶端子 0 V
3. 产品外壳内可以安装如下温度变送器模块：
型号 防爆合格证编号
644 系列 GYJ15.1502
248 系列 GYJ15.1089
4. 现场安装时，电缆引入口须选用经国家指定的防爆检验机构检验认
可、具有 Ex e ⅡC Gb 或Ex nR ⅡC Gc 防爆等级的电缆引入装置或堵封
件，冗余电缆引入口须用堵封件有效密封。电缆引入装置或封堵件
的安装使用必须遵守其使用说明书的要求并保证外壳防护等级达到
IP54 (符合 GB4208-2008 标准要求)以上.
5. 用户不得自行更换该产品的零部件，应会同产品制造商共同解决运
行中出现的故障，以杜绝损坏现象的发生.
6. 产品的安装、使用和维护应同时遵守产品使用说明书、
GB3836.13-2013“爆炸性环境 第13 部分：设备的修理、检修、修
复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第15 部
Quick Start Guide May 2021
20 Emerson.com/Rosemount
