Introduction
This is the User’s Guide for Focus 3N (Non-regenerative) series of DC Drives. The Focus
3 is a 3rd generation product of the long-standing Focus series. The Focus 1 was introduced
back in 1980 and the Focus 2 later in 1982. The Focus 2 was retired when the Focus 3 was
introduced as it took advantage of many technological advances in power electronics. The
Focus 3 Non-regen is a single-phase, uni-directional analog drive for DC motors with power
ranges from ¼ to 5HP.
Your Focus 3N is a general purpose non-regenerative DC motor speed controller that is
powered from either 115Vac or 230Vac single phase power. A non-regenerative (single
quadrant) drive is one that can provide motoring torque for acceleration and to overcome rated
loads. There are a great many applications where non-regenerative drives provide the most
economical solution. A non-regenerative drive however cannot slow down a motor faster than
the motors normal coasting rate (unless a Dynamic Braking stop is commanded) nor can it stop
overhauling load situations. For more demanding applications, a sister drive- the Focus 3
Regen (regenerative model), offers full four quadrant operation for bi-directional motor control
and controlled deceleration as well as opposition to overhauling loads.
Both drives incorporate many features that are standard on high performance system
drives, such as dynamic stability and built-in signal follower adjustments. Focus 3 drives come
in two basic model variations- with and without enclosure.
Chassis Model
The model without an enclosure is denoted as a chassis model.
The chassis model is intended for mounting within a User
supplied cabinet and where the User intends to provide remote
Start/Stop and Speed control signals.
Enclosed Model
The Enclosed version comes to you already in a NEMA 4/12
enclosure that would allow the User to mount the Focus on a wall
or machine surface. The Enclosed version has Start/Stop and the
Speed Control adjustment on the front cover for convenient
operation.
For a complete overview of the Focus 3 product
line and available options, visit our website at:
www.emersonct.com or click the link below:
Focus 3 Catalog Section
Page 4

Page 5
Motor Compatibility
The Focus 3 was designed to run standard 90 Vdc or 180 Vdc Shunt Wound or Permanent
Magnet DC motors in one direction. The Focus 3 can run motors with other characteristics
(such as Universal motors) but one must review those requirements to insure compatibility.
Universal motors have commutator brushes but typically plug into the AC power line. Universal
motors are often used in tools such as Drills, Saws, Shop VAC’s, Routers, etc and typically
cannot be run in reverse.
Shunt Wound Motors that are controlled by single phase DC drives typically have 4 power
wires. Two of these are the Armature leads typically designated A1 & A2 or A+ & A-. The
other two power wires are the shunt field leads and typically designated F1 & F2 or F+ & F-.
The Focus 3 can supply up to 1 Amp for shunt field excitation (field current requirements
beyond 1A may damage field rectifier diodes). If your motor does not have Field Current
information on the nameplate, you can determine compatibility by measuring your motors Field
resistance using a calibrated ohmmeter.
Motors with:
90v Armatures typically require 100 Vdc for field excitation. In these cases, the Focus
3 requires 120vac input power and must be internally set for this input level. The motor
Field resistance should not be less than 100 ohms when cold.
180v Armatures typically require 200 Vdc for field excitation. In these cases, the Focus
3 requires 240vac input power and must be internally set for this input level. The motor
Field resistance should not be less than 200ohms when cold.
240v Armatures typically require 150 Vdc for field excitation. In these cases, the Focus
3 requires 240vac input power and must be internally set for this input level. The motor
field resistance should not be less than 150 ohms when cold and will require a series
resistor to drop the additional field supply voltage. Consult Control Techniques Technical
Support for additional information.
Motors with:
Permanent Magnet Motors typically have only 2 power wires. These are the Armature
leads and typically designated A1 and A2 or A+ and A-.

Eddy Current Clutch Controls
Focus 3 Non-Regenerative Drives have been used to replace many of our old Eddy
Current Clutch Drive units. To regulate speed the clutch output shaft typically employed
a tachometer (typically AC but DC could also be used)
A Replacement Solution
for 1235 / 367 Eddy Current Controllers
F3N2C-EC
The Eddy Current controls were a very popular means of providing variable speed
control of a machine back in the 1970’s. A simple 10-amp eddy current controller could
actually control the speed/torque of a 900 HP motor. The F3N2C-EC can provide coil
current up to 10 amps dc in 5 ranges starting at 2.7amps by setting a programming
jumper. This current level can be “fine tuned” to the exact coil current of the clutch being
controlled. For more specific information, refer to CTAN213 via the Internet at our
website: www.emersonct.com or click the link below:
CTAN213
F3N2C
-
EC
WER Eddy
Current 367
Controller
Emerson Eddy
Current 1235
Controller
Control Techniques
Focus Eddy Current
Controller
Page 6

Page 7
Speed Control
Armature Voltage Feedback
The Focus 3 can vary the speed of the motors mentioned above as a function of the
Speed potentiometer setting (or external speed command signal) by simply varying the
output Armature voltage (field excitation if used typically remains constant). A great
many motor applications do not require ultra precise speed control. Because of this, the
Focus 3 is factory set for Armature Voltage Feedback. Armature Voltage Feedback (or
simply Armature Feedback) does not require any special motor mounted speed
feedback device and is therefore inherently quite reliable and is capable of providing up
to 1% speed regulation.
Speed Feedback- Tachometer
Should more precise speed control be required, the Focus 3 can accommodate those
motors equipped with DC Tachometers (AC tachometers require an option kit). DC
tachometers output a linear voltage proportional to their RPM and can provide the Focus
3 with exact motor speed feedback information. With good DC tachometers up to 0.5%
speed accuracy can be achieved. AC tach’s are not as accurate as DC tach’s but DC
tach’s require brush maintenance whereas the AC tach has no brushes.
Tach failure will typically result in motor speed runaway. One who designs
systems with Speed Feedback devices such as DC tachometers should be
cognizant of this fault condition and must take machine design precautions
should this event occur.
We would recommend that all DC Drives be initially run using Armature Voltage
Feedback to verify operation even if Tach Feedback is the ultimate goal.
Quick Stops
A non-regenerative drive cannot stop a motor faster than the motors normal coasting
rate unless a Dynamic Braking resistor is employed. The DB option provides a rather
quick stopping action and provides motor turning resistance when the drive is not in the
RUN condition. The Focus 3N can be outfitted with a Dynamic Braking resistor should
this requirement be desired.
Note: DB Resistors require Contactor Option - See Options
Power Outages
Shunt Wound Motors
Should a power outage occur, the drive would turn off and the motor would coast to rest.
If a Dynamic Braking resistor were employed there would typically be enough decaying
field strength to enable some faster stopping action.
Permanent Magnet Motors
Should a power outage occur, the drive would turn off and the motor would coast to rest.
If a Dynamic Braking resistor were employed, full Dynamic Braking force would be
exerted because the field is maintained by the motors internal permanent magnets.
Therefore, there would be motor turning resistance during power outages as well.

General Information
Introduction
The purpose of this manual is to provide the user with the information needed to
install, start-up, and maintain the Focus 3 drive. This instruction manual should be read
in its entirety, paying special attention to the warning and caution notices, before
installation and before performing any start-up or drive maintenance.
Receiving
The user is responsible for inspecting the equipment thoroughly before accepting
the shipment from the freight company. Check the items received against the purchase
order. If any items are obviously damaged, do not accept delivery until the damage has
been noted on the freight paperwork.
Inspection
Before installation and start-up of the drive, inspect the unit for mechanical integrity
(i.e. loose parts, wires, etc). If physical damage was sustained during shipment, leave
the shipping container intact and notify the freight agent. After unpacking, check the
drive nameplate catalog number against the purchase order. See page 10 for
nameplate location.
Storing
Store the drive in its shipping container prior to installation. If the drive isn’t used
for a period of time, store according to the following instructions in order to maintain
warranty coverage:
Clean, dry location
Ambient Temperature Range: -400C to 700C
Humidity: 95%, Non-condensing
Improper procedures can result in personal injury or equipment damage. Only
qualified electrical maintenance technicians familiar with electronic drives and thei
r
standard safety precautions should be permitted to install, start-up, or maintain this
apparatus.
Page 8

Page 9
PERFORMANCE FEATURES
• Solid State Full Wave Power Bridge -Uses generously rated power semiconductors for
Maximum reliability and long life.
• Inner Current Loop Regulator - Inherent high bandwidth capability for fast response.
• Semiconductor Fusing - Both AC lines fused for maximum protection in case of short
circuit.
• AC Line Filter and Transient Voltage Suppressor Network - Eliminates interaction
between other drives or AC equipment.
• Current Limit Ranges - Selectable current limit ranges to match the drive to the motor
being used. Provides smooth acceleration of high inertia loads.
• Speed Regulator - 1 % accuracy armature voltage feedback with IR compensation or 0.5 %
accuracy with DC tachometer feedback. Regulation accuracy may be affected by the
tachometer selected.
• Current (Torque) Regulator -
2% accuracy armature current regulator allows the user to control motor torque instead of
speed.
• Circuit Board Indicators - Light emitting diodes (LEDs) on the control board indicate when
the drive is in Run Mode or the Current Limit is enabled.
• Remote Current Limit - Available by the simple addition of a potentiometer.
• Current Signal Follower lnput* - Allows the motor speed to be controlled by a current
signal from a commercially available transducer. The signal may be one of the following:
1 -5mA or 4-20mA
• Voltage Signal Follower lnput* - Allows the motor speed to be controlled by a voltage
signal from a DC tachometer generator or a process voltage signal. It accepts an input with
a range of 0-200 Vdc.
• Auto/Manual Operation - Standard circuitry allows the drive to be controlled by the
operator speed potentiometer or by the current/voltage signal inputs.
• UL/cUL - All Focus 3 Drives are UL/cUL listed.
*Use voltage or current input
• The current/voltage signal must be ungrounded and isolated from the AC powe
r
source and other controls which use the signal. If the signal is not isolated, an
isolator (such as #F3NSBD) must be used or drive damage will occur.
• One cannot make a connection to ground or a grounded device to any terminal o
r
connection point to the Focus 3 Non-Regenerative Drive without causing driv
e
damage. Such failures unfortunately cannot be warranted.
• See Ways of Achieving Isolation on page 69 of this manual

The Focus 3 comes in two basic model variations- with and without enclosure.
Chassis Model
The model without an enclosure is denoted as a chassis model. The chassis model is
intended for mounting within a User supplied cabinet and where the User intends to
provide remote Start/Stop and Speed control signals.
Enclosed Model
The Enclosed version comes to you already in a NEMA 4/12 enclosure that would allow
the User to mount the Focus on a wall or machine surface. The Enclosed version has
Start/Stop and the Speed Control adjustment on the front cover for convenient operation.

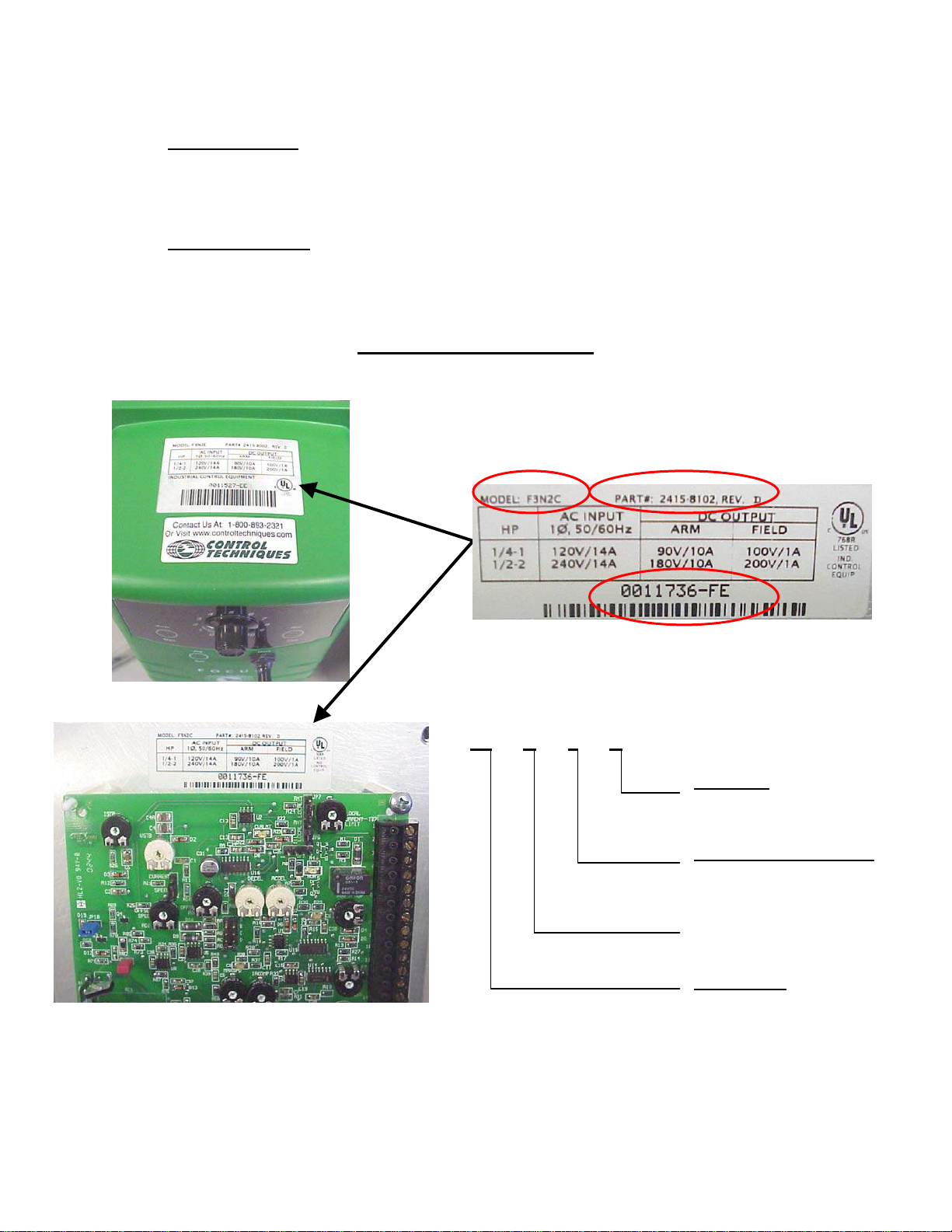

Nameplate Information
lways record the drive Model Number, Part Number and Serial Number for future
arranty situations and spare parts. A good location to record these is on the Start-up
uide Worksheet on page #49.
Enclosed Unit
Chassis Unit
Model # Part #
Model Number Definition
F3 N2C
Enclosure
Chassis(C)
Enclosed(E)
Max HP Rating @240vac
2HP(2)
5HP(5)
Non-Regen (N)
Regen(R)
Drive Family
Focus3(F3)
Serial #
A
w
G
Page 10

Page 11
Specifications
Ratings
AC Input DC Output
Catalog Enclosure HP 1Ø Max Armature Armature Field Field
Part # Volts Amps Volts Amps Volts Amps
F3N2C Chassis ¼ -1
½-2 120 240 14 14 90 180 10 10 100 200 1 1
F3N2E NEMA 4/12 ¼ -1
½-2 120 240 14 14 90 180 10 10 100 200 1 1
F3N5C Chassis 3-5 240 35 180 25 200 1
F3N5E NEMA 4/12 3-5 240 35 180 25 200 1
F3N5C
F3N2C
F3N2E
F3N5E
Enclosed Models
Chassis Models

Page 12
PERFORMANCE SPECIFICATIONS
Service Factor 1.0
Speed Regulation (95% Load Change):
Armature Voltage 1% of Max. Speed with IR Compensation
All other variables
(voltage regulated) 15% of Base Speed
Tachometer Feedback (DC) 0. 5% of Base Speed
Speed Range: 30:1
Efficiency:
Control Only 98%
Drive System (motor and control)86% typically
ONDITIONS DRIVE OPERATING C
Altitude (without derating) 3300Ft.
Ambient Temperature:
Chassis Models 0-550C ( 130° F )
Enclosed (NEMA 4/12) 0-40 4° F )
INTERNAL ADJUSTMENTS (POTENTIOMETERS)
0C ( 10
Potentiometer Function Range
Maximum Speed 80-120% of Rated Speed
Minimum Speed 0-30% of Maximum Speed
IR Compensation 0-20% of Rated Voltage
Current Limit 0-150% of Selected Range
Acceleration Time 0.3-20 seconds (linear)
Deceleration Time 0.3-20 seconds (linear)
Jog Speed 0-30% of Full Speed command
Speed Loop Offset Adjustable
Velocity Loop Stability Adjustable
Current Loop Stability Adjustable
Current Signal Follower
Velocity Signal Follower
Signal Follower Zero Bia
CUSTOMER SELECTIONS (JUMPERS
Gain Adjustable
Gain Adjustable
s Adjustable
)
Function Range
pu 24
ontrol M de d / T
urre ac ge / Medium / Low / Xlow
Current Limit Pot cto al / Re
rm l dc/180 c
Optional “M” Contactor /No
ach eed k /Low
pe k cto ature hometer
Line Frequency 50/ 60Hz
In t Voltage 120/ 0Vac
C o Spee orque
C nt Feedb k ran High
Sele r Loc mote
A ature Voltage leve 90 V Vd
Yes
T ometer F bac High
S ed Feedbac Sele r Arm / Tac

Page 13 Page 13
PERATOR FUNCTIONSO
Chassis Enclosed
Speed Adjustment (Speed Pot) Standard Standard
Start/Stop Customer Supplied Standard
Auto/Manual Optional Optional
Run/Jog Optional Optional
CONTROL CIRCUIT SPECIFICATIONS
Logic Control Power 24 Vdc
Speed Potentiometer 5000 ohms
Input Signal Requirement 10 Vdc @ 0.5mA
Control Circuit Isolation Optional with non-regen F3N models
Standard with regen F3R models
Current Signal Follower 1-5mA or 4 - 20mA
Voltage Signal Follower 10 – 200 Vdc (at Maximum Speed)
FOCUS 3 OPTIONS
CATALOG
NUMBER DESCRIPTION
F3SE Enclosure Small (2HP), NEMA 4/12
F3LE Kits Large (5HP), NEMA 4/12
F3M112 “M” ¼ - 1HP @ 120V
F3M224 Contactor ½ - 2HP @ 240V
F3M524 Kits 3 - 5HP @ 240V
F3DB224 ½ HP @ 120V, 2HP @ 240V
F3DB1524 ¼ - 1/3 HP @ 120V, I .5HP @ 240V
F3DB124 Dynamic ¾ -1HP @ 240V
F3DB0524 Braking ½ HP @ 240V
F3DB112 Kits ¾ -1HP @ 120V
F3DB324 3HP @ 240V
F3DB524 5HP @ 240V
F3TS Toggle Switch, NEMA 4 /12
F3NSBD Signal Isolation Board
2450-9024 Remote Percent Speed Meter Kit
2450-9021 Remote RPM Speed Meter Kit
2950-9066 Remote OperatorStation ( 3 Function )
2950-9068 Remote OperatorStation ( 5 Function )
6160-9001 Ten-Turn Precision Potentiometer

Page 14
is DimensionsFocus 3 Chass
Chassis
Suitable for mounting in a user’s enclosu e where internal temper
55 ratures will not exceed
0C.
F3N2C
F3N5C
MOUNTING
NON-REGEN
REGEN
&
SMALL
T1
(4 PLACES)0.168"
7
5
6
2
3
4
TB2
AC1 AC2
3.30"
10
11
12
8
9
13
1
18
E
8
JP11
A
D
C
C
B
A
B
19
20
14
15
17
16
6.36"
6.75"
9.75" 9.35"
0.25"
MOUNTING
NON-REGEN
REGEN
LARGE
TB1
1
L
A
L
2
A
B B
&
D
1
E
8
A
JP11
C
C
A
B
19
20
B
17
18
14
15
16
12
13
2
9
10
11
7
8
5
6
3
4
TB2
13.00" 12.00"
CES)
AC2 G2
4.50"
0.13"
8.88"
9.50"
0.312" (4 PLA
