Emerson CF244BS00 User manual

Part No. F40BP74080001 Form No. BP7408-1
UL Model No.: CF244 & CF252
READ AND SAVE THESE INSTRUCTIONS
Net Weight: 18.3 Lbs. Net Weight: 19.2 Lbs.
44” & 52” Damp &
Wet Location Ceiling Fan
Owner's Manual
CF244BS00
Brushed Steel
CF244CRM00
Chrome
44” Model Numbers
for Damp Locations
CF244WW00
Appliance White
CF244ORB00
Oil Rubbed Bronze
44” Model Numbers
for Wet Locations
CF252BS00
Brushed Steel
CF252CRM00
Chrome
52” Model Numbers
for Damp Locations
CF252WW00
Appliance White
CF252ORB00
Oil Rubbed Bronze
52” Model Numbers
for Wet Locations
CURVA™
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 1

WARNING: To avoid fire, shock, and serious personal injury, follow these
instructions.
Safety Instructions
1. Read your owner’s manual carefully and keep it for future reference.
2. Before servicing or cleaning unit, switch power off at service panel and lock service
panel disconnecting means to prevent power from being switched on accidentally.
When the service disconnecting means cannot be locked, securely fasten a warning
device, such as a tag, to the service panel.
3. Be careful of the fan and blades when cleaning, painting, or working near the fan.
Always turn off the power to the ceiling fan before servicing.
4. Do not put anything into the fan blades while they are turning.
Additional Safety Instructions for Installation
1. To avoid possible shock, be sure electricity is turned off at the fuse box before
wiring, and do not operate fan without blades.
2. The installation is to be in accordance with the National Electrical Code, ANSI/NFPA
70-2008 and Local Codes. Use the National Electrical Code if Local Codes do not
exist. The ceiling fan must be grounded as a precaution against possible electrical
shock. Electrical installation should be made or approved by a licensed electrician.
3. The outlet box and joist must be securely mounted and capable of reliably
supporting at least 50 pounds. Use only U.L. outlet boxes listed as “Acceptable for
Fan Support”, and use the mounting screws provided with the outlet box. Most
outlet boxes commonly used for support of light fixtures are not
acceptable for fan support and may need to be replaced. Consult a qualified
electrician if in doubt.
4. The downrod furnished with the fan provides the minimum recommended floor to
fan blade clearance for an 8-foot ceiling.
5. The fan must be mounted with the fan blades at least 7 feet from the floor to prevent
accidental contact with the fan blades.
6. Follow the recommended instructions for the proper method of wiring your ceiling
fan. If you do not know enough about electrical wiring, have your fan installed by a
licensed electrician.
NOTE: This fan is suitable for use with solid-state speed controls.
WARNING: To reduce the risk of fire or electric shock, this fan should only be used
with fan speed control Model No. UC8013R, manufactured by Rhine Electric Co., Ltd.
WARNING: This product is designed to use only those parts supplied with this
product and/or any accessories designated specifically for use with this product by
Emerson Electric Co. Substitution of parts or accessories not designated for use with
this product by Emerson Electric Co. could result in personal injury or
property damage.
WARNING: To reduce the risk of personal injury, do not bend the blade flange when
installing the blade flanges, balancing the blades or cleaning the fan. Do not insert
foreign objects in between rotating fan blades.
WARNING: To reduce the risk of electric shock, this fan must be installed with an
isolating remote control/switch.
!WARNING
DATE CODE:
The date code of this fan may be found on the box, stamped in ink on a white label.
You should record this data above and keep it in a safe place for future use.
2UL Model No.: CF244 & CF252
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 2

3
THE FAN MODELS CF244BS, CF244CRM, CF252BS & CF252CRM ARE SUITABLE
FOR DAMP LOCATIONS SUCH AS COVERED PORCHES, COVERED PATIOS,
AND COVERED DECKS...ANYWHERE THERE IS A ROOF OVERHEAD.
THE FAN MODELS CF244WW, CF244ORB, CF252WW & CF252ORB ARE
SUITABLE FOR WET LOCATIONS SUCH AS PORCHES, PATIOS, AND DECKS.
This Manual is Designed to Make it as Easy as Possible for You to
Assemble, Install, Operate and Maintain Your Ceiling Fan
Do not install or use fan if any part is
damaged or missing. Call Toll-Free:
1-800-654-3545
!WARNING
This product is designed to use only
those parts supplied with this product
and/or any accessories designated
specifically for use with this product by
Emerson Electric Co. Substitution of
parts or accessories not designated for
use with this product by Emerson Electric
Co. could result in personal injury or
property damage.
!WARNING
Tools Needed for Assembly
One Phillips head screwdriver
One wire stripper
One stepladder
Materials
Wiring, outlet box and box connectors
must be of type required by the local code.
The minimum wire would be a 3-conductor
(2-wire with ground) of the following sizes:
Installed Wire Length Wire Size A.W.G.
Up to 50 ft. 14
50-100 ft. 12
Before assembling your ceiling fan, refer
to section on proper method of wiring
your fan (Page 9). If you feel you do not
have enough wiring knowledge or
experience, have your fan installed by a
licensed electrician.
!WARNING
Unpacking Instructions
For your convenience, check-off boxes are provided next to each step. As each
step is completed, place a check mark in the box. This will insure that all steps
have been completed and will be helpful in finding your place should you be
interrupted.

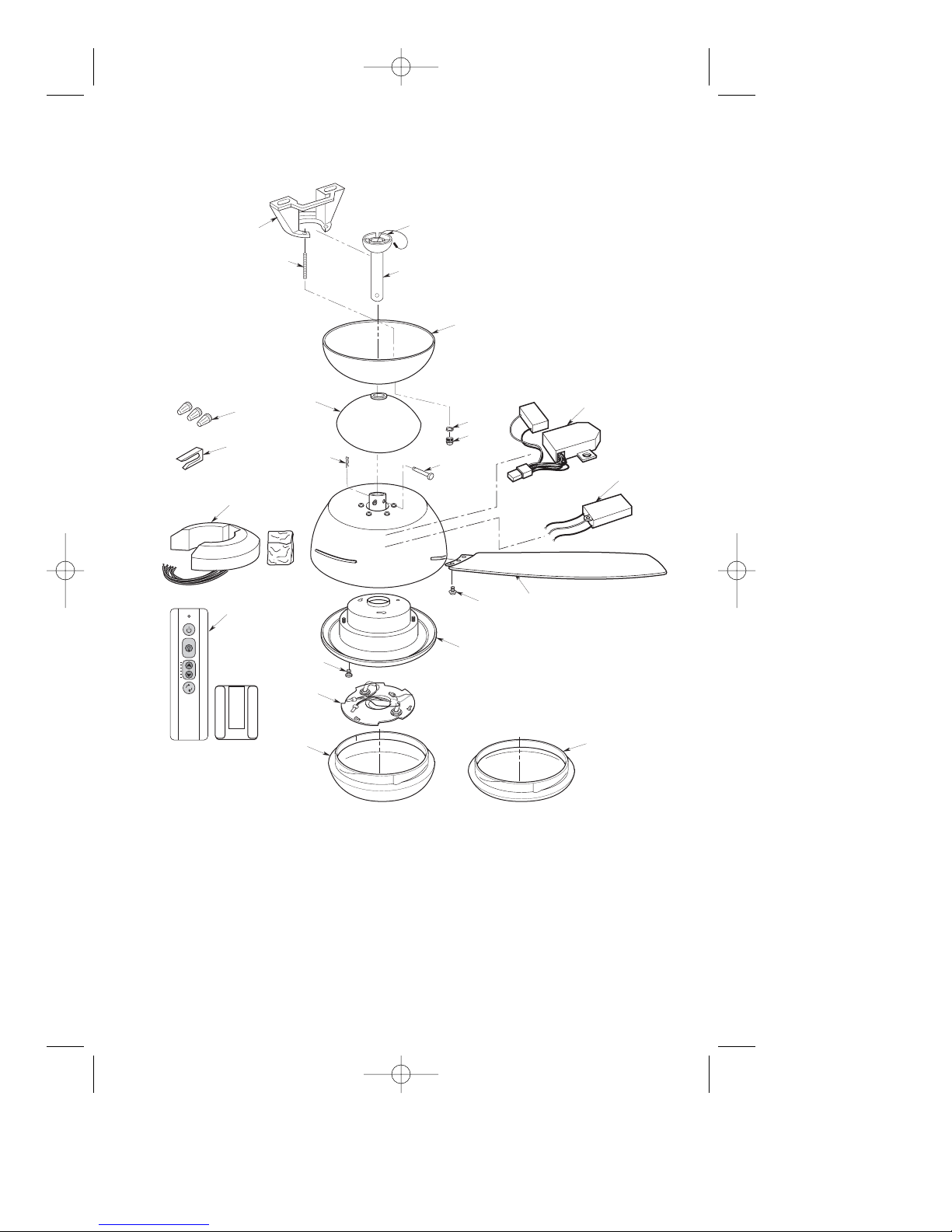

NOTE: If you are uncertain of part
description, refer to exploded view
illustration.
1. Open carton containing fan. Remove
top half of styrofoam unit. Remove
parts and check to see that you have
received the following parts:
UL Model No.: CF244 & CF252
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 3

4
2. Remove the fan motor assembly from
the protective plastic bag. Place all
carton contents on a protective surface.

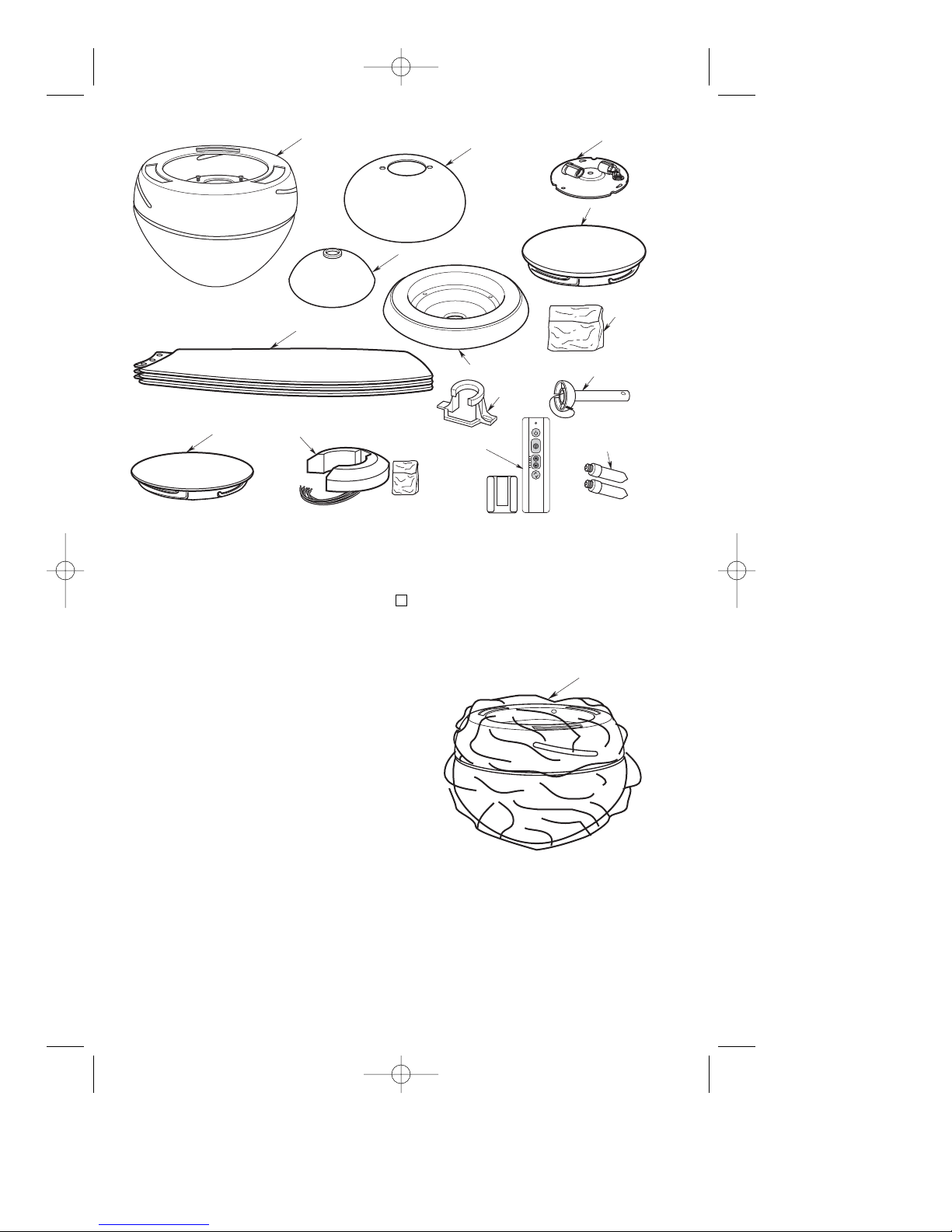

D. FAN BLADES (3)
A. FAN MOTOR
ASSEMBLY
N. LOOSE
PARTS BAG
B. CEILING COVER F. LIGHT KIT
PLATE
C. COUPLER COVER
K. 50W MINI
CANDELABRA
HALOGEN BULBS
I. 6-SPEED ELECTRONIC
RECEIVER
L. HANGER
BRACKET
M. HANGER
BALL/DOWNROD
ASSEMBLY
G. GLASS SHADE
H. NO-LIGHT
COVER PLATE J. 6-SPEED HANDHELD
TRANSMITTER
E. LOWER HOUSING
NOTE: Place the parts from the loose
parts bags in a small container to keep
them from being lost.
PROTECTIVE
PLASTIC BAG
UL Model No.: CF244 & CF252
a. Fan motor assembly
b. One ceiling cover
c. One coupler cover
d. Three fan blades
e. One lower housing
f. One light kit plate
g. One glass shade
h. One no-light cover plate
i. One 6-speed electronic receiver
control with parts bag
j. One 6-speed handheld transmitter with
wall bracket
k. Two 50W halogen mini candelabra
bulbs
l. One hanger bracket
m. One hanger ball/downrod assembly
n. One loose parts bag containing:
1. Three 12 ga. wire connectors
2. Ten M5 x 16mm flange head
blade screws
3. One spare M4 x 10mm pan head
screws for lower housing and
light kit
4. One clevis pin
5. One hairpin clip
6. Two threaded stud, #8-32 x 1-1/4”
7. Two external tooth lockwashers,
8. Two knurled knobs, #8-32
9. One balancing kit
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 4

5
Your new ceiling fan will require a
grounded electrical supply line of 120 volts
AC, 60 Hz, 15 amp circuit.
The outlet box must be securely anchored
and capable of withstanding a load of at
least 50 pounds.
General
Your Emerson ceiling fan comes supplied
with a Fan/Light Remote Control which
consists of a receiver mounted inside the
ceiling cover of the fan motor housing. This
system allows you to regulate your ceiling
fan speed and light intensity.
To reduce the risk of fire, electric shock,
or personal injury, mount fan to outlet box
marked “Acceptable for Fan Support”,
and use screws supplied with outlet box.
Most outlet boxes commonly used for
support of light fixtures are not
acceptable for fan support and may need
to be replaced. Consult a qualified
electrician if in doubt.
!WARNING
If your fan is to replace an existing ceiling
light fixture, turn electricity off at the main
fuse or circuit breaker box at this time and
remove the existing light fixture.
IMPORTANT: Your ceiling fan will not
function properly, and may be
damaged, if used with any wall dimmer
switch or control other than the
Emerson Electric Fan/Light Remote
Control supplied with the fan.
Electrical Requirements
Ceiling Fan Procedures
How to Assemble Your
Ceiling Fan
Turning off wall switch is not sufficient.To
avoid possible electrical shock, be sure
electricity is turned off at the main fuse or
circuit breaker box before wiring. All
wiring must be in accordance with
National and Local codes and the ceiling
fan must be properly grounded as a
precaution against possible electrical
shock.
!WARNING
UL Model No.: CF244 & CF252
M5 x 16mm FLANGE
HEAD BLADE SCREWS
(3 per blade)
FAN HOUSING
SLIDE FAN BLADE
INTO BLADE
CENTER SLOT
FAN BLADE SLOT
FAN BLADE
Figure 1
1. Position the fan motor assembly upside
down in preparation for mounting the
three fan blades.
2. Slide blade through blade slot in fan
housing assembly. Mount blade to fan
housing using three M5 x 16mm flange
head blade screws (Figure 1).
3. Complete the remaining two blades
installation per the above instructions.
NOTE: Take care not to scratch fan
housing assembly when installing
blades.

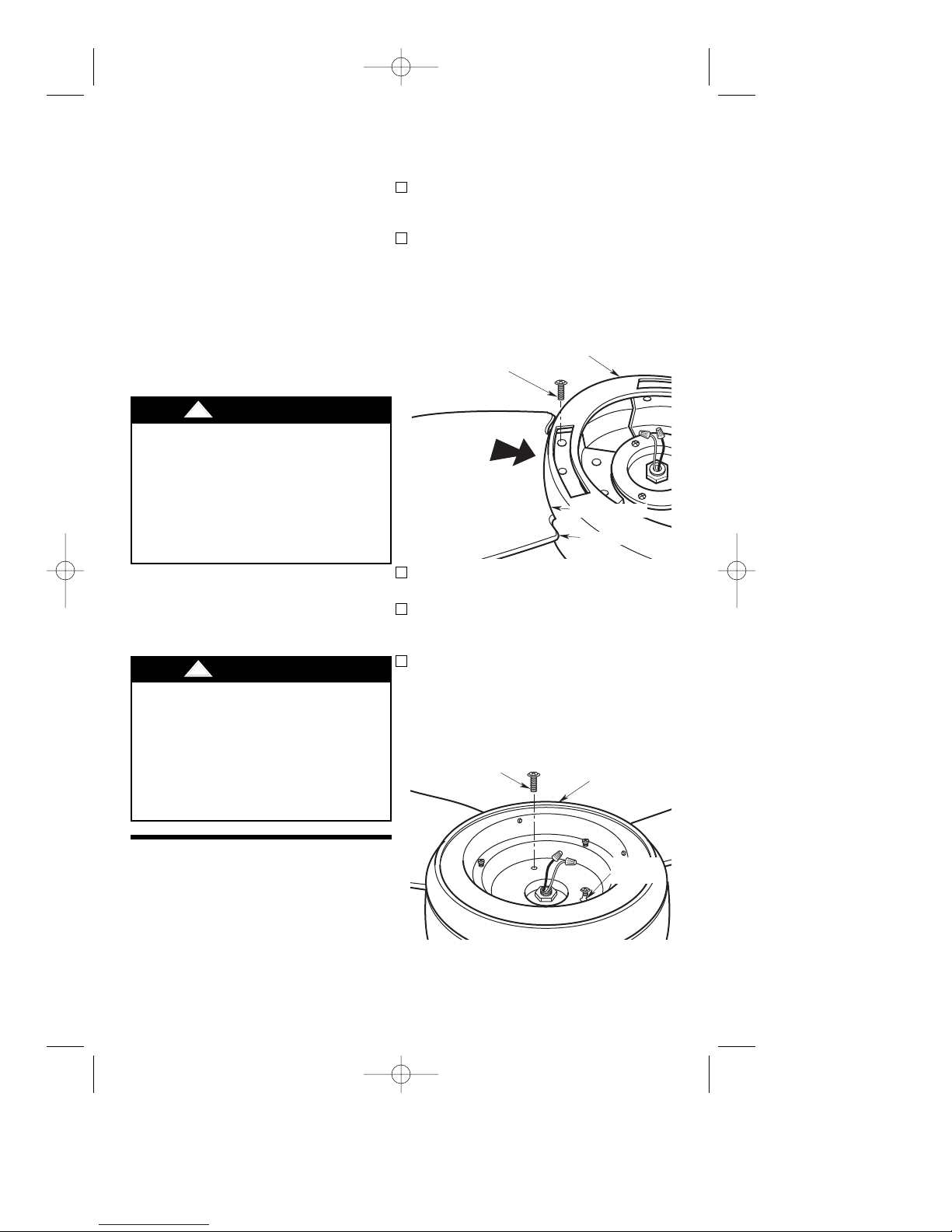

REMOVE M4 x 10mm
PAN HEAD SCREW LOWER HOUSING
KEY HOLE
SLOT (2)
Figure 2
4. Remove one of the three screws in the
motor housing assembly and loosen
the remaining two screws (Figure 2).
5. Attach the lower housing assembly to
the fan motor using the two key slot
holes (Figure 2). Secure the lower
housing assembly by tightening the two
screws. Reinstall the screw that was
previously removed.
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 5

6UL Model No.: CF244 & CF252
11. Carefully turn the partially assembled
ceiling fan right side up and place the
fan securely into the packing
styrofoam in preparation for final
assembly.

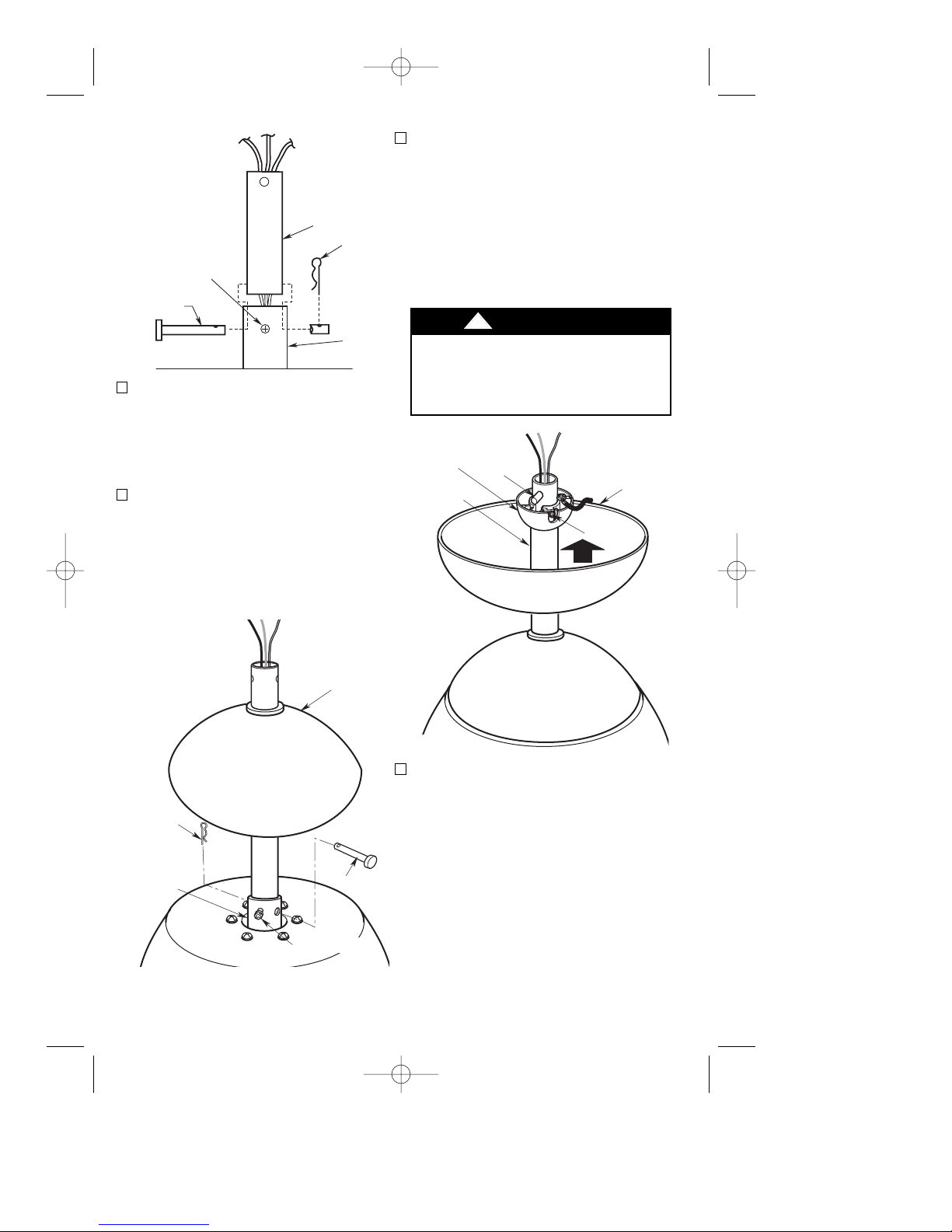

12. Remove the hanger ball by loosening
the setscrew in the hanger ball until
the ball falls freely down the downrod
(Figure 5). Remove the pin from the
downrod, then remove the hanger
ball. Retain the pin and hanger ball for
reinstallation in Step 16.
13. Loosen setscrew in motor coupler if
necessary. Separate, untwist and
unkink the three 80” motor leads.
Route the motor lead wires through
the downrod. Align the clevis pin holes
in the downrod with the holes in the
motor coupler. Install the clevis pin
and secure with the hairpin clip
(Figure 6). The clevis pin must go
through the holes in the motor coupler
and the holes in the downrod. Be sure
to push the straight leg of the hairpin
clip through the hole near the end of
the clevis pin until the curved portion
of the hairpin clip snaps around the
clevis pin. The hairpin clip must be
properly installed to prevent the clevis
pin from working loose. Pull on the
downrod to make sure the clevis pin is
properly installed.
PIN
HANGER
BALL
SETSCREW
DOWNROD
Figure 5
It is critical that the clevis pin in the motor
coupler is properly installed and the
setscrew securely tightened. Failure to
verify that the pin and setscrew are
properly installed (as shown in Figure 6)
could result in the fan falling.
!WARNING
9. Tuck the wires and connectors into the
fan housing. Position the light kit plate
into the fan housing by placing the cut
out notches over the fan housing
dimples (Figure 4).
10. Attach the light kit plate assembly to
the lower housing using two key slot
holes (Figure 4). Secure the light kit
plate assembly by tightening the two
screws. Reinstall the screw that was
previously removed.
NOTE: Make sure all wires and
connectors are tucked under the light
kit plate and not pinched between light
kit plate and fan housing.
REMOVE M4 x 10mm
PAN HEAD SCREW
KEY HOLE SLOT (2)
LOWER HOUSING
LIGHT KIT
PLATE
DIMPLES
CUT OUT
NOTCHES
Figure 4

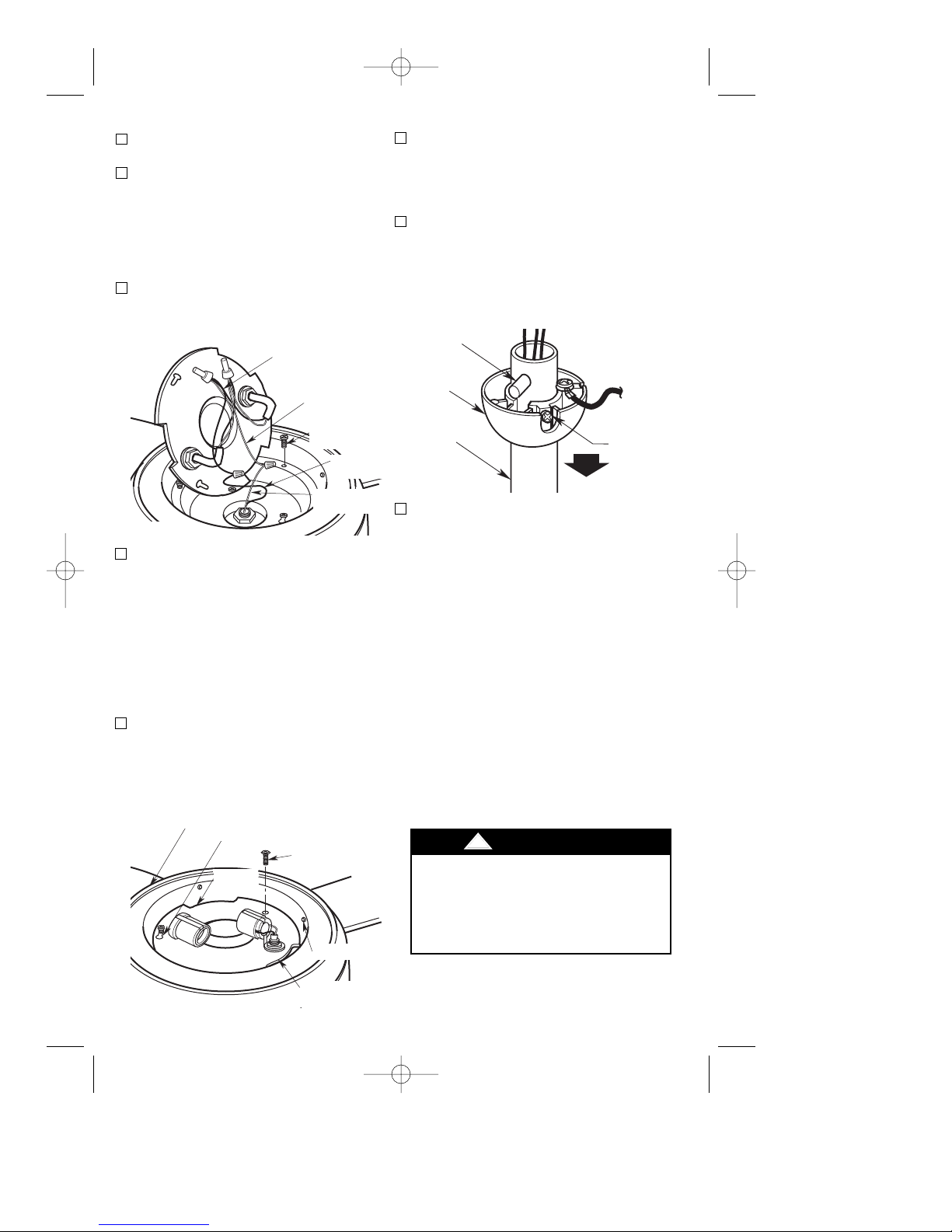

6. Remove and retain the wire connectors
from the white and blue wires.
7. Connect the wire wire from the ceiling
fan to the white wire of the light kit plate
(Figure 3). Connect the blue wire from
the ceiling fan to the black wire of the
light kit plate. Use wire connectors
(previously removed) to make
connections.
8. Remove one of the three screws in the
lower housing and loosen the
remaining two screws (Figure 3).
LIGHT KIT
BLACK WIRE
LIGHT KIT
WHITE WIRE
FAN MOTOR
WHITE WIRE
FAN MOTOR
BLUE WIRE
REMOVE ONE
LOWER HOUSING
SCREW
Figure 3
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 6

7UL Model No.: CF244 & CF252
SETSCREW
CLEVIS PIN
MOTOR
COUPLING
DOWNROD
HAIRPIN
CLIP
DOWNROD
HAIRPIN
CLIP
MOTOR
COUPLING
SETSCREW (2)
CLEVIS PIN
Figure 6
HAIRPIN
CLIP
CLEVIS PIN
MOTOR
COUPLING
COUPLER
COVER
SETSCREW (2)
Figure 7
14. While pulling up on the downrod,
securely tighten the two setscrews in
the motor coupling (Figure 7).
NOTE: The setscrews must be properly
installed as described above, or fan
wobble could result.
15. Make sure the grommet is properly
installed in the coupling cover then
slide the coupler cover on the
downrod until it rests on the motor
housing. Place the ceiling cover over
the downrod. Be sure both the ceiling
cover and the coupler cover are
oriented correctly (Figure 7).
CEILING
COVER
PIN
DOWNROD
HANGER
BALL
SETSCREW
Figure 8
It is critical that the pin in the hanger ball
is properly installed and the setscrew
securely tightened. Failure to verify that
the pin and setscrew are properly
installed could result in the fan falling.
!WARNING
16. Reinstall the hanger ball (Figure 8) on
the downrod as follows. Route the motor
leads through the downrod. Position the
pin through the two holes in the
downrod and align the ball so the pin is
captured in the groove in the top of the
hanger ball. Pull the hanger ball up tight
against the pin and securely tighten the
setscrew in the hanger ball. A loose
setscrew could create fan wobble.
17. The fan comes with blue, black and
white leads that are 80” long. Before
installing fan, measure up approx-
imately 6 to 9-inches above top of
hanger ball/downrod assembly. Cut
off excess leads and strip back
insulation 1/2-inch from end of leads.
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 7

Turning off wall switch is not sufficient.To
avoid possible electrical shock, be sure
electricity is turned off at the main fuse
box before wiring. All wiring must be in
accordance with National and Local
codes and the ceiling fan must be
properly grounded as a precaution
against possible electrical shock.
!WARNING
2. Securely attach the hanger bracket to
the outlet box using the two screws
supplied with the outlet box (Figure 10).
1. Disconnect electrical power to the
branch circuit at the circuit breaker or
fuse box before attempting to install the
ceiling fan mounting plate on the outlet
box.

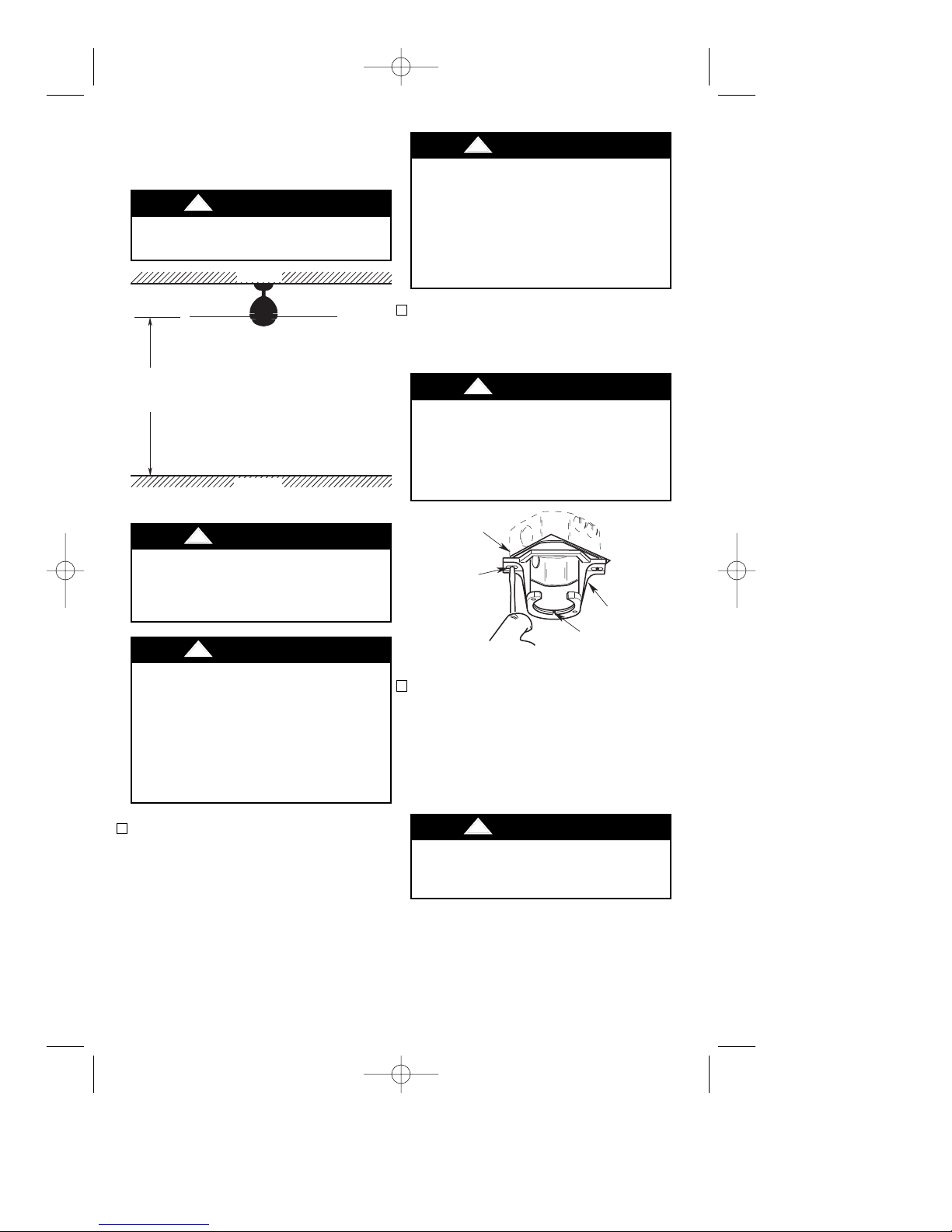

How to Hang
Your Ceiling Fan
The fan must be hung with at least 7' of
clearance from floor to blades (Figure 9).
!WARNING
The outlet box and joist must be securely
mounted and capable of supporting at
least 50 lbs. Use only a U.L. outlet box
listed as “Acceptable for Fan Support”.
!WARNING
To reduce the risk of fire, electric shock,
or personal injury, mount fan to outlet box
marked “Acceptable for Fan Support”,
and use screws supplied with outlet box.
Most outlet boxes commonly used for
support of light fixtures are not
acceptable for fan support and may need
to be replaced. Consult a qualified
electrician if in doubt.
!WARNING
CEILING
FLOOR
AT
LEAST
7'
Figure 9
3. Carefully lift the fan and seat the
hanger ball/downrod assembly on the
hanger bracket that was just attached
to the outlet box (Figure 11). Be sure
the groove in the ball is lined up with
the tab on the hanger bracket
(Figure 10).
Hanger bracket must seat firmly against
outlet box. If the outlet box is recessed,
remove wall board until bracket contacts
box. If bracket and/or outlet box are not
securely attached, the fan could wobble
or fall.
!WARNING
Failure to seat tab in groove could cause
damage to electrical wires and possible
shock or fire hazard.
!WARNING
TWO SCREWS
SUPPLIED
WITH
OUTLET BOX HANGER
BRACKET
TAB
OUTLET
BOX
Figure 10
8UL Model No.: CF244 & CF252
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 8

To avoid possible fire or shock, do not
pinch wires between the hanger
ball/downrod assembly and hanger
bracket.
!WARNING
NOTE: CEILING COVER, SUPPLY WIRES AND FAN
WIRES OMITTED FOR CLARITY.
OUTLET
BOX
HANGER
BRACKET
HANGER BALL/
DOWNROD ASSEMBLY
1-1/4" THREADED
STUD (2)
Figure 11
9UL Model No.: CF244 & CF252
How to Wire
Your Ceiling Fan
Turning off wall switch is not sufficient.To
avoid possible electrical shock, be sure
electricity is turned off at the main fuse
box before wiring. All wiring must be in
accordance with National and Local
codes and the ceiling fan must be
properly grounded as a precaution
against possible electrical shock.
!WARNING
If you feel that you do not have enough
electrical wiring knowledge or
experience, have your fan installed by a
licensed electrician.
CAUTION: To reduce the risk of electrical
shock, disconnect the electrical supply
circuit before installing the fan, light kit
or receiver.
NOTE: Make all wiring connections
using wire connectors (supplied). Make
sure that all connections are tight,
including ground, and that no bare wire
is visible at the wire connectors, except
for the ground wire.
2. Refer to Figures 12 and 13 to connect
the receiver wires to the supply wires
and the fan motor wires using the wire
connectors supplied with the fan as
follows:
a. Connect the green grounding lead from
the hanger ball and the green
grounding lead from the hanger bracket
to the grounding conductor of supply
(this may be a bare wire or wire with
green colored insulation). Securely
connect wires with wire connectors
supplied (Figure 12).
b. Securely connect the supply white
(neutral) wire to the receiver white
(AC IN N)/(TO MOTOR N) wire and
white (neutral) fan wire.
c. Securely connect the supply black wire
to the receiver black/white (AC IN L)
wire.
d. Securely connect the fan motor black
wire to the receiver black (TO MOTOR
L) wire.
e. Securely connect the fan motor blue
wire to the receiver blue (FOR
BOTTOM LIGHT) wire.
Check to see that all connections are
tight, including ground, and that no bare
wire is visible at the wire connectors,
except for the ground wire. Do not operate
fan until blades are in place. Noise and
fan damage could result.
!WARNING
1. Position the receiver into the ceiling
cover as shown in Figure 12. Place the
antenna wire on top of the receiver.
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 9

UL Model No.: CF244 & CF252
3. After connections have been made,
turn leads upward and carefully push
leads into the outlet box, with the white
and green leads on one side of the
outlet box and the black and blue leads
on the other inside of the outlet box.
4. Screw the two 1-1/4” threaded studs
(supplied) into the tapped holes in the
hanger bracket (Figure 11).

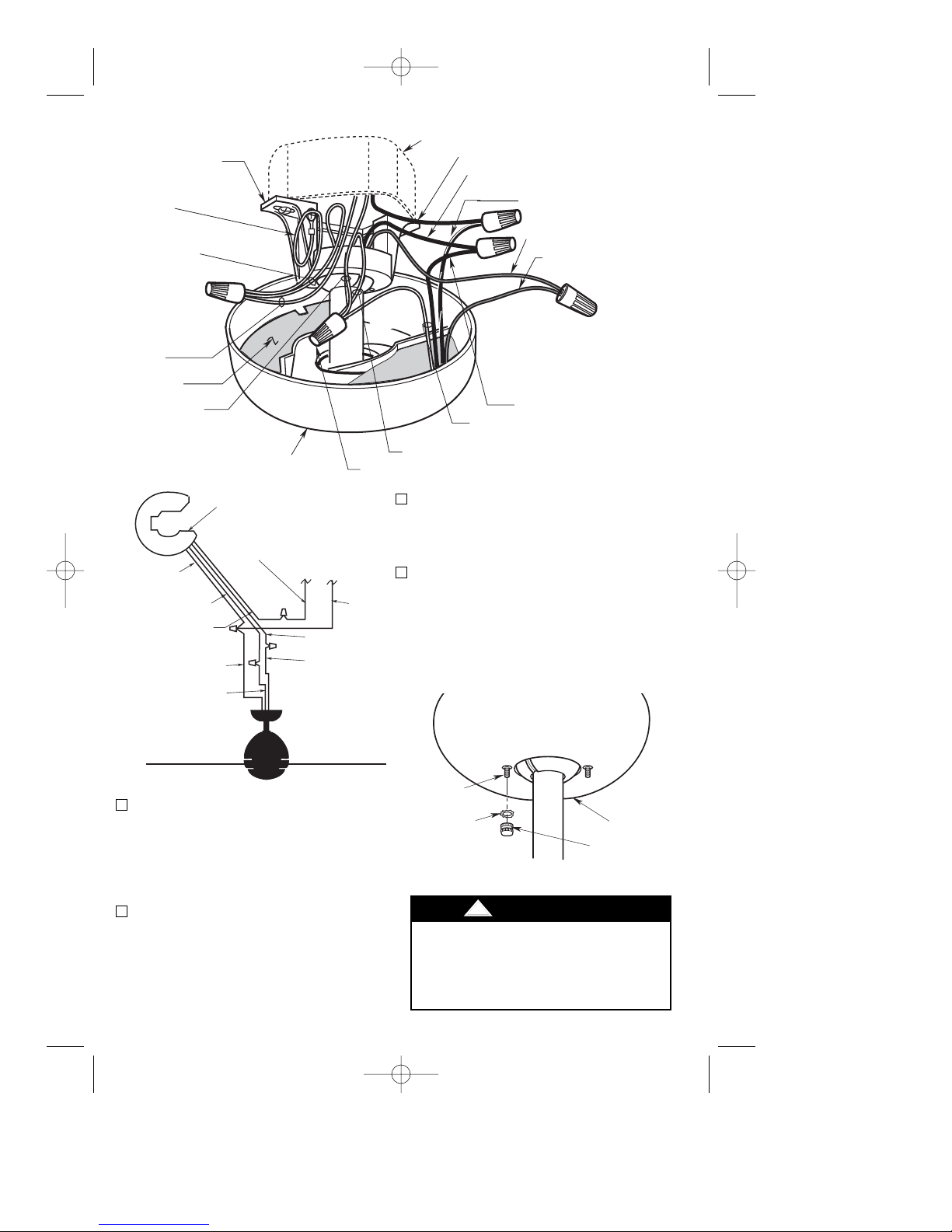

WHITE
SUPPLY
WIRE
BLACK FAN WIRE
RECEIVER
WHITE FAN WIRE
BLUE RECEIVER
WIRE
BLUE FAN WIRE
BLACK SUPPLY
WIRE
WHITE
RECEIVER
WIRE
BLACK RECEIVER
WIRE
BLACK/WHITE
RECEIVER WIRE
Figure 13
10
To avoid possible fire or shock, make
sure that the electrical wires are
completely inside the outlet box and
not pinched between the ceiling
cover and the ceiling.
!WARNING
#8 EXTERNAL
TOOTH
LOCKWASHER (2)
CEILING
COVER
1-1/4"
THREADED
STUD (2)
#8-32 KNURLED
KNOB (2)
Figure 14
OUTLET BOX
BLACK SUPPLY WIRE
BLACK/WHITE RECEIVER WIRE
BLACK FAN WIRE
BLUE FAN WIRE
BLUE RECEIVER
WIRE
CEILING COVER
WHITE RECEIVER WIRE
WHITE FAN WIRE
WIRE CONNECTOR
RECEIVER
WHITE SUPPLY
WIRE
SUPPLY GROUND
WIRE (GREEN OR
BARE)
HANGER BALL
GROUND WIRE
(GREEN)
HANGER BRACKET
GROUND WIRE
(GREEN)
HANGER BRACKET
BLACK RECEIVER WIRE
OPEN
PORTION OF
RECEIVER
HERE
Figure 12
5. Lift the ceiling cover up to the threaded
studs and turn until the studs protrude
through the holes in the ceiling cover
(Figure 14).
6. Secure the ceiling cover in place by
sliding lockwashers (supplied) over the
threaded studs and installing the two
knurled knobs (supplied). (Figure 14).
Tighten the knurled knobs securely
until the ceiling cover fits snugly against
the ceiling.
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 10

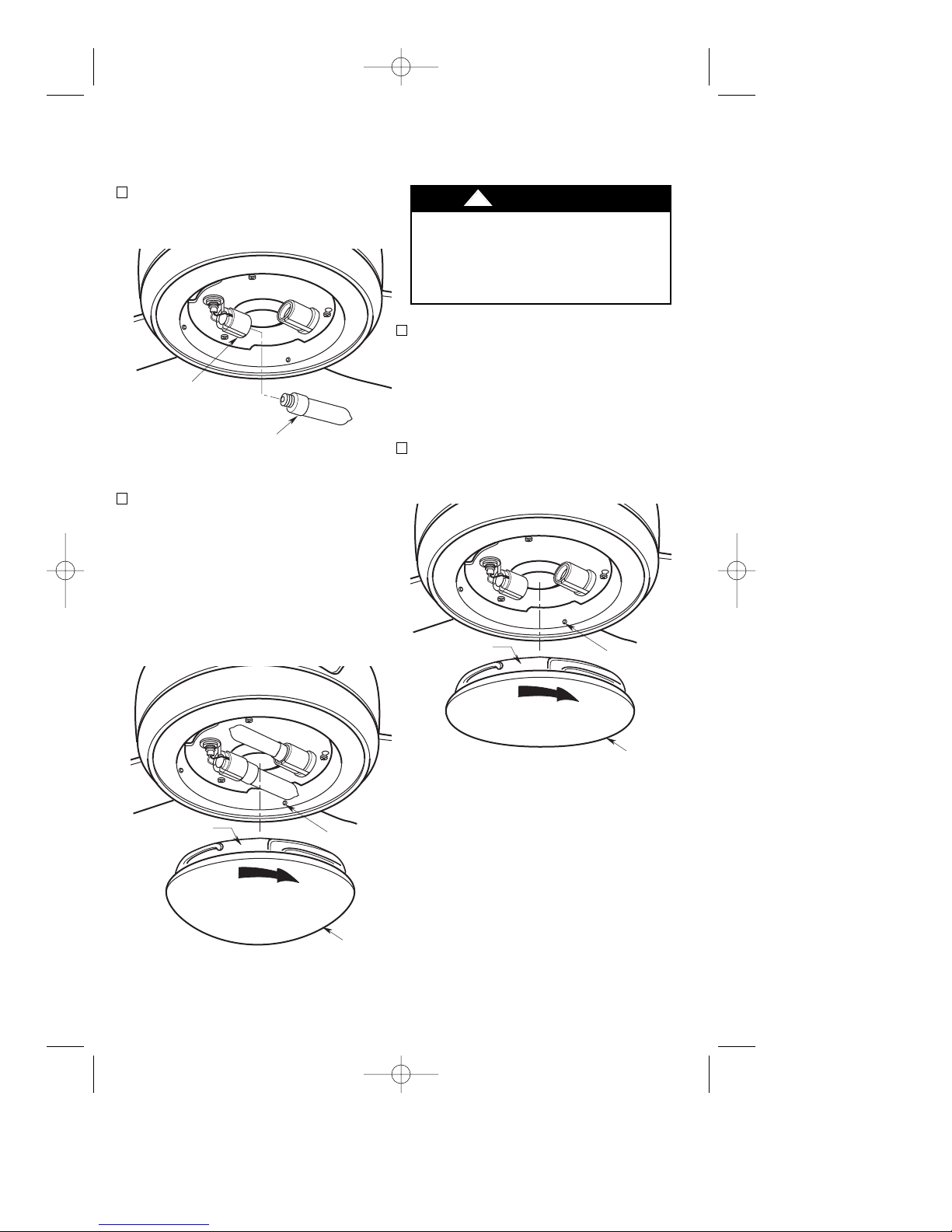

1. Screw in two 50-watt (maximum)
halogen mini candelabra base bulbs in
the light kit plate sockets (Figure 15).
50-WATT (maximum) HALOGEN
MINI CANDELABRA BASE BULBS (2)
LIGHT KIT PLATE
SOCKETS (2)
Figure 15
2. Place the glass shade into the opening
in the fan motor housing assembly,
aligning the three flat areas on the top
edge of the glass with the three raised
dimples on the fan motor housing
assembly and turn the glass shade
clockwise until it stops (Figure 16).
NOTE: periodically check that the glass
shade is seated fully clockwise in the
fan motor housing assembly.
UL Model No.: CF244 & CF252
How to Assemble Your
Light Kit Glass Shade
11
DIMPLES (3)
FLAT AREA (3)
GLASS
BOWL
Figure 16
Figure 17
How to Assemble Your
No Light Cover Plate
DIMPLES (3)
FLAT AREA (3)
COVER
PLATE
1. Place the cover plate onto the lower
housing aligning the three flat areas on
the top flange of the cover plate with
the three pins on the inside of the fan
motor housing assembly (Figure 17).
Then turn the cover plate clockwise
until it stops turning.
2. Your cover plate is now installed
Do not install any light bulbs into the
light kit plate if using the cover plate.
Installation of light bulbs when using
the cover plate could result in fire,
shock and serious personal injury.
!WARNING
DO NOT INSTALL LIGHT BULBS
WHEN USING THE COVER PLATE
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 11

12 UL Model No.: CF244 & CF252
General
Your Emerson Ceiling Fan/Light Remote
Control consists of hand-held transmitter
and a receiver which is mounted under the
fan ceiling cover. The remote control is
designed to separately control your ceiling
fan speed and light intensity.
The remote control transmitter is powered
by two AAA alkaline batteries (included).
To prevent possible damage if the
batteries should leak, be sure to remove
the batteries when the control is not to be
used for an extended period of time.
Code switches in the transmitter and
receiver may be set in 32 different
positions. If your fan and light go on and off
without using your control, you may be
getting interference from other remote
units such as garage door openers, car
alarms or security systems. To remedy this
situations, simply change the combination
code in your transmitter and receiver.
Preset Memory Feature
Your Emerson receiver is equipped with a
preset memory feature. If the AC supply to
the receiver is powered through a wall
switch, when the switch is turned OFF, the
control will remember the light intensity
and fan speed. When the switch is turned
back ON the light and fan will resume
operation as they were prior to the switch
being turned OFF.
REMOTE CONTROL
PROCEDURES
CODE
SWITCHES
SR600 REMOTE
CONTROL
BATTERY
COMPARTMENT
COVER
TWO AAA
BATTERIES
REMOTE CONTROL
LEVERS
ON
1234
5I
Figure 18
TO INSTALL BRACKET TO WALL:
SLIDE THE COVER UP TO EXPOSE THE SCREW
HOLES FOR INSTALLATION
COVER
WALL
BRACKET
SCREW
HOLES (2)
Figure 19
Installation of Storage
Bracket for
Remote Control
A storage bracket is provided for holding
your remote control when not in use. If you
desire to use the bracket, install it on a wall
that is away from excess heat or humidity
(Figure 19).
Installation of Battery
1. Remove the battery cover by pressing
firmly below the arrow and sliding the
cover off the control (Figure 18).
2. Install two AAA alkaline batteries and
reinstall the battery cover.
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 12

13 UL Model No.: CF244 & CF252
Setting Operating
Frequency of
Remote Control
1. Slide the five switch levers in the
remote control to your choice of ON
(up) or down positions. Use a ball-point
pen or small screwdriver and slide the
levers firmly up or down.
2. When power is restored, push and hold
the fan OFF button ( ) for 3 to 5
seconds to set the code in the receiver.
3. If airflow is desired in the opposite
direction, press the ( ) button on the
remote control. The fan must be
operating at any speed for the reverse
button to function. The blades will turn
in the opposite direction and reverse
the airflow.
4. To set the desired fan speed, press the
( ) button to decrease the speed and
the ( ) to increase the speed. The
LED display will light up to indicate the
new speed selected.
5. To turn the downlight on, press and
release the ( ) button. The light will
turn on at the light intensity previously
selected.
6. To vary the intensity of the light, hold
the ( ) button down until the desired
light intensity is reached, then release
the button.
7. The sixth switch marked ON and I is for
dimming control of lights: Set switch to
ON to allow for dimming of the lights.
Set switch to I for no dimming of the
lights such as for fluorescent bulbs.
Your remote control has code switches
which must be set in one of 32 possible
code combinations (Figure 18). The five
levers (numbered 1, 2, 3, 4, and 5) on the
switches are factory-set in the ON (up)
position. Change the switch settings as
follows (Figure 20):
Figure 20
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 13

UL Model No.: CF244 & CF252
14
Fan/Light Fails to Operate
• Check that the speed switch on the
fan is set to HIGH (....) speed.
• Check that the light switch is on.
• Check that the battery is good
(red indicator light should light when
any button is pressed).
• Check that the receiver is wired
properly.
• Check that code switches in the
remote control and receiver are set in
the same position.
Short Range
• If the remote control operates the fan
when close to it, but does not operate
it at a distance of 40 feet, try placing
the antenna wire outside of the ceiling
cover.
Remote Control
Trouble Shooting
Do not use water when cleaning your
ceiling fan. It could damage the motor or
the blades and create the possibility of an
electrical shock.
!WARNING
Maintenance
IMPORTANT CARE INSTRUCTIONS
for your Ceiling Fan
Periodic cleaning of your new ceiling fan is
the only maintenance that is needed.
When cleaning, use only a soft brush or
lint free cloth to avoid scratching the finish.
Abrasive cleaning agents are not required
and should be avoided to prevent damage
to finish.
The use of any other control not
specifically approved for this fan could
result in fire, shock and personal injury.
!WARNING
This product is designed to use only
those parts supplied with this product
and/or any accessories designated
specifically for use with this product by
Emerson Electric Co. Substitution of
parts or accessories not designated for
use with this product by Emerson Electric
Co. could result in personal injury or
property damage.
!WARNING
Accessories
1. Downrod Extension Kits (see store or
catalog).
2. Ceiling Fan Controls (see store or
catalog). Light Kit Circuit Breaker
In accordance with Federal Law, this
ceiling fan is equipped with a light kit
circuit breaker. Using halogen light bulbs
with greater than 50 watts rating will cause
the breaker to activate. If this occurs, shut
off the electricity to the ceiling fan and
check that the lamps are each 50W
maximum. The light kit circuit breaker will
automatically reset when the electricity is
turned off and then back on.
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 14

UL Model No.: CF244 & CF252
15
Ceiling Fan Trouble Shooting
TROUBLE PROBABLE CAUSE SUGGESTED REMEDY
1. Fan will not 1. Fuse or circuit breaker 1. Check main and branch
start. blown. circuit fuses or circuit breakers.
WARNING: Make sure
main power is turned off.
2. Loose power line 2. Check line power connections
connections to the fan. to fan.
3. Fan/Light Remote Control is OFF. 3. Turn ON Fan/Light Remote Control.
2. Fan sounds 1. Blades not attached to fan. 1. Attach blades to fan before
noisy. operating.
2. Screws securing fan blades 2. Check to make sure the screws
to motor are loose. which attach the blades to the
motor are tight.
WARNING: Make sure main
power is turned off.
3. Loose screws in motor housing. 3. Check to make sure all screws
in motor housing are snug
(not over-tight)
3. Fan wobbles 1. Setscrews in motor coupling are 1. Raise coupling cover and tighten
excessively. not tightened securely. setscrews securely.
2. Setscrew in the hanger ball/ 2. Tighten the setscrew in the
downrod assembly is loose. hanger ball/downrod assembly.
3. Screws securing fan blades 3. Check to be sure screws which
to motor are loose. attach the fan blade to the
motor are tight.
4. Fan blades are not seated 4. Check to be sure that the
properly. screws securing the fan
blades seat firmly.
5. Hanger bracket and/or ceiling 5. Tighten the hanger bracket
outlet box is not securely screws to the outlet box, and/or
fastened. secure outlet box.
6. Fan blades out of balance. 6. Interchanging an adjacent (side
by-side) blade pair can
redistribute the weight and result
in smoother operation.
Or use supplied balancing kit to
balance blades.
4. Both lamps will 1. Loose electrical connectors. 1. Shut off the branch circuit
not illuminate. electricity at the fuse box or
breaker panel and check the
receiver electrical connectors
for proper installation.
2. Remote control battery is weak. 2. Replace the AAA remote
batteries.
3. The lamps are burnt out. 3. Turn the electricity off and
replace the lamps with new
50W max. lamps.
4. Lamps turn on and then turn off. 4. The built in circuit breaker is
tripping, check that the lamps
are each 50W maximum.
CAUTION: Turn the lights off
before touching halogen lamps,
they are very hot and can burn
your fingers.
WARNING: FOR YOUR OWN SAFETY TURN OFF POWER AT FUSE BOX OR
CIRCUIT BREAKER BEFORE TROUBLE SHOOTING YOUR FAN.
!
!
!
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 15

16 UL Model No.: CF244 & CF252
Damp Part Numbers Wet Part Numbers
Key Model No. Model No. Model No. Model No. Model No. Model No. Model No. Model No.
No. Description CF244BS00 CF252BS00 CF244CRM00 CF252CRM00 CF244WW00 CF252WW00 CF244ORB00 CF252ORB00
* Hanger Pack Consisting of: 761655-17 761655-17 761655-88 761655-88 761655-14 761655-14 761655-32 761655-32
1 Hanger Bracket Assembly —— — — ————
2 Hanger Ball —— — — ————
3 Downrod —— — — ————
4 Ceiling Cover 762534-BS 762534-BS 762534-CRM 762534-CRM 762534-WW 762534-WW 762534-ORB 762534-ORB
5 Coupler Cover 764000-BS 764000-BS 764000-CRM 764000-CRM 764000-WW 764000-WW 764000-ORB 764000-ORB
6 Lower Housing 763992-BS 763992-BS 763992-CRM 763992-CRM 763992-WW 763992-WW 763992-ORB 763992-ORB
7 Light Kit Plate Assembly 763993 763993 763993 763993 763993 763993 763993 763993
8 Glass Shade 763994-OM 763994-OM 763994-OM 763994-OM 763994-OM 763994-OM 763994-OM 763994-OM
9 No Light Kit Cover 763995-BS 763995-BS 763995-CRM 763995-CRM 763995-WW 763995-WW 763995-ORB 763995-ORB
10 52”Blade Assembly —763996-BS —763996-BS —763996-WW —763996-ORB
11 44”Blade Assembly 763998-BS —763998-BS —763998-WW —763998-ORB —
12 Harness, Wiring - Reverse
Modular & Aux. Capacitor 764007 764007 764007 764007 764007 764007 764007 764007
13 Handheld Remote Control 763979 763979 763979 763979 763979 763979 763979 763979
14 Electronic Receiver with
Wire Connectors 764009 764009 764009 764009 764009 764009 764009 764009
* Parts Bag, Containing: 764025-SS 764025-SS 764025-SS 764025-SS 764025-SS 764025-SS 764025-SS 764025-SS
15 Connector, Wire, 12 Ga. (3) —— — — ————
16 Screw, Flange Head, Blade
M5 x 16mm (10) —— — — ————
17 Screw, Pan Head, Lower
Housing/Light Kit,
M4 x 10mm (1) —— — — ————
18 Pin, Clevis —— — — ————
19 Clip, Hairpin —— — — ————
20 Stud, Threaded
#8-32 x 1-1/4”(2) —— — — ————
21 Lockwasher, External Tooth
#8-32 x 1-1/4”(2) —— — — ————
22 Knob, Knurled #8-32 (2) —— — — ————
23 Kit, Balancing —— — — ————
24 190 W Circuit Breaker 763748 763748 763748 763748 763748 763748 763748 763748
—Owner's Manual BP7408-1 BP7408-1 BP7408-1 BP7408-1 BP7408-1 BP7408-1 BP7408-1 BP7408-1
Repair Parts Listing
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 16

17 UL Model No.: CF244 & CF252
Repair Parts
7
16
15
23 22
21
14
13
10 - 52"
11- 44"
1
20
9
18
19
5
8
6
17
12
24
3
2
4
Before discarding packaging material, be certain all parts have been removed.
HOW TO ORDER REPAIR PARTS
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:
The model number of your Fan will be found on a label attached to the top housing.
For repair parts, phone [phone].
• PART NUMBER
• NAME OF ITEM
• PART DESCRIPTION
• MODEL NUMBER
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 17

18 UL Model No.: CF244 & CF252
INSTRUCTION TO THE USER (if device contains a digital device)
This equipment has been tested and found to comply with the limits for a class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This equipment has been certified to comply with the limits for a class B computing device,
pursuant to FCC Rules. In order to maintain compliance with FCC regulations, shielded cables
must be used with this equipment. Operation with non-approved equipment or unshielded
cables is likely to result in interference to radio and TV reception. The user is cautioned that
changes and modifications made to the equipment without the approval of manufacturer could
void the user’s authority to operate this equipment.
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 18

19 UL Model No.: CF244 & CF252
LIMITED WARRANTY
What The Warranty Covers:
This warranty covers the motor and the other components and accessories of your Emerson ceiling fan against
all defects in workmanship and materials. You must be the original purchaser or user of the product to be
covered.
What The Period Of Coverage Is:
As it applies to the motor, this warranty will last for the lifetime of your ceiling fan. All other components and
accessories are covered by this warranty for one year from the date you purchased your ceiling fan. ANY
IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, MADE WITH
RESPECT TO COMPONENTS AND ACCESSORIES IS ALSO LIMITED TO ONE YEAR.
What Will Emerson Electric Co. Do To Correct Problems:
Emerson Electric Co. will replace a defective Emerson Air Comfort Ceiling Fan motor, blade, component or other
accessory at no charge to you. If repair of the motor or blades is not practical or possible within a reasonable
time and no replacement can be provided, Emerson will refund the actual purchase price of your fan. WE WILL
SHIP THE REPAIRED PRODUCT OR REPLACEMENT TO YOU AT NO CHARGE, BUT YOU ARE RESPONSIBLE
FOR ALL COSTS OR REMOVAL, REINSTALLATION AND SHIPPING OF THE PRODUCT TO EMERSON ELECTRIC
CO.
How Can You Get Service:
YOU MUST HAVE PROOF OF YOUR PURCHASE OF THE CEILING FAN TO OBTAIN LIMITED WARRANTY
SERVICE. KEEP YOUR RECEIPT OR OTHER PROOF OF PURCHASE. You can return the product to our factory
or to your nearest authorized service center.
•To return the product to the factory, obtain a return authorization and service identification tag by writing to
Air Comfort Products, Division of Emerson Electric Electric Co., 8100 W. Florissant Ave., St. Louis, MO
63136. Include all model numbers shown on the product with your request.
•To return the product to an authorized service center, call 1-800-654-3545 for the address of the nearest
authorized service center.
You will be responsible for all insurance, freight or other transportation charges to our factory or authorized
service center. Your Emerson Air Comfort Ceiling Fan should be properly packed to avoid damage in transit
since we will not be responsible for any such damage.
What Is Not Covered:
The glass globes and light bulbs of your ceiling fan are not covered by this warranty. This warranty also does
not cover any defects, malfunctions or failures caused by:
•Repairs by persons not authorized by Emerson Electric Co.,
•Use of parts or accessories not authorized by Emerson Electric Co.,
•Mishandling, improper installation, modifications or damage to your ceiling fan while in your possession, or
•Unreasonable use, misuse, abuse, including failing to do reasonable and necessary maintenance, and normal
wear and tear.
Additionally, this warranty and any implied warranty of merchantability or fitness for a particular purpose are
voided when:
•The original purchaser or user ceases to own the product, or
•The fan is moved from its original point of installation.
This warranty is only valid within the 50 states of the United States and the District of Columbia. No other
written or oral warranties apply, and no employee, agent, dealer or other person is authorized to give any
warranties on behalf of Emerson Electric Co.
REPAIR, REPLACEMENT OR A REFUND ARE THE EXCLUSIVE REMEDIES AVAILABLE UNDER THIS
WARRANTY AND EMERSON IS NOT RESPONSIBLE FOR DAMAGES OF ANY KIND, INCLUDING INCIDENTAL
AND CONSEQUENTIAL DAMAGES. Incidental damages include but are not limited to such damages as loss of
time and loss of use. Consequential damages include but are not limited to the cost of repairing or replacing
other property which was damaged if this product does not work properly.
How State Law Relates To The Warranty:
Some states do not allow the exclusion or limitation of incidental or consequential damages so the above
exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also
have other rights which vary from state to state.
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 19

UL Model No.: CF244 & CF252
Part No. F40BP74080001 Printed in China 08/10 Form No. BP7408-1
Air Comfort Products
DIVISION OF EMERSON ELECTRIC CO.
8100 W. Florissant • St. Louis, MO 63136
BP7408-1 44" & 52" Curva 8/31/10 3:50 PM Page 20
