Notes for this Syllabus 1
Section 1: Notes for this Syllabus
1.1 Related Documentation
For more details on wiring and setup refer to documents:
•GFK-3111 PACMotion VFD AC Variable Speed Drive User Guide
•GFK-3112 PACMotion VFD AC Variable Speed Drive Advanced User Guide.
1.2 Revision History
Revision
Date
Description
B
December 2020
Migrated the document files to the Customer Support site.
Adjusted instructions for Section 10.1 Communications to the
VFD.
Normalized document headers and footers
A
April 2020
Initial Release

PACMotion VFD Syllabus Section 2
GFK-3167B December 2020
Introduction to VFD Setup 2
Section 2: Introduction to VFD Setup
Basic overview for setup and operation of the PACMotion VFD.
2.1 Signal Wiring Example

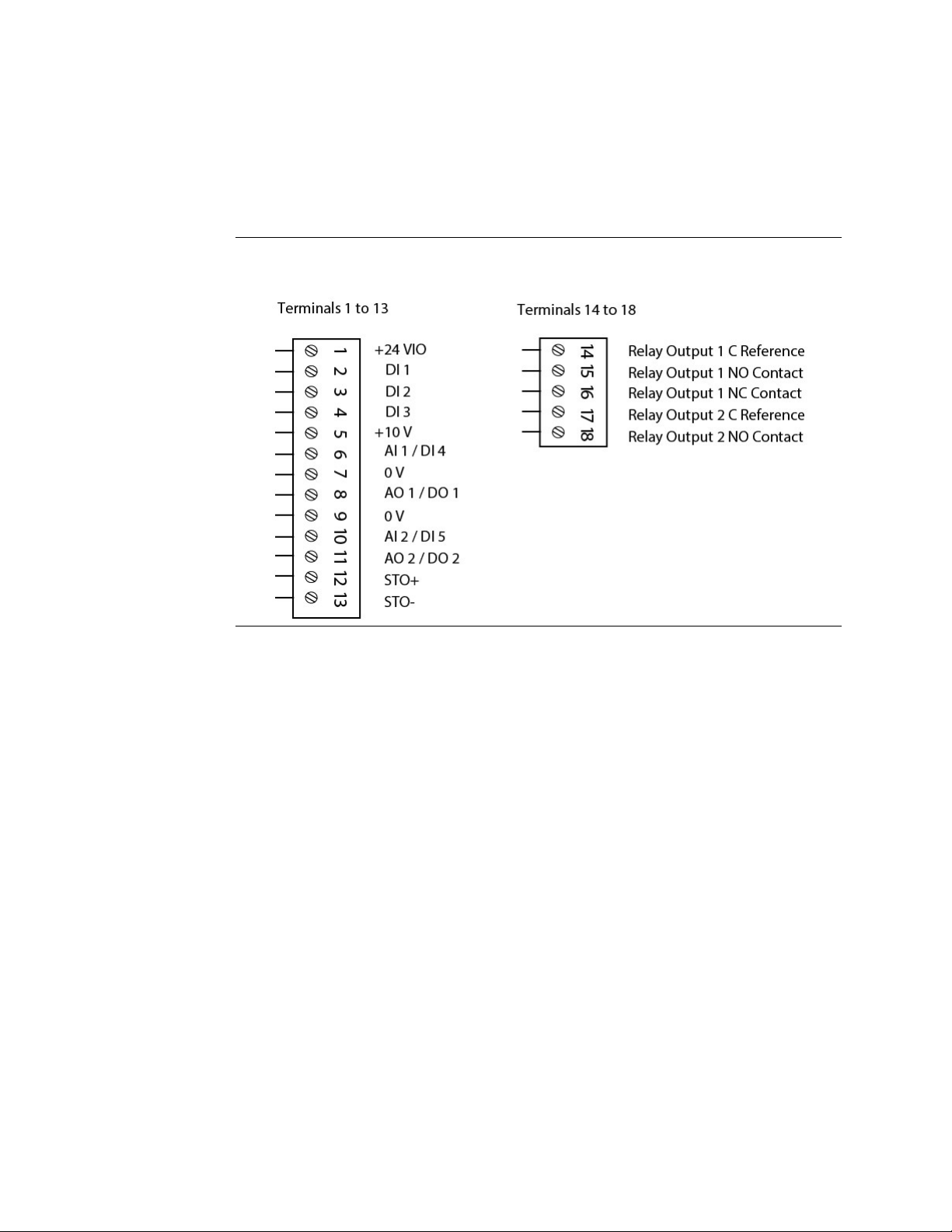

Figure 1: Signal Wiring Example
Terminals 1 - 13
Terminals 14 - 18
G, L1, L2, L3
G, +, BR, U, V, W

PACMotion VFD Syllabus Section 2
GFK-3167B December 2020
Introduction to VFD Setup 3
2.2 IO Configuration
The default configuration for I/O is given here. Refer to GFK-3111 and GFK-3112 for details

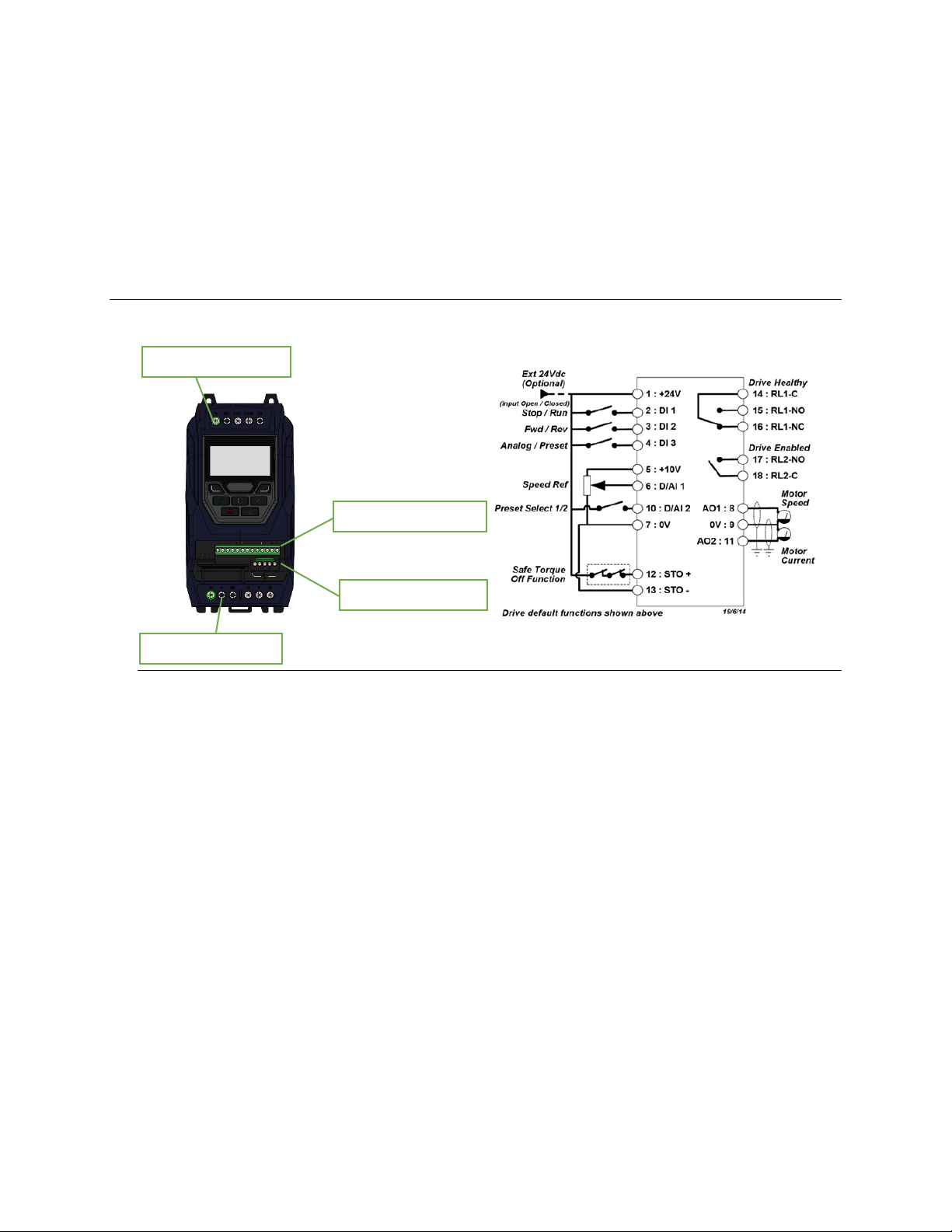

Figure 2: IO Configuration (Pinout)

PACMotion VFD Syllabus Section 2
GFK-3167B December 2020
Introduction to VFD Setup 4
2.3 Power Wiring Example

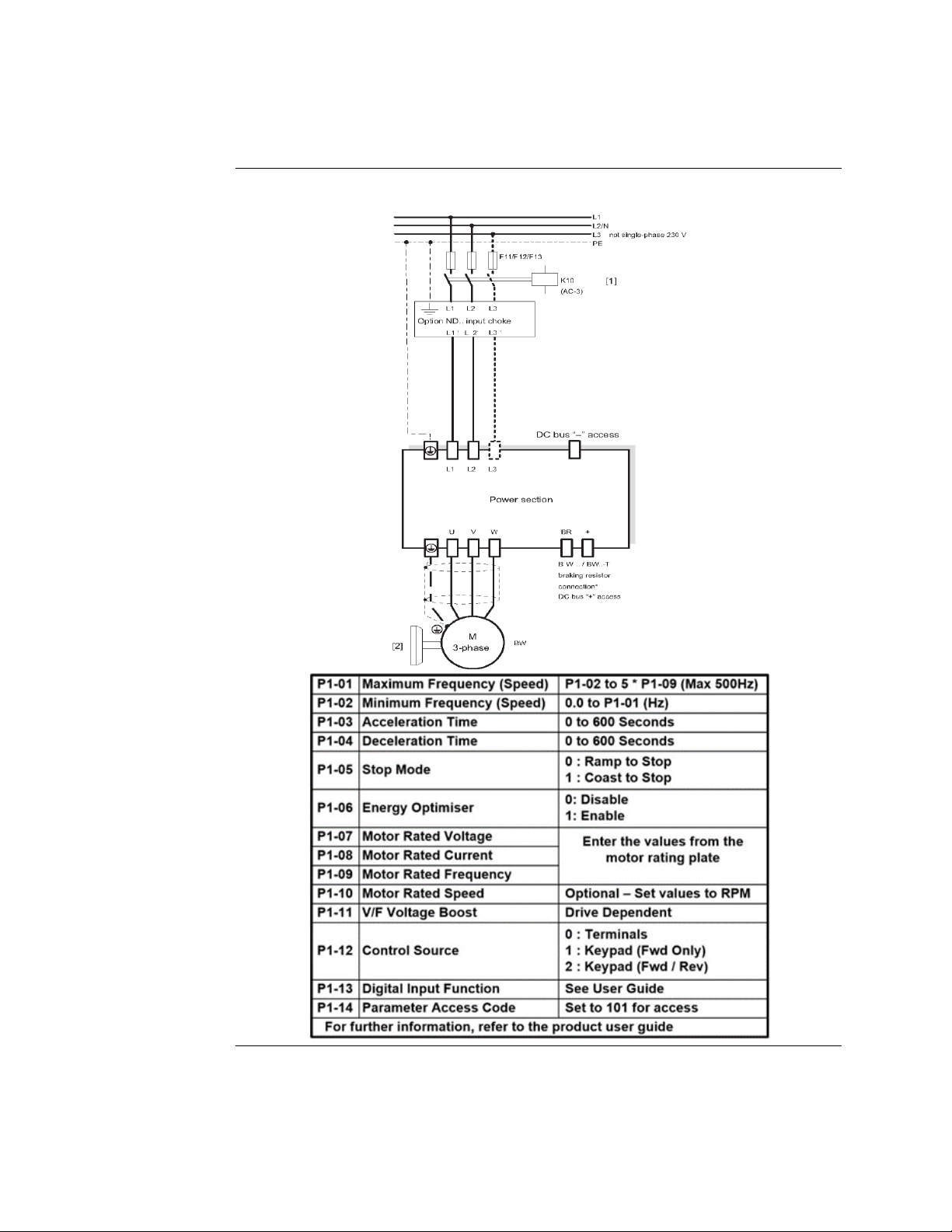

Figure 3: Power wiring and Group 1 Parameters Example (VFD/Motor Setup)

PACMotion VFD Syllabus Section 3
GFK-3167B December 2020
Introduction to VFD Setup 5
Section 3: PACMotion VFD Syllabus
A collection of technical Application Notes and Data
3.1 NOTE 1: Modbus/TCP Ethernet Demo (Demo
Case with Modbus/TCP Option Card)
Figure 4: CPE100 TO VFD VIA MODBUS/TCP OPTION MODULE WITH QUICKPANEL
3.2 Note 2: PROFINET Demo (Demo Case with
PROFINET Option Card
Figure 5: CPE100 TO VFD VIA PROFINET OPTION MODULE WITH QUICKPANEL

PACMotion VFD Syllabus Section 3
GFK-3167B December 2020
Introduction to VFD Setup 6
3.3 NOTE 3: Modbus RTU Serial Demo (RS-485 2-
wire) and Modbus/TCP Demo
Figure 6: Quickpanel Plus or pc w/PME simulator to VFD Built-in Serial Port
3.4 NOTE 4: Modbus/TCP Ethernet Demo
Figure 7: Quickpanel Plus or pc w/PME simulator to VFD Modbus/TCP Option Module

PACMotion VFD Syllabus Section 3
GFK-3167B December 2020
Introduction to VFD Setup 7
3.5 NOTE 5: Modbus/TCP User Defined Function
Block Examples
Figure 8: CPE100 to VFD Modbus/TCP Option Module
3.6 NOTE 6: PROFINET User Defined Function Block
Examples
Figure 9: CPE100 to VFD PROFINET Option Module
PDO1 - 4
PDI1 - 4
%AI1 to 8
%AQ1 to 4

PACMotion VFD Syllabus Section 3
GFK-3167B December 2020
Introduction to VFD Setup 8
3.7 NOTE 7: Using Bluetooth USB or Serial Cable to
PACMotion with VFD Suite:
Figure 10: Bluetooth BLE USB Stick
3.8 NOTE 8: PACMotion Fieldbus Option Modules
and Setup
Figure 11: Fieldbus Option Module

PACMotion VFD Syllabus Section 3
GFK-3167B December 2020
Introduction to VFD Setup 9
3.9 NOTE 9: PACMotion VFD Fieldbus PDI/PDO Data
Map and Addressing
Figure 12: PACMOTION VFD FIELDBUS PDI/PDO DATA MAP AND ADDRESSING
3.10 NOTE 10: PACMotion VFD Complete PDI/PDO
Data Map and Addressing
Use PACMotion_VFD_Address_Map.xlsx available on Customer Portal.
To download all demo case files, please visit:
https://emerson-mas.force.com/communities/en_US/Documentation/PACMotion-VFD-
Syllabus-GFK-3167

PACMotion VFD Syllabus Section 3
GFK-3167B December 2020
Introduction to VFD Setup 10
3.11 NOTE 11: PACMotion VFD Demo Case Details

PACMotion VFD Syllabus Section 4
GFK-3167B December 2020
Modbus/TCP Ethernet Demo (Note 1) 11
Section 4: Modbus/TCP Ethernet Demo
(Note 1)

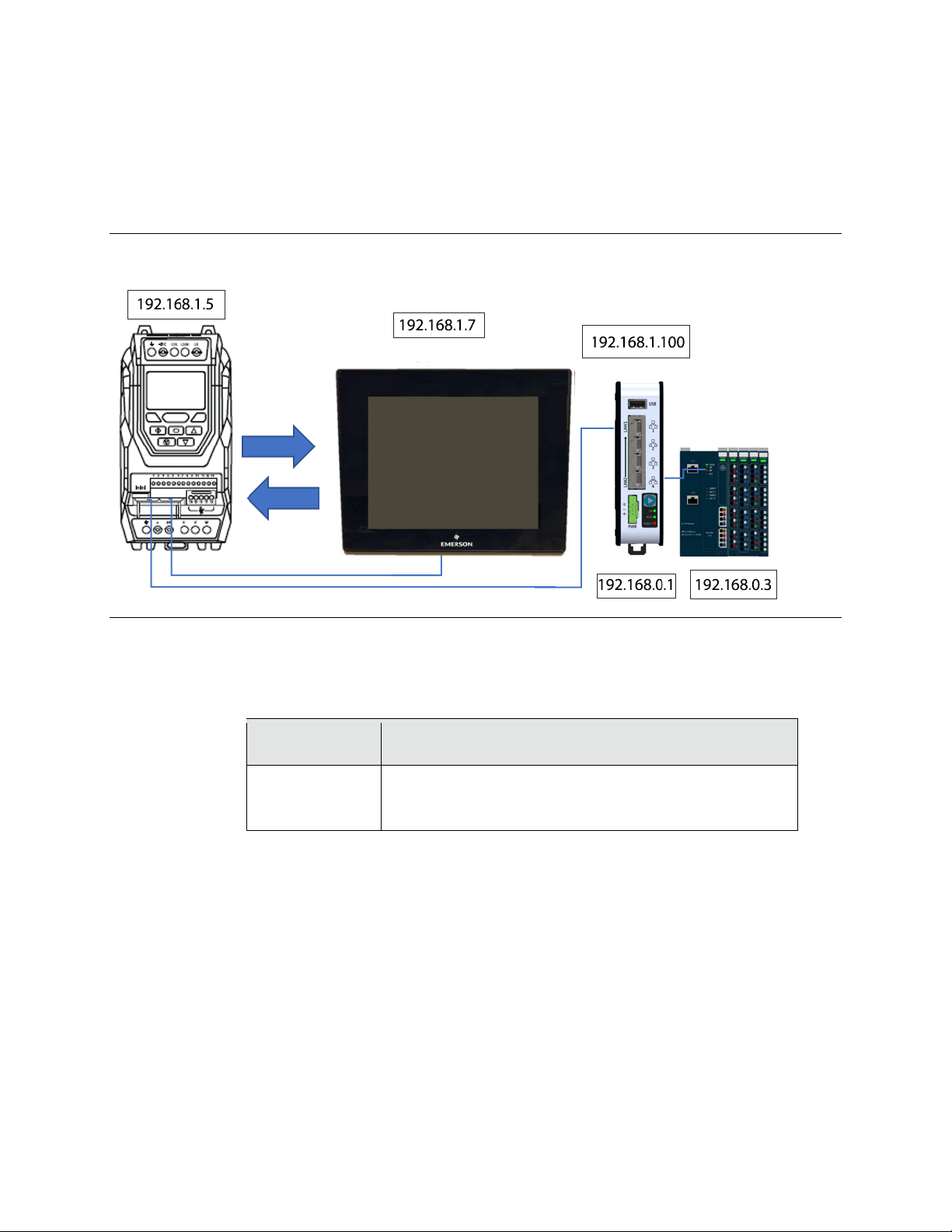

Figure 13: Modbus/TCP Ethernet Configuration
This Demo uses the CPE100 as the Initiating device for Modbus/TCP communications.
VFD Parameters
1. Set to the following VFD parameter values:
Parameter
Value and Description
P1-12
P1-14
P5-05
4 (Fieldbus)
201 (Extended Menu Access)
0.0 (Disable communication loss timeout)
QuickPanel Plus Ethernet Settings
2. Set the following IP Address/Mask:
IP address = 192.168.1.7
Subnet mask = 255.255.255.0
VFD Modbus/TCP Option Module settings
3. Use a DHCP server or the HMS IPConfig software to set the IP address of the
Modbus/TCP module. Use the following settings:
IP address = 192.168.1.5
Subnet mask = 255.255.255.0

PACMotion VFD Syllabus Section 4
GFK-3167B December 2020
Modbus/TCP Ethernet Demo (Note 1) 12
Starting the system
4. As shown in the picture above, connect one ethernet port of the VFD
Modbus/TCP option module to the QuickPanel and connect the other ethernet
port of the VFD Modbus/TCP option module to the top port of CPE100.
5. Power up the devices.
6. Using a laptop PC with PAC Machine Edition, load in the PAC Machine Edition
project:
VFD_DEMOCASE_MBTCP_Vx and Download/Run the CPE100 and QuickPanel
targets. This will use the CPE100 as a Modbus/TCP Master.
7. The QuickPanel Screen should show live PDI/PDO Data. Information on this data
is given below.
Modbus/TCP Process Data Exchange
The mapping of Process Data Output/Input to Modbus/TCP Registers is shown below.
Process Data Word
Modbus/TCP Register1*
PDO1
300001
PDO2
300002
PDO3
300003
PDO4
300004
PDI1
400001
PDI2
400002
PDI3
400003
PDI4
400004
Modbus/TCP Connection Timeout
The VFD Modbus/TCP interface allows the user to set the Communication Loss Timeout
and Communication Loss Action values. These parameters are at addresses P5-05 and P5-
06 respectively. The Timeout units are 1 = 0.1 sec and the range is from 0.0 (disable) to
5.0 seconds. A setting of 0.0 seconds will allow the VFD to continue running if
communications are lost.
1
Modbus Clients may address the first Modbus register as register 300001/400001. This assumes an address offset starting at 1. For
Clients that use zero based addressing just subtract 1.

PACMotion VFD Syllabus Section 4
GFK-3167B December 2020
Modbus/TCP Ethernet Demo (Note 1) 13
Drive Parameter Access
The Modbus/TCP Interface allows the user to read/write the drive parameters. To perform
this function, the user can directly access the parameter. Simply add the parameter
number to the Modbus offset of 400000.
For example:
Read parameter P1-01 (Maximum Frequency), perform the following
Read Modbus/TCP Address 400101 value (scaling in 0.1 Hz).
Write parameter P1-01 (Maximum Frequency) = 60.0 Hz, perform the following
Write to Modbus/TCP Address 400101 value = 600 (scaling in 0.1 Hz)
Demo Case File:
VFD_DEMOCASE_MBTCP_V2.zip
To download all demo case files, please visit:
https://emerson-mas.force.com/communities/en_US/Documentation/PACMotion-VFD-
Syllabus-GFK-3167

PACMotion VFD Syllabus Section 5
GFK-3167B December 2020
PROFINET Controller Demo (Note 2) 14
Section 5: PROFINET Controller Demo
(Note 2)
Figure 14: CPE100 (PROFINET Controller) to VFD PROFINET Slave Demo
5.1 VFD Settings
1. VFD Parameters must be set to the following values:
For help on changing parameters Refer to Manual GFK-3111.
Parameter
Value and Description
P1-12
P1-14
P5-05
4 (Fieldbus)
201 (Extended parameter description)
0.0 (Disable communication loss timeout)

PACMotion VFD Syllabus Section 5
GFK-3167B December 2020
PROFINET Controller Demo (Note 2) 15
5.2 VFD I/O Signals
Digital
By default, the VFD signals Digital Input 1 (DI1) and Safe Torque Off (STO) must be
energized to allow the VFD to Run. These signals are wired to and powered by the demo
RSTi-EP outputs. The outputs are set automatically when a certain screen is used on the
QuickPanel.
Analog
The Analog I/O of the RSTi-EP module allows various analog signals to control/monitor the
VFD. The following is a default map of the I/O points used in the Demo unit:
CPE100
PACMotion VFD
Signal
%Q00001
DI1
Enable Drive
%Q00002
DI2
Reverse
%Q00003
DI3
Set Point 1
%I00001
DI1
Drive Enabled
%AQ00001
AI1
Speed (reference)
%AI00001
AO1
Speed (actual)
24VDC
STO +
Safe Torque +
0VDC
STO -
Safe Torque -
5.3 Option Module Details
1. To use PROFINET with the VFD a PROFINET Option Module must be installed.
The PROFINET option card permits the PACMotion VFD Drive to connect to a PROFINET
network.
IC866-OC-P PROFINET Option Card for VFD
PROFINET Option Card
RJ45 Connectors & Network Activity LEDs,
PROFINET Option Card
[1]
LED: NS
[A]
LED: Activity
[2]
RJ45: P1
[B]
LED: Link
[3]
Labeling: PROFINET I/O
[4]
RJ45: P2
[5]
LED: MS

PACMotion VFD Syllabus Section 5
GFK-3167B December 2020
PROFINET Controller Demo (Note 2) 16
5.4 Bus Specific Technical Data
Baud rate
10/100 Mbaud in full-duplex mode
Connection technology
2 × RJ45
5.5 Hardware Insertion and Removal
Remove power from the VFD. Using a T9 driver bit, backout the 2 option module screws
approximately 4 or 5 turns each. This should allow the locking tabs to retract to a flat
position. Insert the module into the VFD Fieldbus option module cage and gently press it
into place. Secure the T9 screws until they touch the module. This will engage the locking
tabs to hold it in place. Do not overtighten.
(Note: If the T9 screws are not backed out first the module will not insert or remove
properly.)
To remove the option module remove power from the VFD. Using a T9 driver bit back out
the option module 2 screws approximately 4 or 5 turns each. Gently pull the module out
by pulling on the screws.
5.6 PROFINET Slave Module Settings
1. With the PROFINET option module installed power up the VFD.
Using the PROFINET DCP tool, which is part of the PAC Machine Edition Utilities, set the
following VFD PROFINET Slave values example:
Device Name
IP Address
vfd-1
192.168.0.2
2. The QuickPanel Plus Ethernet Settings must be set to the following values:
IP address = 192.168.0.7
Subnet mask = 255.255.255.0
5.7 Starting the system
3. Connect the VFD PROFINET option module to an available PROFINET port on the
CPE100 (the lower 3 ports) and the QuickPanel to the top ethernet port on the CPE100
and power up the devices.
This is done inside the official PACMotion VFD Demo case.
