FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
Remote Automation Solutions
FB1100/FB1200 Flow Computer
Termination Board Field Replacement
Guide
For Part Numbers (Kits):
•399185-01-1
•400216010-KIT
•395791014-KIT
•395803000-KIT

Device Safety Considerations
Reading these Instructions
Before operating the device, read these instructions carefully and understand their safety
implications. In some situations, improperly using this device may result in damage or injury. Keep
this manual in a convenient location for future reference. Note that these instructions may not cover
all details or variations in equipment or cover every possible situation regarding installation,
operation, or maintenance. Should problems arise that are not covered sufficiently in the text,
immediately contact Customer Support for further information.
Protecting Operating Processes
A failure of this device – for whatever reason -- may leave an operating process without appropriate
protection and could result in possible damage to property or injury to persons. To protect against
this, you should review the need for additional backup equipment or provide alternate means of
protection (such as alarm devices, output limiting, fail-safe valves, relief valves, emergency shutoffs,
emergency switches, etc.). Contact Remote Automation Solutions for additional information.
Returning Equipment
If you need to return any equipment to Remote Automation Solutions, it is your responsibility to
ensure that the equipment has been cleaned to safe levels, as defined and/or determined by
applicable federal, state and/or local law regulations or codes. You also agree to indemnify Remote
Automation Solutions and hold Remote Automation Solutions harmless from any liability or damage
which Remote Automation Solutions may incur or suffer due to your failure to ensure device
cleanliness.
Grounding Equipment
Ground metal enclosures and exposed metal parts of electrical instruments in accordance with OSHA
rules and regulations as specified in
Design Safety Standards for Electrical Systems , 29 CFR, Part 1910,
Subpart S, dated: April 16, 1981 (OSHA rulings are in agreement with the National Electrical Code).
You must also ground mechanical or pneumatic instruments that include electrically operated
devices such as lights, switches, relays, alarms, or chart drives.
Protecting from Electrostatic Discharge (ESD)
This device contains sensitive electronic components which be damaged by exposure to an ESD
voltage. Depending on the magnitude and duration of the ESD, it can result in erratic operation or
complete failure of the equipment. Ensure that you correctly care for and handle ESD-sensitive
components.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
1
Removing/Replacing Termination Boards
CAUTION
MAY CAUSE INJURY TO PERSONNEL OR DAMAGE EQUIPMENT
Because I/O, ground, and other wires enter the flow computer through conduit fittings
and then connect to the termination board, a qualified technician must disconnect all
wiring coming into the flow computer and pull it out through the conduit fittings in
order to replace the termination board.
You must then install the new termination board and completely rewire the unit.
If not already done, be sure to label all wires before disconnecting so you can identify
them later during the rewiring process.

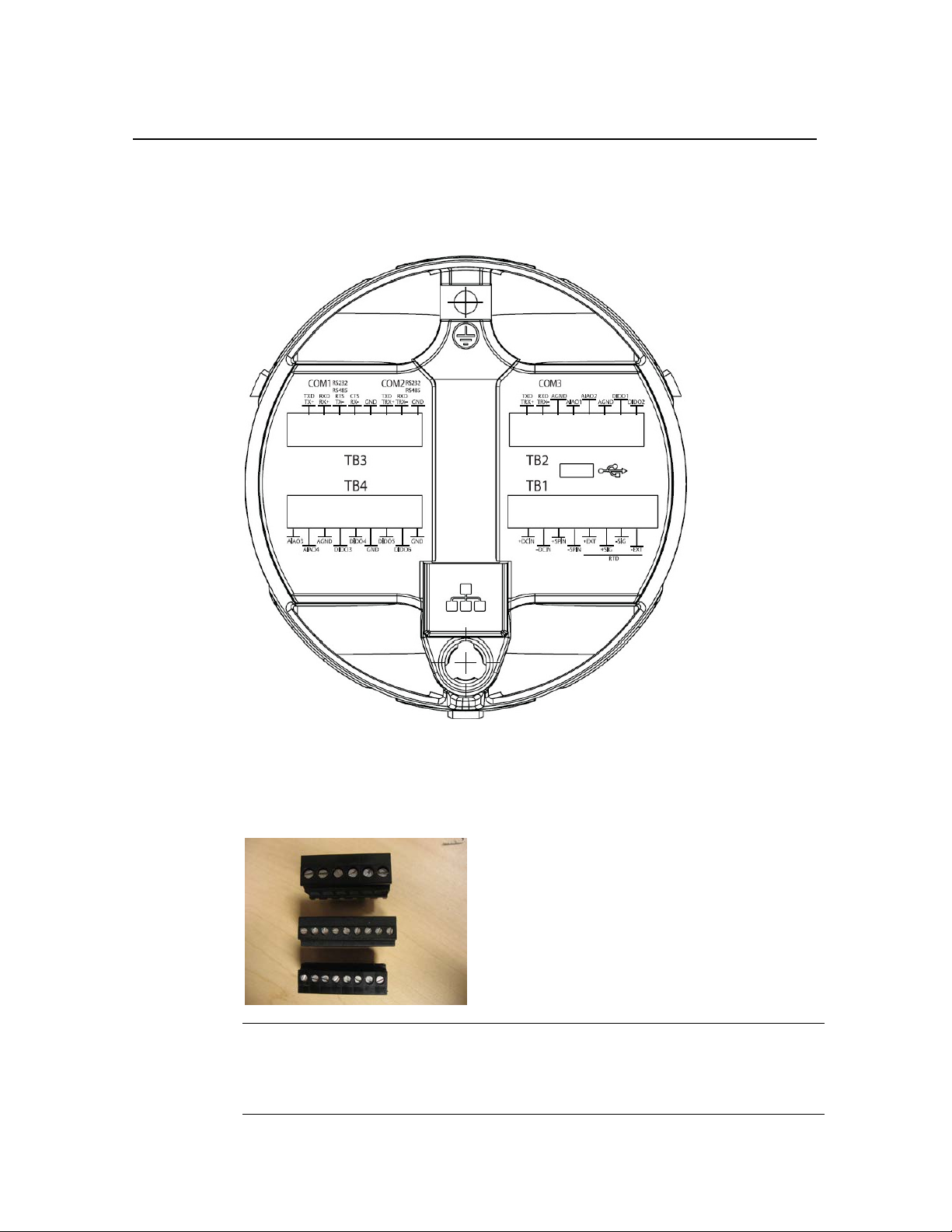

The FB1100 Flow Computer includes a single type of termination board that uses 6-
connector pluggable terminal blocks.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301
820X012
March 2018
2
The FB1200 Flow Computer supports the same termination board and blocks. In
addition, if the FB1200 Flow Computer is purchased with the 6-channel expansion I/O
board, it uses a different termination board with 8 (or in one case 9) connector
pluggable terminal blocks.
The basic methods for replacing termination boards or for replacing termination blocks
are the same, the only differences are the number of connectors on a terminal block
used on a termination board.
Restriction
Hazardous area approvals require that any part replaced in the field be the exact same
part (like for like). Upgrading or substituting different parts violates hazardous area
certification.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
3
Notes
Refer to the tables below for the correct field replacement part number.
Termination Boards
UL Field Replacement Kit Part Number
Termination Board (used with 6-
connector pluggable terminal blocks)
399185-01-1
Termination Board (used with 8-
connector pluggable terminal blocks on
any FB1200 Flow Computer which has a
6-channel expansion I/O board)
400216010-KIT
Terminal Blocks/Plugs
UL Field Replacement Kit Part Number
6-connector pluggable terminal blocks
(pack of 4)
395791014-KIT
8-connector pluggable terminal blocks
(pack of 4) – (Used with any FB1200 Flow
Computer which has a 6-channel
expansion I/O board)
395803000-KIT
Ambient Temperature Range
May be used up to a maximum ambient temperature of 80C and a
minimum ambient temperature of -40C; see end product data plate for
ambient temperature.
Required Tools
Tool
Usage
#1 Phillips-head screwdriver
For screws on HMI module and other
boards
#2 Phillips-head screwdriver
For screws on other modules and boards
3/32 inch flat head screwdriver
For 3.81 mm pitch terminal block
connections
1/8 inch flat-head screwdriver
For 5.08 mm pitch terminal block
connections
3 mm hexagonal torque wrench with
range covering 10 to 12 in-lbs (1.1 to 1.4
N m)
For end cap retaining clamps (if used)
Electrical Ratings:
Input Voltage:
5.7-30Vdc, 10 Watts Max
I/O Ratings (FB1200 Flow Computer):
4 Digital Outputs:
2 Analog Outputs:
0.5A, 24Vdc
4-20mA

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301
820X012
March 2018
4
Important
Only use accessories supplied with the flow computer or sold by Emerson as spare
parts for this flow computer. If you substitute a part you obtain elsewhere you will void
your certification unless it is the identical part from the same manufacturer as that
supplied with the flow computer from Emerson.
WARNING!
EXPLOSION HAZARD - - Substitution of any components may impair suitability for
Class I, Division 1 or Class I, Division 2.
WARNING!
EXPLOSION HAZARD - Do not disconnect equipment unless power has been removed
or the area is known to be non-hazardous.
WARNING!
EXPLOSION HAZARD - - Do not replace batteries unless power has been switched off
or the area is known to be non-hazardous. Batteries must only be changed in an area
known to be non-hazardous.
DANGER
EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-
hazardous. Performing this operation in a hazardous area could result in an explosion.
DANGER
EXPLOSION HAZARD: Never remove end cap(s) in a hazardous location. Removing
cover(s) in a hazardous location could result in an explosion.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
5
Removing/Replacing the Termination Board
UL Listed Termination board Field Installed Accessory Kit for Use in Class I, Division 1,
Groups C, D; Class I, Division 2, Groups A, B, C, D
Flow Computer Termination Board Field Installed Accessory Kit Part No. 399185-01-1
for use with UL Listed Model Series FB1100.
Flow Computer Termination Board Field Installed Accessory Kit Part No. 400216010-
KIT for use with UL Listed Model Series FB1200.
To replace the termination board, you first need to remove the battery enclosure/HMI
module assembly to gain access to the termination board screws on the inside of the
flow computer.
1. Remove the front and rear end caps. Remove the retaining clamps on the end caps
(if present) using a 3 mm hexagonal wrench.
Components of Retaining Clamp Assembly
1
Screw
2
Retaining Clamp
3
Washer
2. Grasp the end cap.
Front End Cap Rear End Cap

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301
820X012
March 2018
6
3. Unscrew the end cap turning it counter-clockwise until the cover comes off. Set it
aside in a safe location.
Note
If you need more leverage place a long screwdriver or other appropriate tool across
the two notches in the cover to act as a pry bar.
Front End Cap Removal Rear End Cap Removal
4. Disconnect power at terminal TB1 on the termination board.
5. Disconnect all terminal blocks and disconnect all wires (I/O, grounding,
communications) coming into the flow computer.
6. With a #2 Phillips-head screwdriver loosen the two captive fastening screws on the
battery pack enclosure.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
7

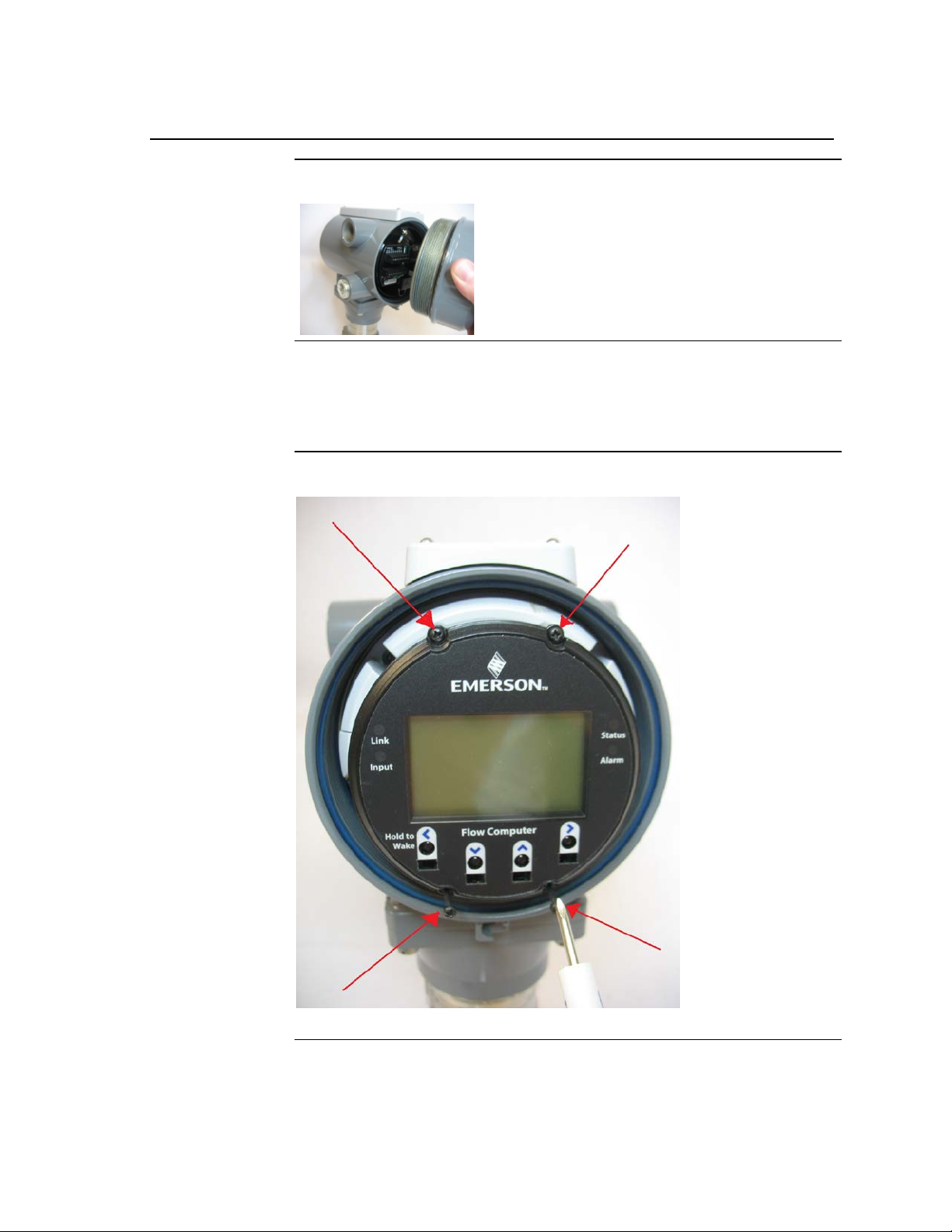

7. With a #1 Phillips-head screwdriver, loosen the two bottom captive fastening
screws on the HMI module. Leave the two top screws on the HMI module
connected to the battery pack enclosure.
8. Grasp the HMI module and gently pull it and the battery pack enclosure out of the
housing.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301
820X012
March 2018
8
9. If the battery pack enclosure holds an internal battery, disconnect the battery
connector.
10. Set the battery pack enclosure/HMI module assembly aside. You will need it later.

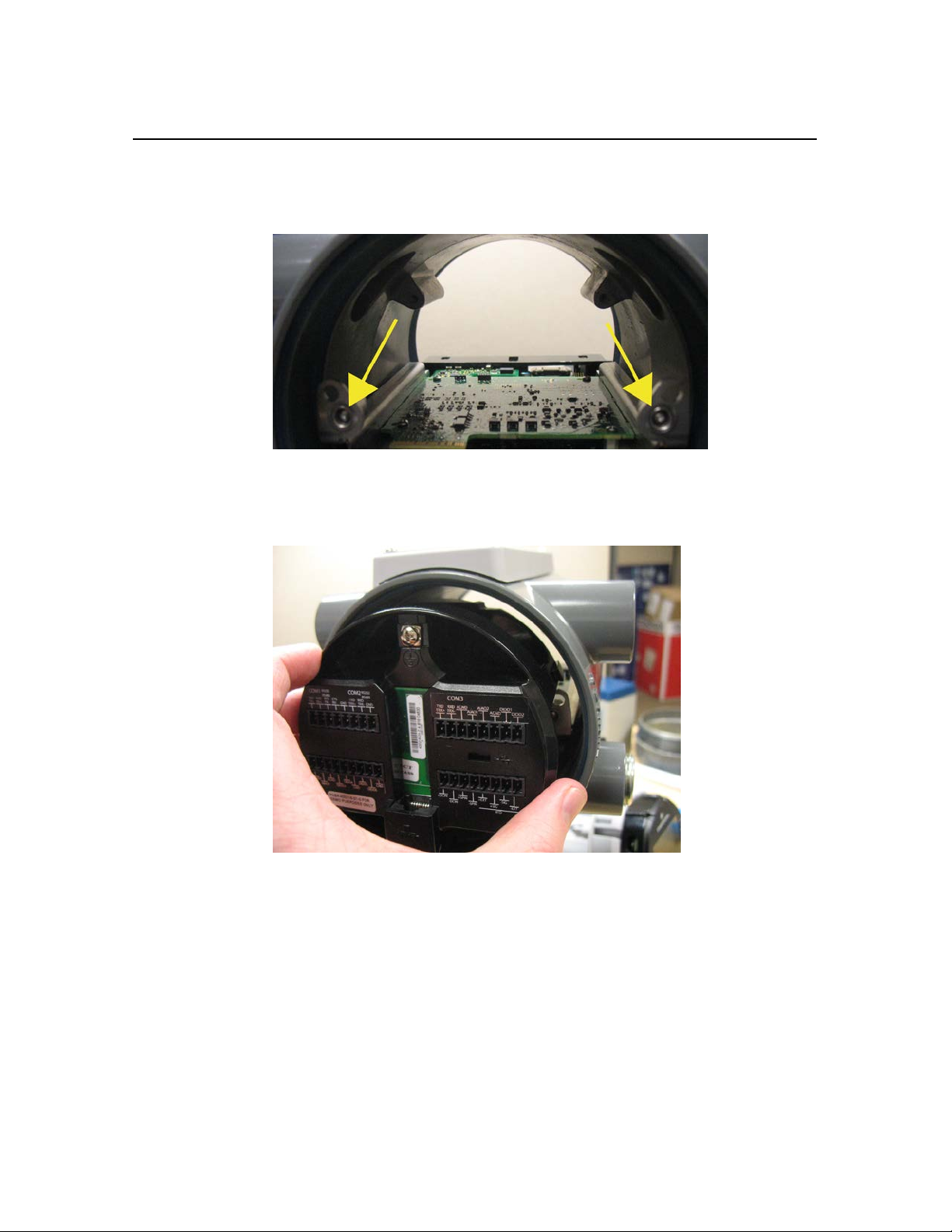

11. Look into the housing from the front. Two captive fastening screws on the inside
of the housing hold the termination board in place.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
9
12. With a #2 Phillips-head screwdriver loosen the two captive fastening screws.
13. Now grasp the termination board bezel from the back of the unit and pull out the
termination board assembly.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301
820X012
March 2018
10
14. You should be able to see through the housing from back to front and see the
opposite end of the captive fastening screws that you saw in Steps 11 and 12.
15. Take the new (replacement) termination board (399185-01-1 or 400216010-KIT),
and align it with the captive fastening screw holes and press it into the back of the
housing onto the captive fastening screws.
16. Tighten the screws that you loosened in Step 12. Torque screws to 6 in-lbs (0.7 N
m).
17. Take the battery pack enclosure/HMI module assembly you removed in Step 8.
Being careful to keep the battery wire and its connector free, carefully slide the
assembly into the front of the housing so that the HMI module mates with the
green and yellow connector from the CPU module. Tighten the screws to hold the
assembly in place. Torque screws to 6 in-lbs (0.7 N m). If battery-powered, re-
connect the battery.
18. You can now proceed to rewire all connections (I/O, communications, grounding)
to the flow computer. Please refer to the instruction manual for wiring installation
instructions.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
11
Removing/Replacing Pluggable Terminal Blocks
UL Listed Terminal Block Field Installed Accessory Kit for Use in Class I, Division 1,
Groups C, D; Class I, Division 2, Groups A, B, C, D
Flow Computer 6-connector pluggable terminal block Field Installed Accessory
Kit Part No. 395791014-KIT for use with UL Listed Model Series FB1100.
Flow Computer 8-connector pluggable terminal block Field Installed Accessory
Kit Part No. 395803000-KIT for use with UL Listed Model Series FB1200.

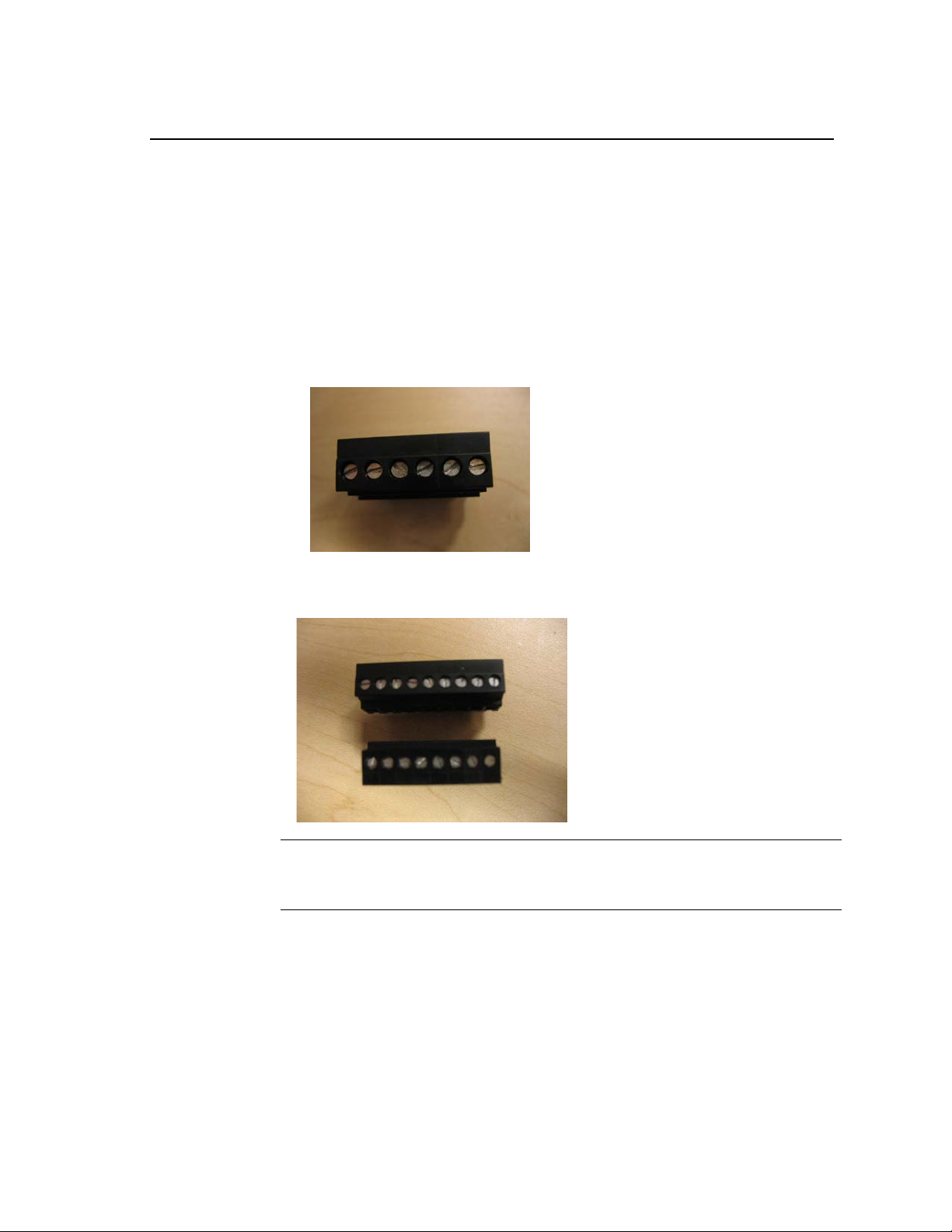

If one or more terminal blocks becomes damaged, you may need to replace them.
•For 6-connector terminal blocks you need a 1/8 inch flat head screwdriver.
•For 8-connector (or 9-connector) terminal blocks you need a 3/32 inch flat head
screwdriver.
Tip
If you have more than one terminal block to replace, we recommend you replace
one terminal block at a time to avoid confusion.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301
820X012
March 2018
12
1. Remove the rear end cap by first removing the retaining clamp on the end cap (if
present) using a 3 mm hexagonal wrench.
Components of Retaining Clamp Assembly (front clamp shown) Rear End Cap
1
Screw
2
Retaining Clamp
3
Washer
2. Grasp the end cap.
Rear End Cap
3. Unscrew the end cap turning it counter-clockwise until the cover comes off. Set it
aside in a safe location.
Note
If you need more leverage place a long screwdriver or other appropriate tool across
the two notches in the cover to act as a pry bar.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
13
Rear End Cap Removal
4. Remove power at terminal block TB1.
5. If your unit doesn’t include an internal battery, skip to Step 8. If the unit has an
internal battery which is connected, use a #1 Phillips-head screwdriver to loosen
the four captive fastening screws on the HMI module.
Captive Fastening Screws
6. Grasp the HMI module and remove it by gently pulling it straight out.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301
820X012
March 2018
14
7. If battery-powered, disconnect the internal battery.
8. For the terminal block you want to replace, make sure you note which wire goes to
which terminal. If they aren’t labeled, you should label them, or take a digital
photo so you know which wire goes to which connector of the terminal block.
9. Place your fingers on each of the short sides of the terminal block and gently rock it
back and forth so it pops out of the termination board.
10. Use a flat head screwdriver to loosen the screw for each wire coming into the old
terminal block. Slide the same wire into the identical position on the new
(replacement) terminal block, and tighten the screw to hold it in place. Repeat for
each wire.
11. Repeat Steps 8 through 10 for each terminal block you want to replace.

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
D301820X012
March 2018
15
12. If you have an internal battery, you can re-connect it now, and put the HMI module
back on. To replace the HMI module, line up the printed circuit board (PCB) with
the slot on the back of the replacement module and gently press the new HMI
module on. Tighten the four captive fastening screws with a torque of 6 in-lbs (0.7
N m).
13. You can now plug your new terminal blocks back into the termination board,
leaving TB1 last for when you want to restore power.
14. Carefully align the end cap threads with the threads of the enclosure and replace
the rear end cap. Screw the end cap clockwise (eight full turns) until it is tightly
sealed to the enclosure. Endcaps must have at least 8 full threads engaged upon
reassembly.
Note
If you need more leverage place a long screwdriver or other appropriate tool
across the two notches in the cover to act as a pry bar.
15. If applicable, tighten the retaining clamp onto the end cap using a 3mm
hexagonal wrench. When tightening, torque to 10 to 12 in-lbs (1.1 to 1.4 N m).

FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
For customer service and technical support,
visit www.Emerson.com/SupportNet
Global Headquarters,
North America, and Latin America:
Emerson Automation Solutions
Remote Automation Solutions
6005 Rogerdale Road
Houston, TX 77072 U.S.A.
T [phone] | F [phone]
www.Emerson.com/RemoteAutomation
© 2018 Remote Automation Solutions, a business unit of Emerson Automation Solutions. All
rights reserved.
This publication is for informational purposes only. While every effort has been made to ensure
accuracy, this publication shall not be read to include any warranty or guarantee, express or
implied, including as regards the products or services described or their use or applicability.
Remote Automation Solutions (RAS) reserves the right to modify or improve the designs or
specifications of its products at any time without notice. All sales are governed by RAS terms
and conditions which are available upon request. RAS accepts no responsibility for proper
selection, use or maintenance of any product, which remains solely with the purchaser and/or
end-user.
Europe:
Emerson Automation Solutions
Remote Automation Solutions
Unit 8, Waterfront Business Park
Dudley Road, Brierley Hill
Dudley UK DY5 1LX
T [phone] | F [phone]
Middle East/Africa:
Emerson Automation Solutions
Remote Automation Solutions
Emerson FZE
P.O. Box 17033
Jebel Ali Free Zone – South 2
Dubai U.A.E.
T [phone] | F [phone]
Asia-Pacific:
Emerson Automation Solutions
Remote Automation Solutions
1 Pandan Crescent
Singapore 128461
T [phone]| F [phone]
Remote Automation Solutions
