Emerson Rosemount WPG: Rosemount SPG User manual

Quick Start Guide
00825-0100-4145, Rev BB
February 2019
Rosemount™ Smart Pressure Gauge

This guide provides basic guidelines for Rosemount Smart Pressure Gauges. It does not provide
instructions for configuration, diagnostics, maintenance, service, troubleshooting, or intrinsically safe
(I.S.) installations. Refer to the Rosemount Smart Pressure Gauge Reference Manual for more
instruction. The manual and this guide are also available electronically.
NOTICE
Shipping considerations
The device is shipped with the battery installed.
Each device contains one “D” size primary lithium-thionyl chloride battery. Primary lithium
batteries are regulated in transportation by the U.S. Department of Transportation, and are also
covered by IATA (International Air Transport Association), ICAO (International Civil Aviation
Organization), and ARD (European Ground Transportation of Dangerous Goods). It is the
responsibility of the shipper to ensure compliance with these or any other local requirements.
Consult current regulations and requirements before shipping.
WARNING
Explosions could result in death or serious injury.
Installation of device in an explosive environment must be in accordance with appropriate local,
national, and international standards, codes, and practices.
Ensure device is installed in accordance with intrinsically safe or non-incendive field practices.
Electrical shock could cause death or serious injury.
Device must be installed to ensure a minimum antenna separation distance of 8 in. (20 cm) from
all persons.
Care must be taken during transportation of device to prevent electrostatic charge build-up.
Process leaks could result in death or serious injury.
Handle the device carefully.
Failure to follow these installation guidelines could result in death or serious injury.
Ensure only qualified personnel perform the installation.
Contents
Required equipment......................................3
What’s in the box........................................... 4
Optional: Power/device check........................6
Optional: Normal range indication option......7
Installation Procedure....................................8
Troubleshooting.......................................... 12
Product Certifications.................................. 13
Quick Start Guide February 2019
2 Emerson.com/Rosemount

1 Required equipment
Figure 1-1: Anti-seize paste or PTFE tape (for NPT threaded connection)
Figure 1-2: Standard tools (e.g., screwdriver, wrench, pliers)
February 2019 Quick Start Guide
Quick Start Guide 3

2 What’s in the box
Smart Pressure Gauge Quick Start Guide
The following options are also available and will ship with the Rosemount
Smart Pressure Gauge if ordered.
Rosemount 306 Integral Manifold (model
code S5)
B4 bracket (model code B4)
Quick Start Guide February 2019
4 Emerson.com/Rosemount

Rosemount 1199 Seal(model code S1) Product Certification
Q4: Calibration Cert
QG: Calibration Cert and GOST
Verification Cert
QP: Calibration Cert and Tamper Evident
Seal
Q8: Material Traceability cert per EN
102043.1
Q15: Cert of Compliance to NACE
MR0175/ISO 15156 for wetted materials
Q25: Cert of Compliance to NACE
MR00103 for wetted materials

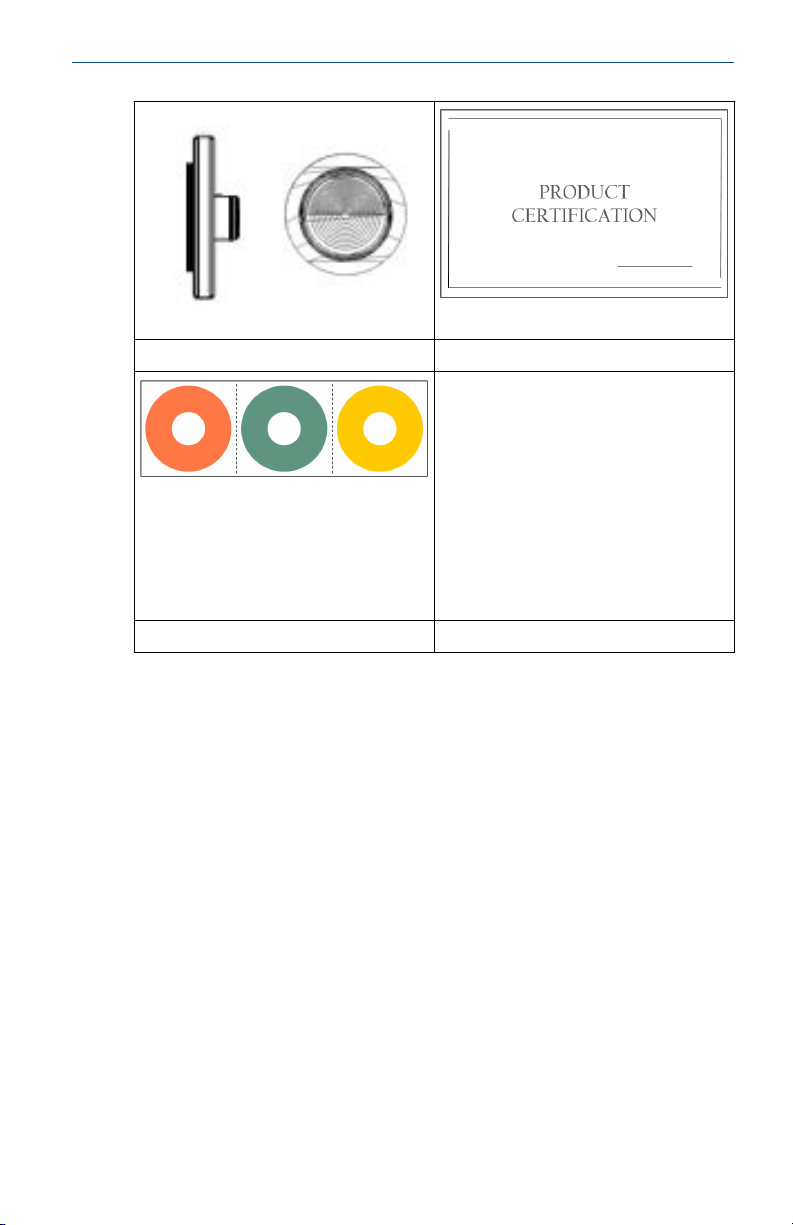

Normal range Indication (model code LK) Product Certification model codes
February 2019 Quick Start Guide
Quick Start Guide 5

3 Optional: Power/device check
The device is designed to be installation-ready.
Procedure
1. To check device battery prior to installation, perform Turn on device
2. Slide the ON/OFF switch to the OFF position until ready for use.
Quick Start Guide February 2019
6 Emerson.com/Rosemount

4 Optional: Normal range indication option
Important
•The stickers are intended to be installed on the dial only and should not be
applied on the inside or outside of the housing cover.
•Stickers should be applied in an environment where the ambient
temperature is above 50°F (10°C)
Procedure
1. Modify each of the stickers to desired size.
2. Remove housing cover.
3. Slide ON/OFF switch to the OFF position and wait for the LED to stop
flashing.
4. Gently move the needle in the clockwise direction until it is pointing at
the red X.
NOTICE
Equipment Damage
Use caution as the electronics assembly is connected to the needle.
5. Remove any debris on the dial, so it does not become trapped under
the sticker.
6. Peel back the white paper backing of the sticker.
7. Slowly lower the sticker onto the surface of the dial in the desired
location and rub it in place firmly. Repeat steps Step 6 and Step 7 until
desired indication locations are set.
Moving the sticker after initial contact is not recommended as this
decreases the amount of adhesive on the back of the sticker.
8. Slide ON/OFF switch to the ON position.
9. Replace housing cover.
February 2019 Quick Start Guide
Quick Start Guide 7

5 Installation Procedure
Procedure
1. Seal and protect threads
OR
2. Mount device
Note
Use wrench on flats, not on housing.
5.1 Mounting orientation
The low side pressure port (atmospheric reference) is located in the neck of
the device behind the housing.
The vent path is between the housing and sensor.
CAUTION
Keep the vent path free of any obstruction, including but not limited to paint,
dust, and lubrication by mounting the device so the process can drain away.
Quick Start Guide February 2019
8 Emerson.com/Rosemount

Figure 5-1: Low Side Pressure Port
A
A. Low side pressure port (atmospheric reference)
5.2 Turn on device
Check to ensure the device and battery are working properly.
Procedure
1. Twist the cover counterclockwise to remove it.
2. Slide the OFF/ON switch to the ON position to initiate the power
sequence.
Note
During the power sequence, the dial tests full range of motion and LED
flashes amber.

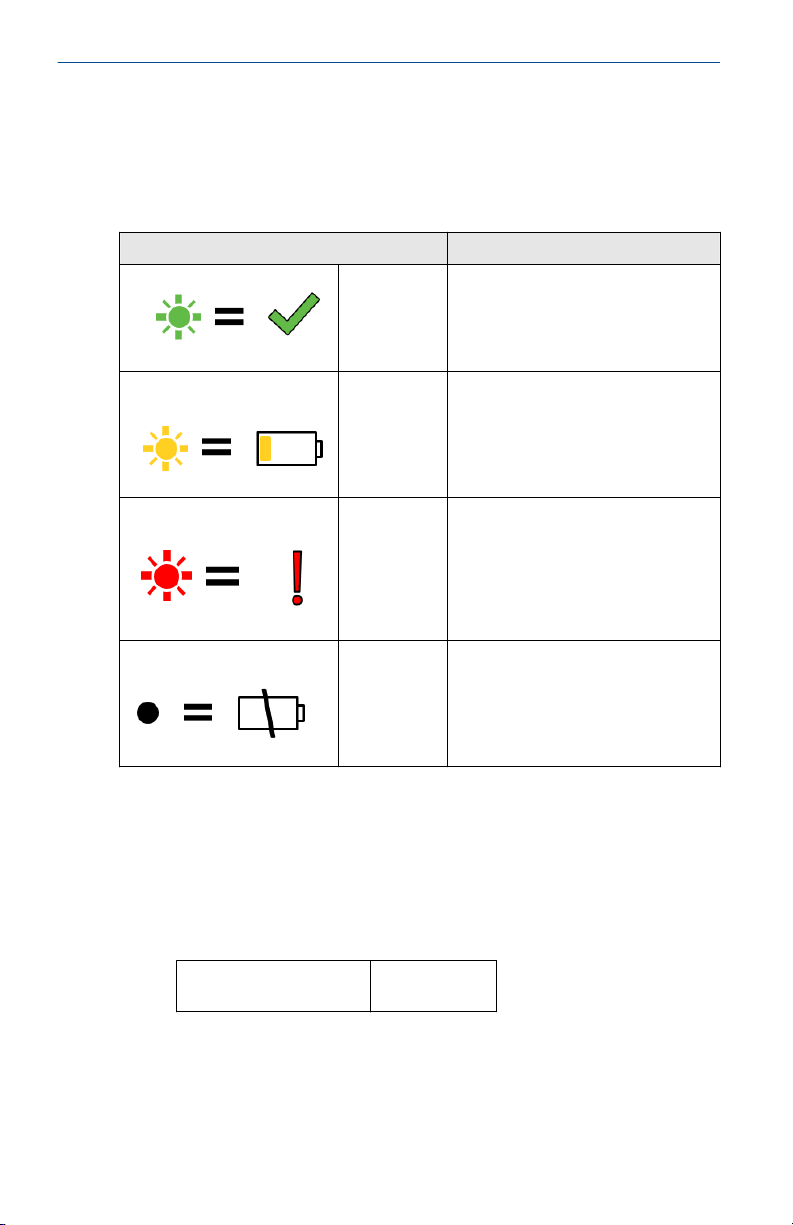

3. Once the power sequence ends, verify that the LED flashes green.
The LED may display several colors; see Device status indicator .
February 2019 Quick Start Guide
Quick Start Guide 9

5.3 Connect to the device
Image displaying the device connection diagram
1 2 3
64 5
8 7
0
9
A
BC
A. Field Communicator
B. HART® Modem
C. AMS Configurator
5.3.1 AMS Configurator
Procedure to connect the AMS Configurator to the smart pressure gauge.
Procedure
1. Start AMS Configurator.
2. From the View menu, select Device Connection View.
3. Double-click the device under the HART modem.
5.3.2 Field communicator
Procedure to connect the smart pressure gauge to the field communicator.
Procedure
1. Turn on the Field Communicator.
2. From the Main menu, select the HART symbol.
5.4 Eliminate mounting effects
Devices are factory-calibrated. Once installed, it is recommended to perform
this step to eliminate potential error caused by mounting position or static
pressure.
Quick Start Guide February 2019
10 Emerson.com/Rosemount
