Surge Protective Devices
STV200/400K Series
Instruction Manual

Contents
1.0 Introduction ................................................................................................................... 4
2.0 WarningsDened.......................................................................................................... 4
3.0 Preinstallation ............................................................................................................... 5
3.1 Unpacking & Preliminary Inspection ........................................................................................... 5
3.2 Storage........................................................................................................................................ 5
3.3 Location Considerations.............................................................................................................. 5
3.4 Electrical Connections................................................................................................................. 6
 3.5 VoltageRatings&PowerSourceCongurations........................................................................ 6
3.6 Parallel Connection..................................................................................................................... 7
3.7 Proper Connection of SPDs........................................................................................................ 8
3.8 System Grounding & Bonding..................................................................................................... 9
3.9 SPD Monitoring......................................................................................................................... 10
3.10 SPD Interconnect Assembly...................................................................................................... 10
4.0 Installation ................................................................................................................... 12
5.0 Dimensions.................................................................................................................. 14
6.0 Specications.............................................................................................................. 15
7.0 Maintenance & Service............................................................................................... 16
7.1 Corrective Maintenance ............................................................................................................ 16
7.2 Preventative Maintenance......................................................................................................... 16
7.3 Service ...................................................................................................................................... 16
8.0 Troubleshooting.......................................................................................................... 17
9.0 Registration & Warranty ............................................................................................. 17
9.1 Product Registration.................................................................................................................. 17
9.2 Warranty Information................................................................................................................. 17
While every precaution has been taken to ensure accuracy and completeness in this manual, EGS Electrical Group, LLC. assumes no responsibility,
and disclaims all liability for damages resulting from use of this information or for any errors or omissions. The SolaHD and Emerson logos are regis-
teredintheU.S.PatentandTrademarkOfce.Allotherproductorservicenamesarethepropertyoftheirregisteredowners.©2011EGSElectrical
Group,LLC.Allrightsreserved.Specicationsaresubjecttochangewithoutnotice.

STV200/400KInstructionManual•4
1.0 Introduction
The SolaHD STV200/400K Series surge protective devices (SPDs) offer continuous
protection from electrical noise and high-impulse, potentially damaging transients
commonly found at the service entrance or distribution panel. The modular, robust
designprovidesinstallationexibility,whileallowingplacementinthemostsevere
exposurelocations.
Properinstallationisrequiredformaximumsystemperformance.Toensure
a quality installation, the installer should read the entire manual and follow all
instructions before and during the installation.
These instructions do not replace national or local electrical codes. Check appli-
cable electrical codes to ensure compliance. Installation of the STV200/400K
Seriesshouldbeperformedbyqualiedpersonnel.
2.0 Warnings Dened
!
DANGER! Indicates an imminently hazardous situation that, if not avoided,
willresultindeathorseriousinjury.Thissignalwordislimitedtothemostextreme
situations.
!
WARNING! Indicates a potentially hazardous situation that, if not avoided,
couldresultindeathorseriousinjury.
!
CAUTION! Indicates a potentially hazardous situation that, if not avoided,
mayresultinminorormoderateinjury.Itmayalsobeusedtoalertagainst
unsafe practices.

STV200/400KInstructionManual•5
3.0 Preinstallation
3.1 Unpacking & Preliminary Inspection
1. Inspect the shipping crate(s) for damage or signs of mishandling before
unpacking the unit.
2. Remove any securing bands and cardboard packing and inspect the unit for
any obvious shipping damage.
3. Ifanyshippingdamageisobserved,immediatelyleaclaimwiththeshipping
agency and forward a copy to your SolaHD Representative.
3.2 Storage
The unit should be stored in a clean, dry environment. The storage tempera-
ture range is -55°C to +85°C (-67°F to +185°F). Care should be taken to avoid
condensation.
All packing and shipping materials should be left intact until the unit is ready for
nalinstallation.Iftheunithasbeenstoredforanextendedperiodoftime,it
should be cleaned and carefully inspected before placing into service.
3.3 Location Considerations
Environment: The unit is designed for indoor operation in an ambient tempera-
ture range of -40°C to +60°C (-40°F to +140°F) with a relative humidity of 0% to
95% non-condensing.
The unit is provided in an industrial-use enclosure, which is dust-tight and drip-
tight.Itshouldnotbeinstalledinareaswithexcessivedust,corrosivevapors,
ammablematerials,orexplosiveatmospheres.
Audible Noise: The audible noise of the unit is less than 40 dB at 5 feet, which
allows placement within most rooms (if desired).
Service Clearance: 36 inches (914 mm) minimum is recommended for units with
hinged doors that open to the front.
Mounting: The unit is intended to be wall mounted. See Figure 4 for dimensions.
Tip: To maximize system performance, locate the unit as close as possible to the
protected circuit and keep interconnecting wiring less than 5 feet.
For optimum transient surge protection, coordinated surge suppression should
be applied at the service entrance and all other electrical connections to the
building (e.g. telephone, CATV); also at known surge generating loads within the
building (e.g. large motors, arc welders, switched capacitors); as well as sensitive
electronic loads (e.g. computers, electronic appliances, solid state motor drives).
For interconnected electronic loads (by the way of data cabling), transient surge
suppression should also be applied to the interconnecting wiring (data cables).

STV200/400KInstructionManual•6
3.4 Electrical Connections
!DANGER!
Verify that all power circuits are de-energized and locked out before making
electrical connections. All electrical connections must be installed by a licensed
electrician and all wiring must comply with the National Electrical Code (NEC)
and applicable local codes.
3.5VoltageRatings&PowerSourceCongurations
!
CAUTION!
Before making connections to the unit, verify that the unit model number and
nameplate voltage rating are appropriate for connection to the intended power
source.SeeTable1forvoltageratingsandpowersourcecongurations.

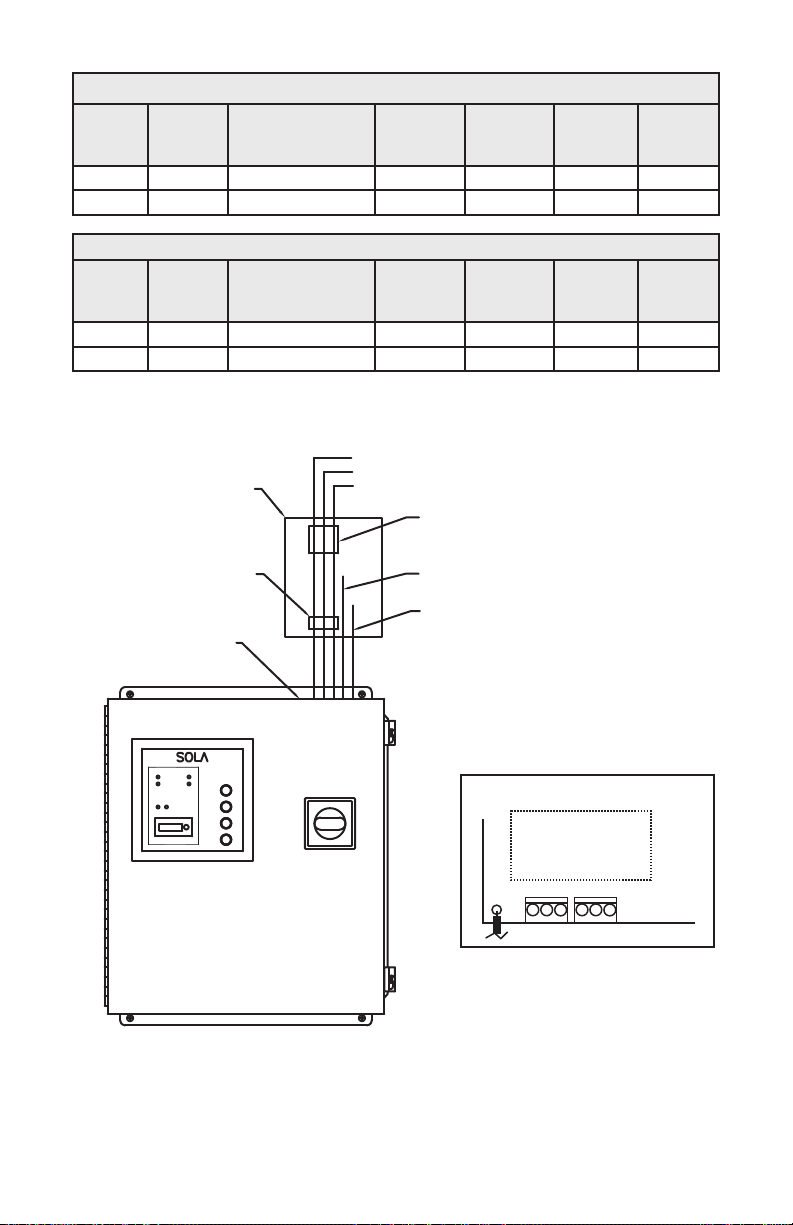

Table 1:VoltageRatings&PowerSourceCongurations
Source
Congurations
Nominal
Operating Voltage
Maximum
Continuous Voltage Model
Voltage Code
(found in part #)
3-phase Wye
4 W + G
A
N
B
C
G
L–N L–G L–L L–N L–G N–G L–L
120 V 120 V 208 V 150 V 150 V 150 V 300 V 10Y
277 V 277 V 480 V 320 V 320 V 320 V 640 V 27Y
3-phase Delta
3 W + G
A
B
C
GG
N/A 480 V 480 V N/A 580 V N/A 640 V 48D

STV200/400KInstructionManual•7
3.6 Parallel Connection
To reduce the wiring impedance to surge currents, it is recommended that the
phase, neutral (if required), and ground conductors are twisted together and
routed in the same raceway (conduit). Avoid any sharp bends in the conductors.
Tip: To maximize system performance, locate the unit as close as possible to the
protected circuit and keep interconnecting wiring less than 5 feet.
Wire Sizing: With parallel connection, the size of the wiring to the SPD unit is
independent of the protected circuit’s ampacity. For suggested wire size, refer to
Table 2.
NOTE: NEC Article 285-26 requires surge suppressor connecting conductors to
be at least #14 AWG copper or #12 AWG aluminum.
Overcurrent Protection: The SPD unit conducts minimal current under normal
operation and very short duration transient surge currents.
Disconnect Switch (if provided): All SPD units must be connected to the
load side of the main service disconnect or the load side of a protected circuit’s
disconnecting means.
To
Protected
Loads
SolaHD
Surge
Protective
Device
Protected
Panel Wire should be
less than 5 feet
and as straight
as possible
Neutral
Phase(s)
Transient
Ground
Safety
Ground
Neutral
Phases
Ground
Figure 1: Typical parallel connection without internal rotary disconnect

STV200/400KInstructionManual•8
To
Protected
Loads
SolaHD
Surge
Protective
Device
Protected
Panel Wire should be
less than 5 feet
and as straight
as possible
Neutral
Phase(s)
Transient
Ground
Safety
Ground
Neutral
Phases
Ground
Rotary
Disconnect
Figure 2: Typical parallel connection with internal rotary disconnect
Voltage Protection Ratings (VPRs): To obtain the Voltage Protection Ratings
(VPRs) as obtained by Underwriters Laboratories, Incorporated, in accordance
with ANSI/UL 1449 Third Edition, the Standard for Safety, Surge Protective
Devices (SPDs), the wire size listed for each product must be utilized to connect
the unit to your facilities’ power grid. Connections made with conductors other
than the wire size listed may result in different VPRs.
Circuit Ampacity Limitations: Representative samples of these products have
been investigated by Underwriters Laboratories, Incorporated, to withstand without
exposinglivecircuitsorcomponentsatsystemvoltagesandfaultcurrentsupto
200,000 AIC, as described in ANSI/UL 1449 Third Edition, the Standard for Safety,
Surge Protection Devices (SPDs). Verify each product’s fault current rating on the
installation pages that follow.
3.7 Proper Connection of SPDs
Type1SPDsshallbeinstalledasdenedintheNationalElectricalCode(NEC)
2011 Edition as follows:
285.23 Type 1 SPDs (Surge Arresters). Type 1 SPDs shall be installed in accor-
dance with 285.23(A) and (B).

STV200/400KInstructionManual•9
A) Installation. Type 1 SPDs (surge arresters) shall be installed as follows:
1) Type 1 SPDs (surge arresters) shall be permitted to be connected to the
supply side of the service disconnect as permitted in 230.82(4) or
2) Type 1 SPDs (surge arresters) shall be permitted to be connected as
speciedin285.24.
B) At the Service. When installed at services, Type 1 SPDs shall be connected
to one of the following:
1) Grounded service conductor
2) Grounding electrode conductor
3) Grounding electrode for the service
4) Equipment grounding terminal in the service equipment
3.8 System Grounding & Bonding
The performance and safety of any SPD is dependent on proper grounding and
bonding. Grounding is required for safety; correct implementation also enhances
equipment performance. Incorrect grounding can reduce or impede the SPD’s
operation. All electrical circuits to the SPD must include an equipment-grounding
conductor as required by the NEC and local codes.
An insulated grounding conductor is required in addition to any metallic raceway,
which may be used as a grounding conductor. For parallel connected SPDs,
the grounding conductor should be the same wire size as the associated power
conductors. Grounding conductors must be routed with the associated power
conductors in the same raceway (conduit).
When metallic raceways are used, adequate electrical continuity must be
maintained at all raceway connections, particularly raceway terminations to the
electrical enclosures. The use of isolating bushings or other means to interrupt a
metallic conduit run is a potential safety hazard and is not recommended.
Grounding Electrode: Surge protective devices do not discharge all surges
to ground (earth). Surge protective devices divert the surge current back to its
source to complete the electrical circuit. In the case of lightning where potential
is developed with respect to the earth, the SPD diverts the surge current to the
grounding electrode (earth connection). However, for most transient surges that
are developed by switching loads, the SPD diverts the surge current back to its
source without involving the grounding electrode.
For proper SPD performance, the service entrance grounding electrode system
must comply with the NEC by having all available electrodes (building steel,
metal water pipe, driven rods, concrete encased electrodes, etc.) properly
bonded together and connected to the power system grounding. The use of a
separate grounding electrode to ground the SPD defeats the effectiveness of
the unit, is a potential safety hazard, may cause equipment damage, and is an
NEC violation (reference NEC 250.50).
System Neutral: For proper and safe operation, the neutral (if provided) must
be reliably connected to the neutral of the source. Failure to provide a reliable
neutral connection may result in SPD module failure.

STV200/400KInstructionManual•10
3.9 SPD Monitoring
External Status Indicators: These indicators provide a summary of the status of
the SPD module. For normal conditions, the green “OK” LED is illuminated and
the red “Service” LED is off. If the SPD module requires replacement, the green
“OK” LED is turned off and the red “Service” LED is illuminated.
Summary Alarm Contact: Summary alarm Form C relay contacts are provided
for remote indication of a failed SPD module. Contacts are rated 5 A at 250 V ac
maximumwithapowerfactorof1.0.Accesstothecontactsaretypicallyprovided
via contact terminals located on the printed circuit board (mounted on the inside
of the unit’s cover).
Transient Counter (optional): Transient counters are provided for transient
voltage surge monitoring. The counter totalizes surges monitored since the last
counter reset.
The transient counter monitors line transient voltages. The circuit counts all
surges that deviate from the line sine wave. The factory setting is 30% over
nominal line voltage. Other settings include 50%, 70%, and 100%.
Audible Alarm: If the SPD module requires replacement, an audible alarm is
activated. An audible alarm disable is provided to silence the alarm. The system
will automatically reset itself after repair. The audible alarm switch and “Service”
LED can be tested by activating the “Test” switch on the system monitor panel.
3.10 SPD Interconnect Assembly
Installation Instructions: All electrical connections shall be installed by a
licensed electrician. All wiring must comply with the National Electrical Code
(NEC) and applicable local codes.
National Electrical Code (NEC) Considerations: The NEC Article 240-21
detailsspecictaprulesthatshouldbeconsideredbeforeinstallation.
NEC 240.21 Location in Circuit. Overcurrent protection shall be provided
in each ungrounded circuit conductor and shall be located at the point where
theconductorsreceivetheirsupplyexceptasspeciedin240.21(A)through
(H). Conductors supplied under the provisions of 240.21(A) through (H) shall
notsupplyanotherconductorexceptthroughanovercurrentprotectivedevice
meeting the requirements of 240.4.
A) Branch-Circuit Conductors. Branch-circuit tap conductors meeting the
requirementsspeciedin210.19shallbepermittedtohaveovercurrent
protectionasspeciedin210.20.
B) Feeder Taps. Conductors shall be permitted to be tapped, without overcurrent
protectionatthetap,toafeederasspeciedin240.21(B)(1)through(B)(5).
The provisions of 240.4(B) shall not be permitted for tap conductors.

STV200/400KInstructionManual•11
1) Taps Not Over 3 m (10 ft.) Long. If the length of the tap conductors does not
exceed3m(10ft.)andthetapconductorscomplywithallofthefollowing:
1) The ampacity of the tap conductors (25 A in our case) is
a. Not less than the combined calculated loads on the circuits supplied by
the tap conductors, and
b. Not less than the rating of the device supplied by the tap conductors
or not less than the rating of the overcurrent protective device at the
termination of the tap conductors.
2) Thetapconductorsdonotextendbeyondtheswitchboard,panelboard,
disconnecting means, or control devices they supply.
3) Exceptatthepointofconnectiontothefeeder,thetapconductorsare
enclosedinaraceway,whichshallextendfromthetaptotheenclosureof
an enclosed switchboard, panel board, or control devices, or to the back of
an open switchboard.
4) Foreldinstallations,ifthetapconductorsleavetheenclosureorvault
in which the tap is made, the ampacity of the tap conductors is not less
than one-tenth of the rating of the overcurrent device protecting the feeder
conductors.
2) Taps Not over 7.5 m (25 ft.) Long. Where the length of the tap conductors
doesnotexceed7.5m(25ft.)andthetapconductorscomplywithallofthe
following:
1) The ampacity of the tap conductors is not less than one-third of the rating
oftheovercurrentdeviceprotectingthefeederconductors.(75Amaximum
in our case.)
2) The tap conductors terminate in a single circuit breaker or a single set of
fuses that limit the load to the ampacity of the tap conductors. This device
shall be permitted to supply any number of additional overcurrent devices
on its load side.
3) The tap conductors are protected from physical damage by being enclosed
in an approved raceway or other approved means.
3) Taps Supplying a Transformer. Not Applicable for this product.
4) Taps Over 7.5 m (25 ft.) Long. Not Applicable for this product.
5) Outside Taps of Unlimited Length. Not Applicable for this product.
Flexible,liquid-tight,non-metallicconduitinlengthsgreaterthan6feetmustbe
installed in accordance with NEC Article 350.

STV200/400KInstructionManual•12
4.0 Installation
1. Ensurethatallpowerisremovedbeforebeginninginstallation.Aqualied,
licensed electrician shall install all electrical connections.
2. The STV200/400K is provided in a UL Listed Type/NEMA 12 enclosure which
is suitable for indoor installations. Optional UL Listed Type/NEMA 3R, 4 or 4X
enclosures are suitable for indoor or outdoor applications.
3. Determine the mounting location. Allow for minimum length of wire between
the unit and the input power terminals of the service panel.
4. Punch or cut the proper hole size in the side of the STV200/400K closest to
the service panel.
5. Drill mounting holes in the wall. Mount the unit using ¼ in. mounting hardware.
6. Anexternalcircuitbreakerisnotnecessaryforovercurrentprotectionformost
units, however, it is recommended that the SPD be connected in series with a
circuit breaker (see Table 2). The SPD shall be connected in accordance with
all national and local electrical codes.
7. Connect the black wires (line or phase) marked L1/A, L2/B, or L3/C; the white
wire (neutral) marked N; and the green wire (ground) marked G. See Figure 3.
Refer to Table 2 for suggested wire sizes.
!
CAUTION!
 IftheSPDmodelisaWyeconguredunit(4W+G)andaneutralconnection
is not available, please contact SolaHD Technical Support for assistance.
Tip: To yield the best performance of the SPD within the electrical distribution
system, keep all conductors as short as possible and avoid sharp bends.
8. If using the Summary Alarm Contacts for remote indication, connect with
#18–22AWG.Contactsarerated5Aat250Vac(maximum)withapower
factor of 1.0. See Figure 3.
9. Apply power. The unit is fully operational when the front door of the enclosure
is closed and latched and the green LEDs on the modules are illuminated. If
thegreenLEDsareextinguishedoraredLEDisilluminated,checktoensure
that power is applied to the unit. If an abnormal indication is present, remove
power to the unit and contact SolaHD Technical Support at [phone].
NOTE: PeriodicallymonitorthestatusoftheLEDs.Reducedprotectionexists
ifthegreenLEDsareextinguishedortheredLEDisilluminated.

STV200/400KInstructionManual•13
Table 2:InstallationSpecications
Model Weight
lb. (kg)
Dimensions
D x W x H (in.)
Suggested
Breaker
Size
Suggested
Wire Size
AWG
Allowable
Breaker
Range
Allowable
Wire
Range
STV200K 35 (15.88) 8.25x14.25x16.25 40 A #8 15–100 A #14–2
STV400K 42 (19.05) 8.25x14.25x16.25 100 A #2 15–100 A #14–2
Units with Rotary Disconnect
Model Weight
lb. (kg)
Dimensions
D x W x H (in.)
Suggested
Breaker
Size
Suggested
Wire Size
AWG
Allowable
Breaker
Range
Allowable
Wire
Range
STV200K 38 (17.23) 8.25x14.25x16.25 40 A #8 15–175 A #14–2/0
STV400K 45 (20.41) 8.25x14.25x16.25 100 A #2 15–175 A #14–2/0
Phase L1/A
Phase L2/B
Phase L3/C
Service Panel for
Loads to be Protected
Disconnect/Main
Neutral Bus
Ground Bus
Panel
Breaker for
Recommended Wire
Entrance
Dedicated
(Optional)
Disconnect
Summary Alarm Contacts (x2)
Pin 1 = Normally Open
Pin 2 = Common
Pin 3 = Normally Closed
TB1 TB2
1 2 3 1 2 3
Figure 3: Installation drawing

STV200/400KInstructionManual•14
5.0 Dimensions
8.25
1.30 max.
12.00
14.25
16.25
16.75
0.31
Figure 4: Dimensional drawing

STV200/400KInstructionManual•15
*Delta Model does not offer N–G mode of protection
6.0 Specications
Table 3:TechnicalSpecications
Parameters
Catalog Number
STV200K-
10Y
STV200K-
27Y
STV200K-
48D
STV400K-
10Y
STV400K-
27Y
STV400K-
48D
Input Voltage
120Y/208 V 277Y/480 V 480 V 120Y/208 V 277Y/480 V 480 V
3Ph Wye,
4 W + G
3Ph Wye,
4 W + G
3Ph Delta,
3 W + G
3Ph Wye,
4 W + G
3Ph Wye,
4 W + G
3Ph Delta,
3 W + G
Maximum Continuous
Operating Voltage (MCOV) 125% of the nominal level for 120 V; 115% for all other voltages
Line Frequency 47–63 Hz
Response Time < 0.5 ns
Enclosure Metal, UL Listed Type/NEMA 12 (NEMA 3R, 4, 4X also available)
Mounting Type Wall Mounted (mounting hardware ¼ in.)
Connection Internally connected
Status Indication Red and green LED status indicators, audible alarm, summary alarm contacts
Operating Temperature -40°C to +50°C
Operating Humidity 0% to 95% non-condensing
Noise Attenuation 50dBMaximum
Modes of Protection All Modes: L–N, L–L, L–G, N–G*
AIC Rating 200 kAIC
Nominal Discharge Current
Rating (In)20 kA
Safety Agency Approvals UL 1449, Type 1
Warranty 5 year limited warranty
UL 1449, Type 1 Voltage Protection Ratings (VPRs)
Line to Neutral 800 V 1200 V N/A 700 V 1200 V N/A
Line to Line 1200 V 2000 V 2000 V 1200 V 1800 V 2000 V
Line to Ground 900 V 1200 V 1800 V 800 V 1200 V 1800 V
Neutral to Ground 700 V 1000 V N/A 700 V 1000 V N/A
Peak Surge Current Capability
Per Phase 200 kA 200 kA 200 kA 400 kA 400 kA 400 kA
Line to Neutral 100 kA 100 kA N/A 200 kA 200 kA N/A
Line to Line 100 kA 100 kA 100 kA 200 kA 200 kA 200 kA
Line to Ground 100 kA 100 kA 100 kA 200 kA 200 kA 200 kA
Neutral to Ground 100 kA 100 kA N/A 200 kA 200 kA N/A

STV200/400KInstructionManual•16
7.0 Maintenance & Service
!
DANGER!
Onlyqualiedpersonnelshouldperformmaintenanceonthissystem.
Hazardous voltages are present inside the unit during normal operation.
Electrical safety precautions must be followed when servicing this unit.
To prevent risk of electrical shock, turn off and lock out all power sources to the
unit before servicing.
7.1 Corrective Maintenance
The SPD is designed for years of trouble-free operation, but even the most reli-
able equipment may fail under abnormal conditions.
Diagnostic indicators are provided to indicate when the unit needs to be repaired.
To ensure continuity of surge protection, failed units should be replaced as soon
as possible.
When replacing surge modules, other components should be inspected for damage
and replaced if necessary. Standard electrical troubleshooting procedures should be
used to isolate other problems.
When replacing components—for continued proper operation and safety—only
use identically rated components. For more information on replacement parts,
please contact SolaHD Technical Support at [phone] or [phone].
7.2 Preventative Maintenance
Periodic system inspections, cleaning, and connection checks are recommended
to ensure reliable system performance and continued surge transient protection.
7.3 Service
For service assistance, contact SolaHD Technical Support at [phone] or
[phone] or by e-mail at [email protected].

STV200/400KInstructionManual•17
8.0 Troubleshooting
If status failure indication occurs or Form C relay has changed states, a licensed
electricianshallrstdetermineifthesystem’svoltageandproperphasingexists.
Ifitremainsinanalarmconditiononcetheelectricianissatisedthattheelec-
trical system and its connections are normal, the unit should be repaired. Please
contact SolaHD Technical Support at [phone] or [phone] or by
e-mail at [email protected] for further assistance.
When contacting SolaHD, please have the following information available:
1. Unitidenticationnumber,whichislocatedonthefrontorupperleftsideof
the enclosure.
2. The nature of problem, including status of all indicators and alarms.
9.0 Registration & Warranty
9.1 Product Registration
To register your product for updates and information on service and support, visit
our Web site at: http://www.solahd.com/support/registration.htm.
9.2 Warranty Information
Please see “Terms & Conditions of Sale”.

NOTES

Part Number: A272-157 Rev 6
May 2017
www.solahd.com
(800)377- 4384•(847)268-6651
[email protected]
