Emerson Rosemount 2501 User manual

Quick Start Guide
00825-0100-2501, Rev AA
October 2019
Rosemount™ 2501 Solids Level Switch
Rotating Paddle

Contents
Introduction.................................................................................................................................3
Mechanical installation...............................................................................................................11
Electrical installation.................................................................................................................. 20
Configuration.............................................................................................................................25
Operation...................................................................................................................................28
Maintenance.............................................................................................................................. 31
Product certifications................................................................................................................. 33
Quick Start Guide October 2019
2 Quick Start Guide

1 Introduction
The level switch detects the presence and absence of a process media at its
installation point, and reports it as a switched electrical output.
Note
Other language versions of this Quick Start Guide can be found at
Emerson.com/Rosemount.
1.1 Safety messages
NOTICE
Read this manual before working with the product. For personal and system
safety, and for optimum product performance, ensure you thoroughly
understand the contents before installing, using, or maintaining this
product.
For technical assistance, contacts are listed below:
Customer Central
Technical support, quoting, and order-related questions.
•United States - 1-800-999-9307 (7:00 am to 7:00 pm CST)
•Asia Pacific- 65 777 8211
North American Response Center
Equipment service needs.
•1-800-654-7768 (24 hours a day — includes Canada)
•Outside of these areas, contact your local Emerson representative.
WARNING
Physical access
Unauthorized personnel may potentially cause significant damage to and/or
misconfiguration of end users’ equipment. This could be intentional or
unintentional and needs to be protected against.
Physical security is an important part of any security program and
fundamental to protecting your system. Restrict physical access by
unauthorized personnel to protect end users’ assets. This is true for all
systems used within the facility.
October 2019 Quick Start Guide
Quick Start Guide 3

WARNING
Failure to follow safe installation and servicing guidelines could result in
death or serious injury.
•Ensure the level switch is installed by qualified personnel and in
accordance with applicable code of practice.
•Use the level switch only as specified in this manual. Failure to do so may
impair the protection provided by the level switch.
Explosions could result in death or serious injury.
•The level switch must only be installed and operated in non-hazardous
(ordinary) locations.
Electrical shock could cause death or serious injury.
•Avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
•Ensure the power to the level switch is off, and the lines to any other
external power source are disconnected or not powered while wiring the
level switch.
•Ensure the wiring is suitable for the electrical current and the insulation is
suitable for the voltage, temperature, and environment.
Process leaks could result in death or serious injury.
•Ensure the level switch is handled carefully. If the process seal is
damaged, gas or dust might escape from the silo (or other vessel)
Any substitution of non-recognized parts may jeopardize safety. Repair,
e.g. substitution of components, etc. may also jeopardize safety and is
under no circumstances allowed.
•Unauthorized changes to the product are strictly prohibited as they may
unintentionally and unpredictably alter performance and jeopardize
safety. Unauthorized changes that interfere with the integrity of the
welds or flanges, such as making additional perforations, compromise
product integrity and safety. Equipment ratings and certifications are no
longer valid on any products that have been damaged or modified
without the prior written permission of Emerson. Any continued use of
product that has been damaged or modified without the written
authorization is at the customer’s sole risk and expense.
Quick Start Guide October 2019
4 Quick Start Guide

CAUTION
The products described in this document are NOT designed for nuclear-
qualified applications.
•Using non-nuclear qualified products in applications that require
nuclear-qualified hardware or products may cause inaccurate readings.
•For information on Rosemount nuclear-qualified products, contact your
local Emerson Sales Representative.
Individuals who handle products exposed to a hazardous substance can
avoid injury if they are informed of and understand the hazard.
•If the product being returned was exposed to a hazardous substance as
defined by Occupational Safety and Health Administration (OSHA), a
copy of the required Safety Data Sheet (SDS) for each hazardous
substance identified must be included with the returned level switch.
1.2 Applications
A Rosemount™ 2501 Solids Level Switch is used for monitoring the level of
bulk materials in all types of containers and silos.
The level switch can be equipped for process overpressure (1) and low
pressure, and also for very high or low process temperatures.
The level switch can be used with different paddle shapes and sizes to
monitor fine and medium solids in bulk materials. See Table 4-1 for a guide
to the minimum density requirements.
Typical applications are:
•Building materials
—Lime, extruded polystyrene foam (XPS), molding sand, etc.
•Food and beverage
—Milk powder, flour, salt, etc.
•Plastics
—Plastic granulates, etc.
•Timber
•Chemicals
The level switch has a threaded, flanged, or Tri Clamp process connection for
mounting it onto a silo (or other vessel). You can mount it on a side wall of
the silo, so that it is level with the filling limit to be monitored. Alternatively,
(1) Overpressure (or blast overpressure) is the pressure caused by a shock wave over and
above normal atmospheric pressure.
October 2019 Quick Start Guide
Quick Start Guide 5

if it has an extended length, mount it vertically on top of a silo to monitor the
maximum filling limit.
The length of the paddle can be up to 158 in. (4 m) with an extension tube or
up to 394 in. (10 m) with an extension rope.
The use of a sliding sleeve is recommended so that the switching point can
be changed easily during the live operation of the level switch.

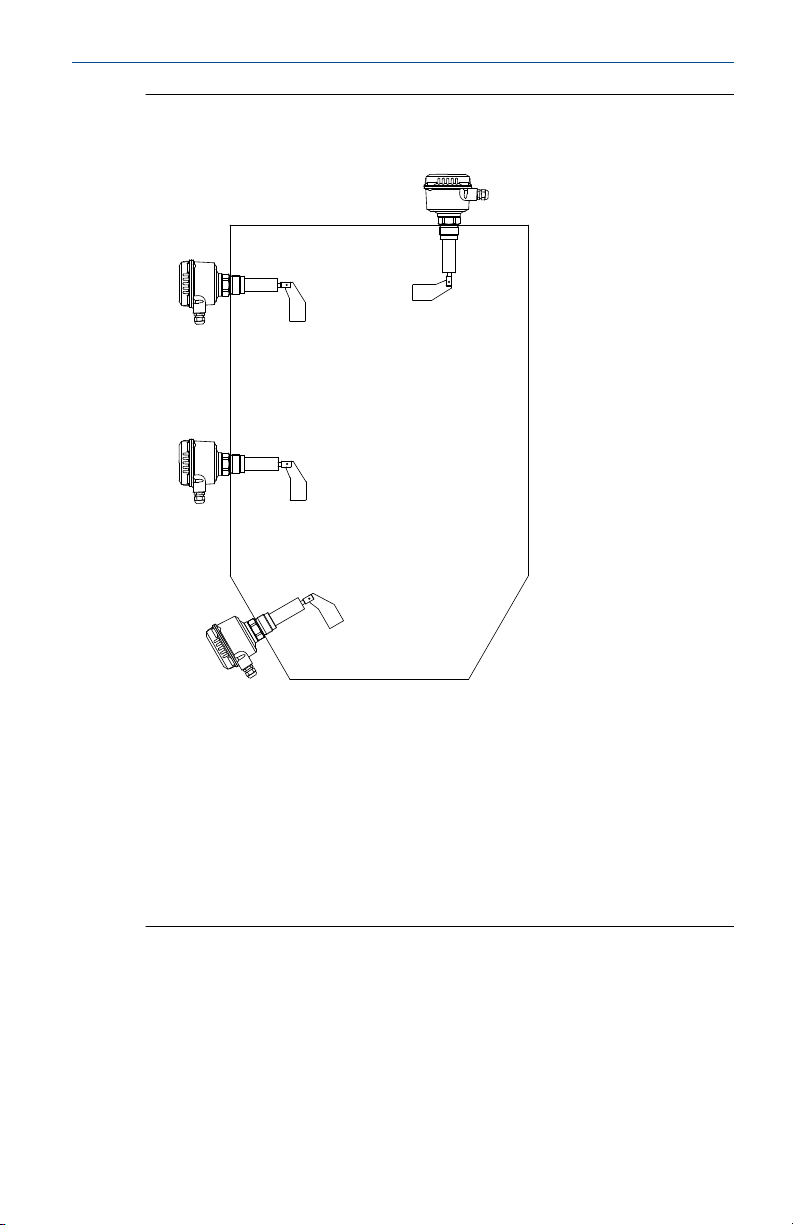

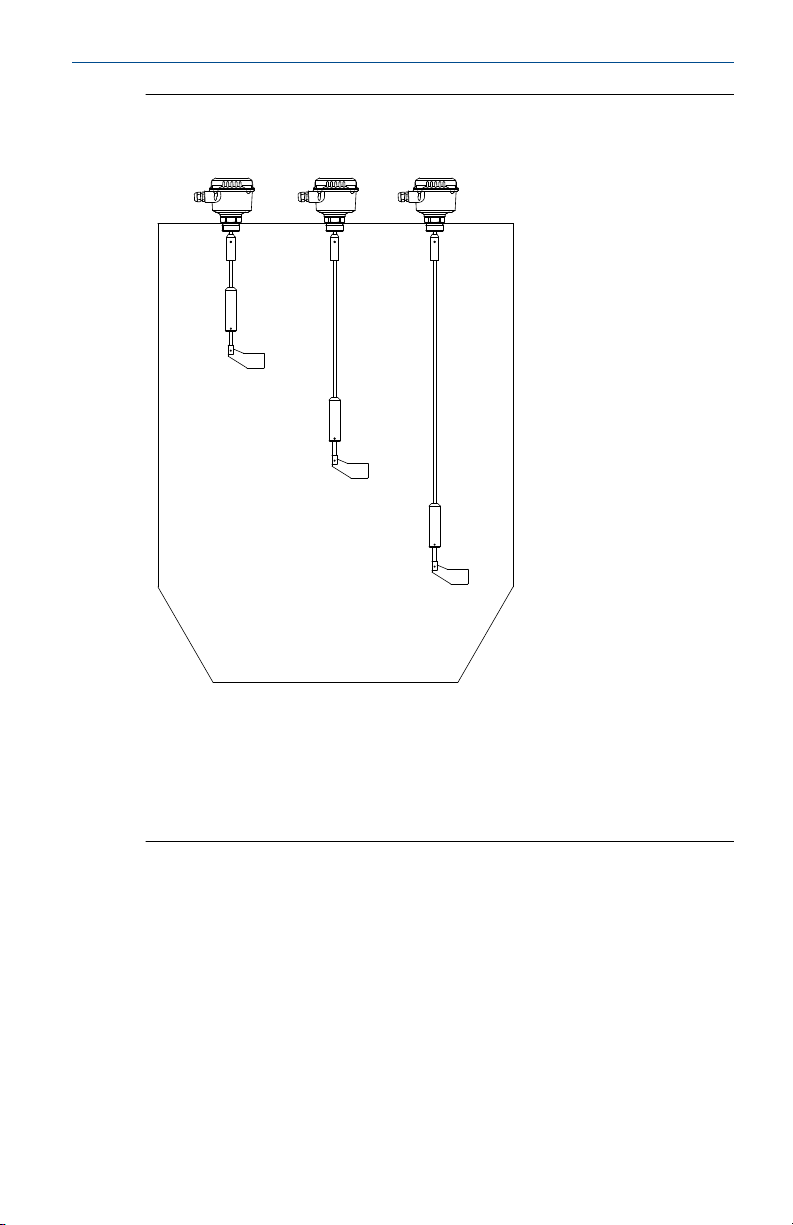

Figure 1-1: Typical Installation Examples
A B C
D
E
F
G
A. Rosemount 2501R or 2501S with the rope-extended fork length
B. Rosemount 2501M with the tube extension and optional sliding sleeve
C. Rosemount 2501L with the pendulum shaft
D. Rosemount 2501L with the boot-shaped vane paddle
E. Rosemount 2501J
F. Rosemount 2501K
G. Optional sliding sleeve
Quick Start Guide October 2019
6 Quick Start Guide

1.3 Measurement principles
Using a synchronous motor, the paddle (measuring vane) is driven to rotate
360 degrees.
When the vane of the paddle is not covered by a solids medium, a spring
pulls the motor and it switches a lug to the left position (Figure 1-2, top
illustration). The signal output indicates an 'uncovered' state and the motor
rotates the paddle.
When a solids medium covers the vane of the paddle, and causes the
rotation to stop, the lug is switched to the right position (Figure 1-2, bottom
illustration). The signal output indicates a 'covered' state due to a rising level
of material, and the motor is stopped until the vane becomes uncovered.

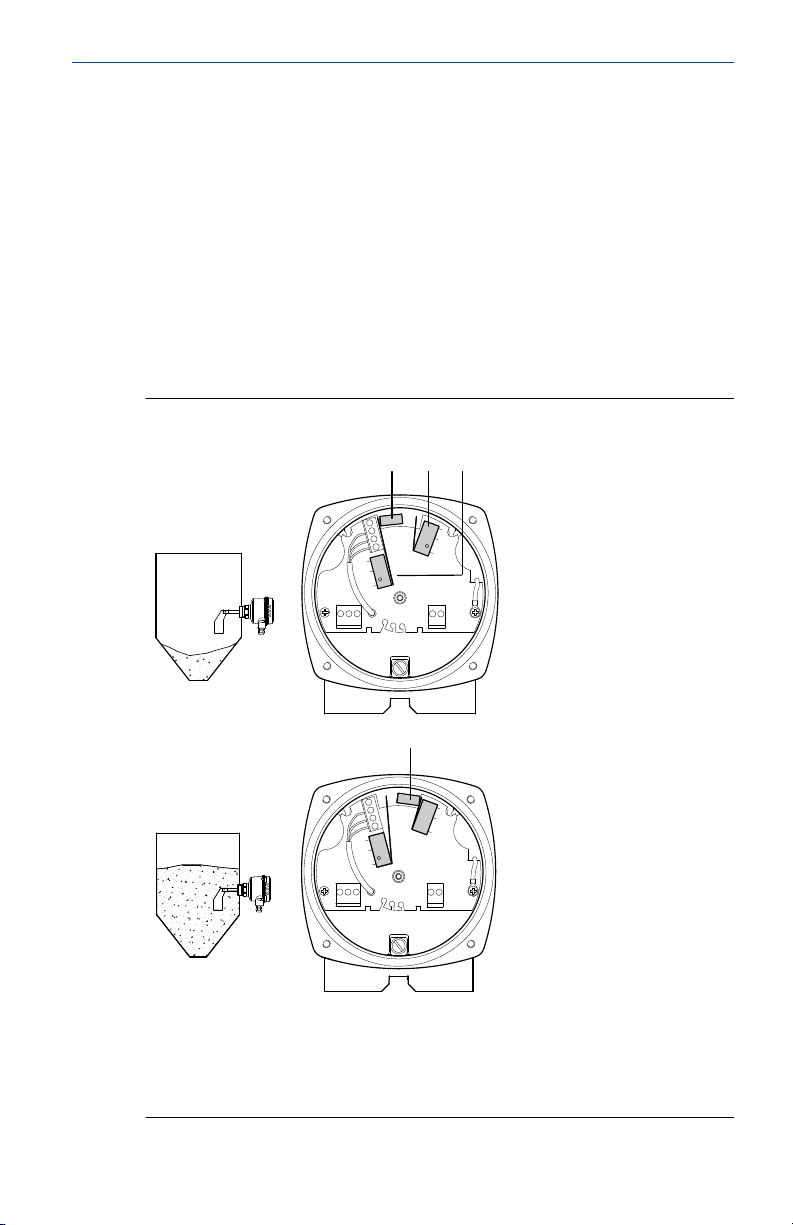

Figure 1-2: Switching Lug Function
B
A C D
A. Switching lug in left position ('uncovered' state)
B. Switching lug in right position ('covered' state)
C. Switch for stopping the motor
D. Switch for signal output
October 2019 Quick Start Guide
Quick Start Guide 7

The electrical outputs vary depending on the power supply selected when
the Rosemount 2501 was ordered. See the Rosemount 2501 Product Data
Sheet for the Power Supply option codes, and Electronics for an overview of
the outputs.
1.4 Functions
1.4.1 Selection guide

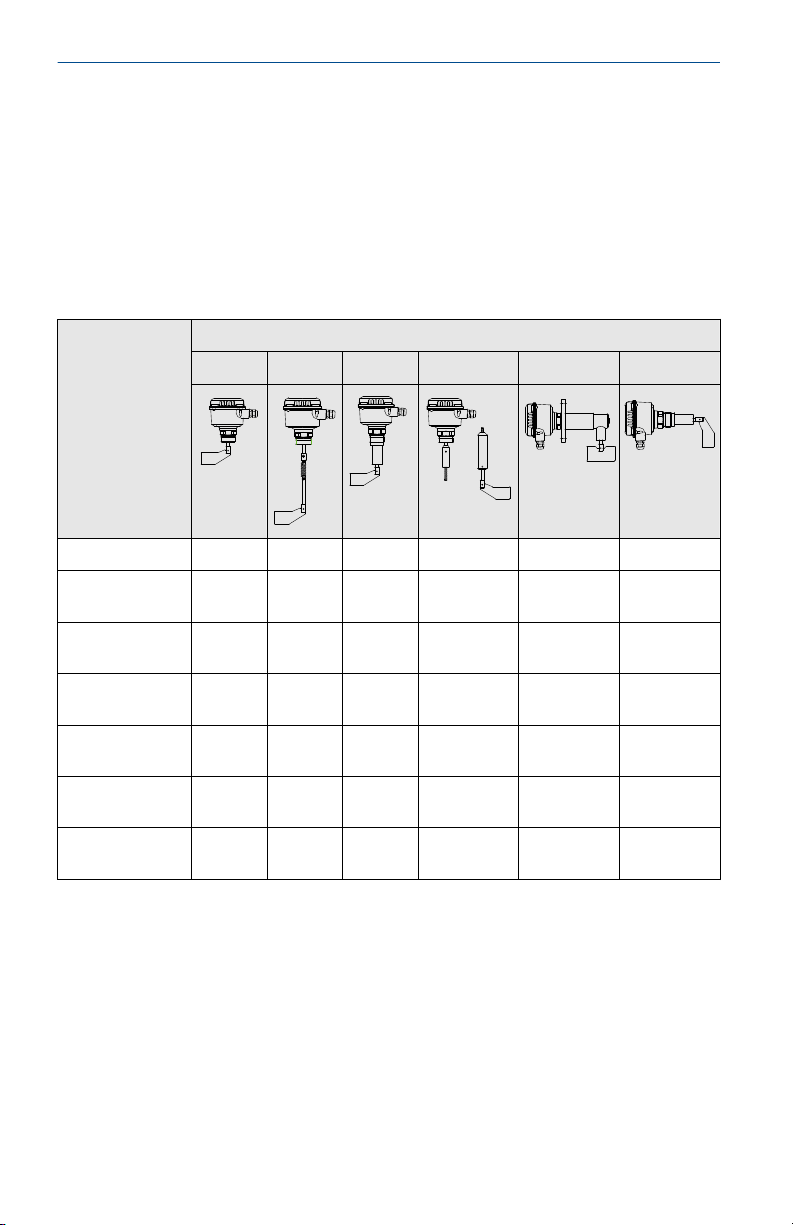

Table 1-1: Rosemount 2501 Selection Guide
Type of
installation
Model option codes
2501L 2501M 2501R 2501S 2501K 2501J
Full silo detection * *(1) * * * *
On-demand
detection
* *(1) * *
Empty silo
detection
* *(1) * *
Vertical
mounting
* * * *(1) *
Angled mounting
(top)
* *(2) *
Horizontal
mounting
* * *
Angled mounting
(bottom)
* *
(1) Consider the maximum permitted mechanical traction force.
(2) Available only with the "bearing at tube end" option.
Quick Start Guide October 2019
8 Quick Start Guide

1.4.2 Shaft sealing and metal material
Table 1-2: Shaft Sealing and Metal Material
Application Sealing material(1) Metal Bearing
NBR FPM PTFE ALU(2) SST 304
(1.4301)
(3)
SST
Animal feed press * * *
Synthetic granules,
powders
* *
Salt * * *
Dust filter
(for up to 392 °F)
* *
Dust filter
(for up to 302 °F)
* *
Bitumen * *
Cement * *
Wood chip dryer * *
Pressure conveying
vessel, 8 bar
* *
Sugar * *
Flour * *
Carbon black * *
(1) Selection varies, depending on process temperature and pressure:
NBR: Maximums are 80 °C and 0.8 bar.
FPM: Maximums are 150 °C and 0.8 bar.
PTFE: Maximums are 250 °C and 0.8 bar, 80/150/250 °C and 5/10 bar.
(2) Aluminum.
(3) 316L (1.4404) stainless steel is recommended in particular cases.
October 2019 Quick Start Guide
Quick Start Guide 9

1.4.3 Electronics
Table 1-3: Electronics
Power supply SPDT(1) DPDT(2) FSH/
FSL(3)
Output
delay(4)
Fail safe
alarm
Ac
version
24 or 48 Vac or
115 or 230 Vac
* - - - -
Dc
version
24 Vdc * - - - -
Universal
voltage
24 Vdc /
22 .. 230 Vac
- * * * option
(1) Single-Pole-Double-Throw contacts.
(2) Double-Pole-Double-Throw contacts.
(3) Selectable Fail Safe High or Fail Safe Low alarm output. See Wiring the universal
voltage version and Jumper Settings for Fail Safe High or Low.
(4) Adjustable time delay for the switched outputs.
Switched signal output
The ac-voltage or dc-voltage versions of the level switch output a 'covered
paddle' or 'uncovered paddle' status signal through SPDT relay contacts.
See Wiring the ac and dc voltage versions for details.
The universal-voltage version of the level switch outputs a 'covered paddle'
or 'uncovered paddle' status signal through DPDT relay contacts.
See Wiring the universal voltage version for details.
When using the universal-voltage version of the level switch, there is an
adjustable delay for the switched signal output. Setting a delay helps to
prevent false switching of the output when there is movement of the bulk
material in a silo (or other vessel). See Figure 4-1 for details.
Fail safe alarm
The fail-safe alarm option makes it possible for the level switch to indicate a
fault using the alarm relay.
The following faults are indicated:
•Motor failure
•Gear failure
•Electronics failure (for motor power supply)
•Supply voltage failure
•Terminal wiring defect
Quick Start Guide October 2019
10 Quick Start Guide

2 Mechanical installation
2.1 Mounting considerations
Before mounting the level switch on a silo (or other vessel), review the safety
and pre-mounting sections.
2.1.1 Safety
General safety
1. Installation of this equipment shall be carried out by suitably trained
personnel, in accordance with the applicable code of practice.
2. If equipment is likely to come into contact with aggressive
substances, it is the user’s responsibility to take suitable precautions
that prevent it from being adversely affected, thus ensuring the type
of protection is not compromised.
a. Aggressive substances: e.g. acidic liquids or gases that may
attack metals or solvents that may affect polymeric materials.
b. Suitable precautions: e.g. regular checks as part of routine
inspections or establishing from a material's data sheet that it
is resistant to specific chemicals.
3. It is the responsibility of the installer to:
a. Ensure the mechnical force exerted on the paddle by the bulk
solids does not exceed the maximum permitted for that
paddle. Refer to the technical specifications in the
Rosemount 2501 Product Data Sheet for further information.
b. Take protective measures, such as fitting an angled shield
(reverse V shape) to the silo or selecting an extension tube
option, when there are high mechanical forces.
c. Ensure that the process connection is tightened by the
correct amount of torque and sealed to prevent process
leaks.
4. Technical data
a. The Rosemount 2501 Product Data Sheet has all the technical
specifications. See Emerson.com/Rosemount for other
language versions.
October 2019 Quick Start Guide
Quick Start Guide 11

2.1.2 Mechanical load
See Figure 2-1 for the maximum loads supported by the level switch.
Figure 2-1: Maximum Permitted Mechanical Load
Rosemount 2501L
Maximum 50 Nm (at 40 °C)
Rosemount 2501M and 2501J
Maximum 500 Nm (at 40 °C)
Maximum 180 Nm (at 40 °C)
Stainless steel:
Aluminum:
Rosemount 2501M and 2501K
Maximum 600 Nm (at 40 °C)
Maximum 250 Nm (at 40 °C)
Stainless steel:
Aluminum:
Rosemount 2501S
Contact Emerson for the maximum load of a Rosemount 2501S.
Quick Start Guide October 2019
12 Quick Start Guide

Note
Take protective measures, such as fitting an angled shield (reverse-V shape)
to the silo or selecting an extension tube option, when there are high
mechanical forces.
2.1.3 Mounting location
Take time to assess a suitable mounting location. Avoid mounting the level
switch near the filling point, internal structures, and walls of a silo (or other
vessel). When mounting the extended length versions of the level switch, it
is especially important to consider internal structures. Forcing the level
switch into a small or congested space risks damage to the sensor and could
impair the protection it provides.
2.1.4 Sliding sleeve
Tighten both M8 screws with a torque of 20 Nm to establish a seal and
maintain the process pressure. See Figure 2-2.
Figure 2-2: Sliding Sleeve, M8 Screws
A
A. Two off M8 screws
2.1.5 Flange mounting
A suitable gasket must be fitted to provide a seal when the flanges are
tightened.
2.1.6 Hygienic applications
The food-grade materials are suitable for use under normal and predictable
hygienic applications (according to directive 1935/2004 Art.3). There are
currently no hygienic certifications for the Rosemount 2501.
2.1.7 Rotatable housing
The housing of the level switch can be rotated against the threaded
connection after mounting.
October 2019 Quick Start Guide
Quick Start Guide 13

Figure 2-3: Housing Rotation
A
B
A. Threaded process connection
B. Rotatable housing
2.1.8 Orientation of cable glands
When the level switch is mounted horizontally, ensure the cable glands are
pointed downwards to avoid water getting inside the housing. Unused
conduit entries must be completely sealed with a suitably rated stopping
(blanking) plug.
2.1.9 Seals
Apply PTFE tape to the threaded process connection or use a flat gasket. This
is required for a silo (or other vessel) to maintain the process pressure.
2.1.10 Future maintenance
It is advisable to:
•Grease the screws of the housing cover (lid) when a corrosive
atmosphere is present.
•Use PTFE tape to avoid seizing of aluminum process connection thread
with the socket.
This will help prevent difficulties when the cover needs to be removed
during future maintenance tasks.
Quick Start Guide October 2019
14 Quick Start Guide

2.2 Mounting the level switch
Figure 2-4 shows how the level switch should be mounted.
Figure 2-4: Rosemount 2501L Mounting Examples
A
B
C
D
E
F
F
A. Angled-mounting, at top of silo, for full-silo (overfill) detection.
Maximum L=23.62 in. (600 mm)
B. Vertical-mounting for full-silo (overfill) detection, with pendulum shaft or
rope-extension. Check the maximum load of the level switch
C. Horizontal-mounting, near top of silo, for full-silo (overfill) detection.
Maximum L=11.8 in. (300 mm)
D. Horizontal-mounting, near bottom of silo, for control (on demand)
detection. Maximum L=5.9 in. (150 mm)
E. Angled-mounting, at bottom of silo, for empty-silo (filling demand)
detection. Maximum L=11.8 in. (300 mm)
F. A protective shield is recommended depending on the load
The boot-shaped vane (paddle) is recommended for horizontal mountings
because it aligns to the movement of the solids material. See Mechanical
load and Sensitivity to check that the paddle meets the application limits.
October 2019 Quick Start Guide
Quick Start Guide 15

Figure 2-5: Rosemount 2501M Mounting Examples
A C
B
D
A. Vertical-mounting for full-silo (overfill) detection with optional sliding
sleeve. Maximum L=118 in. (3000 mm)
B. The maximum angle of deviation from the normal vertical position is 10°
when using the "bearing at tube end" option
C. Vertical-mounting for full-silo (overfill) detection, with optional sliding
sleeve. Maximum L=158 in. (4000 mm)
D. Supports from the side of the silo are recommended
Quick Start Guide October 2019
16 Quick Start Guide

Figure 2-6: Rosemount 2501R and 2501S Mounting Examples
A B C
A. Full-silo (overfill) detection, with a rope extension
B. Demand detection, with a rope extension
C. Empty-silo (filling demand), detection with a rope extension
Maximum L=394 in. (10000 mm). See Mechanical load and Sensitivity to
check the limits of the rope-extended vane (paddle).
October 2019 Quick Start Guide
Quick Start Guide 17

Figure 2-7: Rosemount 2501K Mounting Examples
A
B
C
A. Horizontal mounting for full-silo (overfill) detection
B. Horizontal mounting for demand detection
C. Horizontal mounting for empty-silo detection
A protective angle is recommended depending on the load.
Quick Start Guide October 2019
18 Quick Start Guide

Figure 2-8: Rosemount 2501J Mounting Examples
A
B
C
D
A. Vertical or angled mounting, at the top of silo, for full-silo (overfill)
detection
B. Horizontal mounting, at the top of silo, for full-silo (overfill) detection
C. Horizontal mounting for demand detection
D. Angled mounting, at the bottom of silo, for empty-silo detection
E. A protective angle is recommended depending on the load
The boot-shaped vane (paddle) is recommended for horizontal mountings
because it aligns to the movement of the solids material. See Mechanical
load and Sensitivity to check that the paddle meets the application limits.
October 2019 Quick Start Guide
Quick Start Guide 19

3 Electrical installation
3.1 Safety messages
WARNING
Failure to follow safe installation and servicing guidelines could result in
death or serious injury.
•Ensure the level switch is installed by qualified personnel and in
accordance with applicable code of practice.
•Use the level switch only as specified in this manual. Failure to do so may
impair the protection provided by the level switch.
Explosions could result in death or serious injury.
•The level switch must only be installed and operated in non-hazardous
(ordinary) locations.
Electrical shock could cause death or serious injury.
•Avoid contact with the leads and terminals. High voltage that may be
present on leads can cause electrical shock.
•Ensure the power to the level switch is off, and the lines to any other
external power source are disconnected or not powered while wiring the
level switch.
•Ensure the wiring is suitable for the electrical current and the insulation is
suitable for the voltage, temperature, and environment.
3.2 Wiring considerations
3.2.1 Handling
In cases of improper handling or handling malpractice, the electrical safety
of the device cannot be guaranteed.
3.2.2 Installation regulations
Local regulations or VDE 0100 (Regulations of German Electrotechnical
Engineers) must be observed.
When using 24 V supply voltage, an approved power supply with reinforced
insulation to mains is required.
3.2.3 Fuse
Use a fuse as stated in the connection diagrams.
For details, see Wiring the level switch.
Quick Start Guide October 2019
20 Quick Start Guide
