emmeti Zona User manual

COMFORTABLE HOMES
THE SMART WAY
Operating Instructions

2ZONA Operating Instructions
Contents
Getting to Know your ZONA Thermostat 3
Turning your ZONA ON/OFF 3
Setting the Time and Date 3
Programming Modes 3
To Select the Programming Mode 4
Programming Logic 4
To Enter the Programme Parameters 4
Manual Override 5
Locking and Unlocking your ZONA 5
Advanced Settings List 5
Advanced Settings 5
Connecting your ZONA to the ZONA App 6
Creating an Account by Email or Phone 6
Once you have Created an Account 7
Creating a Family on the ZONA App 7
Connecting your ZONA Thermostat(s) to the App 7 & 8
Entering the Programme Parameters on the App 9
Locking/Unlocking the Thermostat via the App 10
Turning the Thermostat OFF/ON via the App 10
Advanced Modes 11
Wiring Diagram 12

ZONA Operating Instructions 3

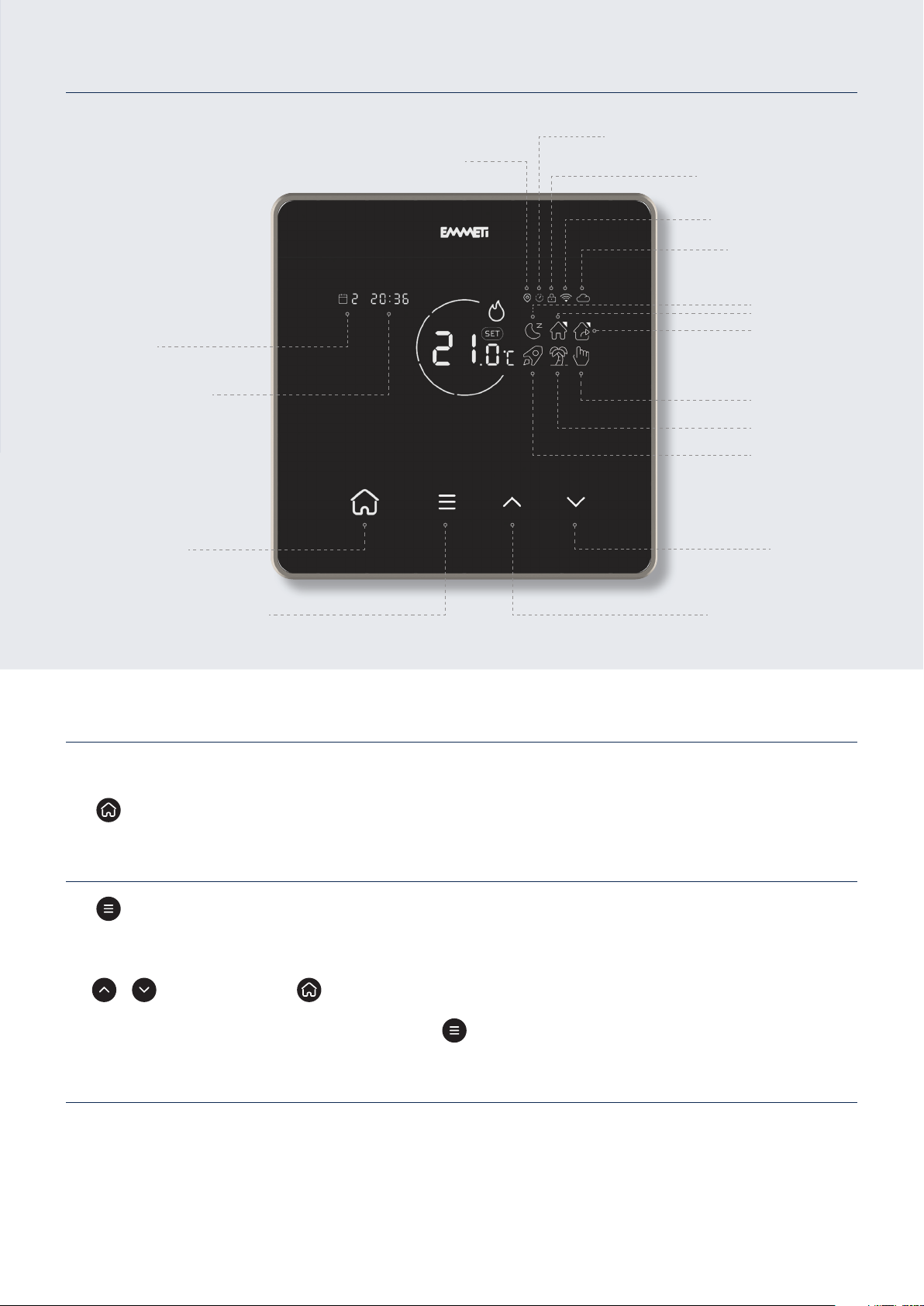

Getting to know your ZONA Thermostat
Turning your ZONA ON/OFF
While OFF, your ZONA will not perform any of its functions.
Hold for 3 seconds to turn the ZONA on or off.
PLEASE NOTE: Low Temperature Protection (Frost Protection)
will also be inactive.
Setting the Time and Date
Hold for 3 seconds.
The format for entering the date is YY/MM/DD.
Use & to change the Year, and to confirm and move to the Month.
Repeat these steps to set the Date, Day, and the Time, then press to finish setting and return to the main display.
Programming Modes
7 Day (07) – This mode allows you to programme all 7 days of the week individually.
5 Day & 2 Day (52) – This mode allows you to programme Monday to Friday, and Saturday to Sunday individually.
24hr (24) – This mode allows you to create a single programme which will repeat on a daily basis.
Geo Location
Optimum
WiFi
Lock
Cloud
Connected
Day of the
week 1-7
Boost Mode
Holiday Mode
Manual Mode
Away Mode
Home Mode
Sleep Mode
Current time
Down
Up
Menu
Home

4ZONA Operating Instructions
To Select the Programming Mode
Hold & together for 3 seconds to enter the programming function.
Using the & , select the required Programming Mode.
Use to confirm your selection.

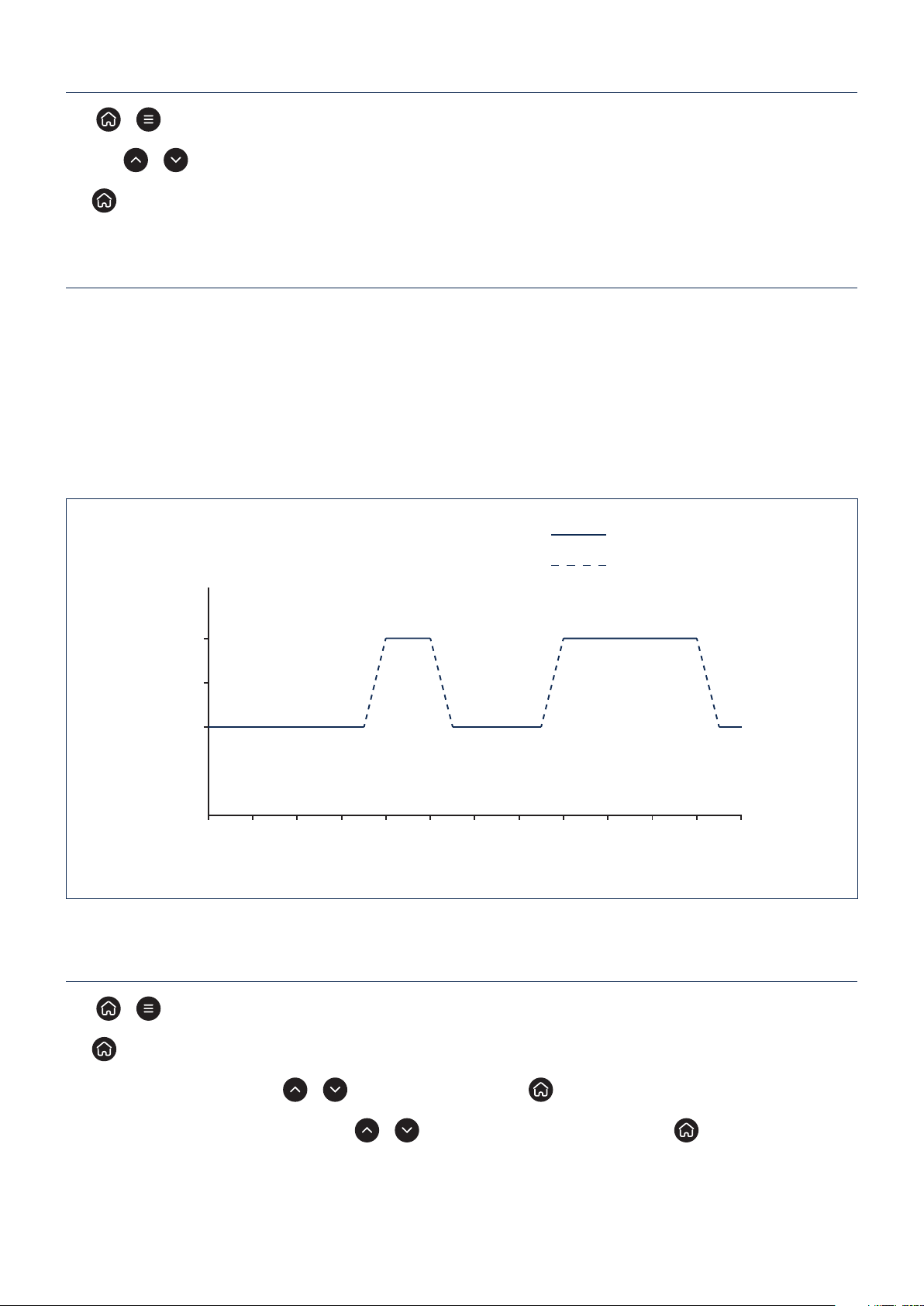

Programming Logic
When programming this thermostat you will be asked to enter a time and then the temperature you require at that time. You can set 4 time/
temperature switches through a single day.
E.g. 07:00 & 22°C > 10:00 & 18°C > 15:00 & 22°C > 22:00 & 18°C
With these temperature settings, the heating will be increased to 22°C by 07:00 and maintain that temperature until 10:00 when the
temperature requirement will switch to 18°C. This new temperature will be maintained until 22°C is required at 15:00, 22°C will be maintained
until 22:00 when only 18°C is required. This last time setting will maintain the specified temperature until 07:00 the next morning*.
*Description simplified for clarity. Building, heat up & cool down rates are not explained here, and will vary according to various external parameters.
To Enter the Programme Parameters
Hold & together for 3 seconds to enter the programming function.
Use to confirm your selection.
The time display will be flashing – use & to change the hours and press to confirm. Repeat for the minutes.
The temperature display will now be flashing – use & to select the desired temperature and press to confirm.
Repeat these steps for the remainder of that day, then as necessary depending on your programming mode after that.
22°C
20°C
18°C
00.00 02.00 04.00 06.00 08.00 10.00
TIME
TEMP
12.00 14.00 16.00 18.00 20.00 22.00 24.00
Maintained Temperature
Heat up/cool down varies dependent
on building fabric and response times
Programming Logic

ZONA Operating Instructions 5
Manual Override
Manual Override allows you to set a temperature (higher or lower) than the current room temperature by interrupting the current
programme. This new temperature will be maintained until the Manual Override is turned off.
From the main display, briefly press either or , the Manual symbol will appear and the temperature can then be changed to
the desired temperature.
Press to confirm your selection.
To cancel Manual Override press . The Manual Override will be removed, press to return to the main display.
The ZONA will resume the previously set programme.
Locking and Unlocking your ZONA
Locking the ZONA disables all the functions of the buttons and shows the small padlock symbol in the top right of the display.
Hold & together for 3 seconds. The padlock symbol will appear, indicating that the ZONA has been locked.
Repeat these steps to unlock the ZONA.
Advanced Settings List
1. Boost Setting - Hours and Target Temperature 5-35°C
2. Holiday Setting - Days and Target Temperature 5-35°C
3. Sensor Type - 00 Inner Sensor, 01 External Sensor,
02 Inner & External Sensor, Default 00
4. High Temperature Protection - 35-90°C, Default 90°C
5. Low Temperature Protection (Frost Protection) -
0-10°C, Default 5°C
6. Swing - 1-9°C, Default 1°C
7. Temperature Calibration ADJ - ±9°C, Default 0°C
8. Highest Target Temperature - 35-90°C, Default 35°C
9. Lowest Target Temperature - 0-30°C, Default 5°C
10. Home Mode - Temperature Setting 5-25°C, Default 22°C
11. Away Mode - Temperature Setting 5-25°C, Default 15°C
12. Sleep Mode - Temperature Setting 5-25°C, Default 18°C
13. Restart Thermostat / Reset Thermostat -
a. Screen shows ‘ ’
b. Press or and the screen will change to ‘ ’
c. Wait 10 seconds or press button to confirm setting
Advanced Settings
From here you can access the Advanced Settings for your ZONA. These settings will allow you to personalise the way your ZONA works.
To access the Advanced Setting Menu:
Hold & together for 3 seconds.
Use to switch between the Advanced Settings. Use & to make changes to the chosen Advanced Setting.
Once you have finished altering the Advanced Settings, press to confirm changes and return to the main display.

6ZONA Operating Instructions
Connecting your ZONA to the ZONA App
Creating an Account by Email, or Phone
If you are setting up the App for
the first time you will need to
register your details.
After registering you can simply
log in with these details, should
you log out from the App.
Accept the Privacy
Policy to proceed.
Enter a valid email address
as confirmation is required.
A unique code will be sent
to your email address
which you will then enter
on the following screen.
You can also register by phone
by selecting ‘Register by Phone’
in top right corner of the App.
Enter the six digit
verification code.
You will then be prompted
for a password.
Once password has been
chosen press ‘Completed’.
Search your App Store for EMMETI ZONA and download

ZONA Operating Instructions 7
From the main screen you can view all your
added thermostats together or by room.
Click ‘Create family’ to set up
your Smart Life.
We recommend adding your ZONA
manually to begin with.
Add family details by selecting
‘Family Name’ and ‘Location’.
To add rooms, click the tick icon.
NOTE: Hold down on your ZONA for
3 seconds to enter ‘WiFi Compatibility’
mode. The WiFi indicator on the
thermostat will begin to blink rapidly.
Once family is complete
press ‘Done’.
Once you have Created an Account
Creating a Family on the ZONA App
Connecting your ZONA Thermostat(s) to the App

8ZONA Operating Instructions
Once you have Created an Account (continued)
The App will pick up your home network,
or you can change it if required.
It may take a few minutes to connect to your ZONA and complete the pairing.
When the thermostat and App have paired, the Cloud symbol
will appear on the display of the thermostat.
Connecting your ZONA Thermostat(s) to the App (continued)
Once connected, identify your ZONA,
or use one of the labels provided.
From here you can control the ZONA you have
just added, or return to the Welcome menu.
To add further ZONA thermostat(s) simply
click the ‘+’ and repeat the previous steps.

ZONA Operating Instructions 9
Entering the Programme Parameters on the App
Click the settings icon to enter settings for
the desired thermostat.
To alter the default setting; click the desired
time period, i.e. ‘Get Up’. You can now set
the start time for the heating, i.e. 7am
click ‘Done’ to confirm.
Click ‘Temperature’ to set the required
temperature, i.e. 22°C, click ‘Done’ to confirm.
To confirm time and temperature changes,
click ‘Done’ at the bottom of the screen.
Click ‘Weekly Programme Setting’.
Repeat as required.
From here you can change the
time and temperature.

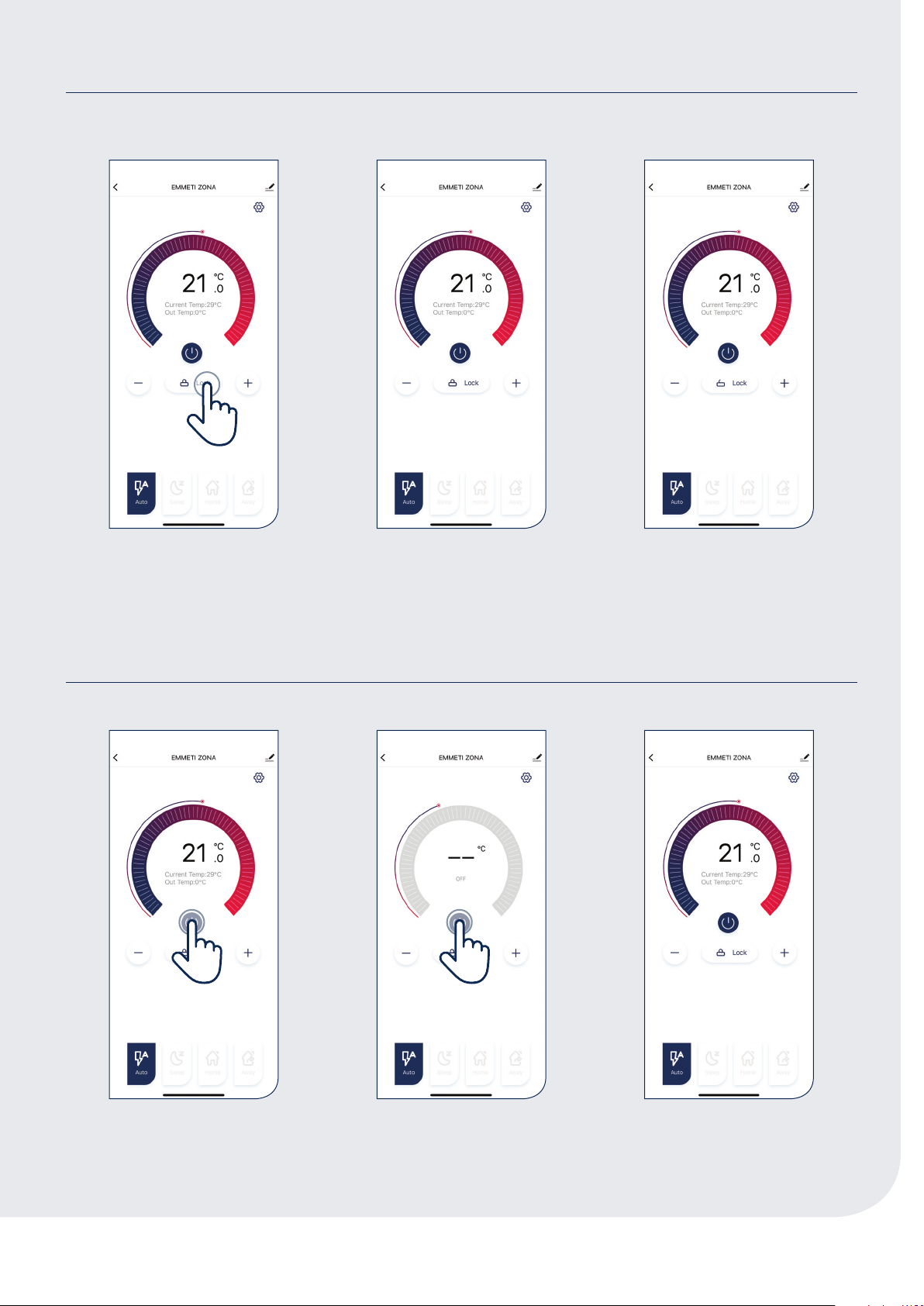

10 ZONA Operating Instructions
Click the power button in the centre
of the screen for the thermostat you
wish to turn off.
Click the thermostat you wish to
lock or unlock. Click the ‘Lock’ button.
The temperature display will show as dashed
lines and the word ‘OFF’ will be displayed.
The thermostat will now be switched off.
The lock symbol will now appear
closed. A lock symbol will have also
appeared on the thermostat. The App
and thermostat are now locked.
To turn the thermostat back on repeat
the procedure. NOTE: Low Temperature
Protection (Frost protection) will be
inactive while the thermostat is off.
To unlock simply reverse the procedure.
Locking/Unlocking the Thermostat via the App
Turning the Thermostat OFF/ON via the App

ZONA Operating Instructions 11

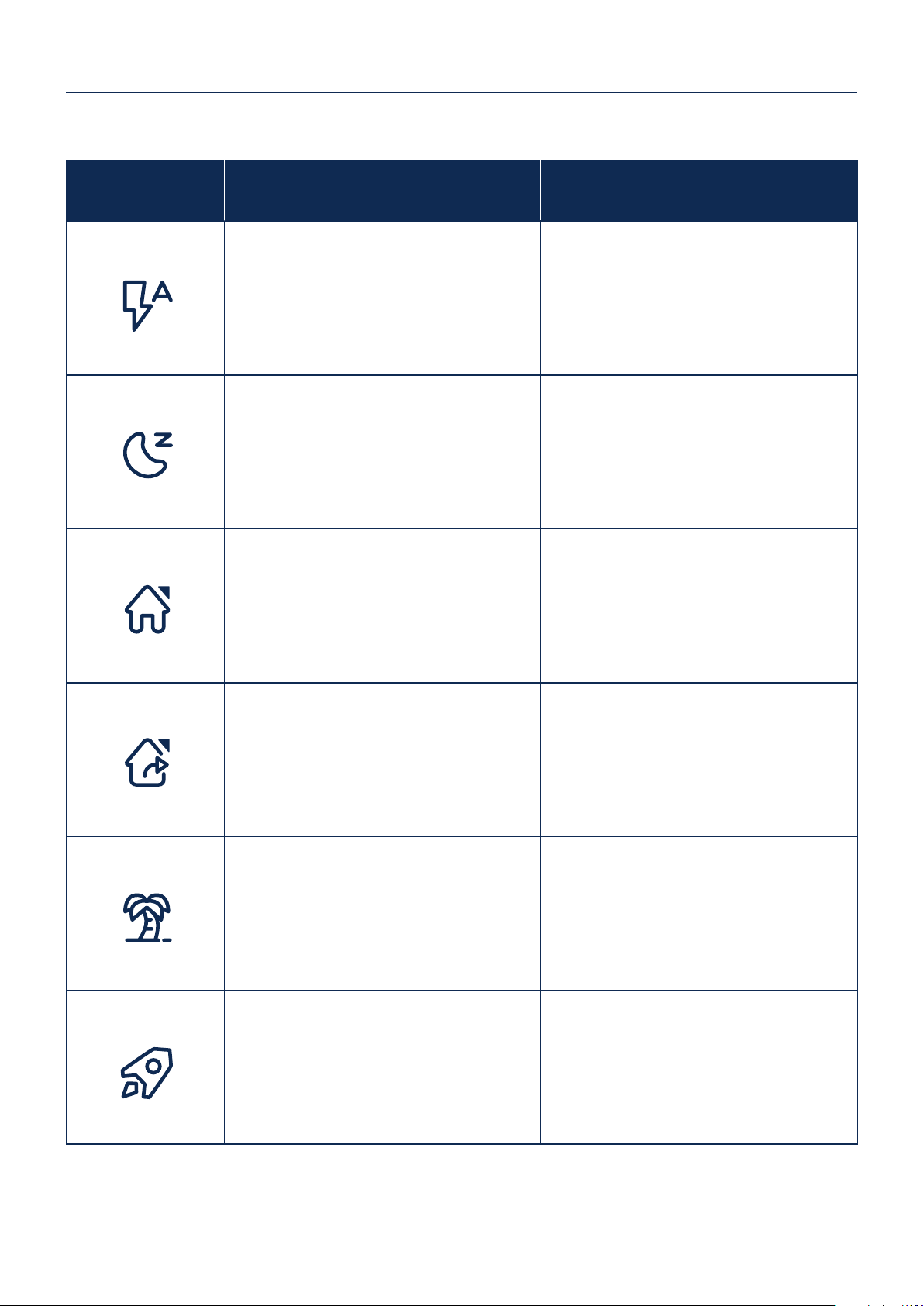

Advanced Modes
Your ZONA thermostat can be set on 6 different modes as shown below:
MODE DESCRIPTION RANGE
AUTO
If you have entered any of the other modes AUTO
will return you to your current programme. -
SLEEP
The standard night set back temperature. 5°C - 25°C
HOME
Used as an override to the current setting
i.e. If you are home during the day when your
programme may be at a low temperature.
5°C - 25°C
AWAY
This is a setback temperature which your ZONA
will maintain if you are away for a short time. 5°C - 25°C
HOLIDAY
Set a specific temperature for the heating while
you are away for a prolonged time. Up to 99 days
BOOST
Override the temperature on the thermostat for
a specific amount of time. Up to 24 hours

ZONA Operating Instructions 12

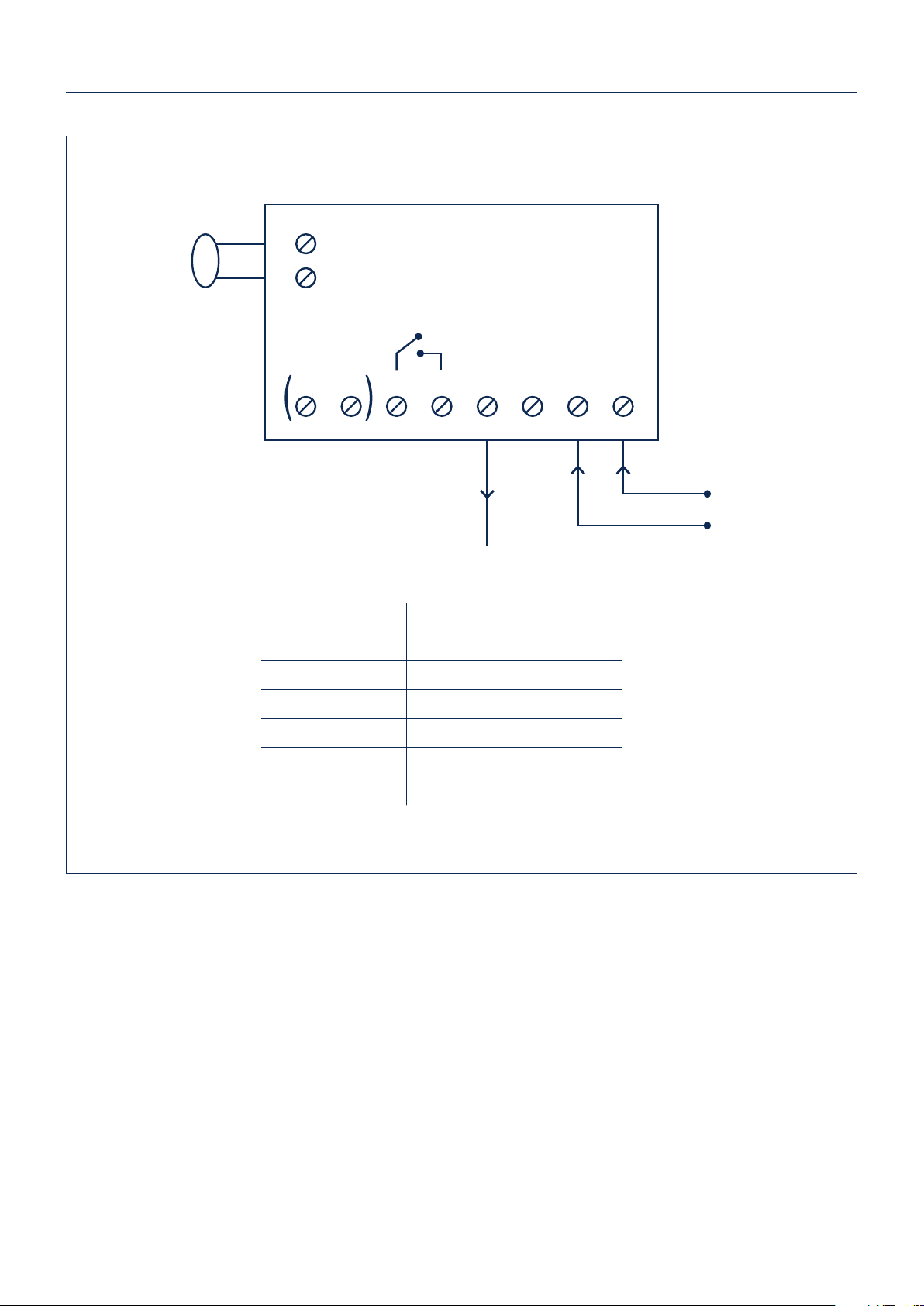

Wiring Diagram
1
9
10
2345678
NO NC
(5A)
230v
SWL OUTPUT
Remote
Sensor
(optional)
(Volt Free)
230v
N
L
Terminal 1 Spare - Do Not Use
Terminal 2 Spare - Do Not Use
Terminal 3 Volt free switch
Terminal 4 Volt free switch
Terminal 5 Normally open direct contact
Terminal 6 Normally closed direct contact
Terminal 7 & 8 Live & Neutral

Engineered Water Solutions
6 Tannery Yard
Witney Street
Burford
Oxfordshire
OX18 4DQ
T: [phone]
F: [phone]
E: [email protected].uk
www.emmeti.co.uk
01.07.19
