PREMIUM UNIVERSAL FIREBOX
FOR ALL VENT-FREE LOG SETS
SEE-THROUGH
FIREBOX
MODELS:
VFP36SB2E(L,F)-4
PENINSULA
FIREBOX
MODELS:
VFP36PB2E(L,F)-4
WARNING
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death or
property damage.
— Do not store or use gasoline or other
ammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch;
do not use any phone in your building.
• Leave the building immediately.
• Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
• If you cannot reach your gas
supplier, call the re department.
— Installation and service must be
performed by a qualied installer,
service agency or the gas supplier.
D o not attempt to modify or alter the construction of the
rebox or its components. Any modication or alteration of
construction may void the warranty of this rebox. Children
and adults should be alerted to the hazards of high surface
temperature and should stay away to avoid burns or clothing
ignition. Young children should be carefully supervised when
they are in the same room as the rebox.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
ANSI Z21.91 Ventless Fireplace Enclosures for use
with any ANSI Z21.11.2 Gas Fired Decorative Type
Unvented Room Heaters
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause injury or
property damage. Refer to this manual. For
assistance or additional information, consult
a qualied installer, service agency or the
gas supplier.
Carefully review the instructions supplied with the decorative
type unvented room heater for the minimum replace size
requirement.
Do not install a vent-free log set in this rebox, unless the
firebox meets the minimum dimensions required for the
installation.
For use only with a listed gas-red unvented decorative room
heater not to exceed 40,000 btu/h. DO NOT build a wood re.
GAS-FIRED
UL FILE NO.
MH30033
We suggest that our gas
hearth products be installed
and serviced by professionals
who are certied in the U.S.
by the National Fireplace
Institute
®
(NFI) as NFI Gas
Specialist.
INSTALLATION INSTRUCTIONS
AND OWNER'S MANUAL

39812-2-0620Page 2
Important Safety Information ..................................................................................................... 3
Introduction ................................................................................................................................. 3
Clearances ............................................................................................................................ 4 - 5
Firebox Installation Instructions ..............................................................................................6 - 9
Installing Hood ..................................................................................................................... 9 - 10
Gas Line Connection ................................................................................................................ 10
Wiring Instructions for Installing a Dual Switch / Receptacle ................................................... 11
LK2 Accent Light Accessory ..................................................................................................... 11
Optional Single Speed Blower Installation Instructions ..................................................... 12 - 14
Maintenance ............................................................................................................................. 14
Parts List .................................................................................................................................. 16

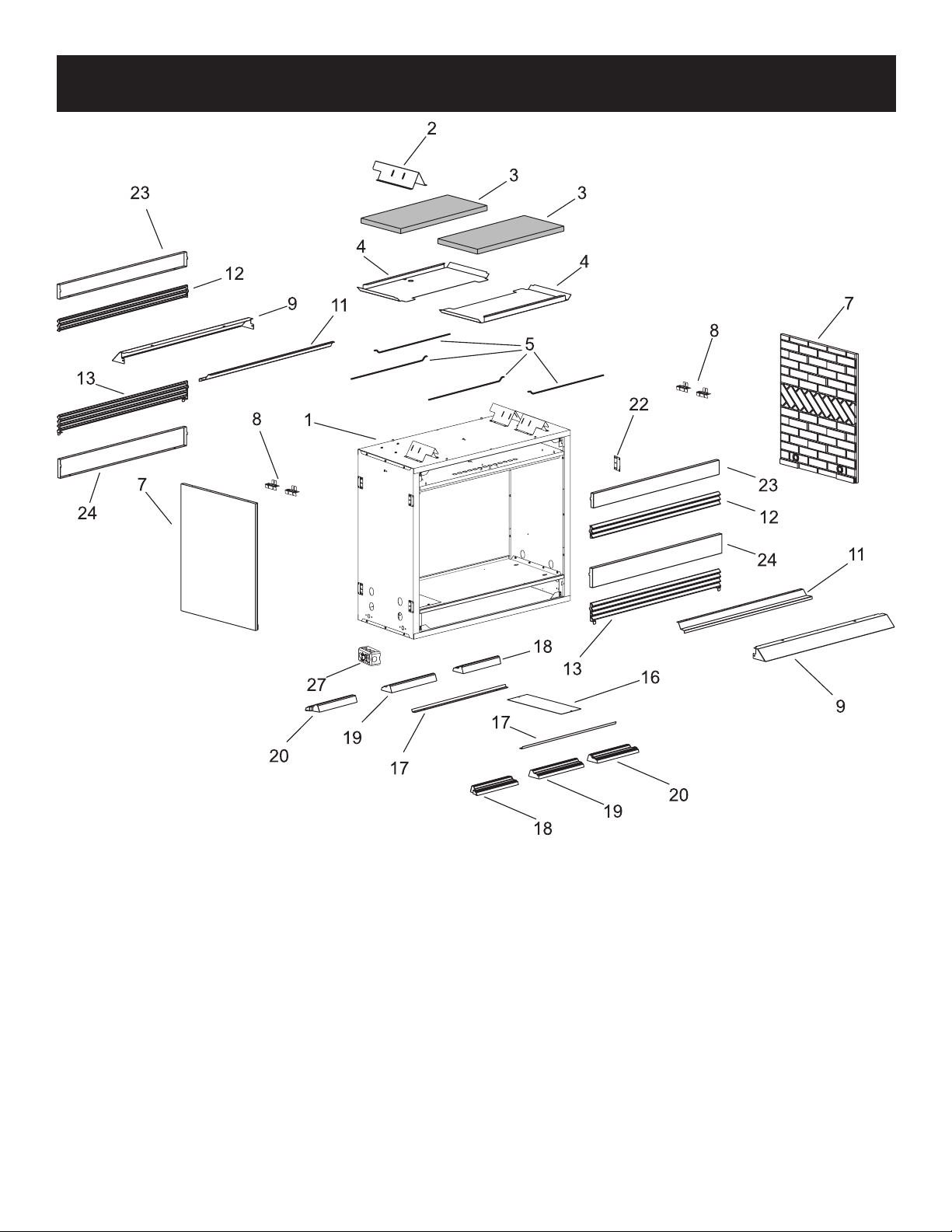

See-Through Firebox Parts View ............................................................................................. 17
Peninsula Firebox Parts View .................................................................................................. 18
Accessories ....................................................................................................................... 20 - 21
Master Parts Distributor List ...................................................................................................... 22
How To Order Repair Parts ....................................................................................................... 22
Appliance Service History ......................................................................................................... 23
Warranty .................................................................................................................................... 24
TABLE OF CONTENTS
SECTION PAGE

39812-2-0620 Page 3
The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 (latest edition) and to the National
electrical Code, ANSI/NFPA70 (latest edition).
NOTE: Installation and repair should be done by a quali-
ed service person. The appliance should be inspected
before use and at least annually by a qualied service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It is
imperative that control compartment, burners and circu-
lating air passageways of the appliance be kept clean.
Any safety screen or guard removed for servicing an
appliance must be replaced prior to operating the appli-
ance. Provide adequate combustion and ventilation air.
The ow of combustion and ventilation air MUST NOT
be obstructed.
Provide adequate clearance around air openings into
the combustion chamber and adequate accessibility
clearance for servicing and proper operation. NEVER
obstruct the front opening of the appliance.
This Empire Comfort Systems Inc. firebox and its
components have been tested and will operate safely
when installed in accordance with this installation
manual. Read all instructions before starting installation,
then follow these instructions carefully during
installation to maximize rebox benet and safety.
Report to your dealer any parts damaged in shipment.
The Empire Comfort Systems Inc. warranty will be
voided by, and Empire Comfort Systems Inc. disclaims
any responsibility for the following actions:
- Installation of any damaged rebox.
- Modication of the rebox or any of the components
parts thereof.
- Installation other than as instructed by Empire
Comfort Systems Inc.
- Installation and/or use of any component part
or accessory not approved by Empire Comfort
Systems Inc. in combination or assembly with
a Empire Comfort Systems Inc. firebox, not
withstanding any independent testing laboratory or
other third party approval of such component part
or accessory.
Any such action may create a possible re hazard.
Consult your local building codes.
Firebox Screen.
The rebox screen must be in place when the rebox
is operating.
Instructions to Installer
1. Installer must leave instruction manual with owner after
installation.
2. Installer must have owner ll out and mail warranty card
supplied with rebox.
3. Installer should show owner how to start and operate
log set that is installed into rebox.
Important
All correspondence should refer to complete Model Number,
Serial Number.
Notice: During initial ring of this rebox with a log set
installed, its paint will bake out, and smoke will occur. To
prevent triggering of smoke alarms, ventilate the room in
which the unit is installed.
Qualied Installing Agency
Installation and replacement of gas piping, gas utilization
equipment or accessories and repair and servicing of
equipment shall be performed only by a qualied agency.
The term "qualied agency" means any individual, rm,
corporation or company which either in person or through
a representative is engaged in and is responsible for (a)
the installation or replacement of gas piping or (b) the
connection, installation, repair or servicing of equipment,
who is experienced in such work, familiar with all precautions
required and has complied with all the requirements of the
authority having jurisdiction.
Commonwealth of Massachusetts: The installation must be
made by a licensed plumber or gas tter in the Commonwealth
of Massachusetts. The state of Massachusetts requires that a
exible appliance connector cannot exceed three feet in length.
Sellers of unvented propane or natural gas-fired
supplemental room heaters shall provide to each purchaser
a copy of 527 CMR 30 upon sale of the unit.
In the Commonwealth of Massachusetts, unvented
Propane and Natural Gas-red space heaters shall be
prohibited in bedrooms and bathrooms.
The installation must conform with local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54.*
*Available from the American National Standards Institute,
Inc., 11 West 42nd St., New York, N.Y. 10036.
IMPORTANT SAFETY INFORMATION
INTRODUCTION

39812-2-0620Page 4
CLEARANCES
Sidewall Clearances: The clearance from the inside of the rebox
to perpendicular combustible side wall should not be less than 1
3/4". See Figures 1a and 1b.
36”
MIN.
42”
MIN.
(CEILING TO
TOPOF
HOOD)
1 3/4”MIN.
PERPENDICULAR
COMBUSTIBLE
SIDEWALL
Figure 1a - See Through Firebox Clearances
36”
MIN.
42”
MIN.
(CEILING TO
TOPOF
HOOD)
1 3/4”MIN.
PERPENDICULAR
COMBUSTIBLE
SIDEWALL
Figure 1b - Peninsula Firebox Clearances
Combustible material clearance from front of rebox: 36"
minimum
Firebox Side and Back Clearances: The rebox outer casing
side(s) require a minimum 1/2" clearance to combustibles.
Top Framing and Finishing: Combustible framing may rest on
top of standoffs. Combustible nishing materials may extend to the
top standoff screws on the front edge of the top outer wrap. See
Figures 2a and 2b.
FIREBOX
COMBUSTIBLE
FINISHED WALL
OR MANTEL
2 X 4
HEADER
TO
P OUTER
WRAP FINISH WITH TRIM KIT
OR NON-COMBUSTIBLE
MATERIAL
AS DESIRED.
STANDOFF
Figure 2a - Louvered Models
FIREBOX
STAND OFF
COMBUSTIBLE
FINISHED WALL
OR MANTEL
2 X 4
HEADER
TOP OUTER
WRAP FINISH WITH TRIM KIT
OR NON-COMBUSTIBLE
MATERIAL AS DESIRED.
Figure 2b - Flush Models

39812-2-0620 Page 5
CLEARANCES (CONT'D)
Ceiling Clearances: The ceiling height should not be less than 42"
from the top of the hood. See Figures 3a and 3b.
MANTEL
STANDARD
HOOD
17 ½”
10”
12”
MAX
42”
MIN.
(CEILING TO
TOPOF HOOD)
4½”
MIN.
FIREBOX
FACE
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
8”
6½”
5”
3½”
1½”
0”
6½”
9”
11”
13”
15”
Figure 3a - Mantel Clearances with Standard Hood
MANTEL
13”
10”
12”
MAX
42”
MIN.
(CEILINGTO
TOPOF HOOD)
8”
MIN.
84”
MIN.
(CEILING TO FLOOR)
CEILING
COMBUSTIBLES
ALLOWED
22”
8”
20”
6½”
18”
5”
16”
3½”
14 ½”
2½”
24 ½”
0”
FIREBOX
FACE
EXTENDED HOOD
(VB4H SERIES)
(NOT AVAILABLEON
PENINSULAOPENEND)
3/8” COMBUSTIBLE
CLEARANCE REQUIRED
FROM TOP EDGE
OF FIREBOX
Figure 3b - Mantel Clearances with Optional Extended Hood
Mantel Clearances: Vent free rebox models must use the hood
supplied with the rebox, or one of the optional hood kits available
for each model. If a combustible mantel is installed, it must meet
the clearance requirements detailed below.
Grate Clearance: The minimum clearance between the front legs
of the grate and the front edges of the rebox is 1 1/2".

39812-2-0620Page 6
Figure 4
Firebox Dimensions
FIREBOX INSTALLATION INSTRUCTIONS
LOUVERED PANELS FLUSH PANELS
VFP36SB VFP36PB VFP36SB VFP36PB
A38 1/8" 38 1/8" 38 1/8" 38 1/8"
B39" 39" 39" 39"
C24" 24" 24" 24"
D25 1/2" 25 1/2" 25 1/2" 25 1/2"
E36" 36" 36" 36"
F34 1/4" 35 1/4" 34 1/4" 35 1/4"
G29 1/8" 29 1/8" 29 1/8" 29 1/8"
H41 1/8" 41 1/8" 41 1/8" 41 1/8"
I1 1/4" 1 1/4" 1 1/4" 1 1/4"
J6 1/8" 6 1/8" 6 1/8" 6 1/8"
K7 3/8" 7 3/8" 7 3/8" 7 3/8"
L5 7/8" 5 7/8" 5 7/8" 5 7/8"
M27 5/8" 27 5/8" 27 5/8" 27 5/8"
N36 7/8" 36 7/8" 36 7/8" 36 7/8"
O4" 4" 4" 4 "
SEE THRU
LOUVERED
OR
FLUSH
PENINSULA
LOUVERED
OR
FLUSH
H
B
C
A
N
E
M
J
D
F
G
H
B
A
N
E
M
J
D
I
2 9/16”
2 9/16”
L
K
L
F
I
2 9/16”
O
K
O

39812-2-0620 Page 7
FIREBOX INSTALLATION INSTRUCTIONS (CONT'D)
Any vent-free Gas Log Heater must be “For use with approved ANSI
Z21.11.2 unvented room heater.”
Follow and complete the installation instructions of the gas log set
and the requirements of this rebox.
Check all ttings for leaks before lighting the gas log set.
In planning the installation for the rebox, it is necessary to determine
where the unit is to be installed and whether optional accessories
are desired. Gas supply piping should also be planned at this time.
A gas shut off must be in this line.
The rebox can be mounted on any of these surfaces:
1. A at hard combustible or non-combustible surface.
2. A raised platform of combustible or non-combustible material.
3. Recessed into the oor as illustrated by Figure 5.
4. Supported under all (4) corners of the rebox so that contact
is made on all four perimeter edges on the bottom of the unit
(Example: Four (4) concrete masonry blocks).
FLUSH FACE LOUVERED
COMBUSTIBLE MATERIALS ALLOWED
Figure 5
If the rebox is installed directly on carpeting, tile or other combustible
material other than wood ooring, it should be installed on a metal
or wood panel extending the full width and depth of the unit.
At this point, you should have decided what components to include
in your installation, and where the rebox is to be located. If this
has not been done, stop and consult your dealer for assistance
with this planning.
Planning Your Installation
Accessory kits such as the FBB5 Blower kit, Trim kits, Mantels, plus
other Decorative Frame, Hood, and Door accessory kits may be
installed after the rebox is secured to the framing.
Refer to the instructions provided with each of the optional accessory
kits for proper installation and operation.
You must install certain components before the replace is
permanently installed. These include the direct-vent system, gas
piping for the appliance and the electrical wiring. (If the optional
blower is used.)
Firebox Framing
Firebox framing can be built before or after the rebox is set in place.
Framing should be constructed to accommodate wall covering and
rebox facing material. The rebox framing should be constructed
of 2 x 4 lumber or heavier. The framing headers may rest on the
top of the rebox standoffs. Refer to Figure 6 for rebox framing
dimensions.
NOTE: On Peninsula models, a maximum weight of 250 lbs. is
recommended when construction materials are supported by the
top standoff spacers.
A
B
C
Framing - Peninsula
A
B
C
Framing - See-Through
PREMIUM VENT-FREE FIREBOX
FRAMING DIMENSIONS (In Inches)
Model
"A" "B" "C"*
Framing
Height
Framing
Width
Framing
Depth
VFP36SB 41 1/2" 40" 23"*
VFP36PB 41 1/2" 39"** 23"*
Attention: Add height of base to "A" Dimension when elevat-
ing rebox if installing on an elevated base.
Framing dimension A incudes a three inch clearance for
standoffs on rebox.
*Dimension "C" assumes use of 1/2" wall board ush to both
front faces.
** Peninsula model framing width assumes use of 1/2" wall
board ush to the end face.
Figure 6

39812-2-0620Page 8
FIREBOX INSTALLATION INSTRUCTIONS (CONT'D)
FRAMING THE FIREPLACE
1. Choose replace location.
2. Frame in replace with a header across the top. It is important
to allow for nished face when setting the depth of the frame.
3. Attach replace to frame using adjustable frame. Preset depth
to suit facing material (adjustable to 1/2 inch, 5/8 inch or 3/4
inch depths).
4. Loosen but do not remove the eight screws securing the nailing
anges to the rebox. See Figure 7.
Figure 7
5. Measure from face of replace to face of drywall strip to
determine nal depth and adjust nailing anges as shown in
Figure 8.
Figure 8
6. Tighten the eight screws loosened in step 4.
7. Bend the nailing anges 90 degrees as shown in Figure 9.
Figure 9
8. Slide unit into position and secure to wall with nailing anges.

39812-2-0620 Page 9
FIREBOX INSTALLATION INSTRUCTIONS (CONT'D)
INSTALLING HOOD
Black hoods are furnished with each rebox (or the optional hood(s))
and MUST be installed before the rebox is used. Failure to do
so may create a possible re hazard. For shipping purposes, the
hoods are located behind the upper louver(s), or inside the rebox
on ush face units. If brass, stainless steel, or hammered pewter
hoods are desired, they can be purchased as an option. Attachment
is the same as the standard black hood.
Louvered Models
1. Remove upper louver, or ush panel.
2. Place the top hood ange on top of the inner rebox top, then
install three screws through the rebox top from below and screw
into the pilot holes in the hood ange (B).
3. Install one (1) screw at each end of the hood as shown (C).
4. Re-install louver(s) or ush panel(s).
CAUTION:All hoods must be installed prior to operation of
appliance. See Figure 11.
Louvered Models
B
B
C
C
INNER FIREBOX TOP
Figure 11
FIREBOX OPENING
CHECK TO SEE
THAT BOX IS SQUARE
PRIOR TO ATTACHING TO
FRAMING
Figure 10
IMPORTANT! Check squareness of the rebox prior to securing to framed opening. See Figure 10.

39812-2-0620Page 10
INSTALLING HOOD (CONT'D)
The rebox is designed to accept a gas line for an approved vent-
free gas logset. Have the line installed by a qualied service person
in accordance with all building codes. Consult local building codes
to properly size the gas supply line leading to the connection of the
logset burner. The state of Massachusetts requires that a exible
appliance connector cannot exceed three feet in length.
Gas access holes are provided through the side panel(s) of
the firebox. See Figure 12. Carefully remove the indented
knockout in the ceramic brick panel using a drill or utility knife.
See Figure 13.
Check gas type. Use only the gas type indicated on the gas log
set rating plate. If the gas listed on the plate is not your type of gas
supply, DO NOT INSTALL. Contact your dealer for proper model.
Always use an external regulator for all LP reboxes to reduce the
supply tank pressure to a maximum of 14" w.c. This is in addition
to the regulator tted to the log set.
WARNING
Connection directly to an unregulated L.P. Tank can cause
explosion.
Install only a ANSI Z21.11.2 vent-free log set into this rebox.
Figure 12
Figure 13
GAS LINE CONNECTION
Extended Hoods
If your non-combustible facing material is over 1" in thickness and
will be used to nish this rebox, extended hoods are available that
will extend out 2" farther into the room. Extended hoods are not
available for the peninsula open ends. Contact your local dealer
for details.
Finishing
All joints (top, bottom and sides), where the wall or decorative
facing material meets the rebox surround should be sealed with a
non-combustible material.
Flush panels, louvers, and decorative louver panels are
interchangeable, and may be mixed and matched as desired (i.e.
Flush panel on bottom with louvered panel at top, or vice versa).

39812-2-0620 Page 11
#1
ACCENT LIGHT
WALL SWITCH
#2
BLOWER
WALL SWITCH
REMOVE TAB ON HOT SIDE
OF DUPLEX RECEPTACLE
TO SPLIT LUGS
PLUG
FOR
CONTROLS
PLUG
FOR
BLOWER
FIREPLACE
CONTROL
COMPARTMENT
DUAL SWITCH ELECTRICAL WIRING TO FIREPLACE RECEPTACLE
RED
BLACK
WHITE
4-WIRE, GROUNDED
CONDUCTOR
(BY OTHERS)
DOUBLE SWITCH BOX
(INSTALLER PROVIDED)
BLACK
WHITE
GROUND
TO 120V
CIRCUIT
BREAKER
GROUND
WIRING INSTRUCTIONS FOR INSTALLING A DUAL SWITCH / RECEPTACLE
In order to install both the optional Blower and Accent Light acces-
sories, it will be necessary to install the junction box so that the
Duplex Receptacle wiring is split. This will allow each side of the
receptacle to operate independently off separate wall switches.
See diagram below.
NOTE: To operate the FBB5 Blower accessory with a variable
speed control, the SCV1 Variable Speed Control Kit should be in-
stalled to control the power to one side of the duplex receptacle.
LK2 ACCENT LIGHT ACCESSORY
1. To wire Junction Box Receptacle, remove the tab on the side
of the receptacle (hot side) to split receptacle. This will be
required to separate blower and Accent Light circuits.
2. Power for switched and live sides of Duplex Receptacle must
come from the same power source. (One circuit breaker on
main panel must switch all power off.)
3. From the wall box to the replace a 3-wire conductor with
ground is recommended, however (2) two-wire conductors
with grounds may be used in place of a 3-wire conductor with
a ground if the black wires from the Accent Light and blower
accessories are identied.
4. Two wall switches may be used to activate the two receptacle
plugs independently.
An Accent Light Kit model LK2 is available for installation in
the top of the rebox. Providing the junction box has been pre-
wired with separate circuits as described in the "Wiring for a dual
switch/receptacle" section, the Accent Light kit may be installed at
any time on louvered models, or on ush panel models prior to the
upper panels being covered with nishing materials.
Follow the instructions provided with the LK2 Accent Light kit for
proper installation in the replace/rebox.

39812-2-0620Page 12
OPTIONAL SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS
Attention: Install blower assembly before connecting gas inlet
supply line.
Wiring
The appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, if an external
electrical source is utilized. This appliance is equipped with
a three-prong [grounding] plug for your protection against
shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the
grounding prong from this plug. For an ungrounded receptacle,
an adapter, which has two prongs and a wire for grounding, can be
purchased, plugged into the ungrounded receptacle and its wire
connected to the receptacle mounting screw. With this wire com-
pleting the ground, the appliance cord plug can be plugged into the
adapter and be electrically grounded.
CAUTION
Label all wires prior to disconnection when servicing con-
trols. Wiring errors can cause improper and dangerous op-
eration. Verify proper operation after servicing.
1. If installed, turn OFF gas supply to rebox/gas log.
2. If applicable, turn OFF electric supply to rebox.
CAUTION: All wiring should be done by a qualied elec-
trician and shall be in compliance with all local, city and
state building codes. Before making the electrical con-
nection, make sure that main power supply is discon-
nected. The appliance, when installed, must be electri-
cally grounded in accordance with local codes, with the
national electrical code ANSI/NFPA 70 (Latest Edition).
To install the blower kit, access the junction box, or install a light
kit, remove the access cover plate and/or lower louvers or ush
panels as illustrated by Figures 15 and 16.
A factory included junction box is located on the lower right side
of the rebox. Wiring must be fed through the 7/8" diameter hole
provided on the lower side of the rebox, and secured to the outer
wrap with the clamp provided. Leave approximately 6” of wire in
the junction box for connection.
Attach black wire to one side of the receptacle and white wire to
opposite side of receptacle. The ground wire should be attached
to the green (ground) screw. See Figure 14.
Install the receptacle into the junction box as illustrated.
Attach cover plate. Place Junction Box so that it is approximately 8
to 12" away from the outer wrap wall. Secure wiring at outer wrap
of replace with wire clamp provided.
Attention: If installed, do not damage gas inlet supply line when
blower assembly is inserted into rebox. In some cases, removal
of the gas inlet supply line may be necessary.
3. Determine which type of rebox you have prior to installation.
See Figures 15 and 16 .
Figure 14
Figure 15 - Flush Or Louvered Models
BLOWER AND JUNCTION
BOX ACCESS COVER
PLATE
Figure 16 - Flush Face Models With
Raised Hearth Extensions

39812-2-0620 Page 13
4. Insert blower assembly into interior, bottom of rebox. Posi-
tion blower assembly so that you align the notch on back of
blower assembly with the center screw on side/end panel,
then push the blower assembly against rebox outer panel.
The blower wheel must be centered with the side/end wall of
the rebox. The magnets on the back and bottom of blower
assembly will sufciently hold blower assembly in place. See
Figure 18.
5. Once the blower assembly is in position, locate the plug but-
ton in the top corner of the rebox. Remove the plug with a
standard screwdriver and discard plug.
6. Next, nd the fan control switch and wire assembly. Feed
the wires through the hole at the top of the rebox. Feed the
wires over the rebox top and down between the rebox side
and outer wrap then, secure the fan control switch with (2) #6
screws provided. See Figure 17.
7. The fan control wires will slide down between the rebox and
outer wrap near the blower assembly. See Figure 18.
8. One fan control wire will have a 1/4” female terminal that must
be attached to the open terminal on the blower motor. See
Figure 21, Connection A.
9. The other fan control wire has a 1/4” male terminal. Attach this
terminal to the open terminal on the blower power cord. See
Figure 21, Connection B
10. Route the wires away from moving parts of the blower assem-
bly and retain wires together near the blower motor using the
plastic purse clip provided.
11. To complete the installation, plug the power cord into the junc-
tion box receptacle previously installed in the bottom of the
rebox. See Figures 18 and 20.
12. Once all connections are made electrically, it is recommended
that you test the blower fan control operation by turning on
power to the blower (CAUTION: 110 Volt). Then apply heat to
the fan control switch inside the rebox with a lighter or match
until blower is activated. Once blower is activated, check for
proper operation. Do not place hands near blower assembly
or other wiring while power is on.
13. Replace blower access plate and louvers or ush panels. See
Figures 15 and 16.
14. This completes the installation of the optional FBB5 Blower kit
accessory.
NOTE: This blower is equipped with a heat activated fan control
switch. Blower will operate when the rebox warms up, and will
turn off automatically when the rebox cools down. The time will
vary for the activation of the fan control switch depending on sev-
eral factors including rebox/log set sizing, BTU input variables,
and log set positioning. Generally, it may take from 5 to 20 minutes
to activate blower/fan control from a cold start.
FAN CONTROL
SWITCH LOCATION
Figure 17
HEARTH
BLOWER ASSEMBLY
(CENTER AND INSTALL
AGAINST OUTER WRAP
AS SHOWN)
WIRES
FROM FAN
CONTROL
SWITCH
OUTER
WRAP
Figure 18
USE SCVI VARIABLE SPEED
CONTROL OPTION, OR STANDARD
ON/OFF WALL SWITCH TO
OPERATE OPTIONAL BLOWER
Figure 19
OPTIONAL SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS (CONT'D)

39812-2-0620Page 14
Blower Motor
The blower motor does not have oiling holes. Do not attempt to oil
the blower motor.
Blower Wheels
The blower wheels will collect lint and could require periodic clean-
ing. If the air output decreases or the noise level increases, it indi-
cates a dirty blower wheel. Remove fan and clean blower wheels.
1R7731 BLOWER ASSEMBLY
2R9901 FAN CONTROL SWITCH
1
2
A
B
110 VOLT AC
JUNCTION BOX
WHITE
FAN
SWITCH
BLACK
FAN/MOTOR
ASSEMBLY
Figure 20
Figure 21
Keep the control compartment, logs and burner area surrounding
the logs clean by vacuuming or brushing area at least twice a year.
THE LOGS CAN GET VERY HOT – HANDLE ONLY WHEN COOL.
Always turn off gas to the pilot before cleaning. For relighting, refer
to lighting instructions located on the log set.
Never obstruct the ow of the combustion and ventilation air. Keep
the front of the rebox clear of all obstacles and materials.
Screens must be closed during operation.
MAINTENANCE
OPTIONAL SINGLE SPEED BLOWER INSTALLATION INSTRUCTIONS (CONT'D)

39812-2-0620 Page 15
This page intentionally left blank.

39812-2-0620Page 16
PARTS LIST
Use Only Manufacturer’s Replacement Parts. Use of Any Other Parts Could Cause Injury Or Death.
Index
Number
Part Number Description
VFP36SB2EL VFP36SB2EF VFP36PB2EL VFP36PB2EF
1----FIREBOX ASSEMBLY
2 17301 (4) 17301 (4) 17301 (4) 17301 (4) TOP STANDOFF
3R9655 (4) R9655 (4) R9655 (4) R9655 (4) INSULATION - TOP
4 39739 (2) 39739 (2) 39739 (2) 39739 (2) INSULATION SUPPORT
5R7052 (4) R7052 (4) R7052 (4) R7052 (4) SCREEN ROD - LONG
6 - - R12668 R12668 SCREEN ROD - SHORT
7R9631 (2) R9631 (2) R9631 R9631 BRICK PANEL - SIDE
8 29270 (4) 29270 (4) 29270 (3) 29270 (3) BRICK BRACKET
9 20145 (2) 20145 (2) 20145 (2) 20145 (2) HOOD LONG
10 - - 24056 24056 HOOD SHORT
11 39736 (2) 39736 (2) 39736 (2) 39736 (2) INNER AIR BAFFLE
12 18807 (2) 18807 (2) 18807 (2) 18807 (2) LOUVER ASSEMBLY - UPPER LONG
13 18808 (2) 18808 (2) 18808 (2) 18808 (2) LOUVER ASSEMBLY - LOWER LONG
14 - - 24059 (2) 24059 (2) LOUVER ASSEMBLY - UPPER SHORT
15 - - 24058 (2) 24058 (2) LOUVER ASSEMBLY - LOWER SHORT
16 19990 19990 19990 19990 BLOWER ACCESS PLATE
17 39081 (2) 39081 (2) 39081 (2) 39081 (2) HEARTH RETAINER
18 R9293 (2) R9293 (2) R9293 (2) R9293 (2) HEARTH LEDGE - LEFT
19 R9295 (2) R9295 (2) R9295 (2) R9295 (2) HEARTH LEDGE - CENTER
20 R9292 (2) R9292 (2) R9292 (2) R9292 (2) HEARTH LEDGE - RIGHT
21 - - R9634 R9634 HEARTH LEDGE - END
22 31579 (8) 31579 (8) 31579 (4) 31579 (4) NAILING FLANGE
23 39744 (2) 39744 (2) 39744 (2) 39744 (2) FLUSH PANEL - UPPER - LONG
24 39741 (2) 39741 (2) 39741 (2) 39741 (2) FLUSH PANEL - LOWER - LONG
25 - - 39752 39752 FLUSH PANEL - UPPER - SHORT
26 - - 39751 39751 FLUSH PANEL - LOWER - SHORT
N/S R8201 (4) R8201 (4) R8201 (5) R8201 (5) CURTAIN SCREEN
N/S - Not Shown
See Page 17 for See-Through Models VFP36SB2E(L,F) Parts View for ordering parts.
See Page 18 for Peninsula Models VFP36PB2E(L,F) Parts View for ordering parts.

39812-2-0620 Page 17
SEE-THROUGH FIREBOX PARTS VIEW

39812-2-0620Page 18
PENINSULA FIREBOX PARTS VIEW
1
2
3
4
5
6
78
9
10
11
12
13
14
15
16
17
18
19
20
21
22
25
26
23
24
12
23
24
13
9
11
3
4
20 19
18
17
27 8

39812-2-0620 Page 19
This page intentionally left blank.

39812-2-0620Page 20
Accessory Description Model Numbers
Fan Kit FBB5
Variable Speed Control Kit SCV-1
Frame Kits
For use with See-Through models:
VFP36SB2E(L,F) ONLY
Contact dealer for all available
optional frame kits
Bottom Trim Strip
For VFP36SB2E(F,L) ONLY
Contact dealer for all available
optional trim accessories
Accent Light Kit LK2
ACCESSORIES
