EMPORIA EMEVSE1 Setup guide

Installation and
Usage Guide
Don’t
have enough
power / amps?
We can help!
Contact
us!

INSTRUCTIONS PERTAINING TO A RISK OF FIRE
OR ELECTRIC SHOCK!
Improper connection of the equipment-grounding
conductor may result in a risk of electric shock,
leading to death or serious injury. Emporia
recommends that installation be performed by a
licensed electrician or other qualified professional
in accordance with the regional electrical code
where it is being installed to ensure the Emporia EV
Charger is properly grounded. Do not modify the
provided plug – if it will not fit the outlet, have a
proper outlet installed by a licensed electrician or
other qualified professional.
GROUNDING INSTRUCTIONS
For Plugged-In Installation:
This product must be grounded. If it should
malfunction or break down, grounding provides a
path of least resistance for electric current to
reduce the risk of electric shock. This product is
equipped with a cord having an equipment
grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet
that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING - Improper connection of the
equipment-grounding conductor is able to result in
a risk of electric shock. Check with a qualified
electrician or serviceman if you are in doubt as to
whether the product is properly grounded.
Do not modify the plug provided with the product -
if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
For Hardwired Installation:
This product must be connected to a grounded,
metal, permanent wiring system, or an
equipment-grounding conductor must be run with
the circuit conductors and connected to the
equipment grounding terminal or lead on the
product.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

Safety information
Read all the instructions before using this product.
This device should be supervised when used
around children.
Do not put fingers into the electric vehicle or
charger connectors.
The Emporia EV Charger is intended for use with
electric vehicles only. Specifically, it is intended
only for electric vehicles not requiring ventilation
during charging.
The Emporia EV Charger is intended to be installed
in stationary, grid-tied power systems. Do not use
the Emporia EV Charger with back-up generators.
Do not use the Emporia EV Charger in any manner
other than specified in this installation guide.
Do not attempt to disassemble or repair any of the
components of the Emporia EV Charger. There are
no user serviceable parts inside.
Do not use this product if the flexible power cord or
charging cable is frayed, has broken insulation, or
any other signs of damage.
Do not use this product if the enclosure or the
connector gun is broken, cracked, open, or shows
any other indication of damage.
Do not install the Emporia EV Charger in
environments with explosive gas or vapors; nor
where temperatures are outside its operating range
of -22°F to 122°F (-30°C to 50°C).
Use 194°F (90°C) wire, 6 AWG copper when
installing a 48A connection in a hardwire
installation.











IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTRUCTIONS PERTAINING TO A RISK OF FIRE
OR ELECTRIC SHOCK

Moving and storage Instructions
Improper moving or storage of the Emporia EV
Charger may result in damage to the product
that could result in a risk of fire or electric
shock during subsequent use.
Handle charger and packaging with care and
avoid dropping it. When moving or lifting the
Emporia EV Charger, always grasp the unit by
the charging station enclosure. Never carry or
lift the Emporia EV Charger by either the
power cable or charging cord.
Store the Emporia EV Charger indoors and in
its original packaging until it is ready to be
installed. Storage temperature should be
between -22°F to 122°F (-30°C to 50°C).
Always place protective cover over the J1772
EV charger connector when not in use. The
NACS connector does not have a cover.
Modifying the EV Charger in any way not
outlined in this installation guide, including
drilling holes in the charger will void the
manufacturer warranty.





Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)




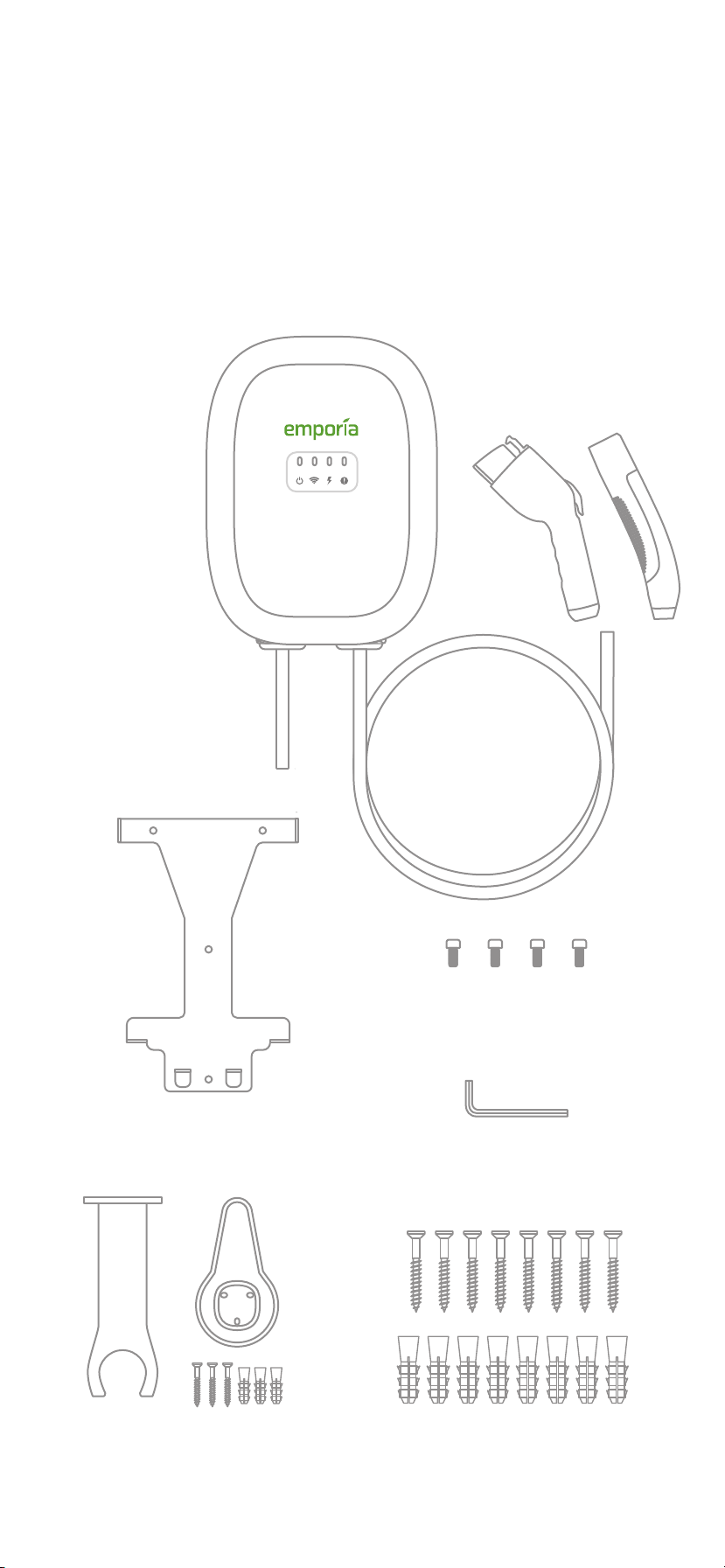

What’s in the box
Your new Emporia EV Charger contains the
following items. If any of these items are
missing or if you believe they’ve been
damaged, call support immediately.
Allen wrench
Mounting
bracket
Eight / inch #12
Phillips screws
and drywall anchors
Four M5X10
Phillips screws
Cradle for J1772 or
NACS connector gun
(See Step 5)
Charging
station
Charging
cable
Power cable
with NEMA
14-50 plug or
Hardwire Whip
SAE J1772
or NACS
connector gun

Before you get started
Here are the tools you will need to install
the Emporia EV Charger:
Bubble level
Pencil Hammer
Drill with
/ inch (8mm) and
¹/inch (6mm) drill bits
iOS or Android
phone or tablet
Phillips and flathead
screwdrivers
Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)




The Emporia EV Charger is capable of
charge a vehicle at 40A on a 50A breaker
(NEMA 14-50) or 48A on a 60A+ breaker
(hardwired). The Emporia Energy app and a
WiFi connection are required to take
advantage of its smart functions, including:
changing the charging rate, integrating with
Emporia products and other smart devices,
and energy management features.
Download the Emporia Energy app onto
your phone or tablet from the Apple App
Store, from Google Play, or from
emporiaenergy.com/app. Create an
account and begin the setup process.
You can also use your phone to check the
signal strength of your Wi-Fi network where
the EV Charger will be installed. Low/no
signal may require a Wi-Fi extender for the
smart features to work.
emporiaenergy.com/app
Step 1: Get the app
and check Wi-Fi

At least 24"
Allows slack for cable
Allow slack
for NEMA cable
-22F
122F
Step 2: Find a place
for the EV Charger
The bottom of the charging station should
be wall-mounted at least 24” (610 mm)
above the floor or grade. Ensure that there
is sufficient slack in the charging cable to
reach the vehicle charging port, as well as
sufficient slack in the NEMA power cable to
reach the outlet (if using the NEMA 14-50
version). The charging station should be
installed where temperatures remain
between -22°F to 122°F (-30°C to 50°C).
Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)




At least 24"
Step 3: Mark the mounting
bracket location
On the wall where the charging station will
be installed, use a bubble level to draw a
horizontal line where the top of the
charging station will sit on the wall ensuring
it is mounted at a sufficient height at least
24” (610 mm) above the floor or grade and
allows slack for the NEMA cable if it will be
plugged in. Then, align the top of the
mounting bracket to the line and mark the 4
mounting holes.
Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)




Step 4: Install the
mounting bracket
For each mark, drill a / inch (8mm) hole in
the wall. Use a hammer to tap in the 4
drywall anchors. Install the mounting
bracket with the 4 Phillips screws into the
anchors.
Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)




Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)



Step 5: Install the
connector gun cradle
The Emporia EV Charger comes with either
a J1772 or a NACS connector gun. These
variations come with a corresponding
cradle. Please identify the cradle that came
with your EV Charger and follow the
subsequent instructions to install the cradle
for your charger.
J1772 gun cradle
To install under the charger,
see Step 5a
To install beside the charger,
see Step 5b
NACS gun cradle
To install beside the charger,
see Step 5c

The gun cradle is designed to be installed
directly under the charging station. If you
wish to install it to the side of the charging
station, skip to Step 5b. First, remove the
bottom screw from the mounting bracket
placed in Step #4. Next, hang the cradle on
the mounting bracket hooks. Next, mark the
bottom mounting hole of the gun cradle.
Next, drill a / inch (8mm) hole in the wall at
your mark. Then, use a hammer to tap in a
drywall anchor. Finally, install the gun cradle
with 2 Phillips screws into the anchors.
Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)



Step 5a: Install the J1772
cradle under the charger
See instructions

Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)



First, use a bubble level to draw a horizontal
line at least 12” away from the mounting
bracket at the height you’d prefer. Next,
holding the gun cradle up to the line, mark
the 4 mounting holes of the gun cradle.
Next, drill a / inch (8mm) in the wall for
each mark. Then, use a hammer to tap in 4
drywall anchors. Finally, install the gun
cradle with 4 Phillips screws into the
anchors.
Step 5b: Install the J1772
cradle beside the charger

Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)



First, use a bubble level to draw a horizontal
line at least 12” away from the mounting
bracket at the height you’d prefer. Next,
holding the flat part on the top of the gun
cradle up to the line, mark the 3 mounting
holes of the cradle. Next, drill a ¹/inch
(6mm) hole in the wall for each mark. Then,
use a hammer to tap in 3 drywall anchors.
Finally, install the gun cradle with 3 Phillips
screws into the anchors.
Step 5c: Install the NACS
cradle beside the charger

Step 6: Mount
the charging station
Use a Phillips screwdriver and the 4 Phillips
bolts to install the charging station on the
mounting bracket.
Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)




EV Charger can supply a max charge of 48A
Requires a dedicated, dual-pole breaker (60A
recommended for full 48A Charge Rate).
CAUTION: To reduce the risk of fire, connect
only to a circuit with 60A maximum branch
circuit over current protection in accordance
with the National Electrical Code, ANSI/NFPA
70, the Canadian Electrical Code, Part I,
C22.1, and any local electrical codes.



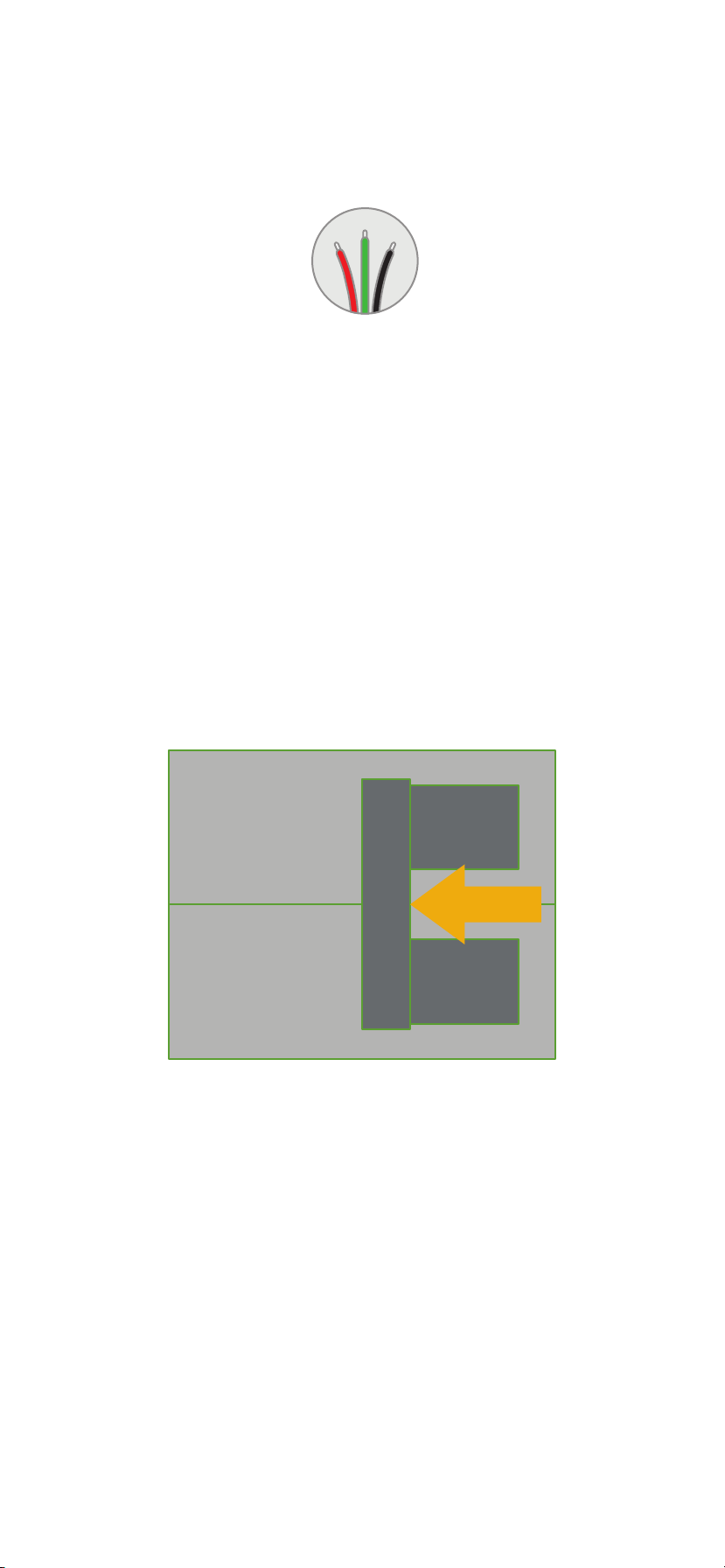

Hardwired (whip conduit)
See Step 7b
Step 7: Electrician instructions
Dedicated Breaker Charge Power @ 240V
15A 12A2.9kW
20A 16A3.8kW
25A 20A4.8kW
30A 24A5.8kW
35A 28A6.7kW
40A 32A7.7kW
45A 36A8.6kW
50A 40A9.6kW
60A 48A11.5kW
EV Charger can supply a max charge of 40A
Requires a dedicated, dual-pole breaker (50A
recommended for full 40A Charge Rate) and a
NEMA 14-50 receptacle outlet
Can be converted to Hardwired. Visit
emporiaenergy.com/installation-guides




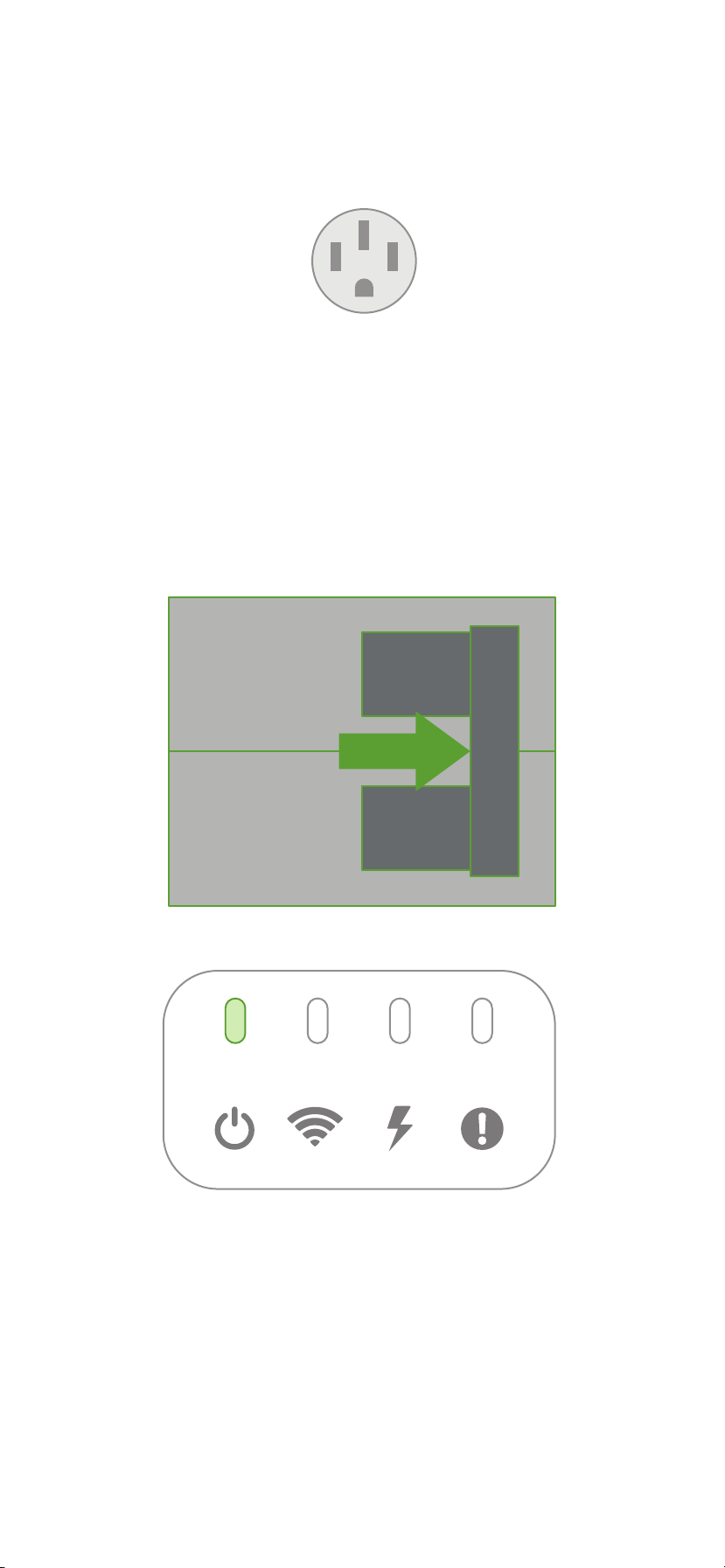

Plugged-in (NEMA 14-50 plug)
See Step 7a
The Emporia EV Charger comes pre-
configured with 1 of 2 power input types.

If a NEMA 14-50 receptacle outlet is not
already at the charging station location, a
licensed electrician or other qualified
professional can follow these instructions
to install one. First, turn off the dedicated
dual-pole breaker that will power the EV
Charger. This breaker size needs to be set
in the Emporia app and protected by a PIN
in Step 8.
Step 7a-1: Plugged-in
instructions for electricians
5050
OFFOFF
Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)




50 A
P1 P2
240 VAC
GND BUS
MAIN
BREAKER
120/240 VAC +/- 10%
LOCAL SERVICE OR SUB PANEL
NEMA
14-50R
Install a NEMA 14-50 receptacle outlet with
the ground facing downward ensuring the
distance between the NEMA outlet and the
charging station allows slack for a short
cable. Bring leads from both phases of the
breaker along with a ground/earth lead to
the outlet and connect them. Neutral is not
required.
Step 7a-2: Plugged-in
instructions for electricians
Allow slack for 2 ft. cable

Plug in the NEMA 14-50 plug from the
charging station into the receptacle outlet.
Turn on the breaker and ensure that the power
light on the front of the charging station is
illuminated.
Step 7a-3: Plugged-in
instructions for electricians
5050
ONON
Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)




A licensed electrician or other qualified
professional can follow these instructions
to hardwire the charging station to a
breaker. First, turn off the dedicated
dual-pole breaker that will power the EV
Charger. This breaker size needs to be set
in the Emporia app and protected by a PIN
in Step 8.
Step 7b-1: Hardwired
instructions for electricians
6060
OFFOFF
Need help?
emporiaenergy.com/support
[e-mail]
1-844-EMPORIA (367-6742)



