EMUGE Softsynchro 1/MMS User manual

Softsynchro® 1 / MMS
Softsynchro® 3 / MMS
Softsynchro® 4 / MMS
Collet holder Softsynchro®Modular
Operating instruction

Softsynchro® / MMS
2 Operating instruction edition: 01.02.2017
Contents:
1Application range, safety instructions and technical data...........4
1.1 Application range, determined use ................................................................... 4
1.2 Specifications.................................................................................................... 5
1.3 Safety instructions and hints............................................................................. 6
1.4 Proprietary rights .............................................................................................. 6
1.5 Dimensions and technical data......................................................................... 7
2Putting the collet holders into operation.......................................8
2.1 Unpacking......................................................................................................... 8
2.2 First putting into operation ................................................................................ 8
2.3 Re-putting into operation................................................................................... 9
2.4 Sealing disks for clamping nuts ...................................................................... 10
2.4.1 Application ............................................................................................ 10
2.4.2 Assembly instruction for sealing disks into clamping nuts..................... 10
2.5 Collets............................................................................................................. 11
2.5.1 Application ............................................................................................ 11
2.5.2 Assembly instruction for the collets and taps/cold-forming taps............ 11
2.5.3 Remove tap/cold-forming tap and clamping nut.................................... 14
3Maintenance...................................................................................15
3.1 Maintenance schedule.................................................................................... 15
3.2 External cleaning............................................................................................ 15
4Storage when not in use ...............................................................15

Softsynchro® / MMS
Operating instruction edition: 01.02.2017 3
Warnings, symbols
In this operating instruction the following symbols are used:
Attention
Marks special instructions, rules and prohibitions, which are important in order to avoid
any damage.
Please observe these instructions!
Note
Marks application instructions and other useful information.

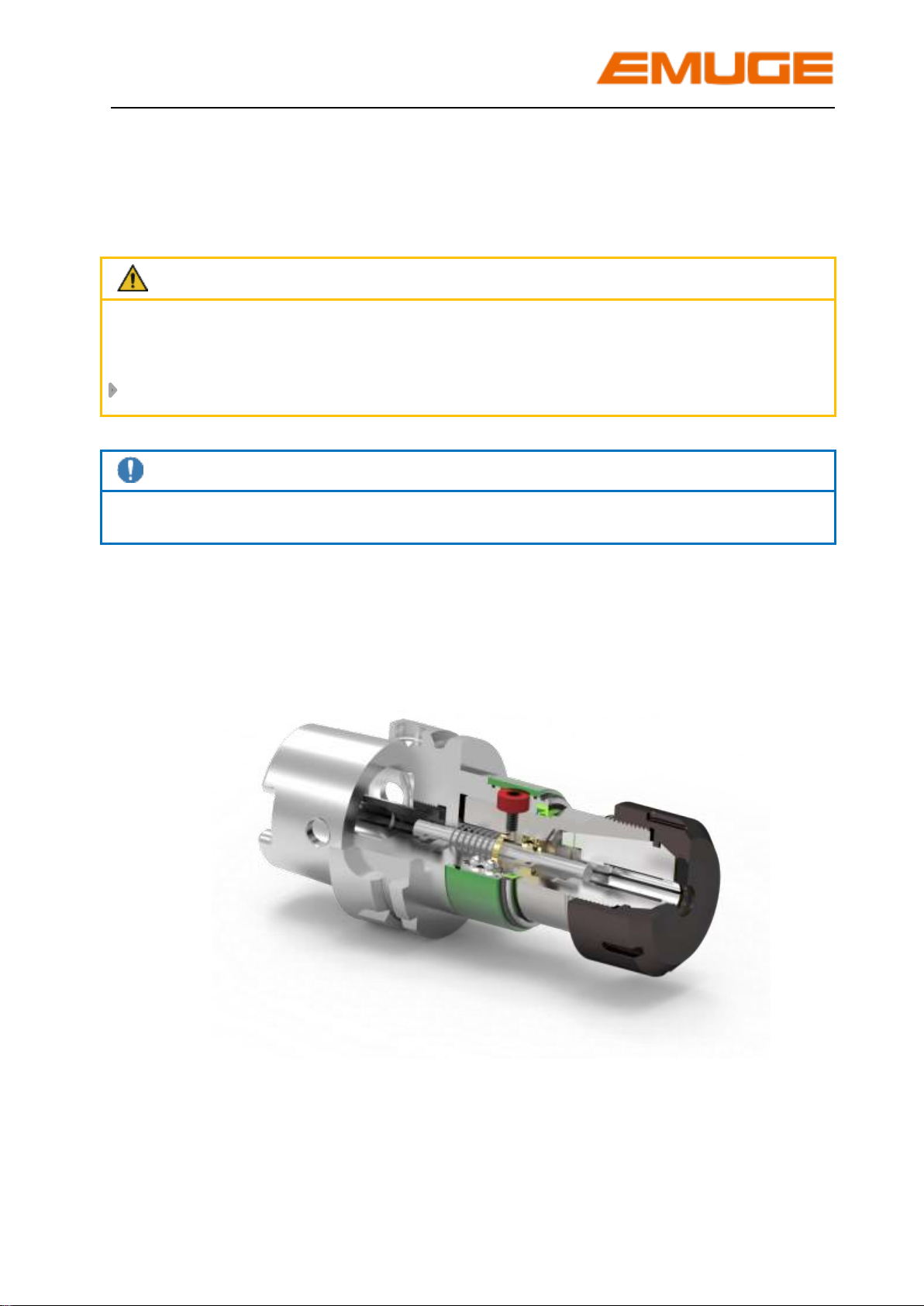

Sectional view:
Collet holder Softsynchro® / MMS

Softsynchro® / MMS
4 Operating instruction edition: 01.02.2017
1 Application range, safety instructions and technical data
1.1 Application range, determined use
The collet holders type Softsynchro®/MMS are used on CNC machining centres with
synchronous control working with minimum-quantity lubrication (MQL). They are
intended for clamping of taps/cold-forming taps for thread production.
The integrated minimal length compensation on tension and compression
compensates arising minimal pitch differences between synchronous spindle and
tap/cold forming tap which would lead to high thread flank friction forces. An eventual
increase of the axial force during the thread producing cycle is reduced to a
minimum. The resulting advantages are:
-No mis-cutting of the threads
-Optimised tool life of the tap/cold-forming tap
The collet holders Softsynchro®/MMS are used with collets and sealing disks in the
clamping nut with tap/cold-forming tap provided with a coolant channel for minimum-
quantity lubrication.
The guiding of the aerosol mixture through the center of the collet holder up to the
coolant channel is designed for flow-optimized and is guaranteed by a spring-
mounted MQL tube.
Normally the collet holders are equipped with the following shank:
Hollow taper shank according to DIN 69893-HSK-A, suitable as form C by using
an adapter.
The cutting range of each type is indicated in table 1, page 7
The tap/cold-forming tap is locked via the collets according to DIN ISO 6499.
The collets must be chosen depending on the used type and used tap/cold-forming
tap, for more information please refer to chapter 2.5, page 11.
The collet holders type Softsynchro®/MMS are specially made for minimum-quantity
lubrication, for more information please refer to chapter 1.2, page 5
The non-determined use exempts the manufacturer from any liability.

Softsynchro® / MMS
Operating instruction edition: 01.02.2017 5
1.2 Specifications
Features of the collet holders type Softsynchro®/MMS are:
Small and compact overhang
Minimum-quantity lubrication (MQL):
Target-oriented, flow-optimized guidance of the MQL aerosol through the
center of the collet holder up to the tap/cold-forming tap
Environmentally sound lubrication
The high cutting values for wet machining may be kept.
Reduction of the machine hour rate by omission of purchase and maintenance
of expensive filter devices and disposal of the emulsions.

Softsynchro® / MMS
6 Operating instruction edition: 01.02.2017
1.3 Safety instructions and hints
For all works, i.e. putting into operation, production and maintenance, please observe
the details given in the operating instructions.
All relevant safety regulations as well as local instructions are to be observed when
working with the collet holders.
Below please find some basic rules:
Attention
Please wear gloves during tool change to avoid injury.
Basically change the tool yourself to avoid the sudden start of the spindle
caused by mis-operating.
Hold the tool when loosening the tool clamping to avoid it falling down and
damaging the tool and the work piece.
Keep the tool adaption clean.
There are maximum values for cutting speeds and feeds for every kind of
machining. Please observe such data.
Please observe the maximum tool dimensions.
Furthermore, the instructions of the tool manufacturers are valid!
1.4 Proprietary rights
The entire contents of these operating instructions are subject to German proprietary
rights legislation.
Any form of multiplication, processing, broadcasting, passing on to third parties - also
in the form of extracts - and any kind of use outside the boundaries of proprietary
rights requires the written consent of EMUGE GmbH&Co.KG.

Softsynchro® / MMS
Operating instruction edition: 01.02.2017 7
1.5 Dimensions and technical data
Picture 1: Collet holder Softsynchro®/ MMS
Table 1: Technical Data of the collet holder type Softsynchro® / MMS
Type
Cutting range
Clamping range
[mm]
Collet-
size1
D
[mm]
D3
[mm]
C2
[mm]
T3
[mm]
Softsynchro® 1/
MMS
M6 - M12
6 –10
20
34
34
0,5
0,5
Softsynchro® 3/
MMS
M6 - M20
6 –16
32
45
50
0,5
0,5
Softsynchro®4/
MMS
M12 –M30
9 –22
40
63
63
0,7
0,7
Note
The maximum air pressure at the entry to the holder is up to 6 bar.
Collet holders with shank according to DIN 69893-HSK-A have an integrated coolant-
lubricant tube which must not be disassembled, otherwise the function of the MQL
transfer is no longer guaranteed!
The collet holders are available for 1-channel and 2-channel MQL-systems and in
design with shank HSK-C for 1-channel MQL-systems.
Further outer dimensions may be taken from the EMUGE main catalogue.
1
Dimension according to DIN ISO 6499
2
Length compensation on compression
3
Length compensation on tension
Length compensation
on compression
Length compensation
on tension

Softsynchro® / MMS
8 Operating instruction edition: 01.02.2017
2 Putting the collet holders into operation
2.1 Unpacking
Take the collet holder from the packing
Clean the collet holder with a duster to remove any conservation oil
Note
Do not use any aggressive solvents.
Do not use fibrous materials i.e. steel wool.
The collet holder is now ready for operation.
2.2 First putting into operation
The collet holders are inserted into the machine manually or - if provided - by the tool
exchanger.
Attention
The exchange of the collet holder must not be executed while the machine spindle
rotates!
Only use tool shanks and tightening bolts suitable for the specific machine.
Make sure the tool is correctly clamped.
Otherwise: Risk of accident by spinning of the tool!
Please see also the indications in the operating instruction of your machine tool!
The collet holders with hollow taper shank, DIN69893-HSK-A, are already
equipped with a coolant-lubricant tube. This coolant-lubricant tube may not be
removed, as it contains the mechanism for the minimum-quantity lubrication.
√

Softsynchro® / MMS
Operating instruction edition: 01.02.2017 9
2.3 Re-putting into operation
If the collet holder is back into operation as described in chapter 4, page 15, please
go through the following steps:
- Clean the collet holder with a duster to remove any conservation oil
Note
Do not use any aggressive solvents.
Do not use fibrous materials i.e. steel wool.
- If necessary, prepare the collet holder as described in chapter 2.2, page 8

Softsynchro® / MMS
10 Operating instruction edition: 01.02.2017
2.4 Sealing disks for clamping nuts
2.4.1 Application
The sealing disks are inserted into the clamping nuts for producing threads with
minimum quantity lubrication. The sealing disks additionally avoid the penetration of
dirt and chips into the collet slots. We do recommend the use of sealing disks.
Note
Normally a nut for sealing disks is part of the delivery. The sealing disk hasto be
ordered separately, suitable for clamping nut and clamping diameter.
2.4.2 Assembly instruction for sealing disks into clamping nuts
1. Screw the clamping nut off
2. Insert the sealing disk into the
clamping nut as shown on
picture.
Push the sealing disk forward
into the clamping nut until you
clearly hear the engagement.
The sealing disk must be flush
at the front with the clamping
nut
Click!

Softsynchro® / MMS
Operating instruction edition: 01.02.2017 11
√
2.5 Collets
2.5.1 Application
The adaptation of the tap/cold-forming tap is executed via collets type ER and/or
ER/GB. With collets type ER the tap/cold forming tap is centered and clamped via the
shank diameter. With collets type ER/GB the torque - arising during the thread
producing operation - is additionally transferred via the square integrated in the collet.
Note
Owing to the better torque transmission, we recommend the use of collets type
ER/GB.
The collet sizes for the according collet holders may be taken from table 1, page 7.
The clamping diameter is indicated by the tap/cold-forming tap used.
The minimum-quantity lubrication is only guaranteed in connection with a tap/cold-
forming tap provided with coolant channel made for minimum-quantity lubrication.
2.5.2 Assembly instruction for the collets and taps/cold-forming taps
1. Insert collet into the clamping nut,
tilt collet.
The groove of the collet must
engage in the eccentric ring of the
clamping nut at the marked position.
Tilt collet in opposite direction until it
clearly engages
→Collet is flush with the clamping
nut and/or the sealing disk.
2. Screw the collet with the engaged
clamping nut manually onto the
thread of the collet holder
Groove of the clamping nut
Marking
Click!
Eccentric ring

Softsynchro® / MMS
12 Operating instruction edition: 01.02.2017
1
2
3. Insert tap/cold-forming tap
Attention
If collet and tool are provided with a square, the tool must be turned into position in
order to be inserted into the square of the collet.
4. Tighten the clamping nut with the
appropriate wrench.
The tightening torques of the
clamping nut may be taken from
table 3, page 13
Attention
In order to avoid damaging the collet holder it is necessary to support the spindle
with the open-ended spannerwhen tightening the clamping nut with the
wrench.
See tool set table 2, page 13
As an alternative to the above mentioned wrench
the assembly device, article number F315199.02,
can be used.

Softsynchro® / MMS
Operating instruction edition: 01.02.2017 13
Table 2: Tool set
Collet holder
Article number of
the tool set
Softsynchro® 1 / MMS
F315198.02
Softsynchro® 3 / MMS
F315398.01
Softsynchro® 4 / MMS
F315498.01
Table 3: Tightening torques für clamping nuts
Type
Recommended
tightening torque
[Nm]
Hi-Q/ER(C) 20
32
Hi-Q/ER(C) 32
90
Hi-Q/ER(C) 40
180
Note
To find out the correct tightening torque we recommend the use of a torque wrench
with suitable shell-type wrench, see our EMUGE main catalogue, chapter
accessories.
Data valid for the use of ER-GB
collets.
The maximum tightening torque
must not be more than 25% above
the recommended tightening
torque values. Higher torques may
result in the damage of the collet
holder.
Tool set consists of wrenchfor
the clamping nut and spannerto
support the spindle

Softsynchro® / MMS
14 Operating instruction edition: 01.02.2017
1
2
2.5.3 Remove tap/cold-forming tap and clamping nut
1. Remove the clamping nut
with wrench
Attention
In order to avoid damaging the collet holder it is necessary to support the spindle with
the open-ended spanner when loosening the clamping nut with the wrench.
See tool set table 2, page 13.
As an alternative to the above mentioned wrench
the assembly device, article number F315199.02,
can be used.
2. Pull out the tap/cold-forming tap
3. Screw the clamping nut off
4. Tilt collet up to the marking until
it is removed from the eccentric
ring.

Softsynchro® / MMS
Operating instruction edition: 01.02.2017 15
3 Maintenance
3.1 Maintenance schedule
What?
When?
Who?
External cleaning
Periodically, depending on the degree
of dirt
Operator
3.2 External cleaning
Clean the collet holder at periodic intervals with a duster, depending on how dirty the
holder is.
Attention
Do not use any aggressive solvents.
Do not use fibrous materials i.e. steel wool.
Do not clean and dry the collet holder in an automatic washplace, as a result the
built-in dampers and seals may be damaged.
4 Storage when not in use
If the collet holder is taken out of service, please go through the following steps:
- Clean the collet holder with a duster, see chapter 3.2
- Spray the collet holder with preservation oil to avoid rusting
Attention
Before storage, all evidence of coolant and machining residues must be removed!

EMUGE Softsynchro® MMS
Operating instruction
Article number: ZB10014.GB 10575182
Original in German, Edition: 6, last change: 01.02.2017, change stage: 5
Please keep the operating instruction for future use!
EMUGE-Werk Richard Glimpel GmbH & Co. KG
Fabrik für Präzisionswerkzeuge
Nürnberger Straße 96-100
91207 Lauf
GERMANY
[phone]
[phone]
[e-mail] www.emuge-franken.com
