Endress+Hauser Dipfit W CLA111 User manual

BA135C/07/en/06.07
71042049
Operating Instructions
Dipfit W CLA111
Immersion assembly for conductivity measurement

Endress+Hauser
Brief overview
Here is how to use these Operating Instructions to commission your assembly quickly and safely:
Safety instructions
Page 4 ff.
Page 5
General safety instructions
Explanation of the warning symbols
You can find special instructions at the appropriate position in the chapter in question. The
significance is indicated with the icons Warning #, Caution "and Note !.
Æ
Installation
Page 7 ff.
Page 9 ff.
Page 15 ff.
Here you can find installation conditions such as the dimensions of the assembly.
These pages show you how to install the assembly.
Here you can find how to install a sensor in the assembly.
Æ
Maintenance
Page 19 ff.
Page 20 ff.
Page 22
For normal operation of the assembly, it is absolutely essential to carry out maintenance tasks on
a regular basis, such as sensor or assembly cleaning.
On the given pages you can find the accessories for the assembly.
Here you can find an overview of the spare parts which can be delivered.
Æ
Technical data
Page 7 ff.
Page 23
Dimensions
Environment and process, weight, materials etc.
Æ
Æ
Index
Page 25 You can find important terms and keywords on the individual sections here. Use the keyword
index to find the information you need quickly and efficiently.

Dipfit W CLA111
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Notes on safety icons and symbols . . . . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Product structure . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Installation . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Incoming acceptance, transport, storage . . . . . . . . . . 7
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 Installation instructions . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Sensor installation . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 16
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1 Connection of the sensors . . . . . . . . . . . . . . . . . . . 17
4.2 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 18
5 Maintenance. . . . . . . . . . . . . . . . . . . . 19
5.1 Maintaining the assembly . . . . . . . . . . . . . . . . . . . 19
5.2 Cleaning the sensor . . . . . . . . . . . . . . . . . . . . . . . . 19
5.3 Cleaning agents . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
6 Accessories. . . . . . . . . . . . . . . . . . . . . 20
6.1 Installation material . . . . . . . . . . . . . . . . . . . . . . . 20
6.2 Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
6.3 Extension cables . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.4 Transmitters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
6.5 Cleaning systems . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7 Spare part kits . . . . . . . . . . . . . . . . . . 22
8 Technical data . . . . . . . . . . . . . . . . . . 23
8.1 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.2 Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.3 Mechanical construction . . . . . . . . . . . . . . . . . . . . 23
8.4 Fastening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Index . . . . . . . . . . . . . . . . . . . . . . . . . 25

Safety instructions Dipfit W CLA111
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The immersion and process assembly Dipfit W CLA111 is suitable for universal use in water and
wastewater applications.
Its mechanical design permits its use in pressurized systems (see "Technical data").
Any other use than the one described here compromises the safety of persons and the entire
measuring system and is, therefore, not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
1.2 Installation, commissioning and operation
Please note the following items:
• Installation, commissioning, operation and maintenance of the measuring system must only be
carried out by trained technical personnel.
The technical personnel must be authorized for the specified activities by the system operator.
• Electrical connection must only be carried out by a certified electrician.
• Technical personnel must have read and understood these Operating Instructions and must
adhere to them.
• Before commissioning the entire measuring point, check all the connections for
correctness. Ensure that electrical cables and hose connections are not damaged.
• Do not operate damaged products and secure them against unintentional
commissioning. Mark the damaged product as being defective.
• Measuring point faults may only be rectified by authorized and specially trained
personnel.
• If faults can not be rectified, the products must be taken out of service and secured against
unintentional commissioning.
• Repairs not described in these Operating Instructions may only be carried out at the
manufacturer’s or by the service organization.
1.3 Operational safety
The assembly has been designed and tested according to the state of the art and left the factory in
perfect functioning order.
Relevant regulations and European standards have been met.
As the user, you are responsible for complying with the following safety conditions:
• Installation instructions
• Local prevailing standards and regulations.
1.4 Return
If the assembly has to be repaired, please return it cleaned to the sales center responsible.
Please use the original packaging, if possible.
Please enclose the completed "Declaration of contamination" (copy the second last page of these
Operating Instructions) with the packaging and the transportation documents.
No repair without completed "Declaration of contamination"!

Dipfit W CLA111 Safety instructions
Endress+Hauser 5
1.5 Notes on safety icons and symbols
#Warning!
This symbol alerts you to hazards. They can cause serious damage to the instrument or to persons
if ignored.
"Caution!
This symbol alerts you to possible faults which could arise from incorrect operation. They could
cause damage to the instrument if ignored.
!Note!
This symbol indicates important items of information.

Identification Dipfit W CLA111
6Endress+Hauser
2 Identification
2.1 Nameplate
You can identify the assembly version by the order code on the nameplate. Please compare this code
with your order.
You can find possible assembly versions and the resulting order codes in the product structure.
2.2 Scope of delivery
The scope of delivery comprises:
• Dipfit W CLA111 assembly (ordered version)
• Measuring cable with plug for two-electrode sensor CLS21
• O-ring for sensors CLS21 and CLS21D
• Operating Instructions (English)
If you have any questions, please contact your supplier or your sales center responsible.
2.3 Product structure
a0007463
Fig. 1: Example of a nameplate
Immersion depth
0 Immersion depth: 1000 mm
1 Immersion depth: 2000 mm
2 Immersion depth: as specified: 500 - 3000 mm
3 Immersion depth: 500 mm
4 Immersion depth: 1500 mm
5 Immersion depth: 2500 mm
6 Immersion depth: 3000 mm
Assembly material
0 Thread G 1, O-rings: EPDM for CLS21 and CLS21D
1 Thread G ¾, O-rings: EPDM for CLS50
Process connection
A Flange DN 100, PP / pressureless
B Flange DN 100, PP / adjustable flange
C Flange DN 100; max. 4 bar
D Suspension bracket; 316Ti, immersion depth 1000 mm only
F For pendulum frame mounting
CLA 111- complete order code
DIPFIT W CLA111
spec.:
pressure: PN=0bar T=80°C
order code: CLA111-00A
serial no.: 2 10339 05A09

Dipfit W CLA111 Installation
Endress+Hauser 7
3 Installation
3.1 Incoming acceptance, transport, storage
• Make sure the packaging is undamaged!
Inform the supplier about damage to the packaging. Keep the damaged packaging until the matter
has been settled.
• Make sure the contents are undamaged!
Inform the supplier about damage to the delivery contents. Keep the damaged products until the
matter has been settled.
• Check that the scope of delivery is complete and agrees with your order and the shipping
documents.
• The packaging material used to store or to transport the product must provide shock protection
and humidity protection. The original packaging offers the best protection. Also, keep to the
approved ambient conditions (see "Technical data").
• If you have any questions, please contact your supplier or your sales center responsible.
3.2 Installation conditions
3.2.1 Dimensions

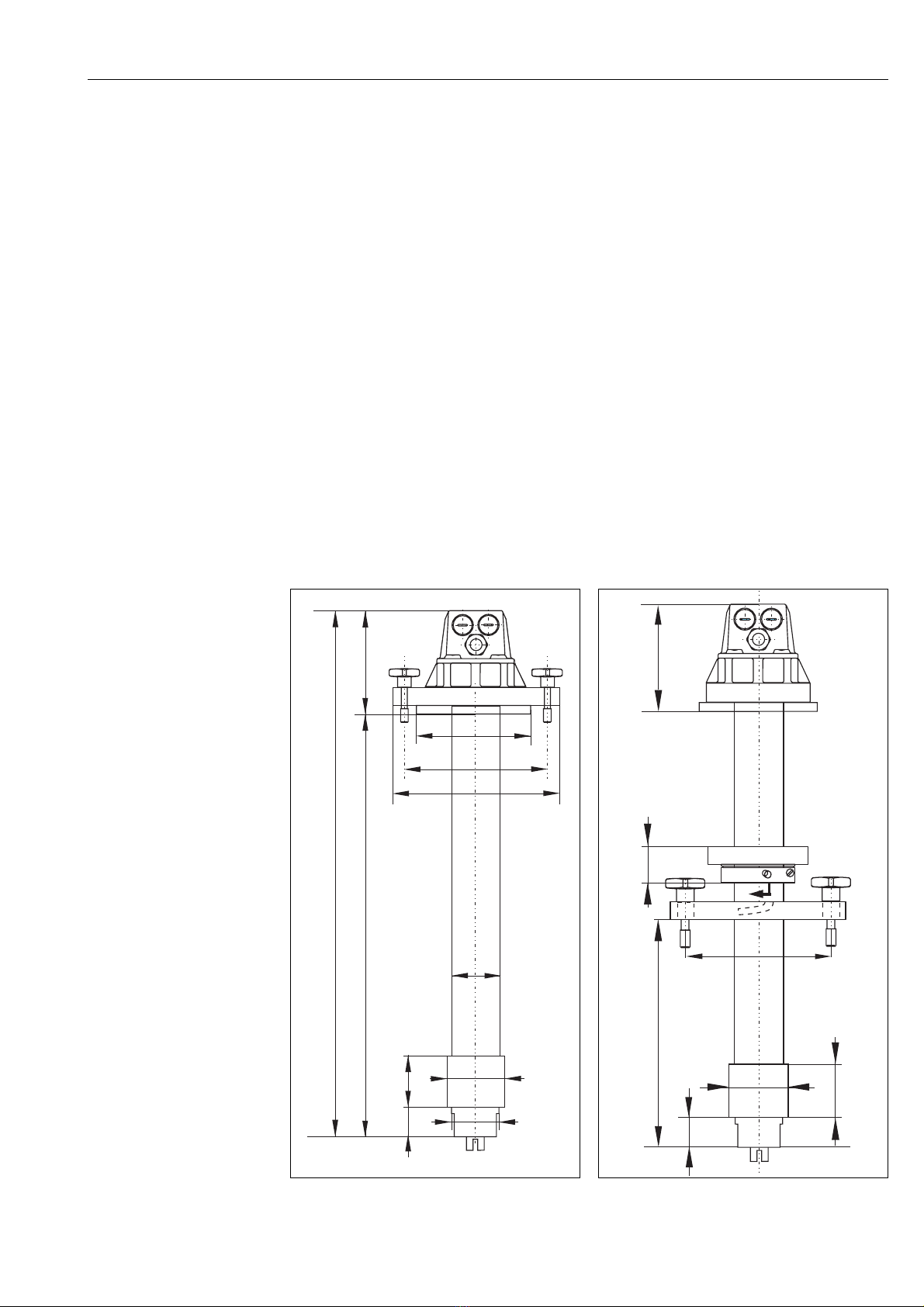

a0007454
Fig. 2: Version A and C with flange DN 100
a0007458
Fig. 3: Version B with adjustable flange DN 100
x + 140 (x + 5.51)
x = 1000, 2000, 500 ... 3000
(x = 39.4, 78.7, 19.7 to 118)
140 (5.51)
Ø 220 (8.66)
194 (7.64)
Ø63
(2.48)
Ø76
(2.99)
Ø60
(2.36)
68
(2.68)
Ø 151 (5.94)
28
(1.1)
mm (inch)
36
(1.42) 140 (5.51)
194 (7.64)
68
(2.68)
Ø76
(2.99)
28
(1.1)
250 ... 2950 (9.84 ... 116)
mm (inch)

Installation Dipfit W CLA111
8Endress+Hauser
a0007041

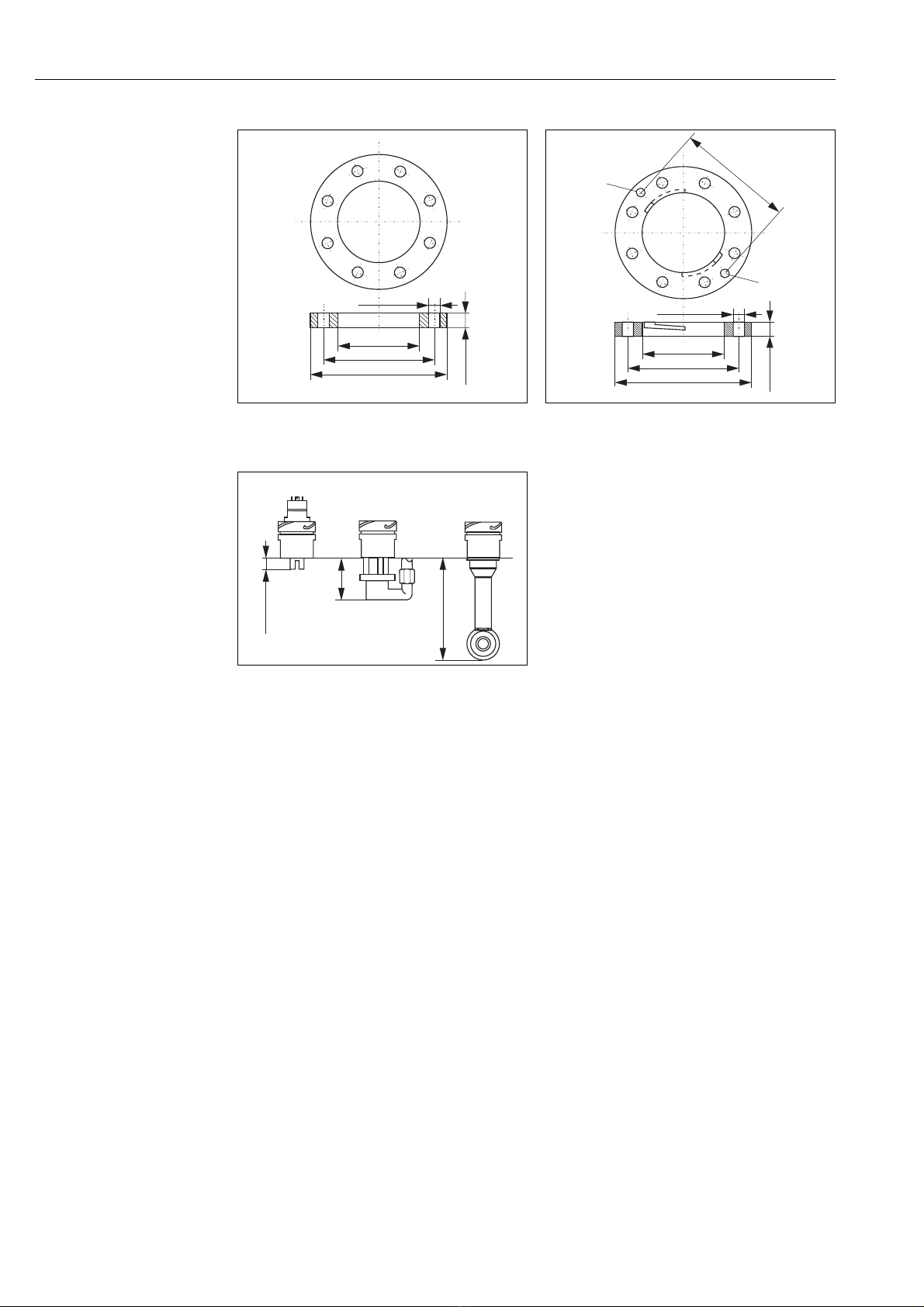

Fig. 4: Pressurized flange DN 100 for CLA111-C
a0007046
Fig. 5: Flange DN 100 for CLA111-A/B
a Through hole for star handle screws
a0007462
Fig. 6: *Length below the sensor holder
Ø18(0.71)
24(0.94)
133(5.24)
180(7.09)
220(8.66)
mm (inch)
a
a
194(7.64)
133(5.24)
180(7.09)
220(8.66)
Ø18(0.71)
24(0.94)
mm (inch)
24 (0.94)
67
(2.64)
148/153*
(5.83/6.02*)
CLS21 CLR30 CLS50
mm (inch)

Dipfit W CLA111 Installation
Endress+Hauser 9
3.3 Installation instructions
3.3.1 Measuring system
a0007461
Fig. 7: Example of a complete measuring system
1
2
3
Sensor holder
Immersion assembly Dipfit W CLA111
Measuring cable
4
5
6
Cable gland Pg 13.5
Extension cable
Transmitter Liquiline M CM42
1
2
3
4
56

Installation Dipfit W CLA111
10 Endress+Hauser
3.3.2 Installation of the assembly
a0007455
Fig. 8: Version A and C with flange DN 100
1 Phillips screw (4 pieces)
2 Assembly head
3 Dummy plug
4CableglandPg13.5
5 Star handle screws (not for pressurized version)
6 Flange DN 100 , A: standard , C: pressurized
flange
7 Assembly pipe
8 Sensor holder
9 Sensor holder with fixing bolts for Chemoclean
spray head CLR30
10 Quick fitting coupling for Chemoclean
11 Connecting pipe with pipe couplings for
Chemoclean
12 Spray head for Chemoclean

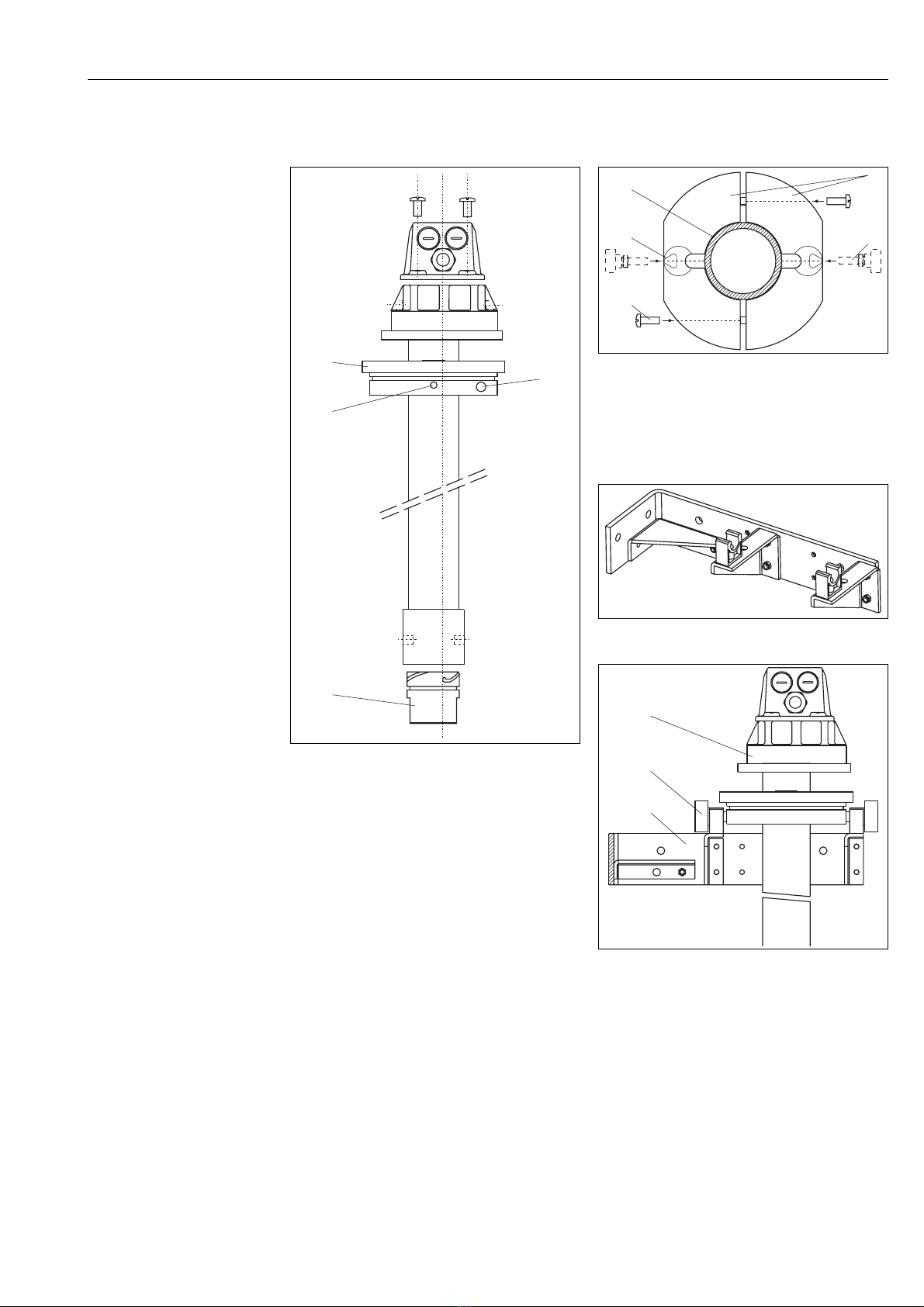

a0007459
Fig. 9: Version B with adjustable flange DN 100
1 Adjustable flange adapter (2 half-shells)
2 O-ring for tolerance compensation
3 Bayonet lock
4 Sensor holder
5 Tensioning screws (2 pieces)
6 Flange DN 100
1
2
3
4
5
6
7
8
9
10
11
12
1
2
3
3
4
5
6

Dipfit W CLA111 Installation
Endress+Hauser 11
Installation of the assembly with adjustable flange DN 100:
1. Attach flange DN 100 to mounting frame.
2. Put the half-shells (4) of the adapter to the desired position of the pipe.
3. Use the Phillips screws (1) to screw the half-shells together.
4. Put the O-ring in the O-ring groove.
5. Insert the assembly in the installed flange DN 100.
6. Hold the assembly at the assembly head and screw it clockwise into the bayonet until marker
“final position”(2).
Dismantling of the assembly
1. Leave the installed flange DN 100 on the mounting frame.
2. Hold the assembly at the assembly head and screw it counterclockwise out of the bayonet lock.
Take it out of the medium.
a0007049
Fig. 10: Adjustable flange adapter
1
2
3
4
Phillips screws
Marker "final position"
Assembly pipe
Half-shells
1
2
3
4

Installation Dipfit W CLA111
12 Endress+Hauser
3.3.3 Version with suspension bracket
Mounting
The suspended version of the assembly can be mounted at basins using the assembly holder
CYH101. The mounting chain allows a flexible immersion depth.
!Note!
The weight (5) is required to stabilize the assembly. Push it all the way down to the sleeve (7) before
you finally fix the cable clamp (6).
a0007460
1
2
3
4
5
6
7
8
9
Suspension bracket (AISI 316 Ti)
Dummy plug Pg 16
Assembly head
Cable gland Pg 13.5
Weight (half-shells)
Cable clamp to fix the half-shells
Sleeve
Sensor holder
Sensor
1
2
3
4
5
6
7
8
9

Dipfit W CLA111 Installation
Endress+Hauser 13
3.3.4 Version for pendulum frame mounting
a0007472
Fig. 11: Version F for pendulum frame mounting
1 Retaining ring (half-shells)
2 Threaded hole M8 for knurled thumb screw
3 Sensor holder
4 Tensioning screws (2 pieces) to fix the half-shells
a0007052
Fig. 12: Retaining ring
1Assemblypipe
2 Marker "final position"
3 Phillips screws
4 Half-shells
5 Knurled thumb screws
a0007053
Fig. 13: Pendulum frame
a0007054
Fig. 14: CLA111 mounted with pendulum frame
1Assembly
2 Knurled thumb screws
3Pendulumframe
1
2
3
4
1
2
3
4
5
1
2
3

Installation Dipfit W CLA111
14 Endress+Hauser
Mounting
The assembly version F is supplied with a retaining ring for pendulous suspension from the
pendulum frame.
Mounting the assembly:
1. Put the half-shells (Fig. 12, pos. 4) of the adapter to the desired position of the assembly pipe.
2. Fix the half-shells with the Phillips screws (Fig. 12 pos. 3).
3. Screw the stop nuts onto the two knurled thumb screws (Fig. 12, pos. 5).
4. Screw the knurled thumb screws into the bore holes M8 (Fig. 11, pos. 2).
5. Fix the knurled thumb screws with the stop nuts.
6. Hang the assembly into the pillow blocks of the pendulum frame (Fig. 14).

Dipfit W CLA111 Installation
Endress+Hauser 15
3.4 Sensor installation
3.4.1 Installation of CLS21
a0007452

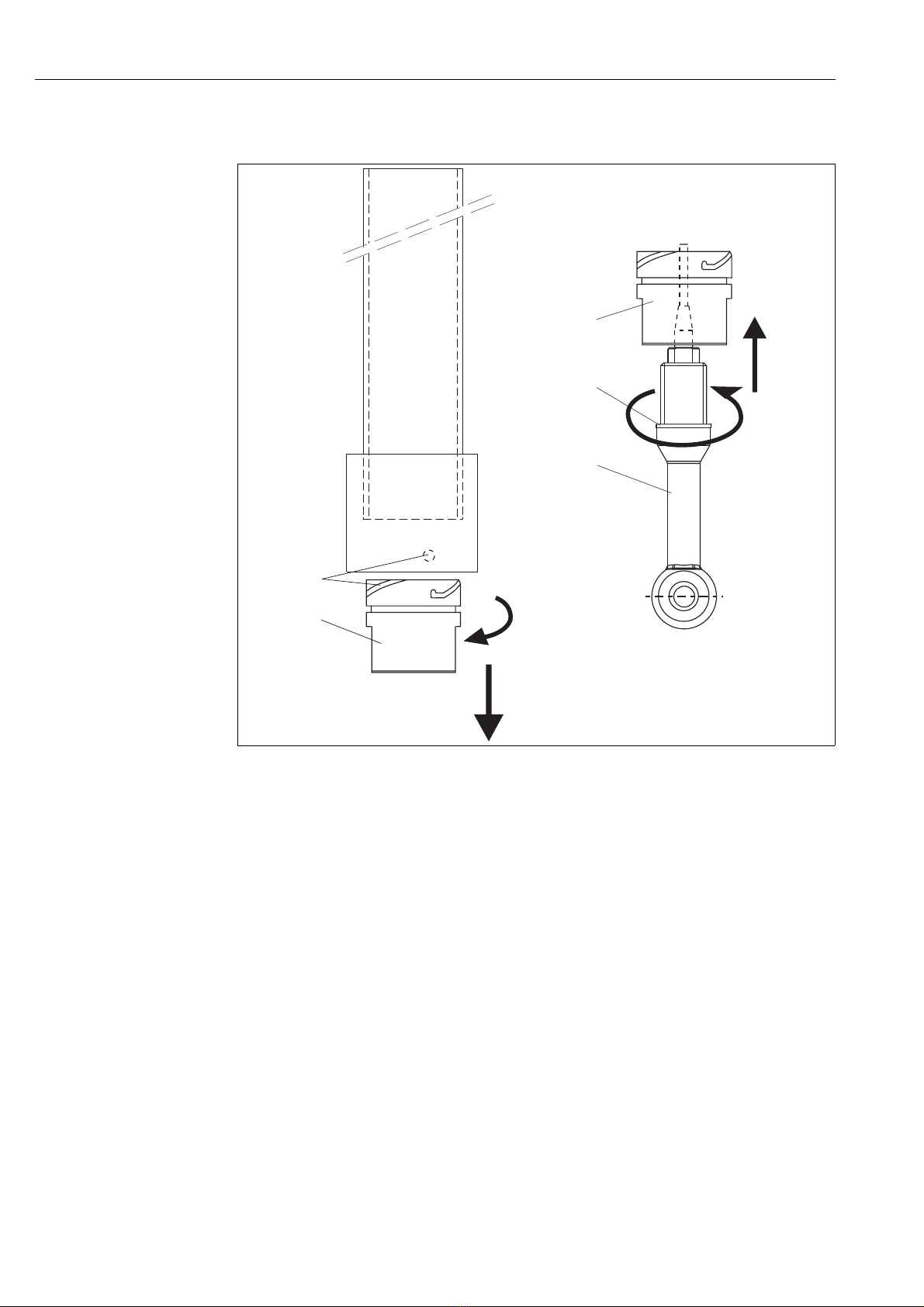

Fig. 15: Removal of the sensor holder and mounting of the sensor CLS21
1 Bayonet lock
2 Sensor holder
3O-ring
4SensorCLS21
Mounting of the sensor:
1. Push the O-ring (pos. 3) over the threaded shaft.
2. Screw the sensor holder (pos. 2) out of the bayonet lock (pos. 1).
3. Screw the sensor (pos. 4) into the sensor holder from above.
4. Screw the sensor holder into the bayonet lock.
1
22
3
4

Installation Dipfit W CLA111
16 Endress+Hauser
3.4.2 Installation of CLS50
a0007453
Fig. 16: Removal of the sensor holder and mounting of the sensor CLS50
1 Bayonet lock
2 Sensor holder
3Gasket
4SensorCLS50
Mounting of the sensor:
1. Push the gasket (pos. 3) over the threaded shaft.
2. Screw the sensor holder (pos. 2) out of the bayonet lock (pos. 1).
3. Lead the sensor cable from the bottom through the sensor holder and through the assembly
pipe.
4. Screw the sensor (pos. 4) from the bottom into the sensor holder.
5. Screw the sensor holder into the bayonet lock.
3.5 Post-installation check
• After installation, check that all connections are firmly in position and leak-tight.
• When mounting the assembly via pendulum frame, check if the assembly is moving freely.
1
2
2
3
4

Dipfit W CLA111 Wiring
Endress+Hauser 17
4 Wiring
4.1 Connection of the sensors
Connect the sensors CLS21D and CLS50 directly at the transmitter.
Connect the sensor CLS21 with the special measuring cable (included in the scope of delivery) at
the terminals in the assembly head.
Connection of the sensor CLS21:
1. Unscrew the cover (pos. 1) from the assembly head (pos. 3).
2. Push the measuring cable from the bottom through the assembly pipe.
3. Connect the measuring cable according to →Fig. 18 to the terminals (pos. 2) inside the
assembly head.
4. Push the plug (pos. 4) of the measuring cable onto the sensor head (pos. 5).
5. Screw the sensor holder (pos. 6) into the bayonet lock of the assembly pipe.
6. Mount a cable gland Pg 13.5 at the cover of the assembly head.
7. Lead the measuring cable CYK71 through the cable gland.
8. Connect the measuring cable CYK71 according to →Fig. 18 to the terminals (pos. 2).
9. Screw the cover onto the assembly head.
a0007456

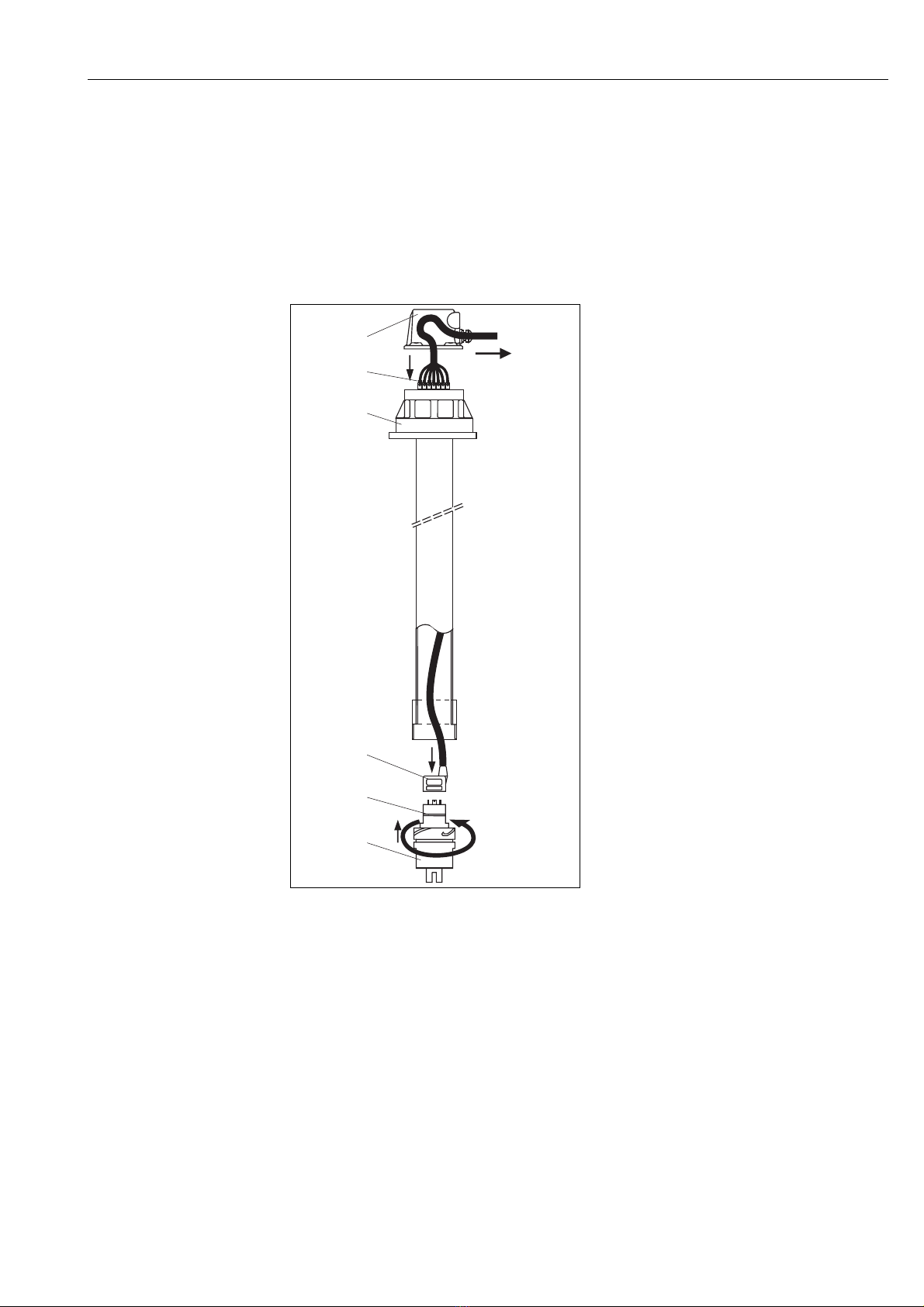

Fig. 17: Connection of the measuring cable for CLS21
1
2
3
4
5
6
Assembly head cover
Terminals
Assembly head
Plug of the measuring cable
Sensor CLS21
Sensor holder
1
2
3
4
5
6

Wiring Dipfit W CLA111
18 Endress+Hauser
a0007457

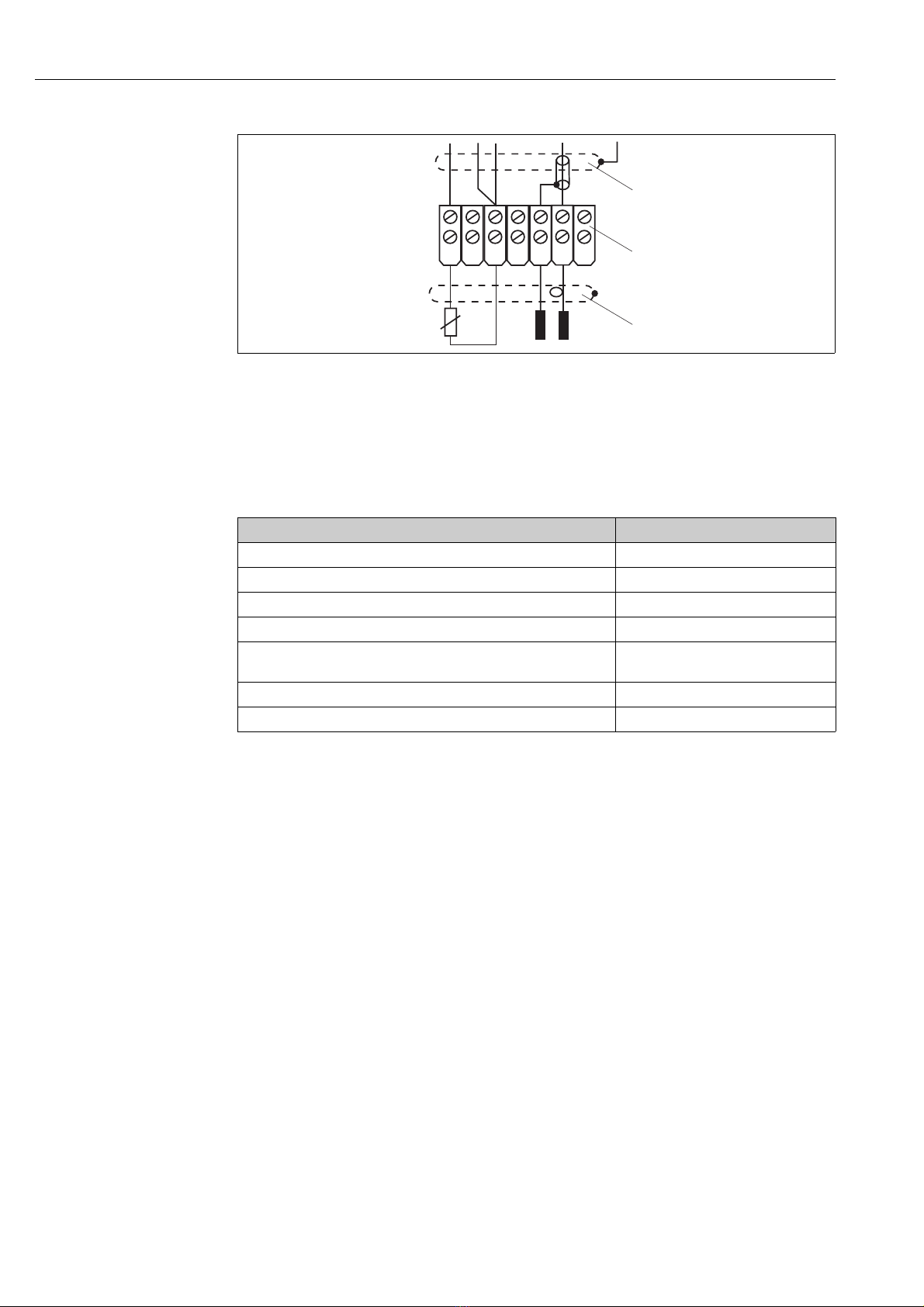

Fig. 18: Terminals for CLS21
1 Measuring cable CYK71 (to the transmitter)
2Terminals
3 Special measuring cable (to the sensor)
4.2 Post-connection check
123 4 567
BK BU YE BN
GN WH YE
1
2
3
Device condition and specifications Note
Is the sensor, junction box or cable damaged externally? Visual inspection
Electrical connection Notes
Are the mounted cables strain-relieved and not twisted?
No loops and cross-overs in the cable?
Are the power supply and signal cables correctly connected? Use the wiring diagram of the
transmitter
Are all screw terminals firmly tightened?
Are all cable entries installed, firmly tightened and correctly sealed?

Dipfit W CLA111 Maintenance
Endress+Hauser 19
5 Maintenance
#Warning!
Risk of injury!
Before starting maintenance work on the assembly, make sure that the process line and the tank are
depressurized, empty and rinsed.
5.1 Maintaining the assembly
To ensure a reliable measurement perform the following maintenance work:
• Replace damaged assembly parts.
• Keep O-rings and sealing surfaces clean.
• Replace damaged O-rings (apply a thin layer of grease to new or dry O-rings (e.g. Syntheso Glep)).
• Remove deposits from time to time.
5.2 Cleaning the sensor
You have to clean the sensor:
• before every calibration
• regularly during operation
• before being returned for repair
You can remove and clean the sensor manually or perform a cyclical cleaning operation with the
automatic cleaning system Chemoclean. A complete cleaning system consists of:
•SprayheadCLR30
• Cleaning injector CYR10
• Cleaning control, e.g. program sequencer CYR20 or internally via transmitter Mycom CLM153
or Liquisys M CLM223/253 with "Plus Package".
5.3 Cleaning agents
The selection of the cleaning agent is dependent on the degree and type of contamination. The most
common contaminations and the suitable cleaning agents are listed in the following table.
"Caution!
Do not use organic solvents containing halogen or acetone. These solvents could destroy plastic
components of the assembly or the sensor and it is also partly suspected that they cause cancer
(e.g. chloroform).
Type of contamination Cleaning agent
Greases and oils Hot water or tempered substances containing tensides (alkaline) or
water-soluble organic solvents (e.g. ethanol)
Calciferous deposits, metal hydroxide deposits,
lyophobic biological deposits
Approx. 3% hydrochloric acid
Sulphide deposits Mixture of 3% hydrochloric acid and thiocarbamide (commercially
available)
Protein deposits Mixture of 3% hydrochloric acid and pepsin (commercially
available)
Fibers, suspended substances Water under pressure, poss. with surface-active agents
Light biological deposits Water under pressure

Accessories Dipfit W CLA111
20 Endress+Hauser
6 Accessories
6.1 Installation material
Immersion assembly holder CYH101
• For pH, ORP, oxygen, conductivity assemblies and for oxygen and turbidity sensors;
• Ordering acc. to product structure (Technical Information TI092C/07/en)
Mounting frame for CPA111, CPA510, CPA530 and CLA111
• Material: stainless steel 1.4301 (AISI 304)
• Order number: 50066561
a0007060

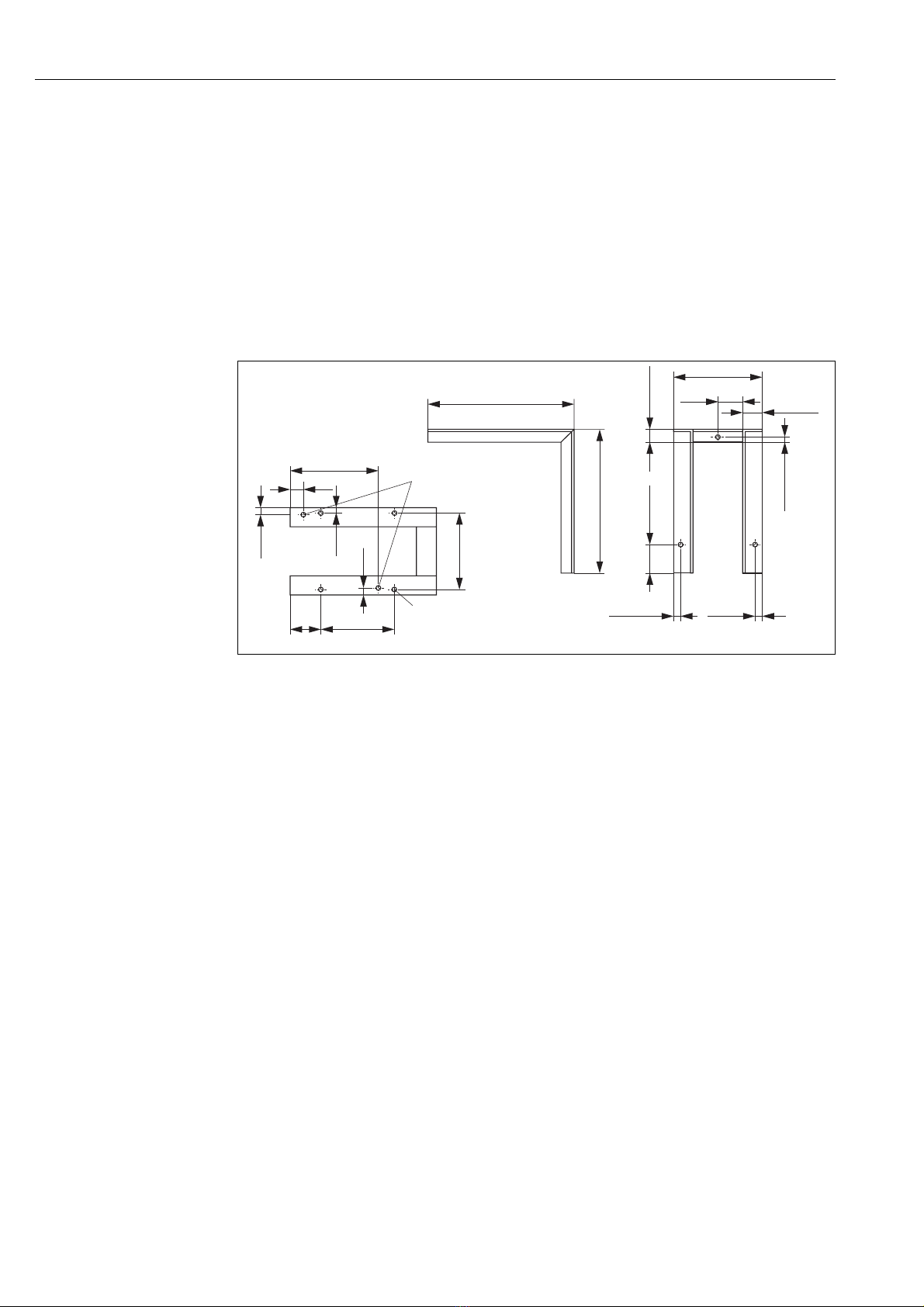

Fig. 19: Dimensions of mounting frame
Pendulum frame
• For pendulous suspension of CPA111, CLA111, CPA510 and CYA611 assemblies
• Order number: 50080196
Add-on kit pendulum frame
• To mount CPA111 and CLA111 at pendulum frame
• Order number: 50087873
Adjustable flange adapter DN 100
• For CPA111 and CLA111 with variable immersion depth
• Order number: 50070514
Flange DN 100 unpressurized
• For CPA111 and CLA111 suitable for the adjustable flange adapter
• Order number: 50066632
6.2 Sensors
Conductive conductivity sensors Condumax W CLS21/CLS21D
• Two-electrode sensor in fixed cable and plug-in head version
• Optionally with Memosens technology (CLS21D)
• With temperature sensor Pt 100 (CLS21) or NTC (CLS21D)
• Cell constant k = 1 cm-1
• Order according to product structure, see Technical Information TI085C/07/en
Inductive conductivity sensor Indumax P CLS50
• Highly resistant conductivity sensor for standard, Ex and high-temperature applications,
• Order according to product structure, see Technical Information TI182C/07/en
300 / 11.8
300 / 11.8
165/6.50
52.5 / 2.07
30 / 1.18
40 / 1.57
10/0.39 10/
0.39
10 / 0.39
30/1.18
2 x M10
144/5.67
4xØ9/0.35
150 /
5.91
35 /
1.38
150 /
5.91
10 /
0.39
10 /
0.39
7.5 /
0.30
15 /
0.59
mm / inch
