Safety instructions Oxymax H COS21D
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The sensor is suitable for continuous measurement of dissolved oxygen in water.
The sensor version determines what the sensor is especially suitable for:
• COS21D-A (measuring range 0.01 to 20 mg/l)
– Measuring, monitoring and regulating the oxygen content in fermenters
– Monitoring the oxygen contents in biotechnological systems
• COS21D-B (trace measurement with high CO2partial pressure, measuring range 0.001 to
20 mg/l, preferred operational range 0.001 to 2 mg/l)
– Monitoring inerting units in the food industry
– Monitoring the residual oxygen contents in carbonated media in the beverage industry
• COS21D-C (trace measurement, measuring range 0.001 to 20 mg/l, preferred operational
range 0.001 to 2 mg/l)
– Trace measurement in industrial applications such as inerting
– Monitoring residual oxygen contents in boiler feedwater
– Monitoring, measuring and regulating the oxygen contents in chemical processes
"Caution!
The sensor must not be used for measurement in hydrogen loaded media.
The COS21D sensor must be connected to the digital input of the Liquiline transmitter using the
CYK10 measuring cable for non-contact, digital data transfer.
Any other use than the one described here compromises the safety of persons and the entire
measuring system and is, therefore, not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.
1.2 Installation, commissioning and operation
Please note the following items:
• Installation, commissioning, operation and maintenance of the measuring system must only
be carried out by trained technical personnel.
The technical personnel must be authorized for the specified activities by the system operator.
• Electrical connection must only be carried out by a certified electrician.
• Technical personnel must have read and understood these Operating Instructions and must
adhere to them.
• Before commissioning the entire measuring point, check all the connections for
correctness. Ensure that electrical cables and hose connections are not damaged.
• Do not operate damaged products and secure them against unintentional
commissioning. Mark the damaged product as being defective.
• Measuring point faults may only be rectified by authorized and specially trained
personnel.
• If faults can not be rectified, the products must be taken out of service and secured against
unintentional commissioning.

Oxymax H COS21D Safety instructions
Endress+Hauser 5
• Repairs not described in these Operating Instructions may only be carried out at the
manufacturer’s or by the service organization.
1.3 Operational safety
The sensor has been designed and tested according to the state of the art and left the factory in
perfect functioning order.
Relevant regulations and European standards have been met.
As the user, you are responsible for complying with the following safety conditions:
• Installation instructions
• Local prevailing standards and regulations.
1.4 Safety Instructions for Ex versions
The inductive sensor-cable-plug-in system Memosens, consisting of
• oxygen sensor Oxymax H COS21D-*12*1 and
• measuring cable CYK10-G**1
is suitable for the use in explosion-hazardous areas acc. to the type-examination certificate
BVS 04 ATEX E 121 X . The corresponding EU declaration of conformity is part of this
document.
"Caution!
• The certified oxygen sensor Oxymax H COS21D-*12*1 in combination with the measuring
cable CYK10-G**1 may only be connected to certified, intrinsically-safe, digital sensor
circuits of the transmitter Liquiline M CM42-*G*********. The electrical connection must
be carried out in compliance with the wiring diagram.
• Oxygen sensors for use in Ex areas have a special, conductive O-ring. The metallic sensor shaft
is electrically connected to the conductive mounting location (e.g. a metallic assembly) by
means of the O-ring.
• You must take appropriate measures to connect the assembly or the mounting location to the
operational ground in accordance with Ex guidelines.
• The sensors must not be used under electrostatical critical process conditions. Strong vapour
or dust streams acting directly on the plug-in system are to be avoided.
• Ex versions of digital sensors with Memosens technology are marked with an orange-red ring
on the plug-in head.
• The maximum permissable cable length is 100 m (330 ft).
1.5 Return
If the sensor has to be repaired, please return it cleaned to the sales center responsible.
Please use the original packaging, if possible.
Please enclose the completed "Declaration of Hazardous Material and De-Contamination" (copy
the second last page of these Operating Instructions) with the packaging and the transportation
documents.
No repair without completed declaration!

Identification Oxymax H COS21D
6Endress+Hauser
2 Identification
2.1 Product structure
2.2 Scope of delivery
The following items are included in the delivery:
• Oxygen sensor with transport protection cap for membrane protection
• Electrolyte, 1 bottle, 25 ml (0.85 fl.oz.)
• Pipette for filling with electrolyte
• Operating Instructions, English
If you have any questions, please contact your supplier or your sales center responsible.
2.3 Certificates and approvals
2.3.1 Ex approval
Versions COS21D-A*2*1, COS21D-C*2*1
ATEX II 1G EEx ia IIC T3/T4/T6
Versions COS21D-**3*1
FM/CSA
Class I, Div. 1, Groups A, B, C, D, T3/T4/T6
Class I, Zone 0, AEx ia IIC, T3/T4/T6
Notified body
EXAM BBG Prüf- und Zertifizier GmbH
Bochum
Application, operational range
A Standard 0.01 to 20 mg/l
B Trace, beverages (CO2compatible) 0.001 to 2 mg/l
C Trace, power plants 0.001 to 2 mg/l
Shaft length
1 120 mm (4.72")
Approvals
1None
2 ATEX (ATEX II 1G EEx ia IIC T3/T4/T6, COS21D-A* and COS21D-C* only)
3FM/CSA(
COS21D-A* and COS21D-C* only)
Certificates
1None
2 EN10204 3.1
Options
1None
2 FDA membrane cap
COS21D- Complete order code

Oxymax H COS21D Identification
Endress+Hauser 7
2.3.2 FDA conformity
The manufacturer declares the FDA compliance of the materials used.
You can download the certificates from the product page (www.endress.com).
a0007207

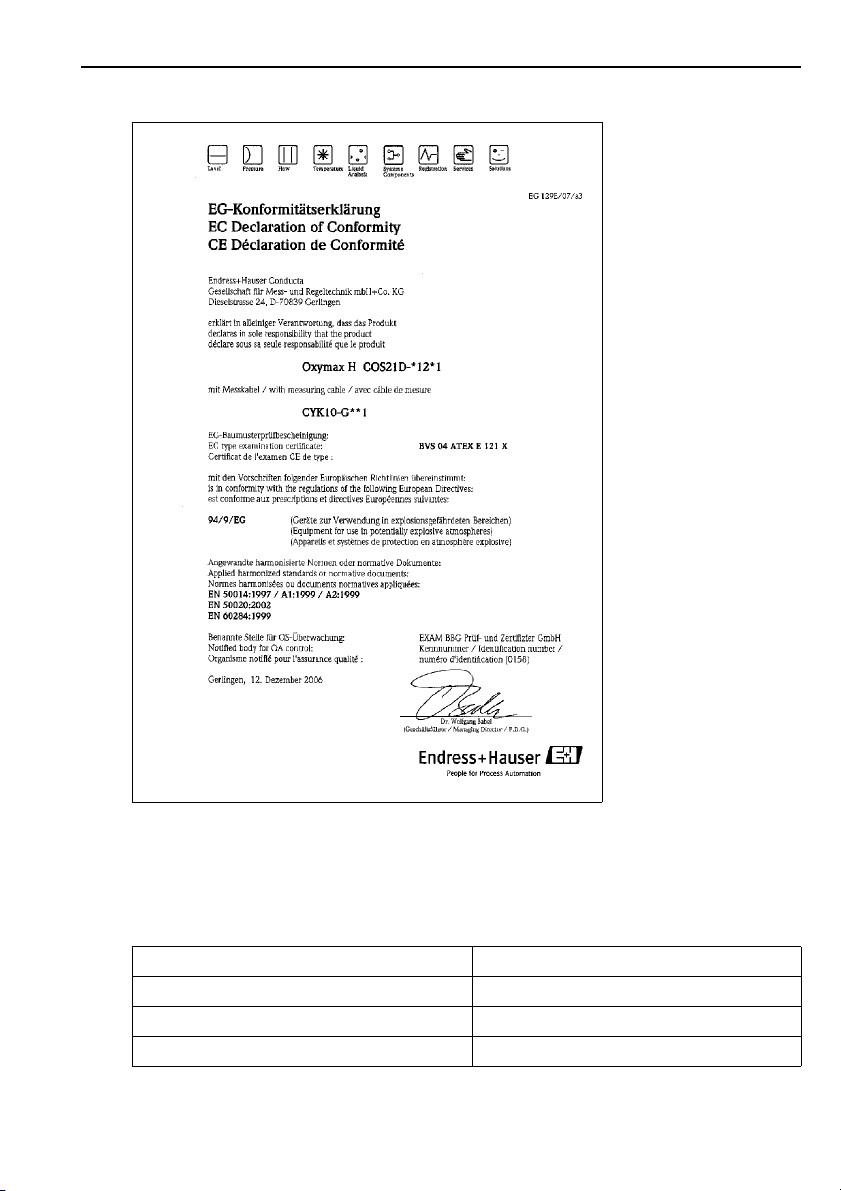

Fig. 1: EC declaration of conformity
Product FDA certificate for
COS21D-**1*2 Membrane, O-rings
COS21D-**1*1 when using membrane kits 71003199, 71023226
Membrane kits 71003199, 71023226 Membrane, O-rings

Installation Oxymax H COS21D
8Endress+Hauser
3 Installation
3.1 Incoming acceptance, transport, storage
• Make sure the packaging is undamaged!
Inform the supplier about damage to the packaging. Keep the damaged packaging until the
matter has been settled.
• Make sure the contents are undamaged!
Inform the supplier about damage to the delivery contents. Keep the damaged products until
the matter has been settled.
• Check that the scope of delivery is complete and agrees with your order and the shipping
documents.
• The packaging material used to store or to transport the product must provide shock
protection and humidity protection. The original packaging offers the best protection. Also,
keep to the approved ambient conditions (see "Technical data").
• If you have any questions, please contact your supplier or your sales center responsible.
3.2 Installation conditions
3.2.1 Angle of installation
The sensor must be installed with an angle of inclination of at least 10 ° to the horizontal in an
assembly, support or a suitable process connection. Other angles are not permissible. Do not
install the sensor overhead.
!Note!
Make sure you comply with the instructions for installing sensors. You will find them in the
Operating Instructions for the assembly used.

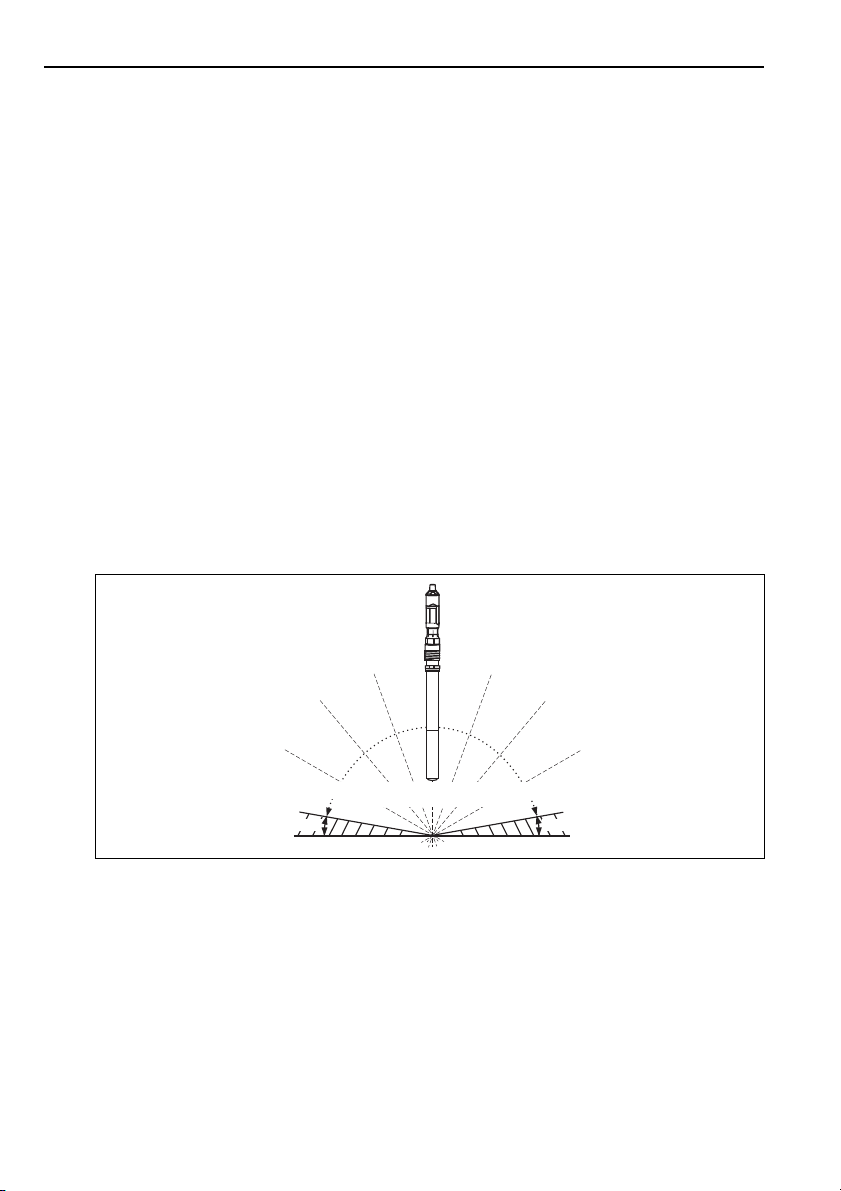

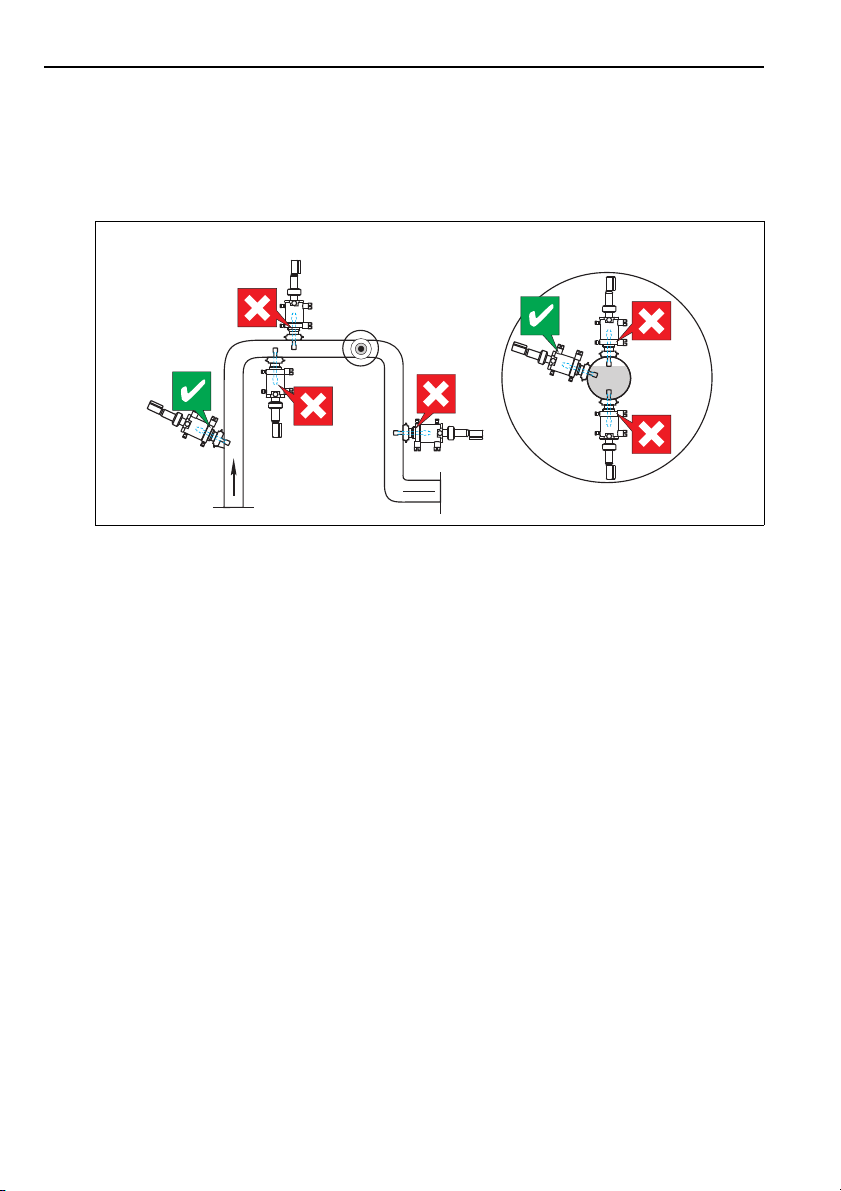

a0005584-en
Fig. 2: Permitted angle of installation
10° 10° Not permissible!
Not permissible!
Permissible angle of installation

Oxymax H COS21D Installation
Endress+Hauser 9
3.2.2 Mounting location
• Select the installation location so that there is easy access for later calibration.
• Make sure that upright posts and assemblies are secured safely and vibration-free.
• For immersed operation in an activated sludge basin, select an installation location which
produces a typical oxygen concentration.
3.3 Installation instructions
3.3.1 Measuring system
A complete measuring system comprises:
• The digital oxygen sensor Oxymax H COS21D
• A transmitter, e.g. Liquiline M CM42
• An appropriate measuring cable, e.g. CYK10
• Optional: an assembly, e.g. fixed installation assembly CPA442, flow assembly CPA240 or
retractable assembly CPA475
a0001398
Fig. 3: Example of a measuring system
1 Liquiline M CM42
2 Measuring cable CYK10
3 Digital oxygen sensor Oxymax H COS21D
4 Fixed installation assembly CPA442
1
2
3
4

Installation Oxymax H COS21D
10 Endress+Hauser
3.3.2 Installing a measuring point
For a complete installation of a measuring point, proceed as follows:
1. Install a retractable or a flow assembly (if used) into the process.
2. Connect the water supply to the rinse connections (if you use an assembly with cleaning
function).
3. Install and connect the oxygen sensor.
"Caution!
•Do not install the sensor suspended from the cable.
• Screw the sensor into the assembly so that the cable is not twisted.
• Mounting or dismounting the sensor: hold the sensor body, only turn the threaded plug-in
head while screwing the sensor in or out of the assembly. Otherwise you could unscrew the
sensor’s membrane cap. It will remain in the assembly resp. in the process then.
• Avoid exerting excessive tensile force on the cable (e.g. from jerky pulling).
• Select the installation location so that there is easy access for later calibration.
#Warning!
When using metallic assemblies and installation equipment, comply with national grounding
regulations.

Oxymax H COS21D Installation
Endress+Hauser 11
3.4 Installation examples
3.4.1 Fixed installation (CPA442)
The CPA442 fixed installation assembly allows a sensor to be easily adapted to almost any
process connections from Ingold nozzles to Varivent or Triclamp connections.
This type of installation is very suitable for tanks and larger pipes. The sensor achieves a defined
immersion depth in the medium in an easy manner →å3.
3.4.2 Flow assembly (CPA240)
The CPA240 flow assembly offers up to three installation slots for sensors with a shaft diameter
of 12 mm (0.47"), a shaft length of 120 mm (4.72") and a process connection Pg 13.5.
It is very suitable for use in pipes or at hose connections.
During trace measurement in particular, ensure the assembly is completely vented to avoid
measuring errors.
a0005720

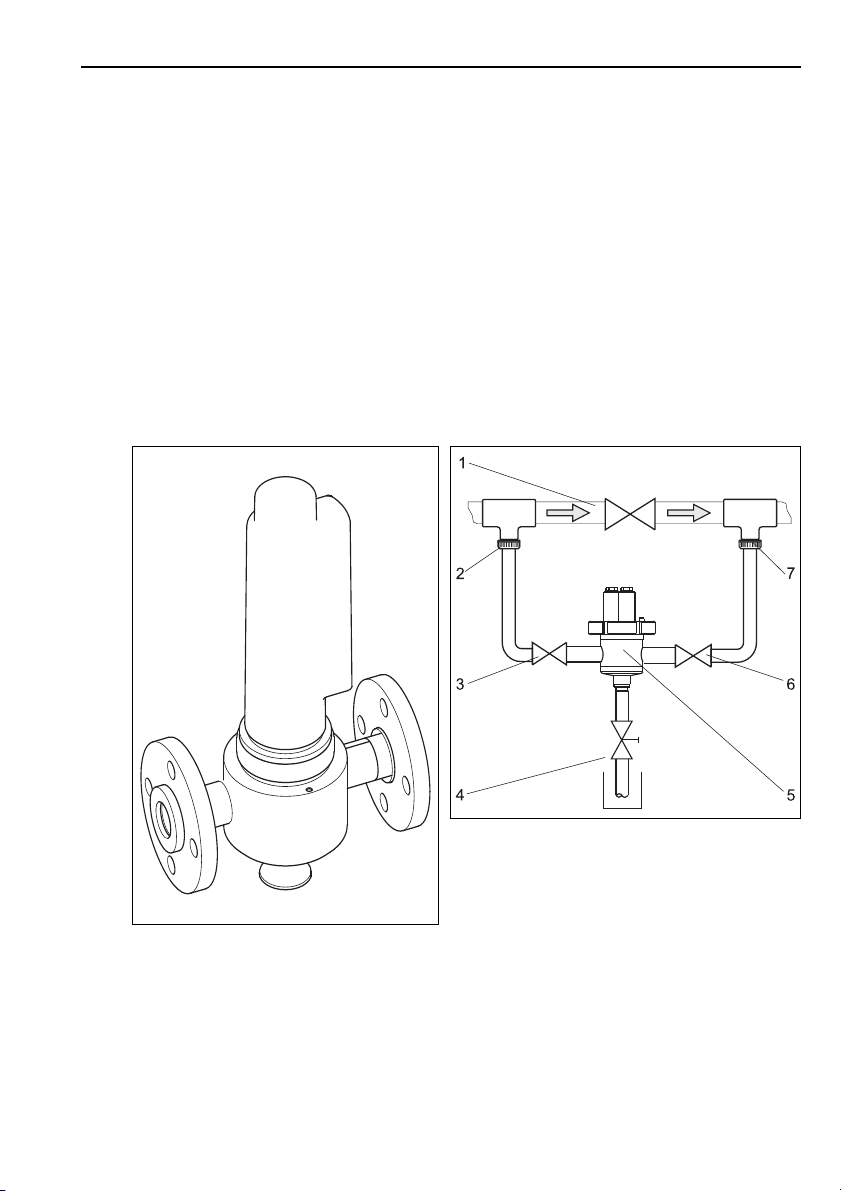

Fig. 4: CPA240 flow assembly with protective hood
a0005721
Fig. 5: Bypass installation
1 Main line
2 Medium removal
3, 6 Manually actuated or solenoid valves
4 Sampling
5 Flow assembly with installed sensor
7 Medium return

Installation Oxymax H COS21D
12 Endress+Hauser
3.4.3 Retractable assembly (CPA475 or CPA450)
The assembly is designed for installation on tanks and pipes. Suitable nozzles must be available
for this.
Install the assembly at places with constant flow. The minimum pipe diameter is DN 80.
a0005722-en
Fig. 6: Suitable and unsuitable installation positions with a retractable assembly
1 Ascending pipe, best position
2 Horizontal pipe, sensor top down, impermissible due to air cushion or foam bubble forming
3 Horizontal pipe, installation with permissible installation angle (acc. to sensor version)
4 Overhead installation, impermissible due to missing electrolyte contact of the sensor electrodes
5 Down pipe, impermissible
!Note!
Do not install the assembly at places where air cushions or foam bubbles can form.
Measuring errors can occur, if:
• the sensor is not immersed into the medium
• suspended particles are settled on the sensor membrane
• the sensor is installed overhead.
3.5 Post-installation check
• Sensor and cable undamaged?
• Cap undamaged?
• Compliance with permissible sensor installation position?
• Is the sensor installed in an assembly and is not suspended from the cable?
• Avoid moisture by rain by putting the protective cap on the assembly?
5
3
41
2
3
4
2
Detail A,
(top view)
Detail A, rotated
(side view)
90°

Oxymax H COS21D Wiring
Endress+Hauser 13
4 Wiring
#Warning!
• The electrical connection must only be carried out by a certified electrician.
• Technical personnel must have read and understood the instructions in this manual and must
adhere to them.
• Ensure that there is no voltage at the power cable before beginning the connection work.

Wiring Oxymax H COS21D
14 Endress+Hauser
4.1 Sensor version for Ex applications
4.1.1 Quick wiring guide
a0006059
Fig. 7: Connection in the Ex area

Oxymax H COS21D Wiring
Endress+Hauser 15
4.1.2 Temperature classes
!Note!
If the ambient temperatures indicated are observed, no temperatures which are impermissible
for the temperature class in question will occur at the sensor.
4.2 Direct connection to Liquiline M
Temperature class
T3 T4 T6
Ambient temperature Ta–5 ... +135 °C –5 ... +120 °C –5 ... +70 °C
Reference temperature Tref +25 °C
a0006130

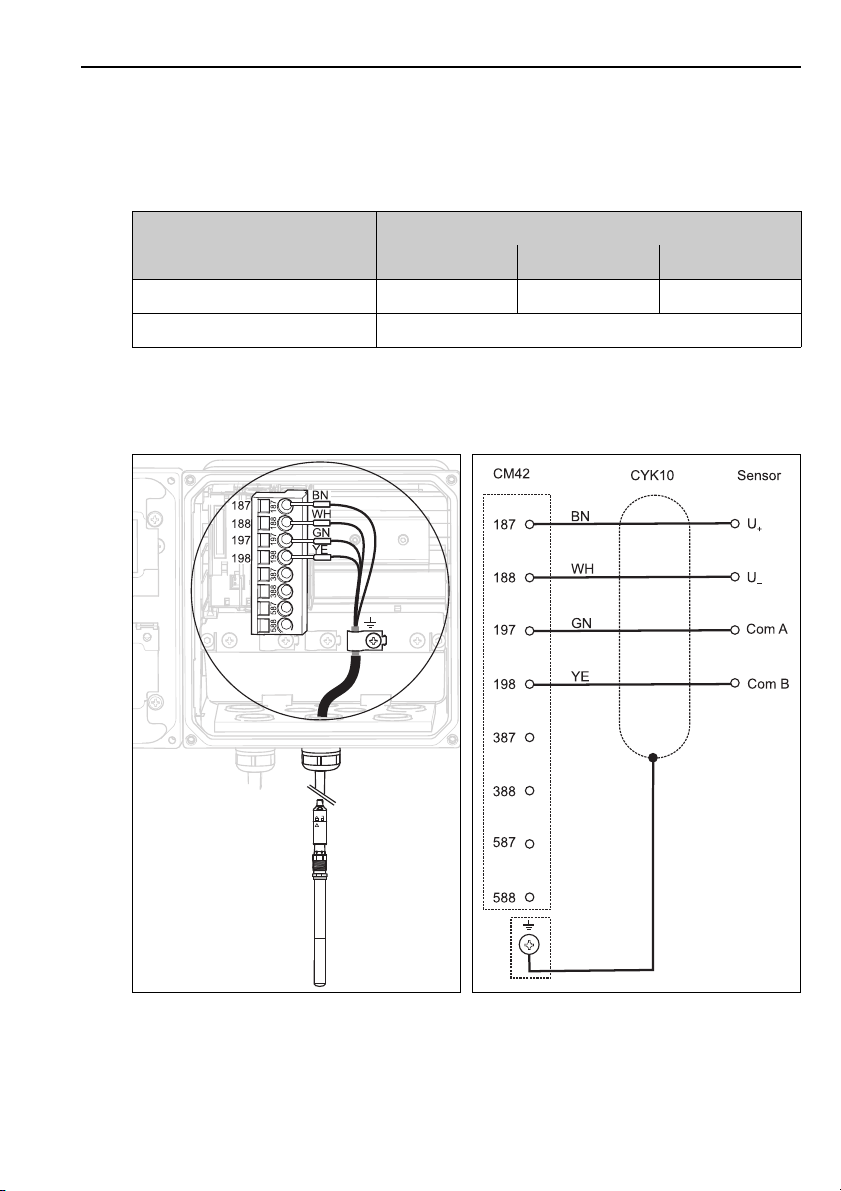

Fig. 8: View in device (sensor module)
a0001078
Fig. 9: Wiring diagram

Wiring Oxymax H COS21D
16 Endress+Hauser
4.3 Connection via junction box
To extend the sensor cable, the connection has to take place using a junction box RM (-->
Accessories). The extension to the transmitter is established by means of the CYK81 special
measuring cable.
The maximum permissible cable length is 100 m (328 ft).
4.4 Post-connection check
a0005724

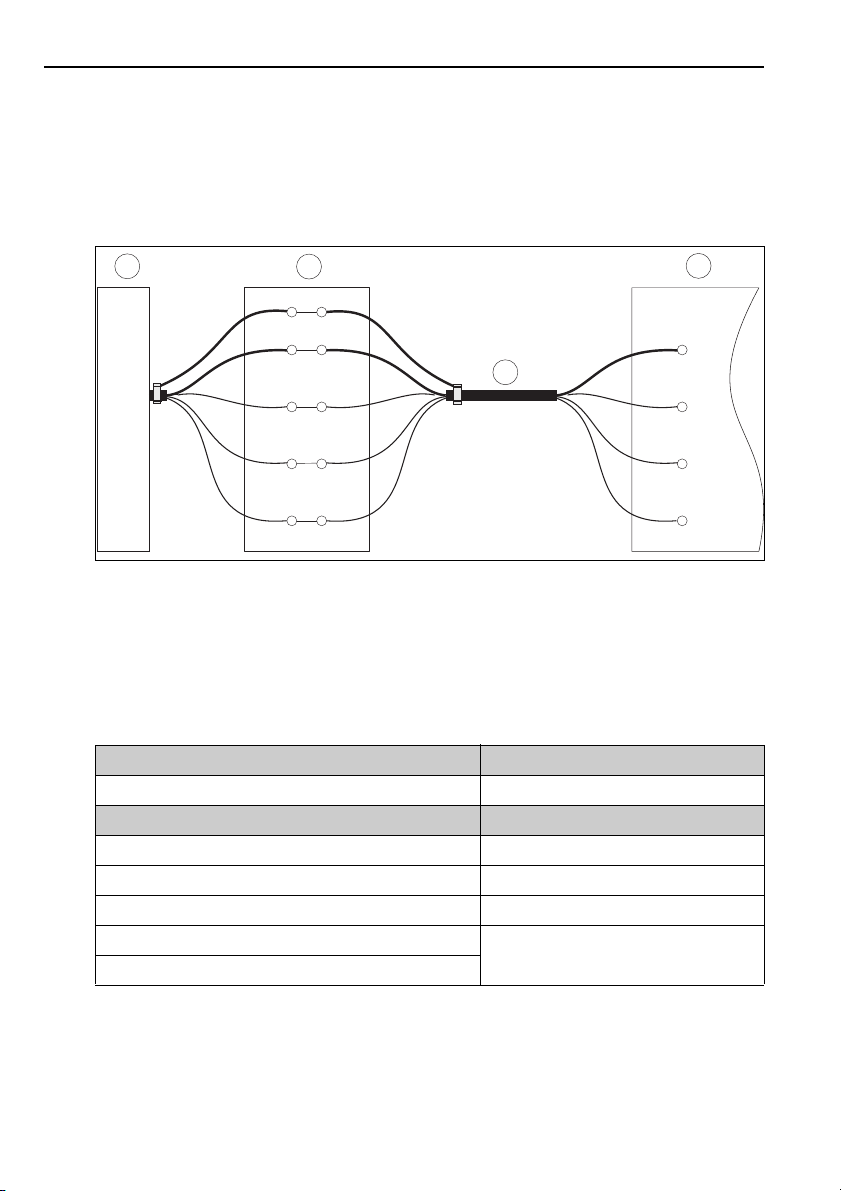

Fig. 10: Wiring diagram with junction box RM
1Sensor
2 Junction box
3 Extension cable
4Transmitter
Instrument status and specifications Remarks
Are the sensor, assembly, junction box or cable damaged? Visual inspection
Electrical connection Remarks
Are the installed cables strain-relieved and not twisted ?
Long enough length of cable core stripped and correct in terminal? Check seating (pull slightly)
Are all the screws terminals properly tightened ? Tighten
Are all the cable entries installed, tightened and sealed ? For cable entries lateral: cable loops downwards
for water to be able to drip off.
Are all the cable entries installed downwards or lateral ?
YE YE
BN
GN GN
YE
WH
187
188
197
198
12
3
4
GN
BN
WH
BN
WH
GY GY

Oxymax H COS21D Function
Endress+Hauser 17
5 Function
5.1 Sensor design
5.2 Measuring principle
5.2.1 Polarization
When the sensor is connected to the transmitter, a fixed external voltage is applied between the
cathode and anode. The resulting polarization current is indicated on the display of the
transmitter. The current starts high but then drops over time. The sensor can only be calibrated
when the display is stable.
a0005631

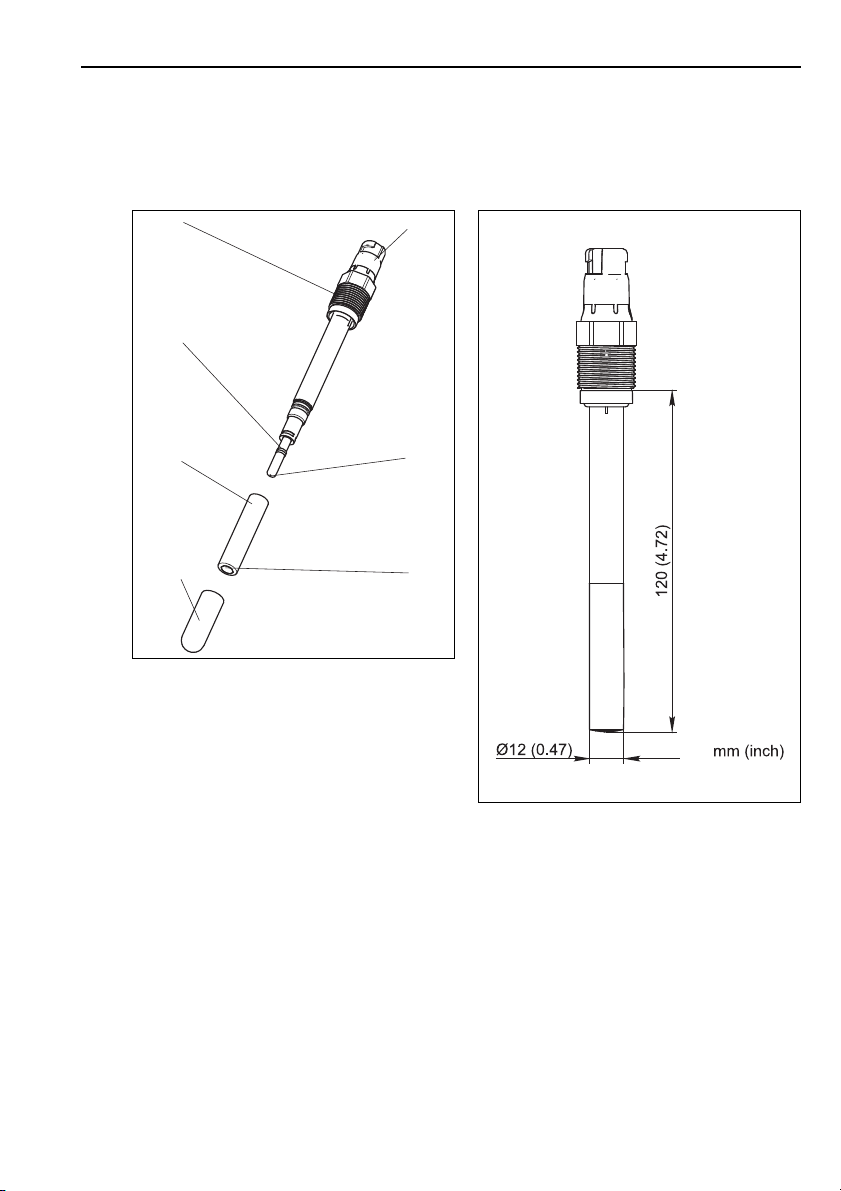

Fig. 11: Design
1 Threaded connection Pg 13.5
2Anode
3 Membrane cap
4 Protective cap
5 Memosens plug-in head
6Cathode
7Membrane a0005619
Fig. 12: Dimensions
1
2
3
4
5
6
7

Function Oxymax H COS21D
18 Endress+Hauser
Reference value for practically complete polarization of a sensor that was in storage for an
extended period beforehand:
• COS21D-A/C: 2 hours
• COS21D-B: 12 hours
After this time, measurements close to the determination limit make sense.
The polarization time needed is shorter for sensors which were in operation shortly beforehand.
5.2.2 Membrane cap
The oxygen dissolved in the medium is conveyed to the membrane by the incoming flow. The
membrane is only permeable for dissolved gases. Other substances dissolved in the liquid phase
e.g. ionic substances, will not penetrate through the membrane. Therefore, medium
conductivity has no impact on the measuring signal.
The sensor is supplied with a standard membrane cap which can be used for all common
applications.
The membrane cap is pretensioned at the factory and can be installed directly.
There are also special membrane cap kits as an option (--> Accessories):
• FDA-Kit: membrane materials are in conformity with FDA
• SIP/CIP-Kit: membrane material is specially designed for the high demands of frequent
SIP/CIP processes
!Note!
The electrolytes in the membrane caps are specific to the sensor versions and must not be mixed
together!
5.2.3 Amperometric principle
The oxygen molecules diffused through the membrane are reduced to hydroxide ions (OH-) at
the cathode. Silver is oxidized to silver ions (Ag+) at the anode (this forms a silver halogenide
layer).
A current flows due to the electron donation at the cathode and the electron acceptance at the
anode. Under constant conditions, this flow is proportional to the oxygen content of the
medium.
This current is converted in the transmitter and indicated on the display as an oxygen
concentration in mg/l, as a saturation index in % SAT or as an oxygen partial pressure in hPa.
5.2.4 Memosens technology
The sensor is connected to the cable connection (CYK10) without contact. The power and data
are transferred inductively
Once connected to the transmitter, the data saved in the sensor are read digitally. You can call
up these data using the corresponding DIAG menu.
Data that digital sensors save include the following:
• Manufacturer data
– Serial number
– Order code

Oxymax H COS21D Function
Endress+Hauser 19
– Date of manufacture
• Calibration data
– Calibration date
– Calibration values
– Number of calibrations
– Serial number of the transmitter used to perform the last calibration
• Operational data
– Date of commissioning
– Hours of operation under extreme conditions
– Number of sterilizations
– Data for sensor monitoring.
5.3 Calibration
Calibration is a means of adapting the transmitter to the characteristic values of the sensor.
Normally, sensor calibration is seldom necessary. It is necessary after:
• First commissioning
• Replacing a membrane or electrolyte
• Cleaning the cathode
• Long breaks in operation without power supply
Within the framework of system monitoring and supervision, for example, the calibration can
also be cyclically monitored (at typical time intervals, depending on operating experience) or
renewed.
5.3.1 Types of calibration
You can carry out single-point or two-point calibration for the sensor.
In most applications, single-point calibration suffices in the presence of oxygen (=calibration of
measured value at air).
The additional calibration of the zero point (two-point calibration) improves the precision of the
measurement results in the trace range. Calibrate the zero point with nitrogen (minimum
99.995%) or with water free from oxygen, for example. In doing so, make sure the measured
value has settled correctly (20 to 30 minutes) to avoid incorrect measurements in the trace range
at a later stage.
Types of calibration:
• Slope:
– Air (saturated with water vapor, e.g. near the water surface)
– Air-saturated water
– Variable air (entering the current relative humidity and the absolute air pressure)
–Dataentry
• Zero point:
– Zero point calibration (nitrogen or water free from oxygen)
–Dataentry

Function Oxymax H COS21D
20 Endress+Hauser
• Reference:
– Offset
– Slope
!Note!
The following section only describes the calibration in air (saturated with water vapor) as the
easiest method of calibration and therefore the recommended method.
However, this type of calibration is only possible if the air temperature is ≥–5 °C (23 °F).
5.3.2 Calibration in air
1. Remove the sensor from the medium.
2. Clean the outside of the sensor with a damp cloth.
Then dry the sensor membrane e.g. by using a tissue.
3. If the sensor is removed from a closed pressure system with a process pressure greater than
atmospheric pressure:
– Open the membrane cap to equilibrate the pressure and clean the cap if necessary.
– Replace the electrolyte filling and close the membrane cap again.
– Wait for the polarization time to end.
4. Then wait while the sensor adjusts to the temperature of the ambient air. This takes about
20 minutes. Check that the sensor is not in direct sunlight during this time.
5. If the measured value display on the transmitter is stable, carry out the calibration in
accordance with the Operating Instructions of the transmitter.
6. Place the sensor in the medium again.
!Note!
Make sure you comply with the instructions for calibration in the Operating Instructions of the
transmitter.
5.3.3 Calculation example for the calibration value
As a check, you can calculate the expected calibration value (transmitter display) as shown in
the following example (salinity is 0).
1. Determine:
– The ambient temperature for the sensor (air temperature for "air" calibration
method,water temperature for "air-saturated water" calibration type)
– the altitude above sea level
– the current air pressure (=rel. air pressure to sea level) at the time of calibration. (If
undeterminable, use 1013 hPa (407 inH2O) for an approximate calculation.)
2. Define:
– the saturation value Sacc. to the first table
– the factor Kacc. to the second table
