Brief Operating Instructions
Proline 100
Modbus RS485
Transmitter with
Coriolis sensor
These instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Transmitter Brief Operating Instructions
Contain information about the transmitter.
Sensor Brief Operating Instructions →  3
KA01335D/06/EN/01.17
71377320

Proline 100 Modbus RS485
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Proline 100 Modbus RS485 Brief Operating Instructions for the device
Endress+Hauser 3
Brief Operating Instructions for the device
The device consists of a transmitter and a sensor.
The process of commissioning these two components is described in two separate manuals:
• Sensor Brief Operating Instructions
• Transmitter Brief Operating Instructions
Please refer to both Brief Operating Instructions when commissioning the device as the
contents of the manuals complement one another:
Sensor Brief Operating Instructions
The Sensor Brief Operating Instructions are aimed at specialists with responsibility for
installing the measuring device.
• Incoming acceptance and product identification
• Storage and transport
• Installation
Transmitter Brief Operating Instructions
The Transmitter Brief Operating Instructions are aimed at specialists with responsibility for
commissioning, configuring and parameterizing the measuring device (until the first
measured value).
• Product description
• Installation
• Electrical connection
• Operation options
• System integration
• Commissioning
• Diagnostic information
Additional device documentation
These Brief Operating Instructions are the Transmitter Brief Operating Instructions.
The "Sensor Brief Operating Instructions" are available via:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Detailed information about the device can be found in the Operating Instructions and the
other documentation:
• Internet: www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App

Table of contents Proline 100 Modbus RS485
4 Endress+Hauser
Table of contents
1 Document information ............................................................ 5
1.1 Symbols used ......................................................................... 5
2 Basic safety instructions .......................................................... 7
2.1 Requirements for the personnel ............................................................ 7
2.2 Designated use ........................................................................ 7
2.3 Workplace safety ...................................................................... 8
2.4 Operational safety ......................................................................8
2.5 Product safety ......................................................................... 8
2.6 IT security ............................................................................ 9
3 Product description ............................................................... 9
4 Installation ....................................................................... 9
4.1 Mounting the measuring device ............................................................9
5 Electrical connection ............................................................ 11
5.1 Connection conditions .................................................................. 11
5.2 Connecting the measuring device ......................................................... 17
5.3 Special connection instructions ........................................................... 20
5.4 Hardware settings ..................................................................... 21
5.5 Ensuring the degree of protection ......................................................... 23
5.6 Post-connection check ..................................................................23
6 Operation options ............................................................... 24
6.1 Overview of operating options ............................................................ 24
6.2 Structure and function of the operating menu ................................................ 25
6.3 Access to the operating menu via the operating tool ............................................ 26
7 System integration .............................................................. 30
8 Commissioning .................................................................. 30
8.1 Function check ....................................................................... 30
8.2 Setting the operating language ........................................................... 30
8.3 Configuring the measuring device ......................................................... 30
8.4 Protecting settings from unauthorized access ................................................. 31
9 Diagnostic information .......................................................... 31

Proline 100 Modbus RS485 Document information
Endress+Hauser 5
1 Document information
1.1 Symbols used
1.1.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.1.2 Symbols for certain types of information
Symbol Meaning Symbol Meaning
Permitted
Procedures, processes or actions that
are permitted.
Preferred
Procedures, processes or actions that
are preferred.
Forbidden
Procedures, processes or actions that
are forbidden.
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
1.
,
2.
,
3.
… Series of steps
Result of a step Visual inspection
1.1.3 Electrical symbols
Symbol Meaning Symbol Meaning
Direct current Alternating current
Direct current and alternating current Ground connection
A grounded terminal which, as far as
the operator is concerned, is grounded
via a grounding system.

Document information Proline 100 Modbus RS485
6 Endress+Hauser
Symbol Meaning
Protective Earth (PE)
A terminal which must be connected to ground prior to establishing any other connections.
The ground terminals are situated inside and outside the device:
• Inner ground terminal: Connects the protectiv earth to the mains supply.
• Outer ground terminal: Connects the device to the plant grounding system.
1.1.4 Tool symbols
Symbol Meaning Symbol Meaning
Torx screwdriver Flat blade screwdriver
Cross-head screwdriver Allen key
Open-ended wrench
1.1.5 Symbols in graphics
Symbol Meaning Symbol Meaning
1, 2, 3,... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views A-A, B-B, C-C, ... Sections
-
Hazardous area
.
Safe area (non-hazardous area)
Flow direction

Proline 100 Modbus RS485 Basic safety instructions
Endress+Hauser 7
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
2.2 Designated use
Application and media
• The measuring device described in these Brief Operating Instructions is intended only for
flow measurement of liquids and gases.
• The measuring device described in these Brief Operating Instructions is intended only for
flow measurement of liquids.
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, in hygienic applications or where there is an
increased risk due to process pressure, are labeled accordingly on the nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
‣Keep within the specified pressure and temperature range.
‣Only use the measuring device in full compliance with the data on the nameplate and the
general conditions listed in the Operating Instructions and supplementary documentation.
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area (e.g. explosion protection, pressure vessel safety).
‣Use the measuring device only for media to which the process-wetted materials are
sufficiently resistant.
‣If the measuring device is not operated at atmospheric temperature, compliance with the
relevant basic conditions specified in the associated device documentation is absolutely
essential: "Documentation" section.
‣Protect the measuring device permanently against corrosion from environmental
influences.
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage caused
by improper or non-designated use.
LWARNING
Danger of breakage due to corrosive or abrasive fluids!
‣Verify the compatibility of the process fluid with the sensor material.
‣Ensure the resistance of all fluid-wetted materials in the process.
‣Keep within the specified pressure and temperature range.

Basic safety instructions Proline 100 Modbus RS485
8 Endress+Hauser
NOTICE
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability as minute changes in the temperature, concentration or level of
contamination in the process can alter the corrosion resistance properties.
Residual risks
LWARNING
The electronics and the medium may cause the surfaces to heat up. This presents a burn
hazard!
‣For elevated fluid temperatures, ensure protection against contact to prevent burns.
Only applies for Proline Promass E, F, O, X and Cubemass C
LWARNING
Danger of housing breaking due to measuring tube breakage!
‣In the event of a measuring tube breakage for a device version without rupture disk it is
possible for the pressure loading capacity of the sensor housing to be exceeded. This can
lead to rupture or failure of the sensor housing.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
For welding work on the piping:
‣Do not ground the welding unit via the measuring device.
If working on and with the device with wet hands:
‣Due to the increased risk of electric shock, gloves must be worn.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EU
directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.

Proline 100 Modbus RS485 Product description
Endress+Hauser 9
2.6 IT security
We only provide a warranty if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.
3 Product description
The device consists of a transmitter and a sensor.
The device is available as a compact version:
The transmitter and sensor form a mechanical unit.
Applies for Promass, Cubemass, CNGmass, LNGmass and LPGmass
If a device with Modbus RS485 intrinsically safe is ordered, the Safety Barrier Promass 100 is
part of the scope of supply and must be implemented to operate the device.
For detailed information on the product description, see the Operating Instructions for
the device
4 Installation
For detailed information about mounting the sensor, see the Sensor Brief Operating
Instructions →  3
4.1 Mounting the measuring device
4.1.1 Turning the display module
The local display is only available with the following device version:
Order code for "Display; operation", option B: 4-line; illuminated, via communication
The display module can be turned to optimize display readability.

Installation Proline 100 Modbus RS485
10 Endress+Hauser
Aluminum housing version
1.
2.
3.
4.
5.
6.
7.
4.
4.
3 mm
A0023192
Compact and ultra-compact housing versions
1.
2.
3.
4.
5.
6.
3.
3. 3.
8 mm
A0023195

Proline 100 Modbus RS485 Electrical connection
Endress+Hauser 11
5 Electrical connection
NOTICE
The measuring device does not have an internal circuit breaker.
‣For this reason, assign the measuring device a switch or power-circuit breaker so that the
power supply line can be easily disconnected from the mains.
‣Although the measuring device is equipped with a fuse, additional overcurrent protection
(maximum 16 A) should be integrated into the system installation.
5.1 Connection conditions
5.1.1 Required tools
• For cable entries: Use corresponding tools
• For securing clamp (on aluminum housing): Allen screw3 mm
• For securing screw (for stainless steel housing): open-ended wrench 8 mm
• Wire stripper
• When using stranded cables: crimper for wire end ferrule
5.1.2 Requirements for connecting cable
The connecting cables provided by the customer must fulfill the following requirements.
Electrical safety
In accordance with applicable federal/national regulations.
Permitted temperature range
• The installation guidelines that apply in the country of installation must be observed.
• The cables must be suitable for the minimum and maximum temperatures to be expected.
Power supply cable
Standard installation cable is sufficient.
Signal cable
Modbus RS485
The EIA/TIA-485 standard specifies two types of cable (A and B) for the bus line which can be
used for every transmission rate. Cable type A is recommended.
For detailed information about the specification of the connecting cable, see the
Operating Instructions for the device.

Electrical connection Proline 100 Modbus RS485
12 Endress+Hauser
Connecting cable between Safety Barrier Promass 100 and measuring device
Cable type Shielded twisted-pair cable with 2x2 wires. When grounding the cable shield, observe
the grounding concept of the plant.
Maximum cable resistance 2.5 Ω, one side
Comply with the maximum cable resistance specifications to ensure the operational
reliability of the measuring device.
Wire cross-section Maximum cable length
[mm2] [AWG] [m] [ft]
0.5 20 70 230
0.75 18 100 328
1.0 17 100 328
1.5 16 200 656
2.5 14 300 984
Cable diameter
• Cable glands supplied:
M20 × 1.5 with cable ⌀ 6 to 12 mm (0.24 to 0.47 in)
• Spring terminals:
Wire cross-sections 0.5 to 2.5 mm2 (20 to 14 AWG)
• With Safety Barrier Promass 100:
Plug-in screw terminals for wire cross-sections0.5 to 2.5 mm2 (20 to 14 AWG)
5.1.3 Terminal assignment
The terminal assignment for the electrical connection of the device can be found on the
connection nameplate of the electronics module.
In addition, the device version with Modbus RS485 is supplied with the Safety Barrier Promass
100 whose nameplate also bears information on the terminals.
Transmitter

Proline 100 Modbus RS485 Electrical connection
Endress+Hauser 13
Device version with Modbus RS485 communication protocol
L
L
26
27 A
B
1
2
+
_1
2
A0019528
 1 Modbus RS485 terminal assignment, connection version for use in non-hazardous areas and Zone
2/Div. 2
1 Power supply: DC 24 V
2 Output: Modbus RS485
L
L
62
72 A
B
10
20
+
_1
2
A0017053
 2 Modbus RS485 terminal assignment, connection version for use in intrinsically safe areas
(connection via Safety Barrier Promass 100)
1 Power supply: DC 24 V
2 Output: Modbus RS485

Electrical connection Proline 100 Modbus RS485
14 Endress+Hauser

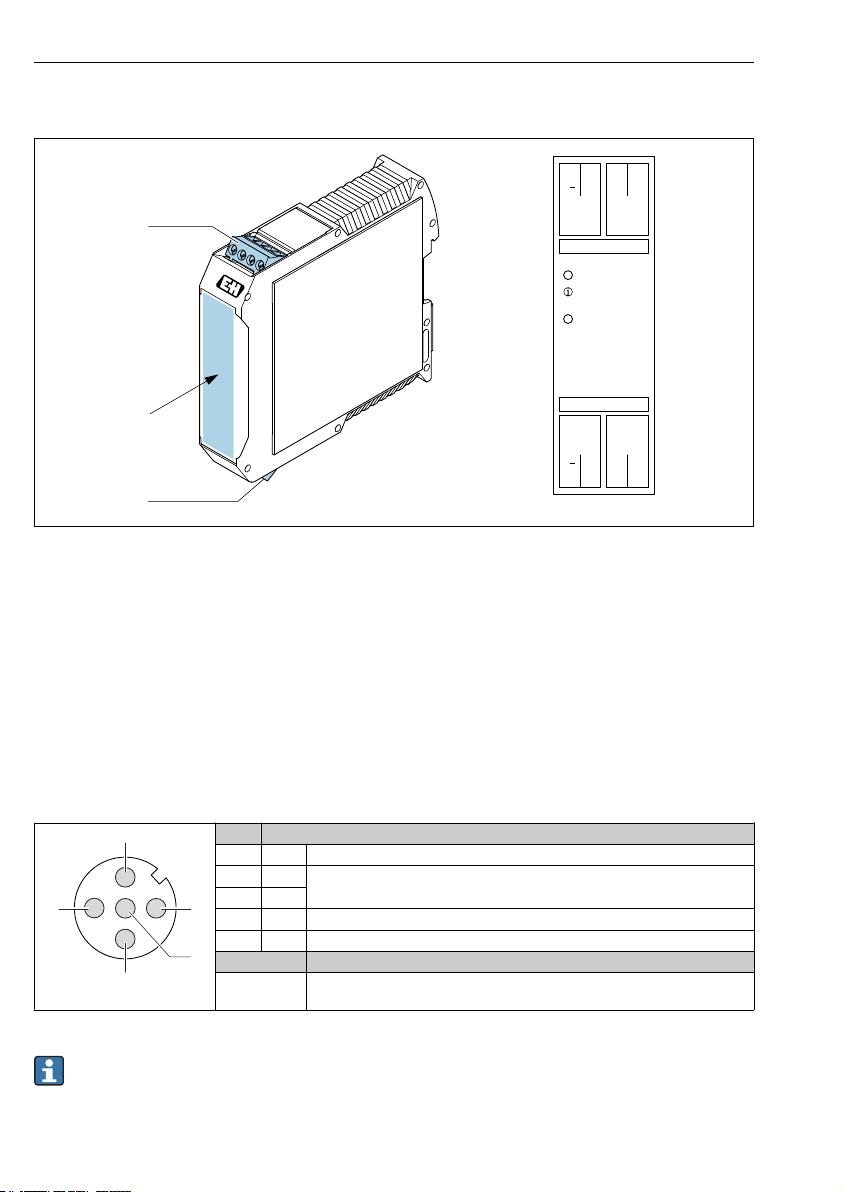

Safety Barrier Promass 100
A
Safe area
1
L+
2
L
27
26
BA
Power
supply
24VDC
Modbus
RS485
1020 72 62
L+L B A
Power
supply
Modbus
RS485
Hazardous area
Safety Barrier
Promass 100
Power
Communication
Lift panel for
bus termination
1
2
A
A0016922
 3 Safety Barrier Promass 100 with terminals
1 Non-hazardous area and Zone 2/Div. 2
2 Intrinsically safe area
5.1.4 Pin assignment, device plug
Supply voltage
Promass 100
Device plug for signal transmission with supply voltage (device side), MODBUS RS485
(intrinsically safe)
1
2
4
3
5
A0016809
Pin Assignment
1 L+ Supply voltage, intrinsically safe
2 A Modbus RS485 intrinsically safe
3 B
4 L- Supply voltage, intrinsically safe
5 Grounding/shielding
Coding Plug/socket
A Plug
Device plug for supply voltage (device side), MODBUS RS485 (not intrinsically safe)
For use in the non-hazardous area and Zone 2/Div. 2.

Proline 100 Modbus RS485 Electrical connection
Endress+Hauser 15
1
2
4
3
5
A0016809
Pin Assignment
1 L+ DC 24 V
2 Not assigned
3 Not assigned
4 L- DC 24 V
5 Grounding/shielding
Coding Plug/socket
A Plug
Signal transmission
Promass
Device plug for signal transmission (device side), MODBUS RS485 (not intrinsically safe)
For use in the non-hazardous area and Zone 2/Div. 2.
3
2
4
1
5
A0016811
Pin Assignment
1 Not assigned
2 A Modbus RS485
3 Not assigned
4 B Modbus RS485
5 Grounding/shielding
Coding Plug/socket
B Socket
5.1.5 Shielding and grounding
Modbus
The shielding and grounding concept requires compliance with the following:
• Electromagnetic compatibility (EMC)
• Explosion protection
• Personal protection equipment
• National installation regulations and guidelines
• Observe cable specification .
• Keep the stripped and twisted lengths of cable shield to the ground terminal as short as
possible.
• Seamless cable shielding.
Grounding of the cable shield
To comply with EMC requirements:
• Ensure the cable shield is grounded to the potential matching line at multiple points.
• Connect every local ground terminal to the potential matching line.

Electrical connection Proline 100 Modbus RS485
16 Endress+Hauser
NOTICE
In systems without potential matching, the multiple grounding of the cable shield causes
mains frequency equalizing currents!
Damage to the bus cable shield.
‣Only ground the bus cable shield to either the local ground or the protective ground at one
end.
5.1.6 Preparing the measuring device
NOTICE
Insufficient sealing of the housing!
Operational reliability of the measuring device could be compromised.
‣Use suitable cable glands corresponding to the degree of protection.
1. Remove dummy plug if present.
2. If the measuring device is supplied without cable glands:
Provide suitable cable gland for corresponding connecting cable.
3. If the measuring device is supplied with cable glands:
Observe requirements for connecting cables →  11.

Proline 100 Modbus RS485 Electrical connection
Endress+Hauser 17
5.2 Connecting the measuring device
NOTICE
Limitation of electrical safety due to incorrect connection!
‣Have electrical connection work carried out by appropriately trained specialists only.
‣Observe applicable federal/national installation codes and regulations.
‣Comply with local workplace safety regulations.
‣Always connect the protective ground cable  before connecting additional cables.
‣For use in potentially explosive atmospheres, observe the information in the device-specific
Ex documentation.
‣The power unit must be tested to ensure it meets safety requirements (e.g. PELV, SELV).
5.2.1 Connecting the transmitter
The connection of the transmitter depends on the following order codes:
• Housing version: compact or ultra-compact
• Connection version: device plug or terminals
1 2 1 2 3 4
A B C
A0016924
 4 Housing versions and connection versions
A Compact, coated aluminum
B Compact hygienic, stainless or compact, stainless
1 Cable entry or device plug for signal transmission
2 Cable entry or device plug for supply voltage
C Ultra-compact hygienic, stainless or ultra-compact, stainless
3 Device plug for signal transmission
4 Device plug for supply voltage

Electrical connection Proline 100 Modbus RS485
18 Endress+Hauser
10 (0.4)
mm (in)
1 2 3
2
1
2
1
23
8 mm
3 mm
8 mm
A0017844
 5 Device versions with connection examples
1 Cable
2 Device plug for signal transmission
3 Device plug for supply voltage
‣Connect the cable in accordance with the terminal assignment →  12 or the device plug
pin assignment .
5.2.2 Connecting the Safety Barrier Promass 100
In the case of the device version with Modbus RS485 intrinsically safe, the transmitter must
be connected to the Safety Barrier Promass 100.

Proline 100 Modbus RS485 Electrical connection
Endress+Hauser 19
21
A
B
3
A
BL+
L-
L- L+
A
B
5 6 7
4
8
A
B
L+
L-
A0028766
 6 Electrical connection between the transmitter and Safety Barrier Promass 100
1 Control system (e.g. PLC)
2 Observe cable specifications →  11
3 Safety Barrier Promass 100: terminal assignment
4 Observe cable specifications →  11
5 Non-hazardous area
6 Non-hazardous area and Zone 2/Div. 2
7 Intrinsically safe area
8 Transmitter: terminal assignment
5.2.3 Ensuring potential equalization
Promass, Cubemass, CNG, LNG, LPG
Requirements
No special measures for potential equalization are required.
For devices intended for use in hazardous locations, please observe the guidelines in the
Ex documentation (XA).

Electrical connection Proline 100 Modbus RS485
20 Endress+Hauser
5.3 Special connection instructions
5.3.1 Connection examples
Modbus RS485
Modbus RS485, non-hazardous area and Zone 2/Div. 2
2
1
A
B
3
4
4
A
B
A
B
A0028765
 7 Connection example for Modbus RS485, non-hazardous area and Zone 2/Div. 2
1 Control system (e.g. PLC)
2 Cable shield: the cable shield must be grounded at both ends to comply with EMC requirements;
observe cable specifications →  11
3 Distribution box
4 Transmitter
