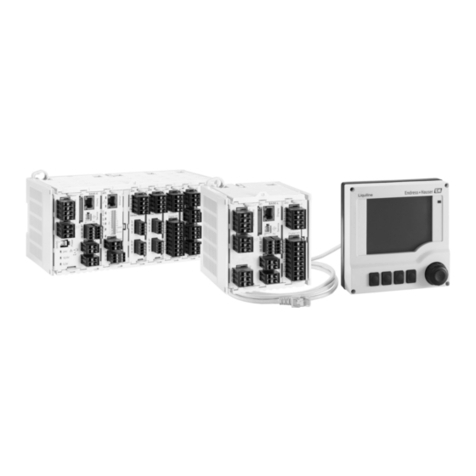

Endress+Hauser Liquiline CM442R User manual

Products Solutions Services
Operating Instructions
Liquiline CM442R/CM444R/
CM448R
Universal four-wire multichannel controller
Cabinet installation
BA01225C/07/EN/07.17
71358037
Valid as of version
01.06.00

Liquiline CM442R/CM444R/CM448R Table of contents
Endress+Hauser 3
Table of contents
1 Document information .............. 5
1.1 Warnings ............................ 5
1.2 Symbols .............................. 5
1.3 Symbols at the device .................... 5
1.4 Documentation ........................ 6
2 Basic safety instructions ............ 7
2.1 Requirements for the personnel ............ 7
2.2 Designated use ........................ 7
2.3 Occupational safety ..................... 8
2.4 Operational safety ...................... 8
2.5 Product safety ......................... 9
3 Device description ................. 10
3.1 Overview ............................ 10
3.2 Slot and port assignment ................ 11
3.3 Terminal diagram ..................... 12
4 Incoming acceptance and product
identification ..................... 13
4.1 Incoming acceptance ................... 13
4.2 Product identification ................... 13
4.3 Scope of delivery ...................... 14
4.4 Certificates and approvals ............... 14
5 Installation ....................... 15
5.1 Installation conditions .................. 15
5.2 Mounting the measuring device ........... 19
5.3 Post-installation check .................. 22
6 Electrical connection .............. 23
6.1 Connection conditions .................. 23
6.2 Connecting the measuring device .......... 24
6.3 Connecting the sensors ................. 28
6.4 Connecting additional inputs, outputs or
relays .............................. 30
6.5 Connecting digital communication ......... 34
6.6 Hardware settings ..................... 37
6.7 Ensuring the degree of protection .......... 38
6.8 Post-connection check .................. 39
7 System integration ................ 40
7.1 Web server .......................... 40
7.2 Service interface ...................... 41
7.3 Fieldbuses ........................... 42
8 Operation options ................. 44
8.1 Overview ............................ 44
8.2 Access to the operating menu via the local
display ............................. 45
8.3 Configuration options .................. 46
9 Commissioning .................... 49
9.1 Function check ....................... 49
9.2 Power up ............................ 49
9.3 User definable screens ................. 50
9.4 Basic setup .......................... 51
10 Operation ......................... 52
10.1 Display ............................. 52
10.2 General settings ....................... 54
10.3 Current inputs ........................ 66
10.4 Outputs ............................. 67
10.5 Binary inputs and outputs ............... 74
10.6 Additional functions ................... 80
11 Calibration ...................... 108
12 Diagnostics and troubleshooting .. 109
12.1 General troubleshooting ................ 109
12.2 Diagnostic information on the local display
(optional) .......................... 110
12.3 Diagnostic information via web browser .... 110
12.4 Diagnostic information via fieldbus ........ 110
12.5 Adapting the diagnostic information ...... 110
12.6 Overview of diagnostic information ....... 112
12.7 Pending diagnostic messages ............ 116
12.8 Diagnostics list ...................... 116
12.9 Event logbook ....................... 116
12.10 Simulation ......................... 119
12.11 Device test .......................... 121
12.12 Resetting the measuring device .......... 121
12.13 Device information ................... 122
12.14 Firmware history ..................... 124
13 Maintenance .................... 126
13.1 Cleaning ........................... 126
14 Repairs .......................... 128
14.1 Spare parts ......................... 128
14.2 Return ............................. 129
14.3 Disposal ........................... 130
15 Accessories ...................... 131
15.1 Measuring cable ..................... 131
15.2 Sensors ............................ 131
15.3 Additional functionality ................ 136
15.4 Software ........................... 138
15.5 Other accessories ..................... 138
16 Technical data ................... 140

Table of contents Liquiline CM442R/CM444R/CM448R
4 Endress+Hauser
17 Installation and operation in
hazardous environment Class I Div.
2 (CM444R and CM448R only) .... 152
Index ................................. 153

Liquiline CM442R/CM444R/CM448R Document information
Endress+Hauser 5
1 Document information
1.1 Warnings
Structure of information Meaning
LDANGER
Causes (/consequences)
If necessary, Consequences of
non-compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation will result in a fatal or serious
injury.
LWARNING
Causes (/consequences)
If necessary, Consequences of
non-compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid the dangerous situation can result in a fatal or serious
injury.
LCAUTION
Causes (/consequences)
If necessary, Consequences of
non-compliance (if applicable)
‣Corrective action
This symbol alerts you to a dangerous situation.
Failure to avoid this situation can result in minor or more serious injuries.
NOTICE
Cause/situation
If necessary, Consequences of
non-compliance (if applicable)
‣Action/note
This symbol alerts you to situations which may result in damage to
property.
1.2 Symbols
Symbol Meaning
Additional information, tips
Permitted or recommended
Not permitted or not recommended
Reference to device documentation
Reference to page
Reference to graphic
 Result of a step
1.3 Symbols at the device
Symbol Meaning
Reference to device documentation

Document information Liquiline CM442R/CM444R/CM448R
6 Endress+Hauser
1.4 Documentation
The following instructions complement these Operating Instructions and are available on
the product pages on the internet:
• Brief Operating Instructions Liquiline CM44xR, KA01160C
• Operating Instructions Memosens, BA01245C
– Software description for Memosens inputs
– Calibration of Memosens sensors
– Sensor-specific diagnostics and troubleshooting
• Operating Instructions for HART communication, BA00486C
– Onsite settings and installation instructions for HART
– Description of HART driver
• Guidelines for communication via fieldbus and web server
– HART, SD01187C
– PROFIBUS, SD01188C
– Modbus, SD01189C
– Web server, SD01190C
– EtherNet/IP, SD01293C

Liquiline CM442R/CM444R/CM448R Basic safety instructions
Endress+Hauser 7
2 Basic safety instructions
2.1 Requirements for the personnel
• Installation, commissioning, operation and maintenance of the measuring system may
be carried out only by specially trained technical personnel.
• The technical personnel must be authorized by the plant operator to carry out the
specified activities.
• The electrical connection may be performed only by an electrical technician.
• The technical personnel must have read and understood these Operating Instructions
and must follow the instructions contained therein.
• Faults at the measuring point may only be rectified by authorized and specially trained
personnel.
Repairs not described in the Operating Instructions provided must be carried out only
directly at the manufacturer's site or by the service organization.
2.2 Designated use
2.2.1 Non-hazardous atmosphere
Liquiline CM44xR is a multichannel controller for connecting digital sensors with
Memosens technology in non-hazardous environments.
The device is designed for use in the following applications:
• Food and beverages
• Life science
• Water and wastewater
• Chemical industry
2.2.2 Hazardous environment in accordance with cETLus NI Cl. I,
Div. 2 (CM444R and CM448R only)
‣Please note the control drawing and the specified application conditions in the
appendix of these Operating Instructions and follow the instructions.
‣The device must be installed in a housing or cabinet where access is only possible with
a tool or key.
2.2.3 Non-designated use and improper use
NOTICE
Objects stored on top of the housing
May result in short-circuits or fire, the failure of individual cabinet components to
complete failure of the measuring point.
‣Never place any objects e.g. tools, cables, paper, food, liquid containers or similar on top
of the housing.
‣Always observe the operator's regulations, in particular with regard to fire safety
(smoking) and foodstuffs (beverages).
Use of the device for any purpose other than that described, poses a threat to the safety of
people and of the entire measuring system and is therefore not permitted.
The manufacturer is not liable for damage caused by improper or non-designated use.

Basic safety instructions Liquiline CM442R/CM444R/CM448R
8 Endress+Hauser
2.2.4 Installation environment
The device and the associated power units can be operated with 24 V AC, 24 V DC or 100
to 230 V AC and provide shock protection in accordance with IP20.
The components have been designed for pollution degree 2, and moisture must not be
allowed to collect in them. The components must therefore be installed in an appropriate
enclosure for protection. The ambient conditions specified in the instructions must be
observed here.
2.3 Occupational safety
As the user, you are responsible for complying with the following safety conditions:
• Installation guidelines
• Local standards and regulations
• Regulations for explosion protection
Electromagnetic compatibility
• The product has been tested for electromagnetic compatibility in accordance with the
applicable European standards for industrial applications.
• The electromagnetic compatibility indicated applies only to a product that has been
connected in accordance with these Operating Instructions.
2.4 Operational safety
1. Before commissioning the complete measuring point, verify that all connections are
correct. Ensure that electrical cables and hose connections are undamaged.
2. Do not operate damaged products, and protect them against unintentional operation.
Label the damaged product as defective.
3. If faults cannot be rectified,
products must be taken out of service and protected against unintentional operation.
LCAUTION
Cleaning not switched off during calibration or maintenance activities
Risk of injury due to medium or cleaning agent
‣If a cleaning system is connected, switch if off before removing a sensor from the
medium.
‣If you wish to check the cleaning function and have therefore not switched off the
cleaning system, please wear protective clothing, goggles and gloves or take other
appropriate measures.

Liquiline CM442R/CM444R/CM448R Basic safety instructions
Endress+Hauser 9
2.5 Product safety
2.5.1 State of the art
The product is designed to meet state-of-the-art safety requirements, has been tested, and
left the factory in a condition in which it is safe to operate. The relevant regulations and
European standards have been observed.
2.5.2 IT security
We only provide a warranty if the device is installed and used as described in the
Operating Instructions. The device is equipped with security mechanisms to protect it
against any inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.

Device description Liquiline CM442R/CM444R/CM448R
10 Endress+Hauser
3 Device description
3.1 Overview
1 2 3
4
3
5
6
7
5
6
A0025815
 1 Device with optional, external display (excluding cables)
1 Four-channel or eight-channel device 5 Terminal strip
2 Extension modules (optional) 6 Basic module
3 Shock protection, dummy module 7 Two-channel device
4 External display (optional) 8 External power unit (CM444R or CM448R only)

Liquiline CM442R/CM444R/CM448R Device description
Endress+Hauser 11
3.2 Slot and port assignment
Slots
1
2
1
2
1
2
1
2
Ports
BASE-E 2DS 2DS 2DS 2AI 2AO 4R
1
2
Sensor 1 Sensor 1 Sensor 1
Sensor 2 Sensor 2 Sensor 2
1
2
1
2
1
2
1
2
3
4
 2 Slot and port assignment of the hardware modules
 3 Slot and port assignment on the
display
• Inputs are assigned to measuring channels in the
ascending order of the slots and ports.
Adjacent example:
"CH1: 1:1 pH glass" means:
Channel 1 (CH1) is slot 1 (basic module) : Port 1 (input
1), pH glass sensor
• Outputs and relays are named according to their
function, e.g. "current output", and are displayed with the
slot and port numbers in ascending order

Device description Liquiline CM442R/CM444R/CM448R
12 Endress+Hauser
3.3 Terminal diagram
The unique terminal name is derived from:
Slot no. : Port no. : Terminal
Example, NO contact of a relay
Device with 4 inputs for digital sensors, 4 current outputs and 4 relays
• Base module BASE-E (contains 2 sensor inputs, 2 current outputs)
• 2DS module (2 sensor inputs)
• 2AO module (2 current outputs)
• 4R module (4 relays)
1 2 34
43 42 41 43 42 41 43 42 41 43 42 41
Relay 1
Relay 2
Relay 3
Relay 4
Slot
Slot 4 Port 1 Pin 41
A0025105
 4 Creating a terminal diagram using the example of the NO contact (terminal 41) of a relay

Liquiline CM442R/CM444R/CM448R Incoming acceptance and product identification
Endress+Hauser 13
4 Incoming acceptance and product
identification
4.1 Incoming acceptance
1. Verify that the packaging is undamaged.
 Notify your supplier of any damage to the packaging.
Keep the damaged packaging until the matter has been settled.
2. Verify that the contents are undamaged.
 Notify your supplier of any damage to the delivery contents.
Keep the damaged products until the matter has been settled.
3. Check the delivery for completeness.
 Check it against the delivery papers and your order.
4. Pack the product for storage and transportation in such a way that it is protected
against impact and moisture.
 The original packaging offers the best protection.
The permitted ambient conditions must be observed (see "Technical data").
If you have any questions, please contact your supplier or your local sales center.
4.2 Product identification
4.2.1 Nameplate
The nameplate provides you with the following information on your device:
• Manufacturer identification
• Order code
• Extended order code
• Serial number
• Firmware version
• Ambient and process conditions
• Input and output values
• Activation codes
• Safety information and warnings
‣Compare the data on the nameplate with your order.
4.2.2 Product identification
Product page
www.endress.com/cm442r
www.endress.com/cm444r
www.endress.com/cm448r
Interpreting the order code
The order code and serial number of your product can be found in the following locations:
• On the nameplate
• In the delivery papers
Obtaining information on the product
1. Go to the product page for your product on the Internet.

Incoming acceptance and product identification Liquiline CM442R/CM444R/CM448R
14 Endress+Hauser
2. At the bottom of the page, click the link Online Tools and then select Access device
specific information.
 An additional window opens.
3. Enter the order code from the nameplate into the search field and then select Show
details.
 You will receive information on each feature (selected option) of the order code.
Manufacturer's address
Endress+Hauser Conducta GmbH+Co. KG
Dieselstraße 24
D-70839 Gerlingen
4.3 Scope of delivery
The scope of delivery comprises:
• 1 multichannel controller in the version ordered
• 1 mounting plate
• 1 external display (if selected as an option) 1)
• 1 DIN rail power unit incl. Cable (CM444R and CM448R only)
• 1 printed copy of the Operating Instructions for DIN rail power unit
• 1 printed copy of the Brief Operating Instructions in the language ordered
If you have any questions, please contact your supplier or local sales center.
4.4 Certificates and approvals
4.4.1 EAC
The product has been certified according to guidelines TP TC 004/2011 and TP TC
020/2011 which apply in the European Economic Area (EEA). The EAC conformity mark
is affixed to the product.
1) The external display can be selected as an option in the order structure or ordered as an accessory at a later stage.

Liquiline CM442R/CM444R/CM448R Installation
Endress+Hauser 15
5 Installation
5.1 Installation conditions
5.1.1 Dimensions
99 (3.90)
97 (3.82)
7.5 (0.30)
100 (3.94)
TS 35
114 (4.49)
89 (3.50)
91 (3.58)
TS 35
75 (2.95)
83 (3.27)
A0025344
 5 Dimensions in mm (inch)

Installation Liquiline CM442R/CM444R/CM448R
16 Endress+Hauser
220 (8.66)
97 (3.82)
7.5 (0.30)
100 (3.94)
75 (2.95)
205.5 (8.09)
114 (4.49)
TS 35
TS 35
89 (3.50) 91 (3.58)
A0025345
 6 Dimensions in mm (inch)
5.1.2 Mounting on DIN rail as per IEC 60715
LCAUTION
The power unit can get very hot under full load
Burn hazard
‣Avoid touching the power unit during operation.
‣Make sure to keep the minimum distance to other devices.
‣After switching off the power unit, allow it to cool before performing any work on it.
LCAUTION
Impermissible collection of moisture in the device
Puts the safety of the user at risk
‣The device has IP20 shock protection. Moisture must not be allowed to collect in the
device.
‣Comply with the specified ambient conditions, e.g. by installing the device in an
appropriate protective enclosure.

Liquiline CM442R/CM444R/CM448R Installation
Endress+Hauser 17
NOTICE
Incorrect mounting location in the cabinet, spacing regulations not observed
Possible malfunctions as a result of heat development and interference from neighboring
devices
‣Do not position the device directly above sources of heat. Make sure to observe the
temperature specification.
‣The components are designed for convection-based cooling. Avoid the buildup of heat
and ensure openings are not covered over, e.g. by cables.
‣Make sure to keep the specified distance to other devices.
‣Physically separate the device from frequency converters and high-voltage devices.
‣Recommended installation direction: horizontal. The specified ambient conditions, and
particularly the ambient temperatures, only apply for horizontal installation.
‣Vertical orientation is also possible. However, this requires additional fixing clips at the
place of installation to hold the device in position on the DIN rail.
‣Recommended installation of power unit for CM444R and CM448R: to the left of the
device.
The following minimum spacing specifications must be observed:
• Distance at the side to other devices including power units and distance to control
cabinet wall:
at least 20 mm (0.79 inch)
• Distance above and below the device and depth distance (to control cabinet door or other
devices installed there):
at least 50 mm (1.97 inch)
min. 50 (1.97)
min. 20 (0.79)
min. 50 (1.97)
min. 20 (0.79)
min. 50 (1.97)
A0025369
 7 Minimum spacing in mm (inch)
5.1.3 Wall mounting
83 (3.27) 205.5 (8.09)
75 (2.95)
75 (2.95)
100 (3.94) 100 (3.94)
4 x 4.5 (0.18)!4 x 4.5 (0.18)!
A0025370
 8 Drilling pattern for wall mounting in mm (inch)

Installation Liquiline CM442R/CM444R/CM448R
18 Endress+Hauser
5.1.4 Mounting the external display
The mounting plate also serves as the drilling template. The marks on the side help
you mark the position of the drill holes.
4 x min. Ø 8 (0.31)
min. Ø 15 (0.59)
140 (5.51)
105 (4.13)
105 (4.13)
140 (5.51)
a
b
b
A0025371
 9 Mounting plate of external display in mm (inch)
a Retaining tab
b Production-related recesses, no function for the user
5.1.5 Cable length for optional display
Length of display cable provided:
3 m (10 ft)
Maximum permitted length of a display cable:
5 m (16.5 ft)

Liquiline CM442R/CM444R/CM448R Installation
Endress+Hauser 19
5.2 Mounting the measuring device
5.2.1 DIN rail mounting
The mounting procedure is the same for all Liquiline devices. The example shows a
CM448R.
1. In the order configuration, the securing clips are "tightened" to secure the DIN rail.
Release the securing clips by pulling them downwards.

2. Attach the device from the top to the DIN rail (a) and then press it down to secure it
(b).

a
b
3. Slide the securing clips upwards until they click, thereby securing the device to the
DIN rail.

4. CM444R and CM448R only
Mount the external power unit in the same way.
5.2.2 Wall mounting
Mounting material (screws, dowels) are not included in the scope of delivery and must
be provided by the customer.
CM444R and CM448R: The external power unit can be mounted on a DIN rail only.
Use the back of the housing to mark the mounting holes. (→  8,  17)
1. Drill the required holes and place dowels in them if necessary.
2. Screw the housing onto the wall.

Installation Liquiline CM442R/CM444R/CM448R
20 Endress+Hauser
5.2.3 Mounting the optional external display
LCAUTION
Sharp-edged, non-deburred drill holes
Risk of injury, display cable may get damaged
‣In particular, deburr the central drill hole for the display cable.
Mounting the display on the door of the cabinet
1. Hold the mounting plate from the outside against the door of the control cabinet.
Choose the point at which you wish to install the display.
2. Make all the markings.
.
.
.
. .
.
.
.
..
.
.
.
.
.
. .
.
.
.
..
.
.
4 x Ø 8 (0.31)
Ø 20 (0.79)
3. Draw lines connecting the markings.
 This will indicate the position of the five drill holes needed.
4. Drill the holes (→  9,  18).
