Endress+Hauser Levelflex M FMP45 User manual

BA365F/00/en/03.08
71060887
Valid as of software version
01.08.zz
Operating Instructions
Levelflex M FMP45
Guided Level Radar for Interface Measurement
HART/4 to 20 mA
6

Brief overview Levelflex M FMP45 with HART/4...20 mA
2Endress+Hauser
Brief overview
For quick and simple commissioning:
Safety instructions →ä6
Explanation of the warning symbols
You can find special instructions at the appropriate position in the chapter
in question. The positions are indicated with the icons Warning #,
Caution "and Note !
Æ
Installation →ä12
The steps for installing the device and installation conditions (e.g. dimensions)
can be found here.
Æ
Wiring →ä24
The device is virtually completely wired on delivery.
Æ
Display and operating elements →ä30
An overview of the arrangement of the display and operating elements can be
found here.
Æ
Commissioning via display VU331 →ä40
In the "Commissioning" section, you learn how to switch on the device and
check the functions.
Æ
Commissioning via Endress+Hauser operating program →ä53
In the "Commissioning" section, you learn how to switch on the device and
check the functions.
Additional information on the operation via the Endress+Hauser operating
program (FieldCare) can be found in Operating Instructions BA027S/04.
Æ
Troubleshooting →ä60
If faults occur during operation, use the checklist to localize the cause.
Here you can find measures you can take yourself to take remedial action
against the fault.
Æ
Index →ä85
You can find important terms and keywords on the individual sections here.
Use the keyword index to find the information you need quickly and efficiently.

Levelflex M FMP45 with HART/4...20 mA Brief overview
Endress+Hauser 3
Brief Operating Instructions
L00-FMP4xIxx-19-00-00-en-005
!Note!
These Operating Instructions explain how to install and commission the level transmitter. All
functions that are required for a typical measuring task are taken into account here.
In addition, the Levelflex M provides many other functions for optimizing the measuring point and
converting measured values. These functions are not included in these Operating Instructions.
An overview of all the device functions can be found on →ä80.
An extensive description of all the device functions can be found in BA366F - "Description of
Device Functions" on the enclosed CD-ROM.
Operating Instructions can also be found on our homepage: www.endress.com
E
+
-
+
E
+
-
E
-
… …
…
KA283F/00/a2/01.08
71060891 71060891
DK2
DK1
SD
SD
UB
UB
DL
LL
LL
F
F
LILI
UP
DI
DI
E
LN
LN
E
Levelflex M - Brief operating instructions
input E
(see sketch)
input F
(see sketch) displayed
D und D are
LI
000
measured value
Group
selection
00
basic setup
01
safety settings
09
display
04
linearisation
05
extended calibr.
0C
system
parameters
092
language
0A
diagnostics
0A0
present
error
002
tank
properties
004
process
cond.
005
empty
calibr.
006
full
calibr.
008
dist./
meas value
059
upper block.
dist
003
medium
property
008
dist./
meas value
- envel. curve
- substracted
signal
- mapping
- single curve
- cyclic
= 100: unlocked
¹ 100: locked
09A
plot settings
09B
recording
curve
0A1
previous
error
0A4
unlock
parameter
(333 =
reset
customer
parameters)
0A3
reset
threaded
connection
1½
(G 1
:
reference point of
measurement
¾ or BSP
¾orG ½)
¾or1½NPT
03
length
adjustment
032
probe
033
probe
length
034
determine
length
0.1 - 2
0E
envelope curve
Contrast: +or +
- partially
filled
- partially
flooded
- standard
- fast
change
- test: no filter
- slow
change
If shortened
please enter probe length here.
E = empty calibr. (= zero) - setting in 005
F = full calibr. (= span) - setting in 006
D = distance interface (distance flange / DK ) - display in 0A6
L = level interface (distance probe end / DK ) - display in 0A5
D = distance complete level - display in 0A5
L = level complete - display in 0A6
LN = probe length - setting in 033
UB = upper blocking distance - setting in 059
UP = thickness upper medium
SD = safety distance - setting in 015
I
I
L
L
2
1
flange:
reference point of
measurement

Brief overview Levelflex M FMP45 with HART/4...20 mA
4Endress+Hauser

Levelflex M FMP45 with HART/4...20 mA Table of contents
Endress+Hauser 5
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 6
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Installation, commissioning and operation . . . . . . . . 6
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.4 Safety conventions and icons . . . . . . . . . . . . . . . . . . 7
2 Identification . . . . . . . . . . . . . . . . . . . . 8
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . 11
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . 11
3 Installation . . . . . . . . . . . . . . . . . . . . . 12
3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 12
3.2 Incoming acceptance, transport, storage . . . . . . . . . 12
3.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 13
3.4 General information on interface measurement . . . 15
3.5 Special information on interface measurement . . . . 17
3.6 Installation instructions . . . . . . . . . . . . . . . . . . . . . 18
3.7 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 23
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 24
4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 24
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 26
4.3 Recommended connection . . . . . . . . . . . . . . . . . . 29
4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 29
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 29
5 Operation . . . . . . . . . . . . . . . . . . . . . . 30
5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 30
5.2 Display and operating elements . . . . . . . . . . . . . . . 32
5.3 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5.4 Displaying and acknowledging error messages . . . . 37
5.5 FieldCare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.6 HART communication . . . . . . . . . . . . . . . . . . . . . . 39
6 Commissioning. . . . . . . . . . . . . . . . . . 40
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.2 Switching on the measuring device . . . . . . . . . . . . 40
6.3 Basic setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
6.4 Basic Setup with the VU331 . . . . . . . . . . . . . . . . . 43
6.5 Envelope curve with VU331 . . . . . . . . . . . . . . . . . 49
6.6 Function "Envelope Curve Display" (0E3) . . . . . . . 50
6.7 Basic setup with Endress+Hauser operating
program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
6.8 User-specific applications (operation) . . . . . . . . . . . 55
7 Maintenance. . . . . . . . . . . . . . . . . . . . 56
8 Accessories. . . . . . . . . . . . . . . . . . . . . 57
8.1 Weather protection cover . . . . . . . . . . . . . . . . . . . 57
8.2 Centering disks . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
8.3 Commubox FXA191 HART . . . . . . . . . . . . . . . . . . 58
8.4 Commubox FXA195 HART . . . . . . . . . . . . . . . . . . 58
8.5 Commubox FXA291 . . . . . . . . . . . . . . . . . . . . . . . 58
8.6 ToF adapter FXA291 . . . . . . . . . . . . . . . . . . . . . . . 58
8.7 HART loop converter HMX50 . . . . . . . . . . . . . . . . 58
8.8 FHX40 remote display and operation . . . . . . . . . . . 59
9 Troubleshooting . . . . . . . . . . . . . . . . . 60
9.1 Troubleshooting instructions . . . . . . . . . . . . . . . . . 60
9.2 System error messages . . . . . . . . . . . . . . . . . . . . . . 61
9.3 Application errors . . . . . . . . . . . . . . . . . . . . . . . . . 63
9.4 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
9.5 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
9.6 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
9.7 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
9.8 Contact addresses of Endress+Hauser . . . . . . . . . . . 71
10 Technical data . . . . . . . . . . . . . . . . . . . 72
10.1 Additional technical data . . . . . . . . . . . . . . . . . . . . 72
11 Appendix. . . . . . . . . . . . . . . . . . . . . . . 80
11.1 HART operating menu (display module) . . . . . . . . . 80
11.2 Description of functions . . . . . . . . . . . . . . . . . . . . . 82
11.3 Function and system design . . . . . . . . . . . . . . . . . . 82
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Safety instructions Levelflex M FMP45 with HART/4...20 mA
6Endress+Hauser
1 Safety instructions
1.1 Designated use
The Levelflex M FMP45 is a compact level transmitter for the continuous measurement of the total
level and the interface level in liquids. Measuring principle: guided level radar /
TDR: Time Domain Reflectometry.
1.2 Installation, commissioning and operation
The Levelflex M is designed to meet state-of-the-art safety requirements and conforms to applicable
standards and EC regulations. If installed incorrectly or used for applications for which it is not
intended, however, it is possible that application-related dangers may arise, e.g. product overflow
due to incorrect installation or configuration. For this reason, installation, connection to the
electricity supply, commissioning, operation and maintenance of the measuring system must only
be carried out by trained, qualified specialists authorized to perform such work by the facility's
owner-operator. The specialist must have read and understood these Operating Instructions and
must follow the instructions they contain. Modifications and repairs to the device are permissible
only when they are expressly approved in the Operating Instructions.
1.3 Operational safety
The measuring device meets the general safety requirements according to EN 61010-1 and the
EMC requirements of IEC/EN 61326 in addition to NAMUR Recommendations NE 21 and NE 43.
Hazardous areas
If using the measuring system in hazardous areas, the appropriate national standards must be
observed. The device is accompanied by separate Ex documentation, which is an integral part of this
documentation. The installation regulations, connection values and safety instructions listed in this
document must be observed.
• Ensure that all personnel are suitably qualified.
• Measuring point requirements with regard to measurement and safety must be observed.

Levelflex M FMP45 with HART/4...20 mA Safety instructions
Endress+Hauser 7
1.4 Safety conventions and icons
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding symbol in the margin.
Safety instructions
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal
injury, a safety hazard or the destruction of the device.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal
injury or incorrect functioning of the device.
!Note!
A note highlights actions or procedures which, if not performed correctly, can have an indirect effect
on operation or trigger an unexpected response on the part of the device.
Explosion protection
0Explosion-protected, type-examined equipment
If the device has this symbol embossed on its nameplate, it can be used in a hazardous area or a
non-hazardous area, according to the approval.
-Hazardous areas
This symbol is used in the drawings of these Operating Instructions to indicate hazardous areas.
Devices in hazardous areas, or cables for such devices, must have appropriate explosion protection.
. Safe area (non-hazardous area)
This symbol is used in the drawings of these Operating Instructions to indicate non-hazardous areas.
Devices in the non-hazardous area also have to be certified if connecting cables lead into the
hazardous area.
Electrical symbols
%Direct voltage
A terminal to which DC voltage is applied or through which direct current flows.
&Alternating voltage
A terminal to which alternating voltage (sine-wave) is applied or through which alternating current
flows.
)Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded by means of a grounding
system.
*Protective ground connection
A terminal which must be connected to ground prior to making any other connection to the
equipment.
+Equipotential connection
A connection that has to be connected to the plant grounding system:
This may be a potential equalization line or a star grounding system depending on national or
company codes of practice.
Temperature resistance of the connection cables
States that the connection cables must be resistant to a temperature of at least 85 °C.
t >85°C

Identification Levelflex M FMP45 with HART/4...20 mA
8Endress+Hauser
2 Identification
2.1 Device designation

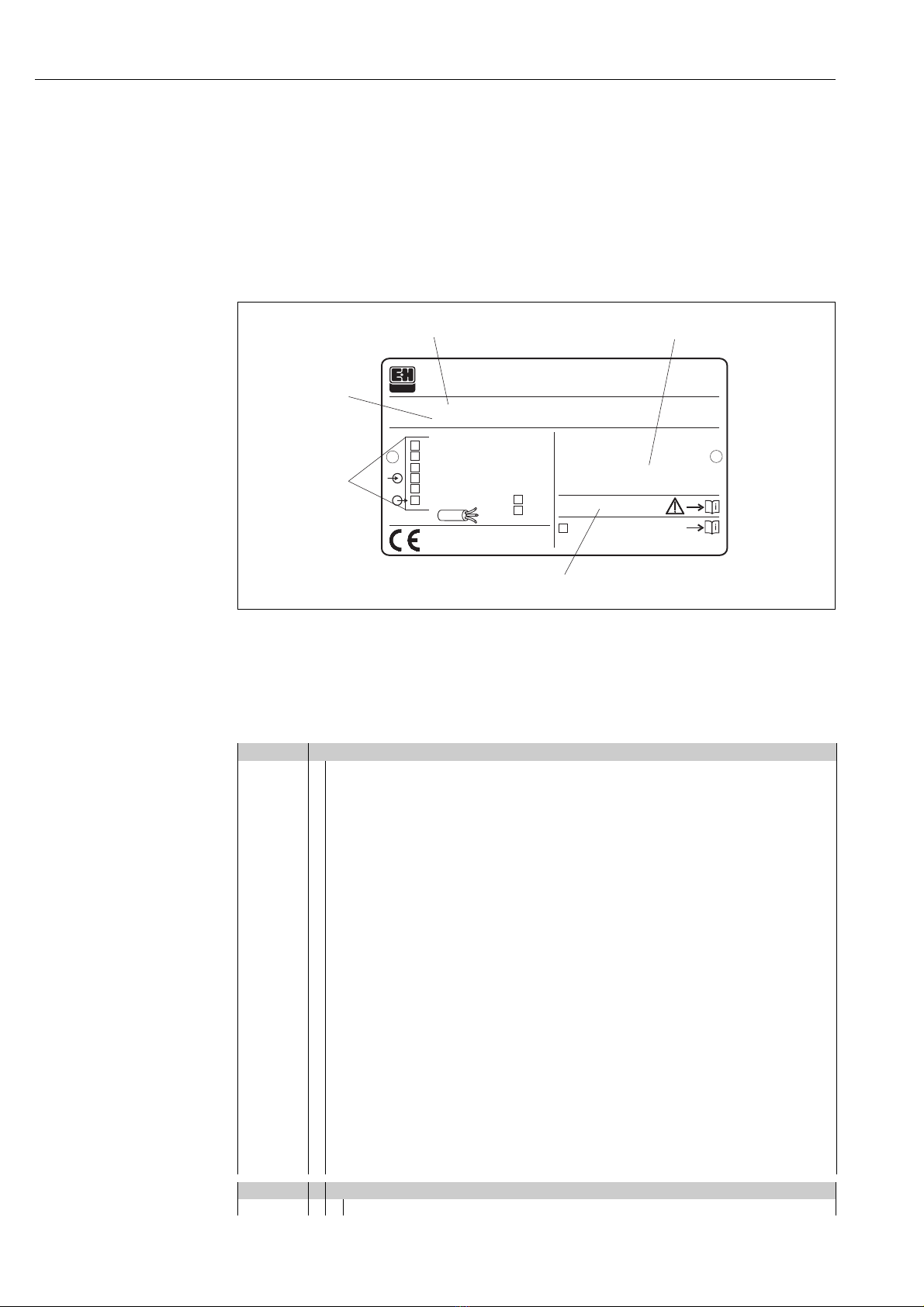

2.1.1 Nameplate
The following technical data are given on the device nameplate:
L00-FMP4xxxx-18-00-00-en-001
Fig. 1: Information on the nameplate of the Levelflex M FMP45 (example)
Versions that mutually exclude one another are not indicated in the list.
Ordering information for Levelflex M FMP45
Made in Germany
D-79689 Maulburg
Dat./Insp.:
Order Code:
IP68 / NEMA 6P
Ser.-No.:
4-wire
ENDRESS+HAUSER
t >85°C
TA > 70°C :
D01301-A
if modification
see sep. label
X= Patents
LEVELFLEX-M
90 … 253 V AC 3,5VA
10,5…32VDC 1W
16 … 3 V DC 0,8W
Profibus PA
Foundation Fieldbus
LN= PN=
4 … 20 mA HART 2-wire
Order No
(see Order Information)
Communication
variant and
supply voltage
Serial number
Reference to additional
safety-relevant documentation
Designation according to Directive 94/9/EC
and designation of protection
10 Approval:
A Non-hazardous area
F Non-hazardous area, WHG
1 ATEX II 1/2G EEx ia IIC T6/IECEx Zone 0/1
2 ATEX II 1/2D, Alu blind cover
3 ATEX II 1/2G EEx em (ia) IIC T6/IECEx Zone 0/1
4 ATEX II 1/3D
5 ATEX II 1/2G EEx ia IIC T6, ATEX II 1/3D
6 ATEX II 1/2G EEx ia IIC T6, WHG
7 ATEX II 1/2G EEx d (ia) IIC T6
8 ATEX II 1/2G EEx ia IIC T6, ATEX II 1/3D, WHG
G ATEX II 3G EEx nA II T6
C NEPSI Ex em(ia) IIC T6
I NEPSI Ex ia IIC T6
J NEPSI Ex d(ia) IIC T6
Q*NEPSIDIP
R NEPSI Ex nA II T6
M FM DIP Cl.II Div.1 Gr.E-G N.I.
S FM IS Cl.I,II,III Div.1 Gr.A-G N.I.
T FM XP Cl.I,II,III Div.1 Gr.A-G
N CSA General Purpose
P CSA DIP Cl.II Div.1 Gr.G + coal dust, N.I.
U CSA IS Cl.I,II,III Div.1 Gr.A-D,G + coal dust, N.I.
V CSA XP Cl.I,II,III Div.1 Gr.A-D,G + coal dust, N.I.
K TIIS Ex d (ia) IIC T1
L TIIS Ex d (ia) IIC T2
Y Special version, to be specified
20 Process temperature:
A -200 to +280 °C / -328 to +5360 °F (XT)

Levelflex M FMP45 with HART/4...20 mA Identification
Endress+Hauser 9
B -200 to +400 °C / -328 to +7520 °F (HT)
Y Special version, to be specified
30 Probe:
A ..... mm, rope 4mm, 316
C ..... inch, rope 1/6", 316
K ..... mm, rod 16 mm, 316L
L ..... mm, coax, 316L
M ..... inch, rod 16 mm, 316L
N ..... inch, coax, 316L
Y Special version, to be specified
40 Process connection:
AFJ 2" 150lbs RF, 316/316L flange ANSI B16.5
AGJ 3" 150lbs RF, 316/316L flange ANSI B16.5
AHJ 4" 150lbs RF, 316/316L flange ANSI B16.5
ARJ 2" 300/600lbs RF, 316/316L flange ANSI B16.5
ASJ 3" 300/600lbs RF, 316/316L flange ANSI B16.5
ATJ 4" 300lbs RF, 316/316L flange ANSI B16.5
A1J 2" 1500lbs RF, 316/316L flange ANSI B16.5
A2J 3" 1500lbs RF, 316/316L flange ANSI B16.5
A3J 4" 600lbs RF, 316/316L flange ANSI B16.5
A4J 4" 900lbs RF, 316/316L flange ANSI B16.5
A5J 4" 1500lbs RF, 316/316L flange ANSI B16.5
CHJ DN100 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CRJ DN50 PN10-40 B1, 316L flange EN1092-1 (DIN2527 C)
CSJ DN80 PN10-40 B1, 316L flange EN1092-1 (DIN2527 C)
CTJ DN100 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)
C1J DN50 PN63 B2, 316L flange EN1092-1 (DIN2527 E)
C2J DN50 PN100 B2, 316L flange EN1092-1 (DIN2527 E)
C3J DN80 PN63 B2, 316L flange EN1092-1 (DIN2527 E)
C4J DN80 PN100 B2, 316L flange EN1092-1 (DIN2527 E)
C5J DN100 PN63 B2, 316L flange EN1092-1 (DIN2527 E)
C6J DN100 PN100 B2, 316L flange EN1092-1 (DIN2527 E)
KFJ 10K 50 RF, 316L flange JIS B2220
KGJ 10K 80 RF, 316L flange JIS B2220
KHJ 10K 100 RF, 316L flange JIS B2220
K3J 63K 50 RF, 316L flange JIS B2220
K4J 63K 80 RF, 316L flange JIS B2220
K5J 63K 100 RF, 316L flange JIS B2220
GGJ Thread ISO228 G1-1/2, 200bar, 316L
GJJ Thread ISO228 G1-1/2, 400bar, 316L, high pressure test
RGJ Thread ANSI NPT1-1/2, 200bar, 316L
RJJ Thread ANSI NPT1-1/2, 400bar, 316L, High pressure test
YY9 Special version, to be specified
50 Power supply; output:
B 2-wire; 4-20mA SIL HART
D2-wire;PROFIBUSPA
F 2-wire; FOUNDATION Fieldbus
G 4-wire 90-250VAC; 4-20mA SIL HART
H 4-wire 10.5-32VDC; 4-20mA SIL HART
K 2-wire; 4-20mA HART, interface measurement
Y Special version, to be specified
60 Operation:
1 W/o display, via communication
2 4-line display VU331, envelope curve display on site
3 Prepared for FHX40, remote display (accessory)
9 Special version, to be specified
70 Type of probe:
1 Compact, basic version
3 Remote, cable 3m, top entry
4 Remote, cable 3m, side entry
9 Special version, to be specified
80 Housing:
A F12 Alu, coated IP68 NEMA6P
B F23 316L IP68 NEMA6P
C T12 Alu, coated IP68 NEMA6P, separate conn. compartment
20 Process temperature:

Identification Levelflex M FMP45 with HART/4...20 mA
10 Endress+Hauser
D T12 Alu, coated IP68 NEMA6P + OVP, separate conn. compartment
OVP = overvoltage protection
Y Special version, to be specified
90 Cable Entry:
2 Gland M20 (EEx d > thread M20)
3ThreadG1/2
4 Thread NPT1/2
5PlugM12
6 Plug 7/8"
9 Special version, to be specified
100 Additional options:
A Basic version
B EN10204-3.1 material, wetted parts,
(316L wetted parts for rod/coax) inspection certificate
C EN10204-3.1 material, wetted parts,
(316L pressurized for rope version) inspection certificate
N EN10204-3.1 material, NACE MR0175,
(316L wetted parts) inspection certificate
U *Gas phase comp. 250mm/10" reference rod, EN10204-3.1 material, NACE
MR0175 (316L wetted) inspection certificate
V *Gas phase comp. 450mm/18" reference rod, EN10204-3.1 material, NACE
MR0175 (316L wetted) inspection certificate
Y Special version, to be specified
FMP45- Complete product designation
⇓
Please enter probe length in mm or inch / 0.1 inch
mm
inch / 0.1 inch
Probe length LN →ä41
80 Housing:

Levelflex M FMP45 with HART/4...20 mA Identification
Endress+Hauser 11
2.2 Scope of delivery
"Caution!
Please observe the instructions on unpacking, transporting and storing measuring devices given in
the "Incoming acceptance, transport, storage" Section →ä12!
The scope of delivery consists of:
• Assembled device
• Endress+Hauser operating program (on the enclosed CD-ROM)
• Accessories (see Section 8).
Accompanying documentation:
• Brief Operating Instructions (basic setup/troubleshooting): housed in the device
• Operating Instructions (this manual)
• Approval documentation: if this is not included in the Operating Instructions.
!Note!
Operating Instructions BA366F - "Description of Device Functions" can be found on the enclosed
CD-ROM.
2.3 Certificates and approvals
CE mark, Declaration of Conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. The device complies with the applicable
standards and regulations as listed in the EC Declaration of Conformity and thus complies with the
statutory requirements of the EC directives. Endress+Hauser confirms the successful testing of the
device by affixing to it the CE mark.
2.4 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademark of E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP®
Registered trademark of Ladish & Co., Inc., Kenosha, USA
HART®
Registered trademark of the HART Communication Foundation, Austin, USA
PulseMaster®
Registered trademark of Endress+Hauser GmbH+Co. KG, Maulburg, Germany

Installation Levelflex M FMP45 with HART/4...20 mA
12 Endress+Hauser
3 Installation
3.1 Quick installation guide
L00-FMP45xxx-17-00-00-en-003
3.2 Incoming acceptance, transport, storage
3.2.1 Incoming acceptance
Check the packaging and the contents for damage. Check the shipment, make sure nothing is
missing and that the scope of supply matches your order.
3.2.2 Transport
"Caution!
Follow the safety instructions and transport conditions for devices of more than 18 kg. Do not lift
the device by the probe rod in order to transport it.
3.2.3 Storage
Pack the device so that is protected against impacts for storage and transport. The original packing
material provides the optimum protection for this.
The permissible storage temperature is -40 °C to +80 °C.

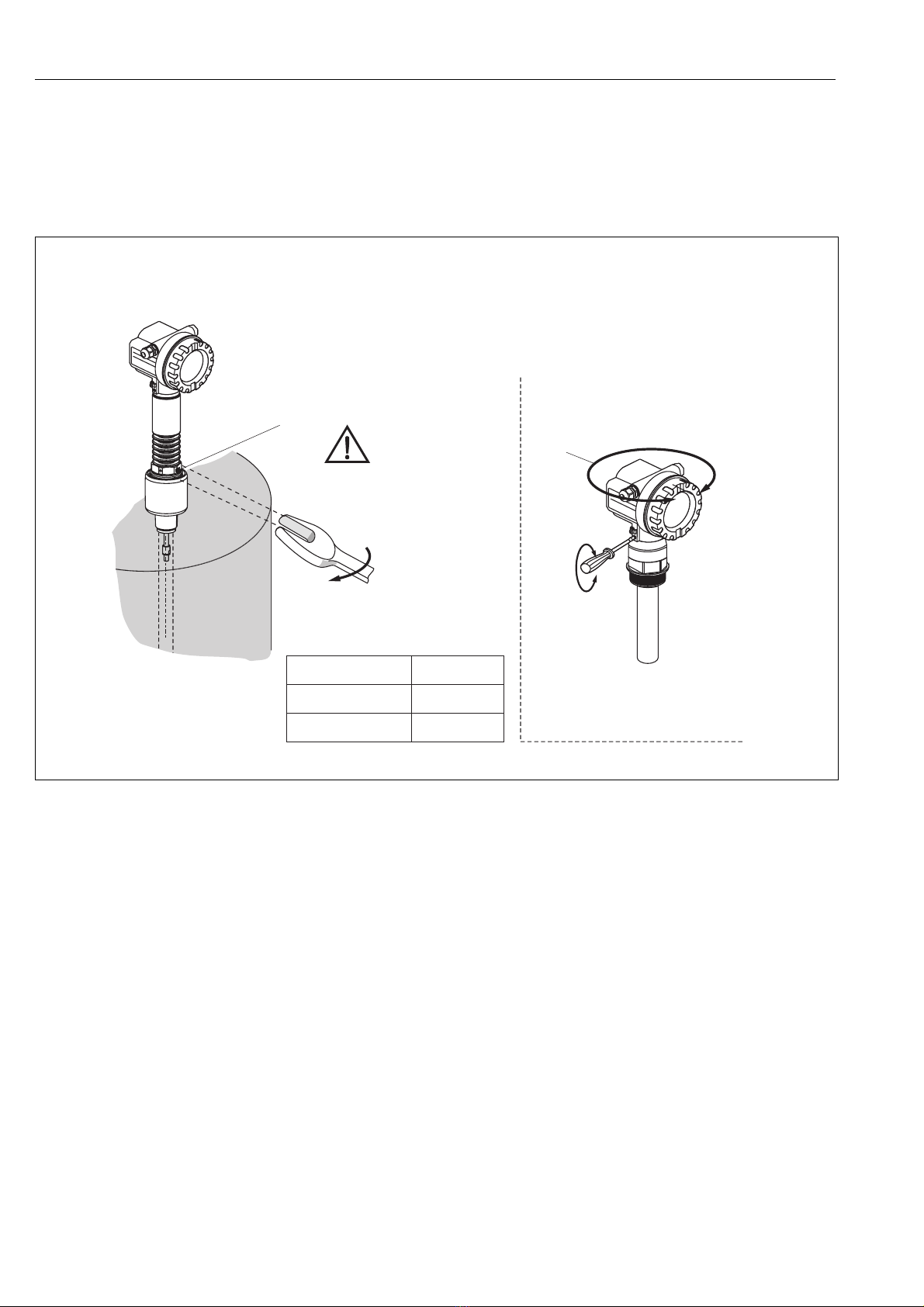

3
1
2
60
1" ½
F12 housing
Turn housing
The housing can be turned 350°
in order to simplify access to the
display and the terminal compartment
AF 60
max. torque
see table
Caution!
Use only the
threaded boss ???
F12 or T12 housing
torqueProcess temperature
max. 280 °C 450 Nm
max. 400 °C 400 Nm
Mounting with threaded boss

Levelflex M FMP45 with HART/4...20 mA Installation
Endress+Hauser 13
3.3 Installation conditions
3.3.1 Dimensions
Housing dimensions
Dimensions for process connection and probe type →ä14.
L00-F12xxxx-06-00-00-en-001
L00-T12xxxx-06-00-00-en-001
L00-F23xxxx-06-00-00-en-001
ENDRESS+HAUSER
65 78
max. 110
85
150
Ø 129
(Aluminium)
F12 housing
ENDRESS+HAUSER
78
85
65
162
max. 100 94
Ø 129
(Aluminium)
T12 housing
max. 94 104
Ø 129
150
40
(316L)
F23 housing

Installation Levelflex M FMP45 with HART/4...20 mA
14 Endress+Hauser

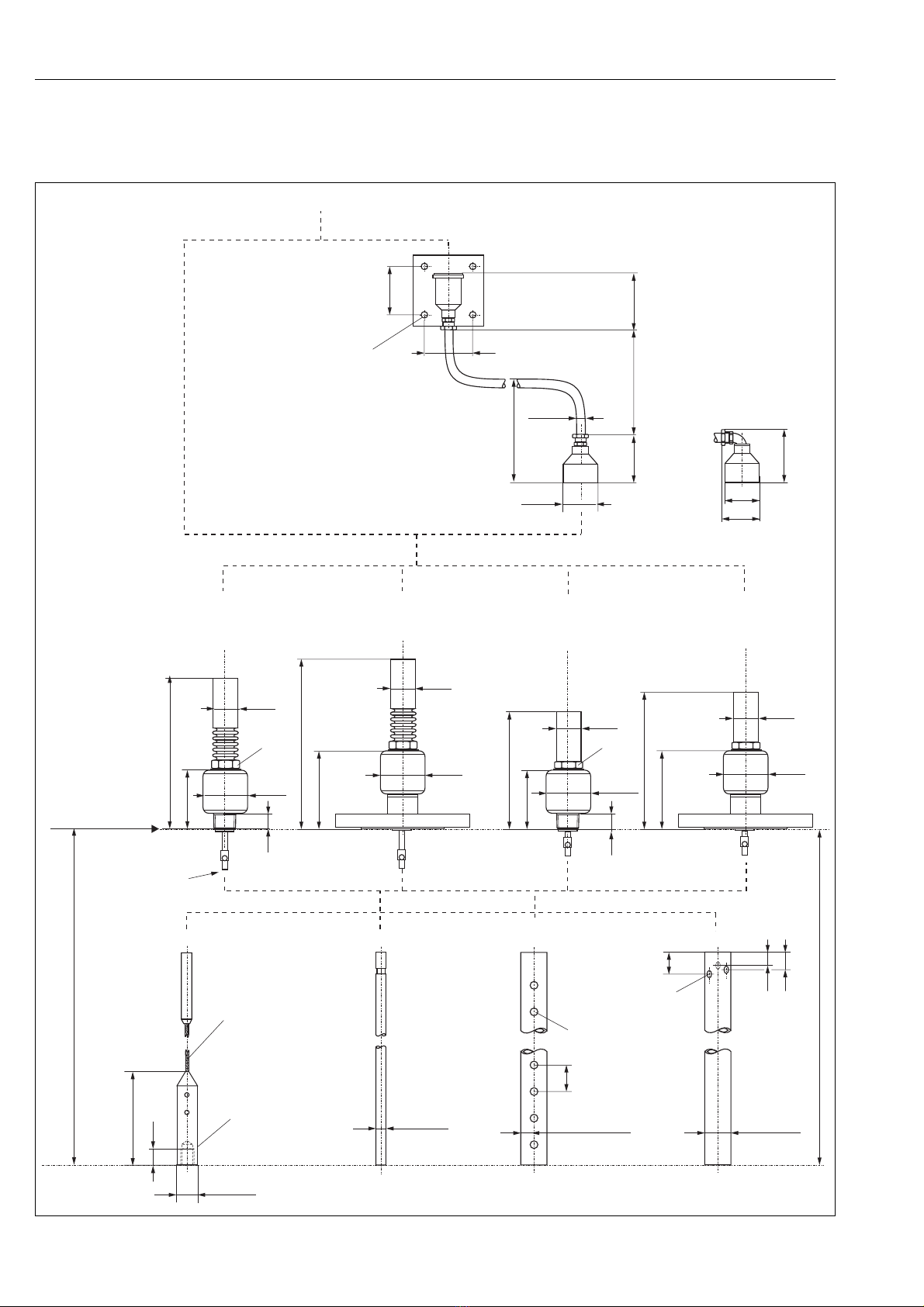

Levelflex M FMP45 - process connection, type of probe
Housing dimensions →ä13
L00-FMP45Ixx-06-00-00-en-001
88
88
123
2765
80
Ø 76
4 x Ø 8,5
150
HT 400 °C XT 280 °C
3 x Ø 8
20
15
25
100
Ø 76
Ø 81
236
263
20
Ø 10
40
max. 14000
260
Threaded connection
G 1 ½ (1 ½BSP)
or 1 ½ NPT
Threaded connection
G 1 ½ (1 ½BSP)
or 1 ½ NPT
Flange DN 50…100
or equivalent
Flange DN 50…100
or equivalent
reference point of
rope:
Ø 4 (0.16”)
rod probe coax probe
Ø 16 (0.63”) Ø 42,4 (1.67”)
Ø 22 (0.87”)
probe length LN
F12 / T12 / F23 housing
SW 60 SW 60
159
159
338
37
37
Ø 90
Ø 90
Ø 90 Ø 90
Ø 60
Ø 60
Ø 60
Ø 60
132
311
132
M10x1.0
Ø 21.3
Type of Probe
(see feature 70 in “Ordering structure”)
internal thread:
M14 on 4 (0.16”) rope
rope probe
interface
measurement
Ø 42,4 (1.67” )
(on 1½” thread
or flange)
probe length LN (rope prope - special product)
measurement
Variant “3” :/ “4”
remote electronic
top entry
Variant “4”:
remote electronic
side entry

Levelflex M FMP45 with HART/4...20 mA Installation
Endress+Hauser 15
3.4 General information on interface measurement

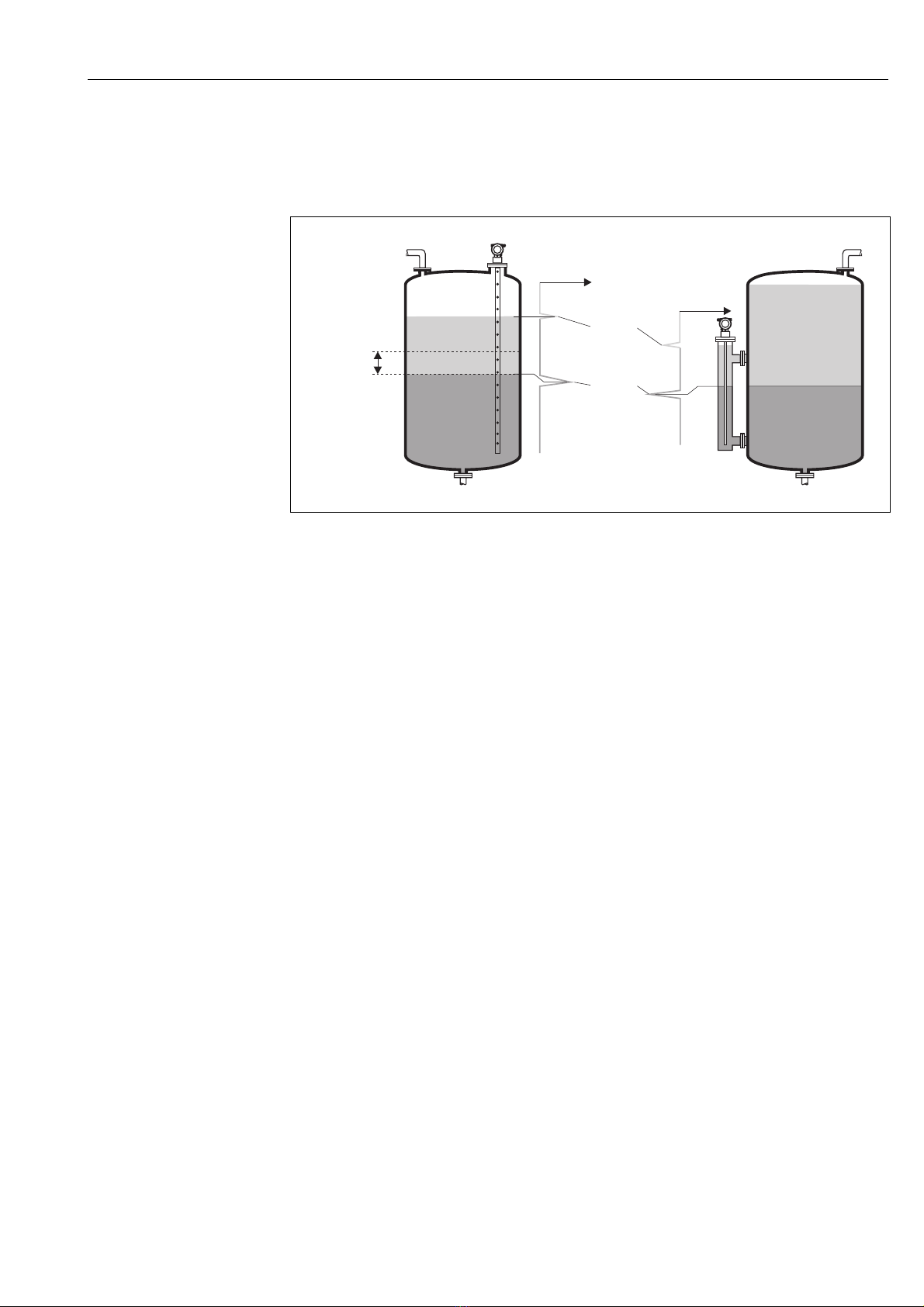

The Levelflex M with the "interface" electronics version is the ideal solution for measuring
interfaces. The device measures variable interfaces and variable total levels simultaneously.
L00-FMP4xIxx-15-00-00-en-001
In addition, the following general conditions must be observed for interface measurement:
• The DK of the upper medium must be known and constant. The DK can be determined with the
aid of the DK manual SD106F. In addition, it is also possible to calculate the DK automatically in
FieldCare if the interface thickness is available and known. →ä59
• The DK of the upper medium may not be greater than 10.
• The DK difference between the upper medium and lower medium must be >10.
• The interface must have a minimum thickness of 60 mm.
• Emulsion layers in the vicinity of the interface can severely dampen the signal. However,
emulsion layers up to 50 mm are permitted.
• The measuring range for interface measurement is limited to 10 m. Larger measuring range
available on request.
DK2
DK1
DK2
DK1
min. 60 mm
interface
overall
level

Installation Levelflex M FMP45 with HART/4...20 mA
16 Endress+Hauser
3.4.1 Electronics
The process variables are output using the dynamic variables of the HART protocol. The process
variables can be flexibly assigned to the dynamic variables (primary, secondary, tertiary, quaternary
value).
3.4.2 Using the HART loop converter HMX50:
The dynamic variables of the HART protocol can be converted into individual 4 to 20 mA sections
using the HART loop converter HMX50. The variables are assigned to the current output and the
measuring ranges to the individual parameters in the HMX50.
L00-FMP40xIx-04-00-00-en-004

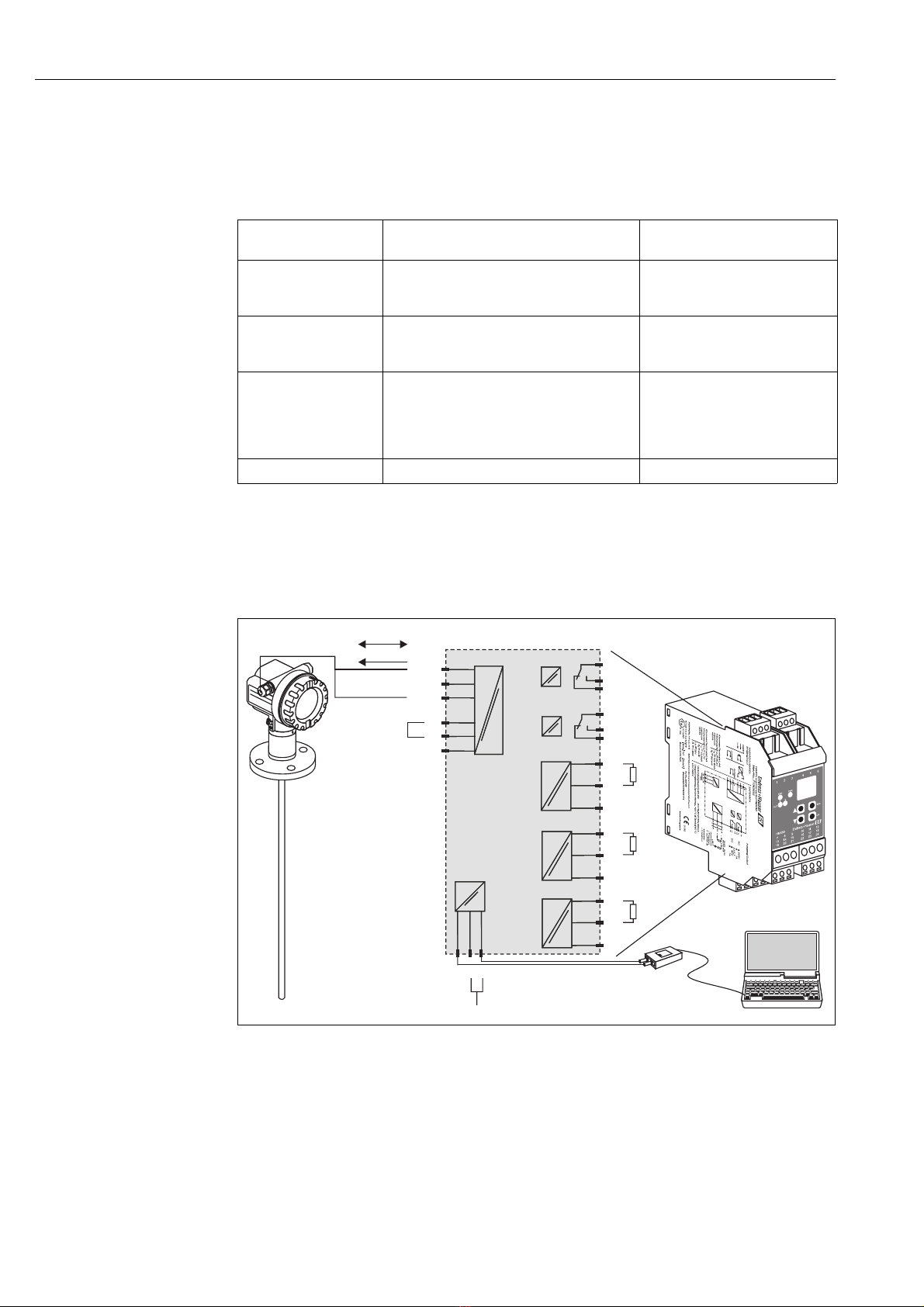

Fig. 2: Connection diagram for HART loop converter HMX50 (example: passive 2-wire device and current outputs
connected as power source)
The HART loop converter HMX50 can be acquired using the order number 71063562.
Additional documentation: TI429F and BA371F.
Dynamic variables of the
HART protocol
Possible process variable assignment Comment
Primary value (PV) • Interface (default)
•Totallevel
• Thickness of the upper medium (upper phase)
The "primary value" is permanently
assigned to the 4 to 20mA current
output
Secondary value (SV) • Total level (default)
• Interface
• Thickness of the upper medium (upper phase)
—
Tertiary value (TV) • Thickness of the upper medium
(upper phase) (default)
• Interface
•Totallevel
• Amplitude of the total level signal
—
Quaternary (4th) value (QV) Amplitude of the interface level signal No variable assignment
Stromausgang 1
Relais 1
Stromausgang 2
Stromausgang 3
Relais 2
Relais 2
versorgung
Eingang
Eingang
1
2
3
4
5
6
7
8
9
11
12
13
14
15
19
20
21
16
17
18
22 23 24
24V DC
10 HART Loop Converter HMX50
Levelflex MHART
Commubox
FXA191/195
+
-
+
Current output 1
Relay 1
Current output 2
Current output 3
Relay 2
Power
supply
Input
Power
HART

Levelflex M FMP45 with HART/4...20 mA Installation
Endress+Hauser 17
3.5 Special information on interface measurement

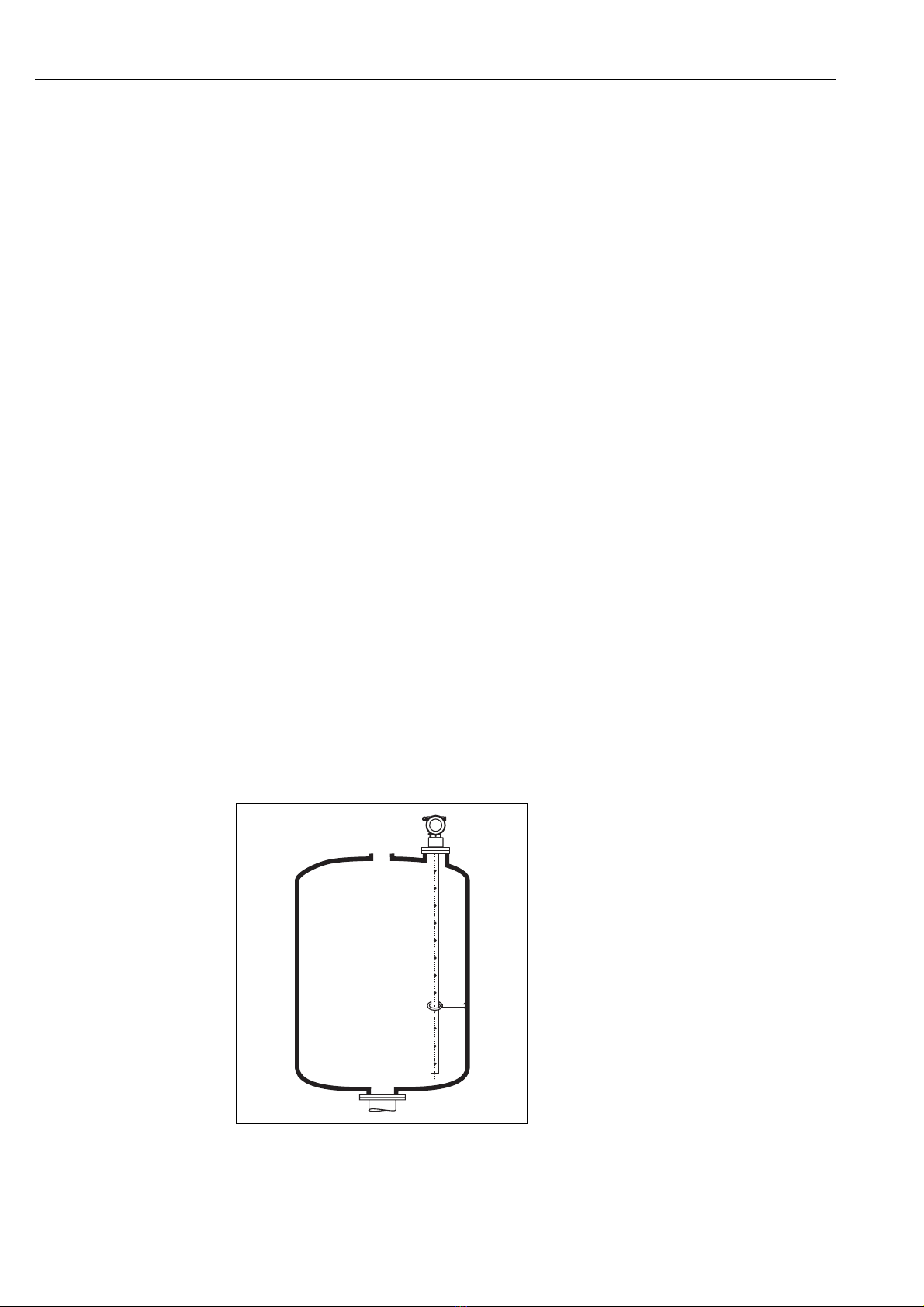

Installation in horizontal cylindrical, upright and underground tanks
• Use coax probes or rod probes in the bypass/stilling well. A segmented probe is available as a
special version for longer measuring ranges.
• Any distance from the wall is possible for coax probes or rod probes in the stilling well. In the case
of rod probes, it must be ensured that the probe does not come into contact with the wall.
L00-FMP4xIxx-17-00-00-xx-002
!Note!
Rope and rod probes can only be freely installed in the tank under certain circumstances - please
contact your Endress+Hauser office.
Installation in stilling well or bypass
• A rod probe can be used for pipe diameters
bigger than 40 mm.
• Rod probe installation can take place up to a
diameter size of 100 mm. In the event of
larger diameters, a coax probe is
recommended.
• Welded joints that protrude up to approx.
5 mm inwards do not affect the measurement.
• The pipe may not exhibit any steps in
diameter.
• In the case of rod probes, it must be ensured
that the probe does not come into contact
with the wall. If necessary, use a centering
disk at the end of the probe.
!Note!
A plastic centering disk has to be used for
interface measurement (see Accessories
→ä57).
L00-FMP4xIxx-17-00-00-xx-003

Installation Levelflex M FMP45 with HART/4...20 mA
18 Endress+Hauser
3.6 Installation instructions
3.6.1 Mounting kit
In addition to the tool needed for flange mounting, you will require the following tool:
• For mounting adapters: 60 mm open-end spanner for 1½", 50 mm open-end spanner for ¾".
• A 4 mm Allen key for turning the housing.
3.6.2 Shortening probes
Rod probes
It is necessary to shorten a rod probe if the distance to the tank floor or outlet cone is less than
50 mm. The rods of a rod probe are shortened by sawing or separating at the bottom end.
Coax probes
It is necessary to shorten a coax probe if the distance to the tank floor or outlet cone is less than
10 mm.
Coax probes can be shortened a maximum of 80 mm from the end. They have centering units inside
which fix the rod centrally in the pipe. The centerings are held on the rod by flanges. Shortening is
possible up to approx. 10 mm below the centering.
!Note!
Seal for devices with G 1½" adapter
The thread and type of seal on FMP45 corresponds to DIN 3852 Part 1, screwed plug form A.
Sealing rings as per DIN 7603 with dimensions 48x55 mm can be used for this.
Please use a sealing ring according to this standard in the form A, C or D and of a material that is
resistant to the application.
Supporting probes against warping
For Ex approval:
A support is required for probe lengths ≥3 m, (see drawing).
Coax probes
L00-FMP4xIxx-17-00-00-xx-004

Levelflex M FMP45 with HART/4...20 mA Installation
Endress+Hauser 19
3.6.3 Replacing a displacement system in an existing displacer
chamber
The Levelflex M is a perfect replacement for a conventional displacer system in an existing displacer
chamber. In addition to the DIN and ANSI flanges, which are available as standard,
Endress+Hauser also offers flanges that suit Fischer and Masoneilan displacer chamber (special
product) for this purpose. Thanks to menu-guided local operation, commissioning the Levelflex M
only takes a few minutes. Replacement is also possible when partially filled, and wet calibration is
not required.
Your benefits:
• No moving parts, thus zero-maintenance operation.
• Not sensitive to process influences such as temperature, density, turbulence and vibrations.
• The rod probes can be shortened or replaced easily. In this way, the probe can be easily adjusted
on site.
L00-FMP4xIxx-17-00-00-en-002
Planning instructions:
• In normal cases, use a rod probe. When installing into a metal displacement housing up to
150 mm (100 mm for interface), you have all the advantages of a coax probe.
• It must be ensured that the probe does not come into contact with the side wall. Where necessary,
use a centering disk at the lower end of the probe (special product).
• A centering disk must be adapted as accurately as possible to the internal diameter of the displacer
chamber to also ensure perfect operation in the area of the probe end.
Additional information on interface measurement
• The pipe may not exhibit any steps in diameter. Use the coax probe where necessary.
• In the case of rod probes, it must be ensured that the probe does not come into contact with the
wall. If necessary, use a centering disk at the end of the probe.
!Note!
A plastic centering disk has to be used for interface measurement, see Accessories →ä57.
displacer chamber flange

Installation Levelflex M FMP45 with HART/4...20 mA
20 Endress+Hauser
3.6.4 Installing with heat insulation
• If process temperatures are high (≥200 °C), FMP45 must be included in normal tank insulation
to prevent the electronics heating up as a result of thermal radiation or convection.
• The insulation may not go beyond the points labeled "MAX" in the drawings.
Process connection with flange DN50 to DN100
L00-FMP45xxx-17-00-00-en-001
Process connection with G 1½" and 1½" NPT adapter
L00-FMP45xxx-17-00-00-en-002
MAX
MAX
HT 400 °C
XT 280 °C
max. 400° C (752° F)max. 280° C (536° F)
tank insulation
tank insulation
high temperature version
(type of probe B)
extended temperature version
(type of probe A)
MAX
MAX
HT 400 °C
XT 280 °C
max. 400° C (752° F)max. 280° C (536° F)
tank insulation
tank insulation
high temperature version
(type of probe B)
extended temperature version
(type of probe A)
