Operating Instructions
Solitrend MMP40
Material moisture measurement
BA01936M/00/EN/02.19
71454834
2019-10-31

Solitrend MMP40
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Solitrend MMP40 Table of contents
Endress+Hauser 3
Table of contents
1 About this document ................ 4
1.1 Document function ..................... 4
1.2 Symbols used .......................... 4
1.3 Terms and abbreviations ................. 6
1.4 Documentation ........................ 6
2 Basic safety instructions ............ 7
2.1 Requirements for the personnel ............ 7
2.2 Designated use ........................ 7
2.3 Workplace safety ....................... 8
2.4 Operational safety ...................... 8
2.5 Product safety ......................... 8
3 Product description ................. 9
3.1 Product design ......................... 9
4 Incoming acceptance and product
identification ..................... 10
4.1 Incoming acceptance ................... 10
4.2 Product identification ................... 10
4.3 Manufacturer's address ................. 10
4.4 Storage, transport ..................... 10
5 Installation ....................... 11
5.1 Installation conditions .................. 11
5.2 Mounting location for round sensor, short /
middle version ........................ 11
5.3 Mounting location for round sensor, long
version ............................. 12
5.4 Mounting location for rectangular sensor .... 13
5.5 Mounting location for rod sensor .......... 13
5.6 Protection of sensor connector against
abrasion ............................ 14
5.7 Post-installation check .................. 15
6 Electrical connection .............. 16
6.1 Connection conditions .................. 16
6.2 Cable specification ..................... 18
6.3 Electrical connection - example, sensor cable
with 10-pin socket (sensor side) and ferrules
at the end of the cable .................. 19
6.4 Post-connection check .................. 19
7 Operating options ................. 20
7.1 Overview of operation options ............ 20
8 Commissioning .................... 21
8.1 Analog outputs for measured value output ... 21
8.2 Operating mode ....................... 22
8.3 Calibration curves Cal1 to Cal15 ........... 23
8.4 Special functions ...................... 24
9 Diagnostics and troubleshooting ... 26
9.1 Optimizing the material flow ............. 26
9.2 Difference between measured moisture value
and laboratory value too large during initial
commissioning ....................... 26
10 Maintenance ...................... 28
10.1 Exterior cleaning ...................... 28
11 Repair ............................ 29
11.1 General information ................... 29
11.2 Return .............................. 29
11.3 Disposal ............................ 29
12 Accessories ....................... 30
12.1 Device-specific accessories ............... 30
13 Technical data .................... 33
13.1 Input ............................... 33
13.2 Output ............................. 33
13.3 Performance characteristics .............. 33
13.4 Environment ......................... 34
13.5 Process ............................. 34

About this document Solitrend MMP40
4 Endress+Hauser
1 About this document
1.1 Document function
These Operating Instructions provide all of the information that is required in various
phases of the life cycle of the device including:
• Product identification
• Incoming acceptance
• Storage
• Installation
• Connection
• Operation
• Commissioning
• Troubleshooting
• Maintenance
• Disposal
1.2 Symbols used
1.2.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Symbols for certain types of information and graphics
Permitted
Procedures, processes or actions that are permitted
Preferred
Procedures, processes or actions that are preferred
Forbidden
Procedures, processes or actions that are forbidden
Tip
Indicates additional information
Reference to documentation
Reference to graphic

Solitrend MMP40 About this document
Endress+Hauser 5
Notice or individual step to be observed
1.
,
2.
,
3.
Series of steps
Result of a step
1, 2, 3, ...
Item numbers
A, B, C, ...
Views
Safety instructions
Observe the safety instructions contained in the associated Operating Instructions

About this document Solitrend MMP40
6 Endress+Hauser
1.3 Terms and abbreviations
BA
Document type "Operating Instructions"
TI
Document type "Technical Information"
SD
Document type "Special Documentation"
PN
Nominal pressure
PLC
Programmable logic controller (PLC)
1.4 Documentation
The following documentation types are available in the Downloads section of the Endress
+Hauser website (www.endress.com/downloads):
For an overview of the scope of the associated Technical Documentation, refer to the
following:
•W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number
from nameplate
•Endress+Hauser Operations App: Enter the serial number from the nameplate or
scan the 2D matrix code (QR code) on the nameplate
1.4.1 Technical Information (TI)
Planning aid
The document contains all the technical data on the device and provides an overview of
the accessories and other products that can be ordered for the device.

Solitrend MMP40 Basic safety instructions
Endress+Hauser 7
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the
application).
‣Follow instructions and comply with basic conditions.
The operating personnel must fulfill the following requirements:
‣Are instructed and authorized according to the requirements of the task by the facility's
owner-operator.
‣Follow the instructions in this manual.
2.2 Designated use
Application and media
The measuring device described in this manual is intended for the continuous moisture
measurement of a wide variety of materials. Because of its operating frequency of approx.
1 GHz, the device can also be used outside of closed metal vessels.
If operated outside of closed vessels, the device must be mounted in accordance with the
instructions in the "Installation" section. The operation of the devices does not present any
health risk. If the limit values specified in the "Technical data" and the conditions listed in
the manual and additional documentation are observed, the measuring device may be used
for the following measurements only:
• Measured process variables: material moisture, material conductivity and material
temperature
To ensure that the measuring device remains in proper operating condition throughout the
operating period:
‣Use the device only for media to which the process-wetted materials are sufficiently
resistant.
‣Observe the limit values in "Technical data".
Incorrect use
The manufacturer is not liable for damage caused by improper or non-designated use.
Clarification of borderline cases:
‣For special materials and media used for cleaning, the manufacturer is happy to
provide assistance in verifying the corrosion resistance of medium-wetted materials,
but disclaims any warranty or liability.
Residual risks
Due to heat transfer from the process as well as power dissipation within the electronics,
the temperature of the electronics housing and the assemblies contained therein may rise
to 70 °C (158 °F) during operation. During operation, the sensor can reach a temperature
close to the medium temperature.
Danger of burns from contact with surfaces!
‣In the event of elevated medium temperatures, ensure protection against contact to
prevent burns.

Basic safety instructions Solitrend MMP40
8 Endress+Hauser
2.3 Workplace safety
When working on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
‣If, despite this, modifications are required, consult with the manufacturer.
Repair
To ensure continued operational safety and reliability,
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to repair of an electrical device.
‣Use original spare parts and accessories from the manufacturer only.
Hazardous area
To eliminate a danger for persons or for the facility when the device is used in the
hazardous area (e.g. explosion protection, pressure vessel safety):
‣Based on the nameplate, check whether the ordered device is permitted for the
intended use in the hazardous area.
‣Observe the specifications in the separate supplementary documentation that is an
integral part of these Instructions.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements, has been tested, and left the factory in a condition in
which it is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. The manufacturer
confirms this by affixing the CE mark to the device.

Solitrend MMP40 Product description
Endress+Hauser 9
3 Product description
TDR material moisture sensors for measuring bulk solids, emulsions, liquids and media
with higher material densities and conductivity values up to 20 ms/cm.

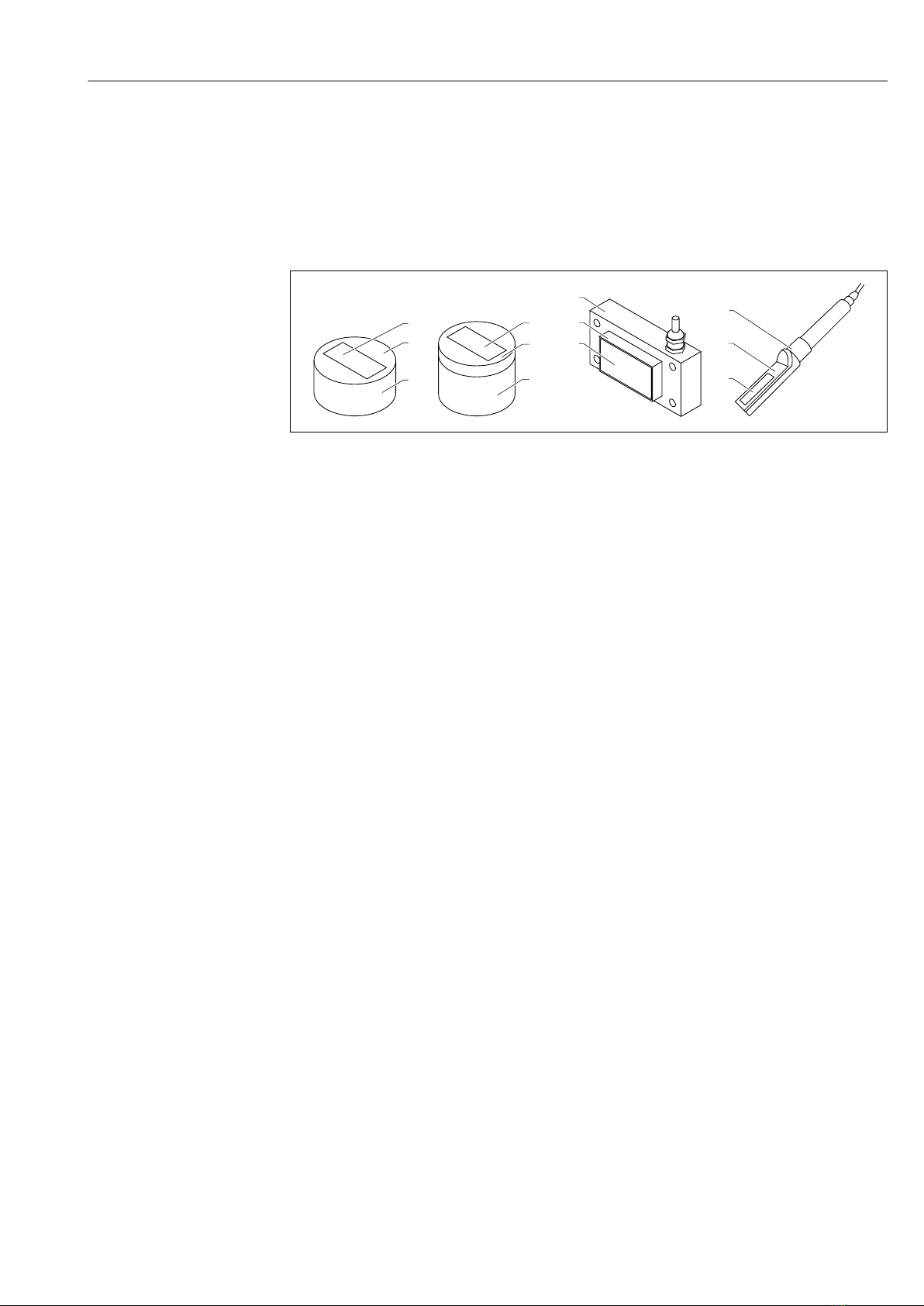

3.1 Product design
1
2
3
1
2
3
1
2
3
1
2
3
A0040142
 1 Product design
1 Measuring cell; ceramic (silicon nitride)
2 Sensor plate
3 Housing

Incoming acceptance and product identification Solitrend MMP40
10 Endress+Hauser
4 Incoming acceptance and product
identification
4.1 Incoming acceptance
Check the following during incoming acceptance:
 Are the order codes on the delivery note and the product sticker identical?
 Are the goods undamaged?
 Do the nameplate data match the ordering information on the delivery note?
 If required (see nameplate): Are the safety instructions (XA) provided?
If one of these conditions is not met, please contact the manufacturer's sales office.
4.2 Product identification
The following options are available for the identification of the measuring device:
• Nameplate specifications
• Extended order code with breakdown of the device features on the delivery note
‣Enter the serial number from the nameplates into W@M Device Viewer
(www.endress.com/deviceviewer)
 All the information about the measuring device and the scope of the associated
Technical Documentation are displayed.
‣Enter the serial number from the nameplate into the Endress+Hauser Operations App
or use the Endress+Hauser Operations App to scan the 2-D matrix code (QR Code)
provided on the nameplate
 All the information about the measuring device and the scope of the associated
Technical Documentation are displayed.
4.3 Manufacturer's address
Endress+Hauser SE+Co. KG
Hauptstraße 1
79689 Maulburg, Germany
4.4 Storage, transport
4.4.1 Storage conditions
• Permitted storage temperature: –40 to +70 °C (–40 to +158 °F)
• Use original packaging.
4.4.2 Transporting the product to the measuring point
Transport the device to the measuring point in the original packaging.

Solitrend MMP40 Installation
Endress+Hauser 11
5 Installation
5.1 Installation conditions
• The device must be installed at a point in the process in such a way that ensures a
relatively constant material density, as the material density is directly related to the
measured value/reading. Where necessary, a bypass should be created or structural
measures may be needed at the place of installation to ensure that the material flow,
and therefore the material density, over the sensor is relatively constant.
• The measuring cell should be completely surrounded by material. For this type of device,
the minimum layer of material covering the cell must be ≥35 mm (moisture-dependent).
• The flow of material over the surface of the sensor should be relatively continuous.
Depending on the operating mode, the electronics module offers ways to automatically
detect and bridge gaps in material in intervals of seconds.
• No material deposits or buildup may form on the sensor surface, as this would falsify the
readings.
Longer averaging times increase measurement accuracy.
5.2 Mounting location for round sensor, short / middle
version
The short / medium round sensor can be installed using a mounting flange.
1
2
3
A0037422
 2 Round sensor mounted, rear view
1 Vessel wall
2 Mounting flange
3 Round sensor
5.2.1 Mounting flange Ø108 mm
The mounting flange for the round sensor (short or middle version) can be mounted on
the bottom or on the side wall of the container.

Installation Solitrend MMP40
12 Endress+Hauser
86 (3.39)
86 (3.39)
132 (5.2)
Ø108 (4.25)
10
(0.39)
Ø6.5
(0.26)
1
A0037423

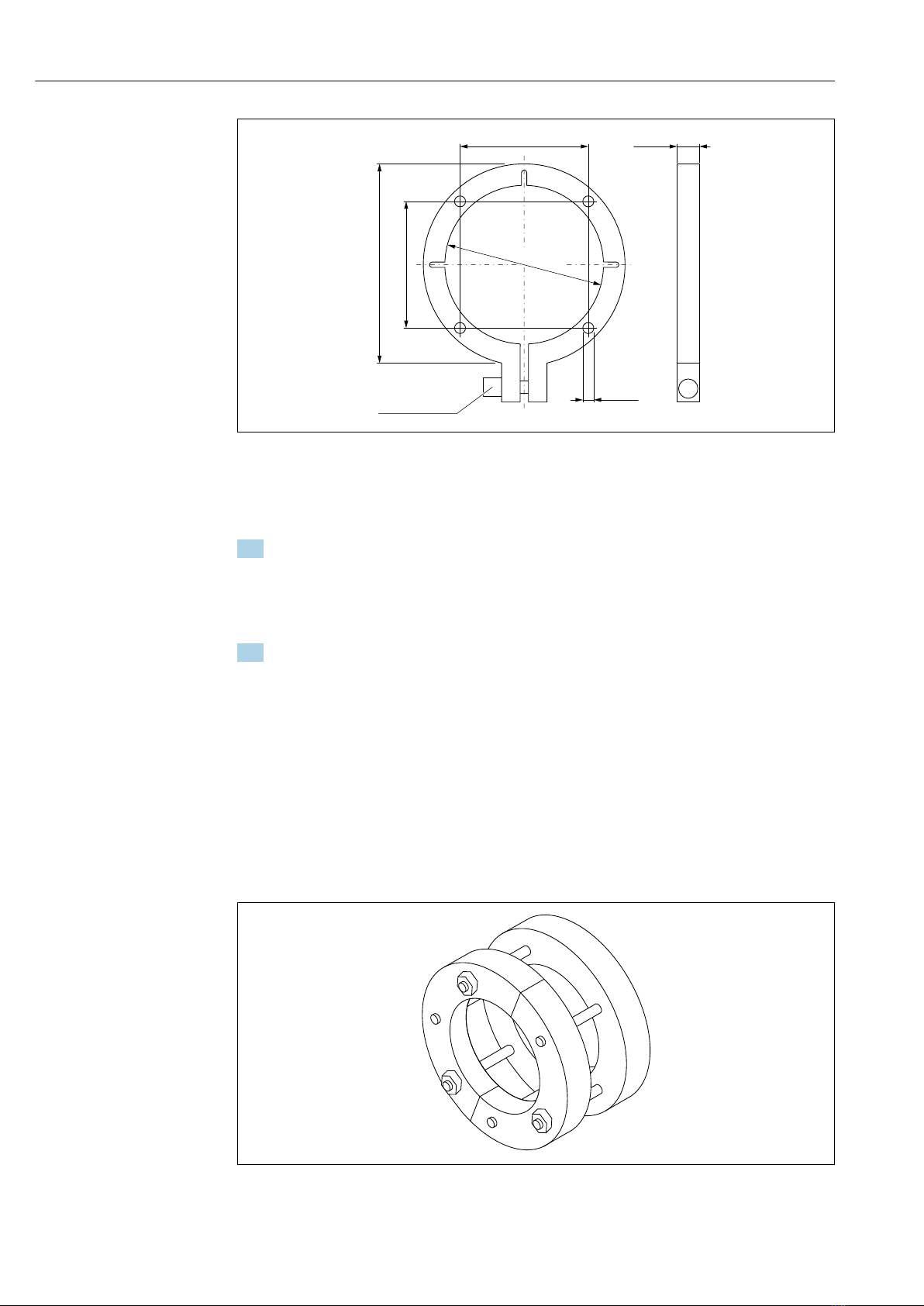

 3 Mounting flange for round sensor, short version or round sensor, middle version
The mounting flange serves as a template for the mounting bore holes and the cut-out for
the sensor in the container:
1. Check the fit between the sensor and mounting flange
 An installation pipe must first be mounted on the sensor before the mounting
flange can be fixed. The installation pipe is available in two different lengths and
can be ordered together with the device via the "Accessory mounted" (option NA)
or "Accessory enclosed" (option PA) section of the product order structure.
2. Make the cut-out in the container
5.3 Mounting location for round sensor, long version
The long version of the round sensor can be installed on the bottom or on the side wall of a
mixer using a mounting frame.
5.3.1 Mounting frame
A mounting frame is available for the long version of the round sensor. The frame can be
welded onto the floor or side wall of the vessel. At the clamping ring, the sensor can be
adjusted to the correct height or position using adjusting screws and nuts.
A0037425
 4 Mounting frame with clamping ring for round sensor, long version

Solitrend MMP40 Installation
Endress+Hauser 13
Before welding the mounting flange to the bottom or wall:
1. Check the fit between the sensor and mounting frame
2. Make the cut-out in the mixer bottom
5.4 Mounting location for rectangular sensor
The rectangular sensor can be installed with four screws (M8).
5.4.1 Dimensions
60 (2.36)
36 (1.42)
90 (3.54)
135 (5.31)
Ø8.5 (0.33)
12.5 (0.49)
25 (0.98)
47.5 (1.87)
45 (1.77)
A0037426
 5 Dimensions of rectangular sensor. Unit of measurement mm (in)
5.5 Mounting location for rod sensor
The rod sensor can be installed using a mounting flange and a 0.2 m-long installation pipe
(additional mounting accessories are optionally available).
1234
A0038248
 6 Installation of the rod sensor with a mounting flange
1 Sensor
2 Silo or vessel wall
3 Mounting flange - is mounted on item 4 (installation pipe)
4 Installation pipe for rod sensor (0.2 m - accessory mounted or 1.0 m - accessory enclosed)

Installation Solitrend MMP40
14 Endress+Hauser
5.5.1 Mounting flange Ø55 mm
The mounting flange for the rod sensor can be mounted on the container wall.
48 (1.89)
80 (3.15)
Ø55 (2.17)
10
(0.39)
Ø7
(0.28)
48 (1.89)
1
A0038247
 7 Mounting flange for the rod sensor
The mounting flange serves as a template for the mounting bore holes and the cut-out for
the sensor in the container:
1. Check the fit between the sensor and mounting flange
 An installation pipe must first be mounted on the sensor before the mounting
flange can be fixed. The installation pipe is available in two different lengths and
can be ordered together with the device via the "Accessory mounted" (option NA)
or "Accessory enclosed" (option PA) section of the product order structure.
2. Make the cut-out in the container
5.6 Protection of sensor connector against abrasion
If sand and gravel can come into contact with the sensor connector when they flow over
the baffle plate, it is recommended to mount an additional protective guard on the sensor
connector.
1. The heat-shrink tube supplied with the cable can be used to provide this protection.

A0037427
 8 Example of round sensor

Solitrend MMP40 Installation
Endress+Hauser 15
2. Once the sensor has been installed and the sensor cable connected, the heat-shrink
tube can be shrunk onto the connector and cable with a hot air blower

A0037428
 9 Example of round sensor
3. In addition, the sensor and ground cable can be protected with a silicone tube (not
included in the delivery)

A0037429
 10 Example of round sensor
5.7 Post-installation check
Perform the following checks after mounting the device:
 Is the device undamaged (visual inspection)?
 If provided: are the measuring point number and labeling correct?
 Are the connections established correctly and protected against mechanical influences?
 Is the device securely seated in the mounting flange (visual inspection)?

Electrical connection Solitrend MMP40
16 Endress+Hauser
6 Electrical connection
6.1 Connection conditions
6.1.1 Terminal assignment
Round and rod sensors
Round and rod sensors are supplied as standard with a 10-pin connector with IP67
protection.
AB
C
D
E
F
G
H
J
K
A0037415
 11 Assignment of the 10-pin connector
A 12 to 24 VDC stabilized power supply
Wire color: red (RD)
B 0 VDC power supply
Wire color: blue (BU)
D 1st analog positive (+), material moisture
Wire color: green (GN)
E 1st analog return line (-), material moisture
Wire color: yellow (YE)
F RS485 A (must be enabled)
Wire color: white (WH)
G RS485 B (must be enabled)
Wire color: brown (BN)
C IMP-Bus RT
Wire color: gray (GY) / pink (PK), see Figure 12
J IMP-Bus COM
Wire color: blue (BU) / red (RD), see Figure 12
K 2nd analog positive (+)
Wire color: pink (PK)
E 2nd analog return line (-)
Wire color: gray (GY)
H Shield (is grounded at the sensor. The installation must be grounded correctly!)
Wire color: transparent

Solitrend MMP40 Electrical connection
Endress+Hauser 17
Connection to a remote display
1234
AB
C
A0040962
 12 Connection to a remote display (can be selected as option B in feature 030)
A USB (Mini B type), USB-IMP-Bridge, firmware update (only for service purposes)
B Socket for supply voltage and bus interface
C Connector for supply voltage and bus interface (included in the delivery for "remote display")
1 0 VDC power supply
Wire color: blue (BU)
2 12 to 24 VDC stabilized power supply
Wire color: red (RD)
3 IMP-Bus (RT)
Wire color: gray (GY) / pink (PK)
4 IMP-Bus (COM)
Wire color: blue (BU) / red (RD)
Rectangular sensors
Standard version of rectangular sensor:
• Cable length: 5 m (10-pin)
• The cable is firmly connected to the sensor
• The other end of the cable is fitted with ferrules

Electrical connection Solitrend MMP40
18 Endress+Hauser
1
2
A0041156

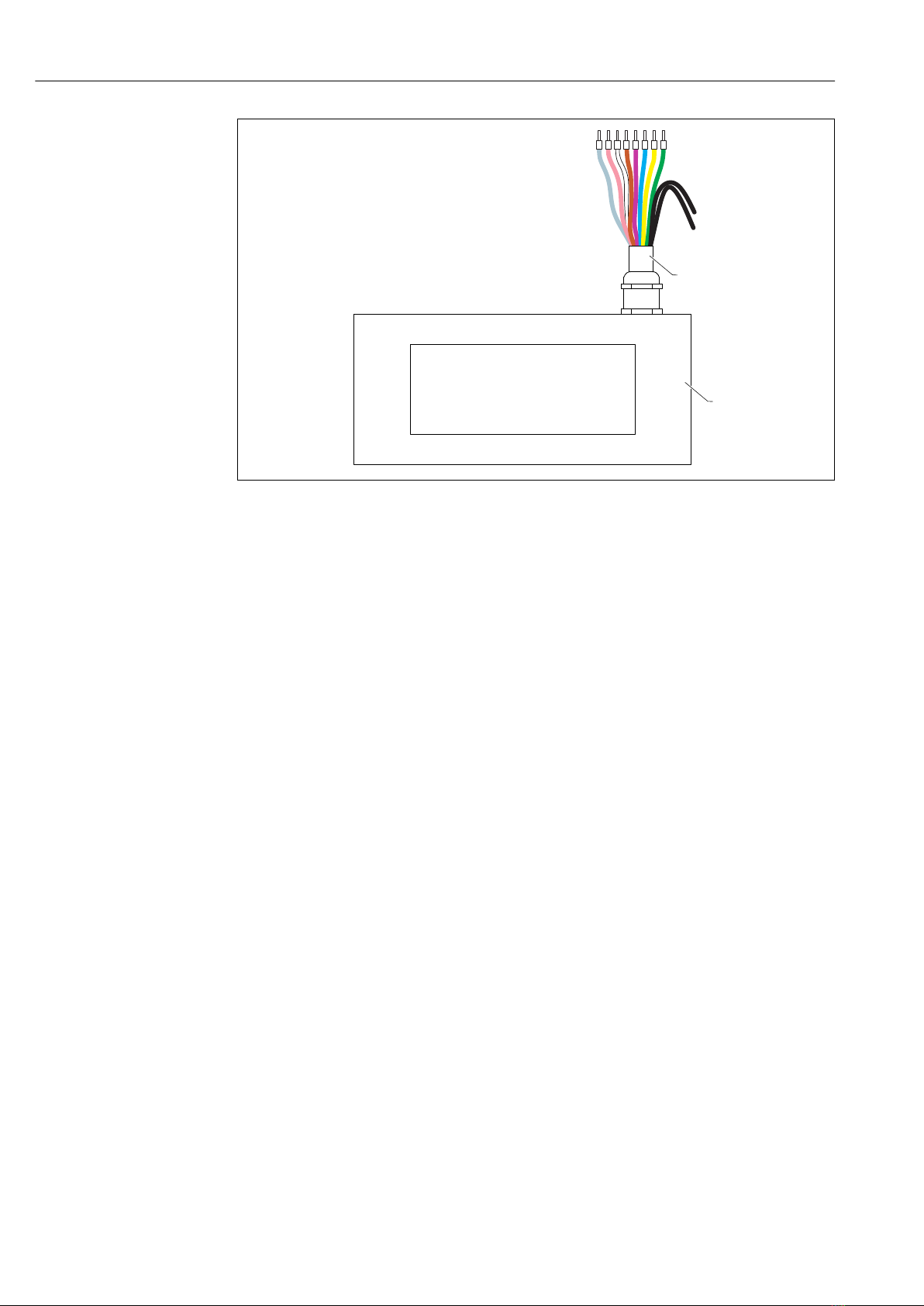

 13 Rectangular sensor with 10-pin cable assignment
1 10-pin cable with ferrules
- IMP-Bus COM
Wire color: gray (GY)
- IMP-Bus RT
Wire color: pink (PK)
- 12 to 24 VDC stabilized power supply
Wire color: white (WH)
- 0 VDC power supply
Wire color: brown (BN)
- 2nd analog return line (-)
Wire color: violet (VT)
- 2nd analog positive (+)
Wire color: blue (BU)
- 1st analog return line (-), material moisture
Wire color: yellow (YE)
- 1st analog positive (+), material moisture
Wire color: green (GN)
2 Rectangular sensor
6.2 Cable specification
Connecting cables are available in different versions and lengths (depending on sensor
design).
Round sensor, rod sensor
Connecting cables with a preassembled 10-pin socket on the sensor side are available in
different standard lengths:
• 4 m (13 ft)
• 10 m (32 ft)
• 25 m (82 ft)
UNITRONIC PUR CP shielded cable, twisted pairs 6 × 2 × 0.25 mm2, PUR sheath resistant
to oils and chemicals.
Rectangular sensor
Standard lengths (fixed cable):
• 5 m (16 ft)
• Cable lengths of 1 to 100 m (3 to 328 ft) are possible upon request
UNITRONIC PUR CP shielded cable, 10 × 0.25 mm2, PUR sheath resistant to oils and
chemicals.

Solitrend MMP40 Electrical connection
Endress+Hauser 19
6.3 Electrical connection - example, sensor cable with
10-pin socket (sensor side) and ferrules at the end of
the cable
6 7 85
2
1 4
3
2
1
2
1
3
4
34
A
B
C
12
A0037418

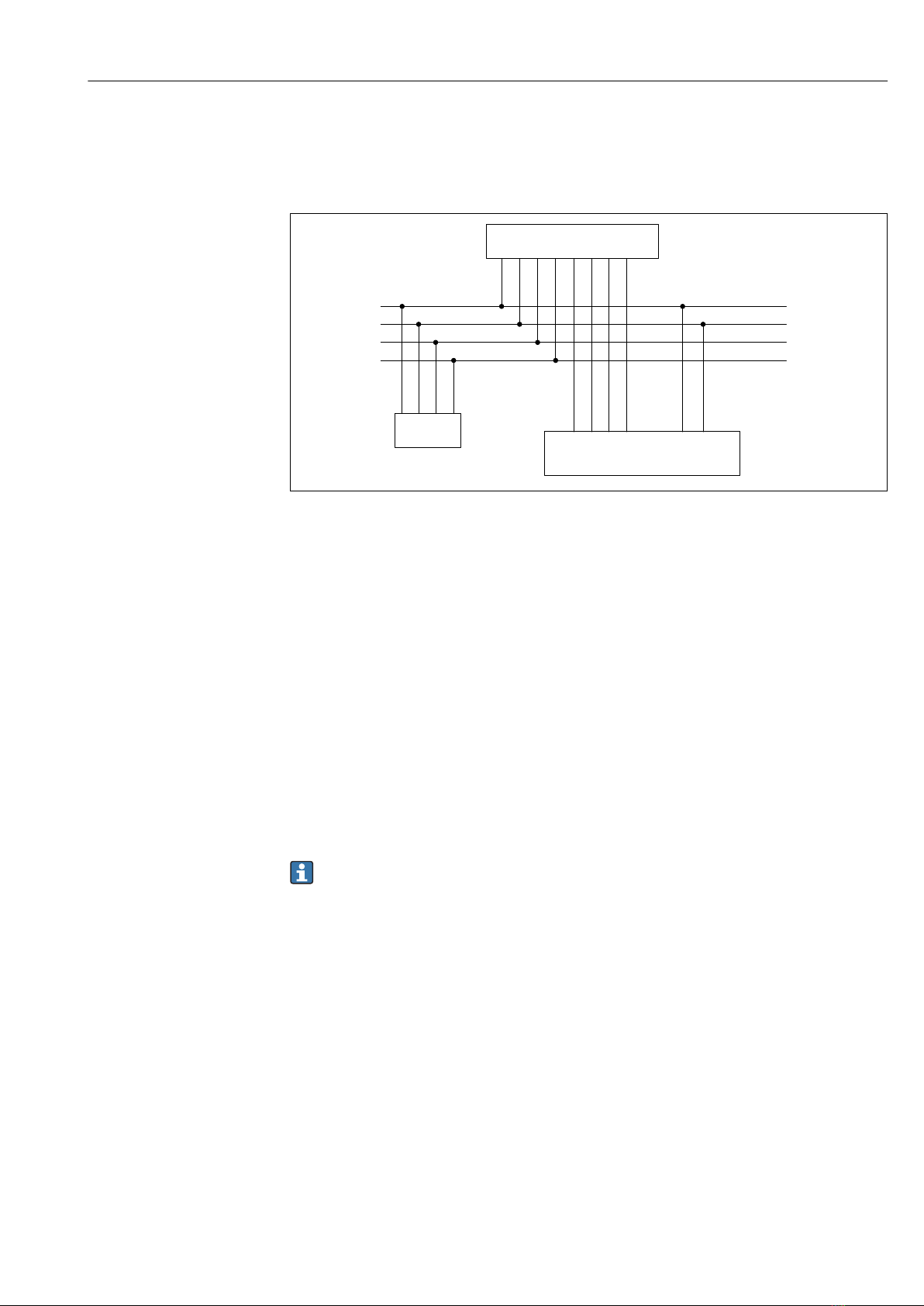

 14 Connection example
A Sensor
B PLC / distribution box
C Remote display (optional)
1 0 VDC power supply
Wire color: blue (BU)
2 12 to 24 VDC stabilized power supply
Wire color: red (RD)
3 IMP-Bus RT
Wire color: gray (GY) / pink (PK)
4 IMP-Bus COM
Wire color: blue (BU) / red (RD)
5 1st current output (+), analog
Wire color: green (GN)
6 1st current output (-), analog
Wire color: yellow (YE)
7 2nd current output (+), analog
Wire color: pink (PK)
8 2nd current output (-), analog
Wire color: gray (GY)
The moisture content determined and the conductivity / temperature can either be
fed directly into a PLC via analog outputs 0 to 20 mA/4 to 20 mA or queried via the
serial interface (IMP-Bus).
6.4 Post-connection check
 Is the device or cable undamaged (visual inspection)?
 Does the supply voltage match the specifications on the nameplate?
 Are the connections established correctly and protected against mechanical influences?

Operating options Solitrend MMP40
20 Endress+Hauser
7 Operating options
7.1 Overview of operation options
1234
6
5
7
8
9
IMP-Bus
RS485
A0037417
 15 Operation options
1 Round sensor, short
2 Round sensor, middle
3 Round sensor, long
4 Rectangular sensor
5 Rod sensor
6 Remote display
7 Computer
8 LED display
9 PLC or water dosing computer
